Used Stop/Start Cut To Length Line
2150mm x 20mm
SHM
A 2150mm x 20mm, 35 t used Stop/Start Two-Leveler Cut To Length Line for sale. Dismantled. Built by one of few China equipment builders, whose Products we sometimes propose... ( > good standard of engineering -- reliable suppliers )
2150mm x max. 20mm, 35 t used Stop/Start Cut To Length Line for sale. Dismantled. The max. line speed is 30m /min. 12m long sheet stacker with 10 t max. capacity. The minimum material thickness that can be processed with the line is 8mm. Voltage 380V/50 Hz. The line direction is right to left.
Installed 2010/2011, line not used much. (It was a joint venture with a large Chinese steel works.)
The manufacturer: Shangdong Hongkang Machinery (SHM).

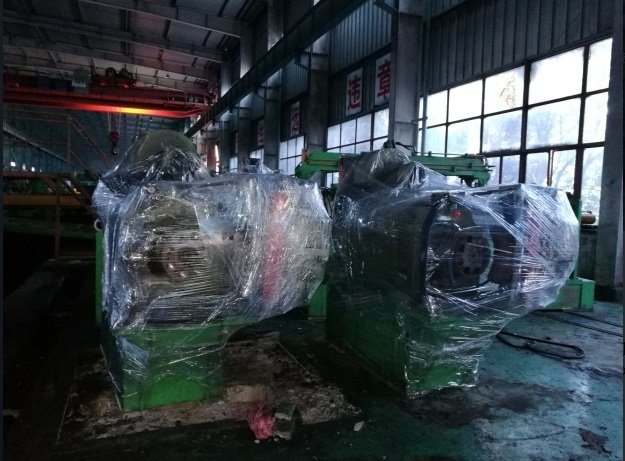

Line as now been dismantled ready for loading to transport.
To inspect the line: > Shanghai Pudong, P.R.C. Airport
I. TECHNICAL SPECIFICATION & EQUIPMENT DETAILS
A) Material Specification
Material : Q345
Tensile Strength : ≤550Mpa
Yield Strength : ≤345Mpa
Thickness : 8.0mm- 20mm
Coil width : 1000mm - 2150mm
Coil ID : Φ610mm & Φ760mm
Coil OD : Φ1000mm - Φ2000mm
Coil Weight : 35 ton (max.)
B) Output coil specification
Cut length : 2,000mm -12,000mm
Length accuracy : L=8m ≤ ±2mm, L=12m ≤ ±4mm
Diagonal accuracy : L=6m ≤ ±3mm, L=12m ≤ ±5mm
Stacking height : ≤350mm
Stacking weight : ≤10,000 ton
C) Line specification
Type of Line : Stop shear line
Line Direction : Right to Left
Line speed : 0-30m/min
Threading Speed : 10-20m/min
Passline height : 1100mm
D) Electrical Supply
Supply voltage : AC380V, 3 Phases
Supply frequency : 50 Hz
Control voltage : AC220V
Solenoid control : AC220V
Total connected load : About 990 kW
II SCOPE OF SUPPLY & SERVICES
a) Mechanical Equipment
1.1 Coil Skid
1.2 Entry Coil Car
1.3 Uncoiler
1.4 Coil Opener with: press roll, banding knife, breaker roll
1.5 Pinch Rolls & Entry Leveler
1.6 Entry Loop Table
1.7 Side Guide & Pinch Rolls
1.8 Edge Trimmer
1.9 Scrap winders (two)
1.10 Exit Loop Table
1.11 Side Guide
1.12 Finish Leveler with Pinch Rolls (4-Hi, 11 work rolls)

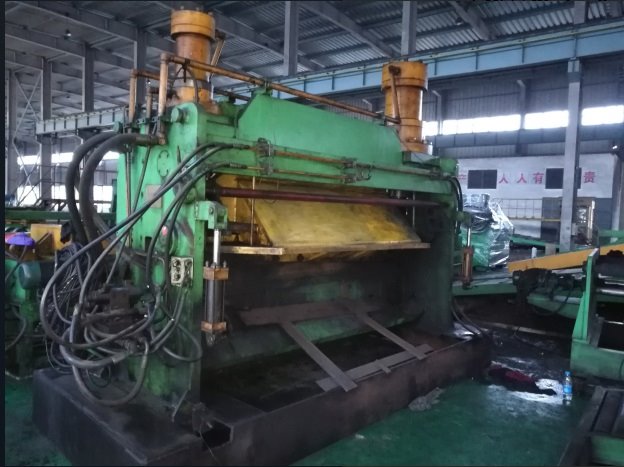

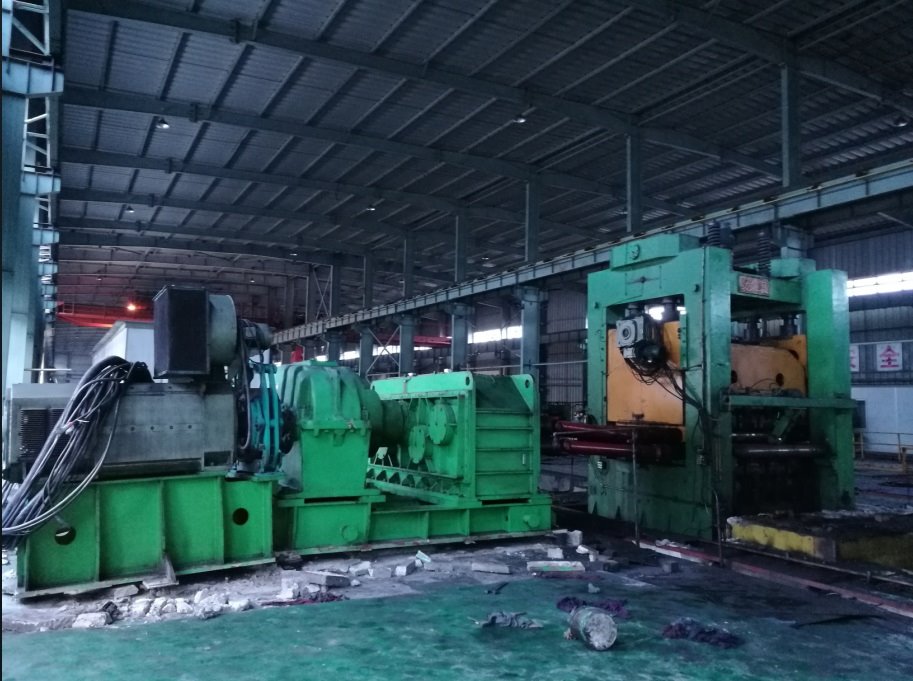

1.13 Hydraulic Shear
1.14 Roller Conveyor
1.15 Stacker
1.16 Lift Table
1.17 Exit Coil Skid
1.18 Hydraulics
1.19 Pneumatic
1.20 Electrics, Control System ( Parker Drive)

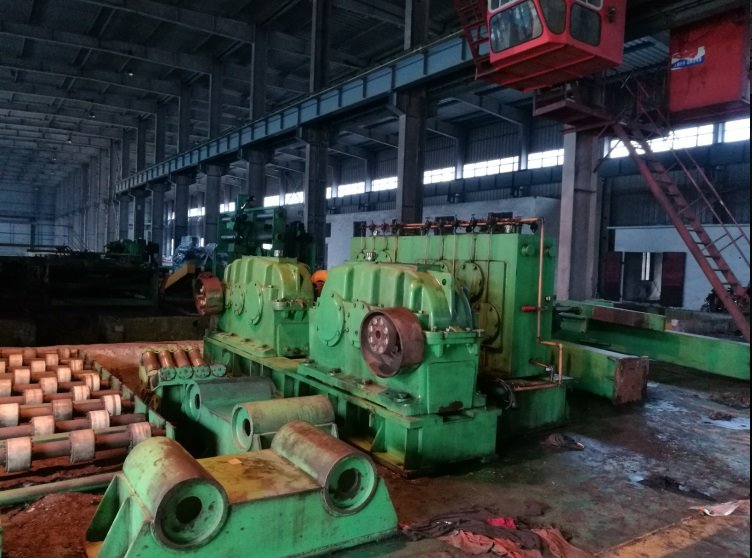

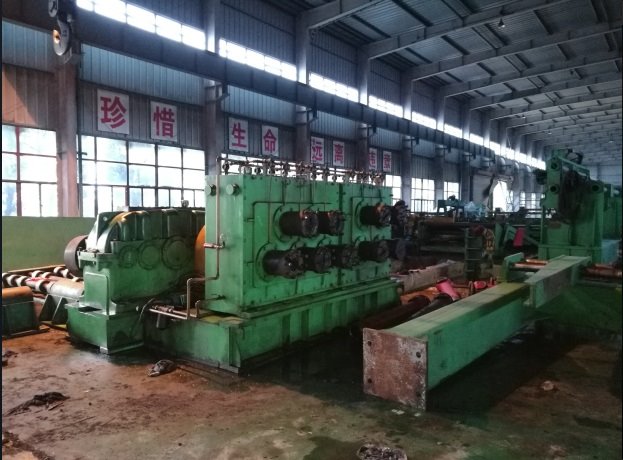

Entry Leveler & Pinch Rolls ^

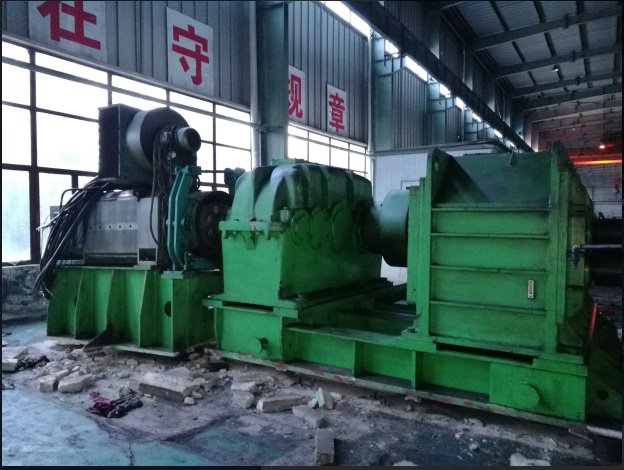

2-Hi 6 Work rolls with deflector roll in exit, work rolls dia.400mm, deflector roll dia.380mm; two sets pinch rolls, drive system with 2 sets DC 135 kW motors with gear reducer system

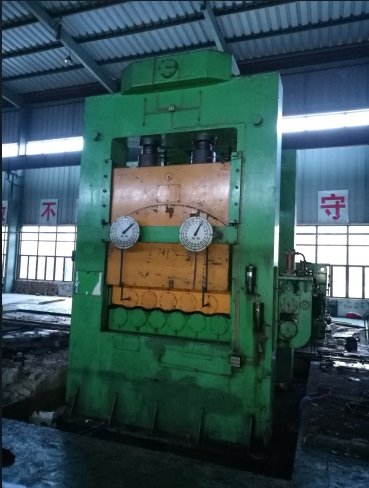

Finish Leveler & Pinch Rolls ^

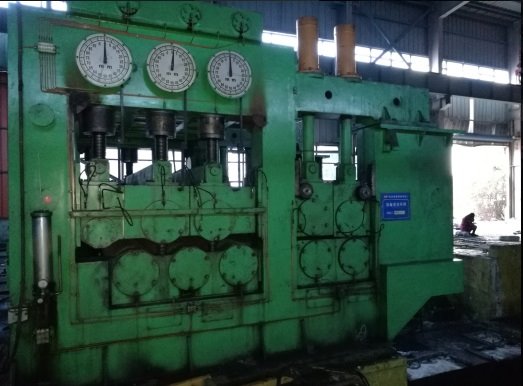

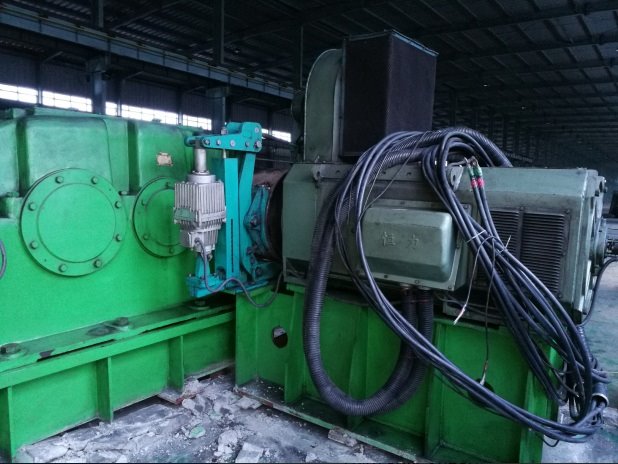

4-Hi 11 Work rolls with one set pinch rolls, work roll dia.220mm, 6 sets of backup rolls system, drive motor 430 kW
