Used Flying Shear Cut To Length Line
1550mm x 3 mm Aluminium
OCEMI
Year when built: 2010
This ca. 30m / m used aluminium cut to length line, built in 2010, was in very good condition installed & under power.
(The line manufacturer, OCEMI of Italy, has ceased from activity.
However we can provide the full service, spare parts etc. for all OCEMI-built equipment.)
Process Material: Aluminium
Coil Max. Weight: 15 t
Minimum Material Thickness: .4mm
Maximum Material Thickness: 3.0mm
Maximum Coil Width: 1550mm
Minimum / Maximum Coil ID: 480-508mm
Maximum Coil OD: 1600mm
Maximum length of sheets for auto.-stacking: 4500mm
Maximum height of sheet stacks: 300mm
Line Speed: approx. 30m / min
Coil Threading Speed: 10m / min
Line direction: right to left
Unwinding: from above
Installed Power:
Decoiler 56 kW A.C.
Leveller 71 kW D.C.
Flying shear 45 kW A.C.
Aux. ca. 40 kW in total
Voltage:
400 V / 50 Hz
Electrovalves 24 V D.C.
Hydraulics:
ca. 140 bar
Pneumatics:
6 bar
#3341 ALUMINIUM Cut To Length Line
EQUIPMENT DESCRIPTION
COIL LOADING CAR
15 t capacity
Saddle up/downstroking: 500mm
Lifting speed: 5m / min

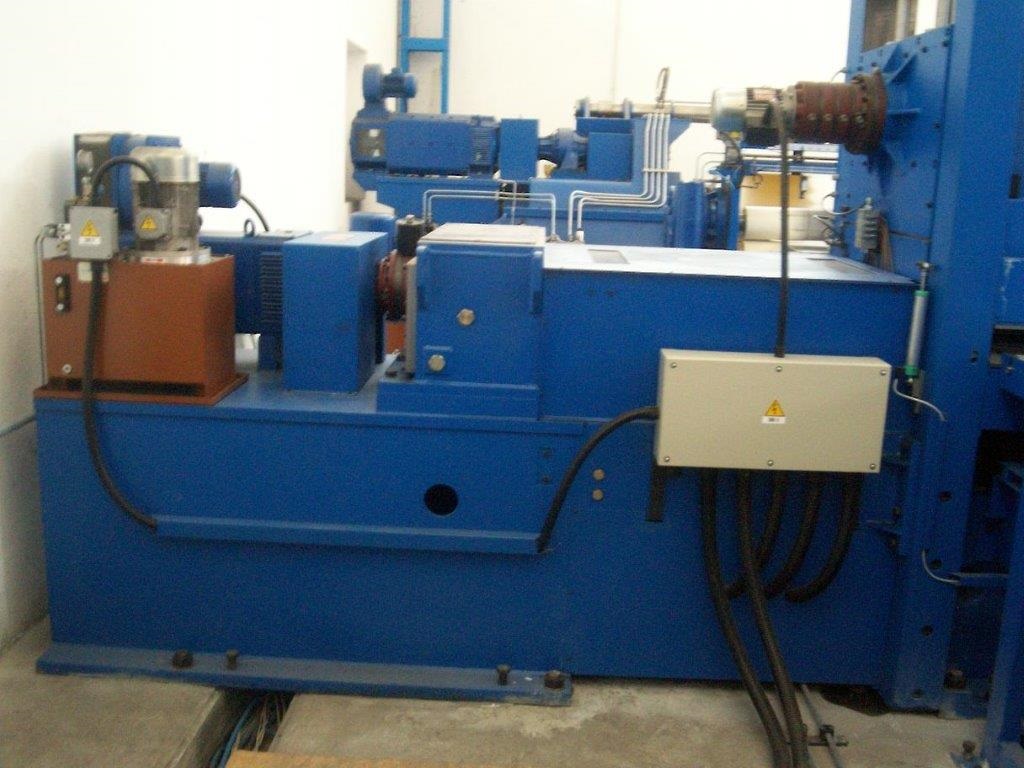

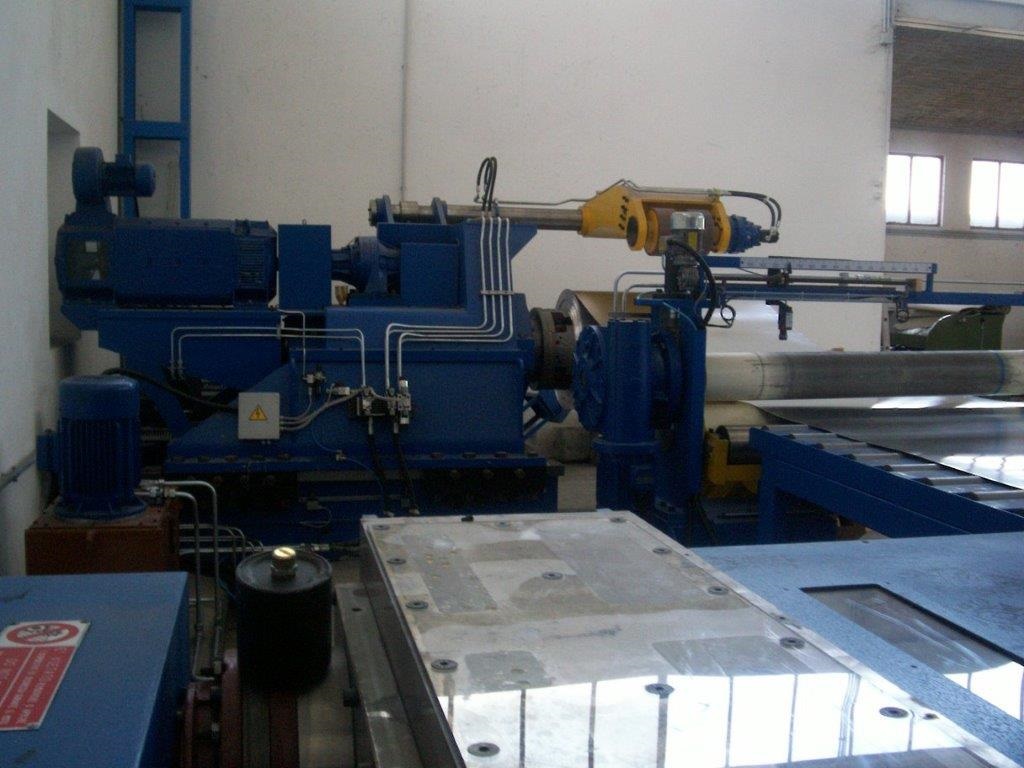

DECOILER
15 t capacity
Mobile base on bronze slides, ±100 mm
Hydraulic snubber roll arm
Emergency disc brake
Forward/reverse mandrel drum rotation
COIL THREADING STATION & POWERED PINCH ROLLS
With telescopic table, hydraulically operated
The lower pinch roll driven by a geared motor

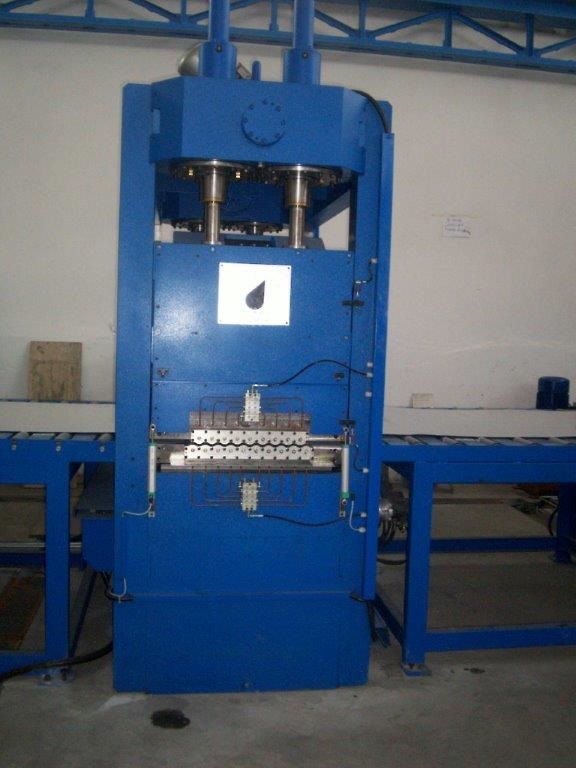

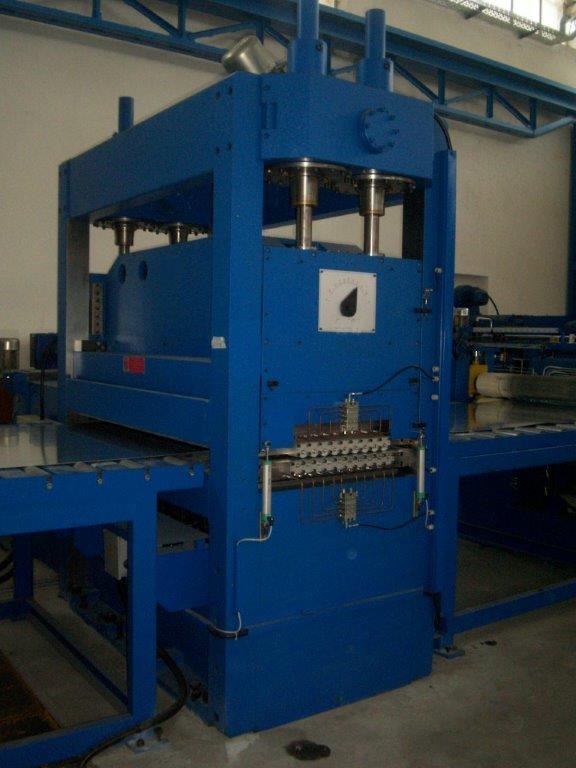

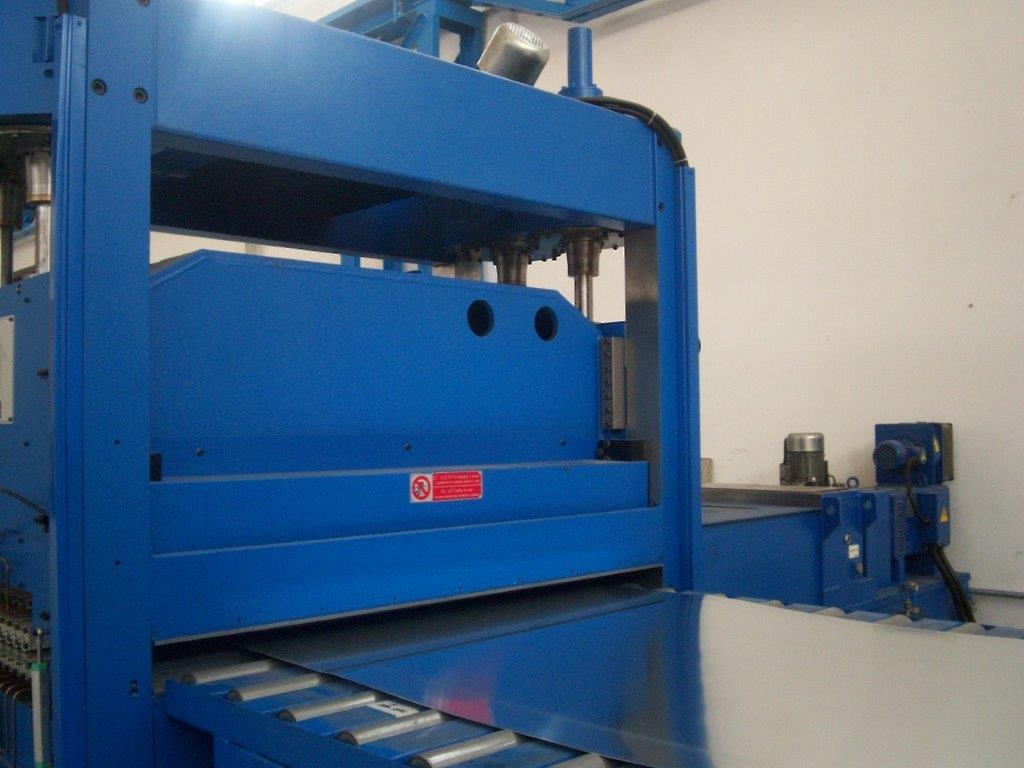

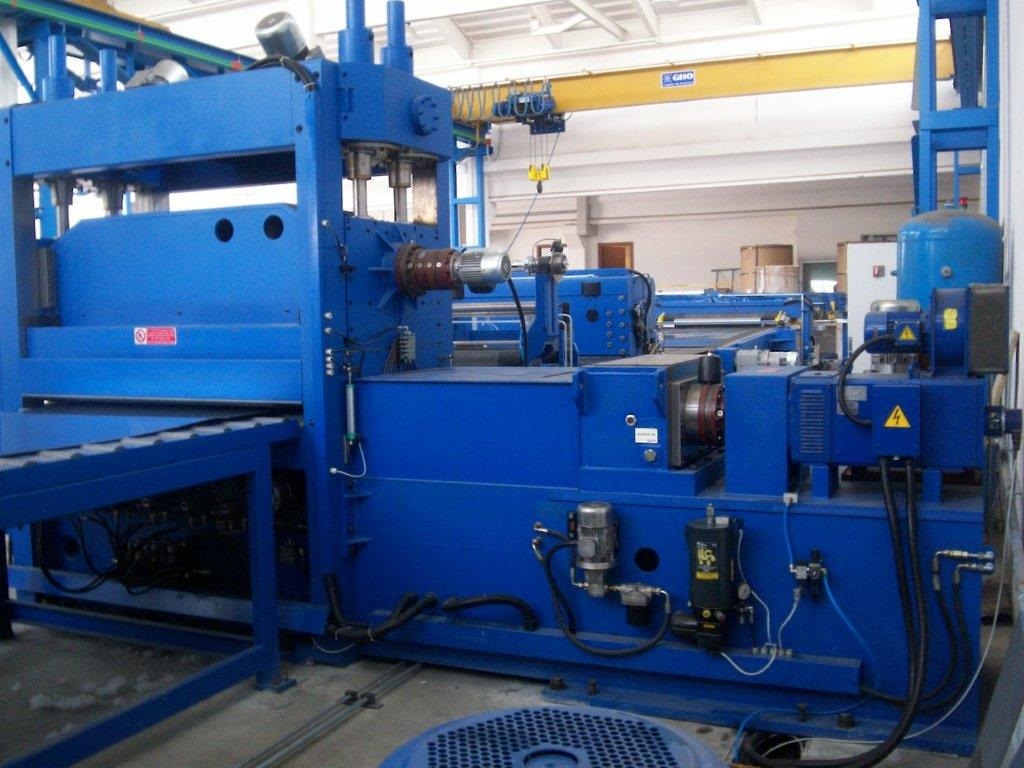

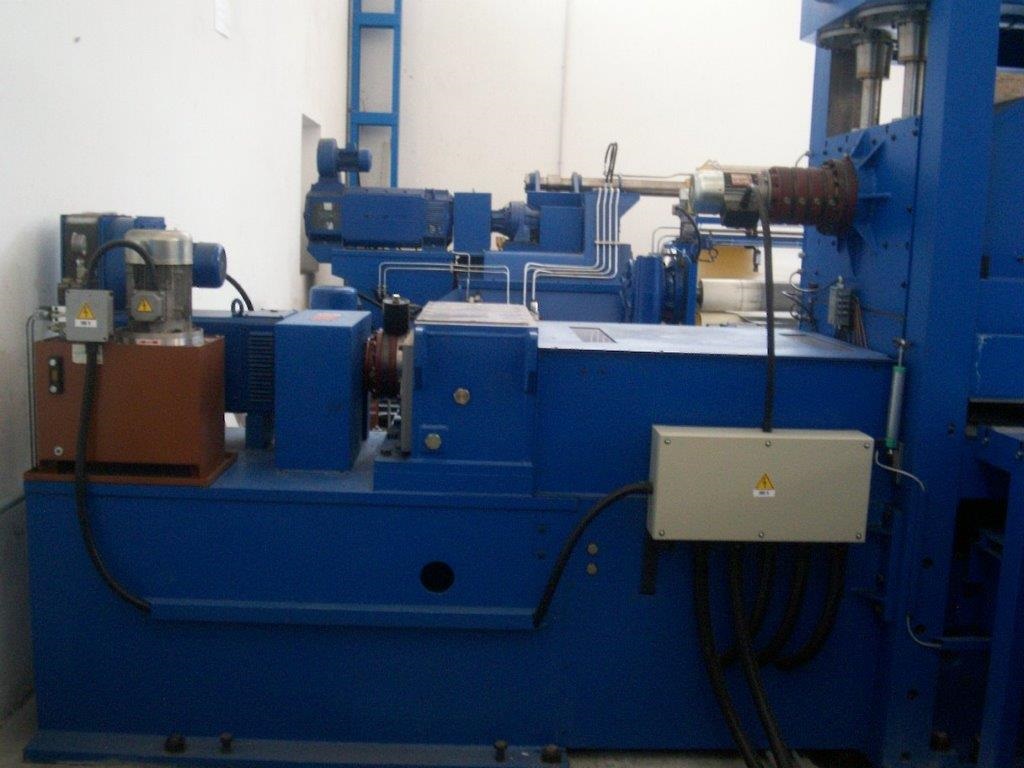

ROLLER LEVELLER
6-HI with 19 work rolls, roll diameter: 50mm
21 'intermediate' rolls of diameter: 45mm
7+7 (upper & lower) series of back-up rolls
The tilting of the machine frame upper section, by means of an A.C. brake motor
Centralized lubrication

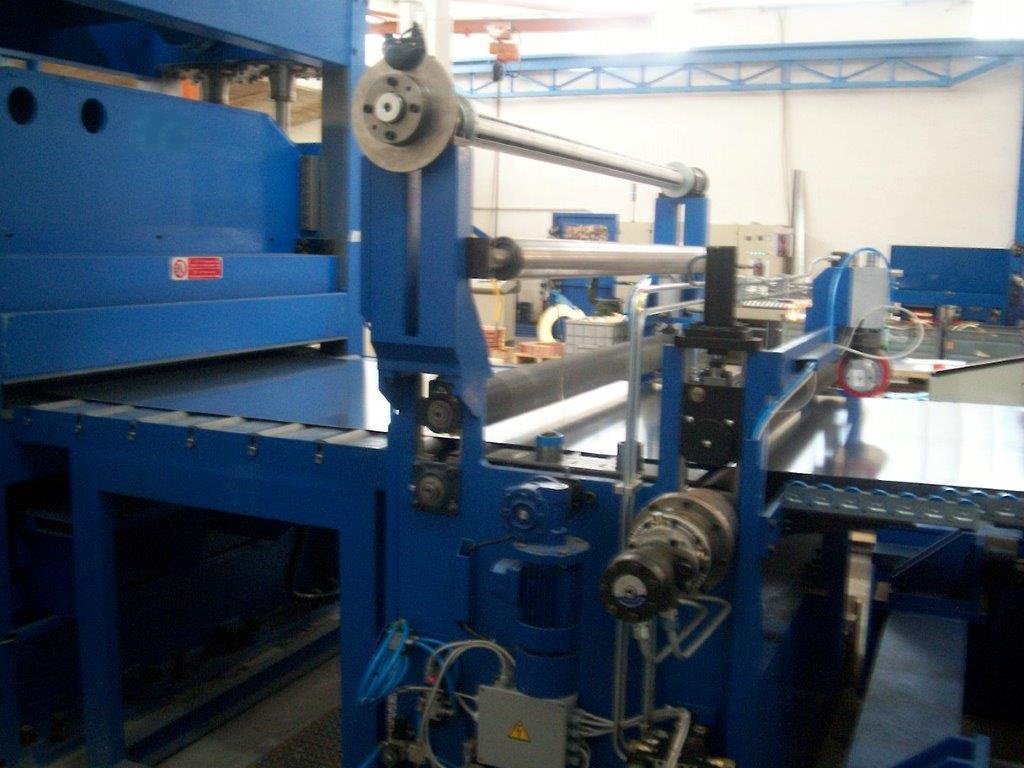

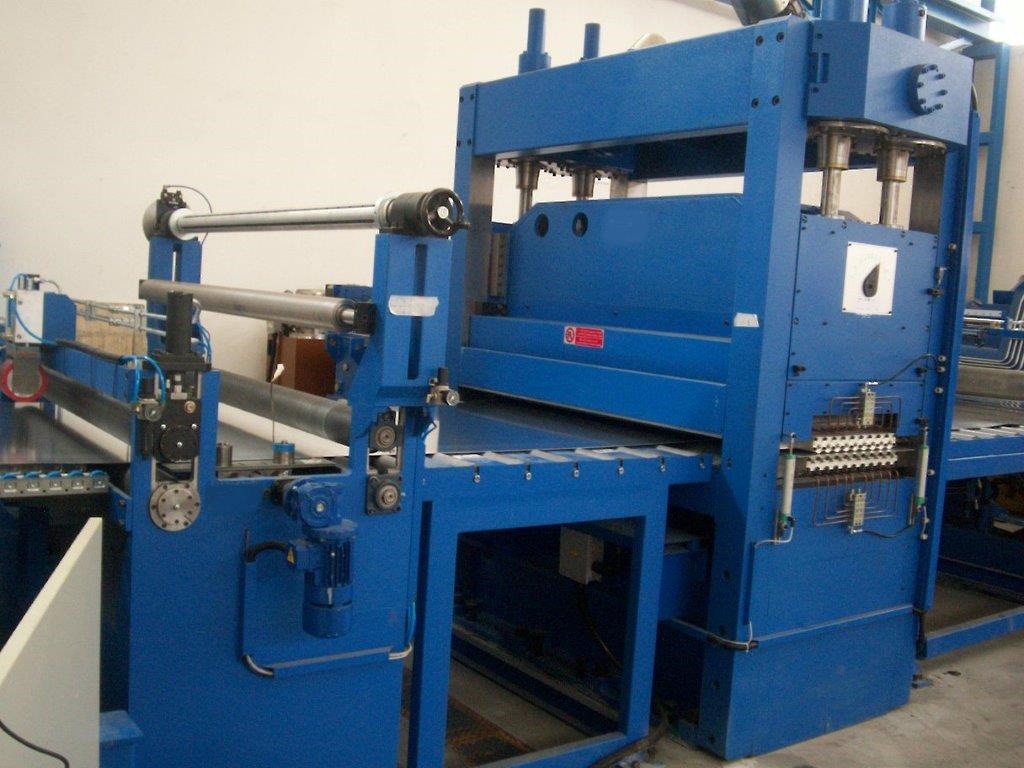

FILM LAMINATOR
With aluminium expanding shaft, disc brake and deflecting roll
± 30 mm cross motion by handwheel
Rubber coated pinch rolls

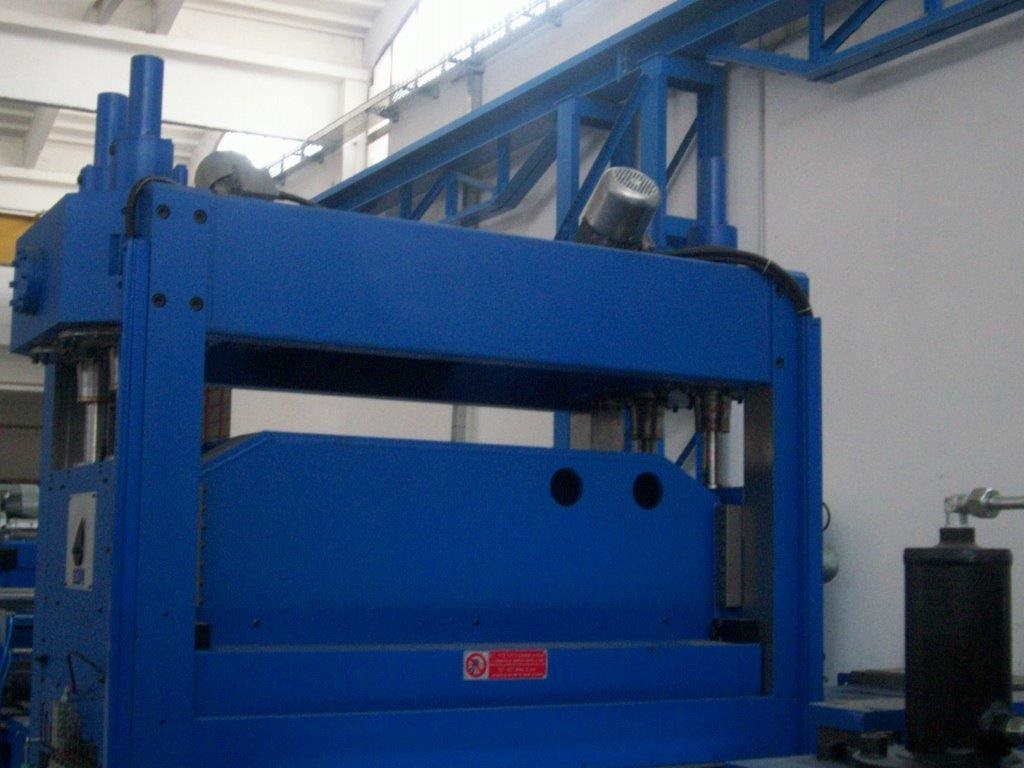

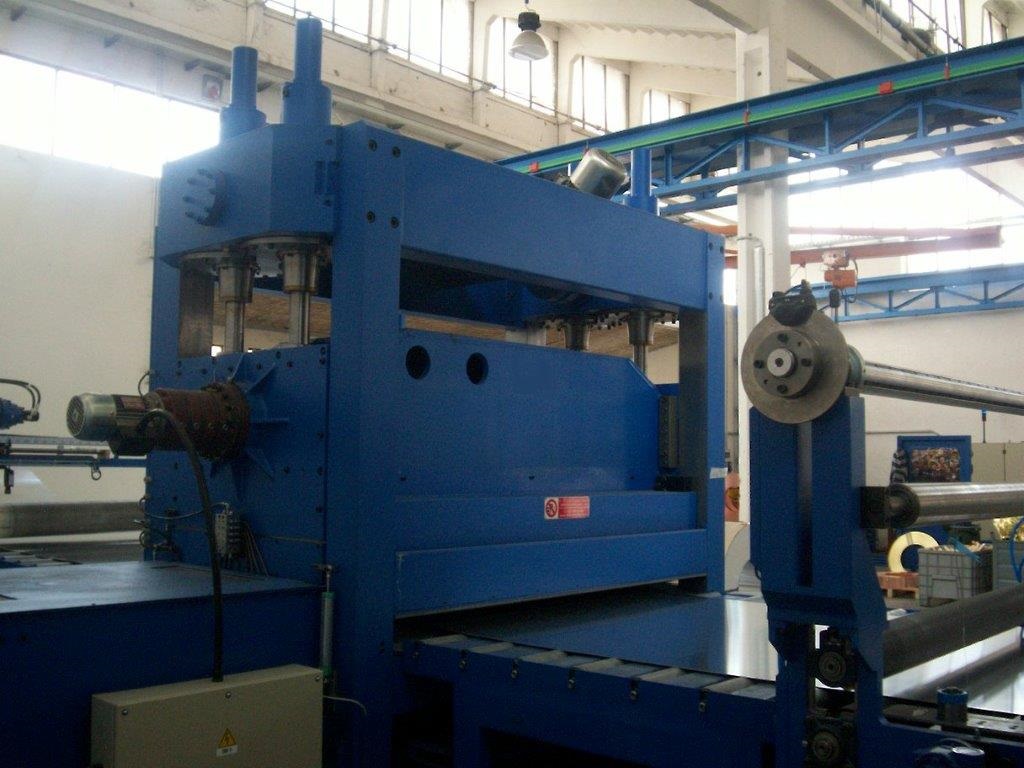

FLYING SHEAR
With vectorial A.C. motor drive
Rack-&-pinion type carriage motion
SHEET TRANSFER BELT
A.C. motor driven with exit pinch rolls for sheet extraction
SHEET STACKER
With scissor table and air operated joggers
SIDE-EVACUATION ROLL TABLE
With powered chain conveyer for evacuating the sheet stacks
4.5m long
ELECTRICS & ELECTRONICS WITH 3 CONTROL PANELS

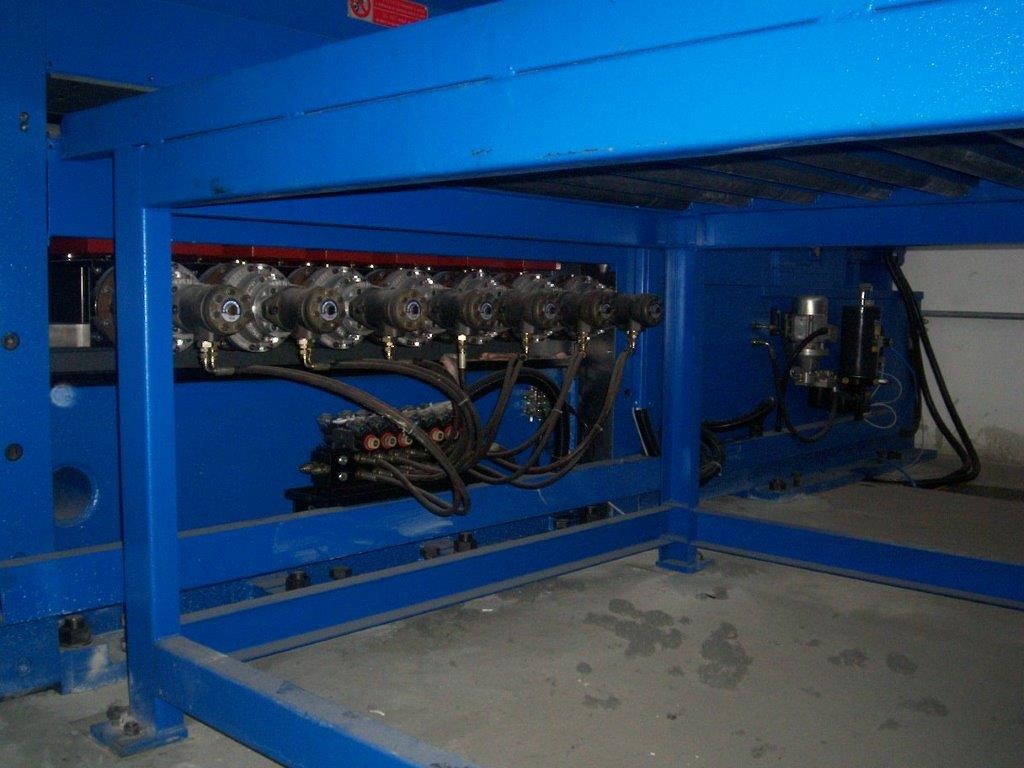

HYDRAULICS
PNEUMATICS
Some aluminium cut to length lines, both new and used that we have supplied are e.g. those shown in the following Presentations: #000A #3223 #3176 #3101.
We offer Start/Stop, Roll Feeder, Flying Shear, Rotary Shear Cut To Length Lines
both new and used / re-manufactured for: Aluminium, Coated, Cold Rolled, Copper, Galvanized, Hot Rolled,
Prepaint, Silicon, Stainless, Tinplate,Titanium
.
Your enquiries welcome for also individual Line Parts like: Decoilers, Feeders,
Levellers, Sheet Stackers, Straighteners ...
