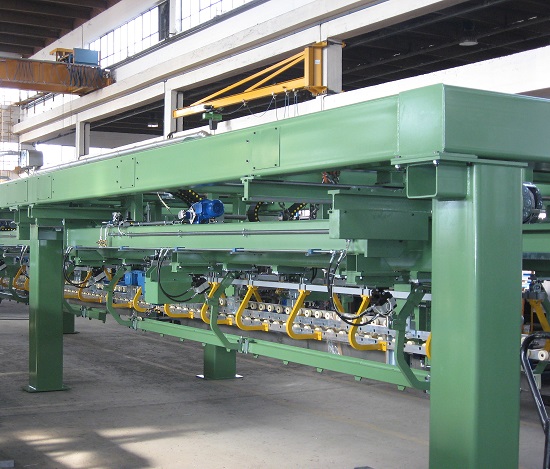

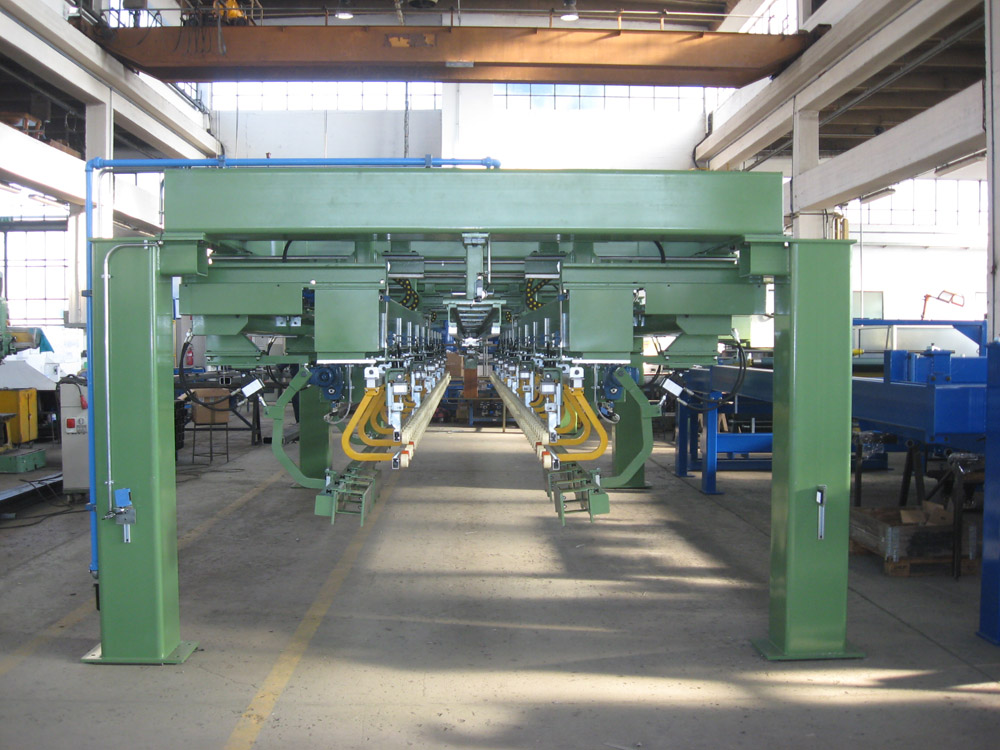

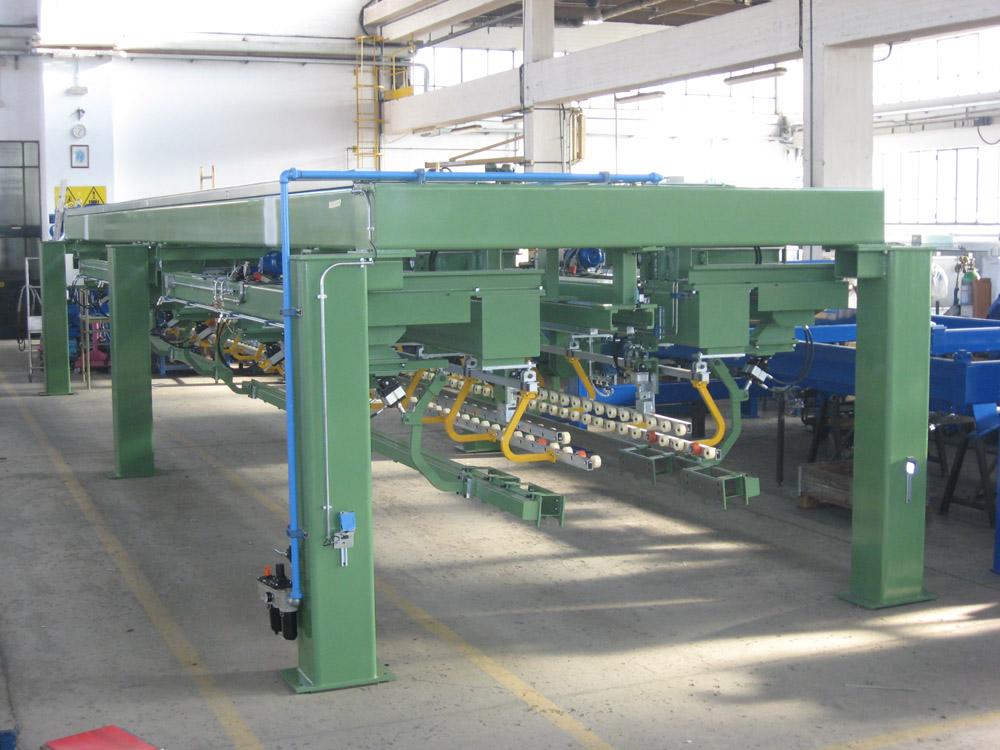

New Single-Box Sheet Stacker
12000mm
FLOREANI & PARTNERS
BUILD TO ORDER CUSTOM DESIGNED
12000mm
This sheet stacker suits for:
cold rolled, hot rolled, galvanized, pickled steel
Material thickness: 1.5mm to 6mm
Sheet width: 500-2100mm (50-500mm "creeping")
Sheet length: 500-12000mm
Stack max. weight: 10 Tons
Stack max. height: 400mm
Line max. speed:
40m / min with sheet length up to 6000mm
30m / min with sheet length 6000-12000mm
The system includes:
Two double scissor tables with central (vert.) cylinder, capacity 10 Tons
Two powered roll tables, capacity 10 Tons - mounted on the lifters, for the stack forming
Two powered roll tables, capacity 10 Tons - for the weighing
Two powered roll tables, capacity 10 Tons - for the strapping and drawing of stacks
Powered "rackets" and 2 x 6000mm side joggers
Custom-built equipment needs a special kind of product support... our proposals are detailed with drawings and photos to provide clients with a full understanding of the type and quality of the equipment we offer. We send customers approval drawings with dimensions, performance specs and features before the machine is built.
We are experienced at making our products safe, reliable and in conformance with the safety and design standards. Products are designed for maximum serviceability and reliability.
Parts Books are shipped with each piece of equipment. They contain detailed information about installation, inspection and maintenance procedures, component parts.
