Used Cut To Length & Press Line
1800mm x 20mm
FAGOR

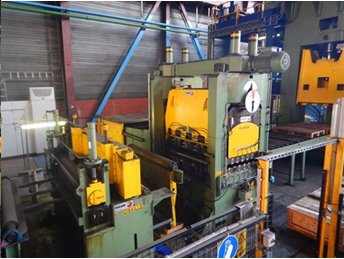

Used FAGOR Cut To Length & Press Line. 1800mm x 20mm with 2500 Ton Hydraulic Power Press. 25 Ton decoiler. 11 Roll Fine Straightener. Press table 3250mm x 2900mm, max. daylight 1350mm with 310mm ram stroke. The line was previously used to manufacture flanges for wheels of trucks & large agricultural machinery. It has been renewed in 2010; now with Siemens S7 control.
A used FAGOR 1800mm x 20mm / 25 Ton Cut To Length & Press Line, previously used to manufacture flanges for wheels of trucks & large agricultural machinery. Fully renewed in 2010 with Siemens S7 control. It includes a 2500 Ton Hydraulic Power Press with 3250mm x 2900mm table & 310mm ram stroke.
EQUIPMENT LIST

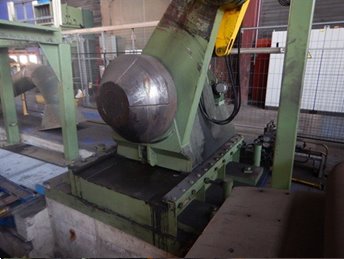

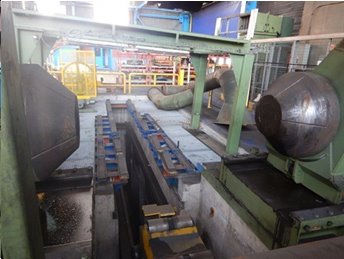

1) Double head decoiler, cap: 25 Ton

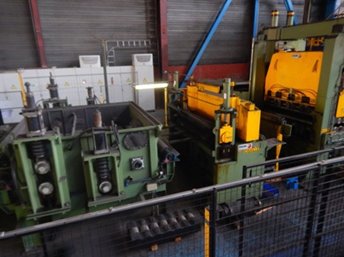

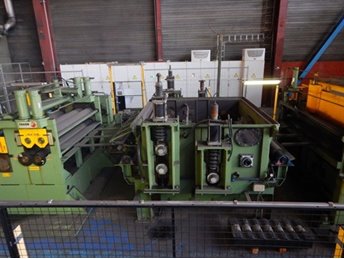

2) Prestraightening unit
3) Brush cleaning unit
4) Cut to length shear
5) Finestraightening unit with 5+6 rolls. Power: 315 kW

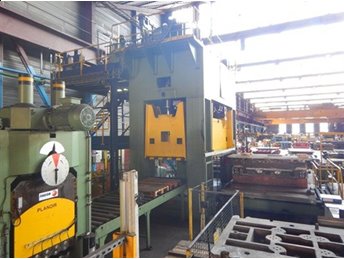

6) ONA hydraulic power press, 2500 Ton. Between columns: 3250mm x 1650mm. Table: 3250mm x 2900mm
Max. daylight: 1350mm
Ram stroke: 310 mm
4 pneumatic lifting cilinders to change dies
Line fully renewed in 2010 with Siemens S7 control
We offer Start/Stop, Roll Feeder, Flying Shear, Rotary Shear Cut To Length Lines
both new and used / re-manufactured for: Aluminium, Coated, Cold Rolled, Copper, Galvanized, Hot Rolled,
Prepaint, Silicon, Stainless, Tinplate,Titanium
.
Your enquiries welcome for also individual Line Parts like: Decoilers, Feeders,
Levellers, Sheet Stackers, Straighteners ...
