New Medium/Heavy Gauge Blanking Lines
(up to 1600mm x 12mm, also hi-res.)
F&P
BUILD TO ORDER CUSTOM DESIGNED
- Incorporating corrective straighteners
MEDIUM GAUGE AND HEAVY GAUGE HIGH QUALITY BLANKING LINES WITH PRECISION CORRECTIVE STRAIGHTENER, FLYING SHEAR TYPE AND STOP/START TYPE
MEDIUM GAUGE BLANKING LINES AND HEAVY GAUGE BLANKING LINES DESIGNED TO A HIGH STANDARD OF ENGINEERING, FLYING SHEAR TYPE AND STOP/START TYPE, WITH PRECISION CORRECTIVE STRAIGHTENER AND TWO-STATION SHEET STACKER. FOR PRESS SHOPS AND OTHER BUSINESSES. QUALITY EQUIPMENT BY FLOREANI & PARTNERS WITH HIGH-RANKING INTERNATIONAL CUSTOMER REFERENCES
- Heavier gauges also possible [with special design equipment]
We have designed a number of heavy duty decoilers and coil cars, precision corrective straighteners, feeders, static and flying shears, stackers and complete blanking lines… for major European contract metal stampers, tool makers, and appliance automotive & other industries. Material thickness generally up to 12mm, also with high resistance steels and alloys. --- Also many high speed and “floor space saving type” lines supplied.

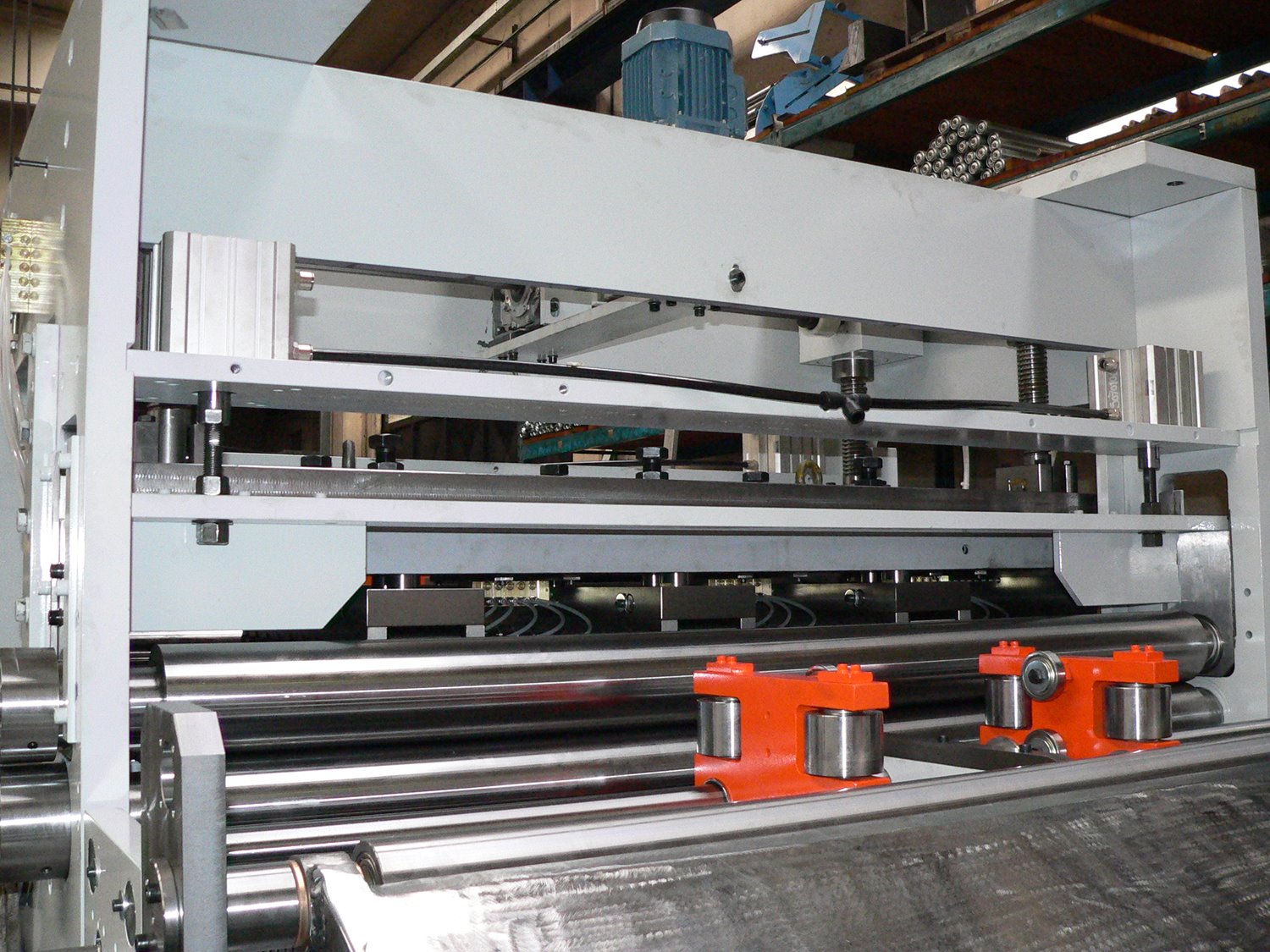

The lines normally include a precision corrective straightener. Straighteners are to remove the coil set and crossbow (not to correct side-to-side material length variations: multi-roller levellers are required for this).
Levellers & Straighteners
Custom Built Blanking Lines
Custom Built Press Feeding Lines

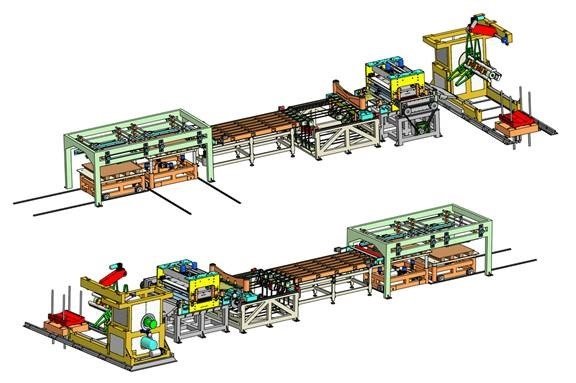

EXAMPLES OF TYPICAL LINE CONFIGURATIONS:

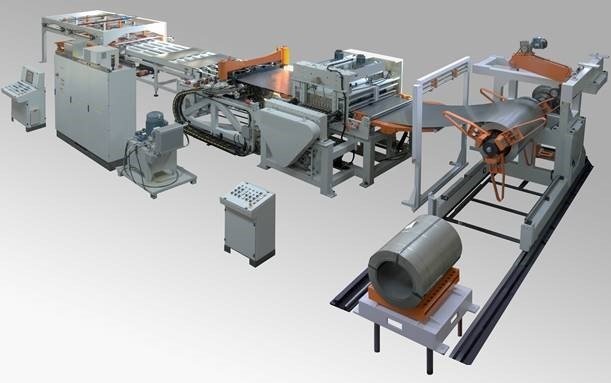

MEDIUM/HEAVY GAUGE FLYING SHEAR TYPE BLANKING LINES

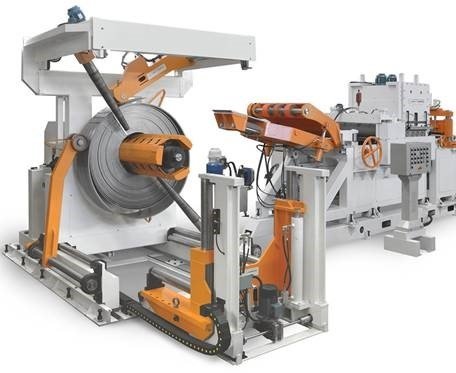

Motorised decoiler, movable forward/backward
Hydraulic and motorised snubber roll

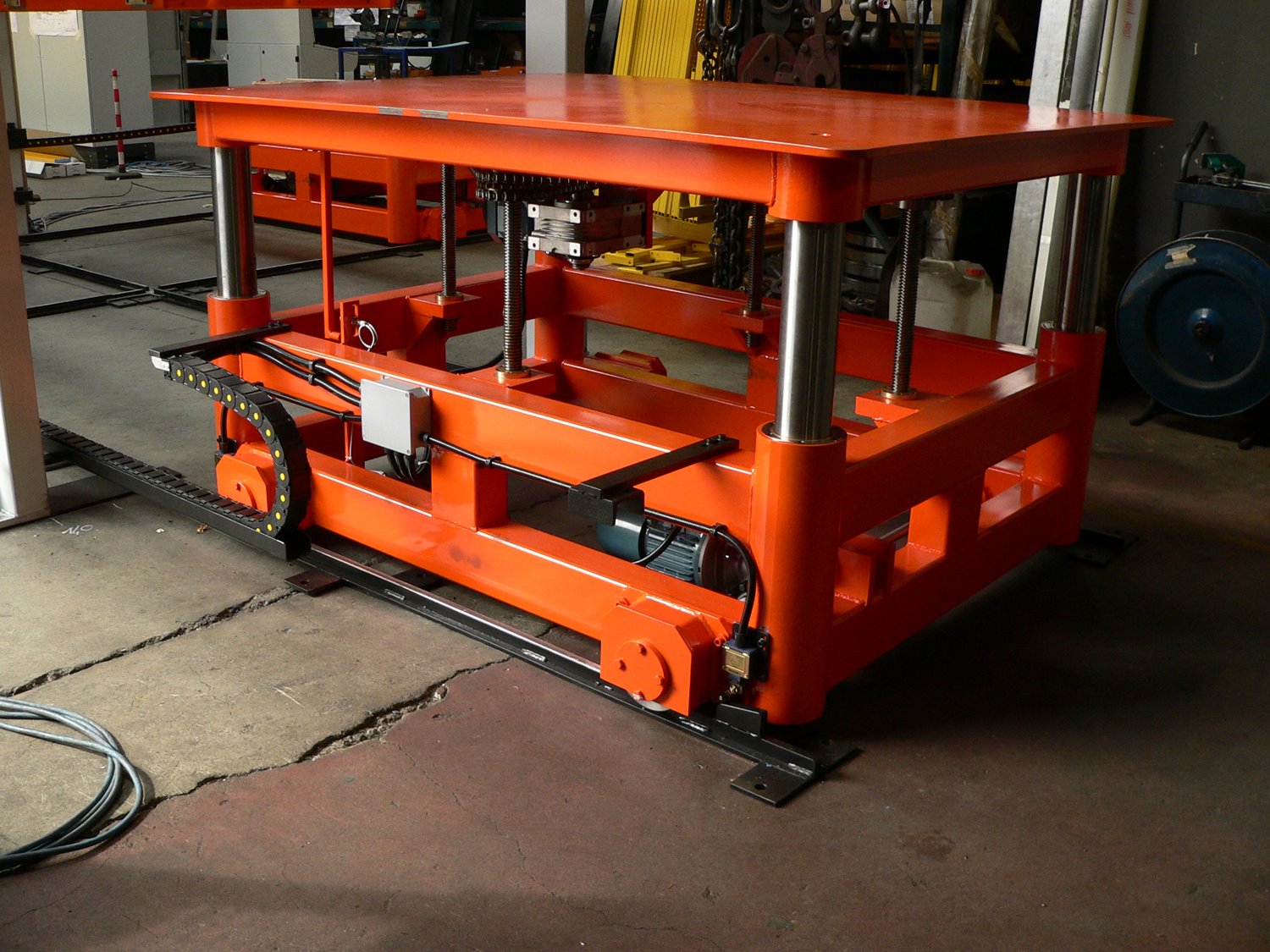

Movable coil car forward/backward
Lower inlet table, with “free” peeler
Upper inlet table with motorised roll
Motorised flattener, up to 13 rolls

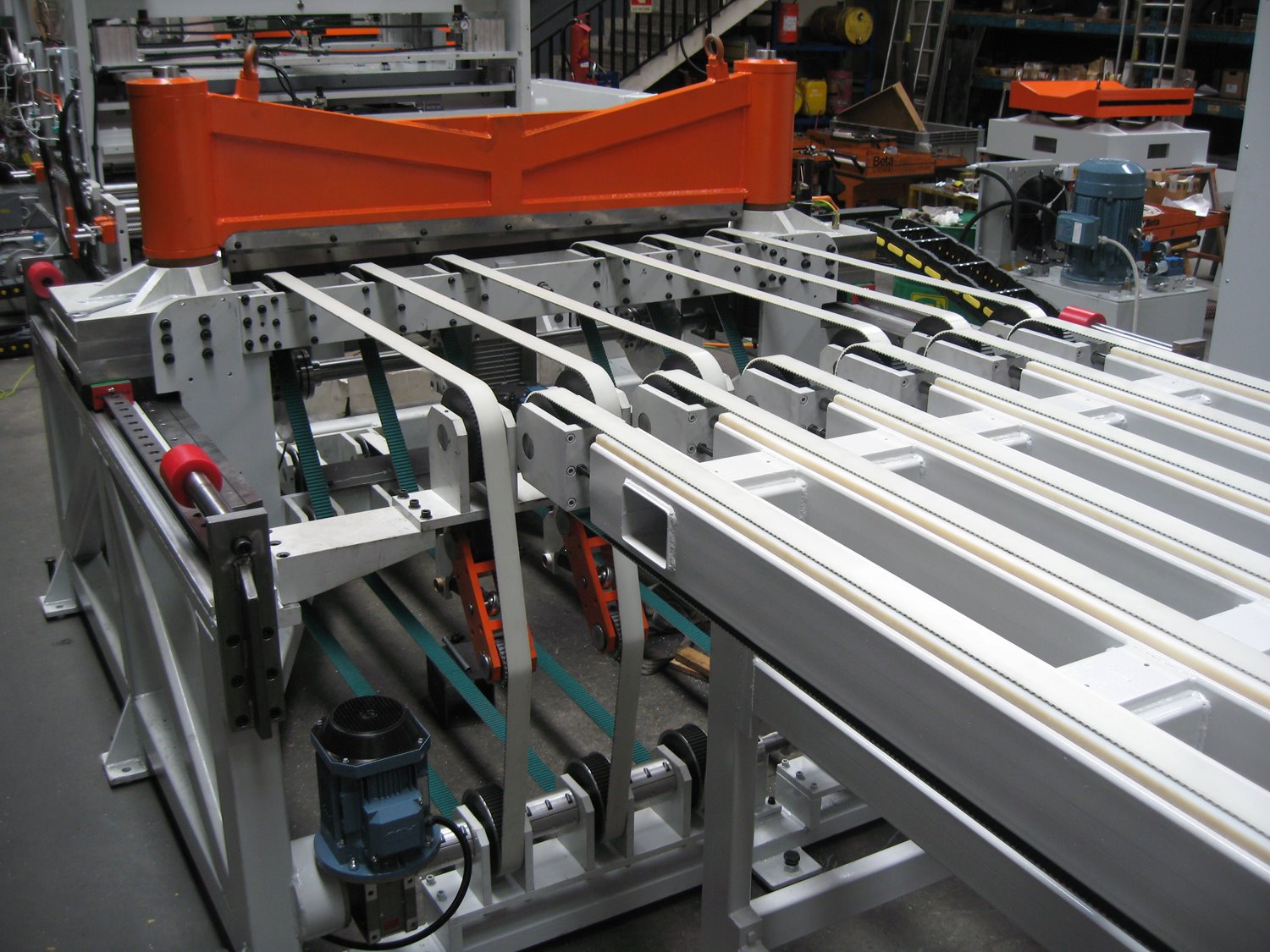

Flying shear

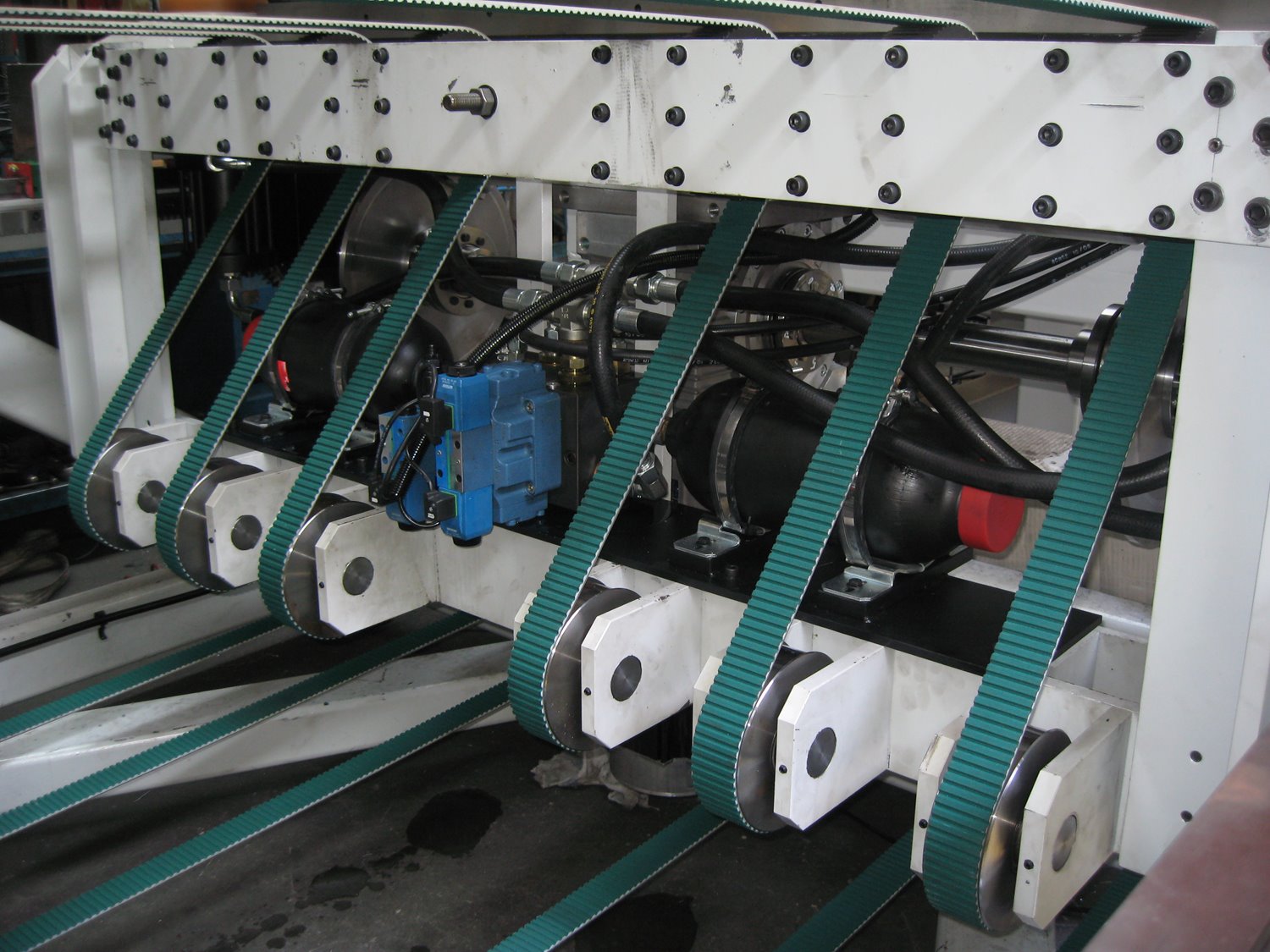

Belt conveyor for inspection of blanks, and to transport them to stacker

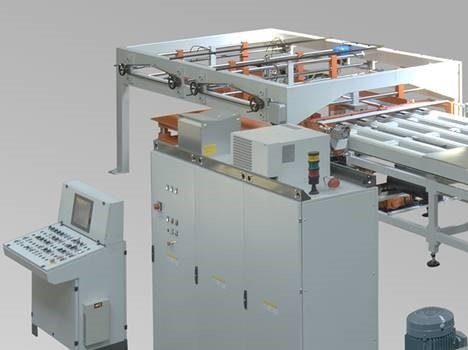

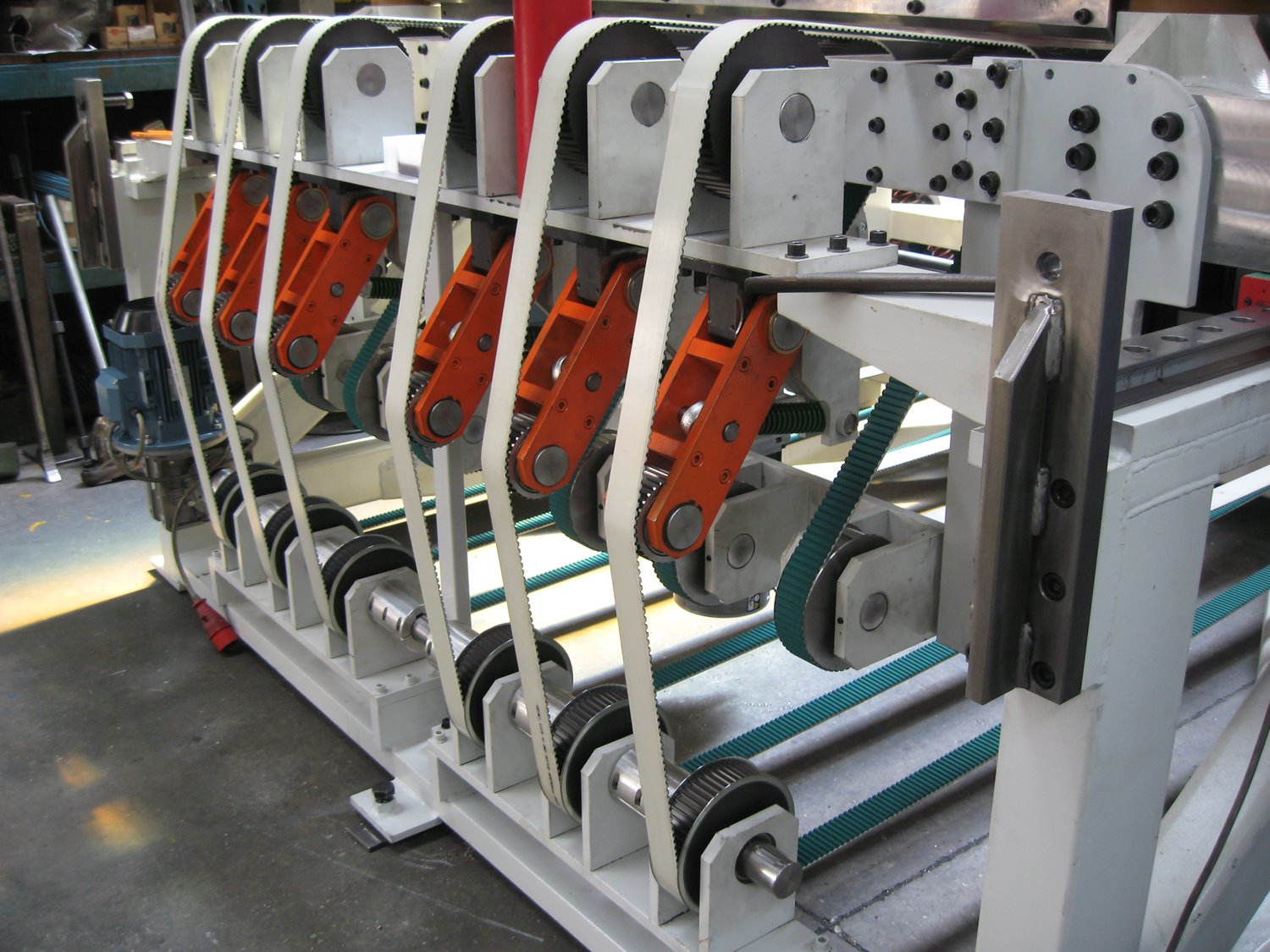

Stacker with two tables
Safety fencing with interlocked door to CE
MEDIUM/HEAVY GAUGE STOP/START TYPE BLANKING LINES
Motorised decoiler, movable forward/backward
Hydraulic and motorised snubber roll
Movable coil car forward/backward
Lower inlet table, with “free” peeler
Upper inlet table with motorised roll
Motorised flattener, up to 13 rolls
Static Hydraulic Shear
Stacker with two tables
Safety fencing with interlocked door to CE
We offer Start/Stop, Roll Feeder, Flying Shear, Rotary Shear Cut To Length Lines
both new and used / re-manufactured for: Aluminium, Coated, Cold Rolled, Copper, Galvanized, Hot Rolled,
Prepaint, Silicon, Stainless, Tinplate,Titanium
.
Your enquiries welcome for also individual Line Parts like: Decoilers, Feeders,
Levellers, Sheet Stackers, Straighteners ...
Custom-built equipment needs a special kind of product support... our proposals are detailed with drawings and photos to provide clients with a full understanding of the type and quality of the equipment we offer. We send customers approval drawings with dimensions, performance specs and features before the machine is built.
We are experienced at making our products safe, reliable and in conformance with the safety and design standards. Products are designed for maximum serviceability and reliability.
Parts Books are shipped with each piece of equipment. They contain detailed information about installation, inspection and maintenance procedures, component parts.
