Newsletter 02.2018 [#026]
1
Newsletter
LINE REVAMPED TO PERFECTION
02.2018
This good slitting+banding line that we had in stock, has been revamped to perfection for a Belgian steel service center:
LINE INFO
Process Material: Stainless Steel - AISI 304, 340
Maximum tensile strength: 600 N/mm2
Maximum yield strength: 280 N/mm2
Material thickness range: .4 ÷ 4mm
Entry coil width: 100 ÷ 650mm
Max. entry coil weight (decoiler): 10 Tonne
Max. exit coil weight (recoiler): 10 Tonne
Max. entry coils OD (at decoiling): 2000mm **
Max. exit coils OD (at recoiling): 2000mm **
Nominal entry coil ID (at decoiling): 508mm and 610mm (using additional drum segments)
Nominal exit coils ID (at recoiling): 406mm and 508mm (using additional drum segments)
Max. line speed: 200m / min (depending from material thickness and hardness)
Material threading speed: 10m / min
Number of cuts:
- 30 at thickness: .4mm
- 20 at thickness: 1.5mm
- 25 at thickness: 2mm
- 7 at thickness: 4mm
Min. slit coil width: 10mm (depending from material thickness and hardness)
EQUIPMENT LIST
Item 1.1 Coil car
Item 2.1 Powered decoiler with snubber roll arm, on sliding base
Item 2.3 Paper rewinder
Item 3.1 Peeler station (telescopic table)
Item 3.2 2 Pinch rolls
Item 3.4 Protection film dispenser
Item 4.1 Threading roller table
Item 4.3 Shear entry guide
Item 4.4.1 Slitter Head – shaft diameter 160mm
Item 4.6 2-Arm tooling exchange turnstile (manual)
Item 4.7 Pit table
Item 4.8 Scrap recoiler
Item 4.8.1 Extraction pinch rolls
Item 4.9 Quadrant rolls at loop pit entry, with hydraulic table
Item 5.1 Movable powered cart for over-pit translation
Item 5.2 Tension unit, with felt and rolls-arc
Item 5.3 Tension powered pinch rolls
Item 5.4 Hydraulic crop shear
Item 5.6 Deflector, “S” rolls-unit
Item 6.1 Recoiler with overarm
Item 6.2 Coil push-off plate
Item 7.1 Coil off-loading car

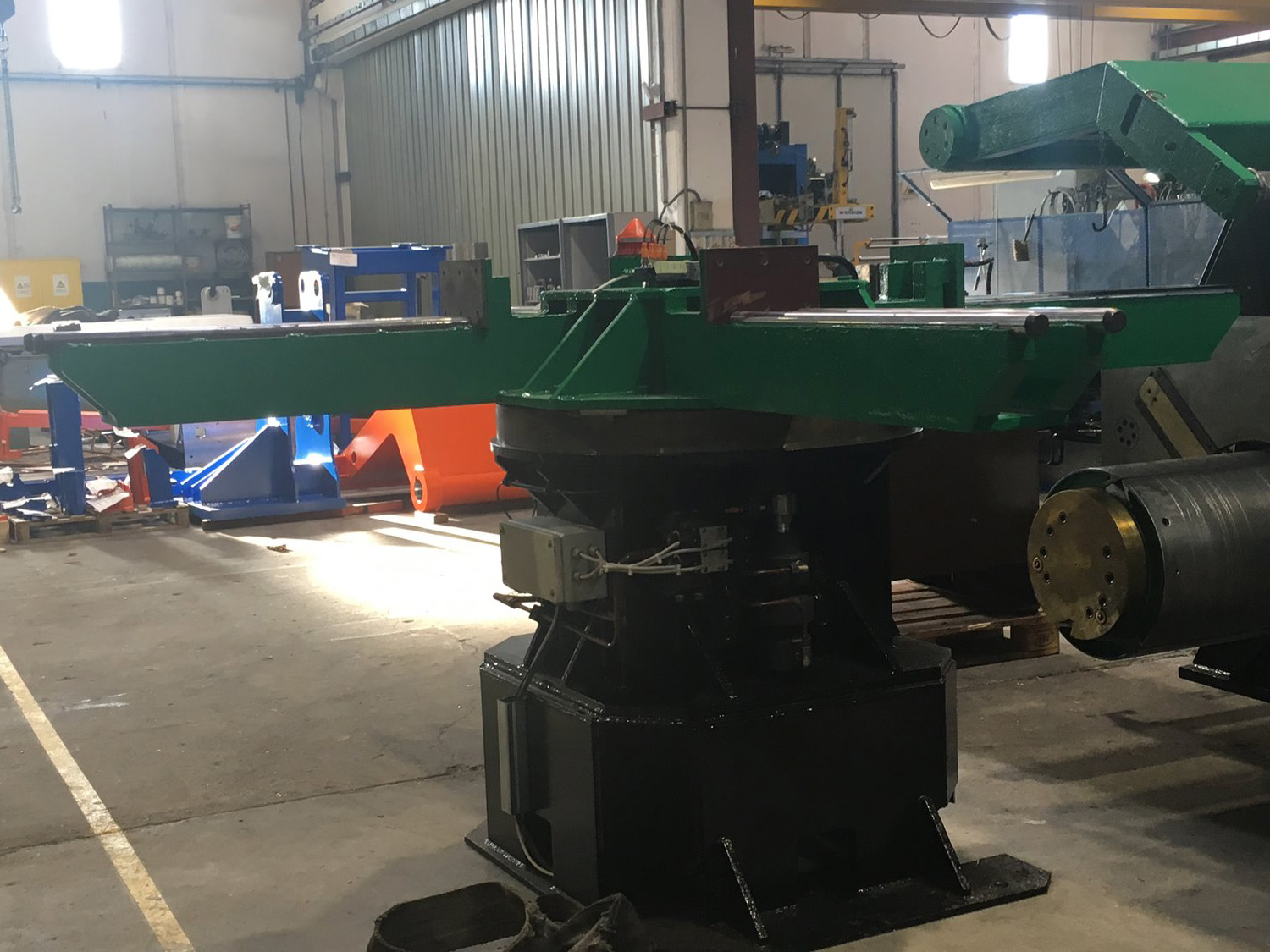

Item 7.3 4-Arm powered turnstile

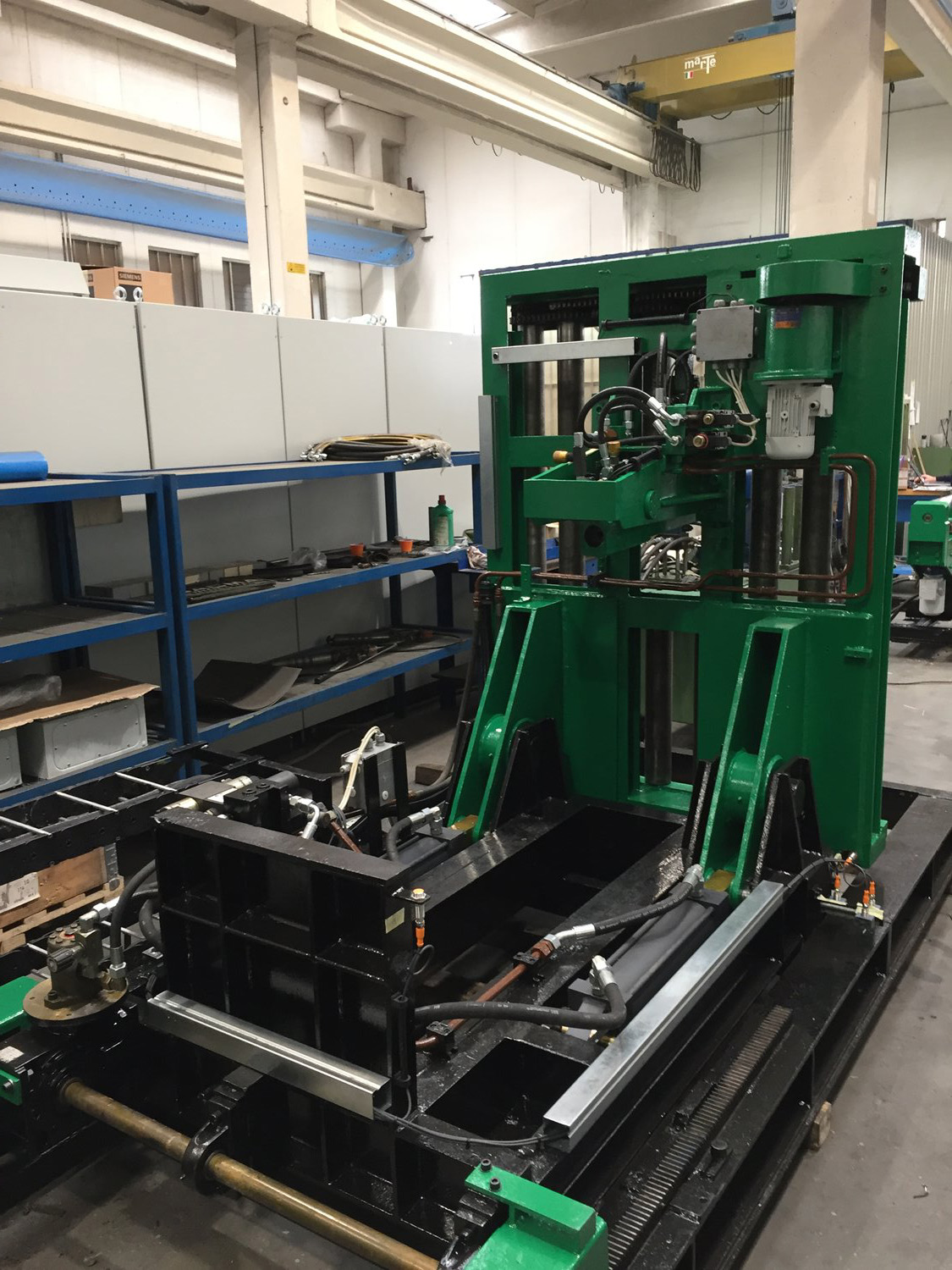

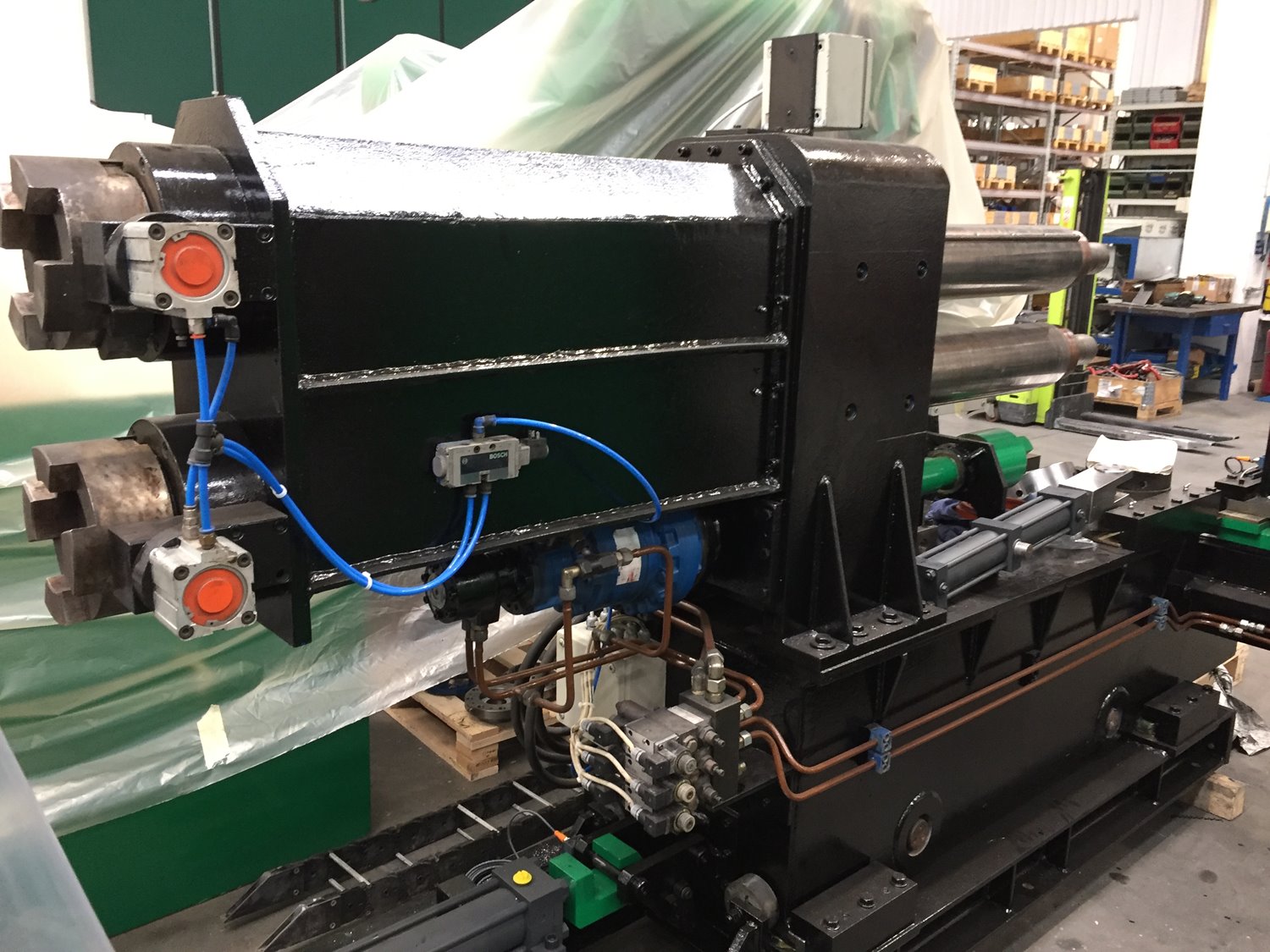

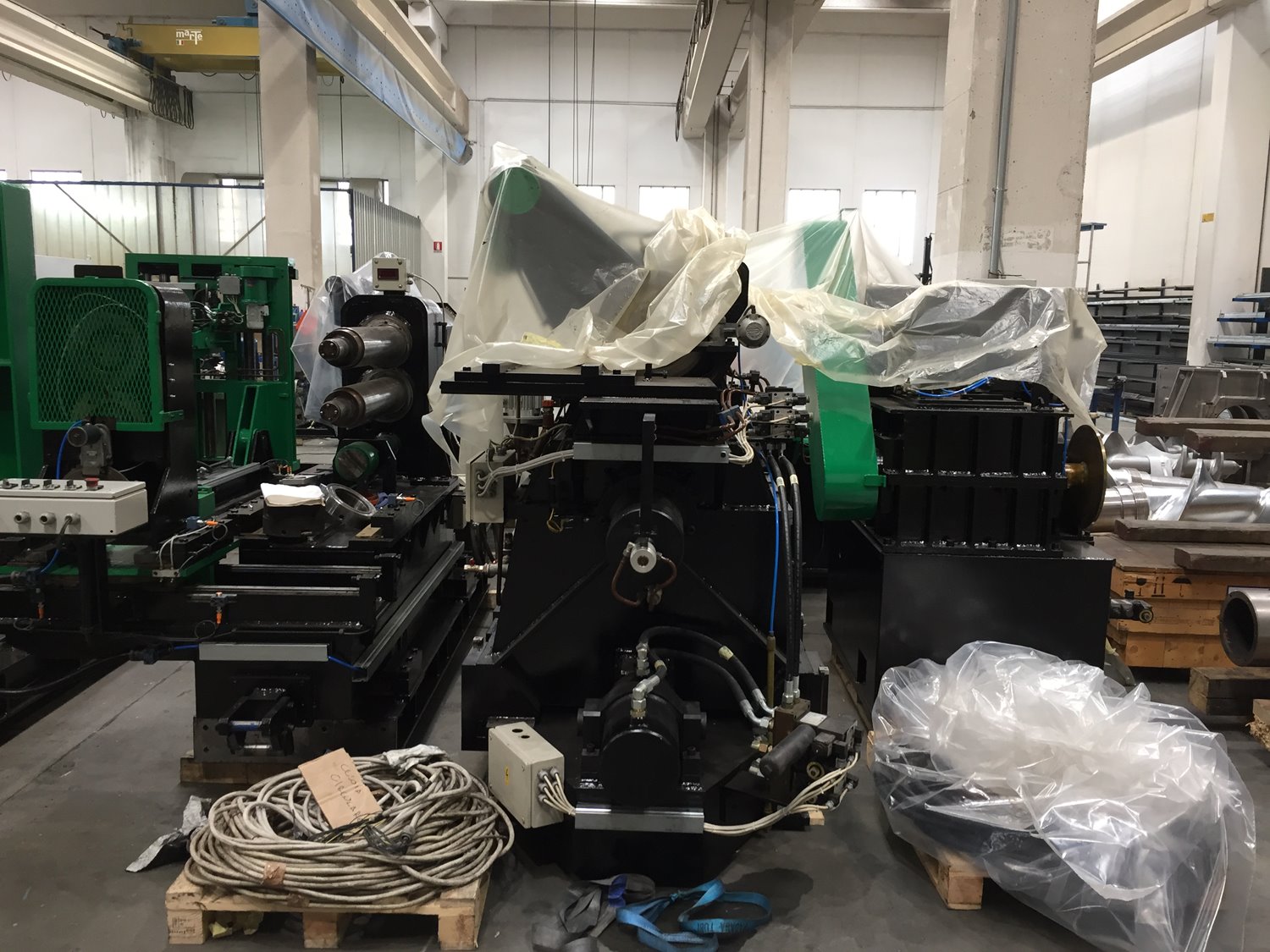

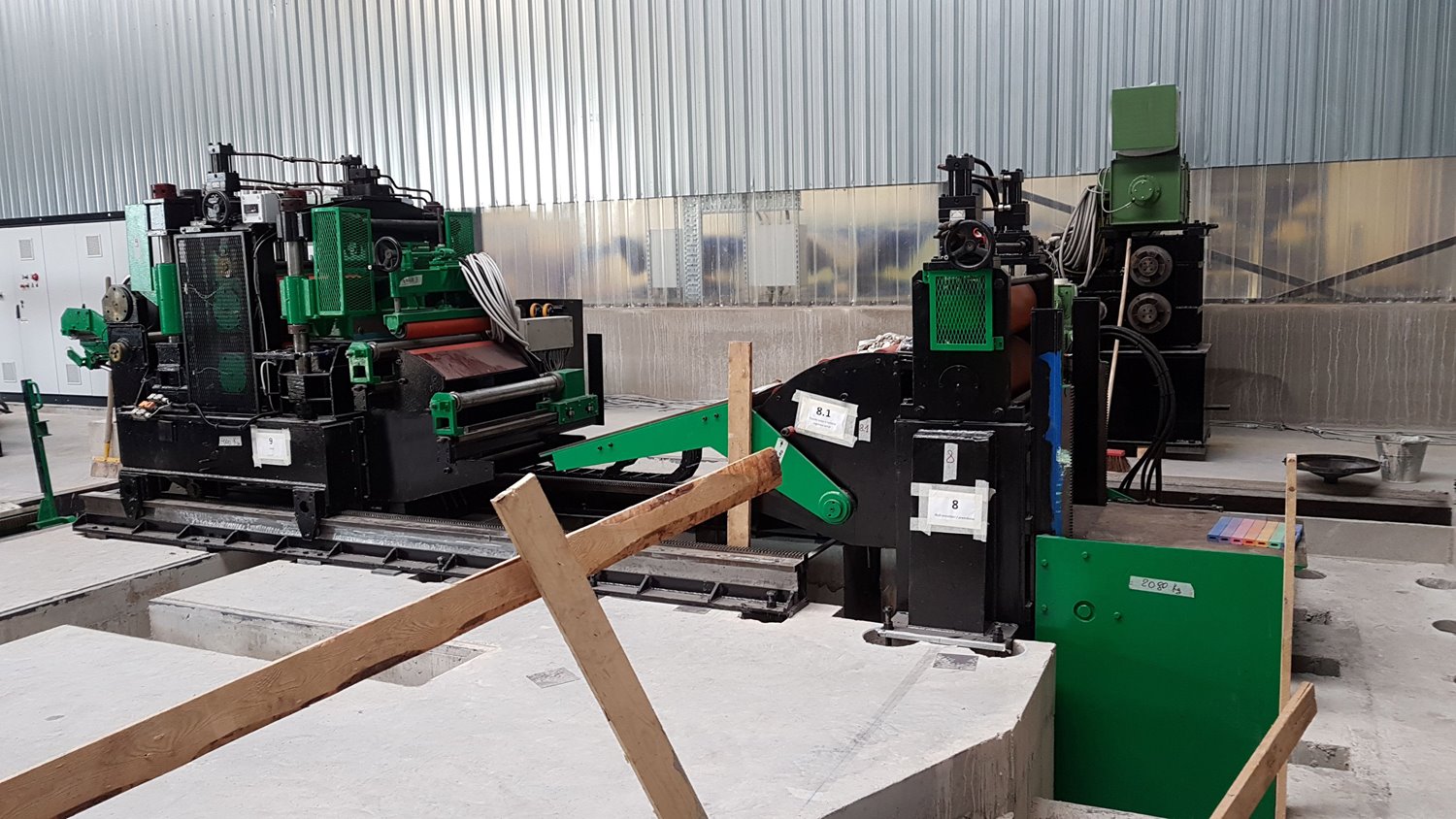

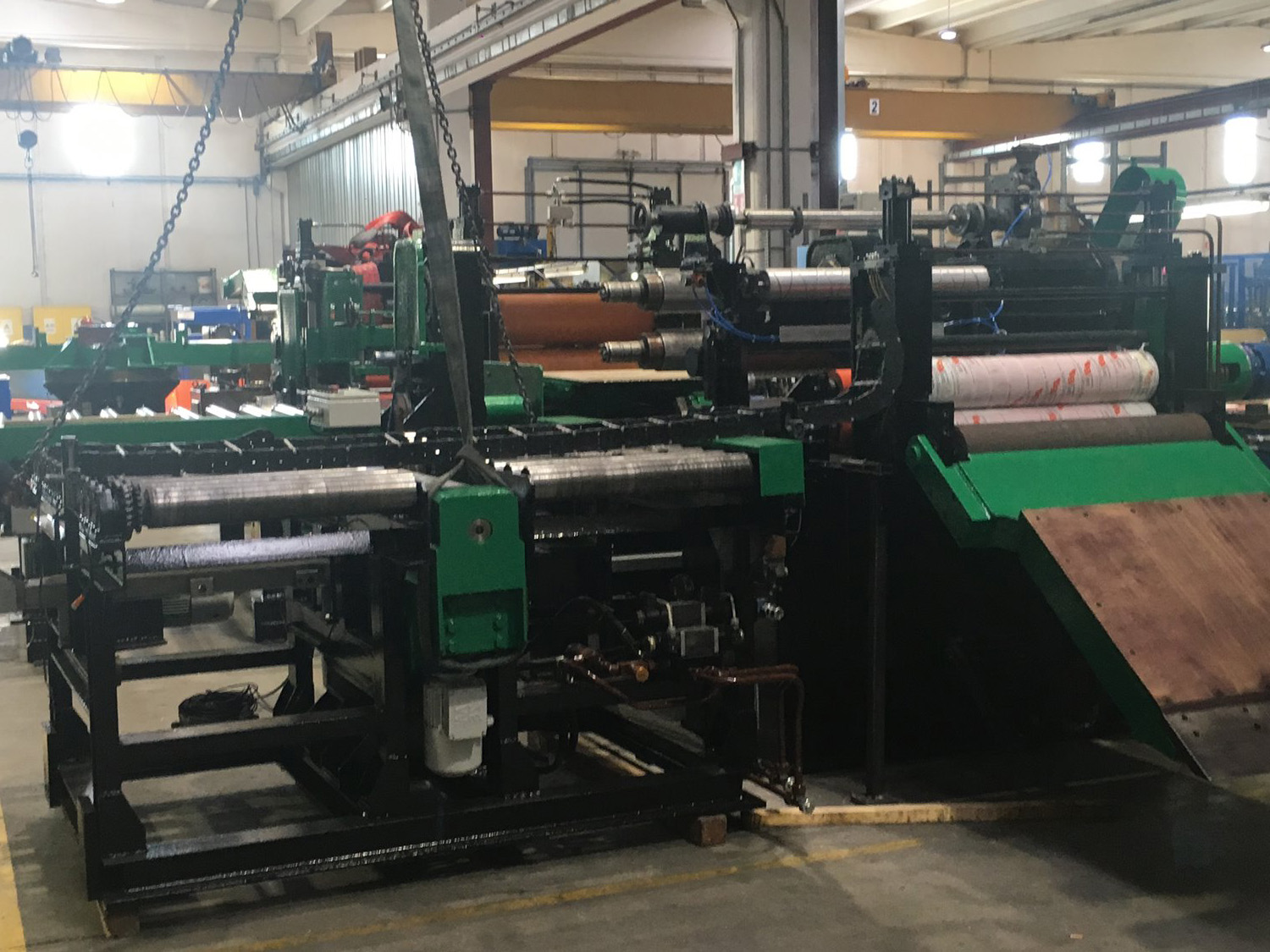

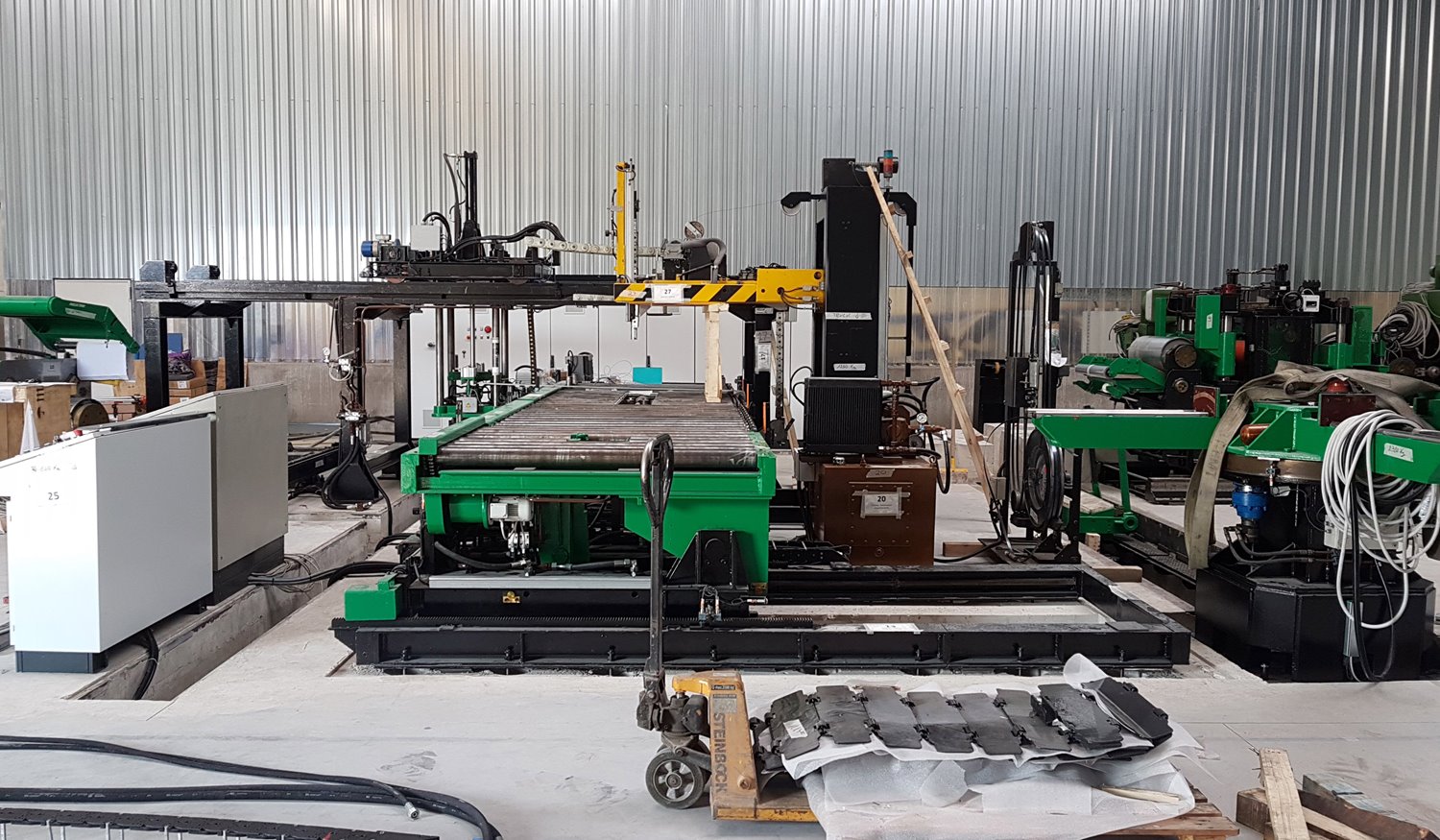

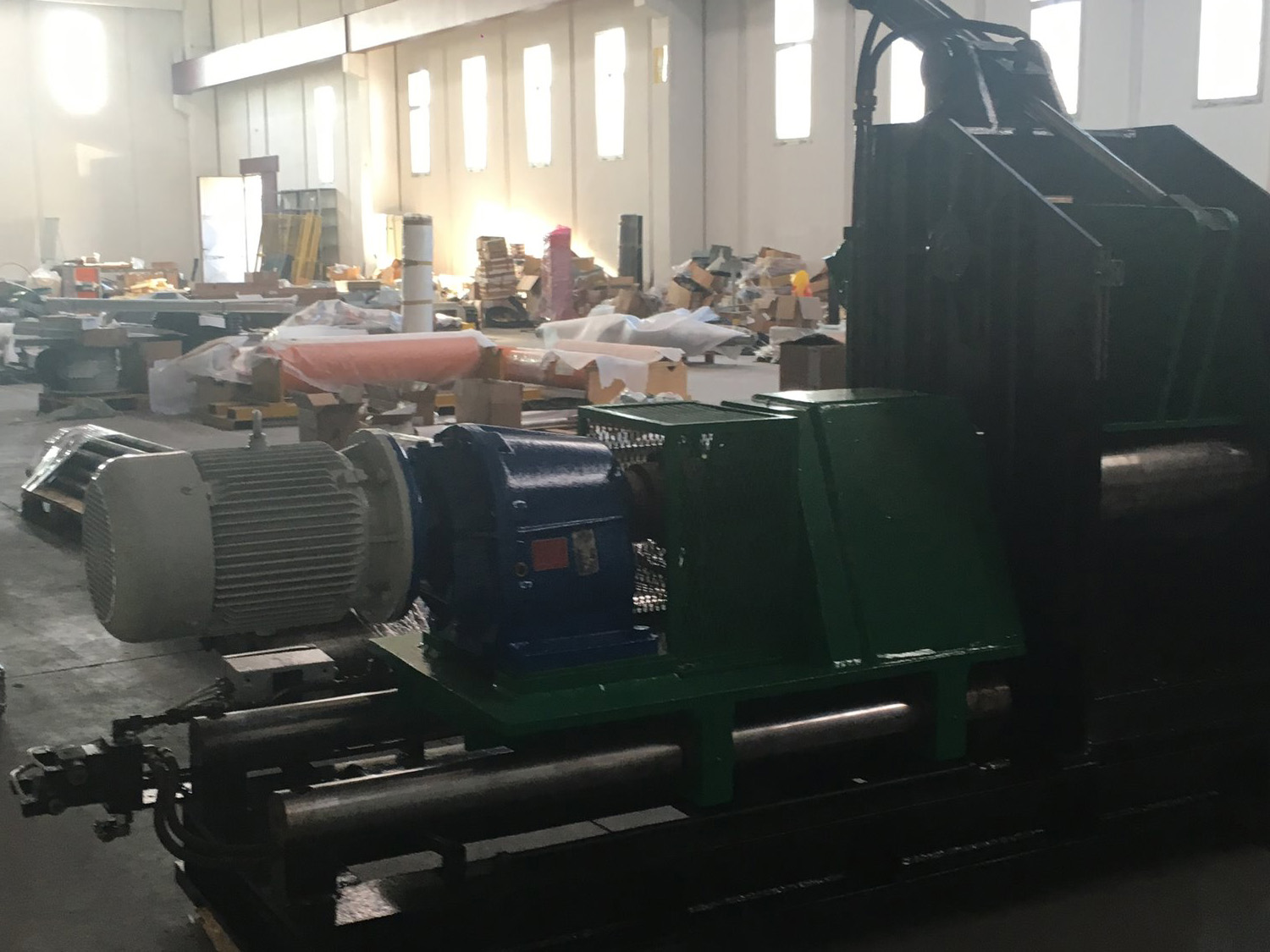

PHOTOS & IMAGES
