COMPONENTS FOR CUT TO LENGTH LINE

Components for Cut To Length Line INNSE, WEAN etc. Used [#3108]
   Cut To Length Lines CLL  Components for Cut To Length Line INNSE, WEAN etc. Used [#3108]
SOLD
1

Used Components for Cut To Length Line
3000mm x 33mm
INNSE, WEAN etc.

Components for a heavy Cut To Length Line INNSE, WEAN etc.

- WEAN 40 t Used Decoiler
- FLOREANI & PARTNERS 40 t New Coil Car
- INNSE 3000mm x 8-33mm Used Straightener


Descriptions:

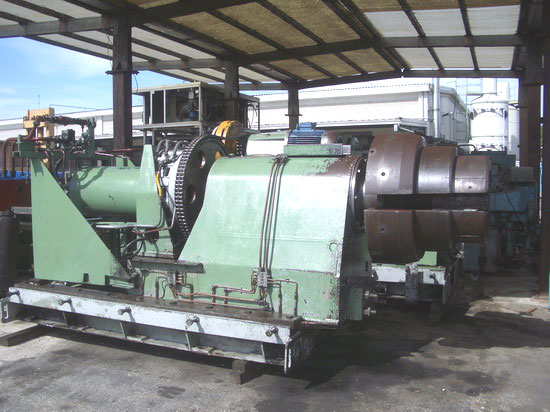

HEAVY DUTY DECOILER USED

Double expanding mandrels - Hydraulic
Manufacturer: WEAN, U.S.A.
Coil weight: max. 40 t
Coil ID: 508-730-870 mm
Travel (<>): 800 mm each side

Excellent mechanical condition (full-revamped).
- Still with no hydraulic valves, no drive motor

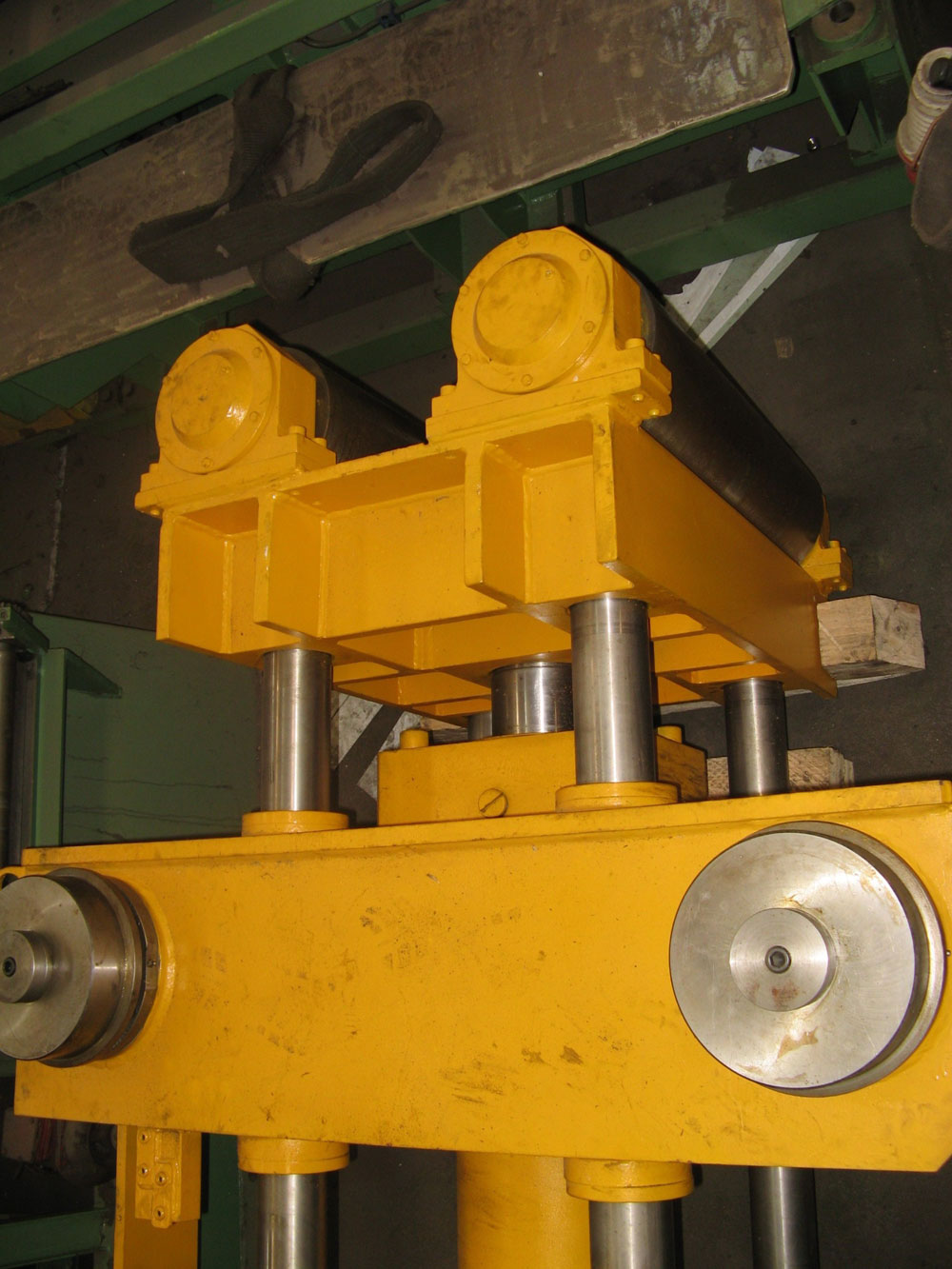

2) COIL CAR, 40 t NEW

Manufacturer: FLOREANI & PARTNERS
(Floor pit required)
2 idle rolls
Compact satellite gearbox & hydraulic motor

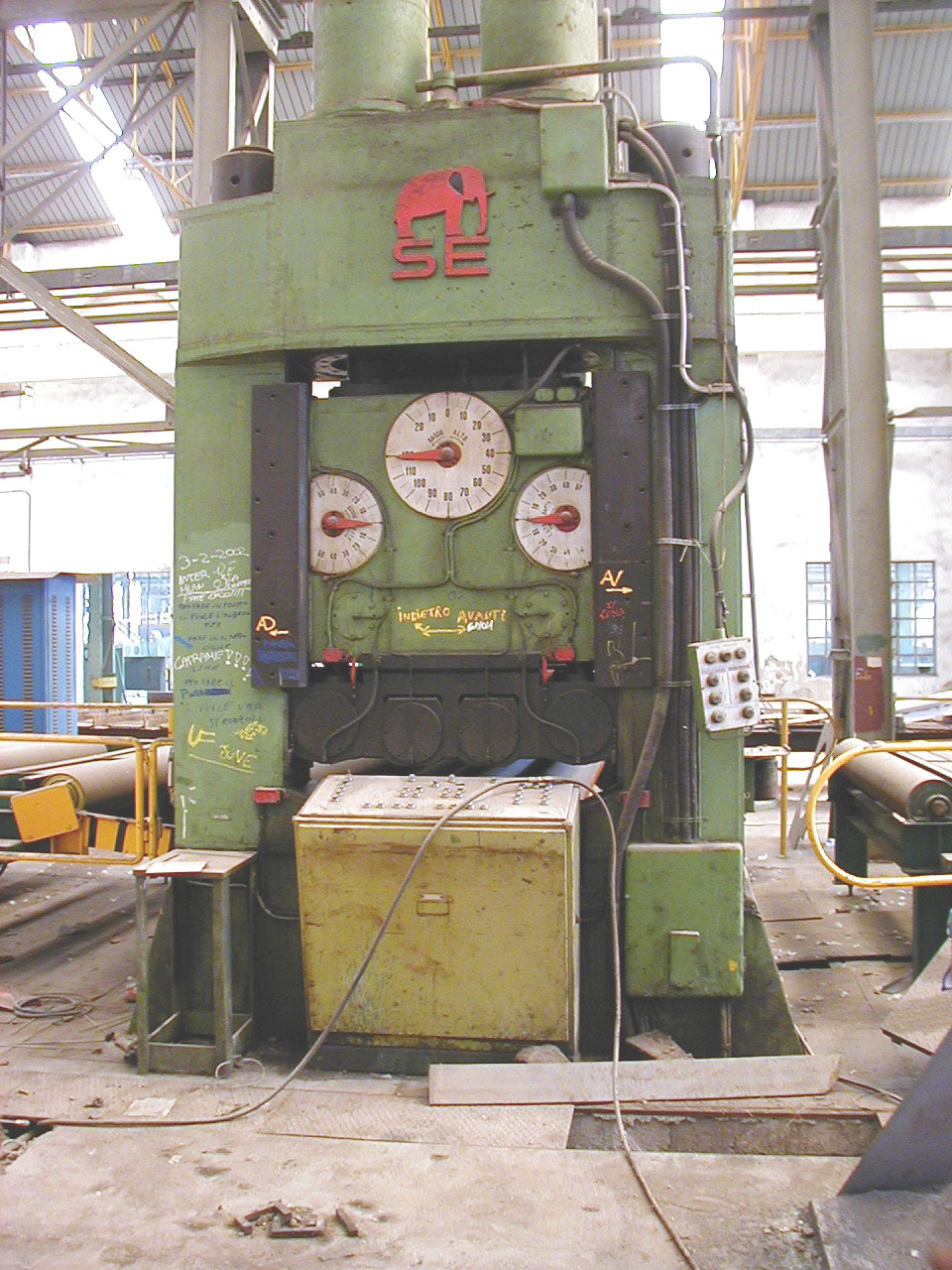

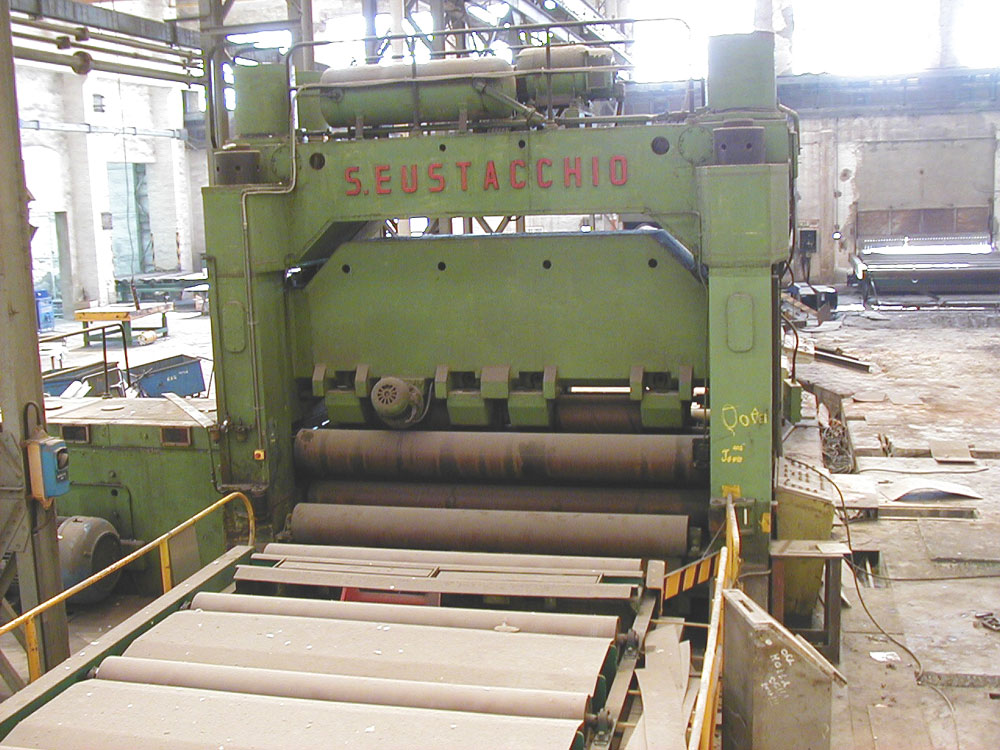

3) HEAVY DUTY 4-HIGH ROLL STRAIGHTENER USED

Manufacturer: INNOCENTI SANT’EUSTACCHIO (INNSE), Italy
Type: 3.200x33
Plate width maximum: 3000mm
Minimum/maximum plate thickness: 8mm to 33 mm (Rm = 500 N/mm2)
Work rolls: 3+2, roll dia. 280mm x length 3250mm

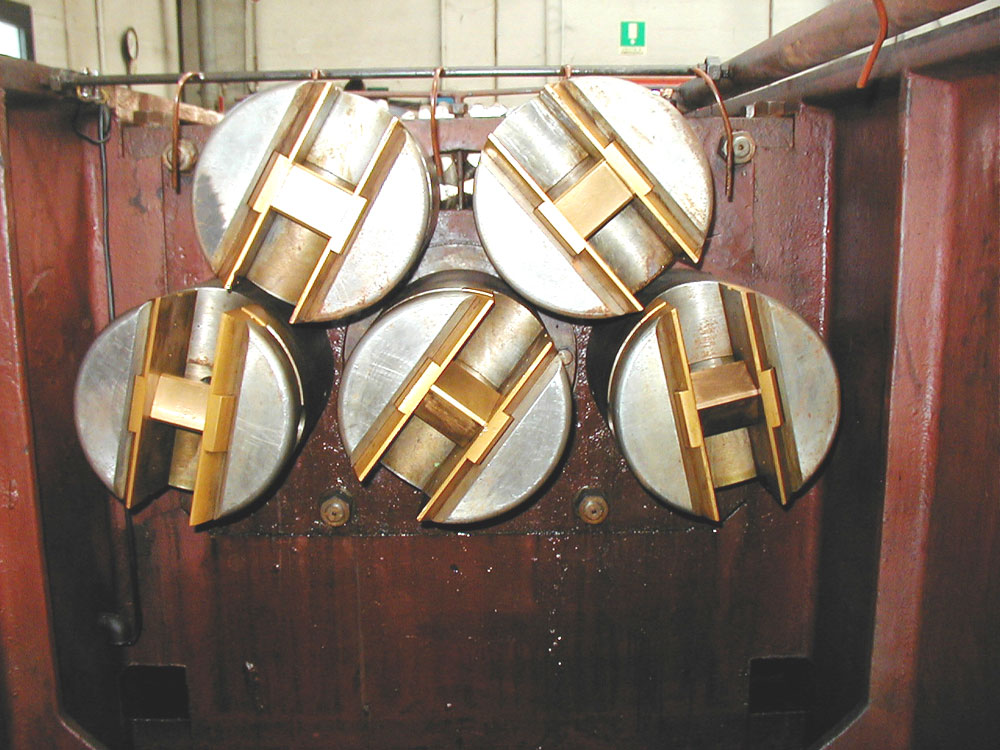

Back-up rolls 2 + 2 sets (14 rolls in total) - position of rolls adjustable by wedges
Correcting rolls: 1 at entry +1 at exit, roll dia. 350 mm, idle with motorized adjustment
Centering rolls

Speed: 5m/min (1st gear) - 10m/min (2nd gear)

Main motor: 103 kW, 740 rpm 400/660 V, AC 3-phase 50-60 Hz
Screw-down motor: 25 kW
Correcting rolls - motors: 2 x 2,2 kW

Machine weight: 83.000 kg

Excellent condition: the gearbox was revamped in 2010 and then never used again


We offer Start/Stop, Roll Feeder, Flying Shear, Rotary Shear Cut To Length Lines both new and used / re-manufactured for: Aluminium, Coated, Cold Rolled, Copper, Galvanized, Hot Rolled, Prepaint, Silicon, Stainless, Tinplate,Titanium .

Your enquiries welcome for also individual Line Parts like: Decoilers, Feeders, Levellers, Sheet Stackers, Straighteners ...
