Used Bending Punching Shearing Salvagnini S4 30 P4 2512 for sale.

PUNCHING/SHEARING/BENDING SYS.

Punching/Shearing/Bending Sys. SALVAGNINI Used [#2231]
   FMSs  Bending Punching Shearing FMS  Punching/Shearing/Bending Sys.  SALVAGNINI Used [#2231]
SOLD
1

Used Punching/Shearing/Bending Sys.
S4 30 + P4 2512
SALVAGNINI

Year when built: 2002



Used SALVAGNINI S4.30 + P4-2512 System, new in 2002, for sale. Good buy. -- Full customer support is provided by FLOREANI & PARTNERS, Italy’s most experienced independent specialists in Finn-Power and Salvagnini automatic sheet metal fabrication equipment… (worldwide service, except some Countries at present)

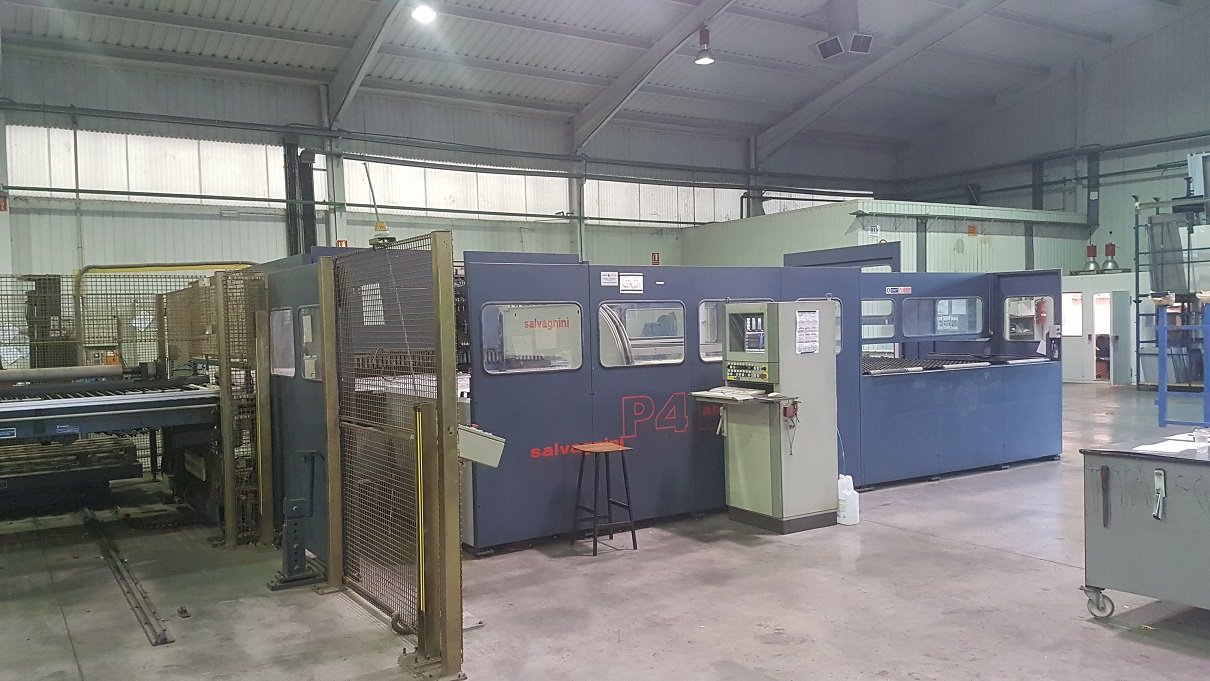

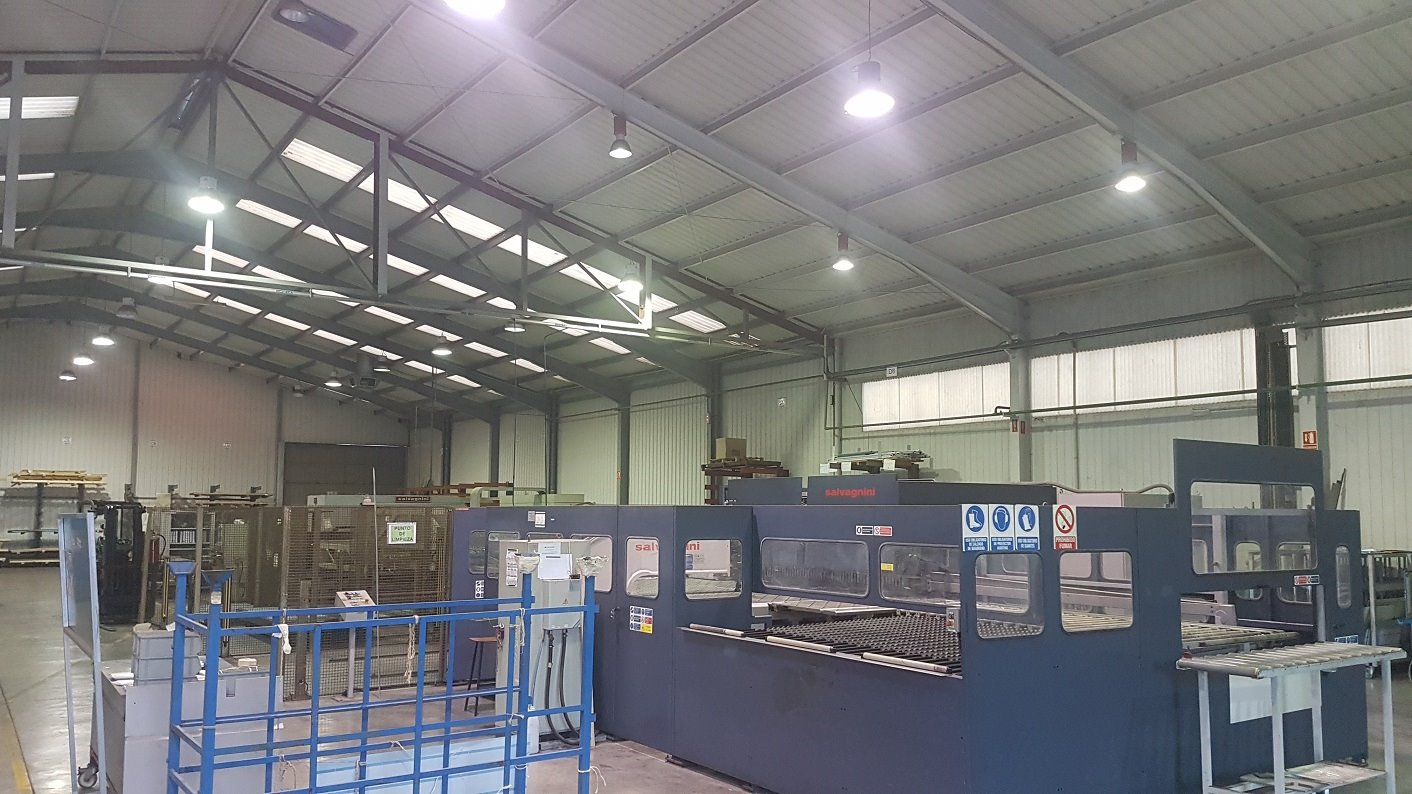

A used SALVAGNINI S4.30 + P4-2512 System, new in 2002, for sale. It is composed of: 3000mm x 1500mm x max. 3mm S4.30 Punch-Shear with H2 Head, E11 and RIP; and 2500mm x max. 2mm P4-2512 Panel Bender with ADP, ALA, CLA, CUT, DL, RC and SAP. -- Full customer support is provided by FLOREANI & PARTNERS, Italy’s most experienced independent specialists in Finn-Power and Salvagnini automatic sheet metal fabrication equipment. The equipment can be inspected on appointment.




System Description:



S4.30 Punching/Shearing Machine

3000mm x 1500mm x max. 3mm

H2 Head with 40 x 7 Tonne + 4 x 26 Tonne Punches

2 Indexed Tools

400mm Angle Shear

2 x 3000mm x 1500mm Loading Tables

2 x 3000mm x 1500mm Off-Loading Tables

E11 Below-Effect (1)

RIP Sheet Tilter

Control: Windows XP (+)



P4-2512 Panel Bender (with 127mm Max. Bend Height)

2500mm Max. Bend Length x 2mm Max. Material Thickness

ADP Man./Auto. Load

SAP Off-Loader to Roll Table with buffering possibility

ALA Automatic Tool Changer

CLA Lower Auxiliary Tooling

DL Discharge of Last Negative Bend

RC Continuous Rotator

CUT Profile Shearing

Control: Windows XP (+)


Salvagnini offer a number of line configurations of Flexible Manufacturing Systems.
These may be systems that include a S4 Punching/Shearing Machine in-line with a P4 Panel Bender, or may involve Lasers, Roboformers, or other modules that can offer a range of production capabilities to meet a User's needs.
PHOTOS & IMAGES
(CLICK TO ENLARGE)
2
3
4
5
6
