FLYING SHEAR CUT TO LENGTH LINE

Flying Shear Cut To Length Line HYBRID Used [#3423]
   Cut To Length Lines CLL  Flying Shear Cut To Length Line HYBRID Used [#3423]
1

VIDEOS
Used Flying Shear Cut To Length Line
2050mm x 12mm
HYBRID
FOR SALE

OFFERED SUBJECT TO BEING UNSOLD
  • stock, being revamped


Used (being) re-manufactured Flying Shear Cut To Length Line for max. 2050mm x 12mm, 35 Ton Coils. Process materials: hot rolled and cold rolled steel. Line speed max. 22m / minute. Some new parts built by us.


A USED 2050mm x 12mm FLYING SHEAR CUT TO LENGTH LINE, (BEING) RE-MANUFACTURED. SOME NEW PARTS BUILT BY US. 35 Ton DECOILER. 6m SHEET STACKER. LINE MAX. SPEED: 22m / MINUTE. THE LINE CAN PROCESS HOT ROLLED AND COLD ROLLED STEEL COILS. IT CAN BE INSPECTED AT PLANT 2 NEAR MILAN, ITALY. DELIVERY TIME: 5 MONTHS.







PROCESS MATERIAL SPECIFICATION

Hot rolled and cold rolled steel
Maximum coil weight: 35 Ton
Min/max coil width: 500mm/2050mm
Material thickness (Rm= 370 N/mm2): 1.5mm to 12mm (with 2 levellers)
Coil ID: 508mm to 840mm
Coil OD max: 1800mm
Sheet length: 400mm to 6000mm
Bundle weight max: 5 Ton



LINE MAIN DATA

Line speed: 0-22m / min
Line direction: right to left
Total installed power: 280 kW
Yearly production with 1 shift/day: 40.000 Ton



LINE DESCRIPTION

Decoiler
Building type: two opposite expanding mandrels, on separate frames.
Coil weight max.: 35 Ton
Coil width: 600mm-2200mm
Coil ID: 508mm to 840mm
Stroke (each side): 800mm
DC motor + stationary brake

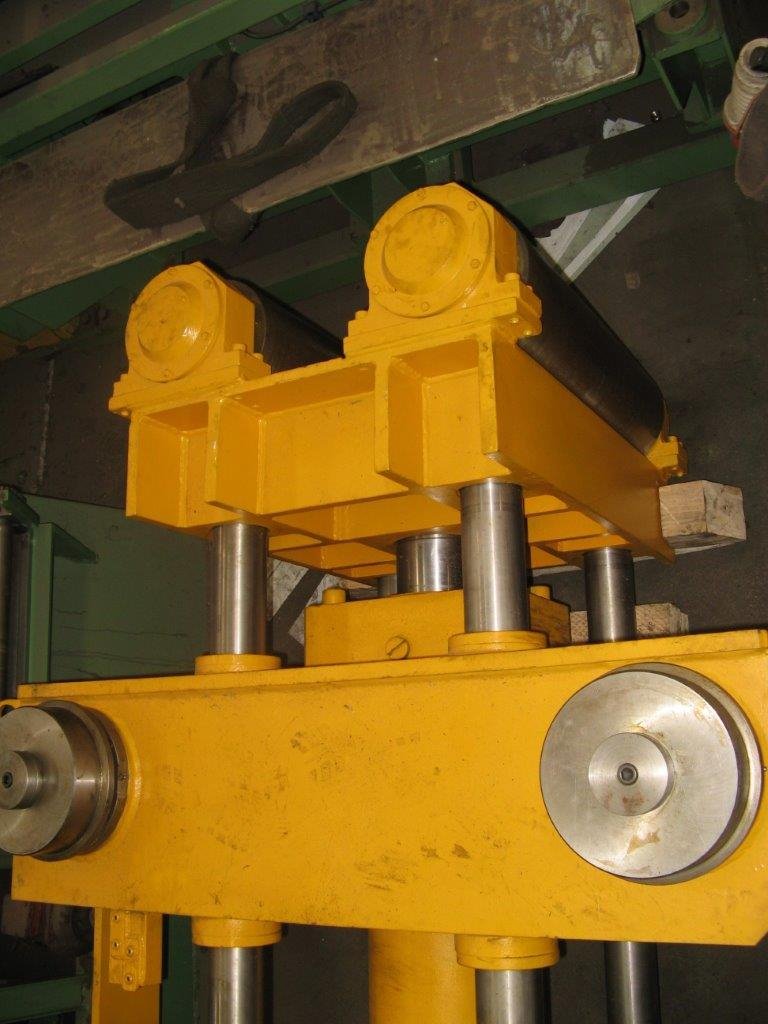

Coil car (NEW) ***
Under-floor type
Coil weight max.: 35 Ton (at 80 bar)
Lift: Hydraulic jack -- stroke: 800mm
Motion by hydraulic motor
Coil holder with 2 rolls, idle

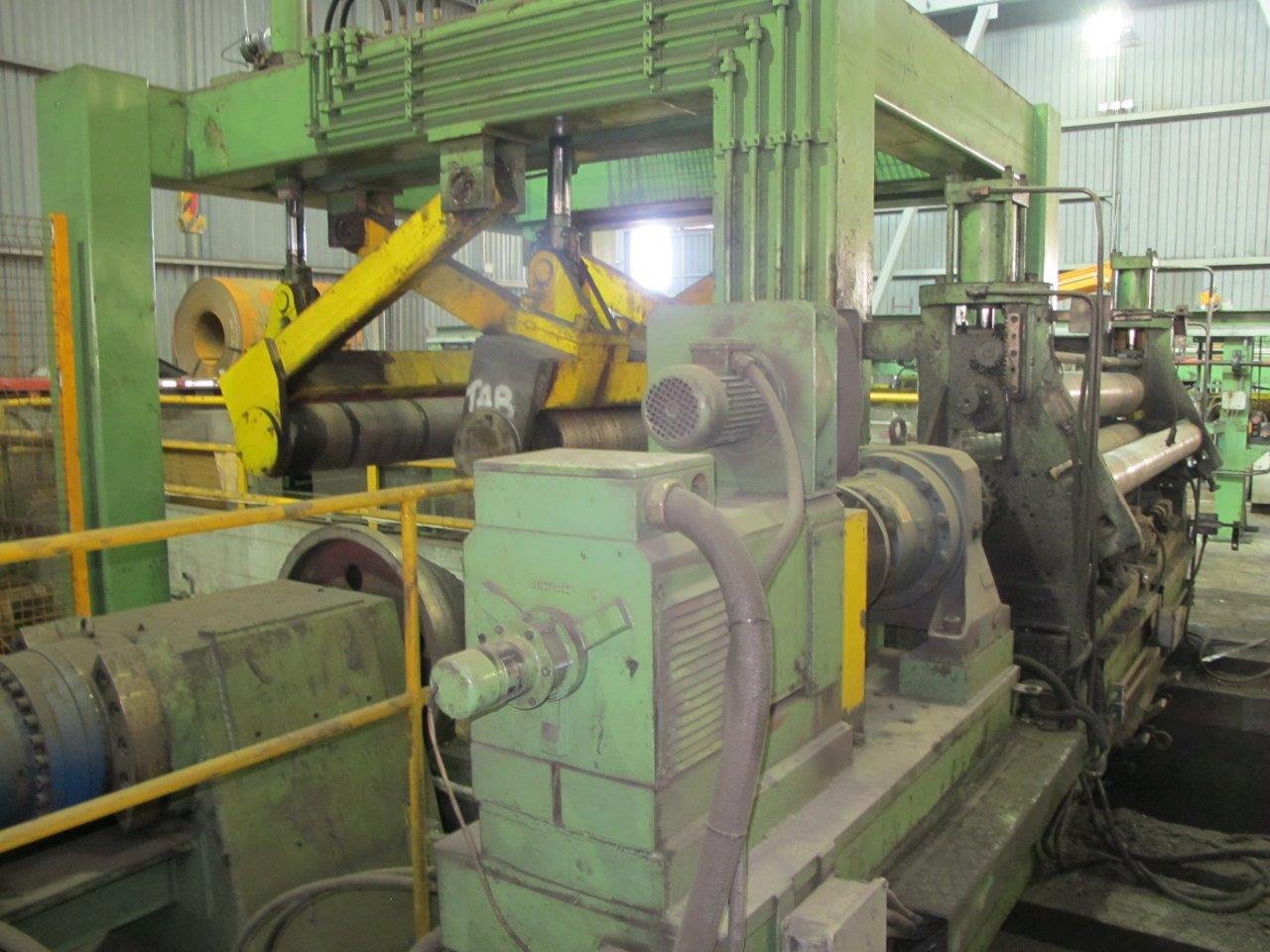

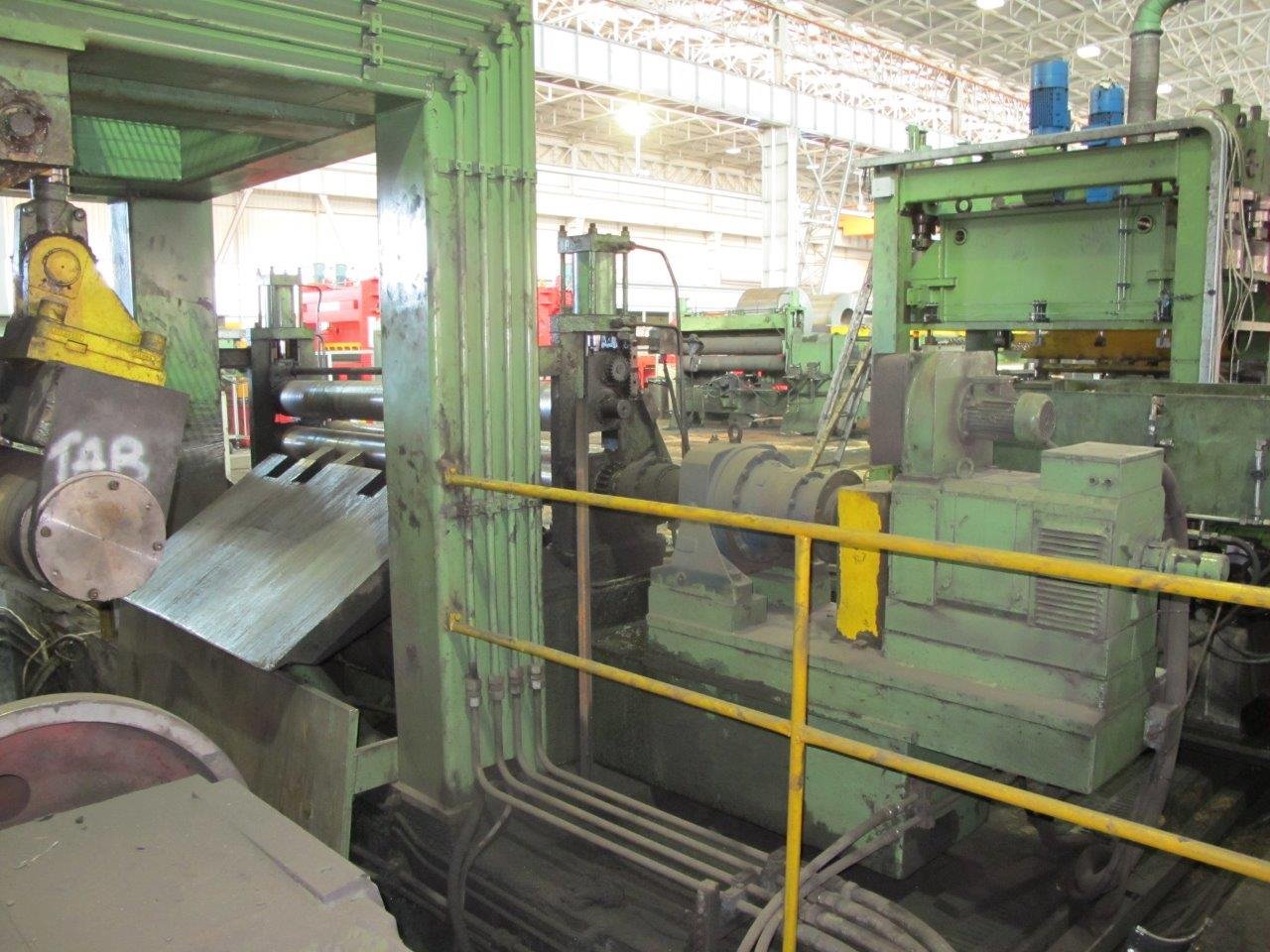

Entry equipment (NEW) ***

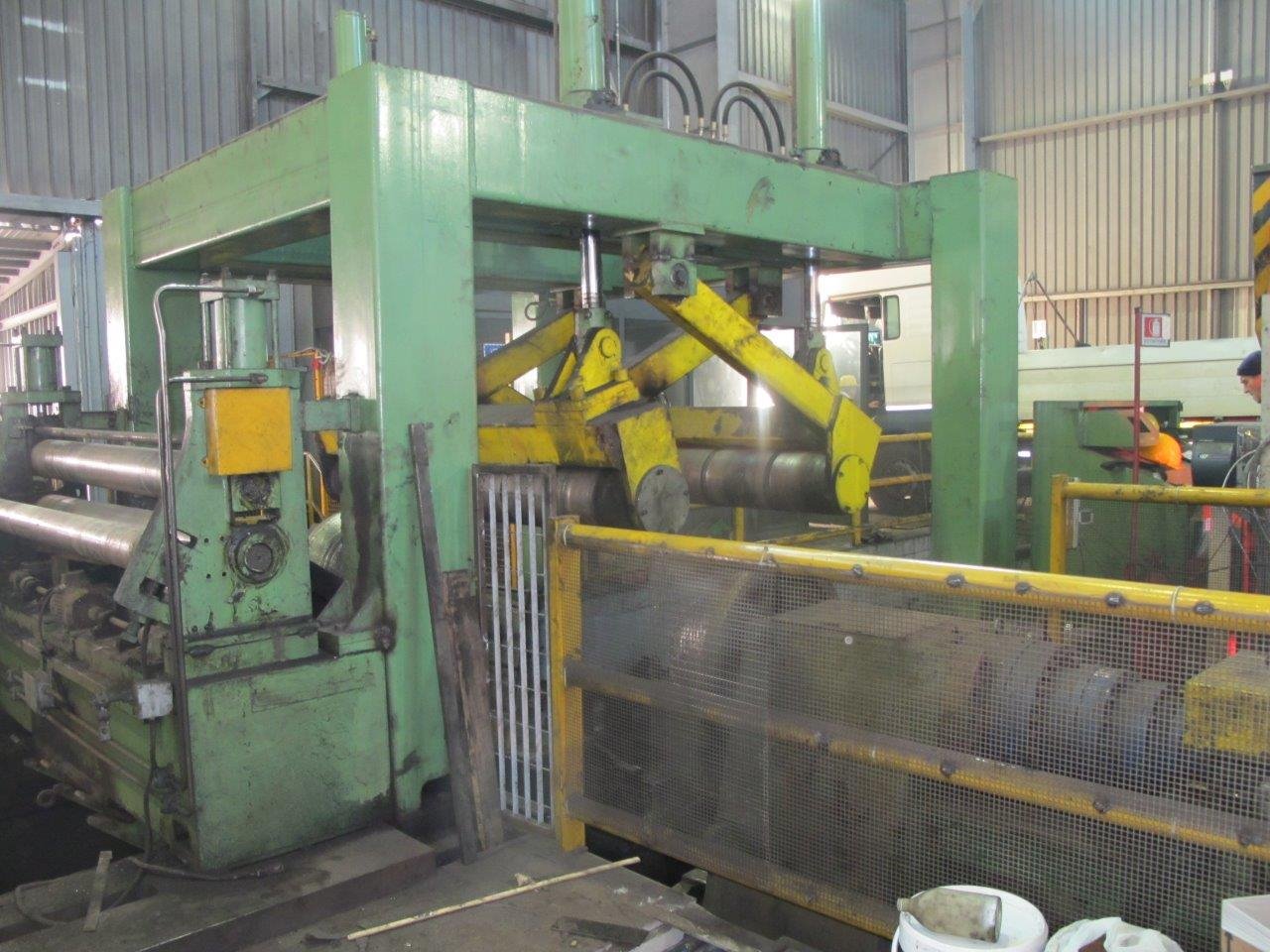

Gantry type with 2 snubber rolls, powered
Anti- coilbreak roll
Coil opener

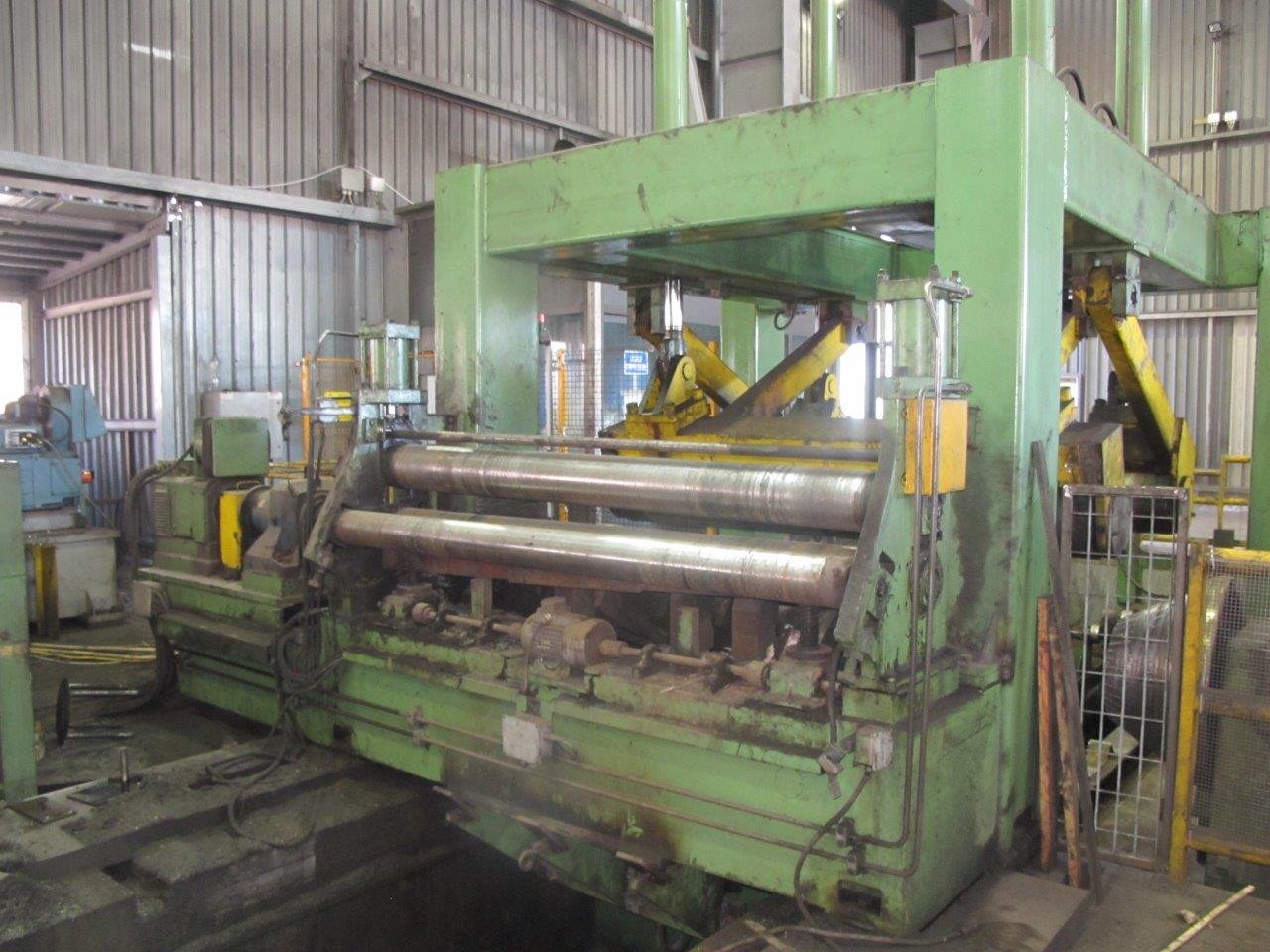

Pinch rolls
DC motor driven
Passline roll / straightening bar

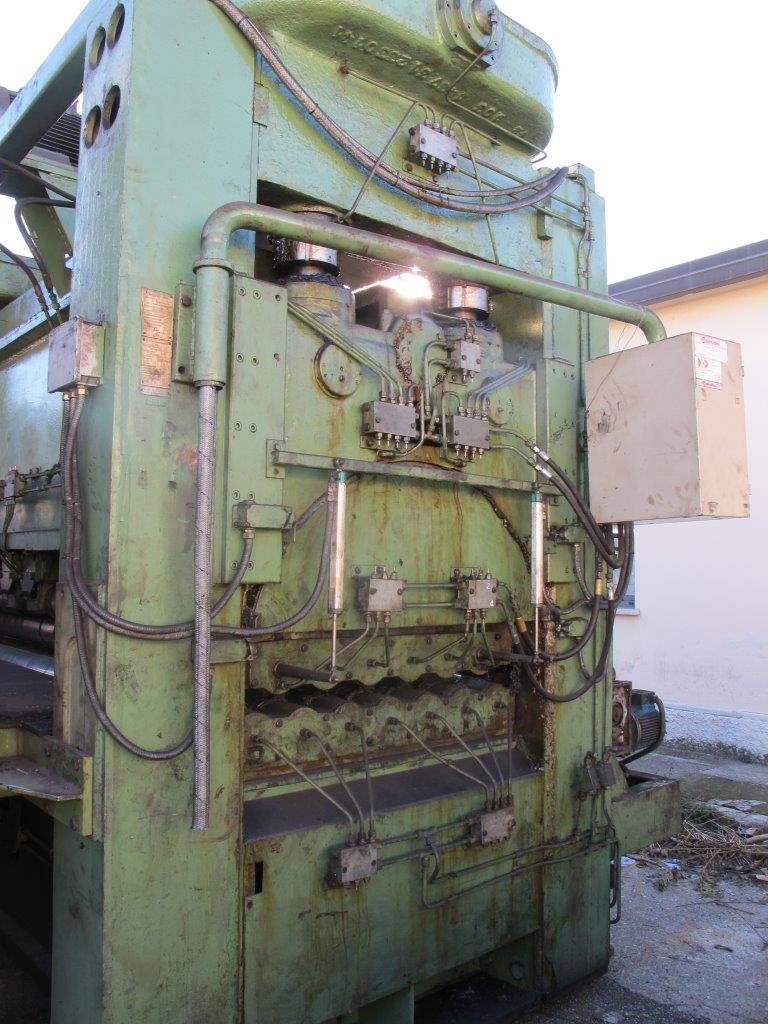

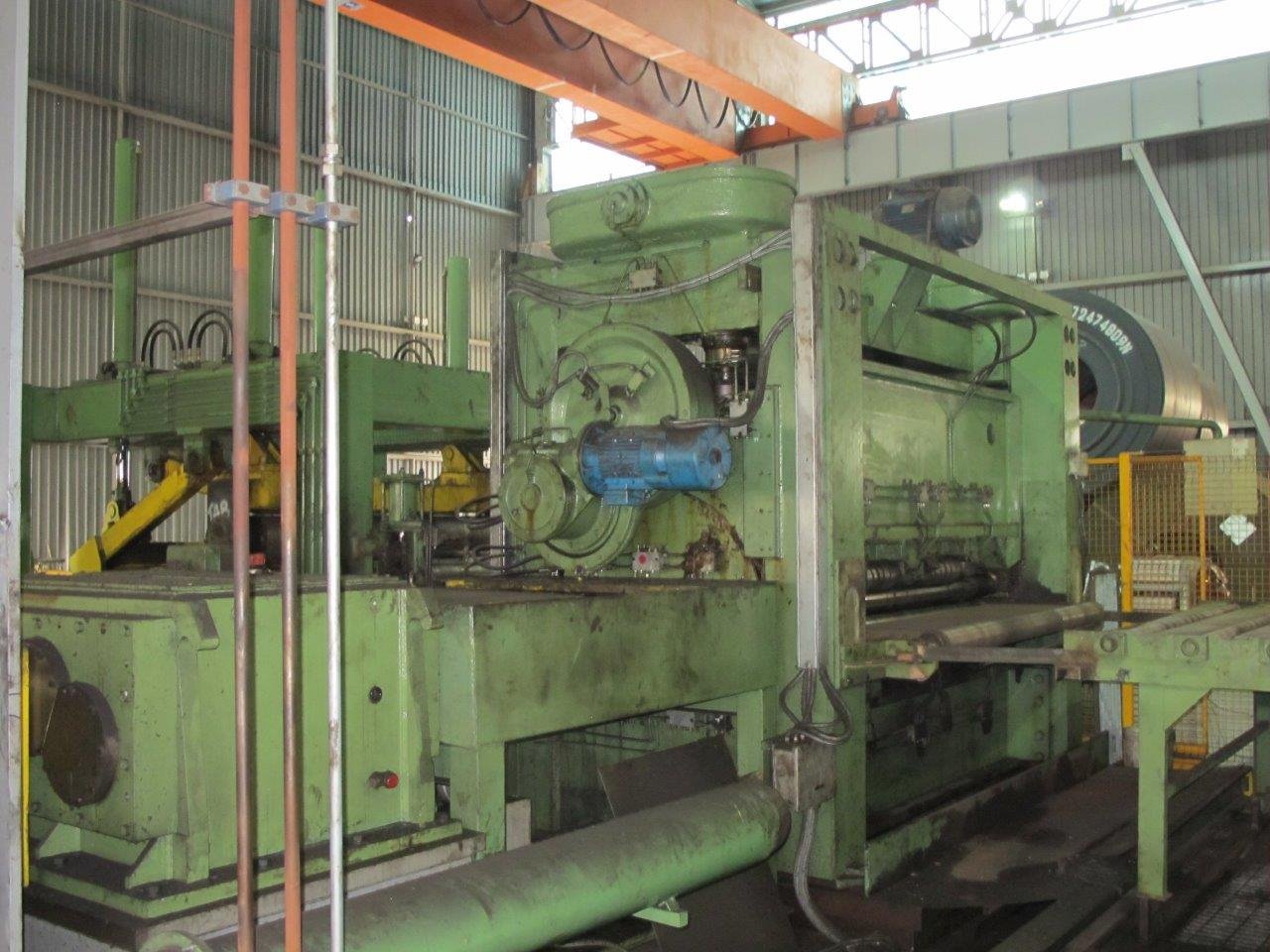

4-HI precision leveller for the thickness range: 4.0mm to 12.0mm
Manufacturer: WMW-UBR
13 work rolls with diameter: 140mm; 3 + 3 sets of back-ups
Entry/exit adjustment of upper bridge by electric motor
Dc motor drive

Measuring wheel with encoder (NEW) ***

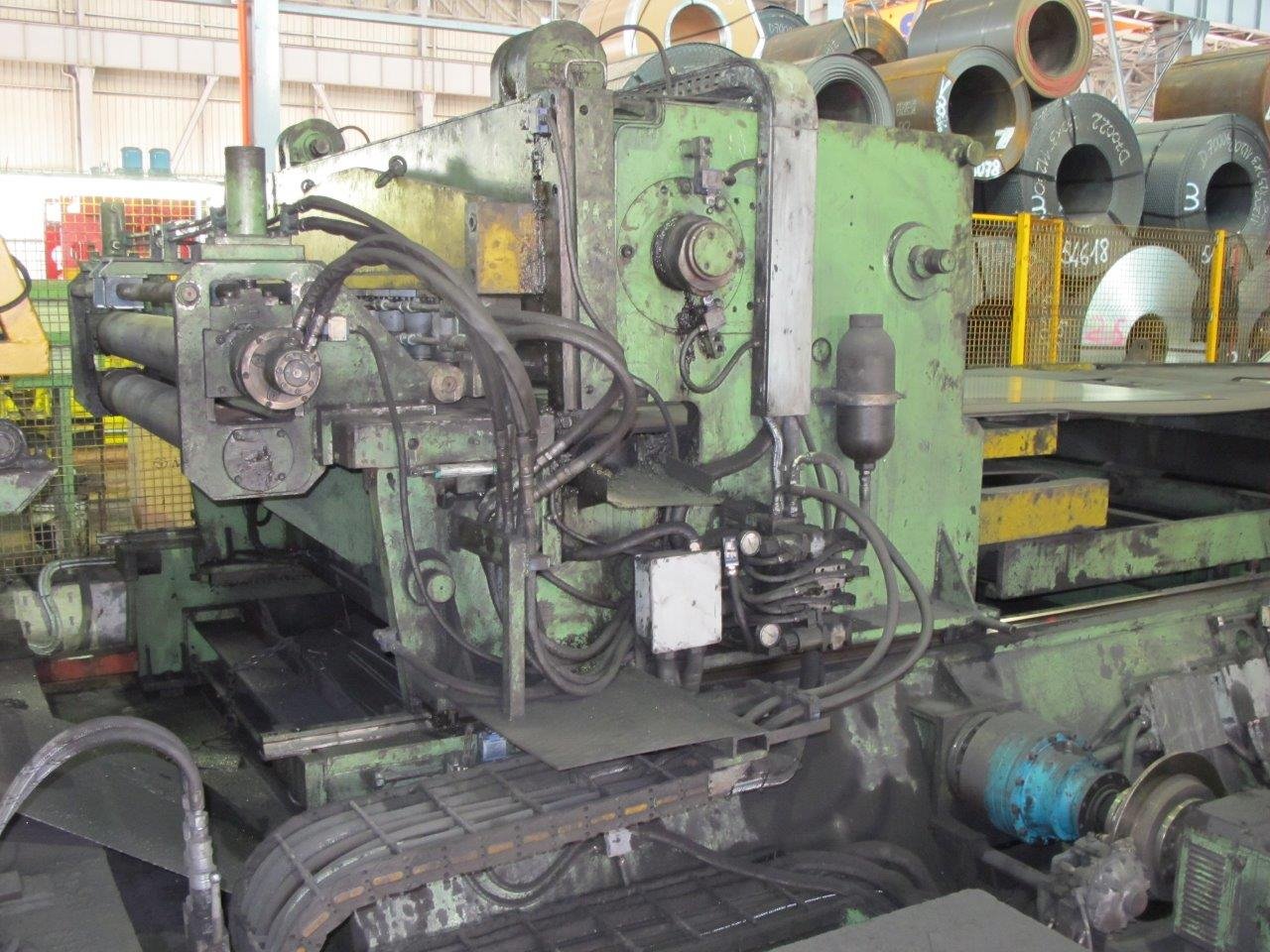

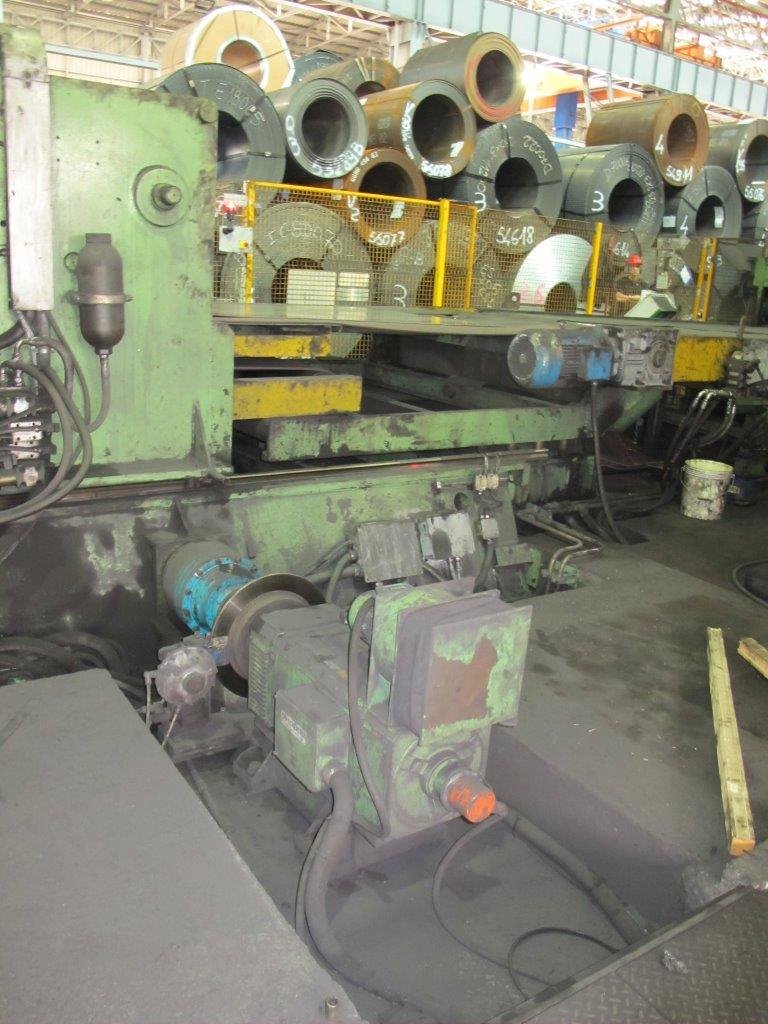

Flying shear
Manufacturer: FIMI
Electric motion, with servo motor (year: 1990)
Length tolerance: +-1mm at 2m cut length
Pinch rolls for evacuating last sheet
Exit belt conveyor

2nd conveyor
with movable section for scrap evacuation
Trolley to the side

Exit pinch-rolls
DC motor drive

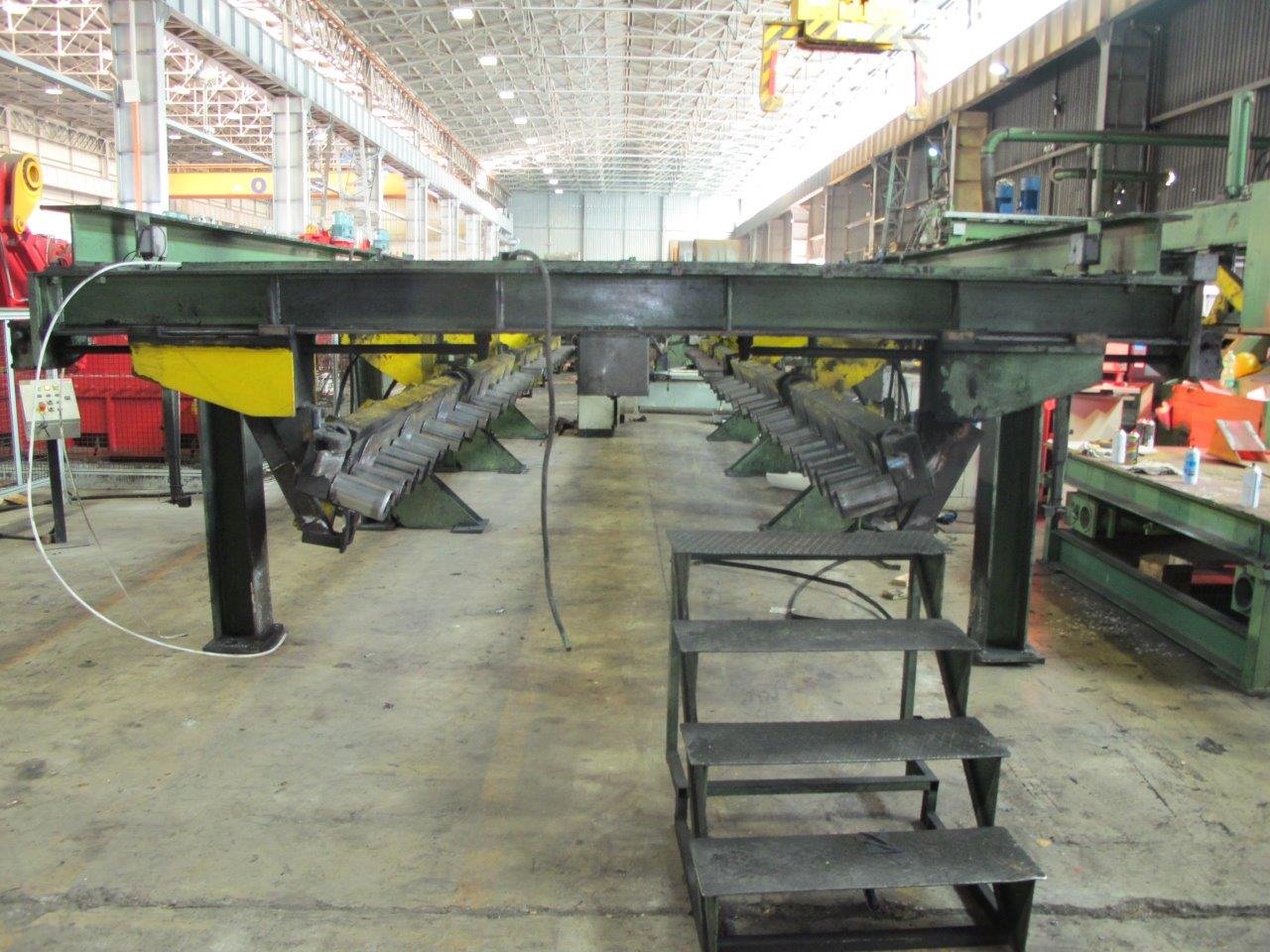

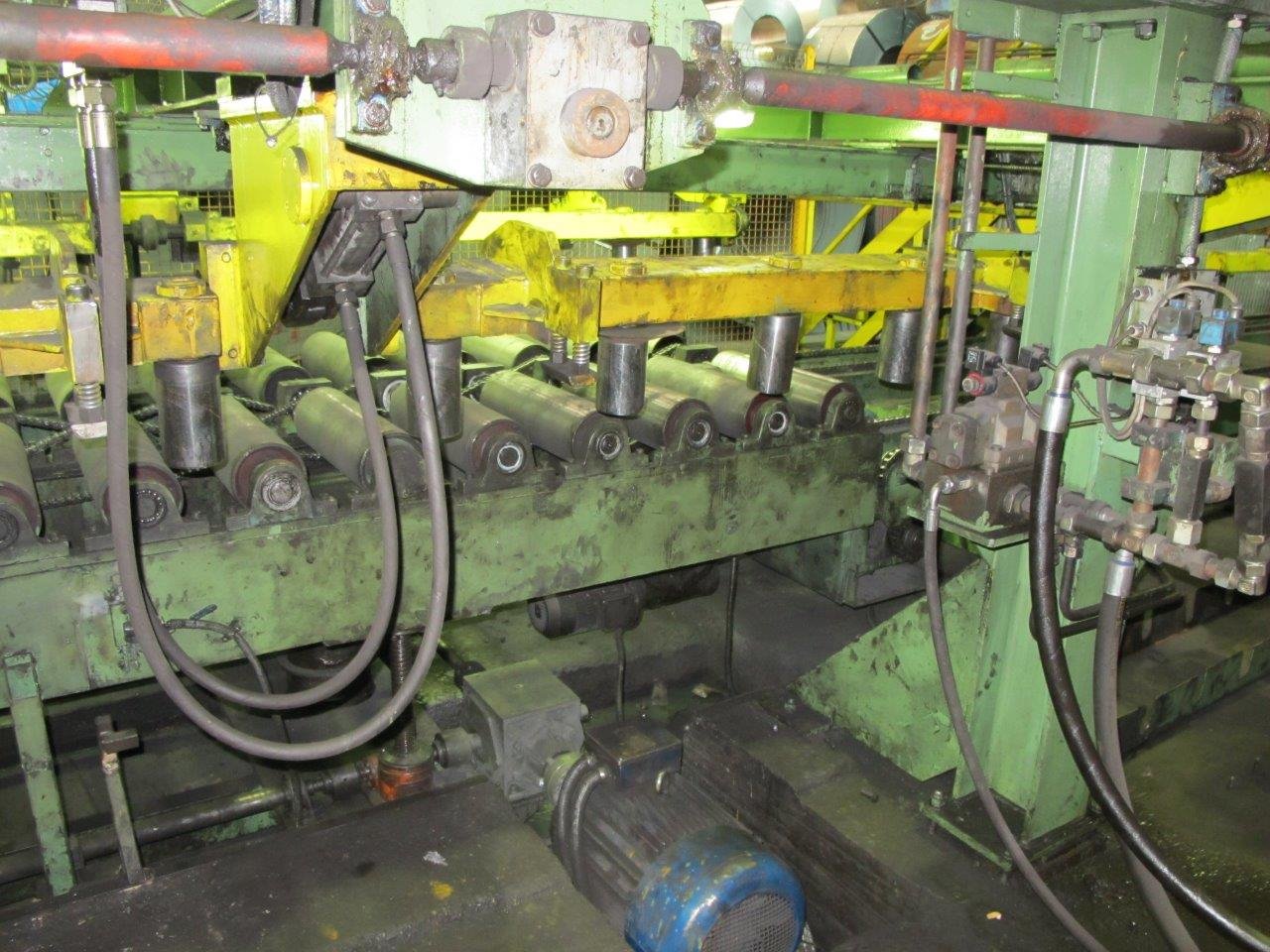

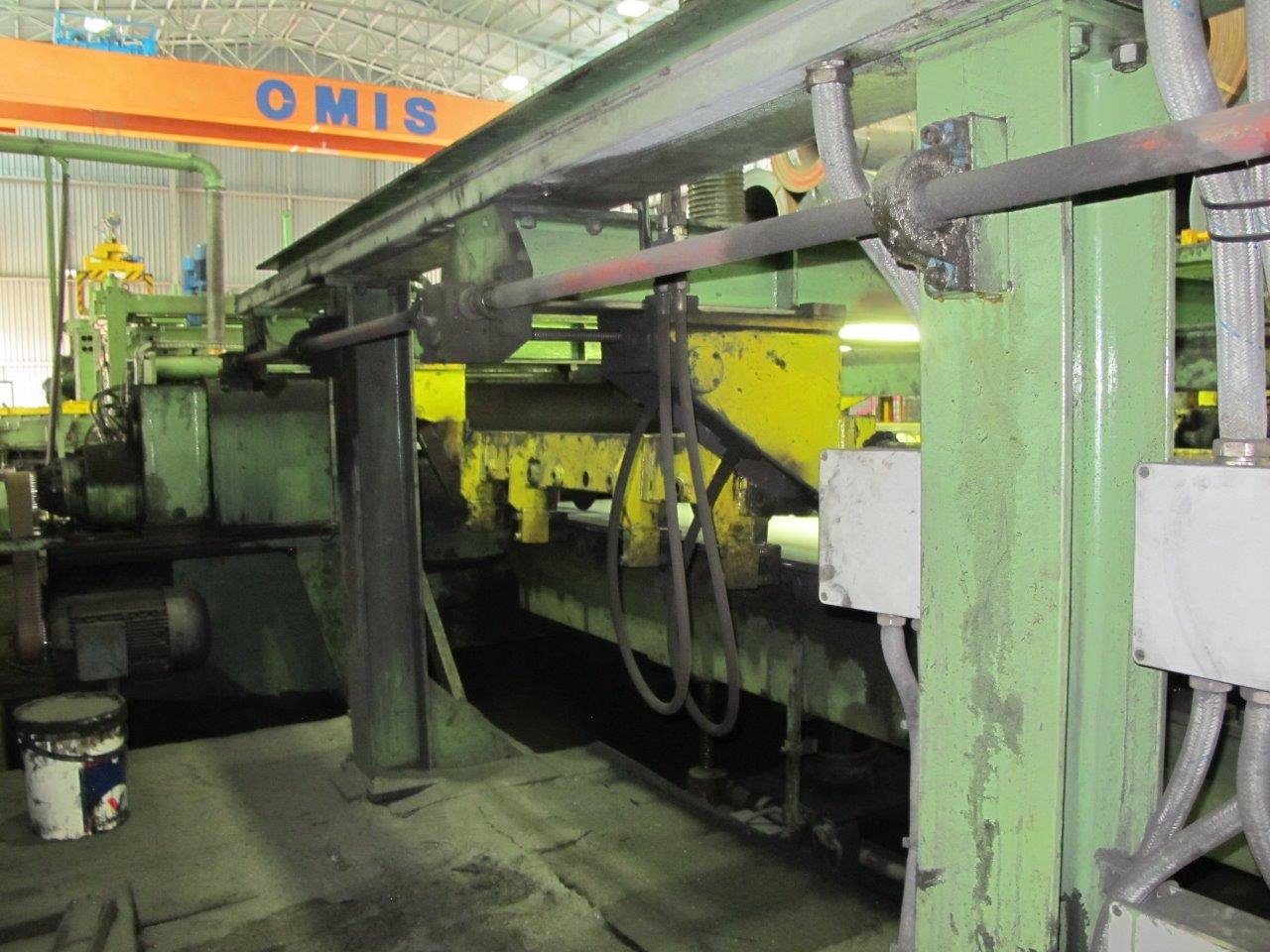

Stacker with tilting guides (“no-scratch” type)
Side and front kickers
Automatic descent

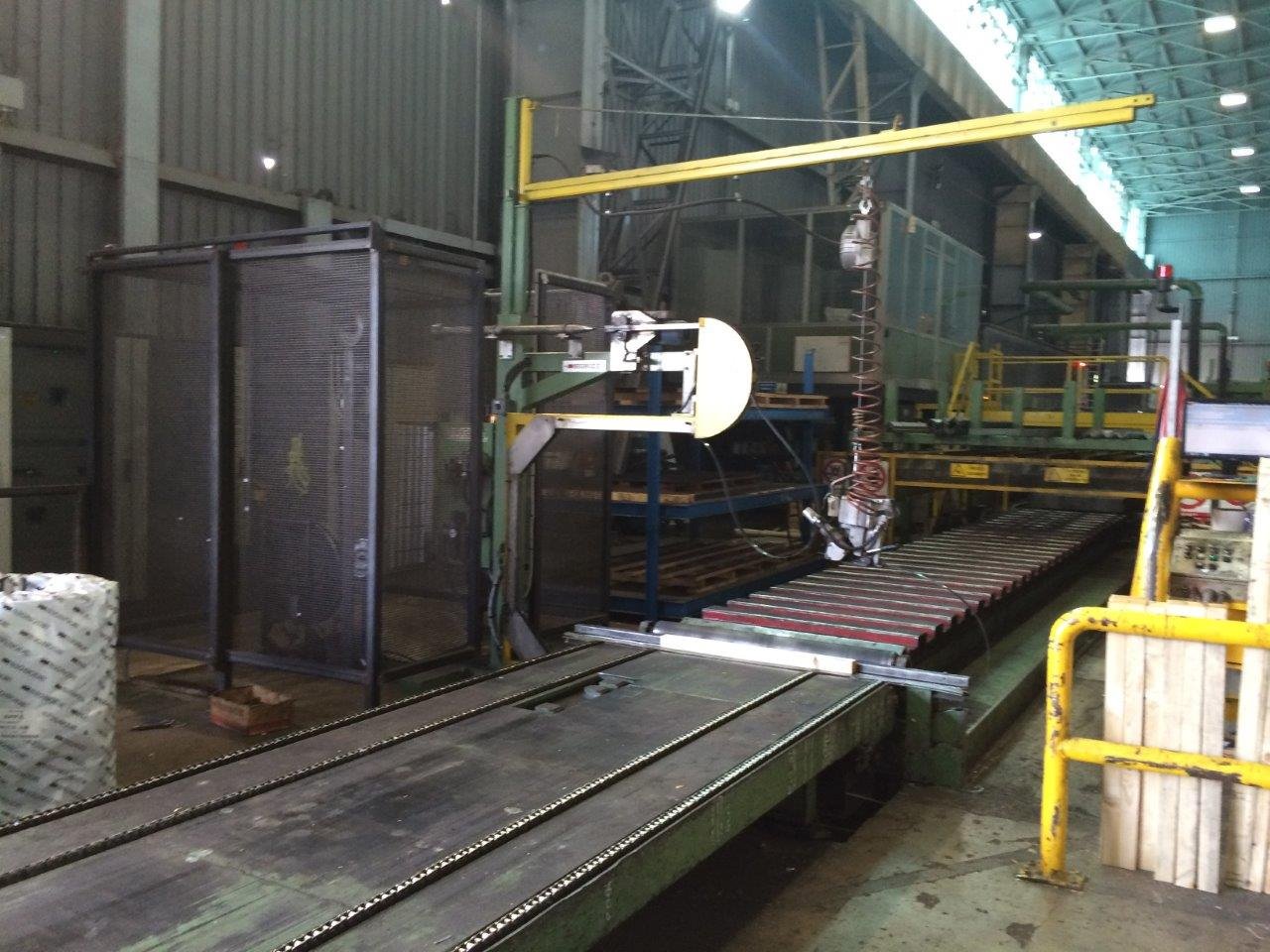

Chain conveyor
Length: 6m

Packaging-area conveyor
Length: 10m

Electrics
10 door electric cabinet
1 entry-switchboard
1 main-switchboard with Siemens touchscreen

Hydraulics
with 2 power packs


+

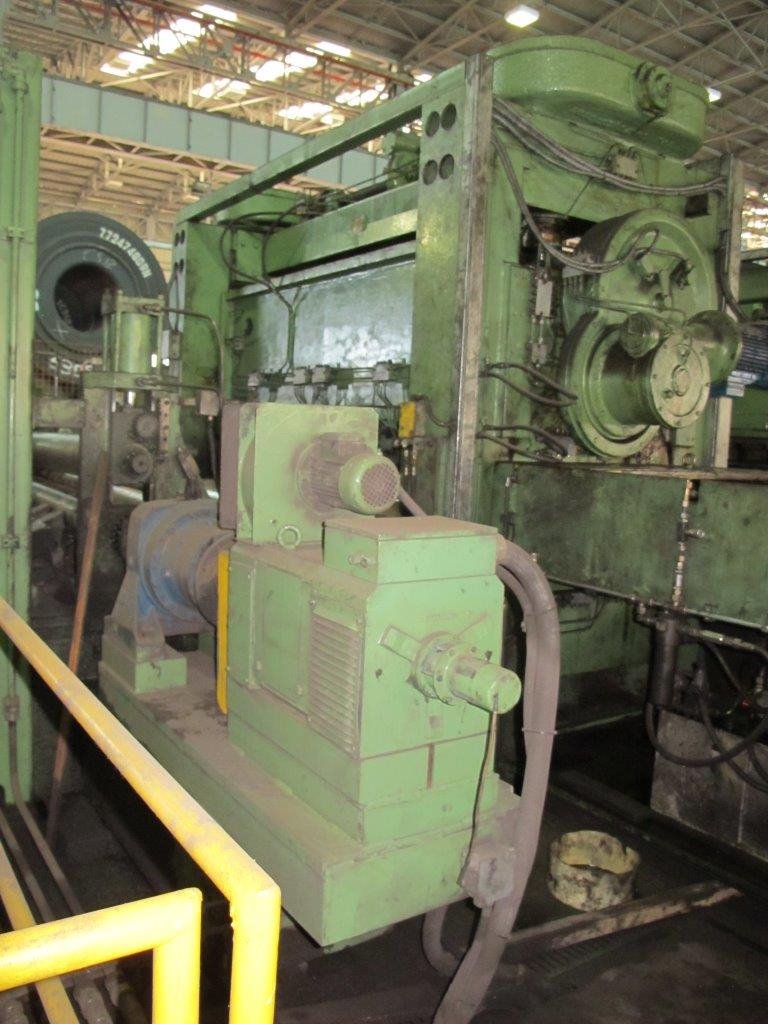

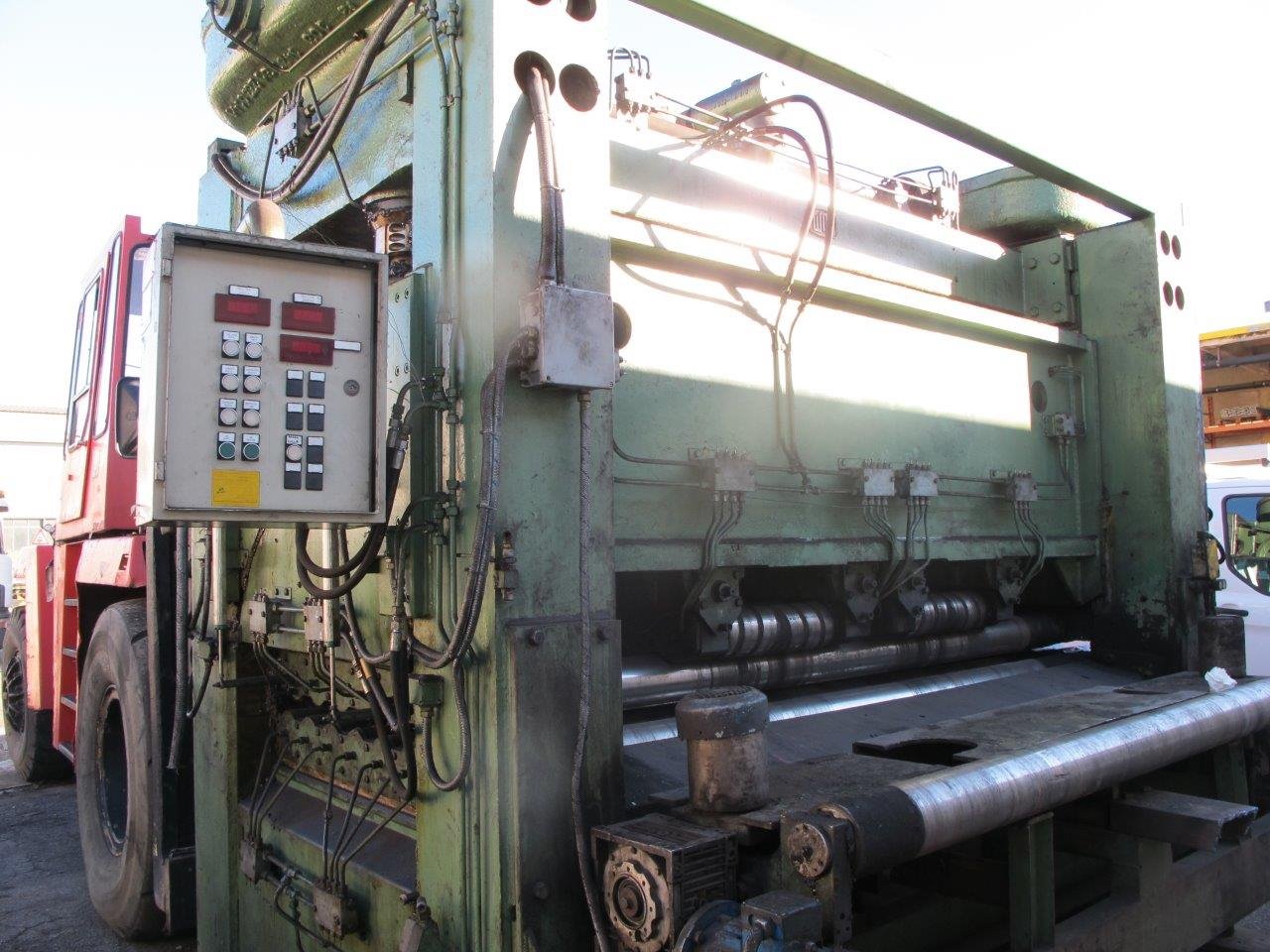

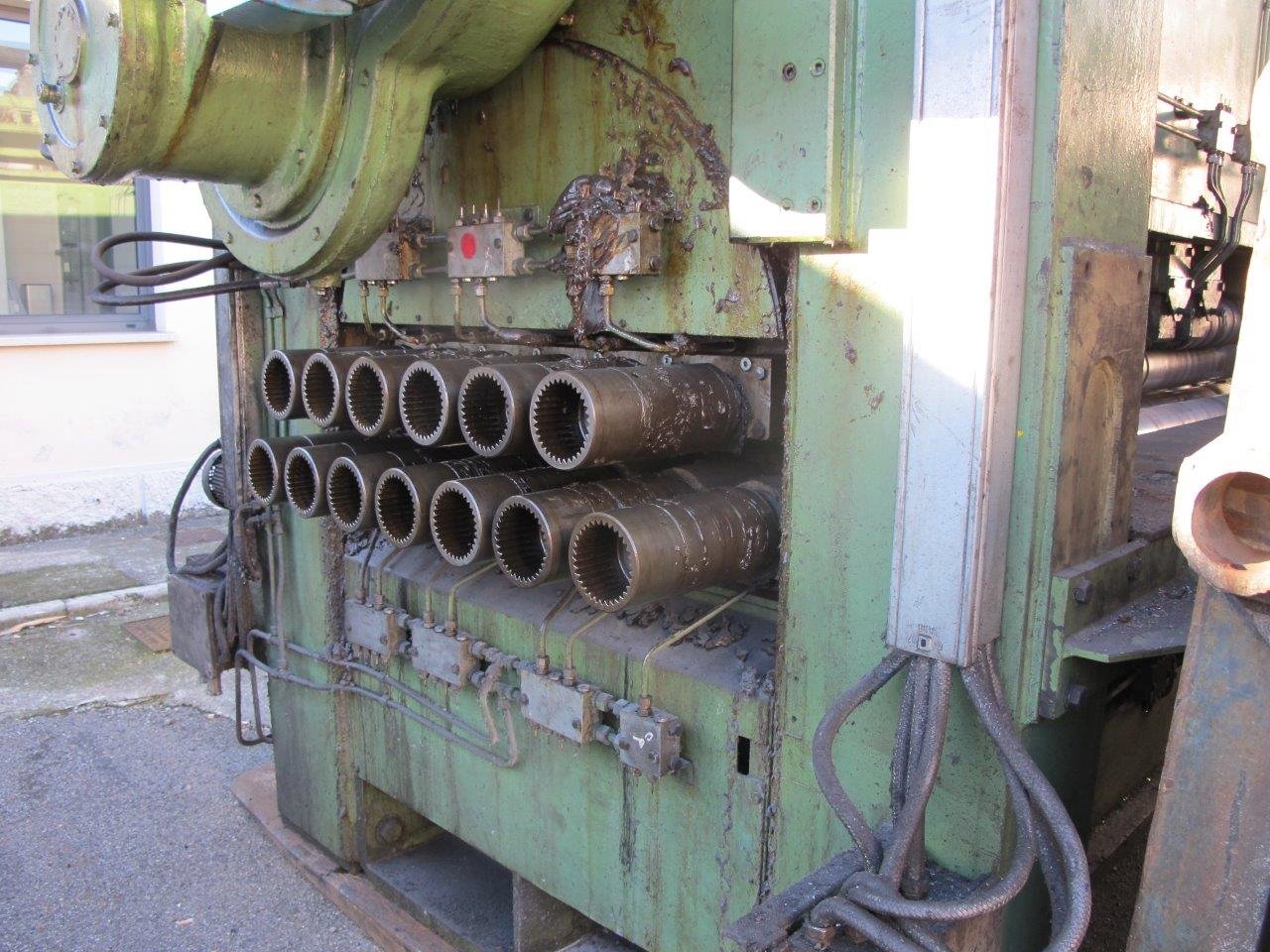

4-HI precision leveller for the thickness range: 1.5mm to 5.0mm
Manufacturer: MARIANI
15 work rolls with diameter: 68mm; 9 + 9 sets of back-ups, moved by hydraulic jacks
Entry/exit adjustment of upper bridge by electric motor
Connection roller table from 1st leveller
Dc motor drive








The line is dismantled and presently under revamping

We offer it revamped, with 6 month guarantee




We offer Start/Stop, Roll Feeder, Flying Shear, Rotary Shear Cut To Length Lines both new and used / re-manufactured for: Aluminium, Coated, Cold Rolled, Copper, Galvanized, Hot Rolled, Prepaint, Silicon, Stainless, Tinplate,Titanium .

Your enquiries welcome for also individual Line Parts like: Decoilers, Feeders, Levellers, Sheet Stackers, Straighteners ...
