SOLD
1
Used Flying Shear Cut To Length Line
2550mm x 16(18)mm
FIMI

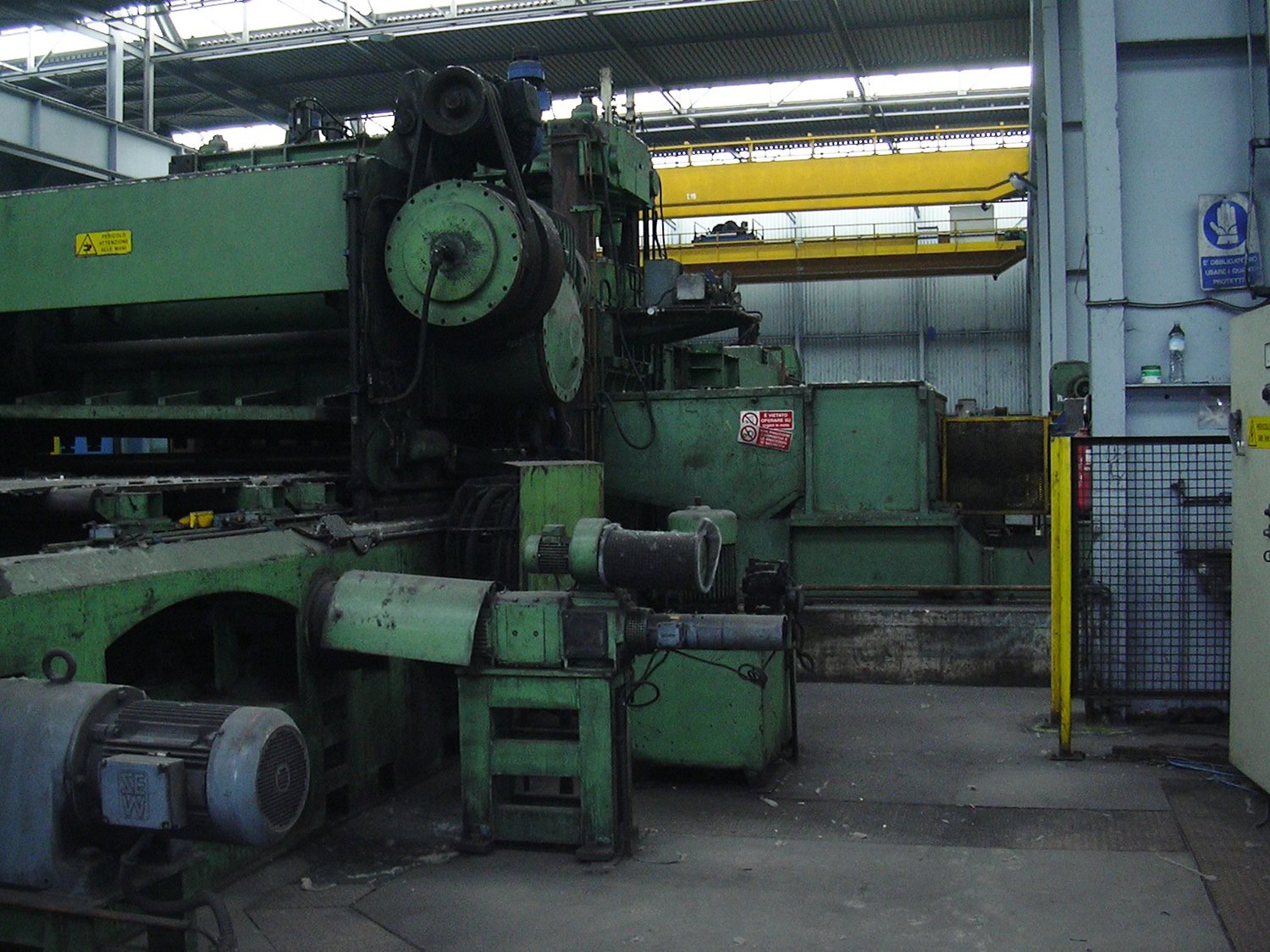

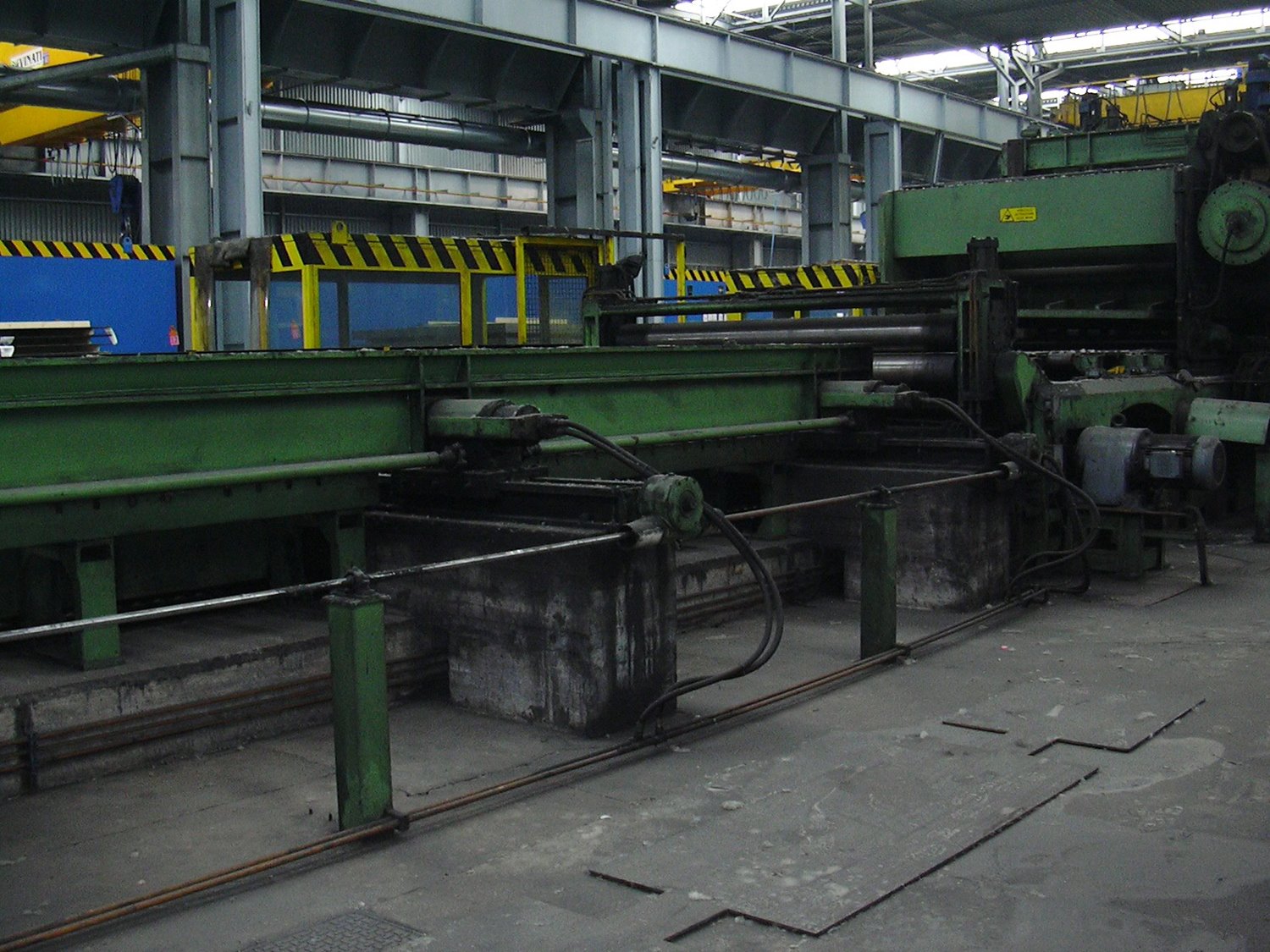

A used, heavy duty 2550mm x 16mm Flying Shear Cut To Length Line by FIMI. Installed, presently out of service (live demos can be arranged on appointment). 35 Ton decoiler. 9-roll leveler. Max. speed 16m / min. Year when built: 1984. Hot Rolled Steel Line.
USED, HEAVY DUTY FLYING SHEAR CUT TO LENGTH LINE, 2550mm x 16mm, FOR HOT ROLLED STEEL COILS. NEW IN 1984. MANUFACTURER: FIMI, ITALY. THE LINE IS INSTALLED, PRESENTLY OUT OF SERVICE. LIVE DEMOS CAN BE ARRANGED ON APPOINTMENT. THE DECOILER CAPACITY IS 35 TON. 12m SHEET STACKER. LINE SPEED MAX. 16m / min.
LINE DIRECTION LEFT TO RIGHT
PASSLINE HEIGHT 1500mm
Type of Material: Hot Rolled Steel
Tensile Strength: 27-65 kg/mm2
Maximum Yield: 42 kg/mm2
Minimum / Maximum Coil Width: 750mm / 2550mm
Coil Max. Weight: 35 Ton
Minimum Material Thickness: 6mm
Maximum MaterialThickness: 16(18)mm
Minimum / Maximum Coil ID: 508mm / 860mm
Coil OD: 1000mm to 2200mm
Minimum / Maximum Part Length: 750mm / 12000mm
Sheet Length Tolerance: +/- 2mm up to 4m length, at constant speed; +/- .2mm per each further meter
Limit values, in kg/mm2:
LEVELER
with 2500mm coil width
- 65 at 16mm thickness
- 52 at 18mm thickness
- 42 at 19mm thickness
SHEAR
(any width)
- same as above
Material threading speed: 6m / min
Workspeed: 0—16m / min
Number of cuts / min:
10 with 1m length (line speed 10m / min)
6 with 2m length (line speed 12m / min)
4 with 4m length (line speed 16m / min)
2.75 with 6m length (line speed 16m / min)
2 with 8m length (line speed 16m / min)
Tensions and el. inputs:
- three-phase tension 380 V 50 Hz
- aux. tension 110 V 50 Hz
- electrovalves tension 110 V 50 Hz
- total el. input (with power factor 0.9) 360 kW AC

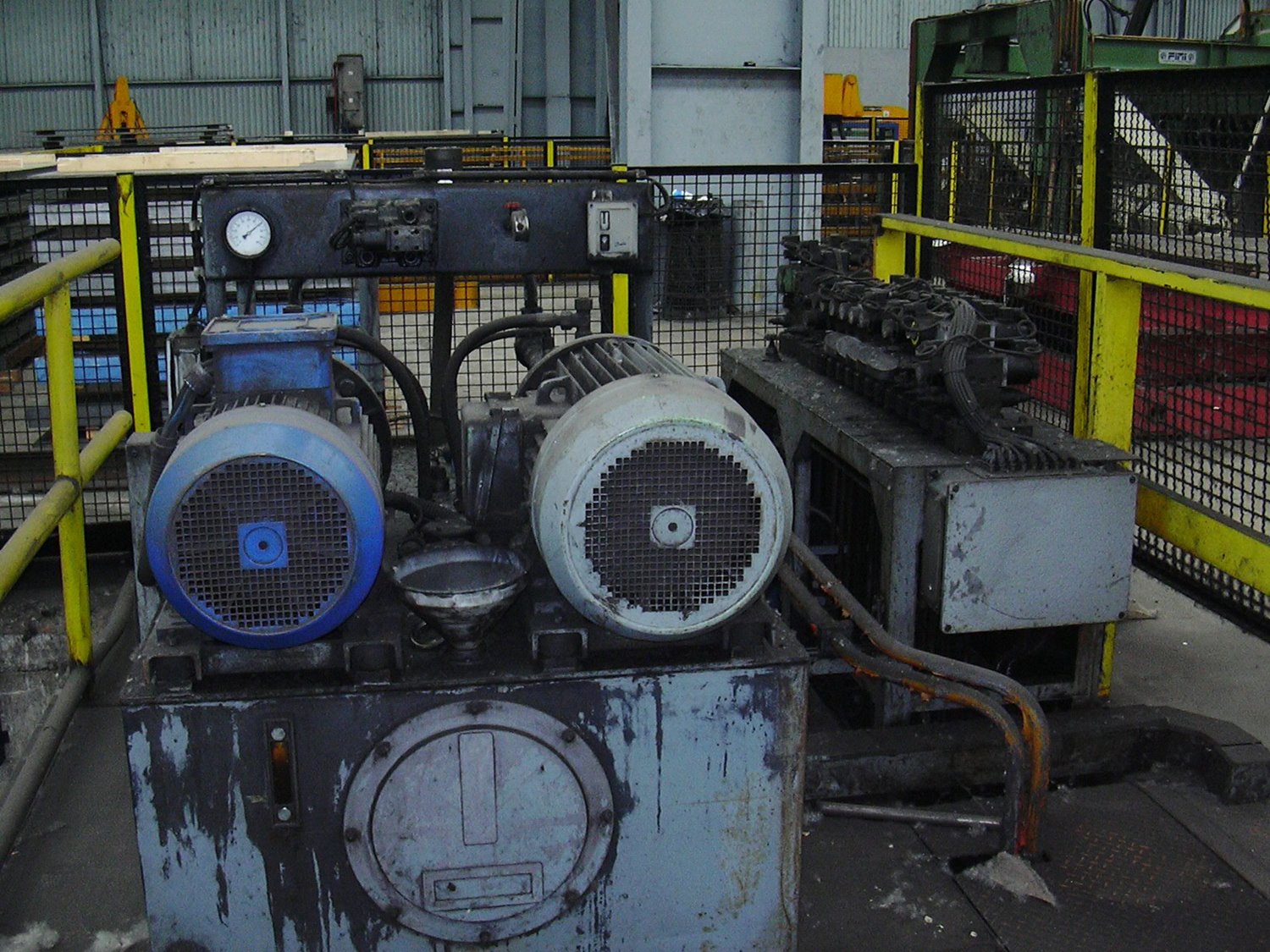

Hydraulics:
- nominal work pressure 120 bar
Pneumatics:
- nominal work pressure 6 bar
EQUIPMENT LIST

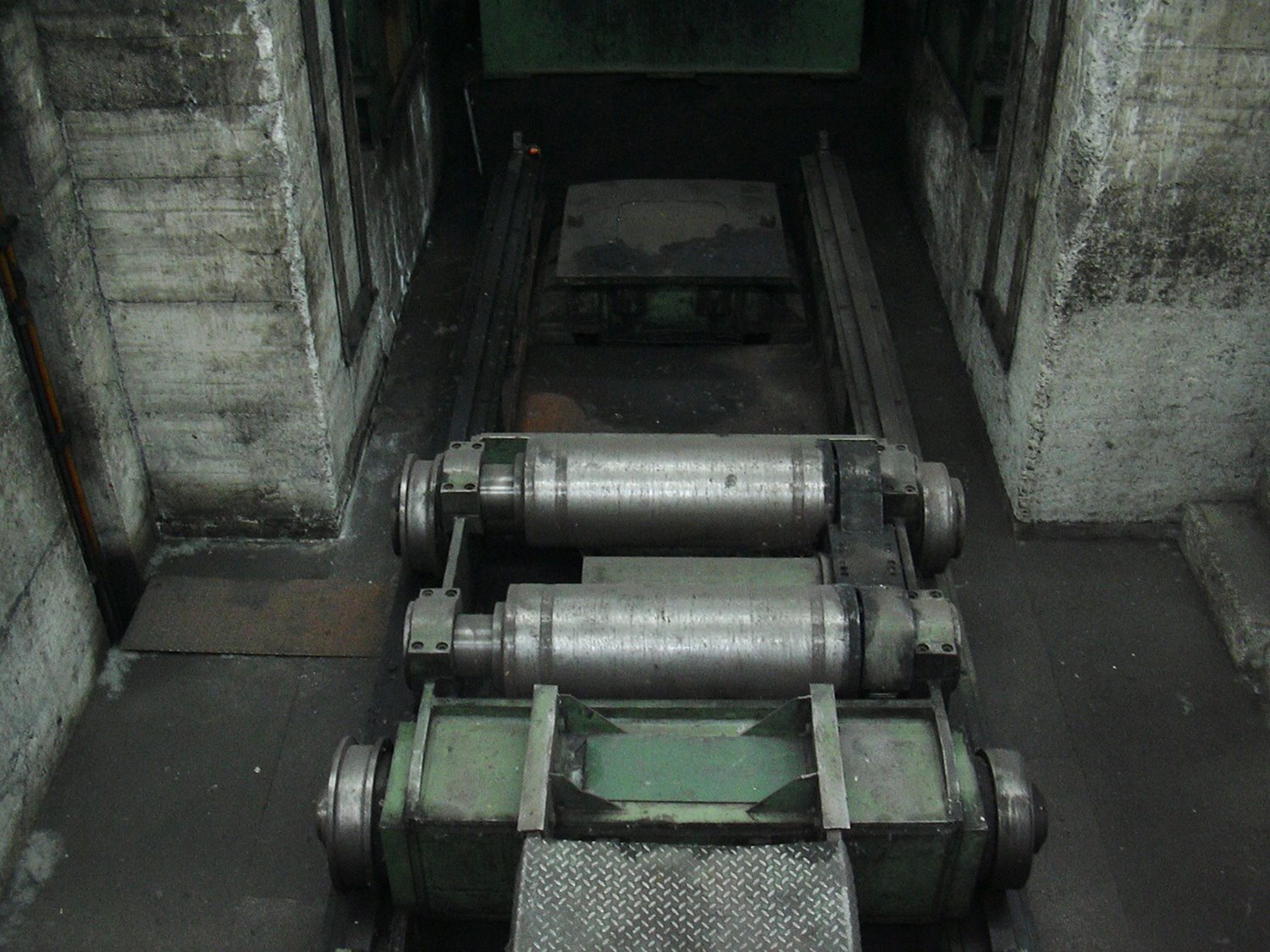

35 T HYDRAULIC COIL CAR with coil unwinding rolls

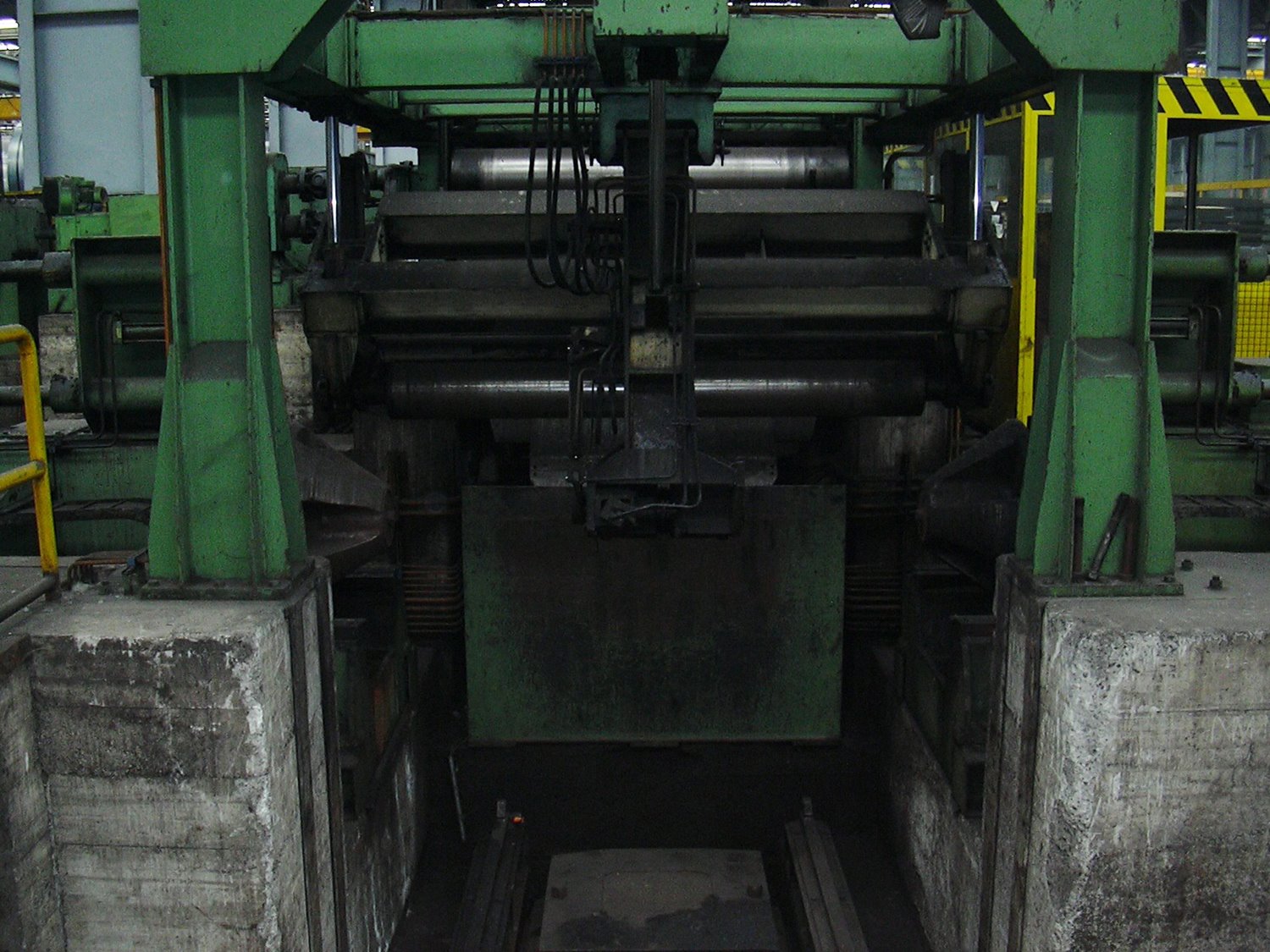

35 T ALL-HYDRAULIC DOUBLE-CONE TYPE DECOILER

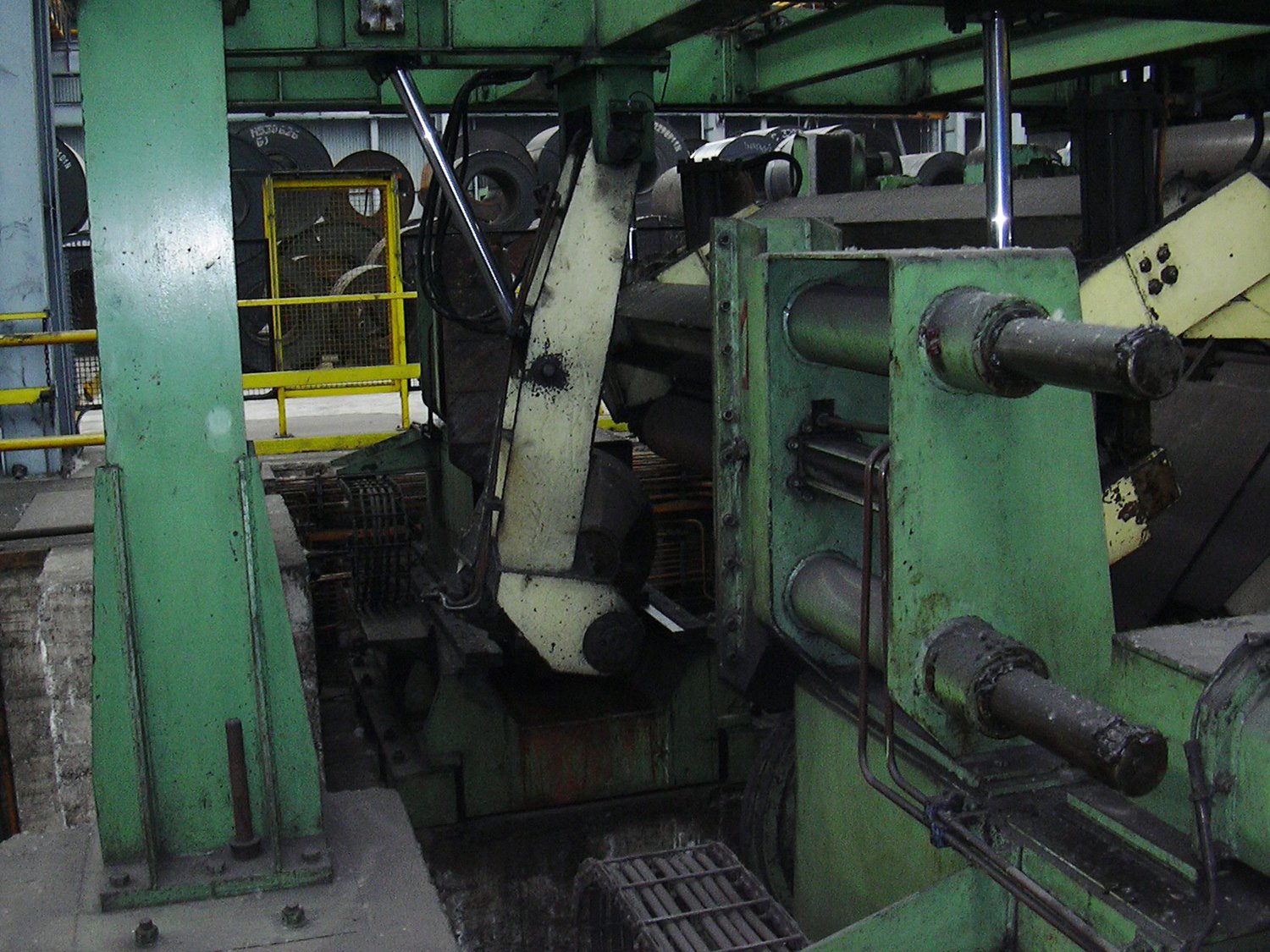

GANTRY with anti- coil break device, powered coil leading edge hold-down roll and contrast roll
ENTRY PINCH ROLLS, dia. 400mm, with AC motor drive; HYDRAULIC TELESCOPIC TABLE

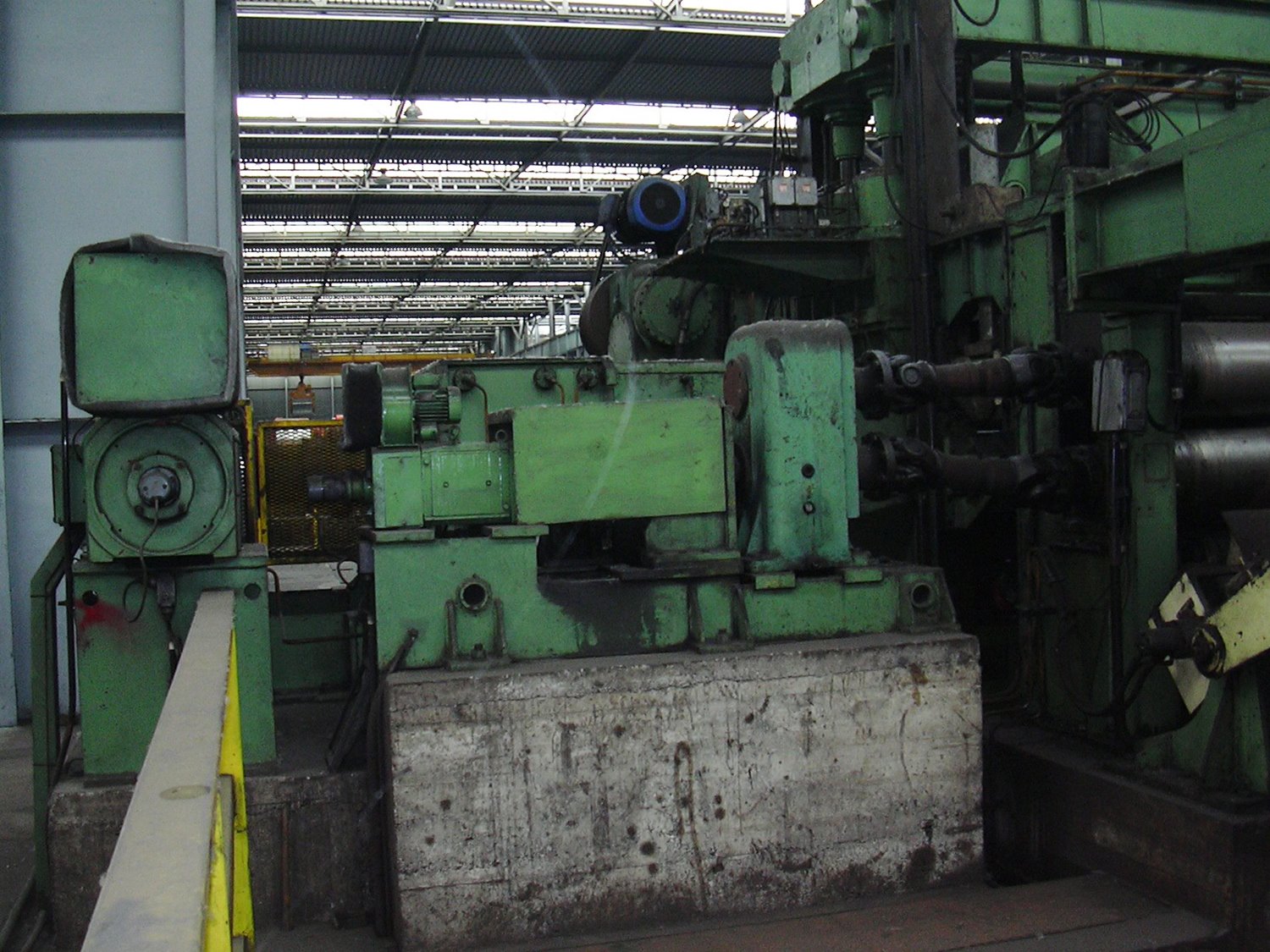

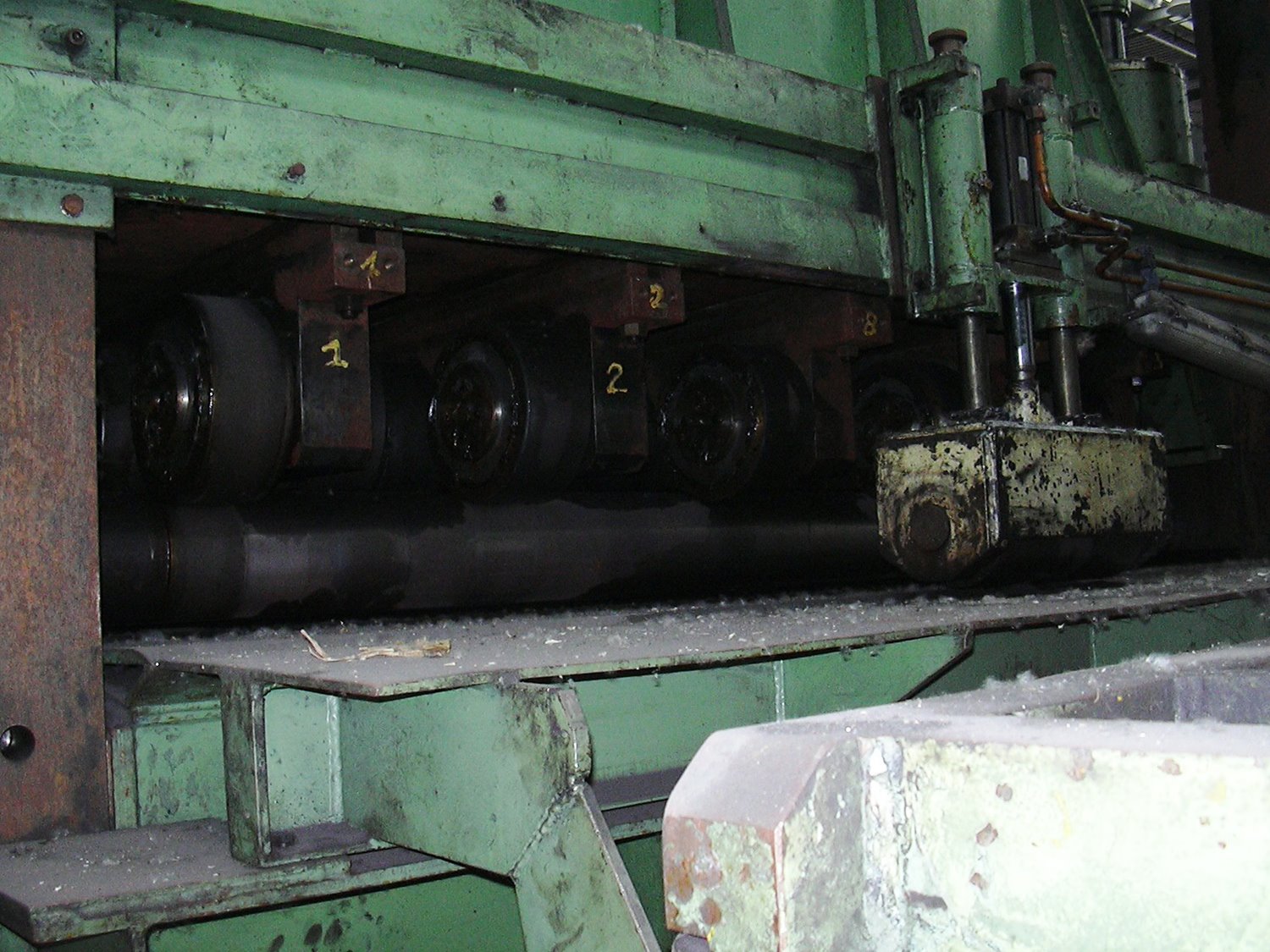

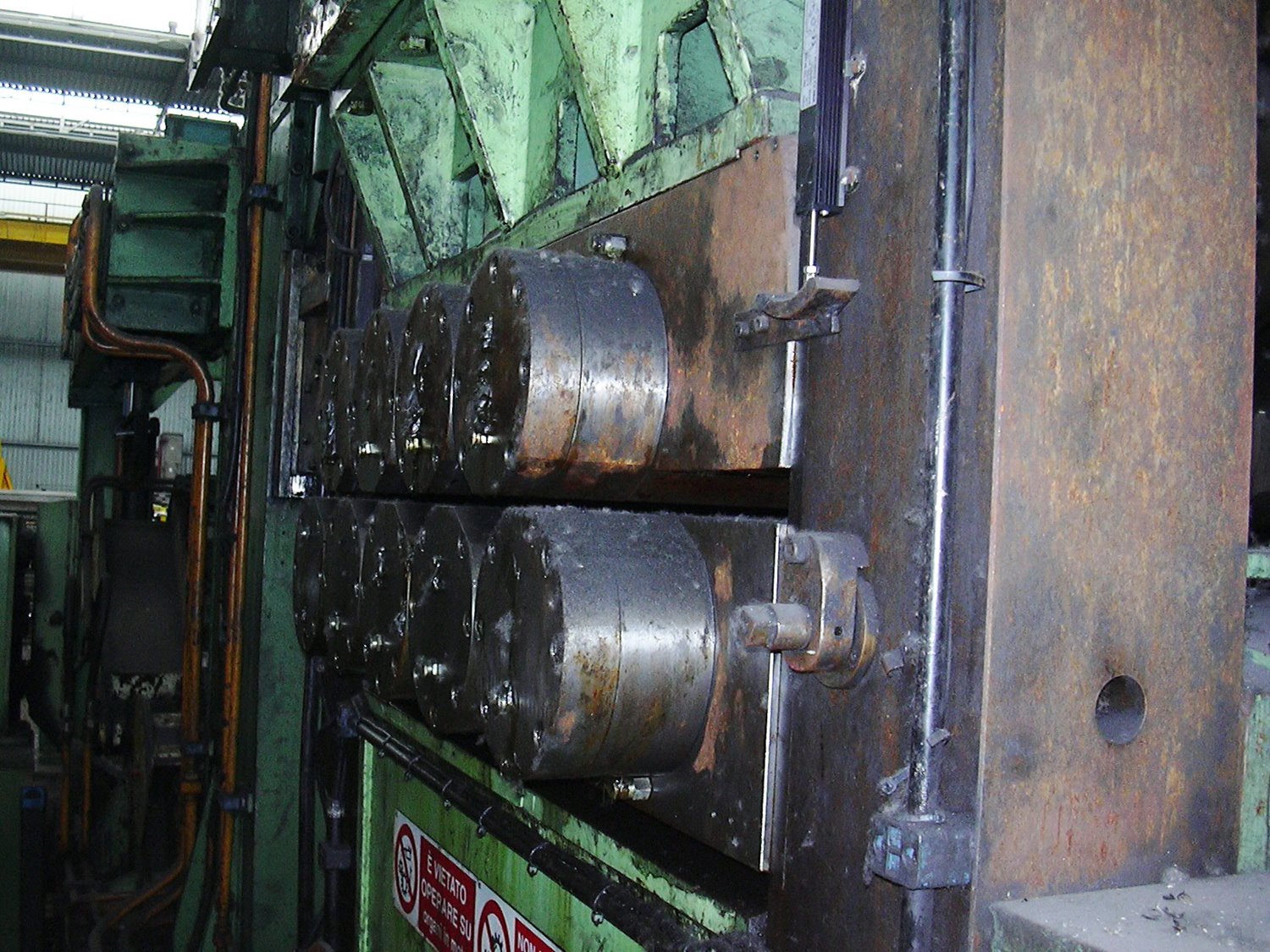

LEVELER, 9-roll with 160mm roll diameter. Ca. 160 kW DC motor drive

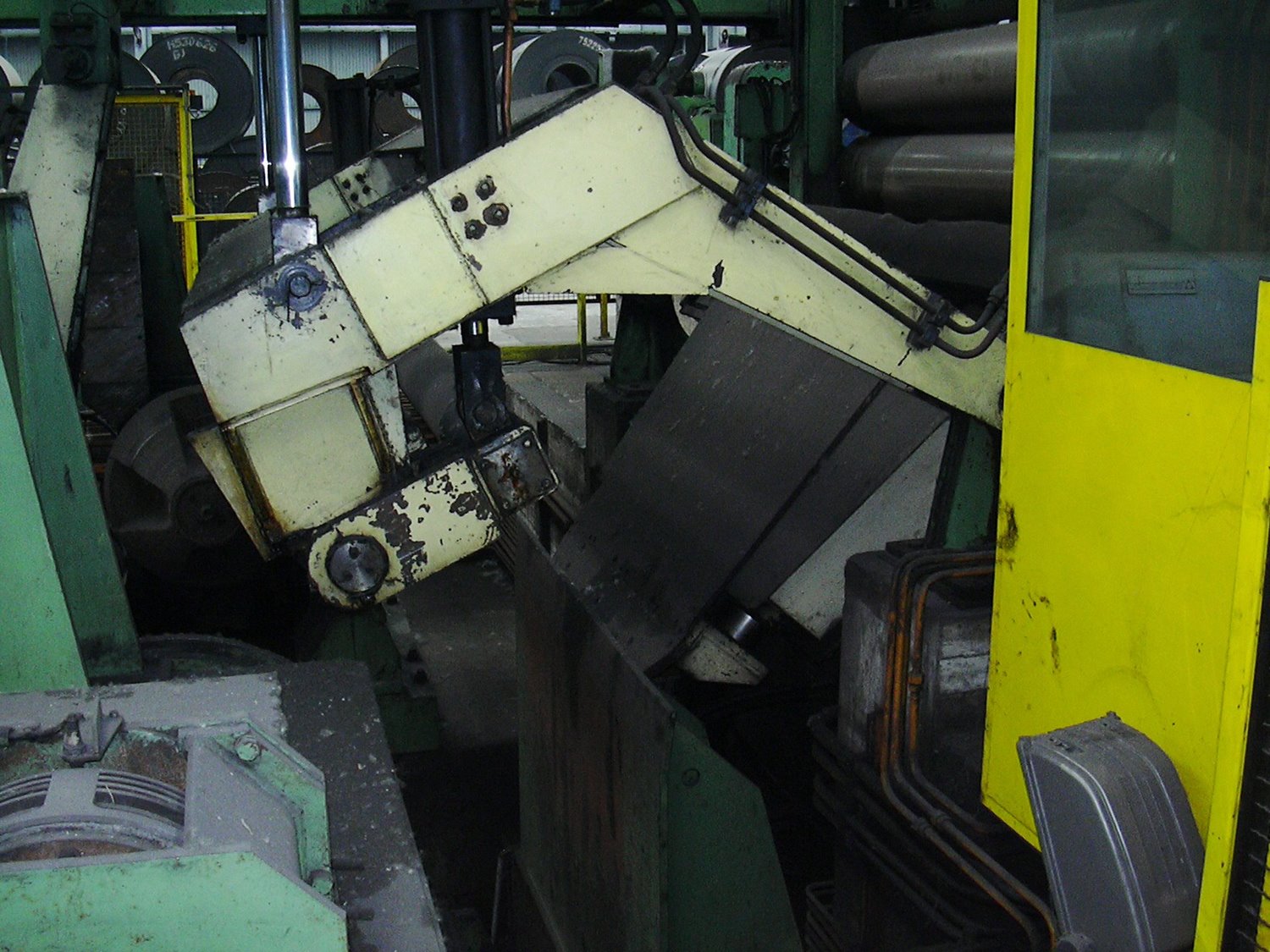

ELECTRONIC FLYING SHEAR with SHEET EXTRACTION CONVEYOR & PINCH ROLLS

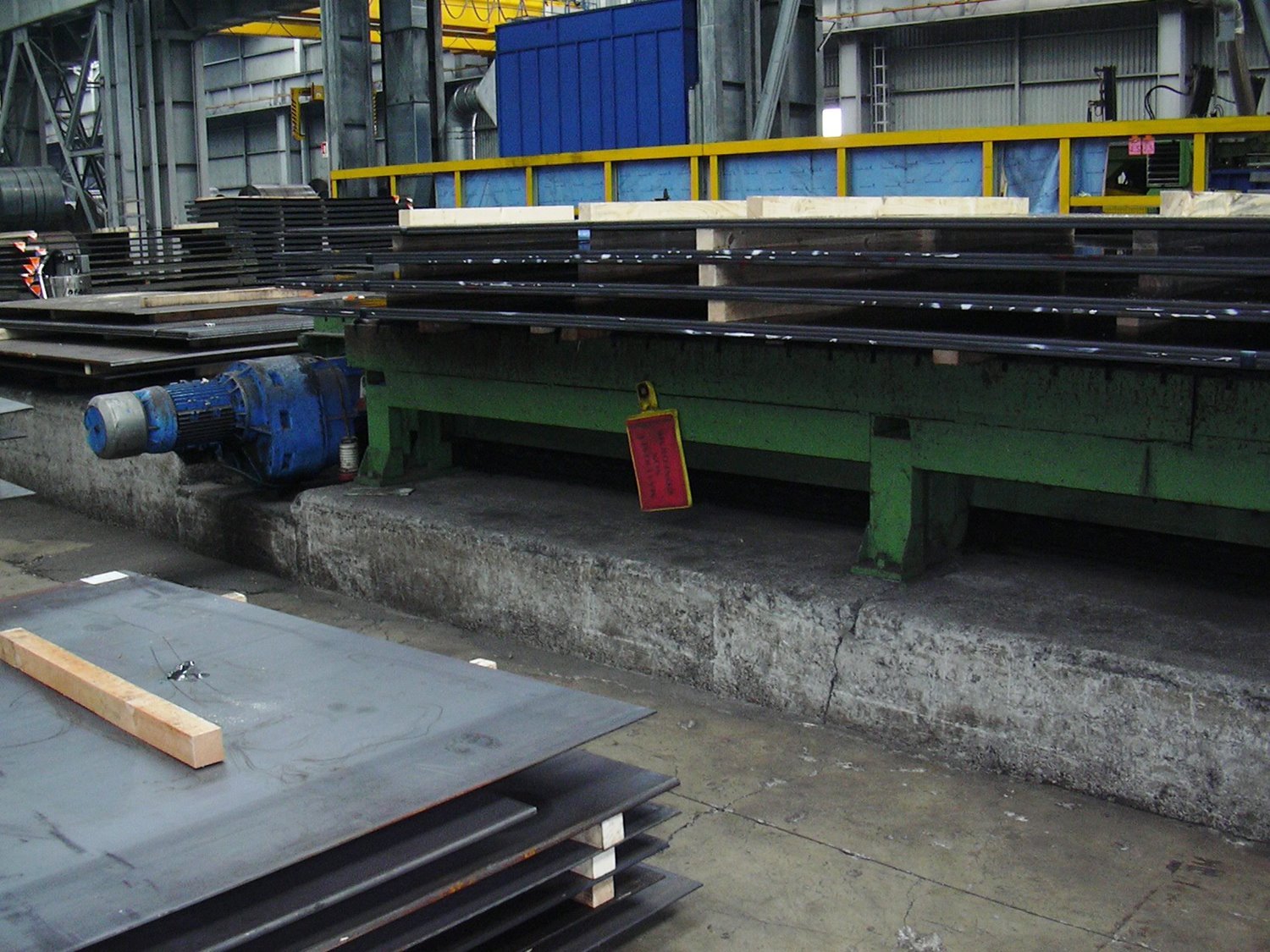

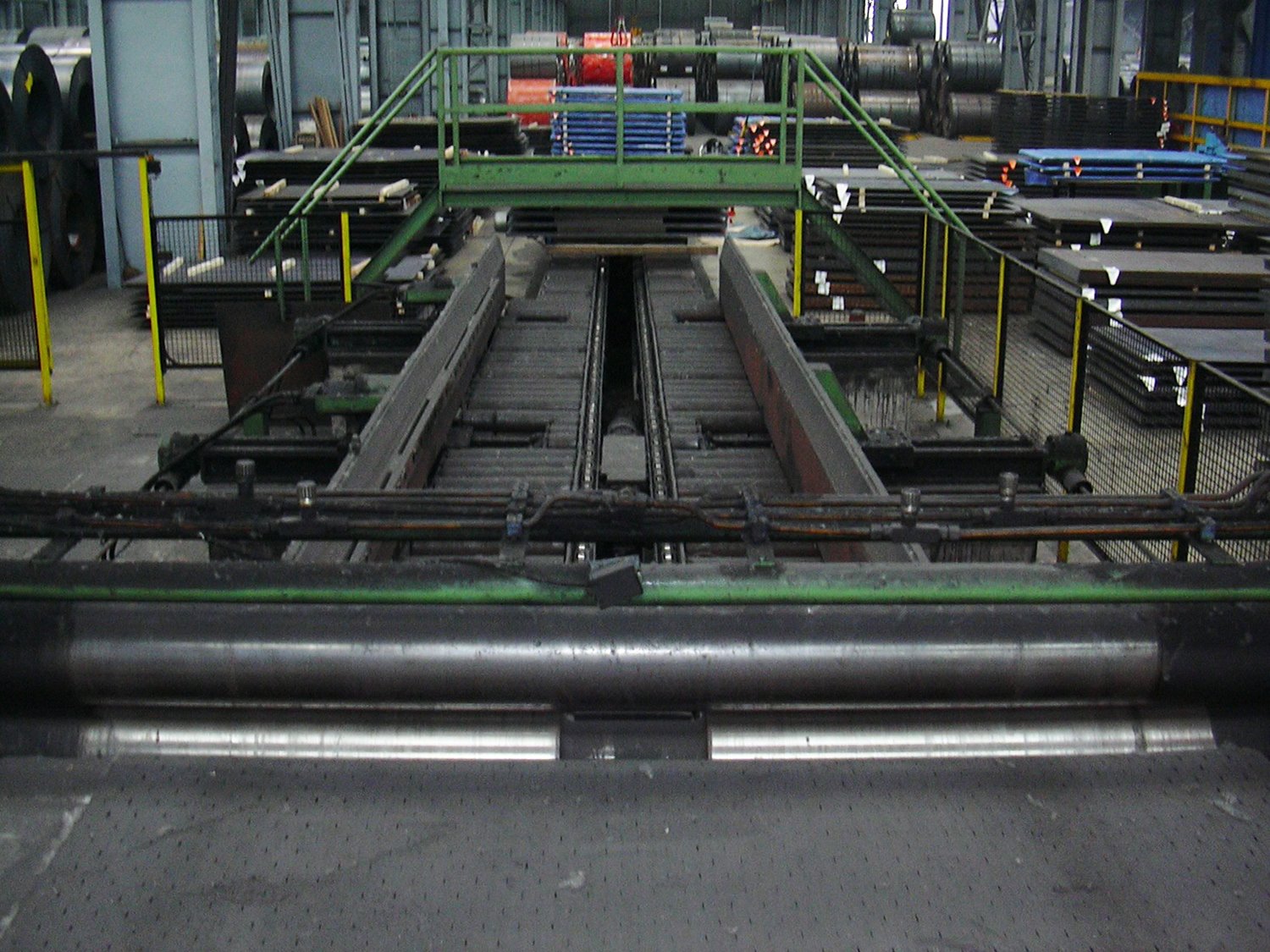

AUTOMATIC SHEET STACKER & SHEET STACK REMOVAL CHAINS

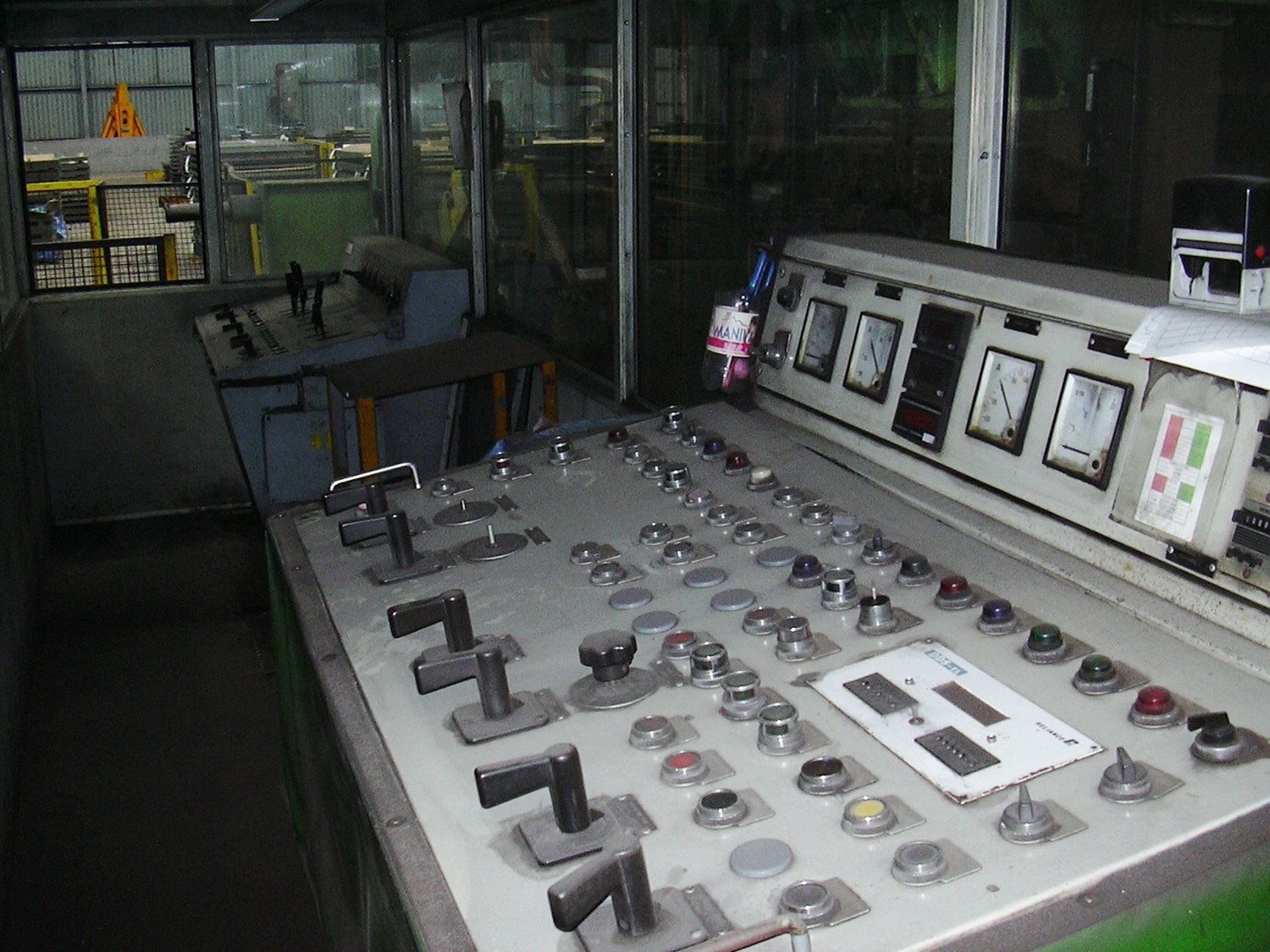

ALL LINE ELECTRICS & ELECTRONICS, HYDRAULICS AND PNEUMATICS
