AIR CUSHION STACKER: 1 x 4000mm stacker for hot rolled, pickled and galvanized steel

STEEL SHEET STACKER

Steel Sheet Stacker FLOREANI & PARTNERS New [#3349]
   Rotary Shears  Steel Sheet Stacker  FLOREANI & PARTNERS New [#3349]
1

New Steel Sheet Stacker
4000mm - Single Box Type
FLOREANI & PARTNERS
BUILD TO ORDER CUSTOM DESIGNED

    4000mm
    1 x 4000mm stacker for hot rolled, pickled and galvanized steel


    Material thickness: .5mm to 3mm
    Sheet width: 400mm to 1500mm
    Sheet length: 400-4000mm
    Stack max. weight: 5000 kg
    Stack max. height: 500mm

    Line max. speed: 60m / min





    THE SYSTEM INCLUDES:

    AIR CUSHION STACKER AS ABOVE ^

    STATIC SCISSOR-TYPE LIFT, CAP.: 5000 kg

    TWO-FLAP FAN

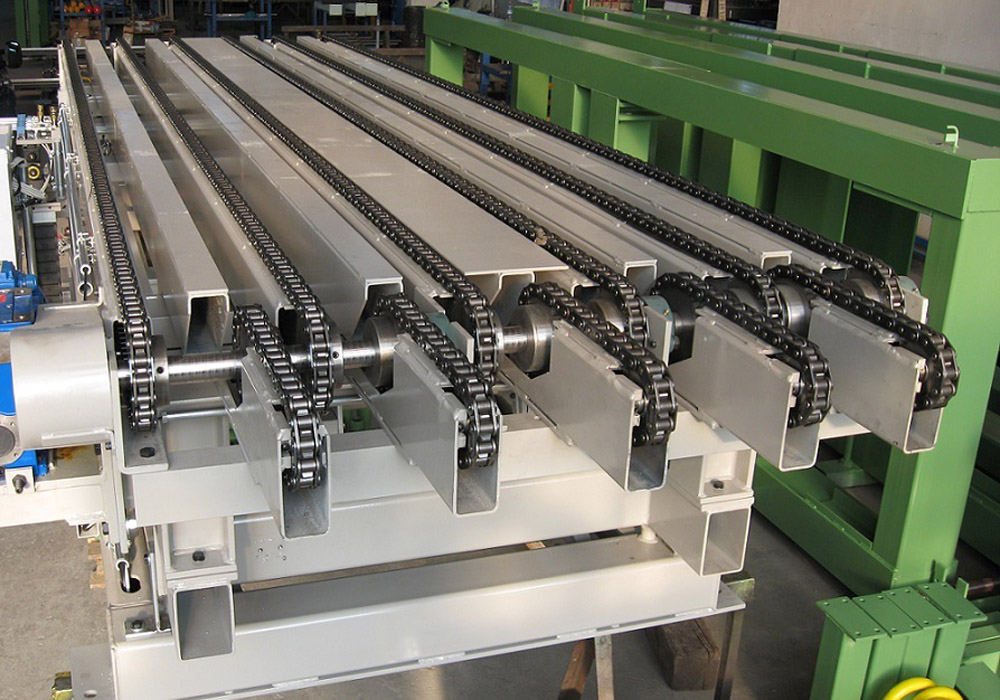

    4250mm, 6-CHAIN CONVEYOR ON SCISSOR TABLE
    Custom-built equipment needs a special kind of product support... our proposals are detailed with drawings and photos to provide clients with a full understanding of the type and quality of the equipment we offer. We send customers approval drawings with dimensions, performance specs and features before the machine is built.

    We are experienced at making our products safe, reliable and in conformance with the safety and design standards. Products are designed for maximum serviceability and reliability.
    Parts Books are shipped with each piece of equipment. They contain detailed information about installation, inspection and maintenance procedures, component parts.

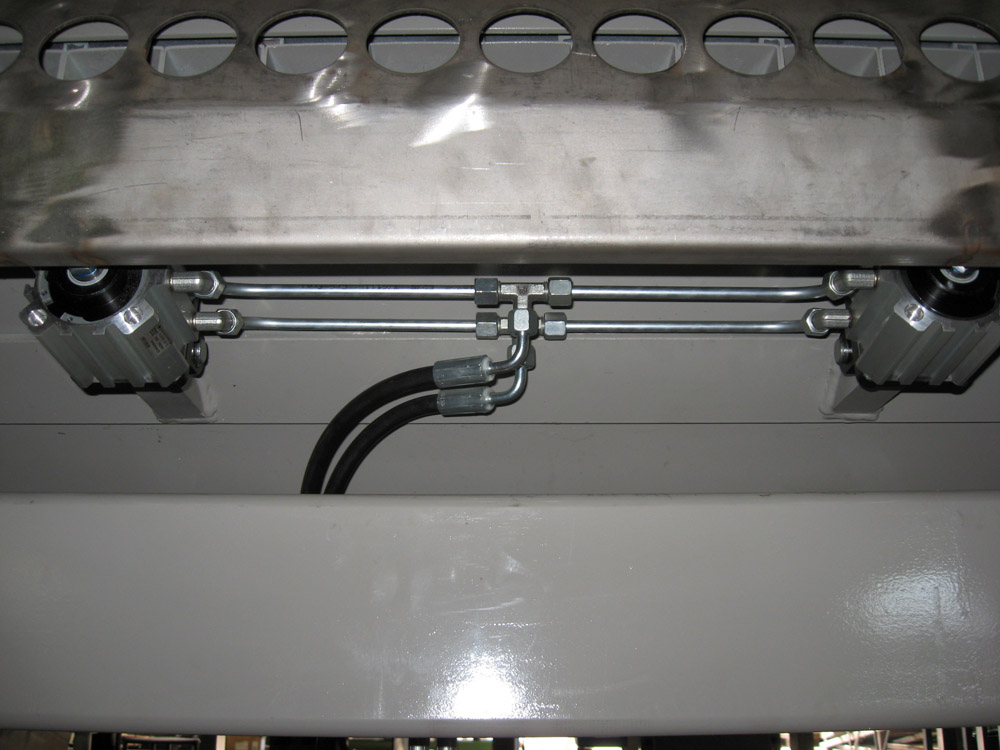

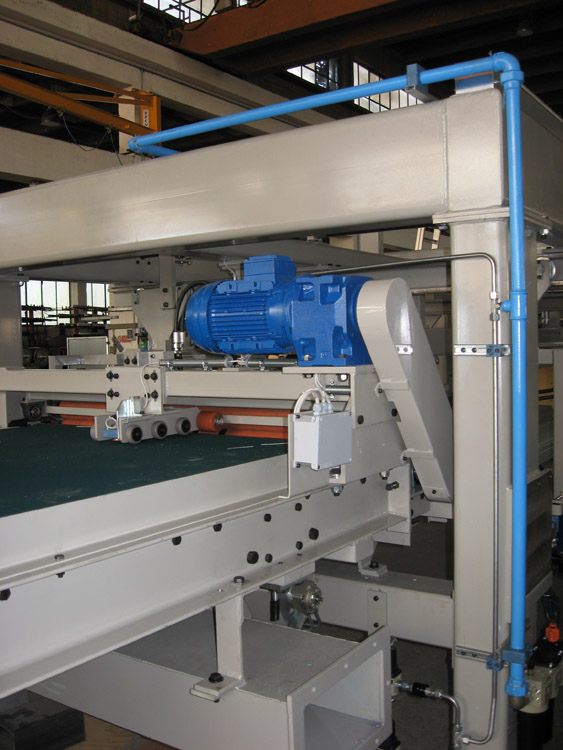

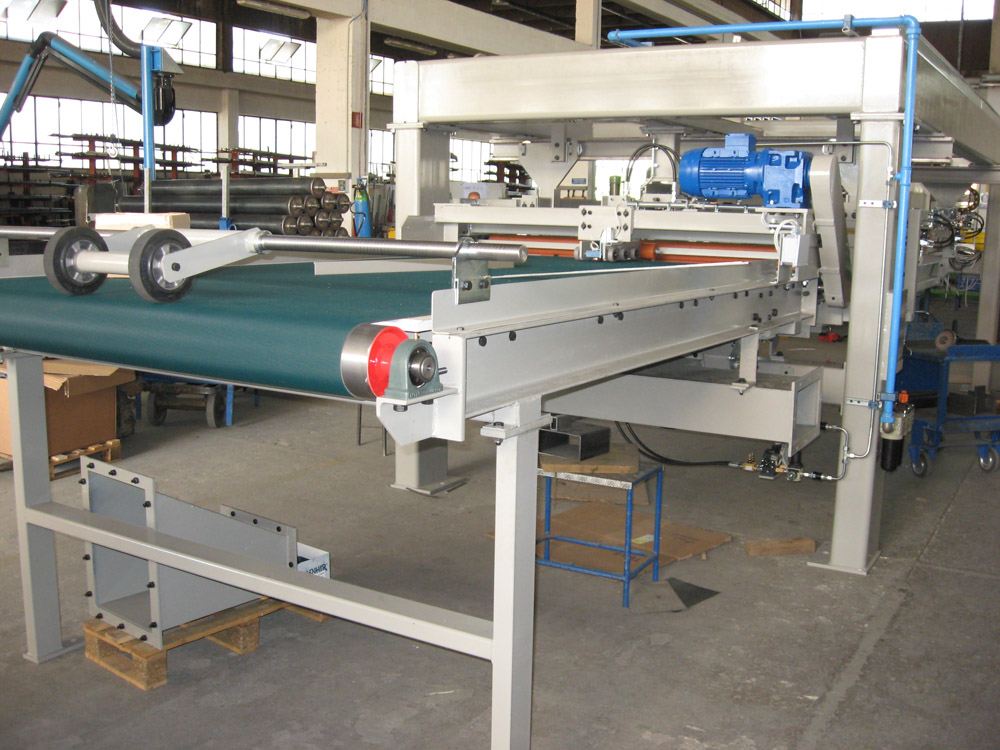

    PHOTOS & IMAGES
