Stainless Steel Sheet Stacker FLOREANI & PARTNERS New [#3350]
   Rotary Shears  Stainless Steel Sheet Stacker  FLOREANI & PARTNERS New [#3350]
1

New Stainless Steel Sheet Stacker
4000mm / to also form "Side-By-Side" Stacks
FLOREANI & PARTNERS
BUILD TO ORDER CUSTOM DESIGNED

  • AIR BLOW
4000mm
Material type: stainless steel
Material thickness: .4mm to 1.5mm
Sheet width: 100-800mm
Sheet length: 300-4000mm
Stack max. weight: 2.5 Tons
Stack max. height (pallet non-included): 400mm

Line max. speed: 60m / min





This stacker allows placing the formed sheet piles "side-by-side" on a pallet.

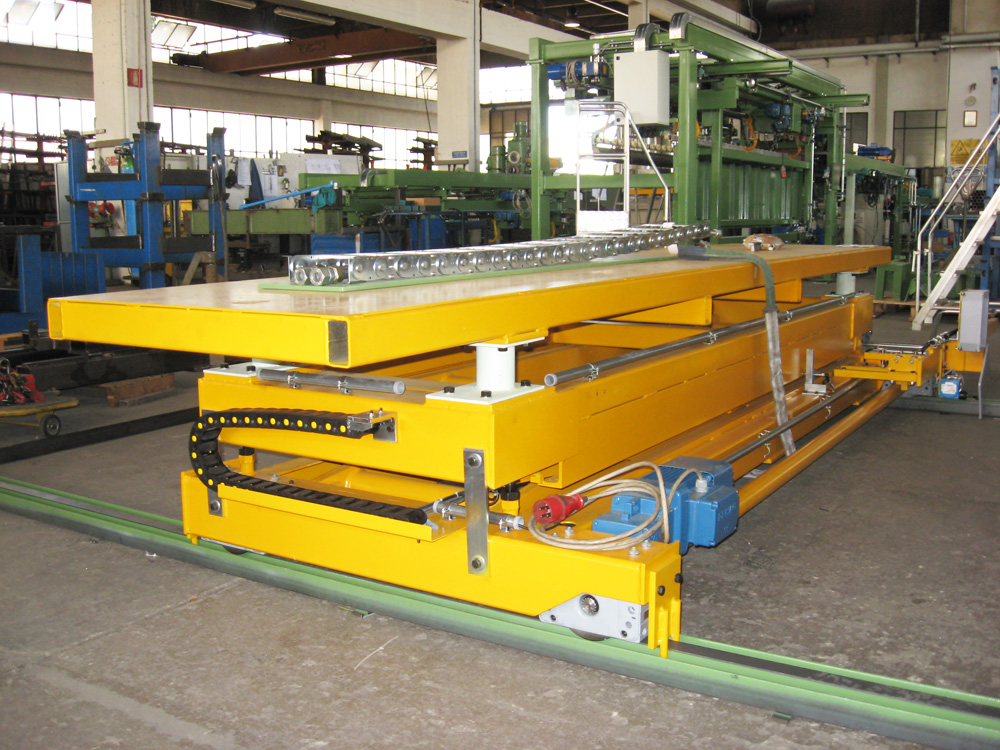

A sideways-movable scissor table under the stacker changes the position of pile, when this is wanted.



The equipment consists of:

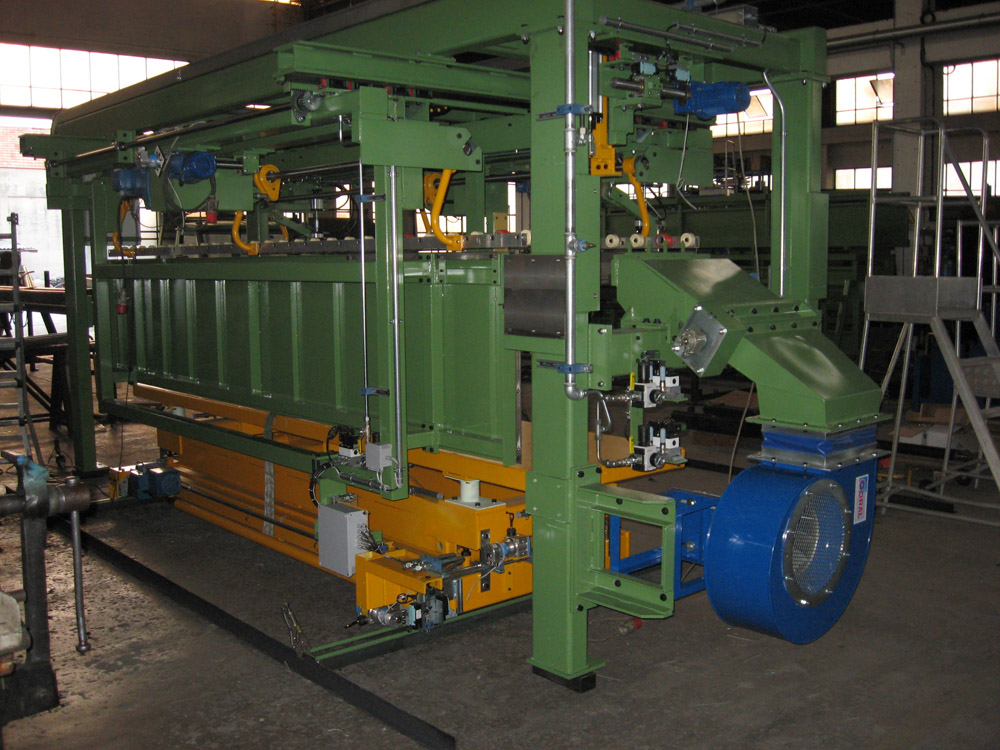

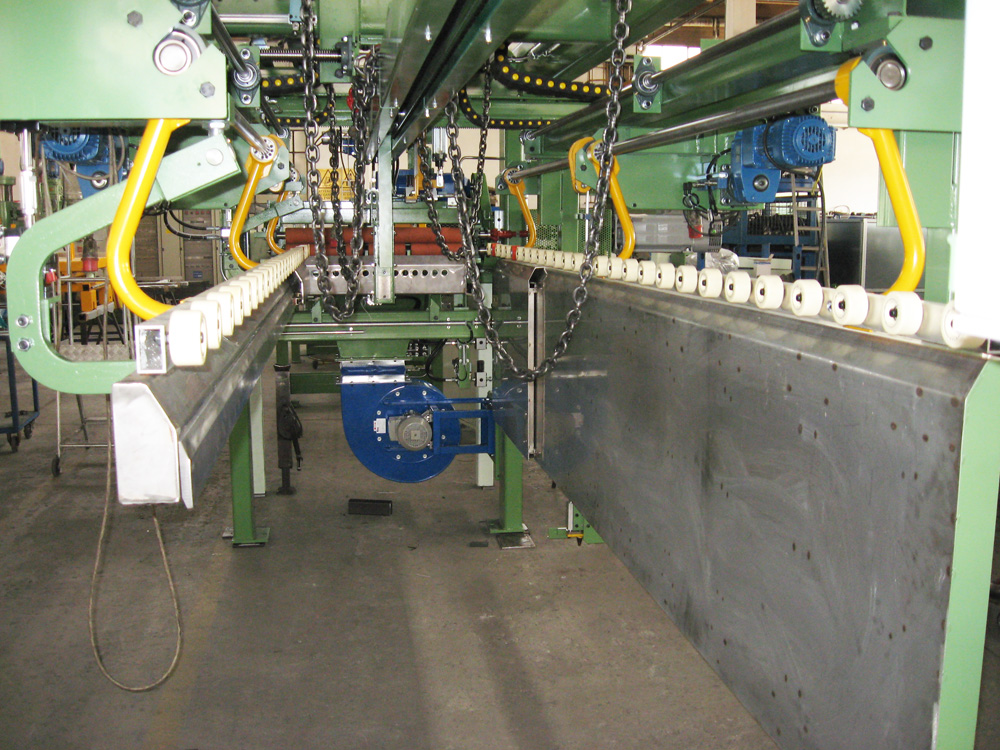

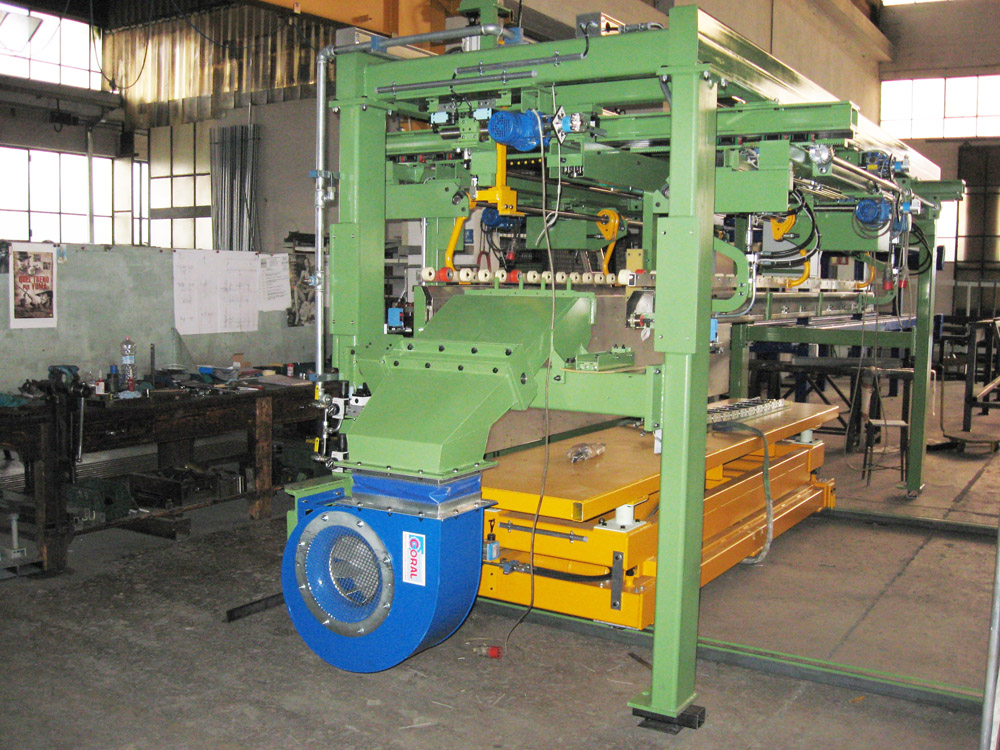

A 4000mm FIRST-RATE STAINLESS STEEL SHEET STACKER

A 2000mm SECOND-RATE STAILESS STEEL SHEET STACKER

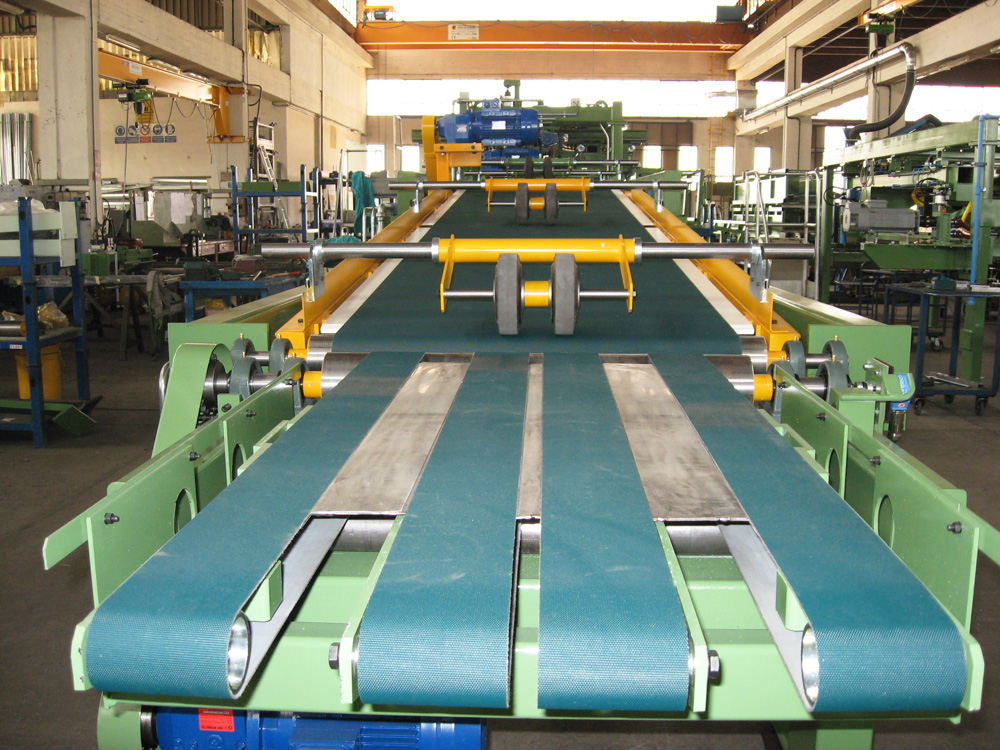

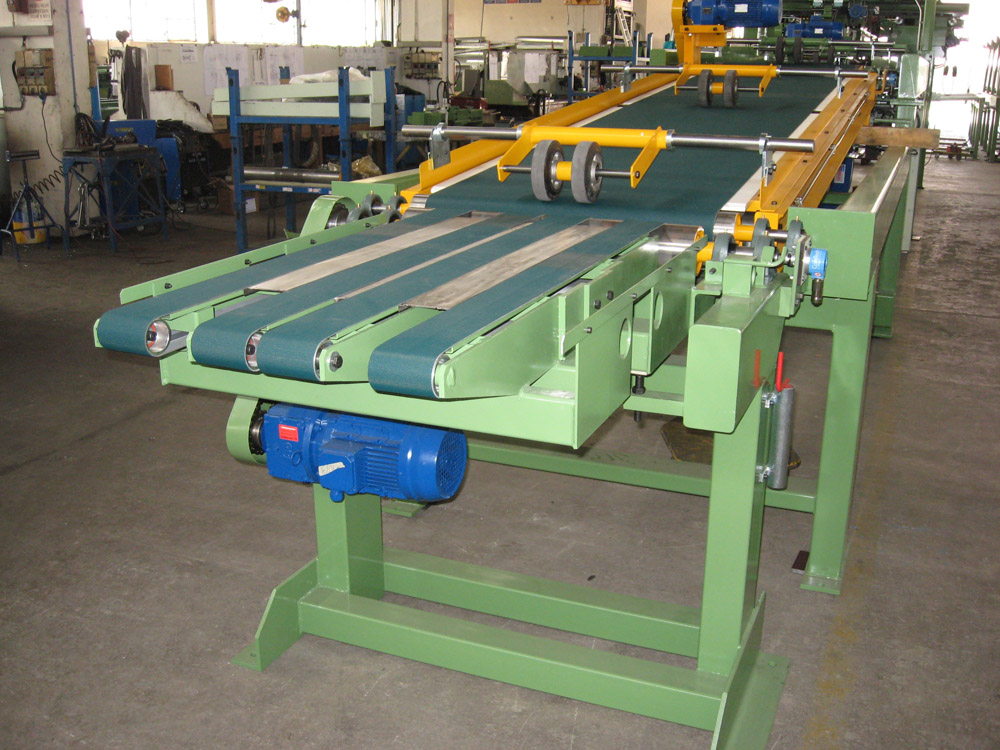

A 4-MINIBELT CONVEYOR (with manually operated lifting)

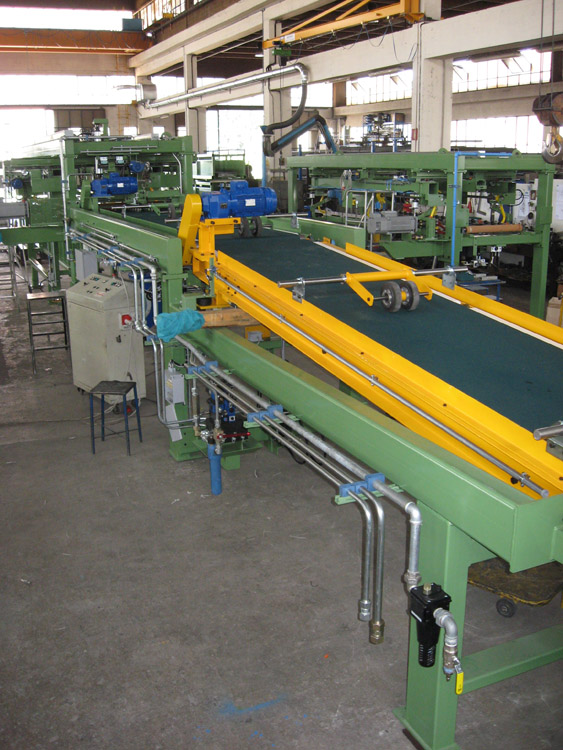

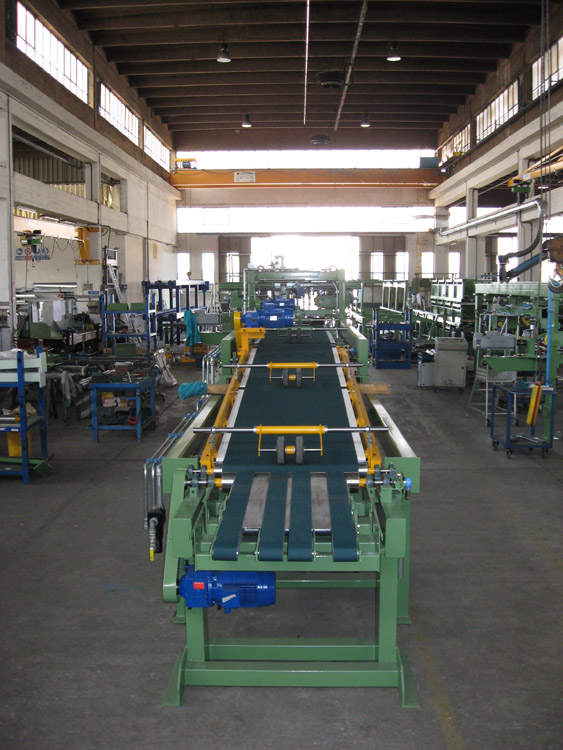

A GROUP OF BELT CONVEYORS

A SINGLE-FLAP FAN at exit

PULL/BRAKE PINCH ROLLS

A POWERED TRUCK FOR COLLECTION OF SECOND-RATE MATERIAL

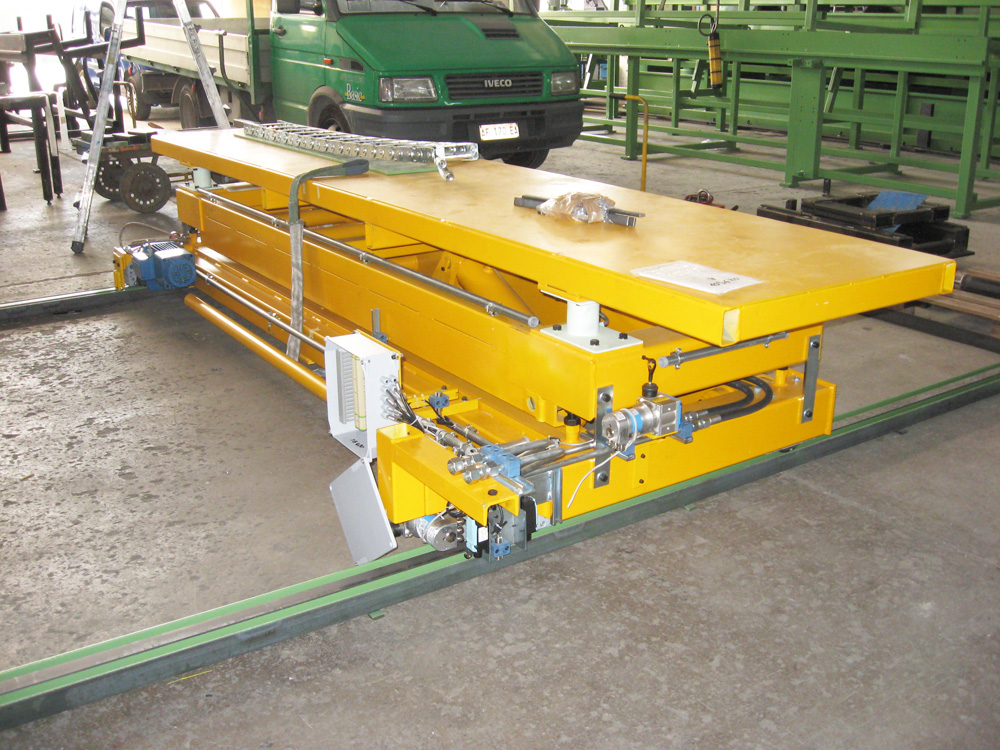

A MOVABLE SCISSOR TABLE TYPE LIFT, WITH WEIGHING CELLS
- CAPACITY: 2.5 Tons
Custom-built equipment needs a special kind of product support... our proposals are detailed with drawings and photos to provide clients with a full understanding of the type and quality of the equipment we offer. We send customers approval drawings with dimensions, performance specs and features before the machine is built.

We are experienced at making our products safe, reliable and in conformance with the safety and design standards. Products are designed for maximum serviceability and reliability.
Parts Books are shipped with each piece of equipment. They contain detailed information about installation, inspection and maintenance procedures, component parts.
