![Cut To Length Lines CLL Flying Shear Cut To Length Line MARIANI Used [#3388]](Flying-Shear-Cut-To-Length-Line-Cor-Carbon-Steel_3316.JPG "Cut To Length Lines CLL Flying Shear Cut To Length Line MARIANI Used [#3388] Cut To Length Lines CLL")
SOLD
1

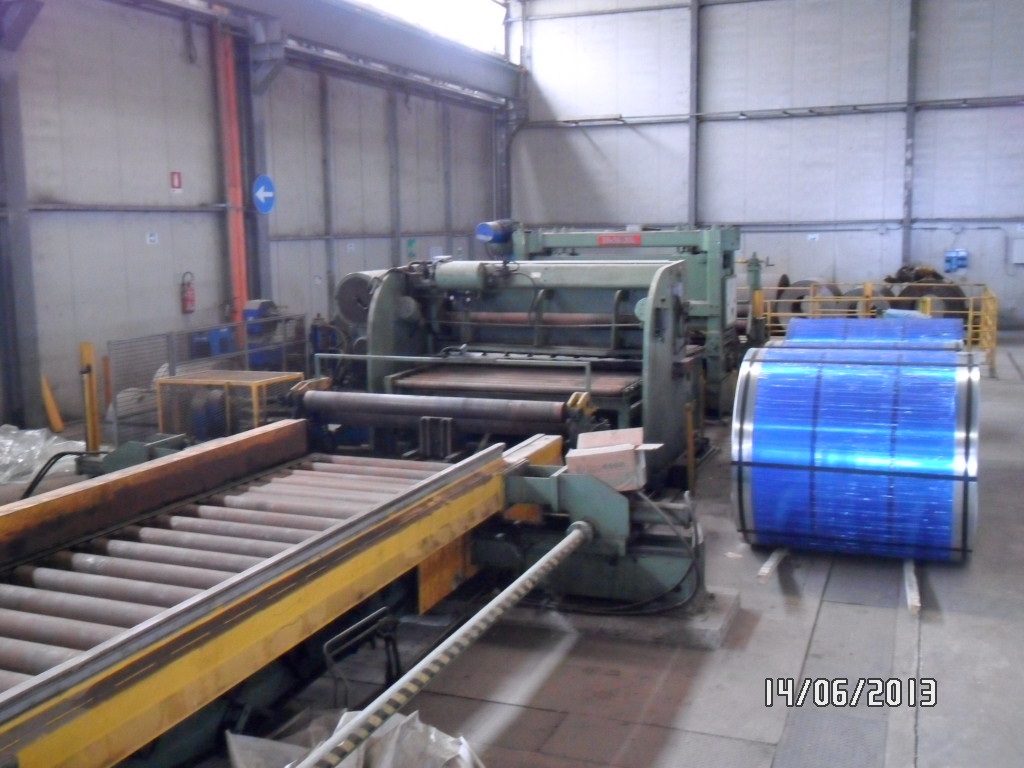

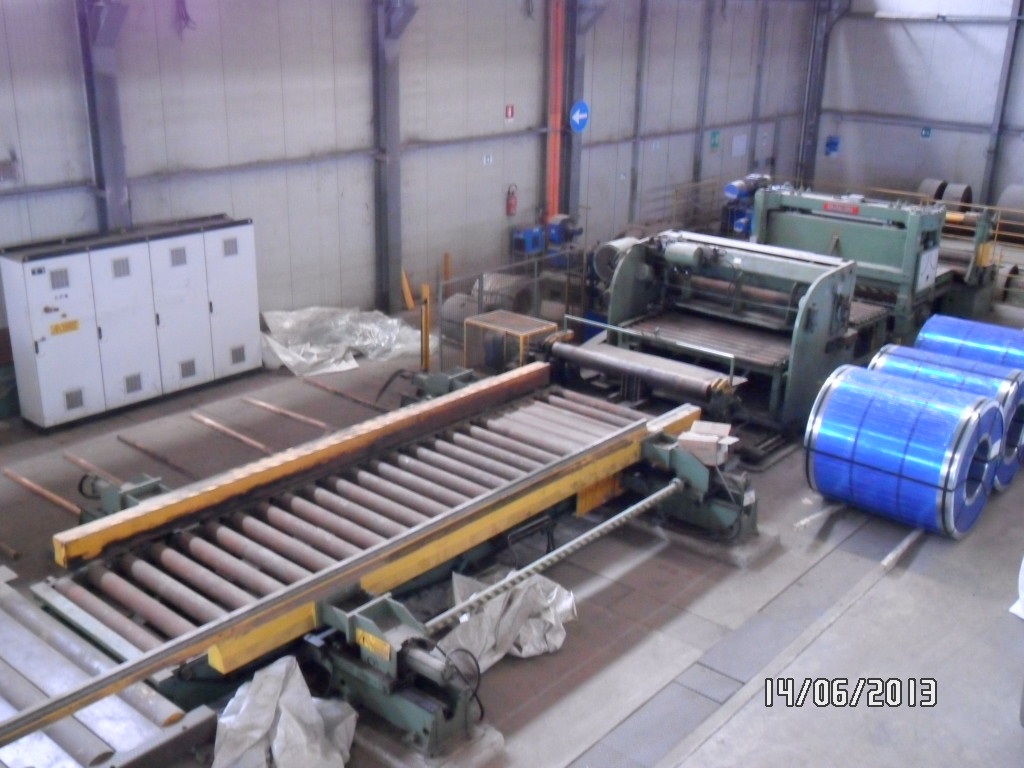

Used Flying Shear Cut To Length Line
2000mm x 5mm
MARIANI
A USED FLYING SHEAR CUT TO LENGTH LINE FOR CARBON STEEL.
THE LINE CAPACITY IS 2000mm x 1.5-5.0mm, WITH A 30 T DECOILER THAN CAN HANDLE COILS WITH 380mm TO 960mm ID AND 2000mm MAX. OD.
The line max. speed is 15(20)m / min; the material threading speed 5m / min.
GENERAL INFORMATION
Year when built: before 1996
Audit and certification: 2008
The line is for:
hot rolled steel, pickled
/ oiled and dry
with:
- max. tensile strength 500 N/mm²
- max yield strength 420 N/mm²
The coil width: min. 500mm, max. 2000mm
The material thickness: min. 1.5mm, max. 5mm
The max.coil weight: 20 t
The coil ID: 380-960mm
The max. coil OD: 2000mm
The product:
Sheets 1700mm to max. 6000mm long can be produced with the line
The max. stack height is 300mm
The max weight of stack is 6 Tonne
Sheet shape tolerance -0mm +3 mm
EQUIPMENT LIST
THE LINE INCLUDES:
1- Coil car

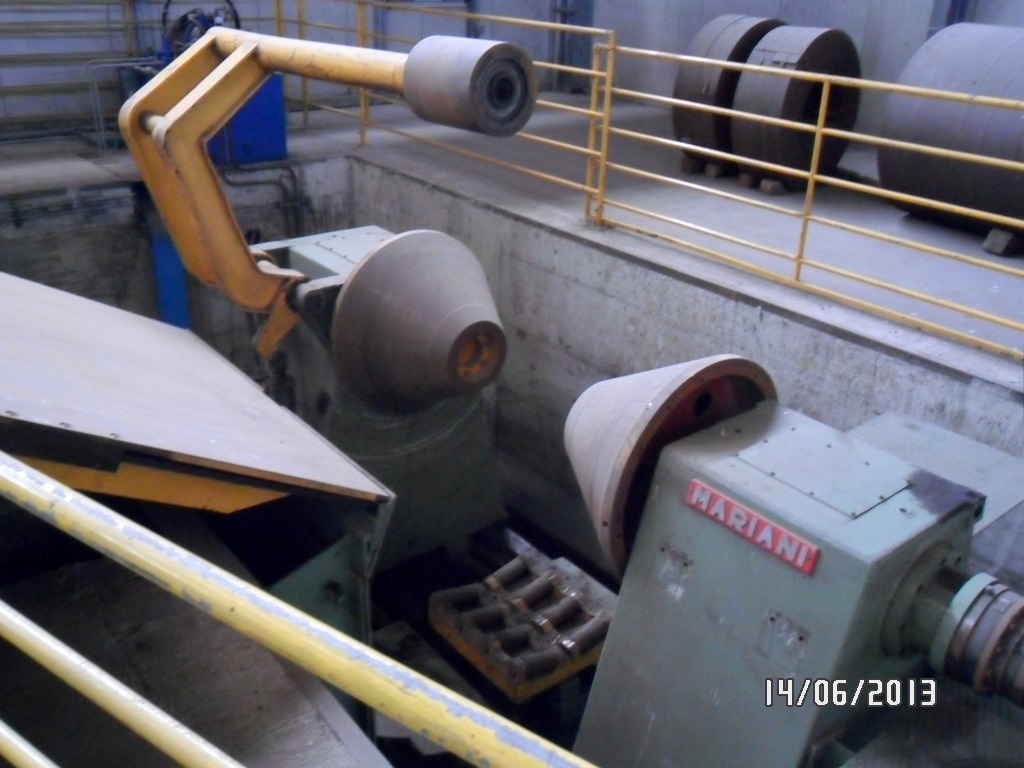

2- Decoiler, double opposed cone type with snubber arm
3- Pinch rolls & coil-opening system

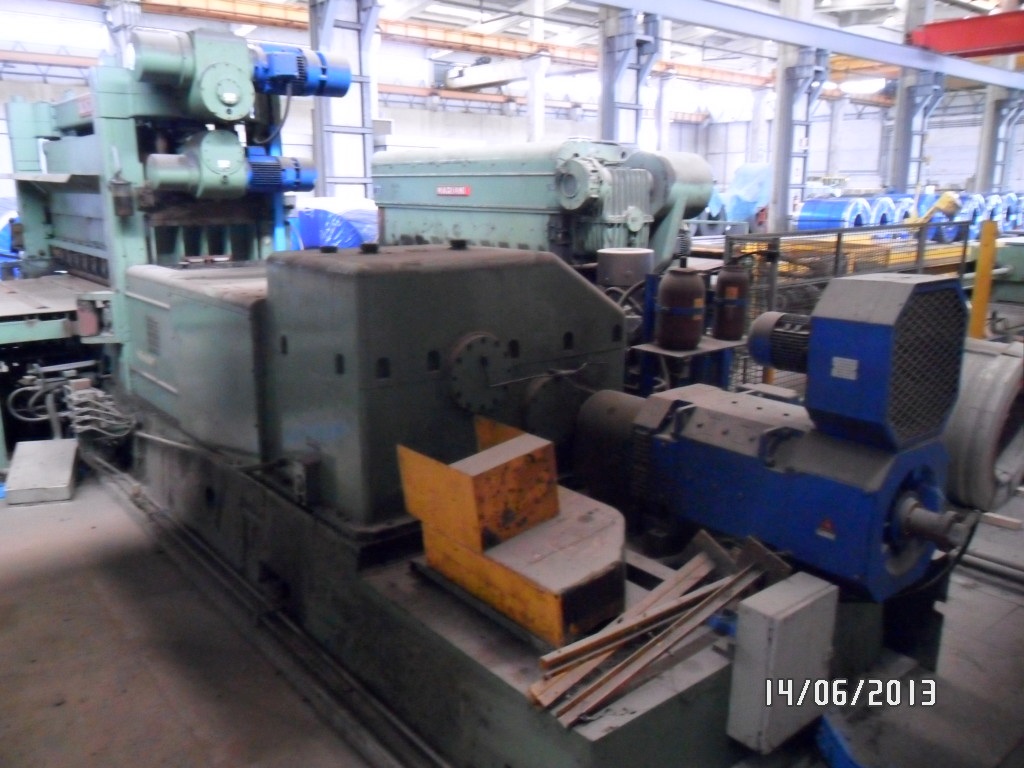

4- Leveller, 4-HI type with 15 rolls (the roll dia. is 70mm)
5- Length measuring unit

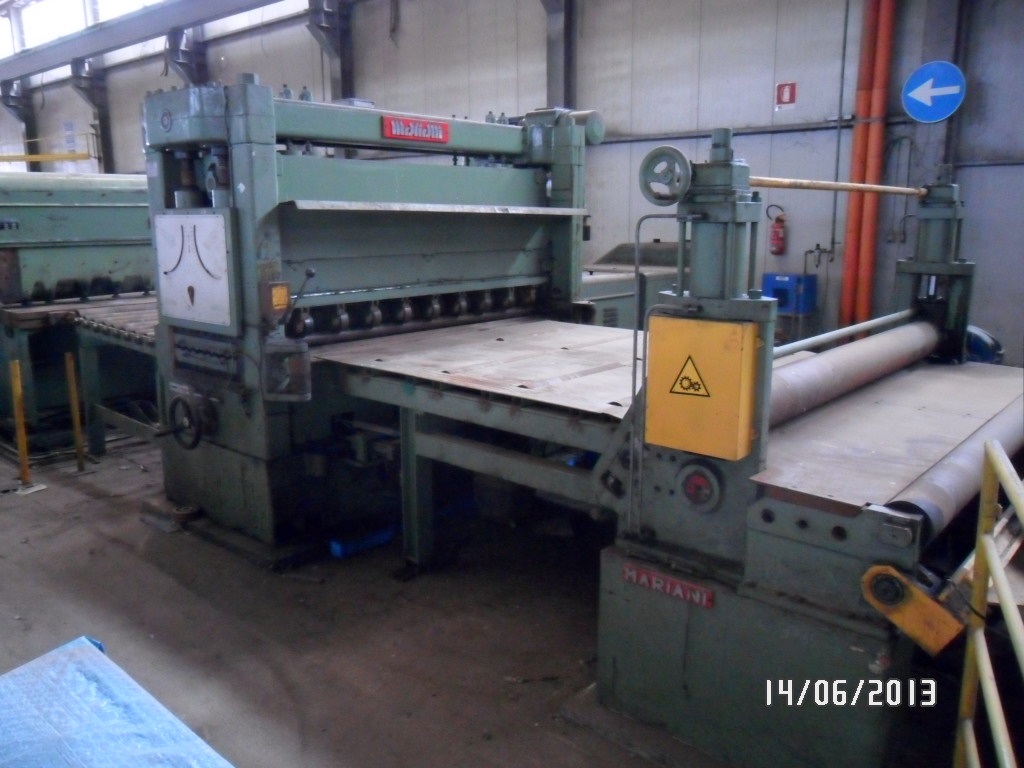

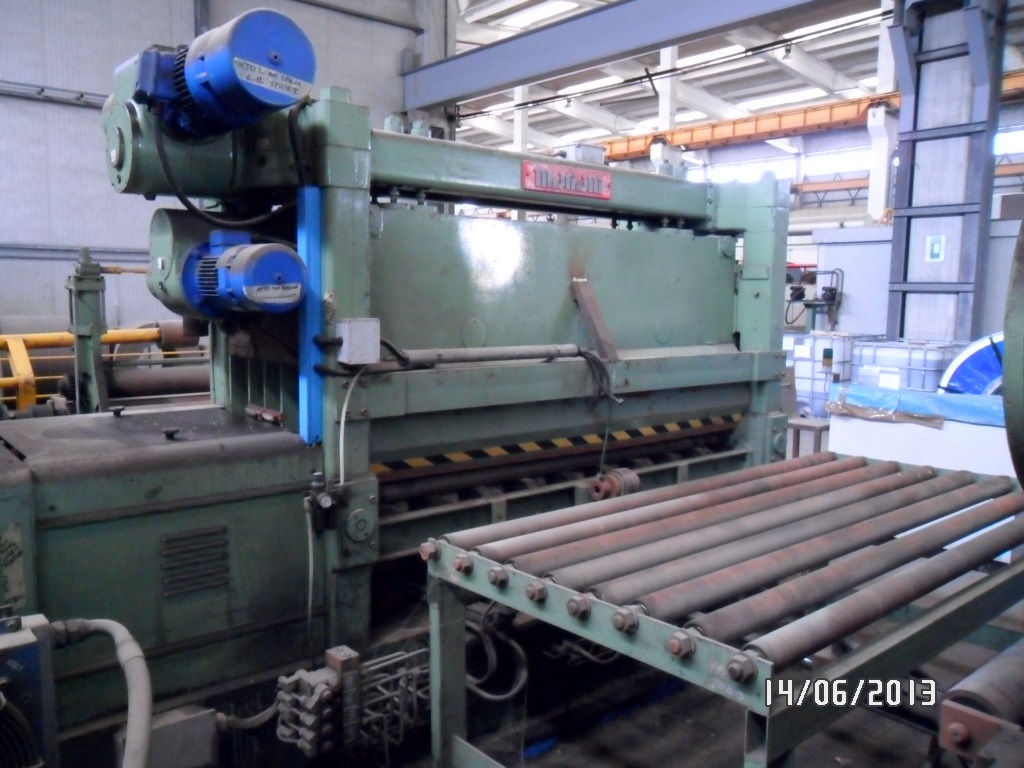

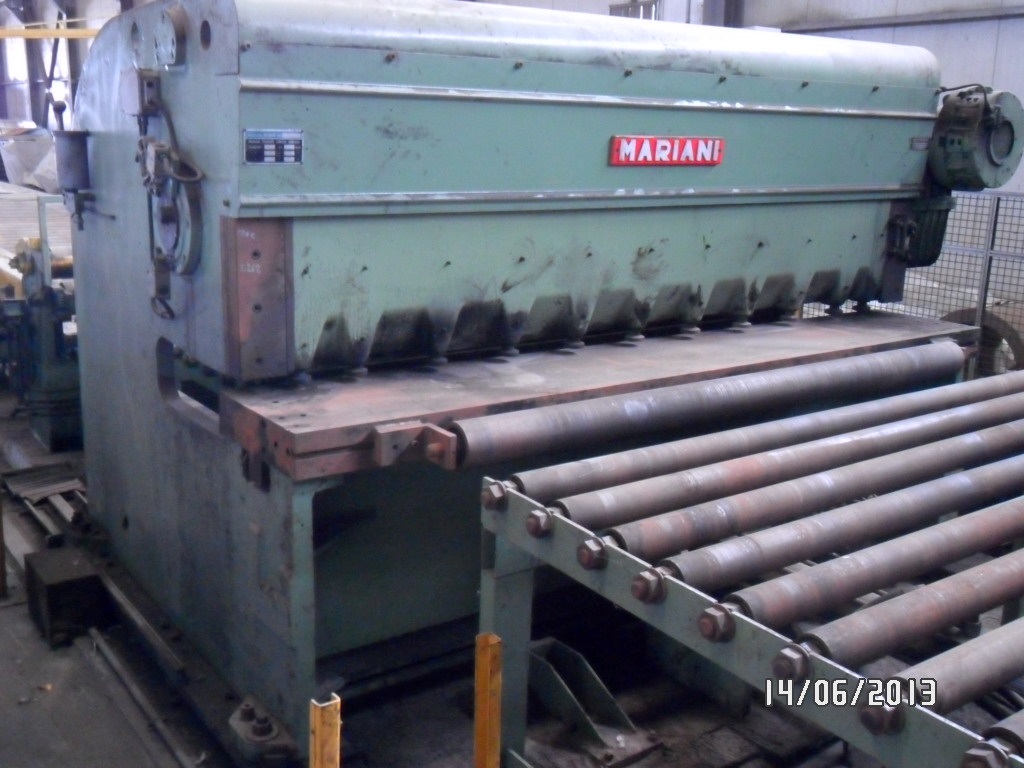

6- Flying shear
7- Belt conveyor with pinch rolls

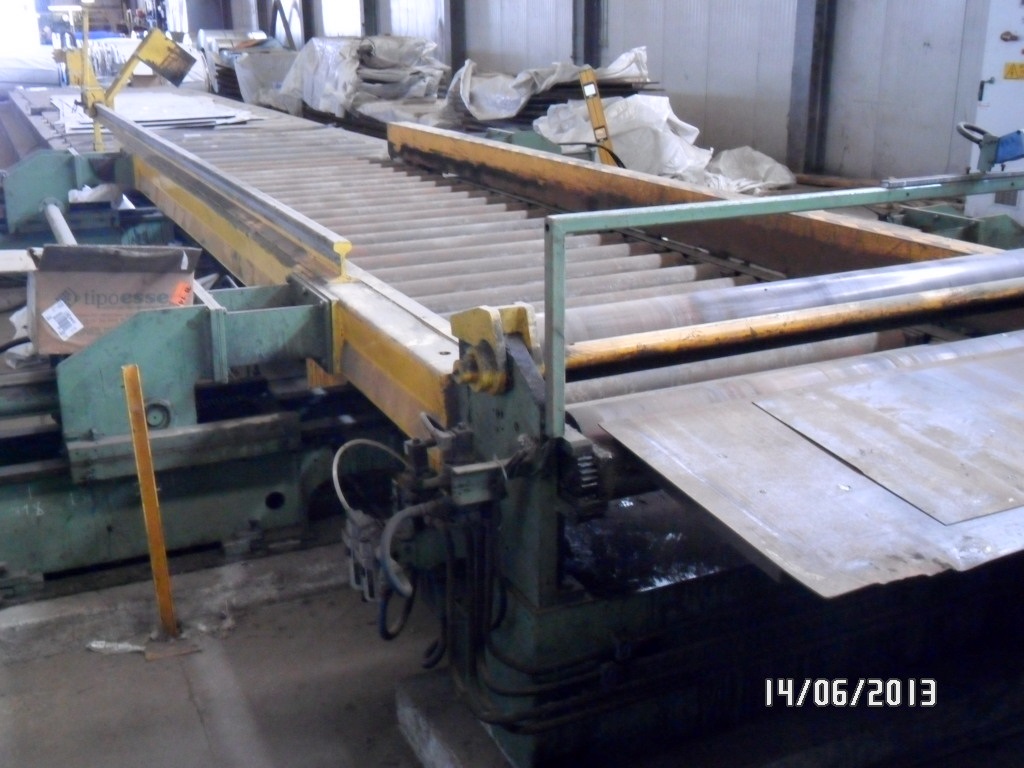

8- Sheet stacker, "by gravity" with sliding system
9- Roller table for bundle accumulation

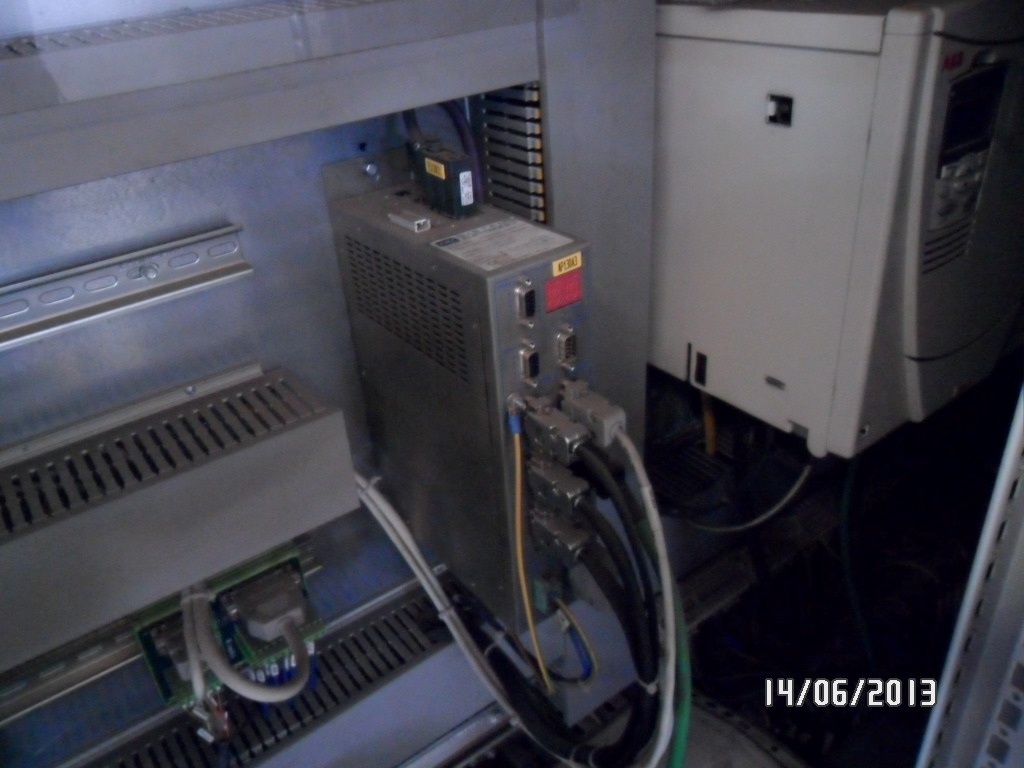

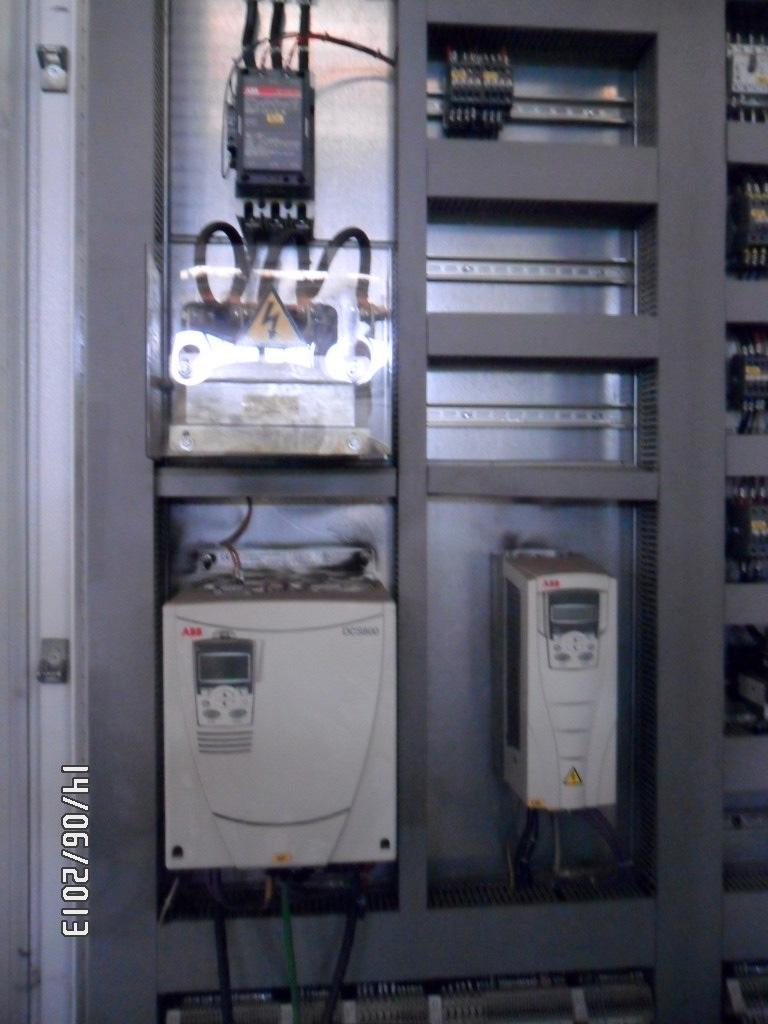

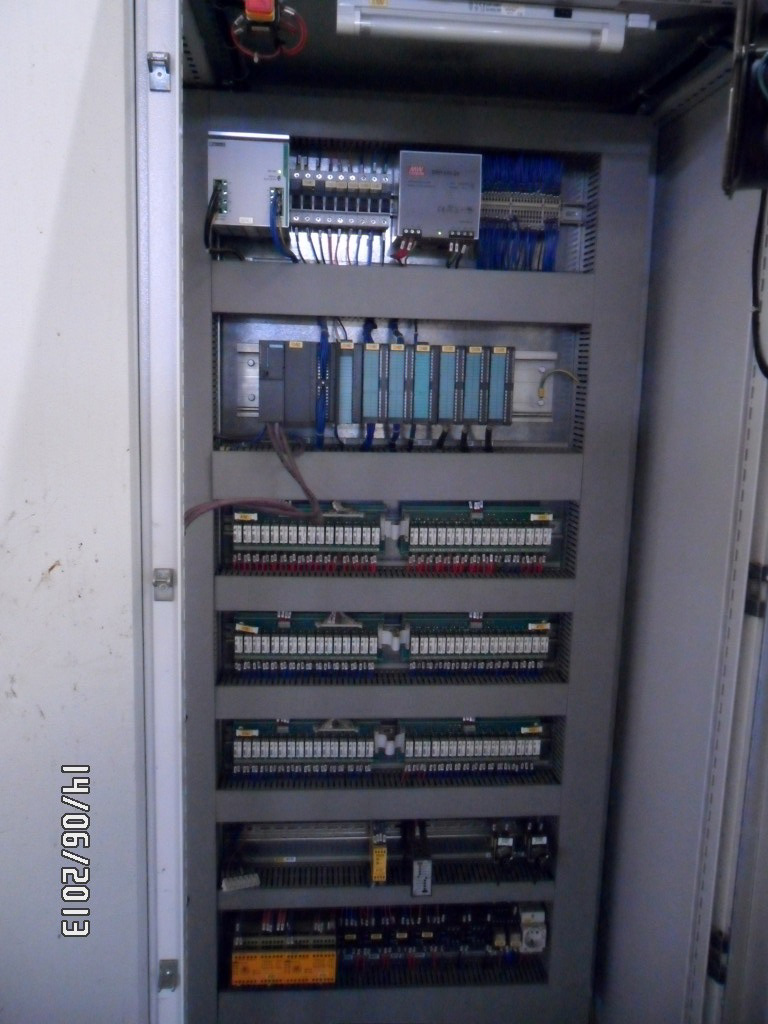

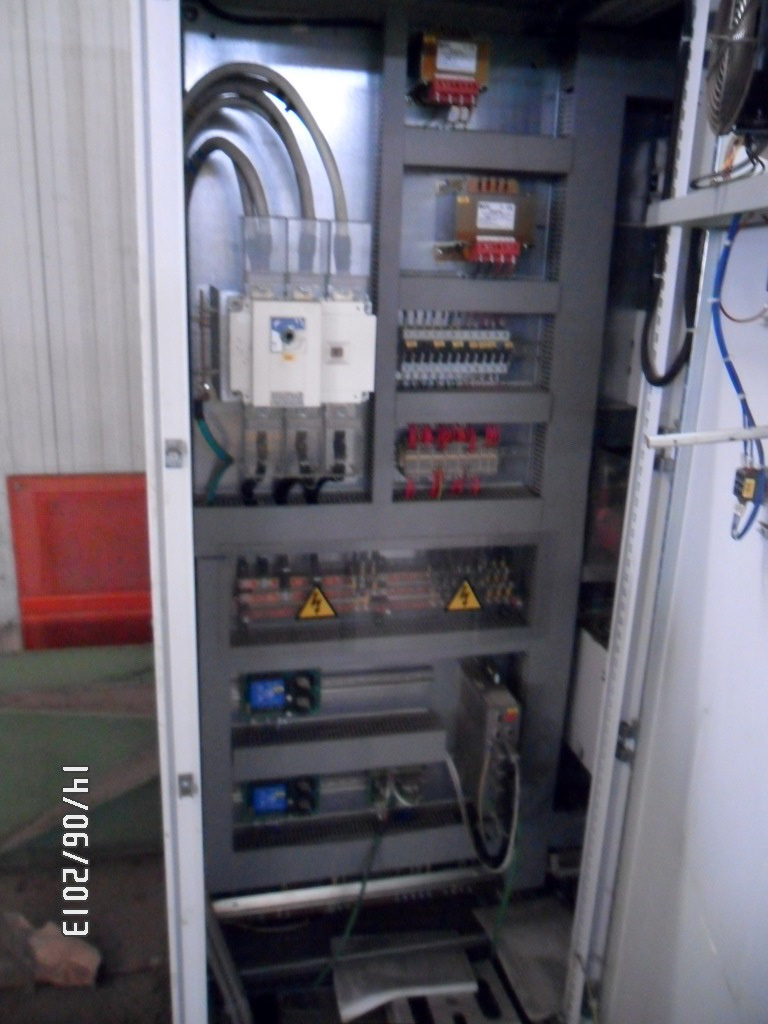

10- Electrics, hydraulic and pneumatics
We offer Start/Stop, Roll Feeder, Flying Shear, Rotary Shear Cut To Length Lines
both new and used / re-manufactured for: Aluminium, Coated, Cold Rolled, Copper, Galvanized, Hot Rolled,
Prepaint, Silicon, Stainless, Tinplate,Titanium
.
Your enquiries welcome for also individual Line Parts like: Decoilers, Feeders,
Levellers, Sheet Stackers, Straighteners ...
