New & Used Flying Shear Cut To Length Line
2000mm x 8mm
COSMEC+F&P
- Composed of new and used parts
The line max. speed is 25m / min; the material threading speed 10m / min.
GENERAL INFORMATION
The coil width: min. 1000mm, max. 2000mm
The max.coil weight: 30 t
The coil ID: 508-800mm ^
The max. coil OD: 2000mm ^
The product:
Sheets 1000mm to max. 12000mm long can be produced with the line
The max. stack height is 400mm
The max weight of stack is 10 t
Cut length accuracy +- .5mm / m
EQUIPMENT LIST
THE LINE INCLUDES:
1) USED coil car
2) USED decoiler, mobile, double opposed cone type with snubber arm
3) USED pinch rolls & coil-opening system
4) USED leveller, 4-HI type with 15 rolls (the roll dia. is 80mm)
5) NEW flying shear
6) USED intermediate conveyor
7) NEW sheet stacker
8) Transfer roller tables
9) Hydraulics
10) Pneumatics
11) Electrics (with USED Siemens S 7 PLC)
DETAILS
1) USED 30 t coil car
The Coil Loading Car has a ca. 6m horizontal stroke and, 800mm up/down-stroke.
It is hydraulically operated (hydraulic cylinder diameter: 250mm) with 4 guiding columns.
2) USED mobile, double opposed cone type decoiler
With two very robust, sliding allsteel basements and DC geared motor driven.
After the material threading phase, the motor works as generator-brake during line operation: a pre-fixed 'pull' action by the operator remains constant, while the coil diameter and line speed vary.
The positioning of the cones is hydraulically operated.
A stand-by brake is provided for the decoiler.
3) USED pinch rolls & coil-opening system
Pinch rolls dia.: 200mm. The upper roll is mobile, powered.
The coil-opening table is hydraulically operated.

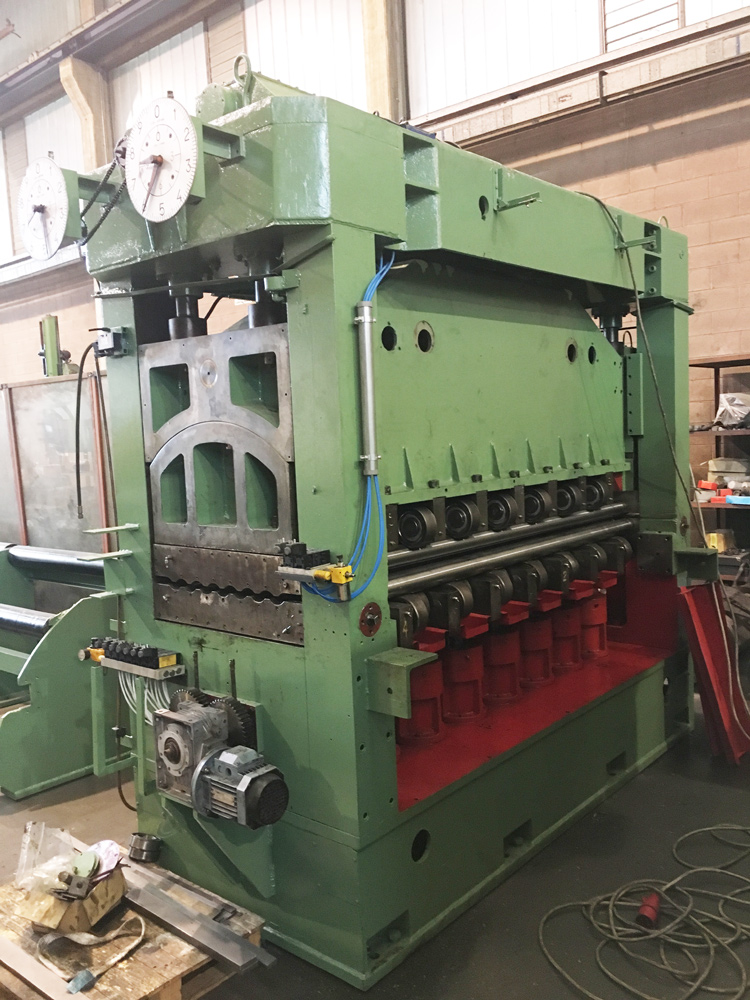

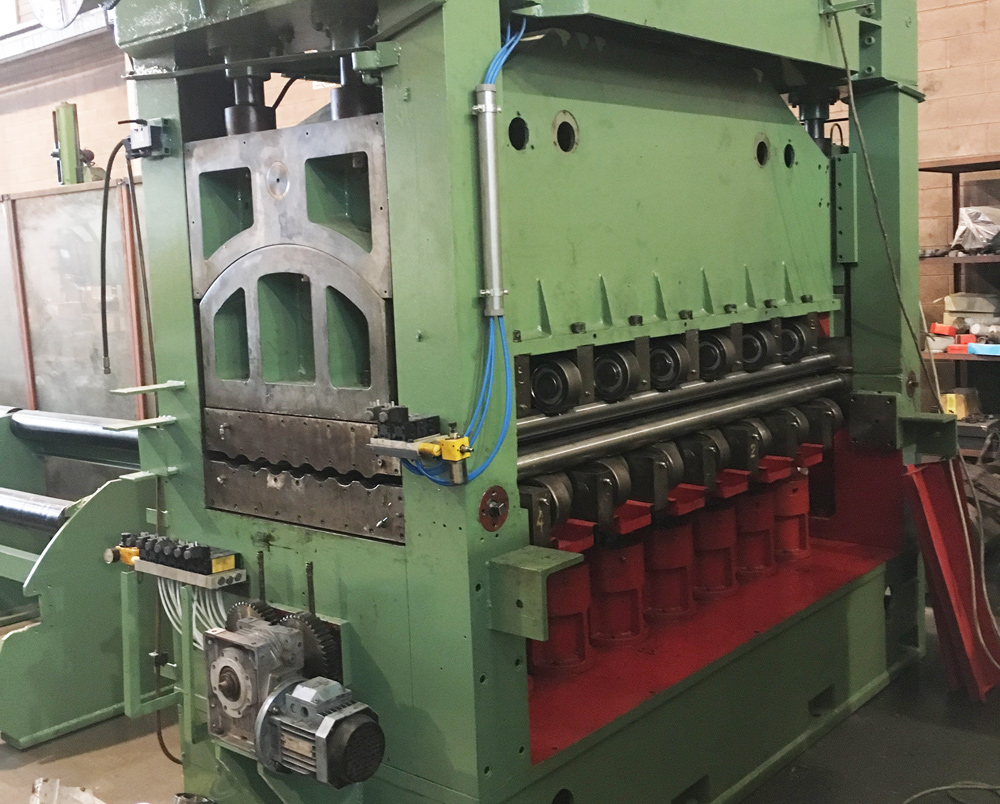

4) USED leveller, 4-HI type with 15 rolls
The diameter of work rolls is 80mm.
Dia. 160mm back-up rolls, 7 + 7 sets.
5) NEW flying shear
Mechanical power type shear with flywheel and brake-clutch.
Electronic shear "launching" by a geared motor with inverter.
6) USED intermediate conveyor
12m long with leather belt, the conveyor is operated by an AC geared motor with universal joint.
The belt tension is adjustable.
The max. allowed length for scrap-sheets is 3m.
The exit pressure roll up/down-motion is by pneumatic cylinders.
7) NEW sheet stacker
With entry rubber-coated pinch rolls, it has ball-supports moving by action of geared motors; as the supports open, the sheets fall to chain tables below. The tables have an hydraulically operated up/down-motion, controlled by photo-electric cell; they remove the sheet stack once the stacking operation has been completed.
Mobile joggers "equalize" the sheet stack.
8) Transfer roller tables ==
9) Hydraulics
With ca. 500 litre tank; max. pressure: 100 bar. Heat exchangers, electrovalves etc.
10) Pneumatics
With filter-lubricator units, regulator & pressure gauge, silencers. Pressure: 6 bar.
11) USED Electrics
> All DC & AC motors, Siemens S 7 PLC, control pedestals and switchboards, software...
We offer Start/Stop, Roll Feeder, Flying Shear, Rotary Shear Cut To Length Lines
both new and used / re-manufactured for: Aluminium, Coated, Cold Rolled, Copper, Galvanized, Hot Rolled,
Prepaint, Silicon, Stainless, Tinplate,Titanium
.
Your enquiries welcome for also individual Line Parts like: Decoilers, Feeders,
Levellers, Sheet Stackers, Straighteners ...
