Used Roll Feeder Swing Shear Cut To Length Line
2020mm x 3mm (M.S.) [2mm S.S., 4mm Alu.]
F&P
FOR SALE

OFFERED SUBJECT TO BEING UNSOLD


    Used Cut To Length Line, 2020mm x 3mm (M.S.), Roll Feeder Type with Swing Shear. Speed 60m / minute. Line new in 2006. Maximum coil weight 25 Ton. 6-HI Leveler with dia. 45mm rolls. Magnetic Stacker. Line direction: Right to Left.


    A 2020mm x 3mm (M.S.) Used Roll Feeder Type Cut To Length Line with: 6-HI, 19-Roll Leveler; Swing Shear; Magnetic Sheet Stacker. The line direction is Right to Left. The line was in use at an Appliance Industry; its maximum speed is 60m / minute. It suits for also Stainless Steel, Aluminium… (but the sheet stacker needs to be modified). Available ex-stock.


    Line new in: 2006

    Type of Materials: M.S., S.S.*, Aluminium*… etc. (*please read below)

    Minimum / Maximum Coil Width: 400mm / 2020mm

    Coil Max. Weight: 25 Ton

    Minimum Material Thickness: .7mm

    Maximum MaterialThickness: 2mm S.S.(800 MPa), 3mm M.S.*, 4mm Alu.*
    (* sheet stacker modification required, for it to handle M.S. & Alu.)

    Coil ID: 508mm & 610mm

    Minimum Part Length: 300mm

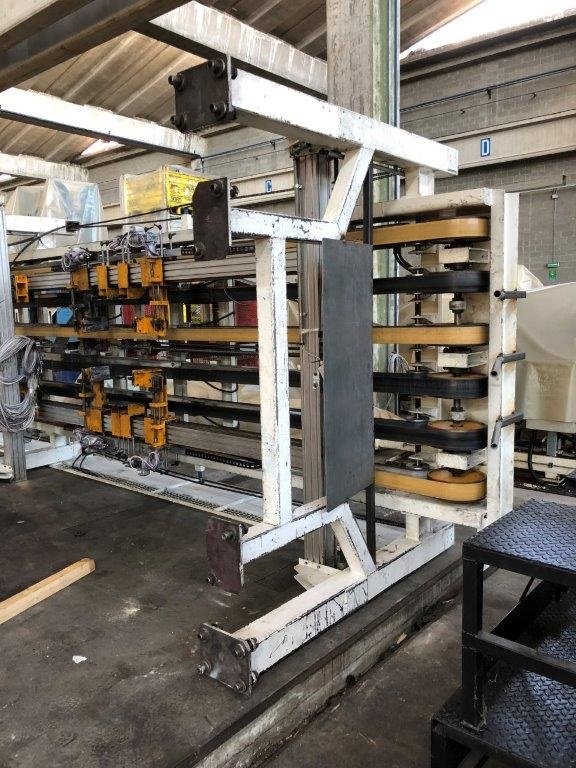

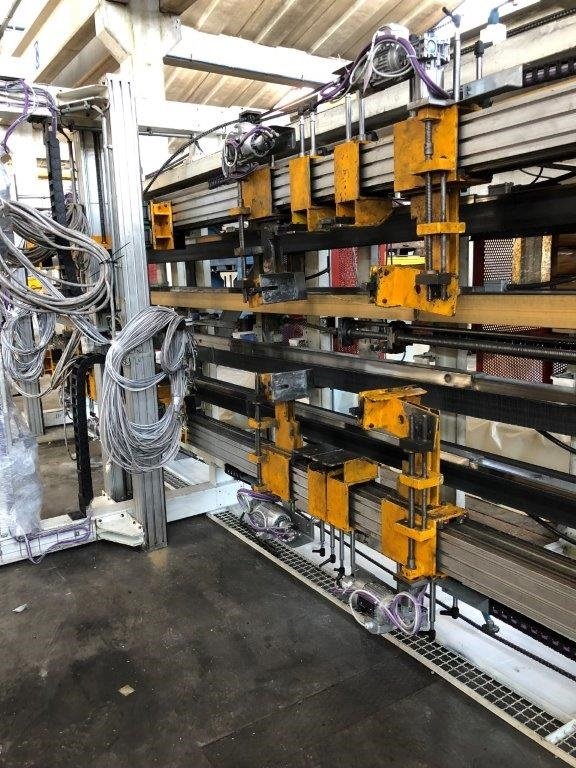

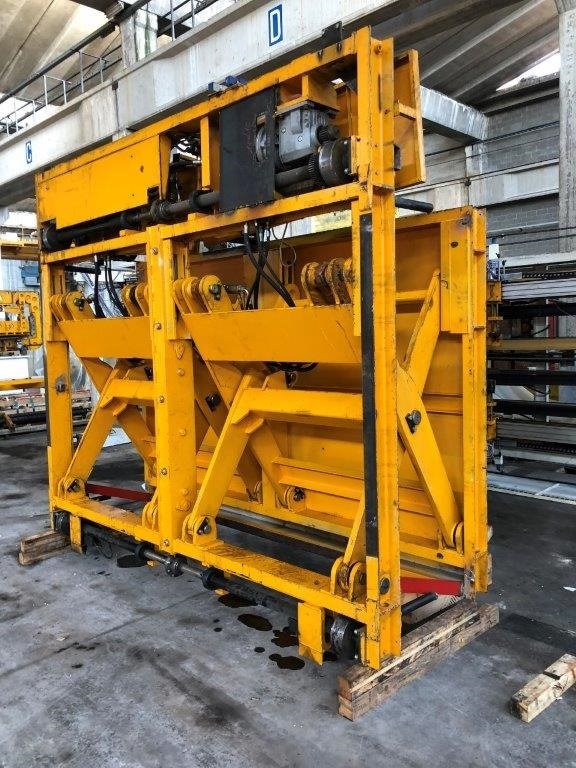

    Maximum Part Length with the existing 2-Box Type Magnetic Stacker: 4000mm

    Maximum Stack Weight: 4 Ton
    Maximum Stack Height: 400mm (including pallet)
    Line Max. Speed: 60m / min

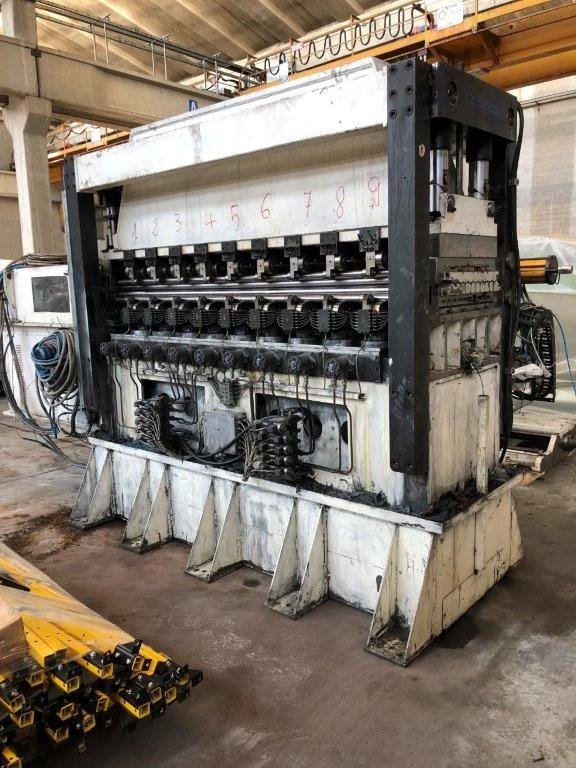

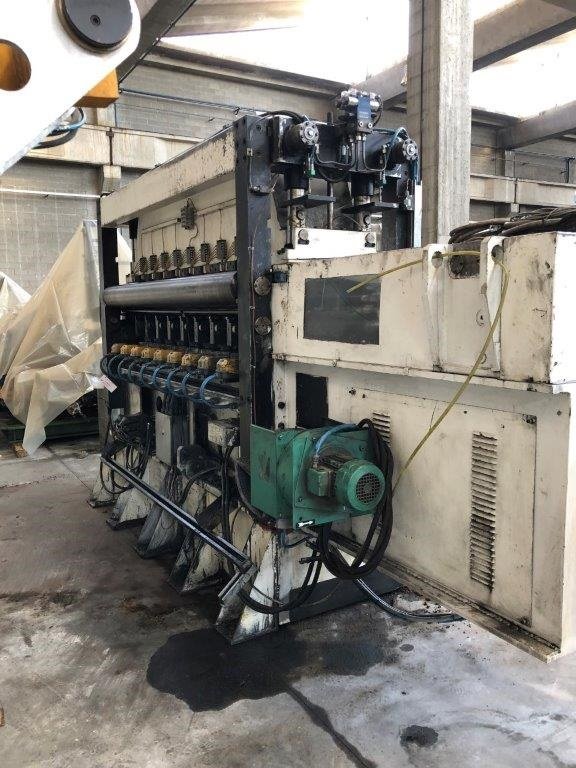

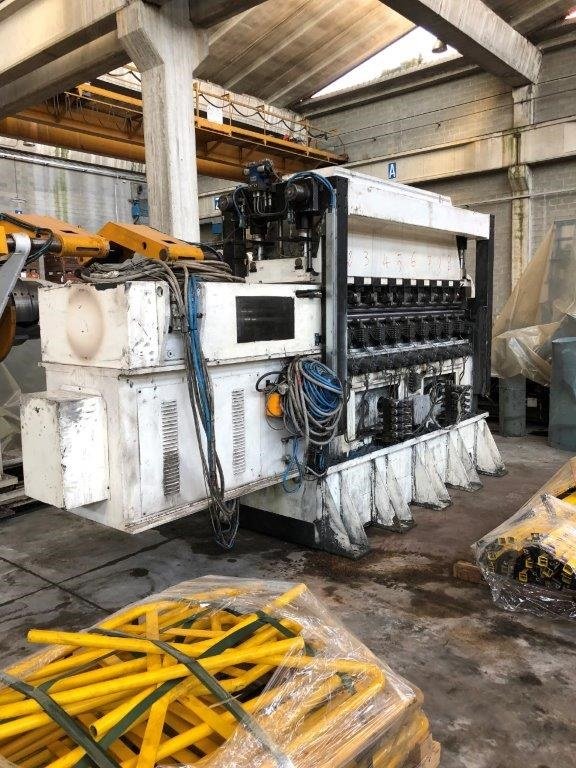

    19-Roll, 6-HI Leveler / Roll Ø: 45mm

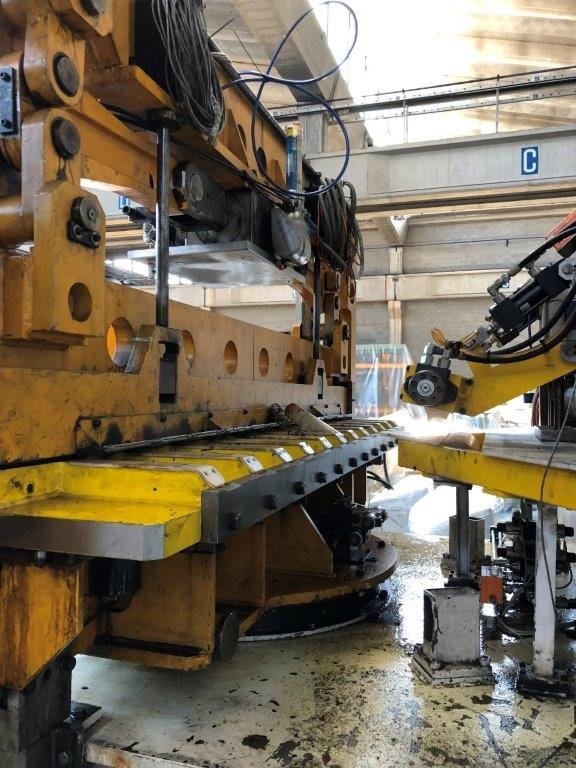

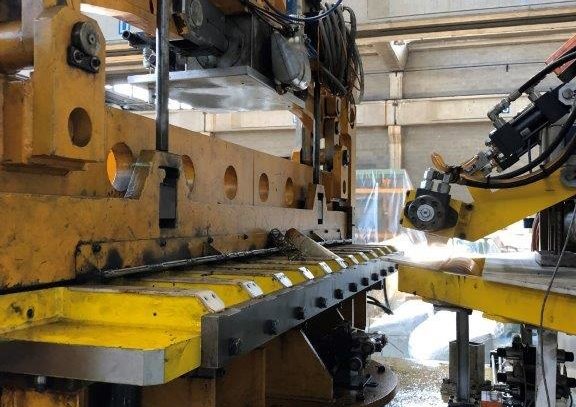

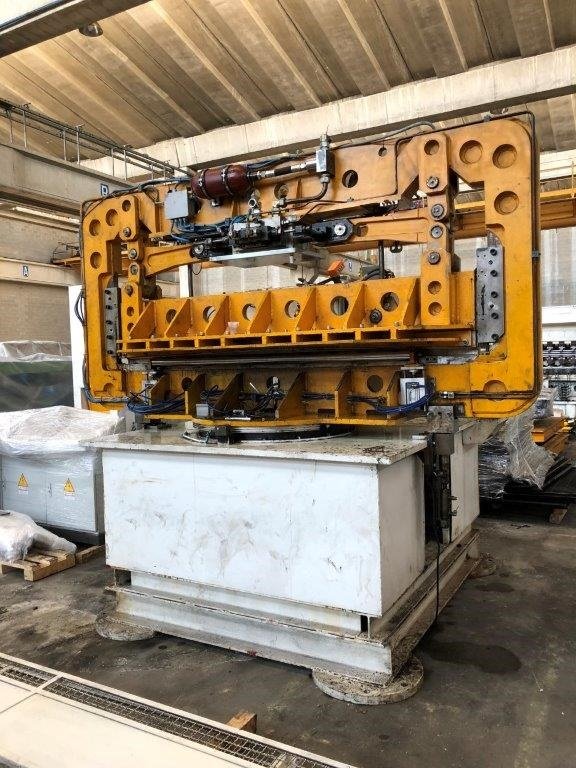

    Shear Swing: +/- 35°
    Line direction: Right To Left
    We offer Start/Stop, Roll Feeder, Flying Shear, Rotary Shear Cut To Length Lines both new and used / re-manufactured for: Aluminium, Coated, Cold Rolled, Copper, Galvanized, Hot Rolled, Prepaint, Silicon, Stainless, Tinplate,Titanium .

    Your enquiries welcome for also individual Line Parts like: Decoilers, Feeders, Levellers, Sheet Stackers, Straighteners ...
