SCHLEICHER Cut To Length Line

CUT TO LENGTH LINE

Cut To Length Line SCHLEICHER Used [#3303]
   Cut To Length Lines CLL  Cut To Length Line  SCHLEICHER Used [#3303]
SOLD
1

Used Cut To Length Line
1310mm x 1.5mm
SCHLEICHER

    1310mm x .8 - 1.5mm
    20m / min



    Line info:

    - Minimum / Maximum Coil Width: 200mm / 1310mm
    - Coil Max. Weight: 10 t
    - Minimum Material Thickness: .8mm M.S.
    - Maximum MaterialThickness: 1.5mm M.S.
    - Minimum / Maximum Coil ID: 570mm / 630mm
    - Maximum Coil OD: 1400mm
    - Max. Production Speed: 20m / min
    - Corrective Straightener: 11-Roll Type with roll dia. 60mm
    - Cutoff Shear: FASTI 3000mm x 3mm
    - Sheet Stacker
    We offer Start/Stop, Roll Feeder, Flying Shear, Rotary Shear Cut To Length Lines both new and used / re-manufactured for: Aluminium, Coated, Cold Rolled, Copper, Galvanized, Hot Rolled, Prepaint, Silicon, Stainless, Tinplate,Titanium .

    Your enquiries welcome for also individual Line Parts like: Decoilers, Feeders, Levellers, Sheet Stackers, Straighteners ...

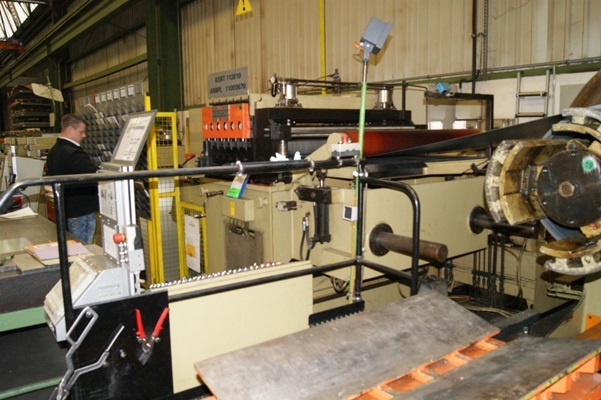

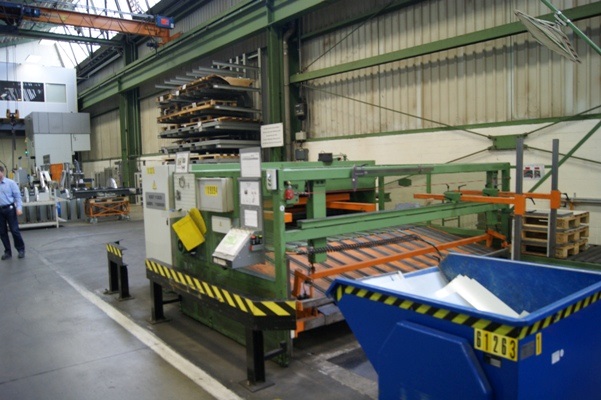

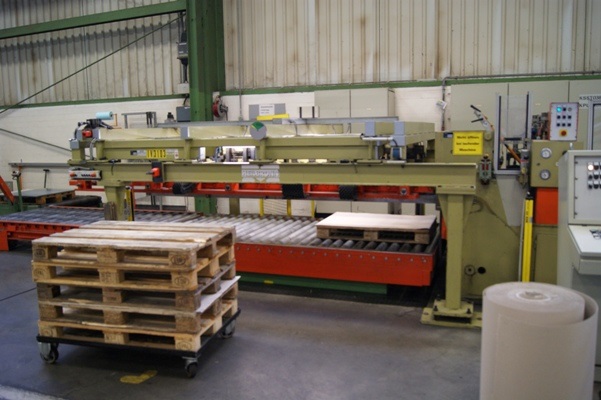

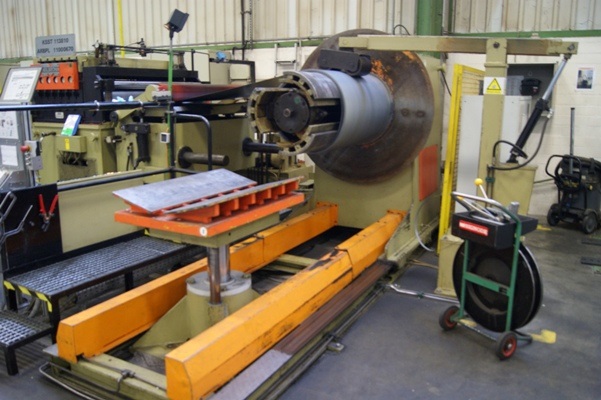

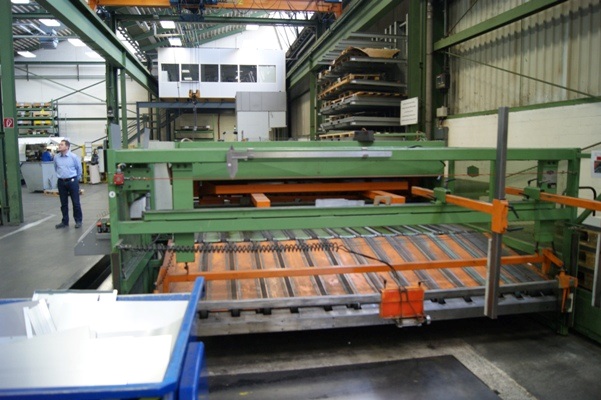

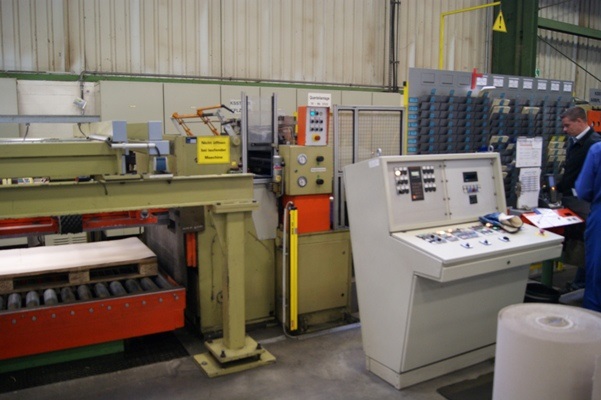

    PHOTOS & IMAGES
