New S. S. Sheet Stacking System
2500mm / "Light Gauge"
FLOREANI & PARTNERS
BUILD TO ORDER CUSTOM DESIGNED
2500mm
Material thickness: .4mm to 1.0mm
Sheet width: 80-1000mm
Sheet length: 200-2500mm
Stack max. weight: 1.2 Tons
Stack max. height (with also the pallet): 560mm
Line max. speed: 60m / min
The SYSTEM COMPOSITION is:

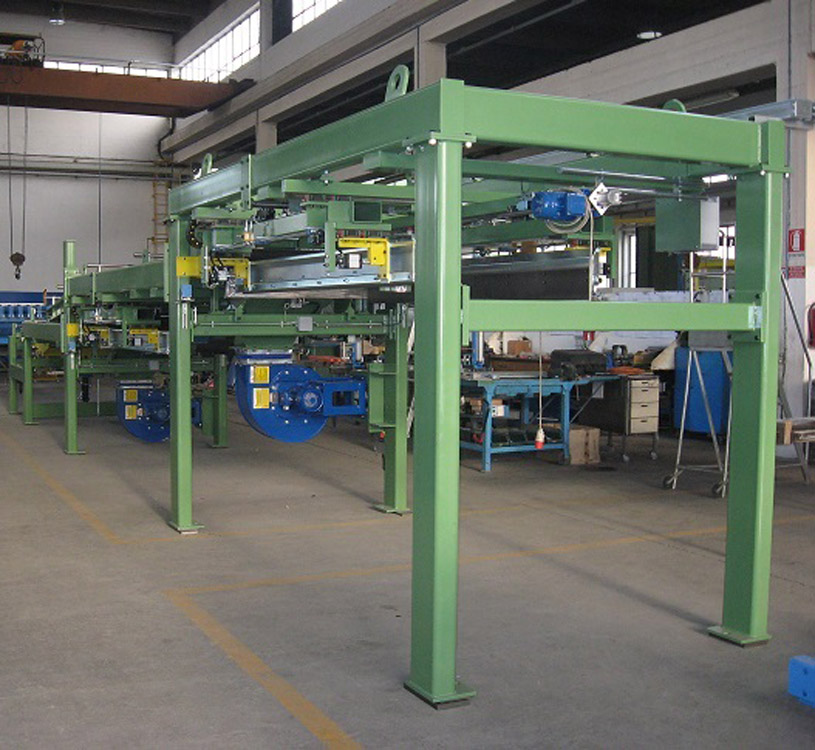

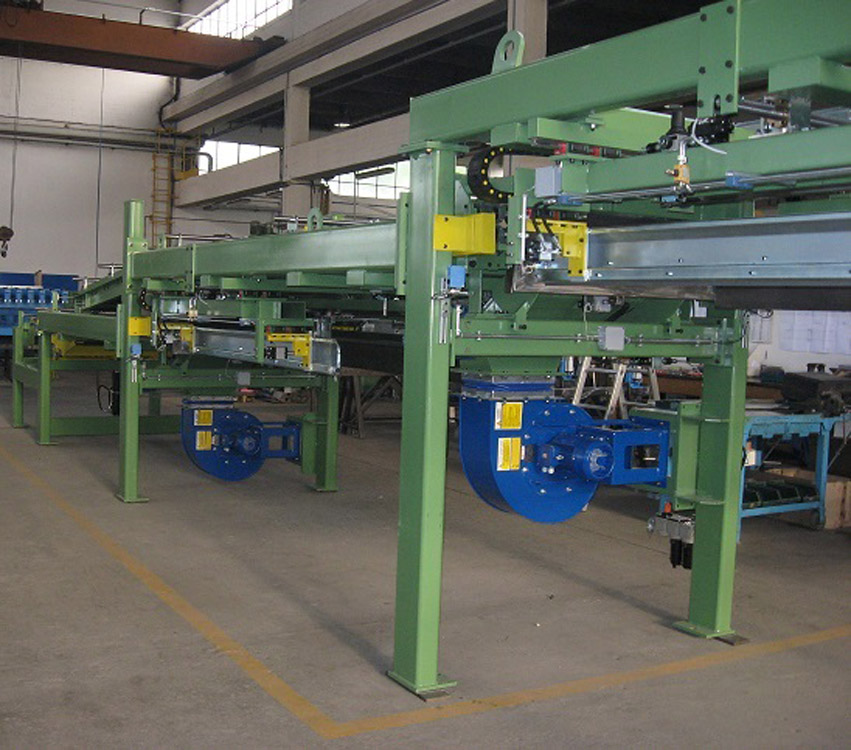

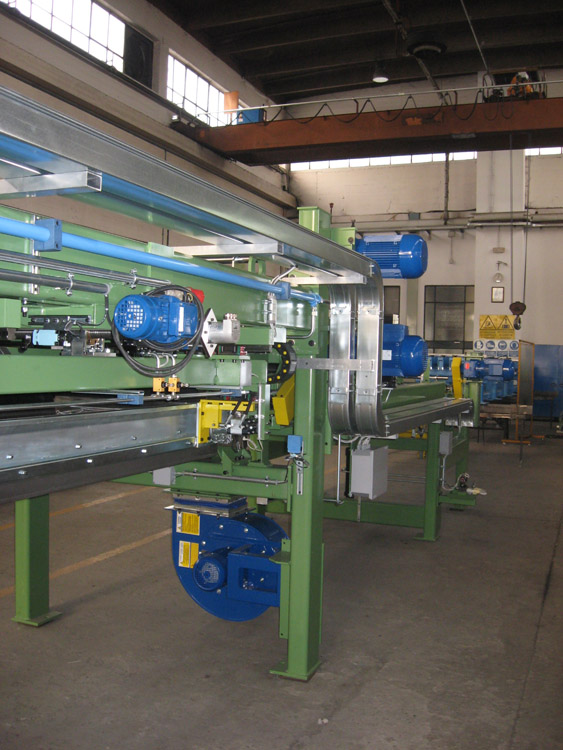

STACKER FOR FIRST-RATE SHEETS, WITH AIR CUSHION
STACKER FOR SECOND-RATE SHEETS, WITH AIR CUSHION --PLACED UNDER BELTS

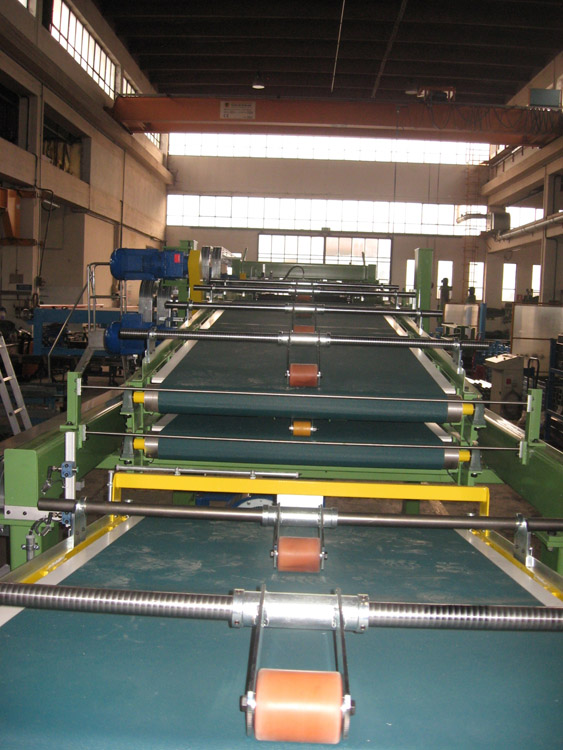

BELTS
MANUAL-THRUST SCRAP TRUCK, ON TRACKWAYS

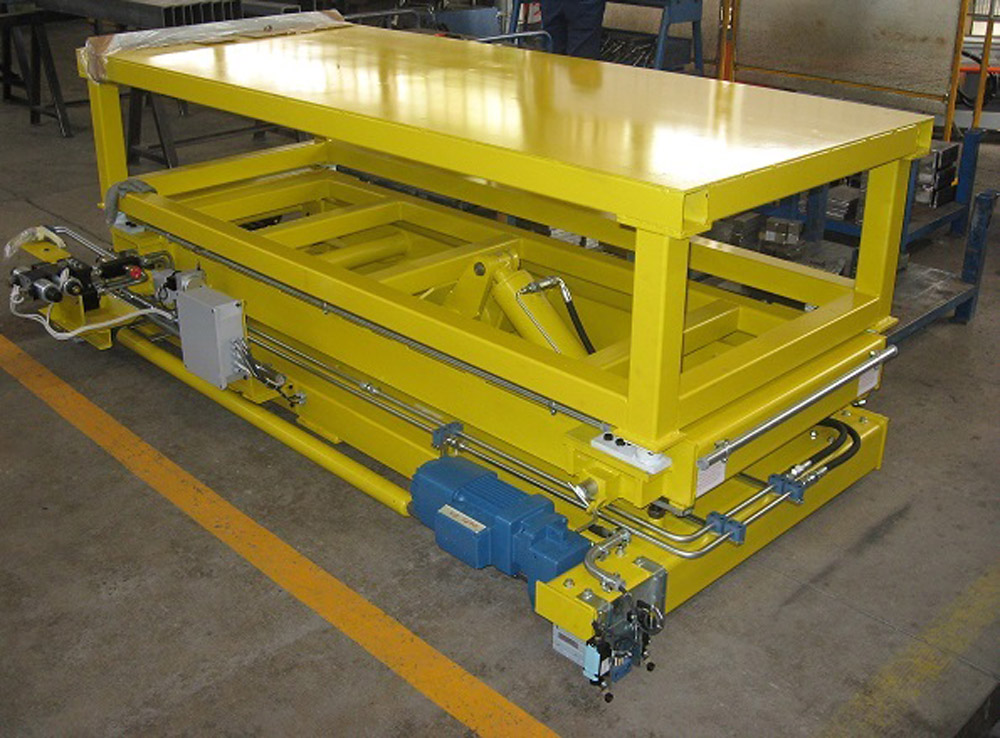

2 x SCISSOR TYPE HOISTER, SIDEWAYS-MOVABLE ON TRACKWAYS WITH STEEL PLATFORM ON WEIGHING CELL -- Capacity: 1.2 Tons
We design and build sheet and plate stackers, packaging systems, complete line-exit equipment for all material types: carbon and stainless steel, non-ferrous metals etc.
Custom-built equipment needs a special kind of product support... our proposals are detailed with drawings and photos to provide clients with a full understanding of the type and quality of the equipment we offer. We send customers approval drawings with dimensions, performance specs and features before the machine is built.
We are experienced at making our products safe, reliable and in conformance with the safety and design standards. Products are designed for maximum serviceability and reliability.
Parts Books are shipped with each piece of equipment. They contain detailed information about installation, inspection and maintenance procedures, component parts.
