Three-Box Stainless Steel Sheet Stacker

STAINLESS STEEL SHEET STACKER

Stainless Steel Sheet Stacker FLOREANI & PARTNERS New [#3359]
   Rotary Shears  Stainless Steel Sheet Stacker  FLOREANI & PARTNERS New [#3359]
1

New Stainless Steel Sheet Stacker
2100mm x 16mm x 14000mm / 3-Box Type
FLOREANI & PARTNERS
BUILD TO ORDER CUSTOM DESIGNED





    A heavy, 14m / 3-box stacker for stainless steel sheets; having these features:

    -- suitable for sheet lengths min. 500mm (box #1) and, resp. 800mm (boxes #2 & #3) ...

    -- ... and max. 14000mm*
    (* our Clients used the stacker in also 'semi-automatic' mode, for sheets up to 20000mm long)

    -- for sheet width 500mm to 2000mm

    -- material thickness 3-16mm

    -- sheet stack height max. (incl. pallet) 400mm

    -- sheet stack weight max. 5 Tons


    The stacks: "bare", or on woods, or on pallets




    System Description

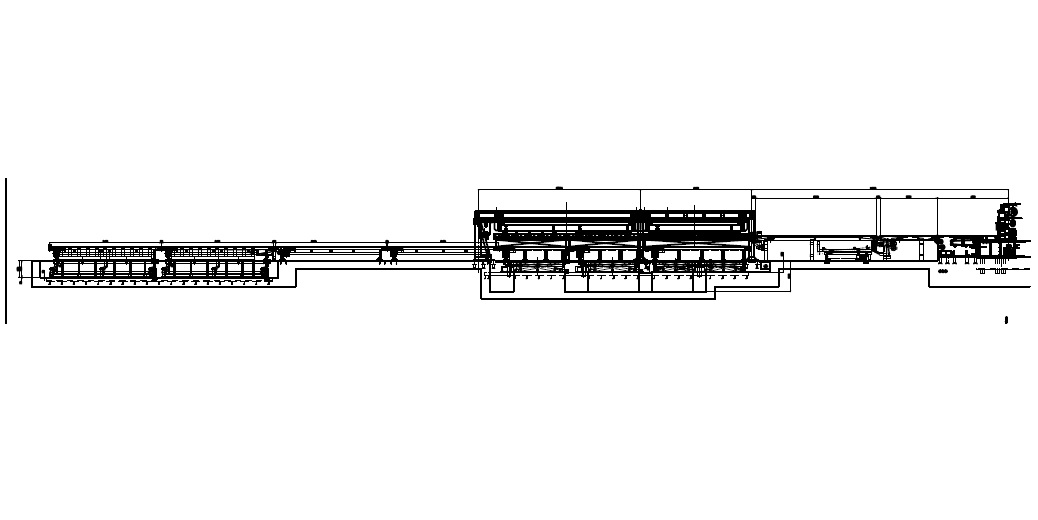

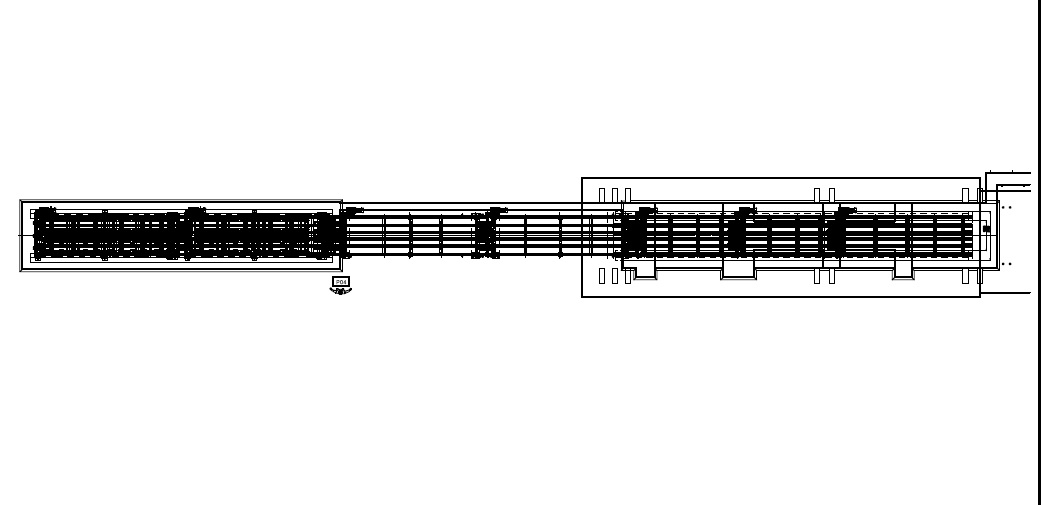

    (please see Attachs.)

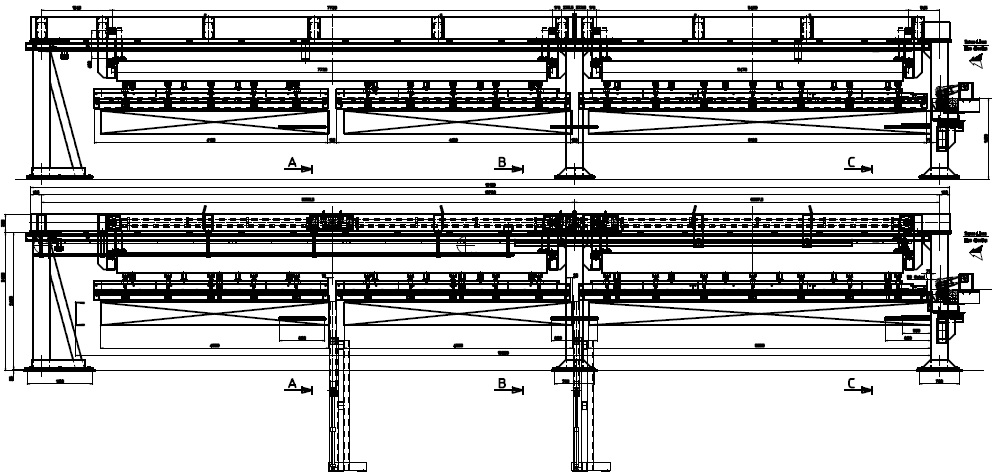

    6000mm + 4000mm + 4000mm Boxes
    with belts at #1 and #2 ^

    Belts: include scrap-evacuation section, with pinch roll and connection belt

    3m SCRAP TRUCK with inclinable plate, with 3 Ton capacity

    6000mm DOUBLE SCISSOR-TABLE LIFT, with 5 Ton capacity

    4000mm x 2 SCISSOR-TABLE LIFTS, 5 Ton capacity each lift

    3 CHAIN CONVEYORS ON SCISSOR-TABLE, with 5 Ton capacity each conveyor

    1 NYLON CHAIN CONVEYOR ON WEIGHING CELLS (#1) - 6420mm long, with 5 Ton capacity

    1 NYLON CHAIN CONVEYOR ON WEIGHING CELLS (#2) - 6420mm long, with 5 Ton capacity

    1 CHAIN CONVEYOR ON WEIGHING CELLS (#3) - 6420mm long, with 5 Ton capacity
    with four individually-overturning entry tracks and fixed exit tracks

    1 NYLON CHAIN CONVEYOR ON WEIGHING CELLS (#4) - 6420mm long, with 5 Ton capacity

    2 LIFTS FOR CONVEYORS

    2 SETS OF FIVE FIXED RAFTERS EACH, for lifting "bare" stacks

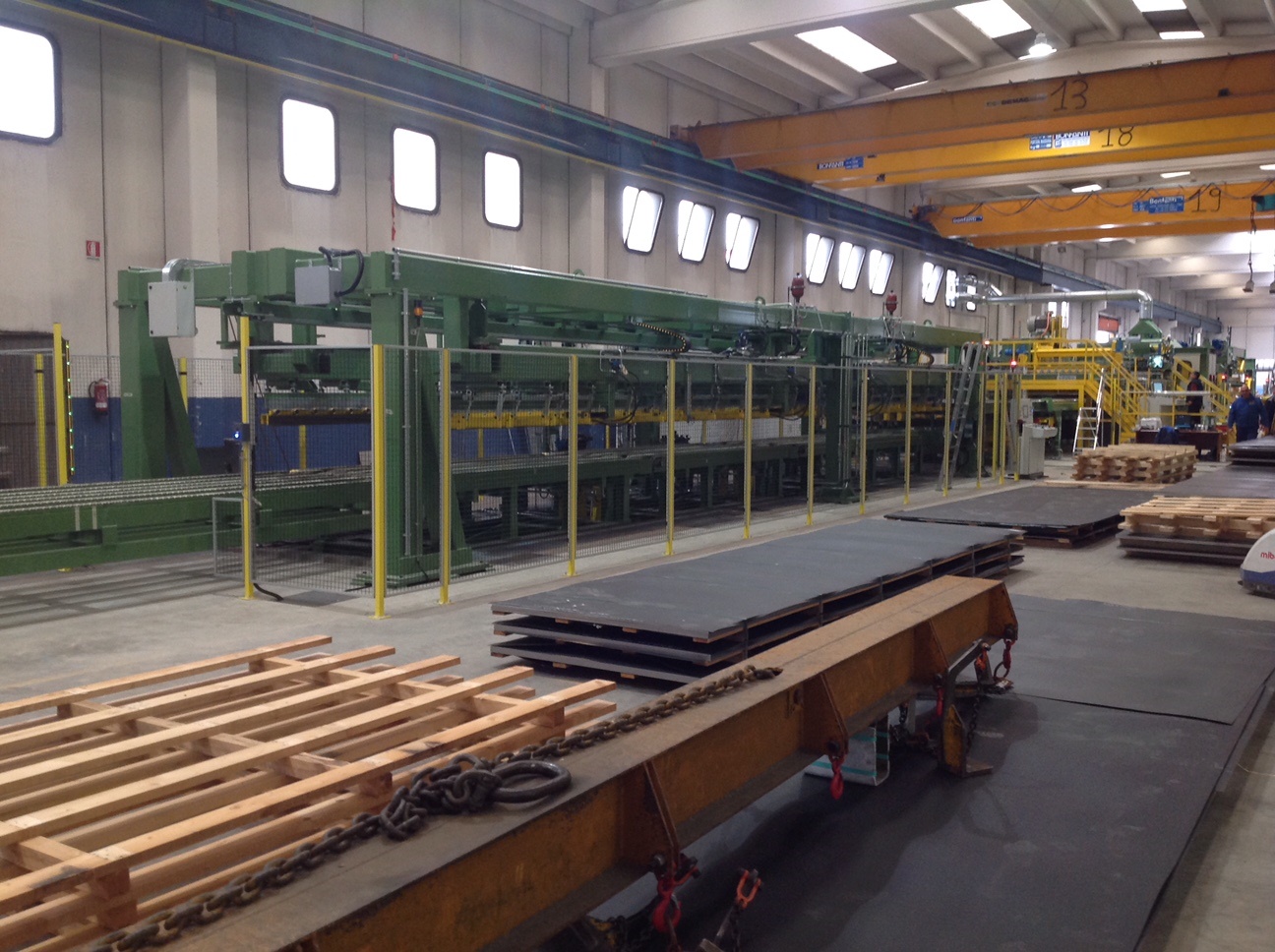

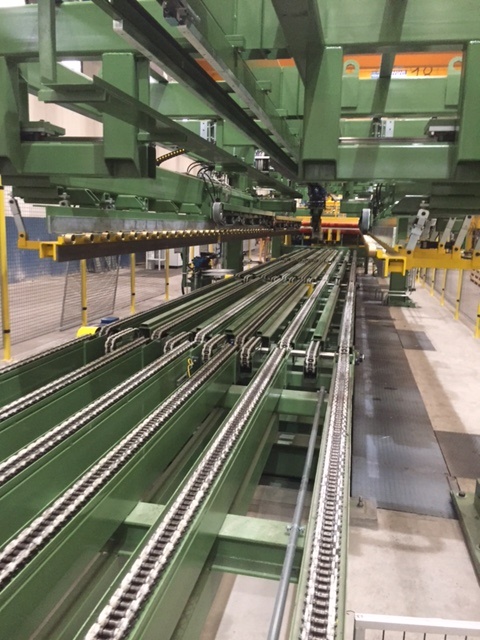

    Built to a stainless steel coil service center of Northern Italy this "bomb door" type, 3-box stacker is one of the largest installed in the Country.

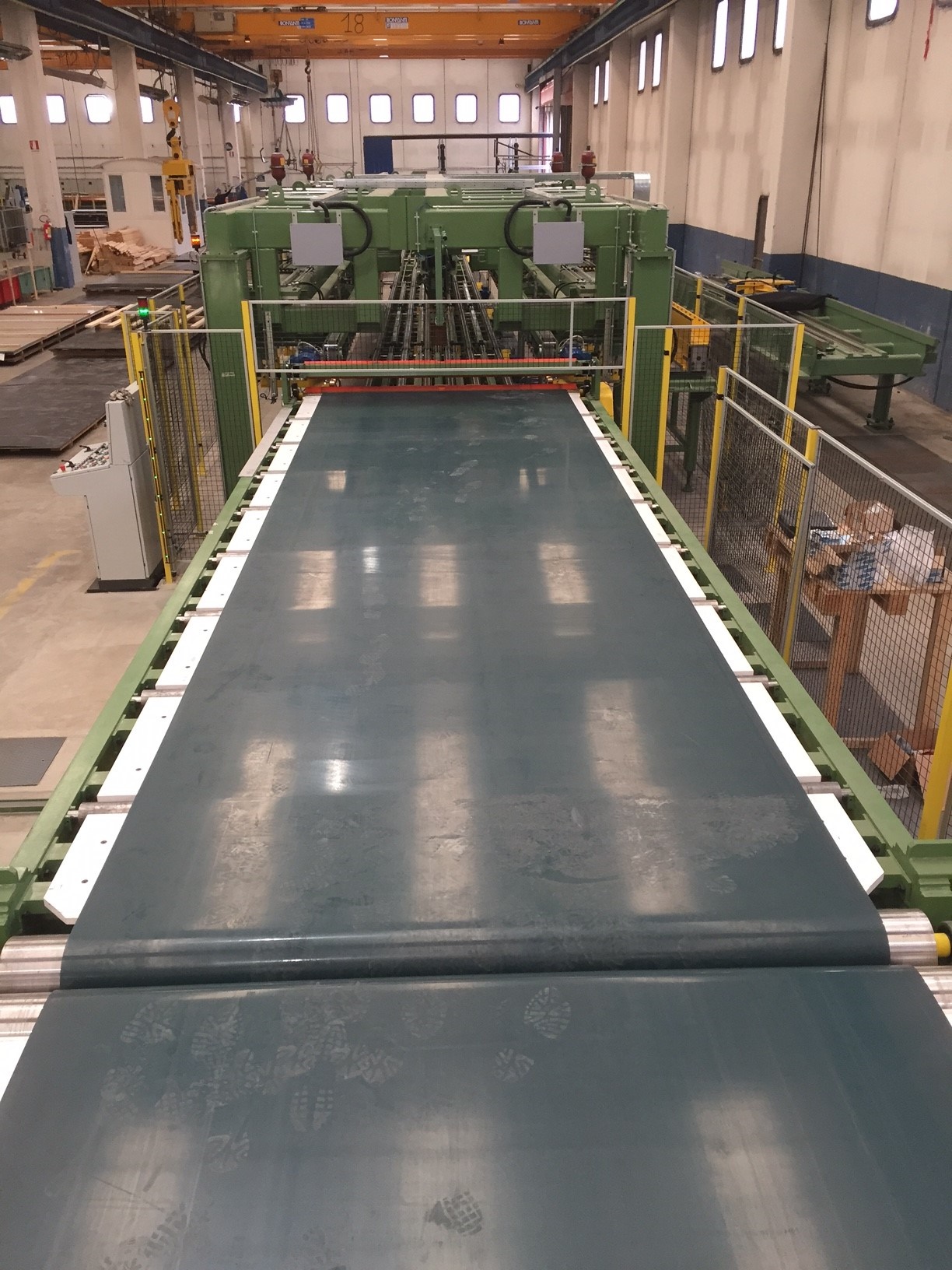

    A line of conveyor belts moves sheets from the flying shear into the stacker; a pull/brake entry pinch roll slows down the heavy gauge sheets before they fall into boxes.
    A scrap-evacuation belt is also included, to divert possibly defective sheets.

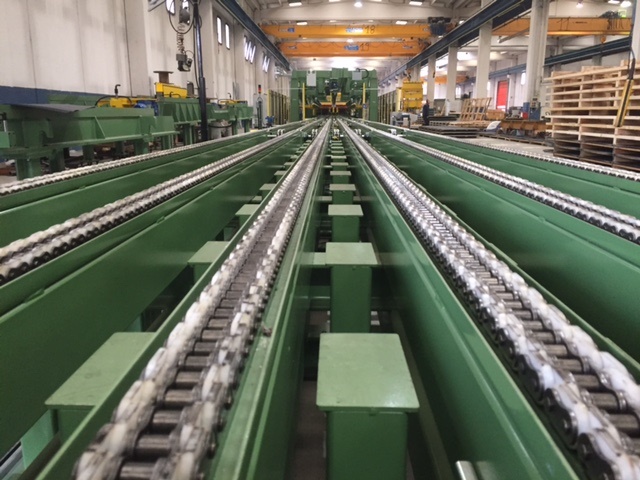

    The stacker exit chain conveyors are, altogether some 35m long.

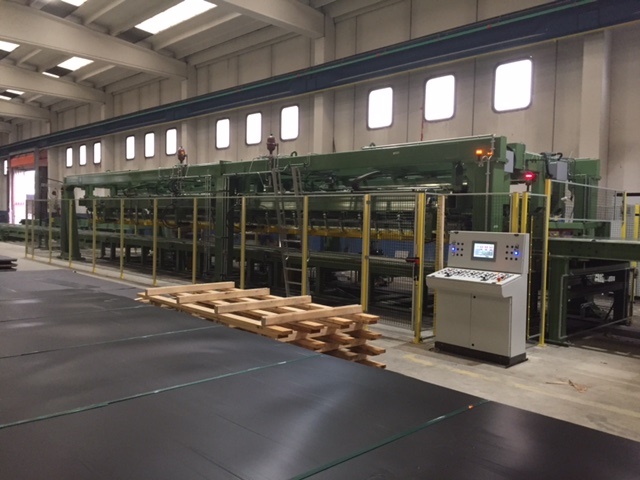

    An accumulation-zone to allow manual strapping of stacks is included with individually-overturning tracks.
    A weighing module is included as well.

    In the area of the two last chain conveyors, hydraulic lifting-rafters allow picking single unpacked sheets from line-end.

    The height from floor level of both conveyors is adjustable by means of a special hydraulic system, to allow manual insertion of wooden joists under the first sheet of a stack when wanted.

    The three boxes work either together or, each box individually.

    The System can also work in 'non-stop' mode, stacking sheets from box #3 (6000mm long).

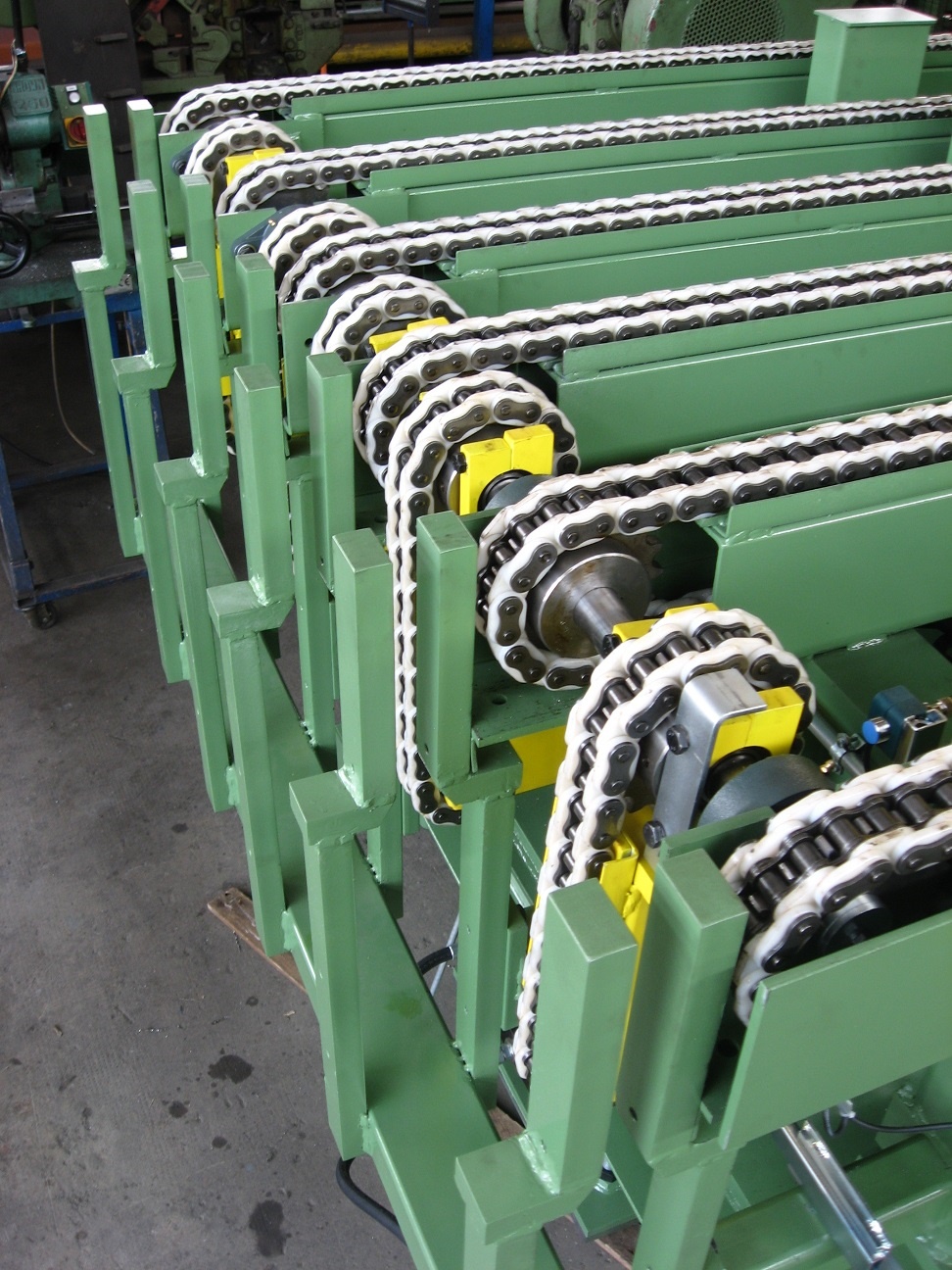

    Rackets with slide rollers, special belts, chains with nylon inserts and brass wheels allow a very gentle handling of sheets.

    Custom-built equipment needs a special kind of product support... our proposals are detailed with drawings and photos to provide clients with a full understanding of the type and quality of the equipment we offer. We send customers approval drawings with dimensions, performance specs and features before the machine is built.

    We are experienced at making our products safe, reliable and in conformance with the safety and design standards. Products are designed for maximum serviceability and reliability.
    Parts Books are shipped with each piece of equipment. They contain detailed information about installation, inspection and maintenance procedures, component parts.
