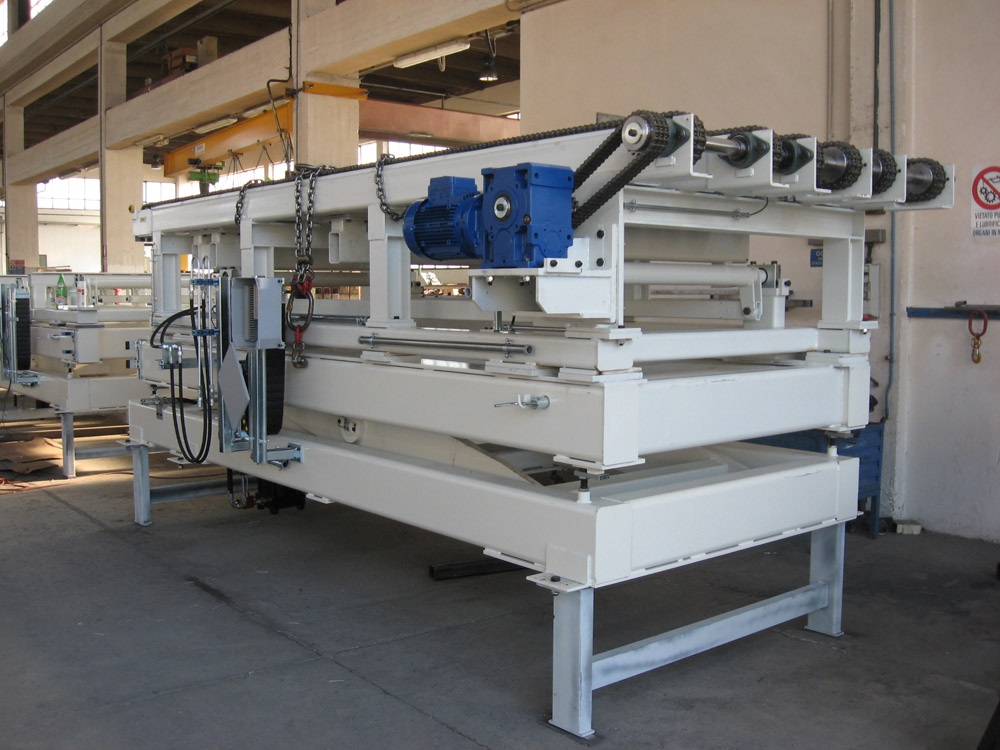

1

New HR Steel Sheet Stacking System
12000mm
FLOREANI & PARTNERS
BUILD TO ORDER CUSTOM DESIGNED

    12000mm

    Material thickness: 8mm to 20mm Hot Rolled Steel
    Sheet width: 500-2100mm
    Sheet length: 500-8000mm>sideways; 8000-12000mm>in-line
    Stack max. weight: 10 Tons (with 4000mm min. sheet length)
    Max. weight per-meter: 2.5 Tons
    Stack max. height (with also pallets/wood...): 500mm

    Line max. speed:
    25m / min with 8-12mm thick material
    20m / min with 12.1-16mm thick material
    16m / min with 16.1-20mm thick material

    Line direction:
    left to right




    This "heavy" System has recently been installed.

    The SYSTEM COMPOSITION is:

    12000mm sheet stacker
    8000mm + 4000mm stack forming station
    2 + 2 powered roll tables to off-load sideways -- initial 8000mm section of stacker
    1 + 1 conveyors with six powered rings



    We design and build sheet and plate stackers, packaging systems, complete line-exit equipment for all material types: carbon and stainless steel, non-ferrous metals etc.
    Custom-built equipment needs a special kind of product support... our proposals are detailed with drawings and photos to provide clients with a full understanding of the type and quality of the equipment we offer. We send customers approval drawings with dimensions, performance specs and features before the machine is built.

    We are experienced at making our products safe, reliable and in conformance with the safety and design standards. Products are designed for maximum serviceability and reliability.
    Parts Books are shipped with each piece of equipment. They contain detailed information about installation, inspection and maintenance procedures, component parts.
    PHOTOS & IMAGES
    (CLICK TO ENLARGE)

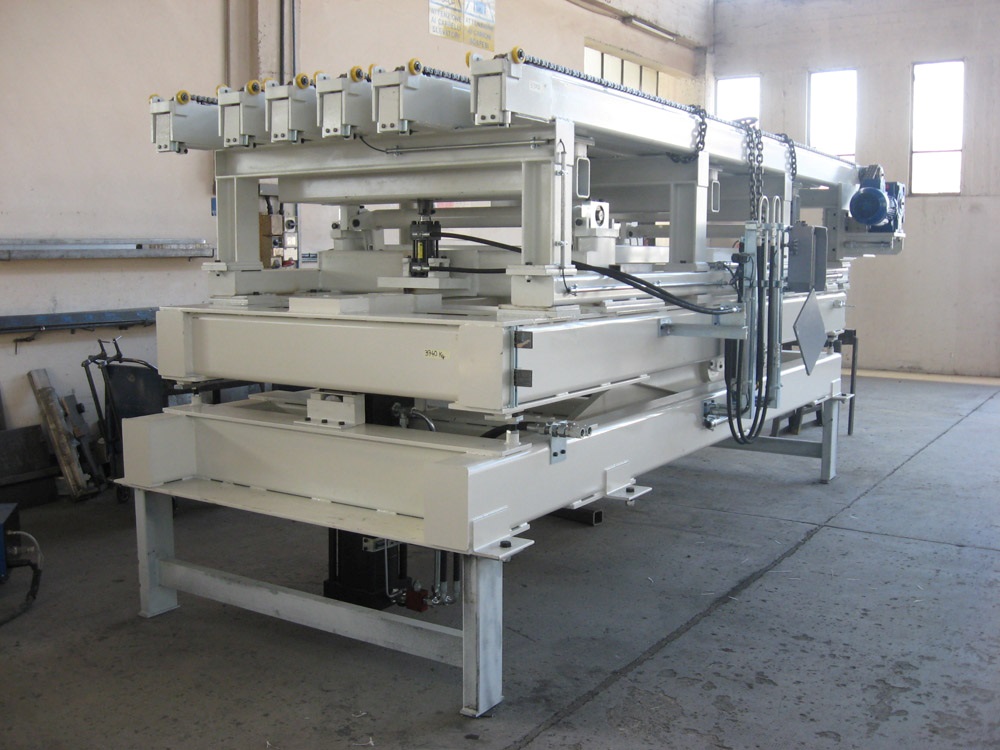

    2

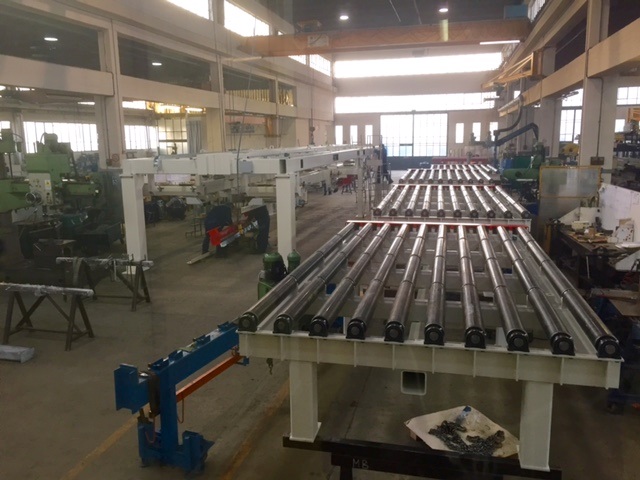

    3

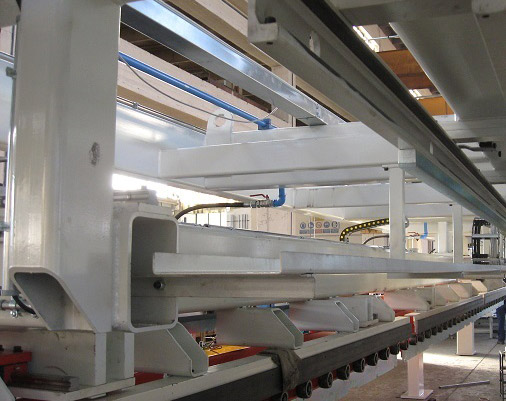

    4

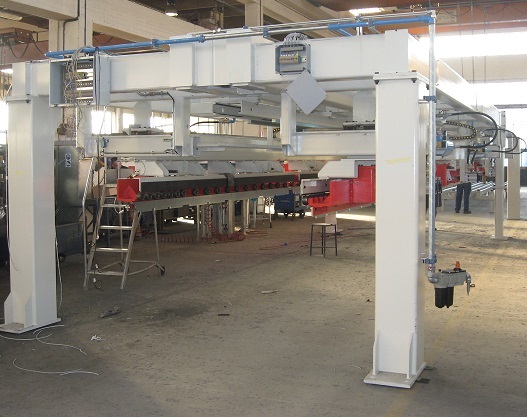

    5

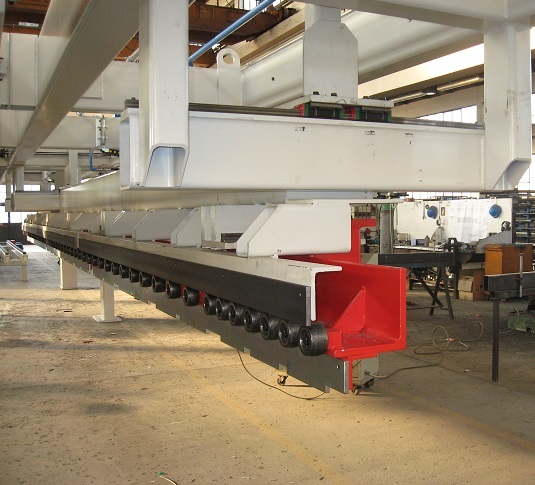

    6
