Used Cut To Length Line
1980mm x 3mm
HYBRID

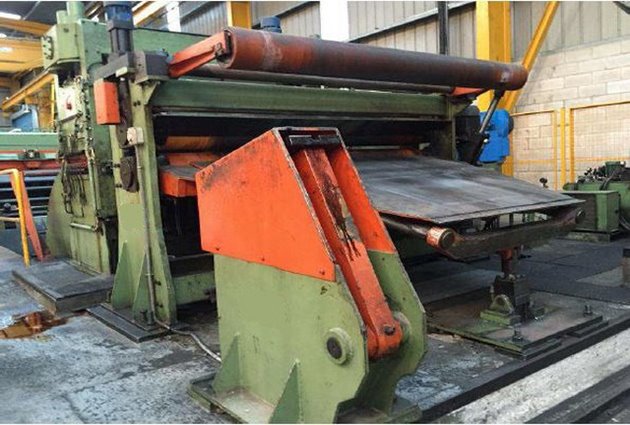

A used 1850mm x .4-3mm High Speed Cut To Length Line with: 25 Ton decoiler & coil car, 6-HI / 19-roll leveler, mechanical cutoff shear, 6m sheet stacker. Line new in 2000. Direction: Right to Left.
Used 78" (1980mm) x .118" (3mm) x 25 Ton, 6-HI Leveler Cut to Length Line of 2000. Installed. Minimum material thickness: .4mm. Line speed 150m / minute, with mechanical cutoff shear capable of 60 cuts / minute. 6m sheet stacker. The line direction is Right to Left.
Year: 2000
Thickness Range: .4mm to 3mm
Coil ID: 508mm to 610mm
Maximum Coil Weight: 25 Ton
Cut to Lenght Range: 400mm to 6,000mm
Tolerance: +/- .2mm
Line Speed: 150m / minute
Production Capacity: 40,000 Ton /year
Line Direction: Right to Left
Complete Line with the Following Components:

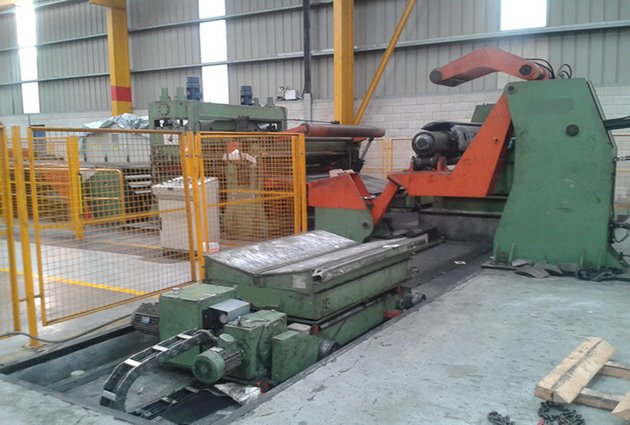

Entry Pit Type Coil Car
Mandrel Uncoiler
Hydraulic Expansion
Sliding Base
Powered Hold Down Roll
Outboard Bearing Support System
Water Cooled Brake
Peeler Table
Entry Pinch Roll

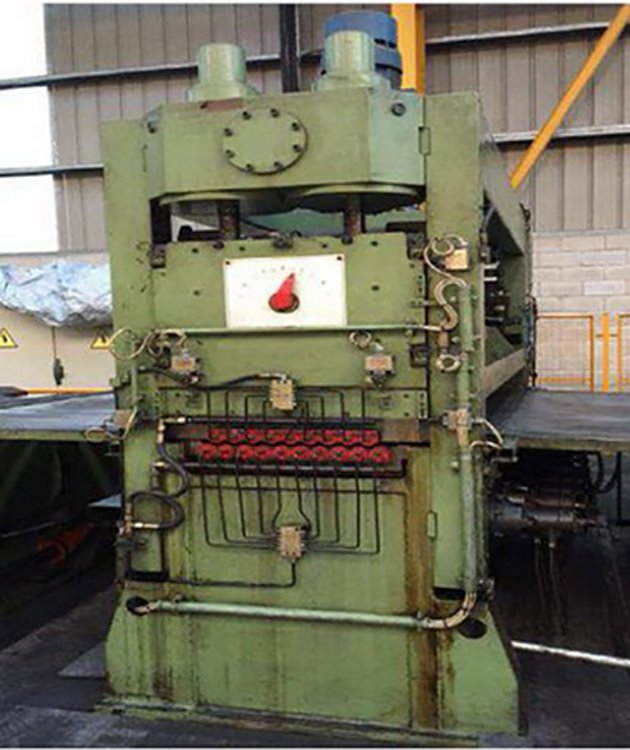

6-HI Precision Leveler
19 Roll Design, 45mm Work Roll Diameter
21 Intermediate Rolls, 39.5mm Diameter
7+7 Back Up Rolls, 90mm Diameter
Motorized Top and Bottom Back Up Adjustment
Motorized Tilt and Open Close
Pit Cross-Over Table
Measuring Table
Powered Pinch Rolls

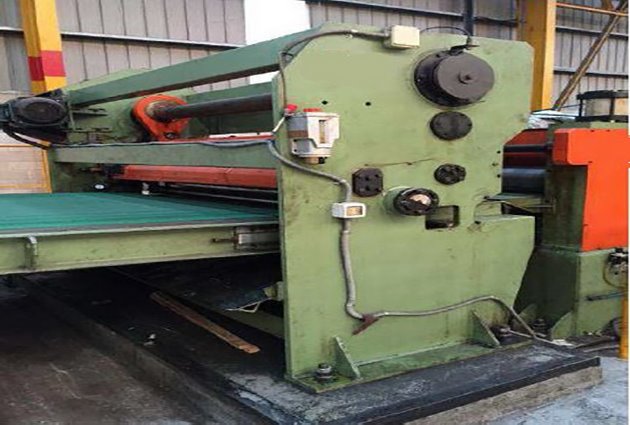

Mechanical Shear
Thickness Range: 0.4mm to 3mm
Mechanical Downcut Design
60 Cuts per Minute (cpm) according to the following chart:
500mm Length-60 cpm
1000mm Length-50cpm
2000mm Length-32cpm
3000mm Length-25cpm
4000mm Length-20cpm
6000mm Length-15cpm
Exit Inspection Table
4000mm

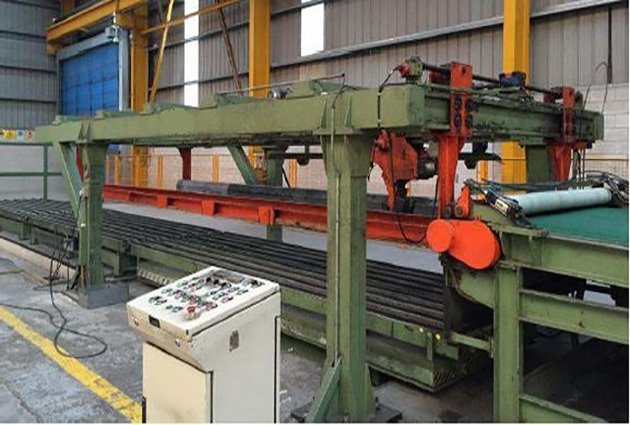

Stacker
Height and Width Adjustments
6 Meter Stack Length
Exit Table
Chain Driven
Complete Line with Hydraulics, Controls, Electrics, Drawings
Installed.
THIS LINE IS SOLD "AS IS--WHERE IS" WITHOUT ANY WARRANTY, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. ALL EQUIPMENT SOLD IS USED.
