ROLL FEEDER CUT TO LENGTH LINE

Roll Feeder Cut To Length Line FIMI Used [#3344]
   Cut To Length Lines CLL  Roll Feeder Cut To Length Line  FIMI Used [#3344]
SOLD
1

Used Roll Feeder Cut To Length Line
1550mm x 3.0mm / stainless steel 2.0mm
FIMI

    Roll Feeder Cut To Length Line
    FIMI

    OFFERED "AS IS"
    READY



    Process Materials: alu., mail steel, prepaint, stainless steel... (NOTE- the decoiler and the sheet stacker, really arent't the most suitable for surface-critical materials)

    Maximum Coil Width: 1550mm
    Coil Max. Weight: 15 Tonnes
    Minimum Material Thickness: .5mm
    Maximum Material Thickness: 3mm M.S., 2mm S.S.
    Minimum / Maximum Coil ID: 500mm to 700mm
    Maximum Coil OD: ca. 1600mm
    Maximum Stack Weight: 4 Tonnes
    Line Speed: 60(80)m / min
    6-HI Leveller



    This used roll feeder cut to length line still is installed and under power.
    It was built by FIMI in 1995.

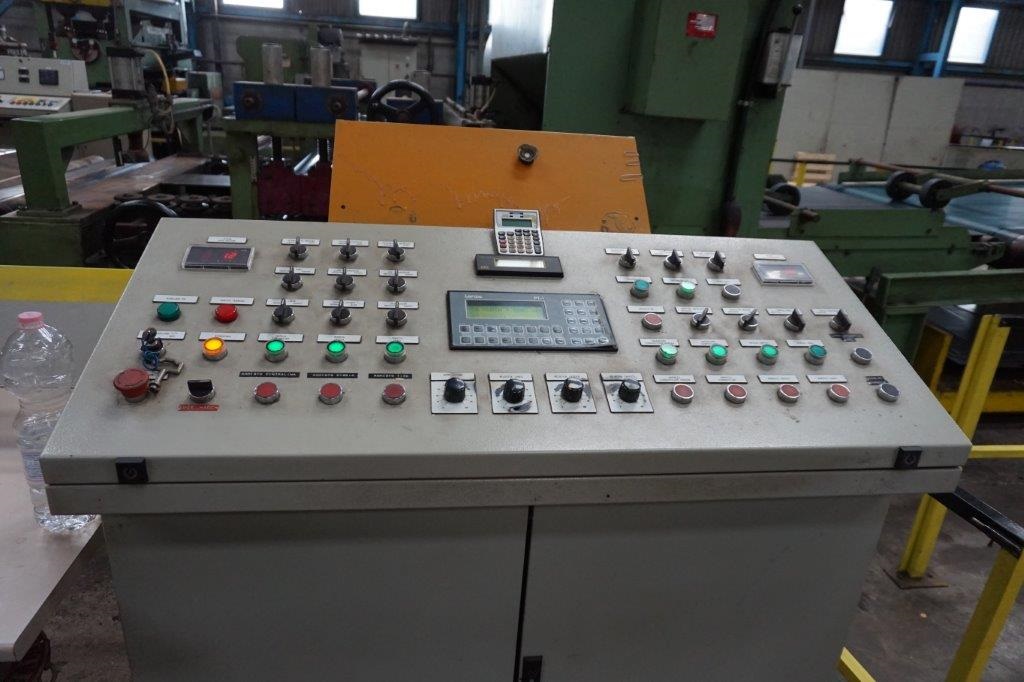

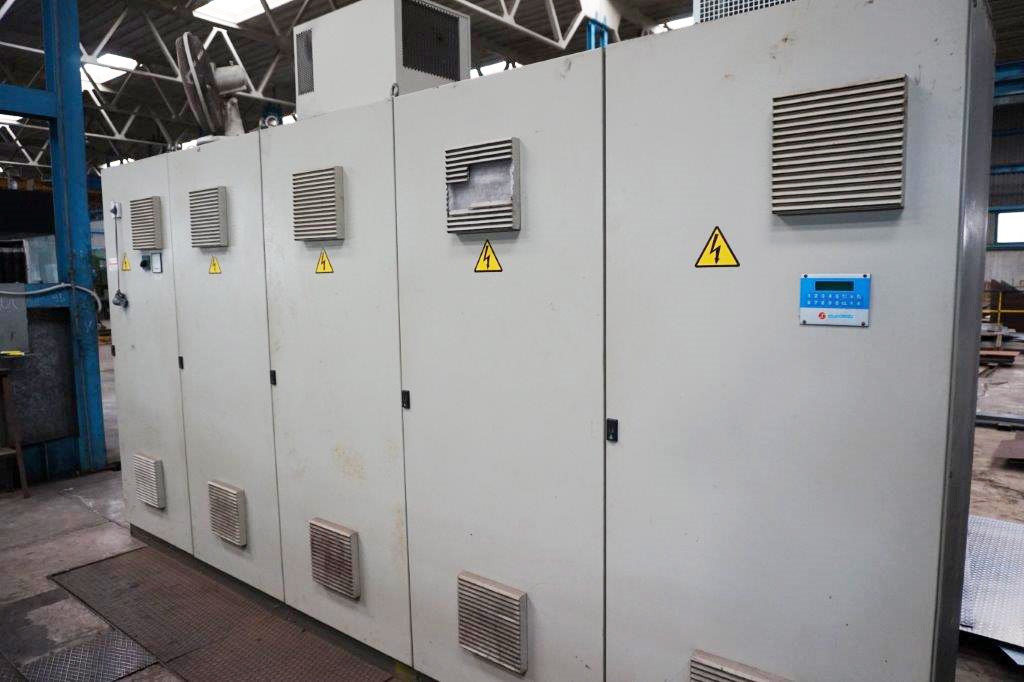

    The line electrics were made new in 2005, except for the line entry section.



    Here is the equipment description:

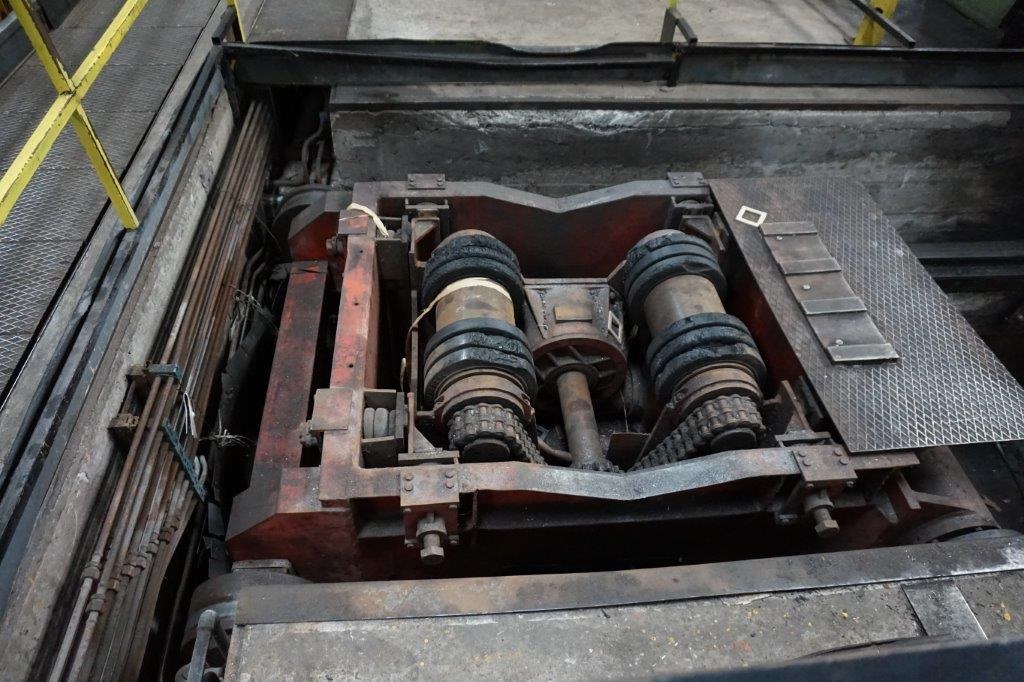

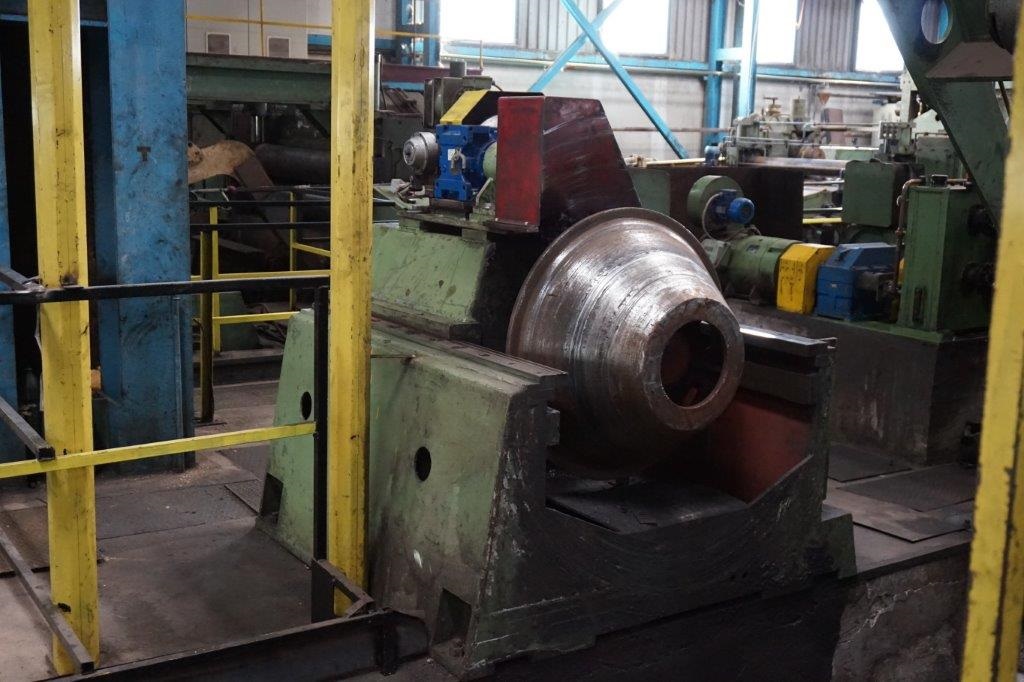

    Double opposed cone type decoiler
    7.6 kW / two motors
    Decoiler capacity 15 Tonnes

    Coil threading station with powered pinch rolls
    9.5 kW

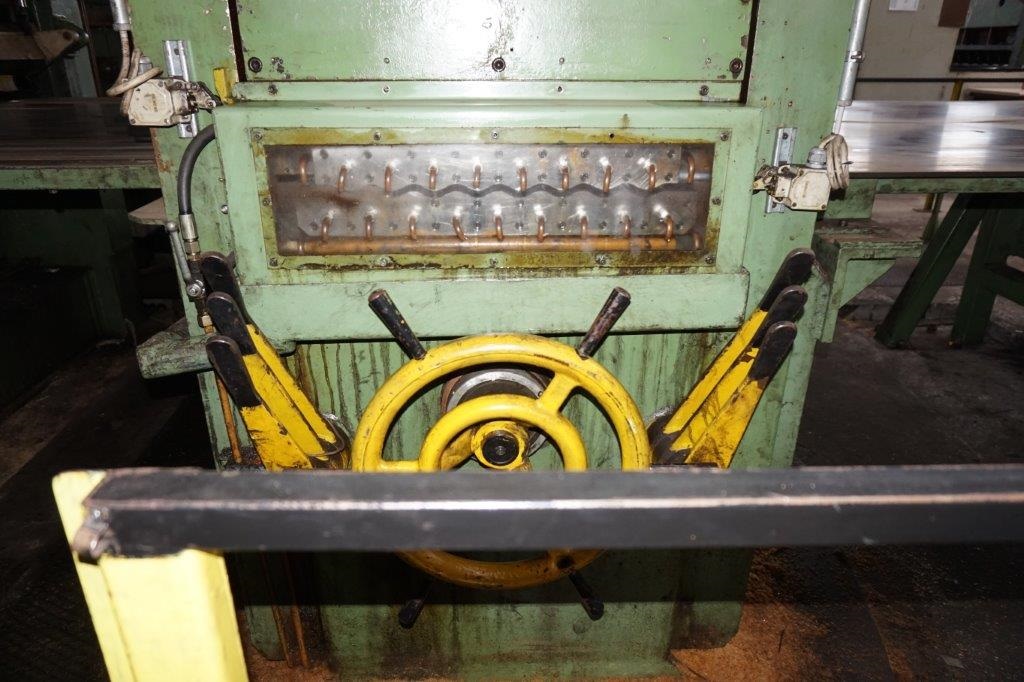

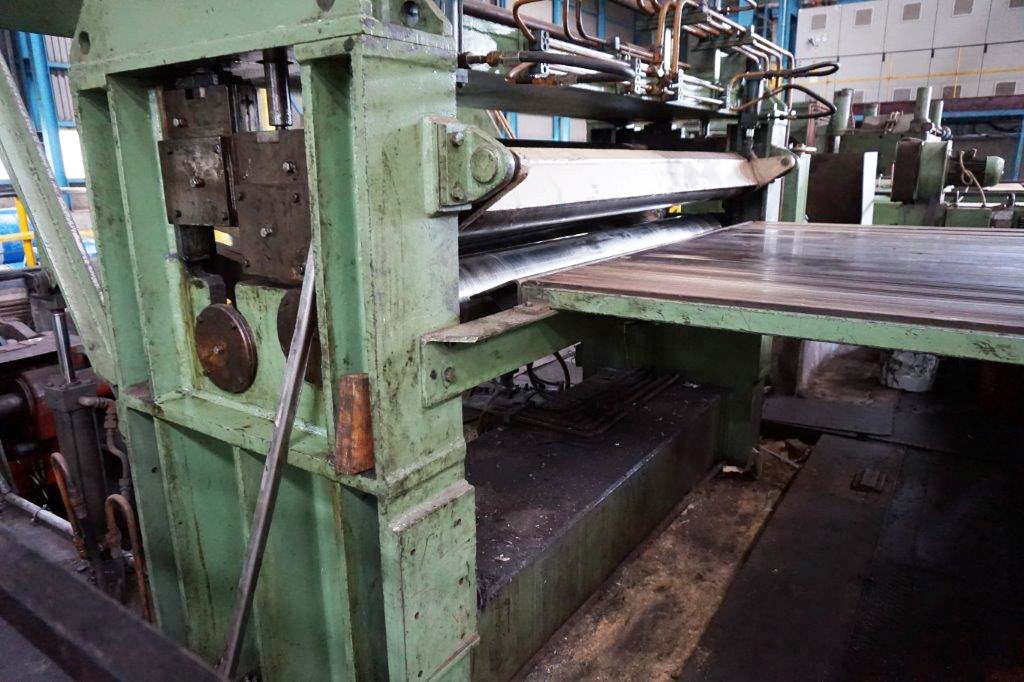

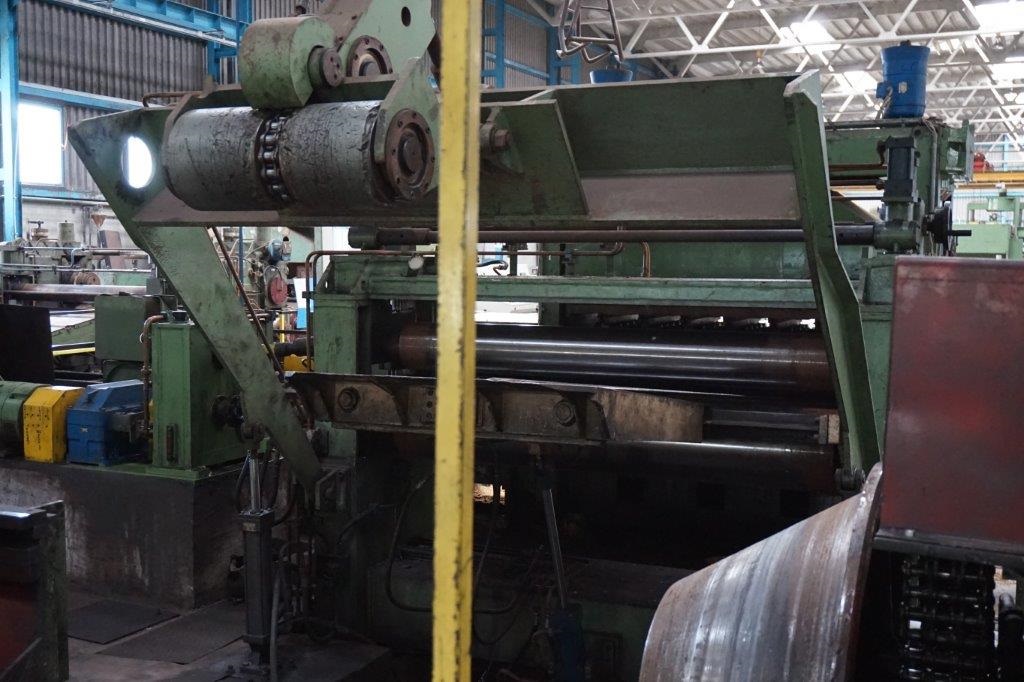

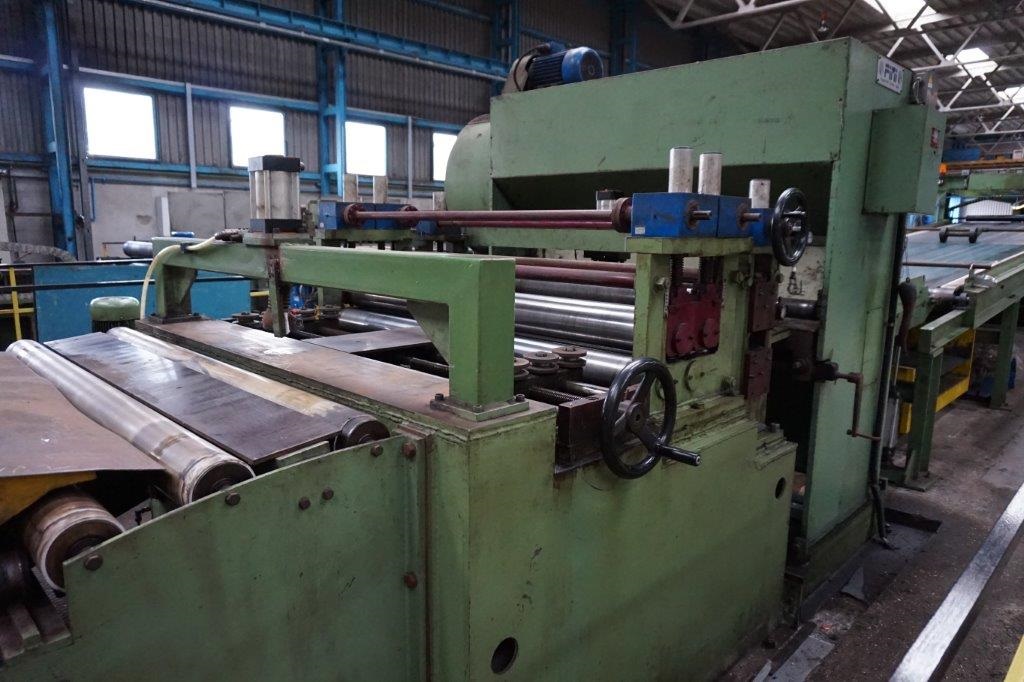

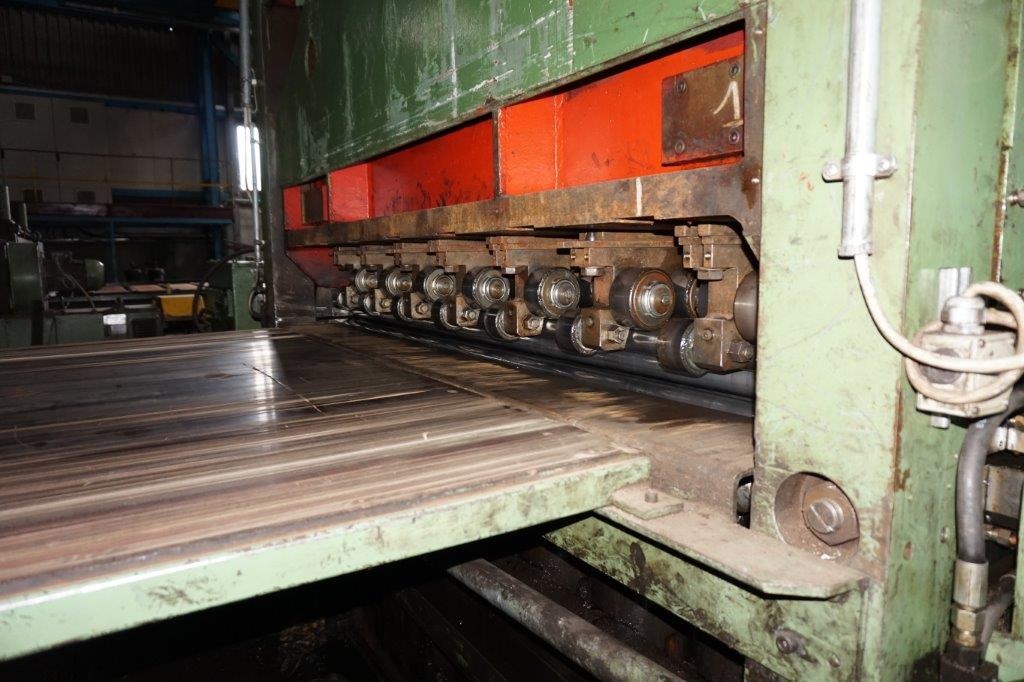

    6-HI Leveller

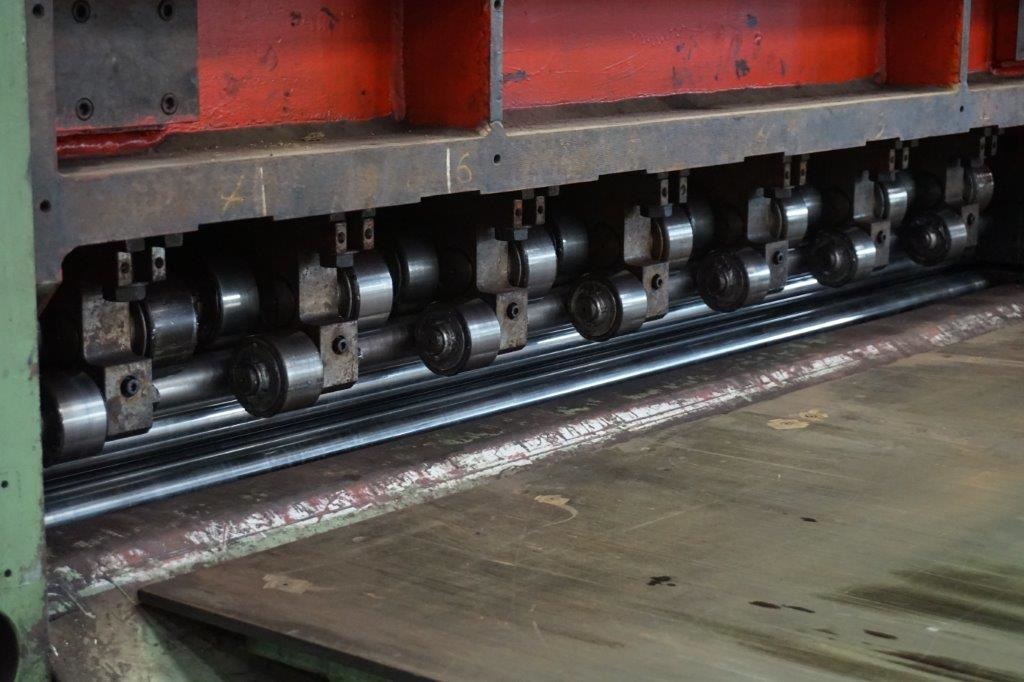

    17-roll with Ø52mm work rolls
    7 sets of back-ups with manual adjustment by levers
    AC motor driven tilting (2 motors)

    Roll feeder
    22.7 kW DC

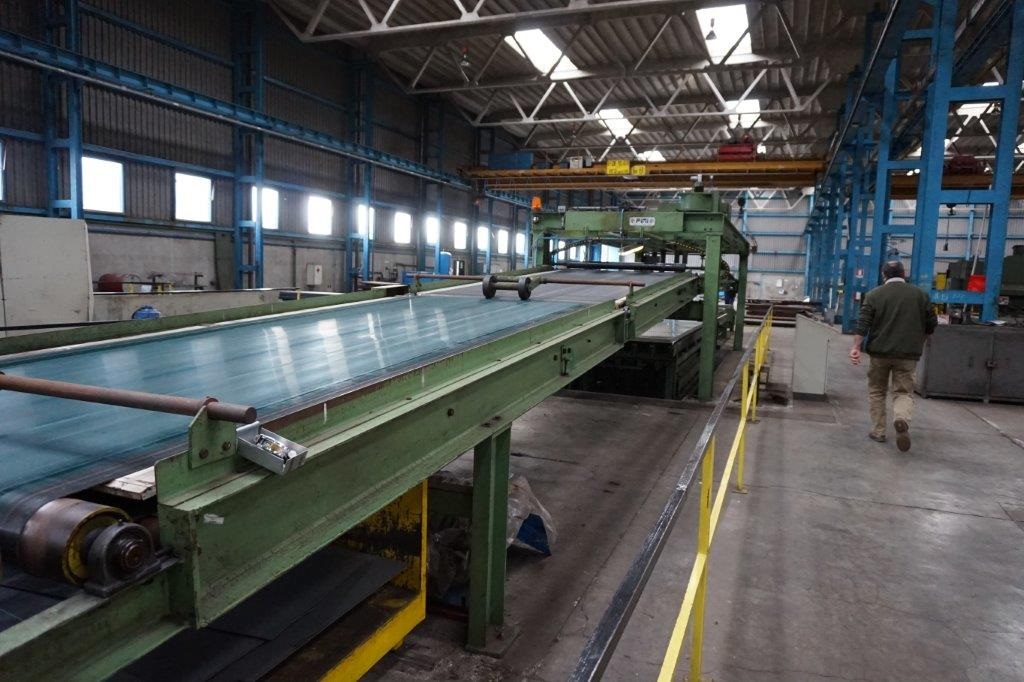

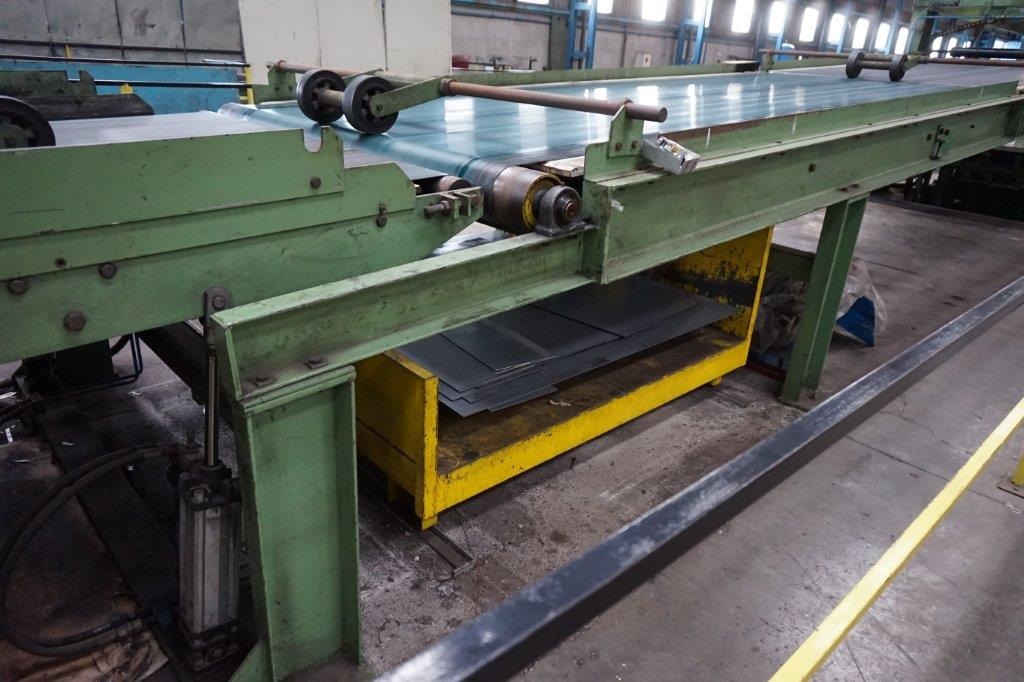

    Powered belt conveyors

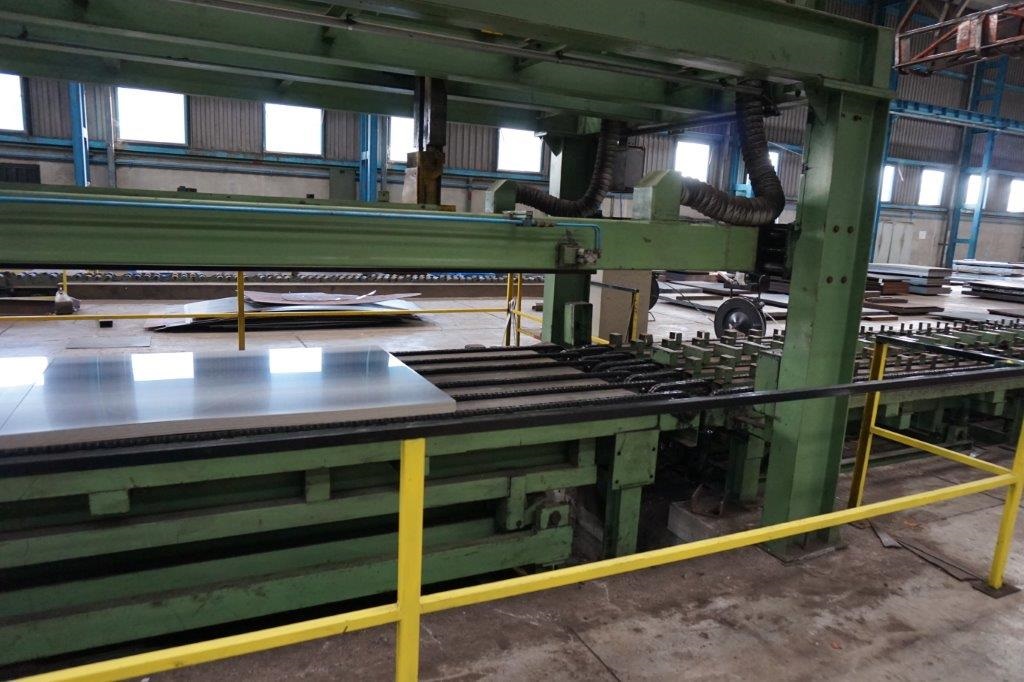

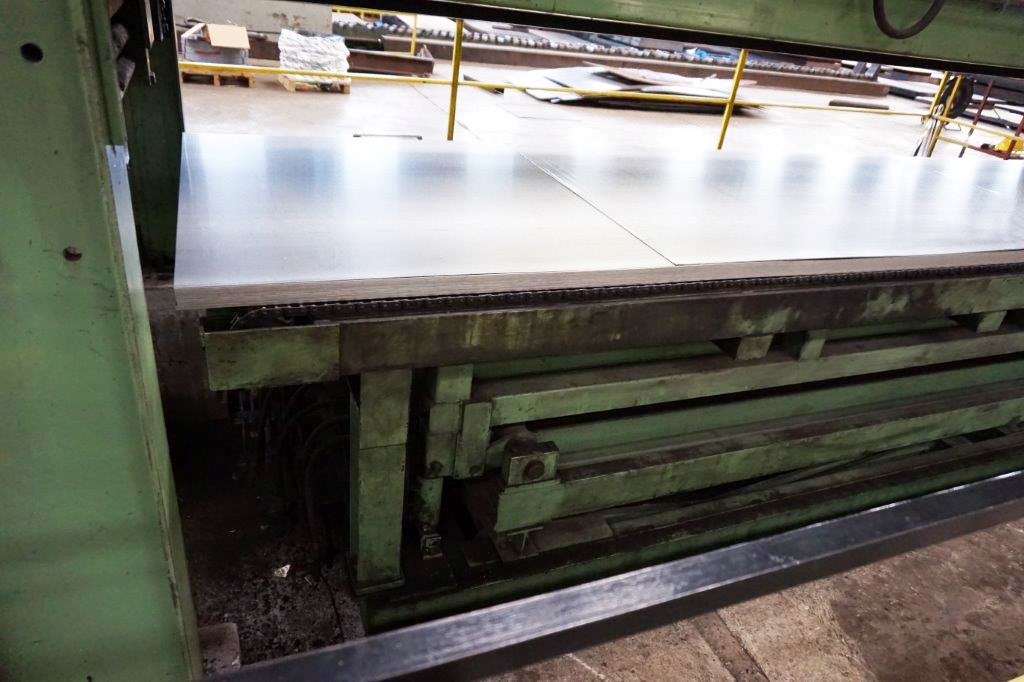

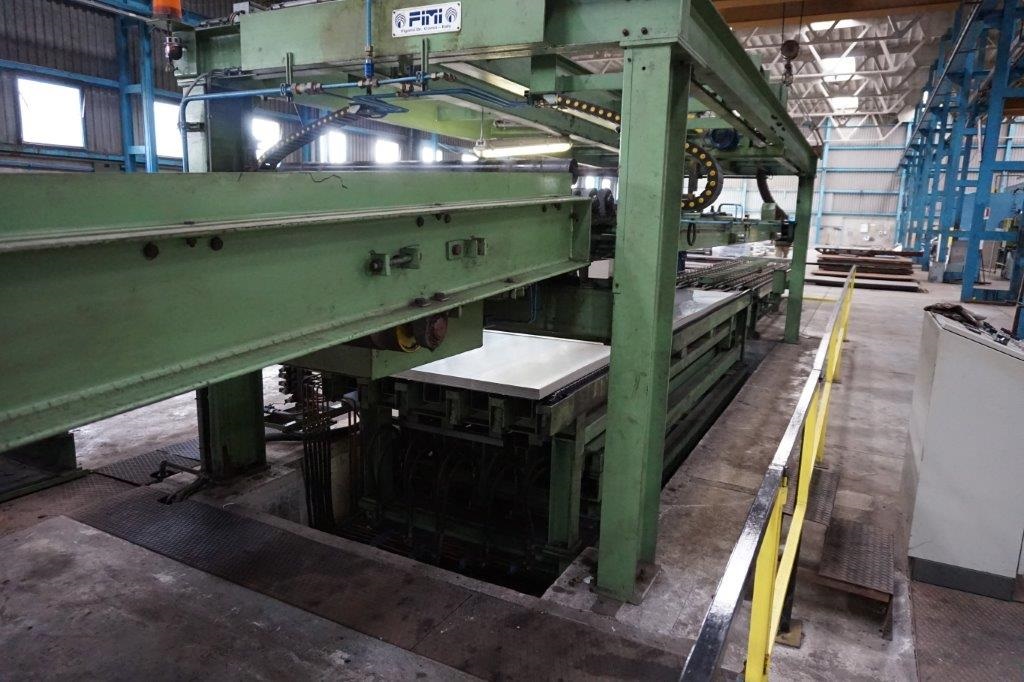

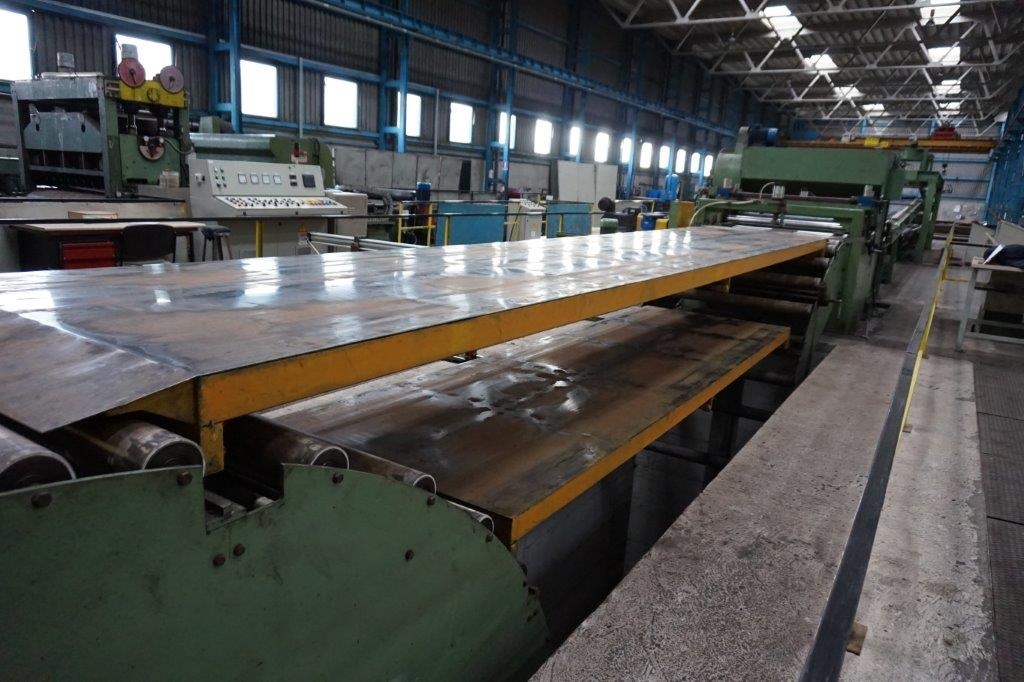

    6000mm sheet stacker

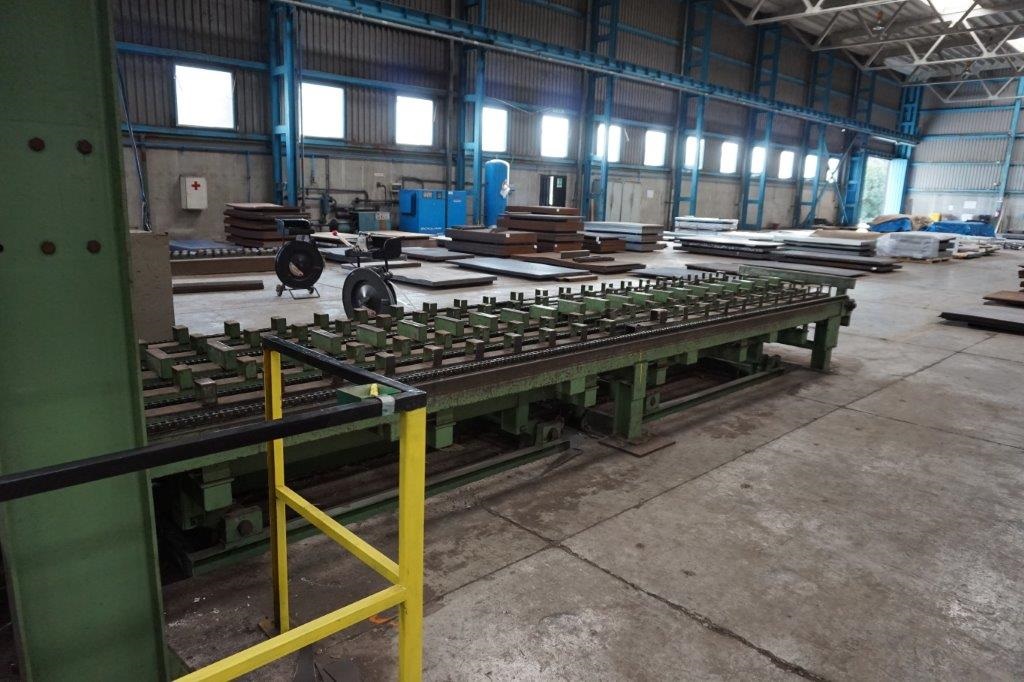

    Stack evacuation station with strapping system






    HOW IT WORKS

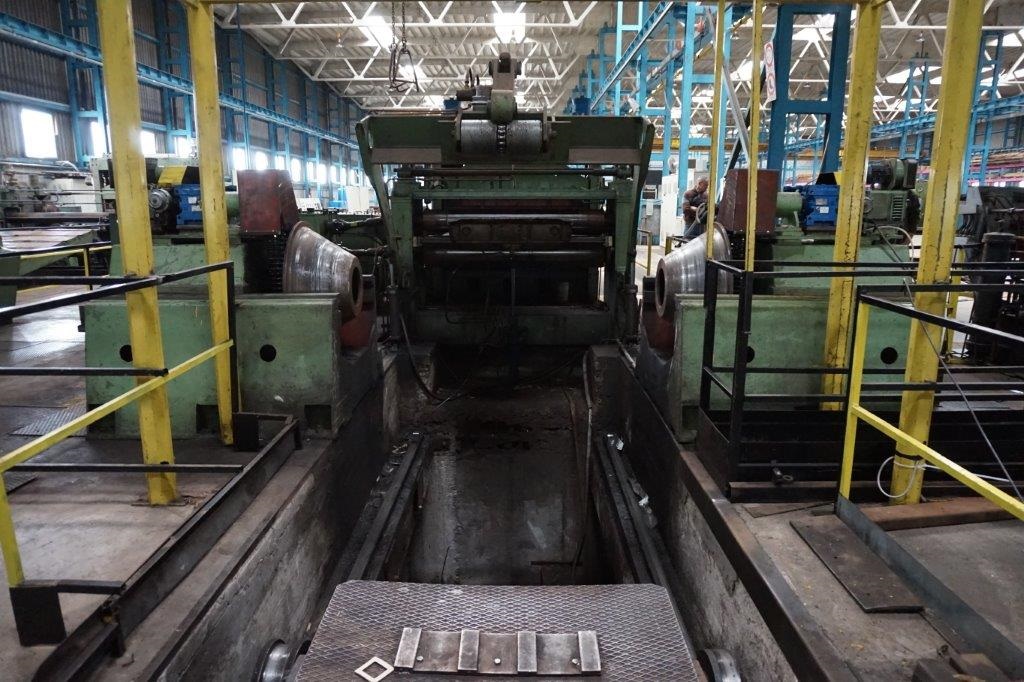

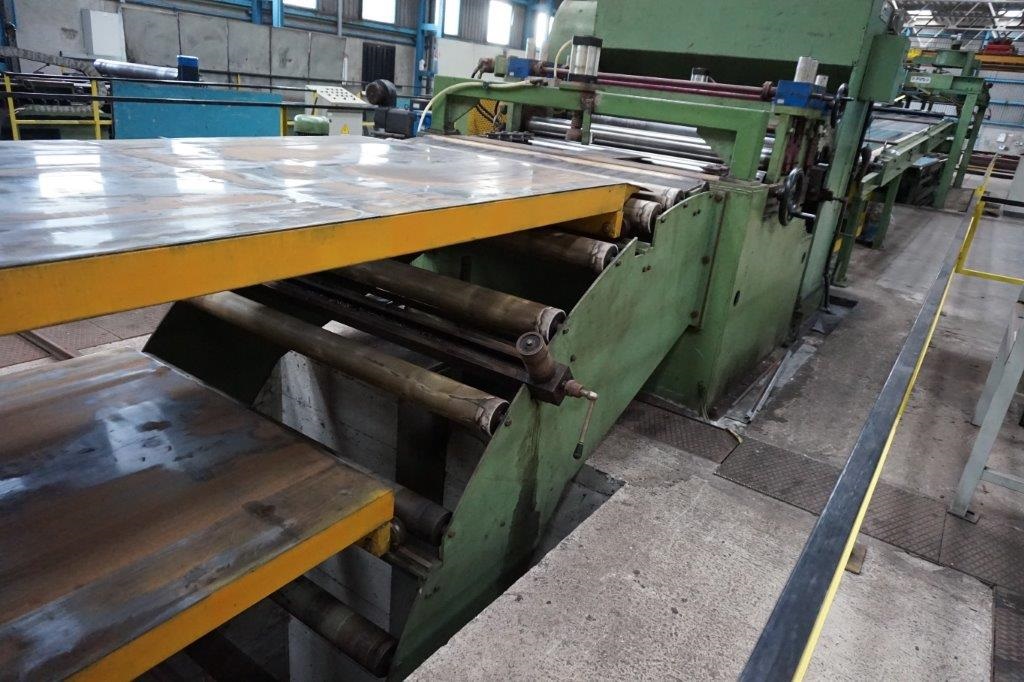

    - In Looping Pit Lines the material never stops, at entry. Shearing occurs when it gets shortly stopped, once fed to a wanted length beyond shearing point.
    - The feeder accelerates to high velocities to keep a constant "average" loop-depth.




    Other used roll feeder type cut to length lines shown on this page are e.g. the #3331, #3213,#3116 and #3120.

    We offer Start/Stop, Roll Feeder, Flying Shear, Rotary Shear Cut To Length Lines both new and used / re-manufactured for: Aluminium, Coated, Cold Rolled, Copper, Galvanized, Hot Rolled, Prepaint, Silicon, Stainless, Tinplate,Titanium .

    Your enquiries welcome for also individual Line Parts like: Decoilers, Feeders, Levellers, Sheet Stackers, Straighteners ...
