A Very High Speed Cut To Length Line 130m / min

ROTARY SHEAR CUT TO LENGTH LINE

Rotary Shear Cut To length Line FIMI Used [#3484]
   Cut To Length Lines CLL  Rotary Shear Cut To length Line FIMI Used [#3484]
1

Used Rotary Shear Cut To length Line
1100mm x 3mm
FIMI
FOR SALE

OFFERED SUBJECT TO BEING UNSOLD
  • 130m / min
High Speed Cut To Length Line 130m / min.
Rotary Shear Cut To Length Line by FIMI, Italy
1100mm x .4-3.0mm (Cold Rolled, Pickled, Aluminized, Electrogalvanized Steel)
FOR SALE



Line installed, out of service







Process Material


R N/mm2 500 max.
Yield N/mm2 170-370

Coil width 300-1100mm
Thickness .4 to 3.0mm

Coil weight 15 Tonne max.
Coi ID 508mm (610mm with pads)
Coil OD 1800mm max.






Line Products


Sheet length 300-4000mm (4000mm stacker)

Stack weight 4 Tonne max.

Stack height 500mm max., including pallet

Length accuracy +/- .25mm

Blanks per-minute 230 max.






Equipment description


2-coil storage ramp & feeding-car

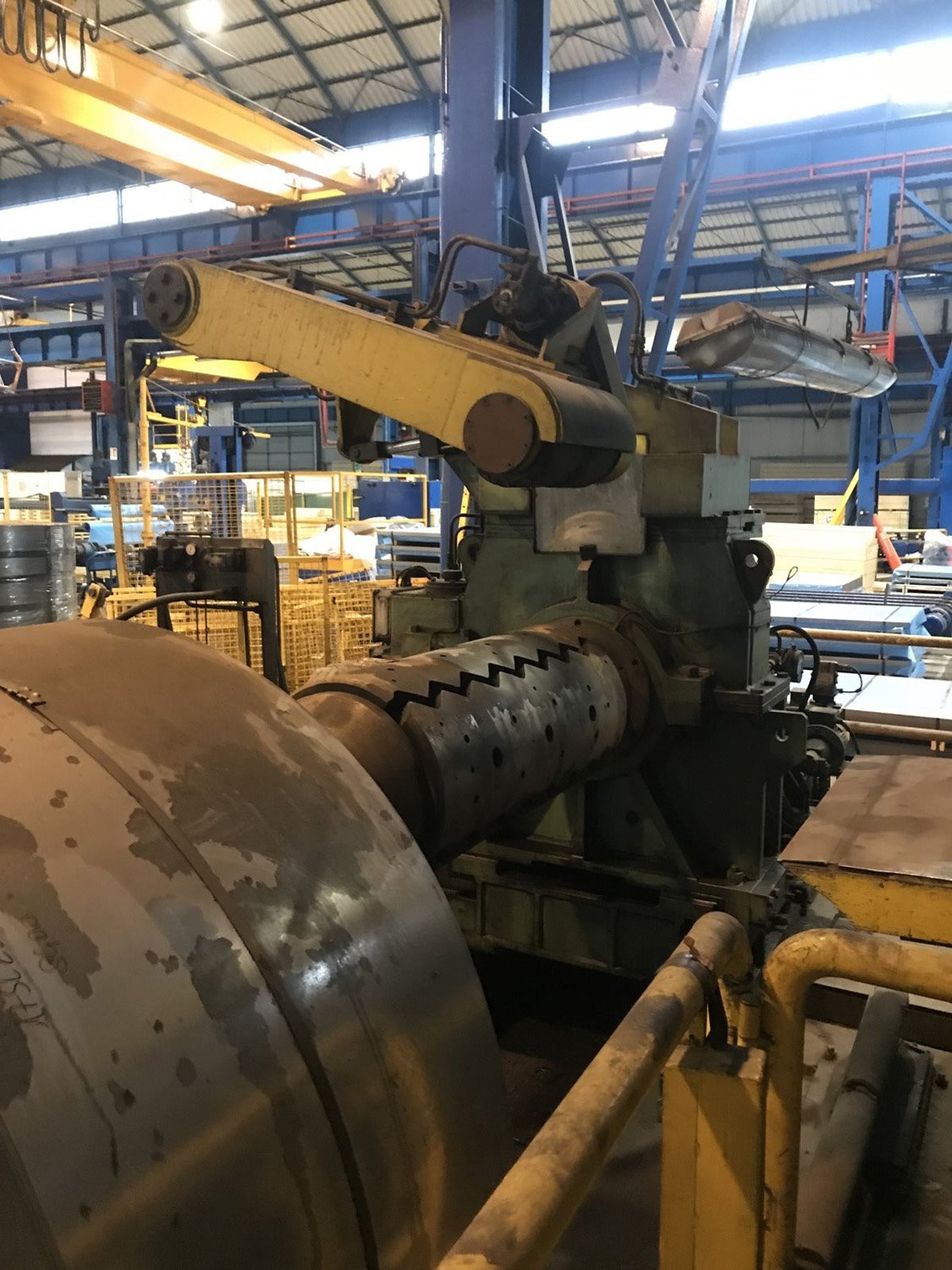

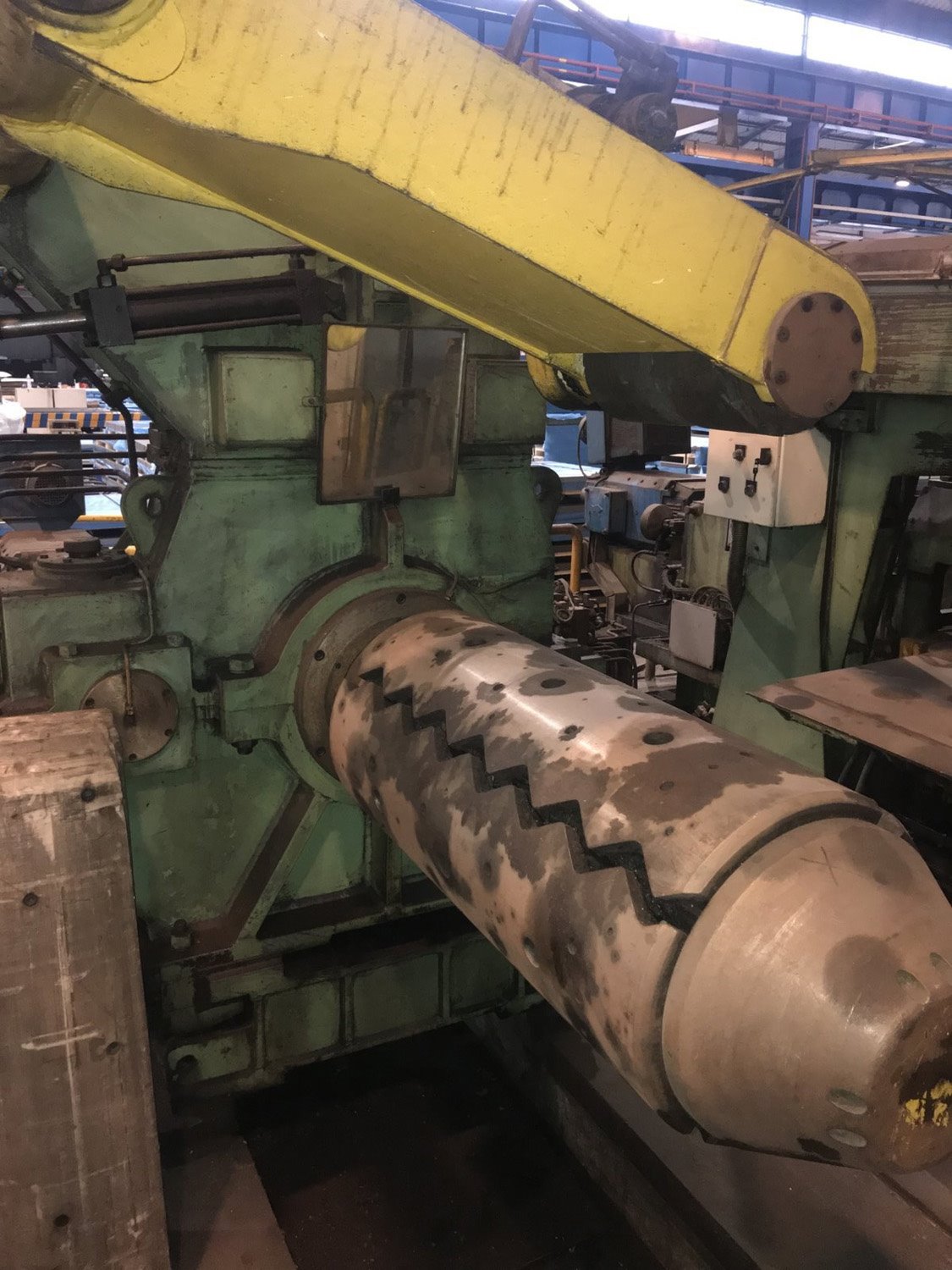

mobile decoiler
with nylon pads for Coil ID 610mm
hold-down roll
D.C. motor braking

coil threading station with telescopic table

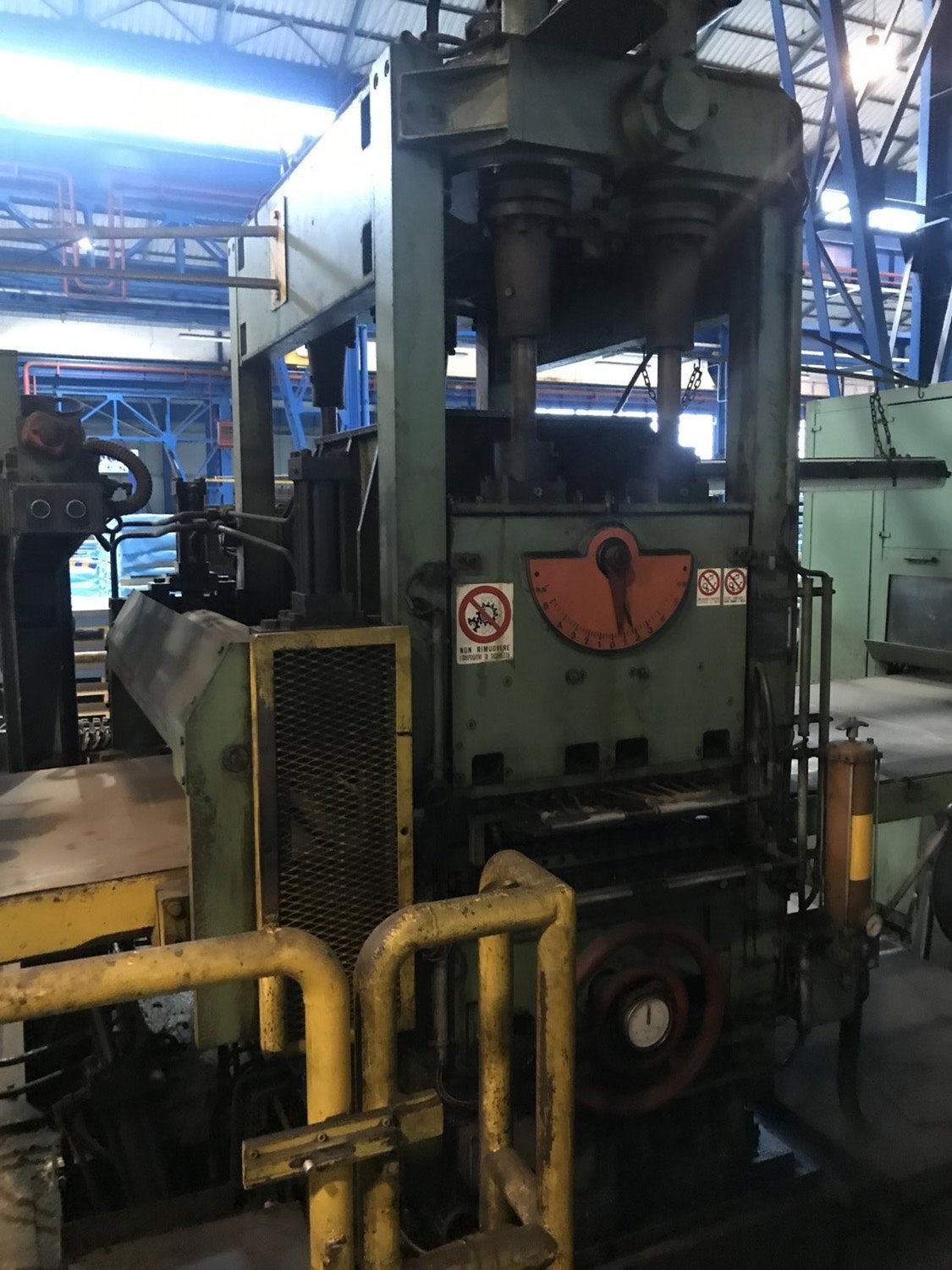

6-HI leveler
23 roll
work roll dia. 36mm

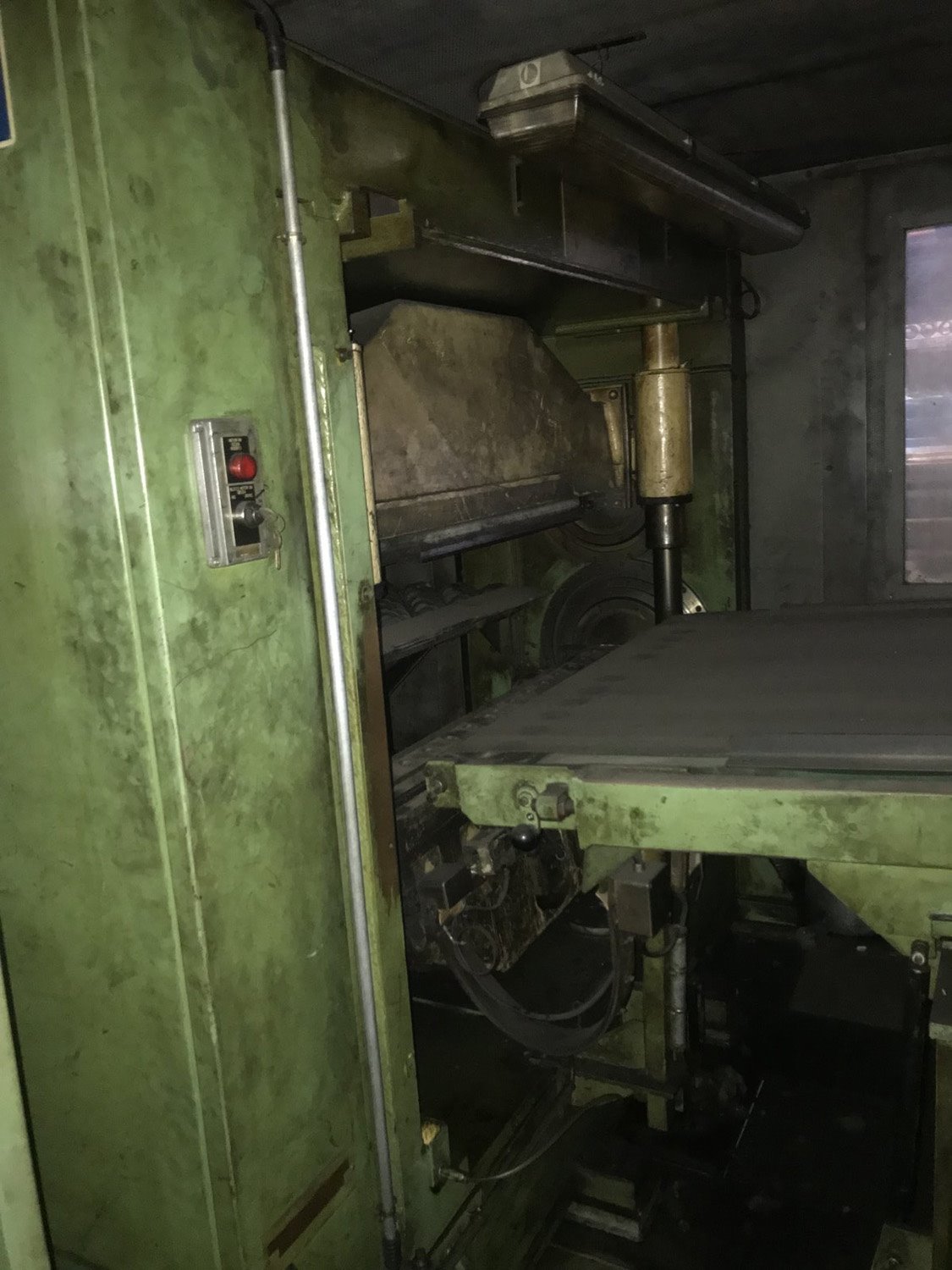

rotary shear
with blade adjustment

sheet inspection transfer belt
scrap & 2nd-rate sheet deflector
scrap & 2-nd-rate sheet stacker, 4m

sheet transfer table to stacking box #1
air flotation type with magnetic slow-down belts, side-equalizer

magnetic belt and transfer table to stacking box #2

stacking box #2
with same features as #1^

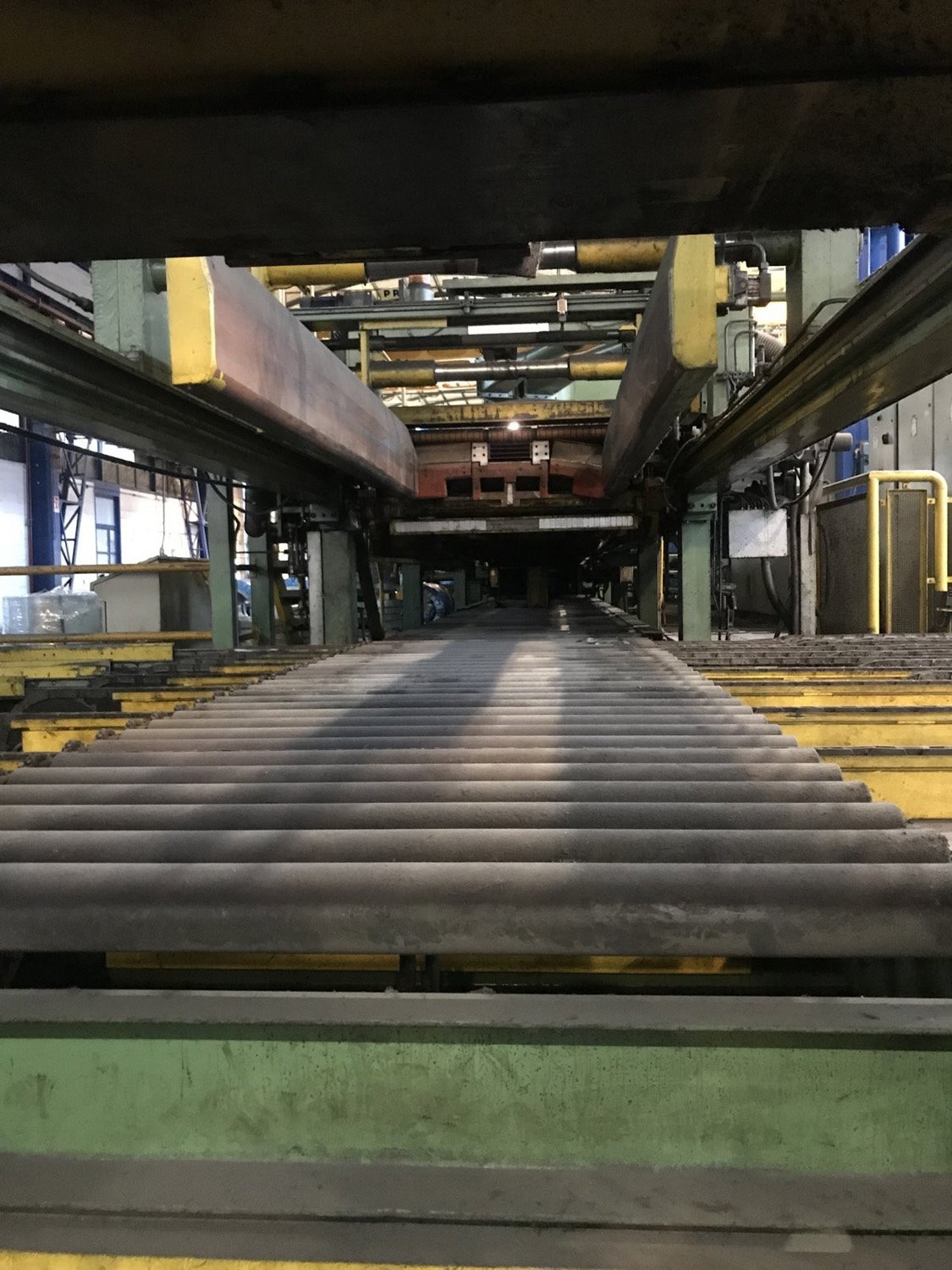

roll table to collect the scrap & 2nd-rate sheet, box #1 & box #2 stacks

4m long stack ‘stand-by’ roll table

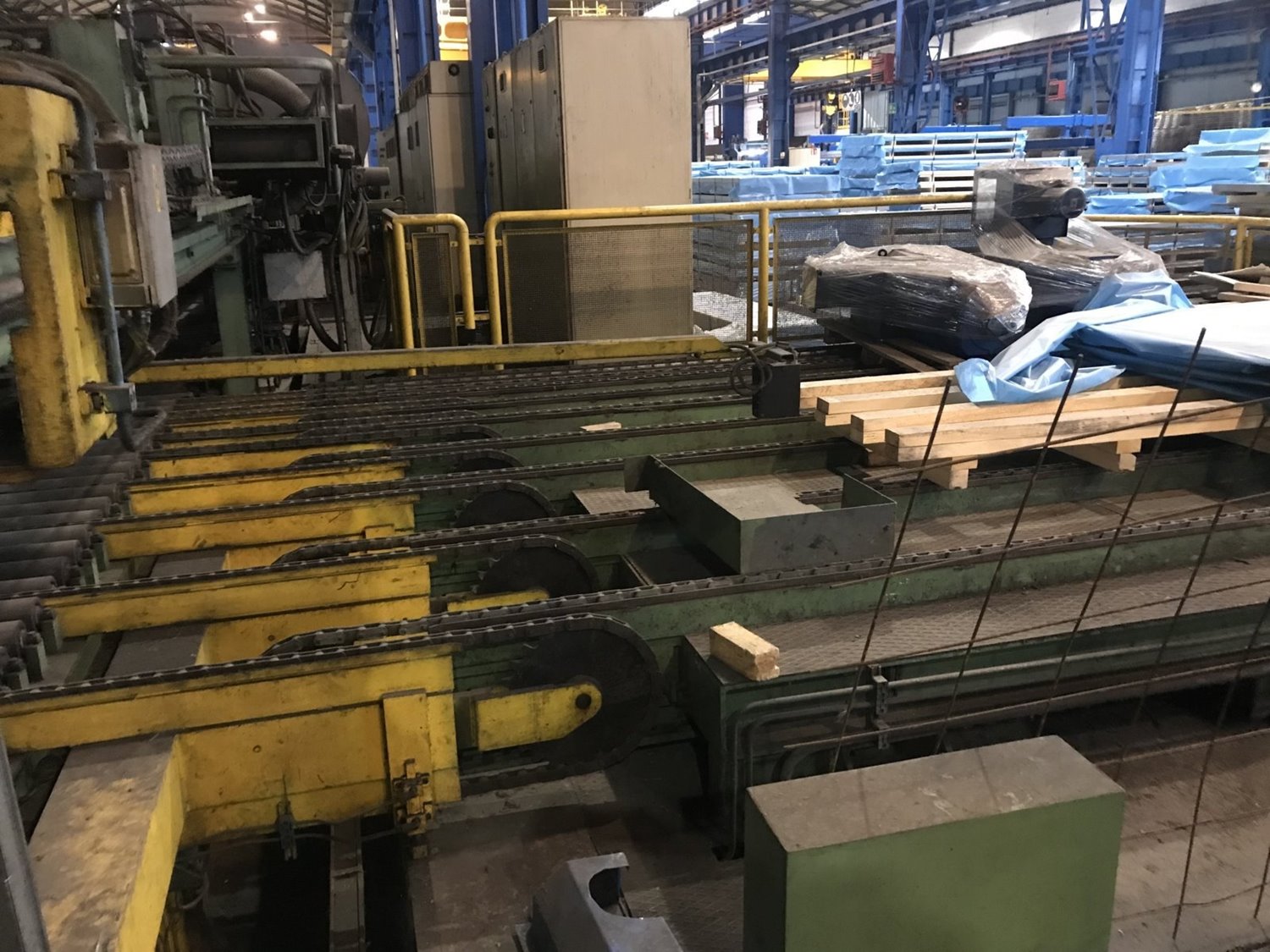

chain transfer system to move stacks to the packaging line nearby

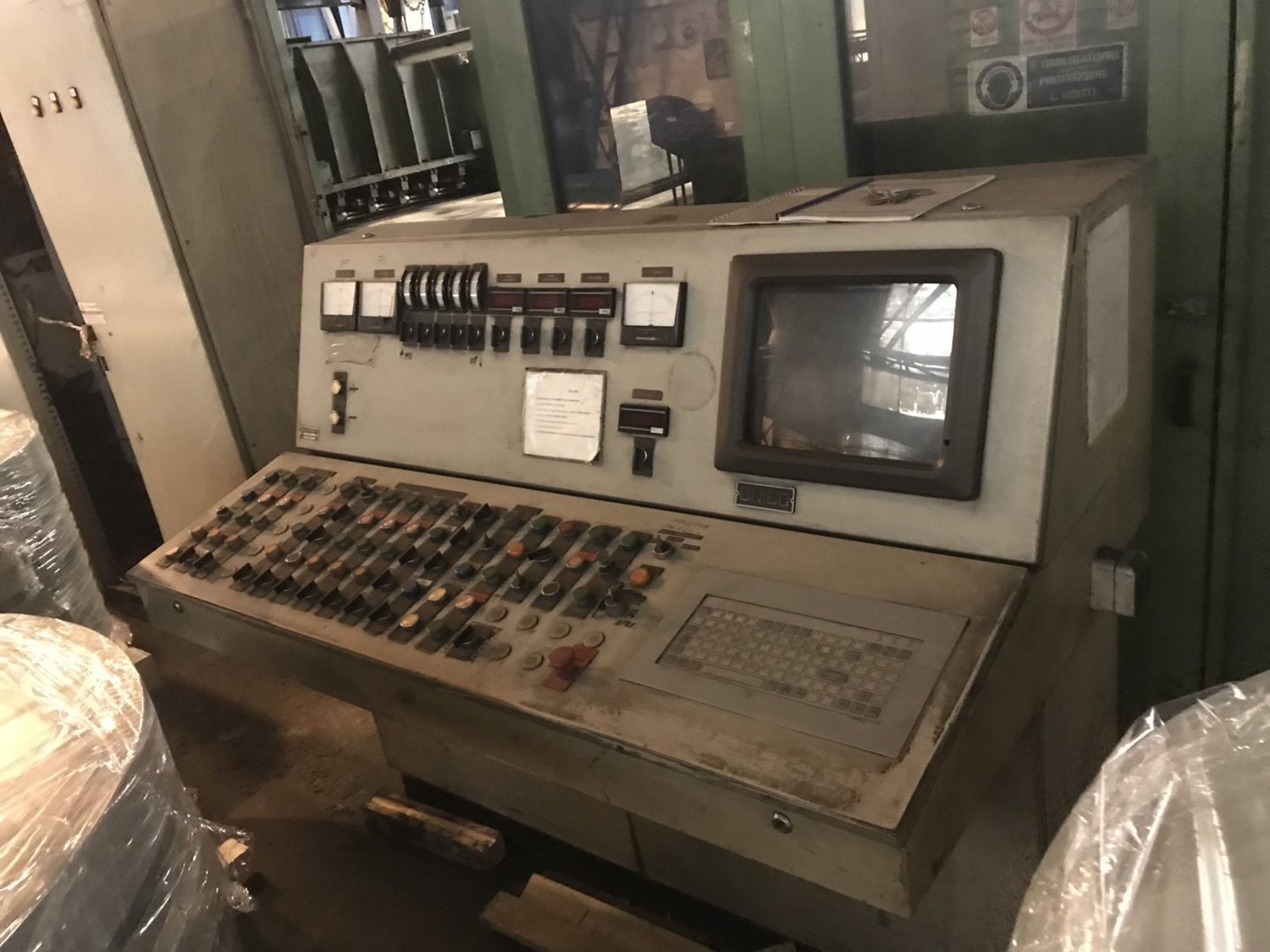

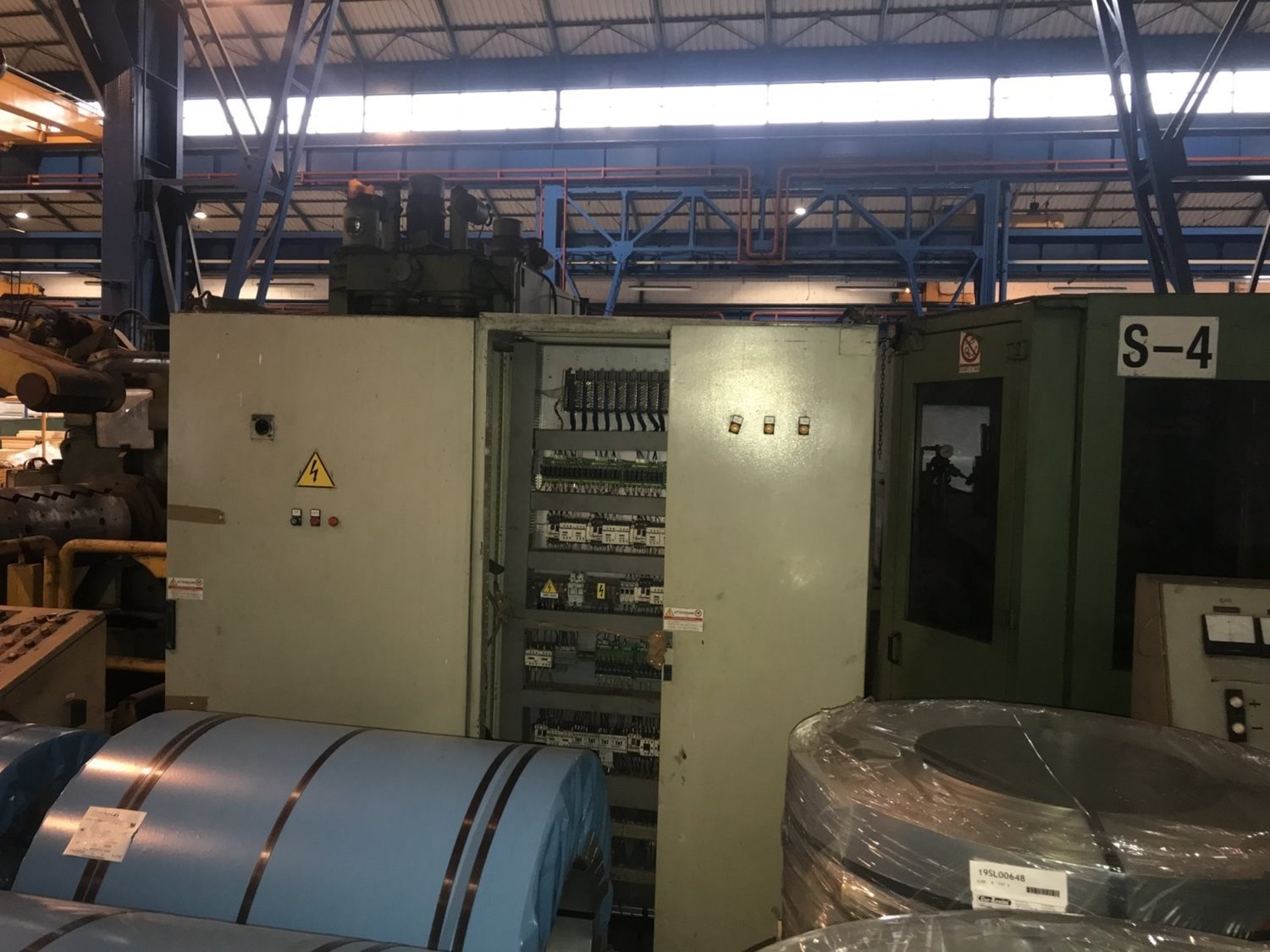

electrics & electronics

hydraulics

pneumatics



We offer Start/Stop, Roll Feeder, Flying Shear, Rotary Shear Cut To Length Lines both new and used / re-manufactured for: Aluminium, Coated, Cold Rolled, Copper, Galvanized, Hot Rolled, Prepaint, Silicon, Stainless, Tinplate,Titanium .

Your enquiries welcome for also individual Line Parts like: Decoilers, Feeders, Levellers, Sheet Stackers, Straighteners ...
