New Non-Stop Cut To Length Line
1500mm x 2mm
FLOREANI & PARTNERS



    A “typical” nice-price non-stop type cut to length line by us, suitable for coils up to 1500mm x 2mm (M.S.), max. speed 50m / minute. It comes with 10 Ton powered decoiler., precision 11 roll flattener with back-ups, 3m / 3 Ton sheet stacker & scissor tables...


    A new light gauge cut to length line for coils up to 1500mm x 2mm & 10 Ton max. weight. Non-stop operation, with roll feeders and mobile cutoff shear. Automatic 3m stacker & scissor tables, with ‘mark-free’ stacking of produced sheets. Loop type line. The line max. speed is 50m / minute. NICE-PRICE solution with precision flattener* included
    * The work rolls of the precision flatteners are of smaller diameters, with back-up rolls keeping them "parallel". Precision flatteners only are for removing the coil set and crossbow. For optimum sheet flatness, levellers are required.




    LINE COMPOSITION



    10 Ton overhung mandrel drum powered decoiler with hydraulic drum expansion and snubber arm

    Pinch rolls, precision flattener with 11 work rolls and back-ups. Powered adjustment of rolls. Hydraulic opening of the flattener’s upper frame section to allow easy cleaning of rolls & maintenance. Transmission by universal joints

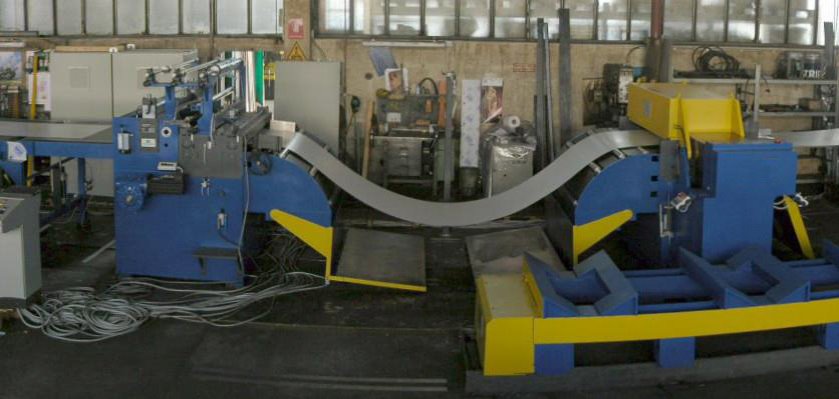

    Hydraulic loop-table

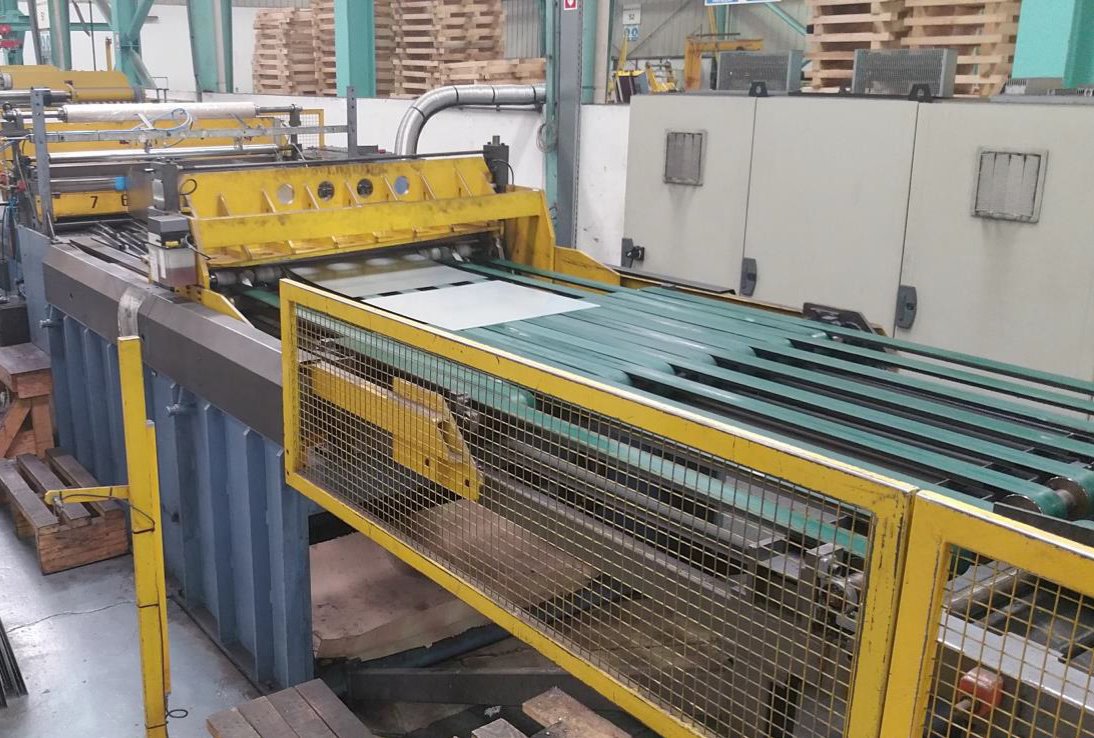

    Mobile mechanical power shear synchronized with the material flow speed

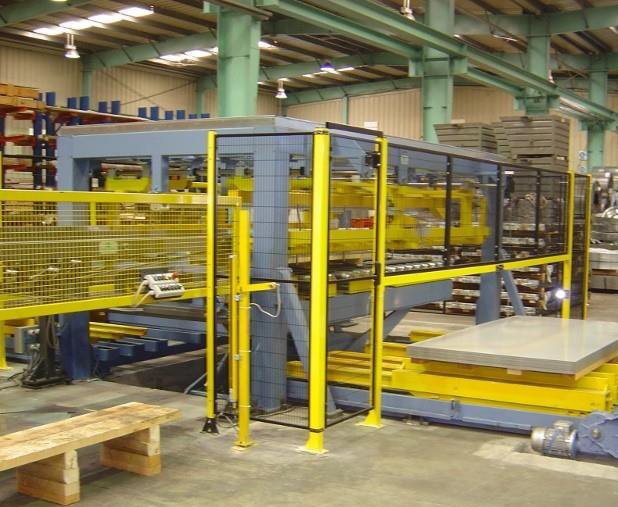

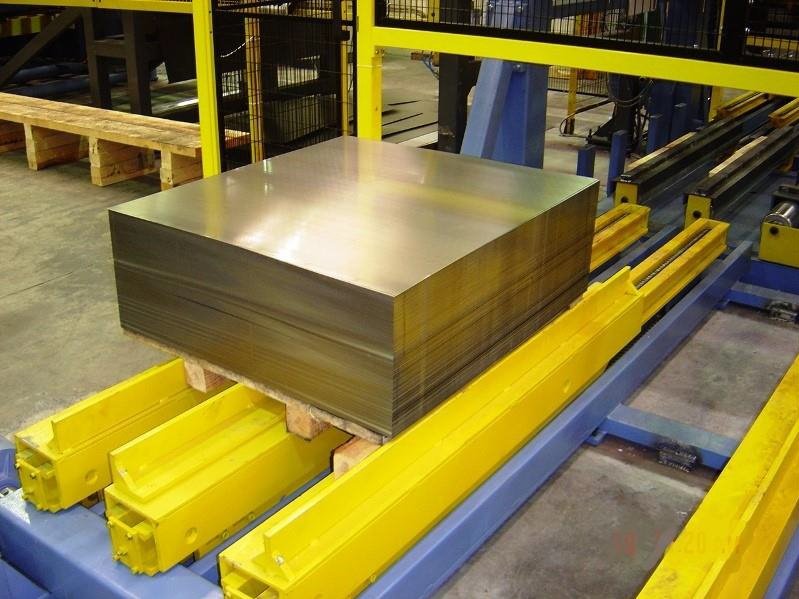

    Automatic 3m long sheet stacker with max. capacity 3 Ton. Hydraulic scissor table below. ‘Mark-free’ stacking guaranteed





    We offer Start/Stop, Roll Feeder, Flying Shear, Rotary Shear Cut To Length Lines both new and used / re-manufactured for: Aluminium, Coated, Cold Rolled, Copper, Galvanized, Hot Rolled, Prepaint, Silicon, Stainless, Tinplate,Titanium .

    Your enquiries welcome for also individual Line Parts like: Decoilers, Feeders, Levellers, Sheet Stackers, Straighteners ...
