This used roll feeder cut to length line still is installed and under power

ROLL FEEDER CUT TO LENGTH LINE

Roll Feeder Cut To Length Line HYBRID Used [#3363]
   Cut To Length Lines CLL  Roll Feeder Cut To Length Line  HYBRID Used [#3363]
SOLD
1

Used Roll Feeder Cut To Length Line
2050mm x 2.5mm
HYBRID





    Process Materials: galvanized, cold rolled, hot rolled steel

    Maximum Coil Width: 2050mm
    (Minimum: 500mm)
    Coil Max. Weight: 25 Tonnes
    Minimum Material Thickness: .5mm
    Maximum Material Thickness: 2.5mm
    (R= 420 N/mm2)
    Coil ID: 508/610/720mm
    Maximum Coil OD: 1800mm
    Minimum Part Length: 600mm
    Maximum Part Length: 4000mm
    Maximum Stack Weight: 2 Tonnes
    Maximum Stack Height: 250mm
    Line Speed: 0-25m / min
    Material Threading Speed: 6m / min
    Accuracy at constant line speed:
    +/- 1mm at 2000mm length
    4-HI Leveller, UNGERER

    Installed Power: ca. 120 kW




    Here is the equipment description:


    Hydraulic coil car
    25 Tonnes

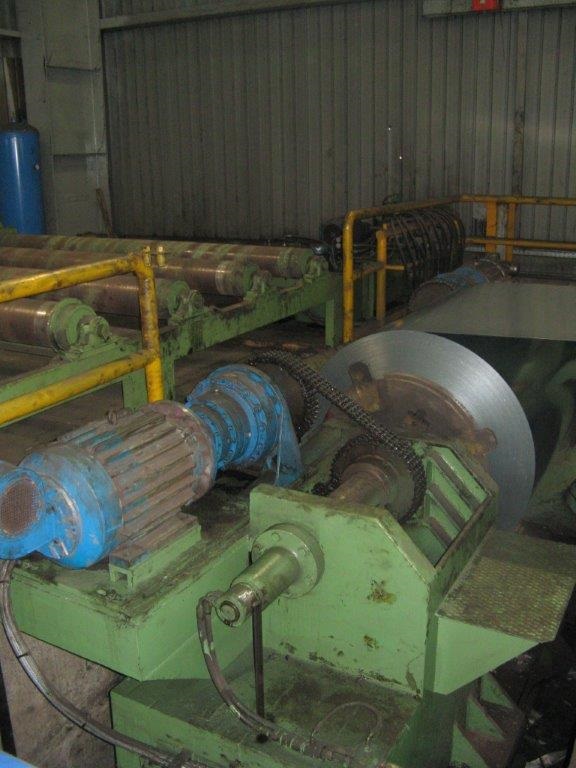

    Double opposed mandrel type decoiler
    two motors, AC with inverter
    powered snubber arm (hydr. motor)
    decoiler capacity 25 Tonnes

    Coil threading station

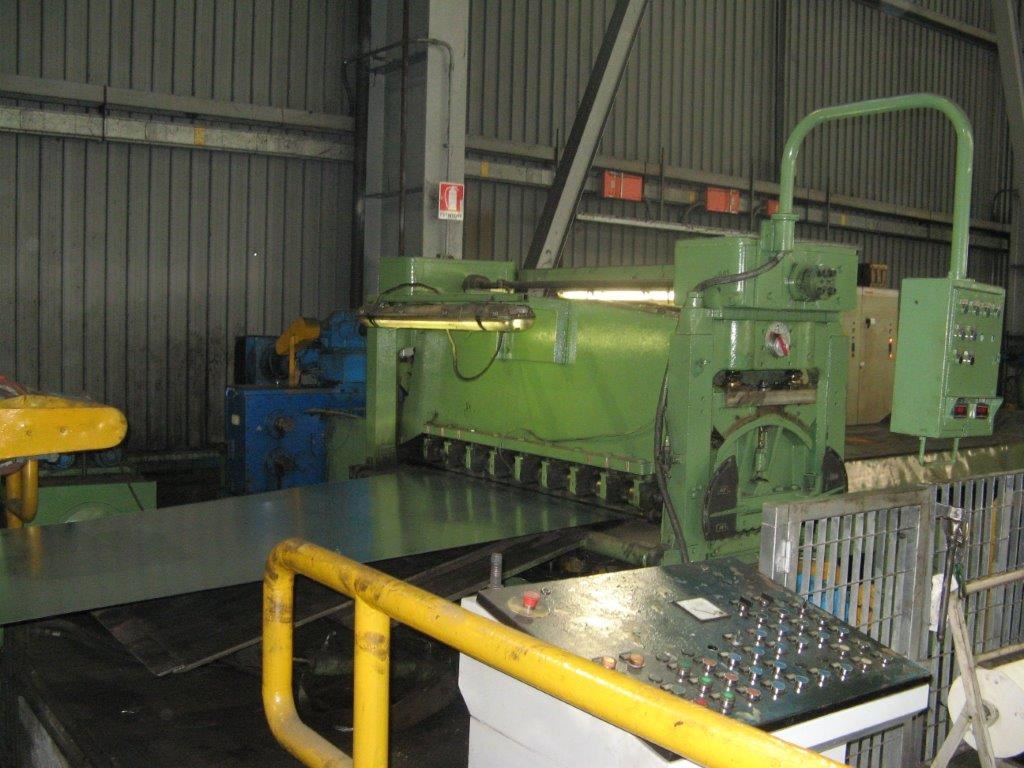

    4-HI Leveller
    17-roll with Ø50mm work rolls
    9 sets of back-ups with manual adjustment by levers
    position of upper bridge visualized on control panel
    DC motor drive 54 kW

    Loop roller tables & material guiding rolls

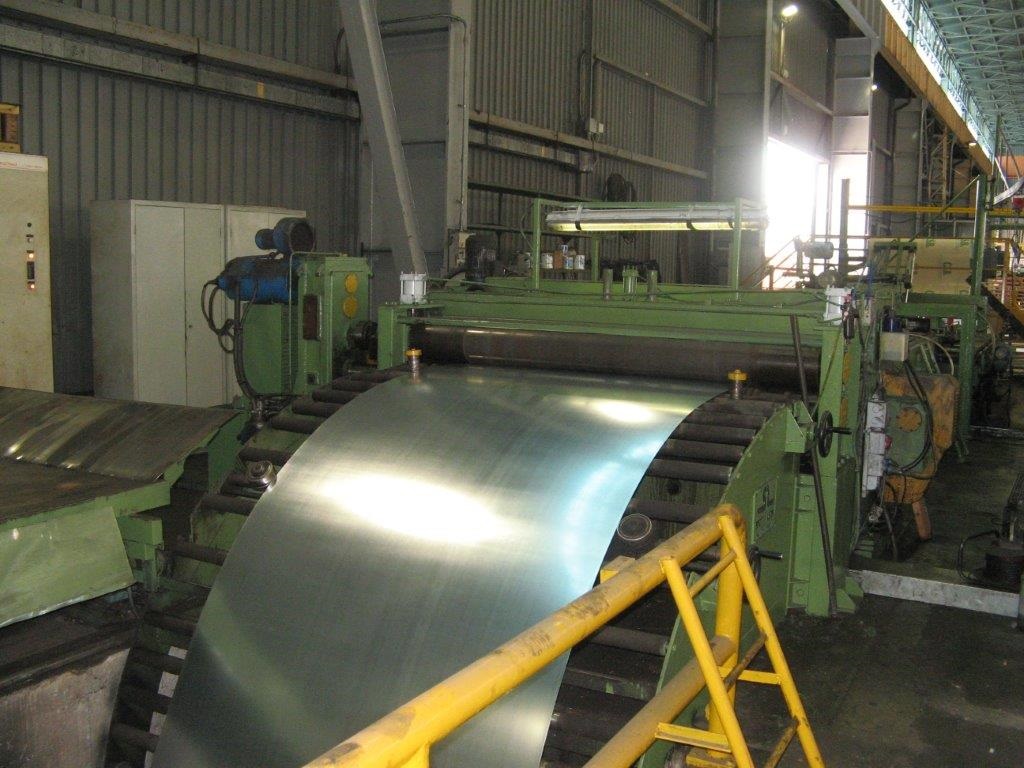

    Roll feeder

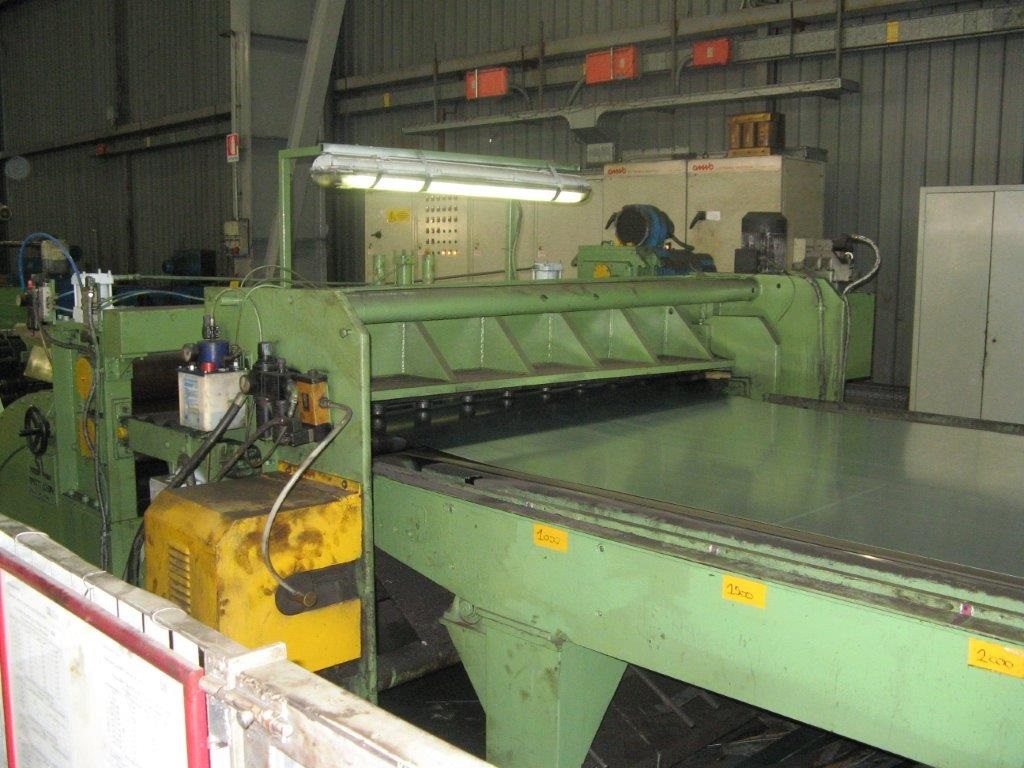

    Mechanical power static shear

    Sheet evacuation and inspection conveyor

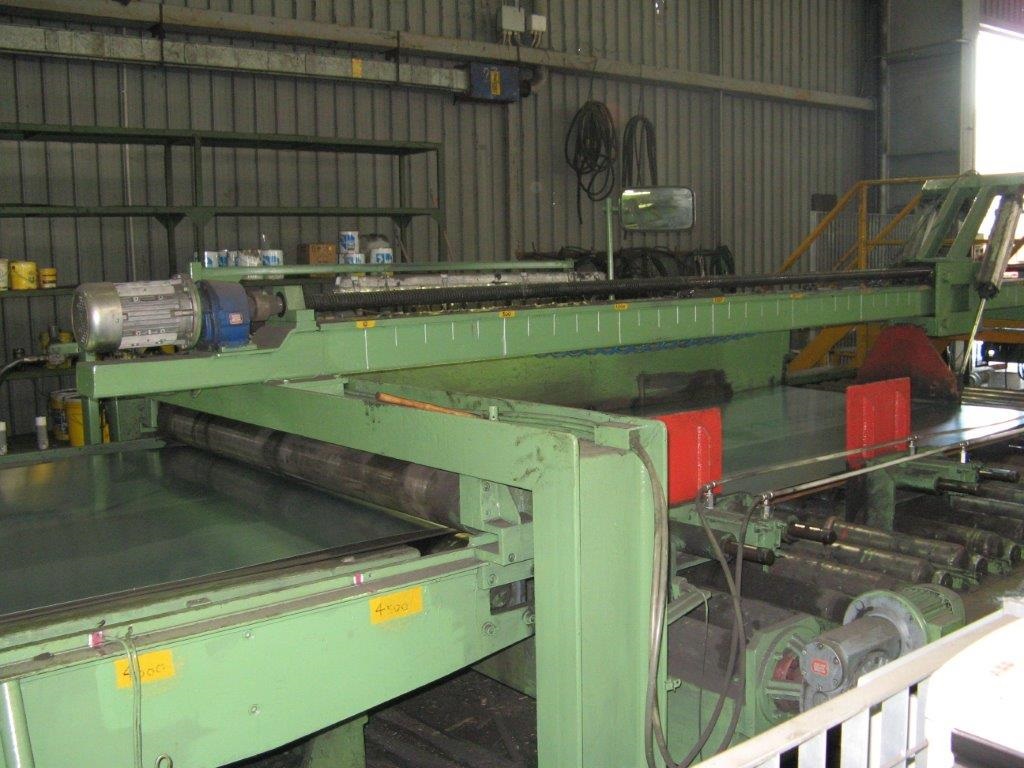

    Sheet pull-out pinch rolls

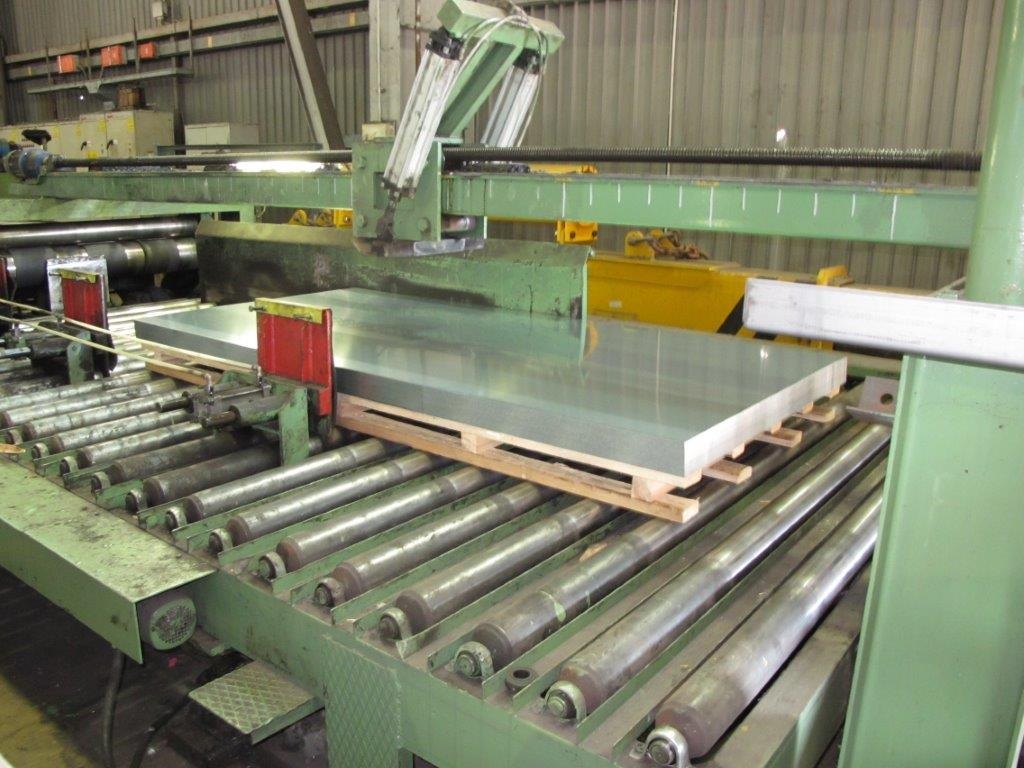

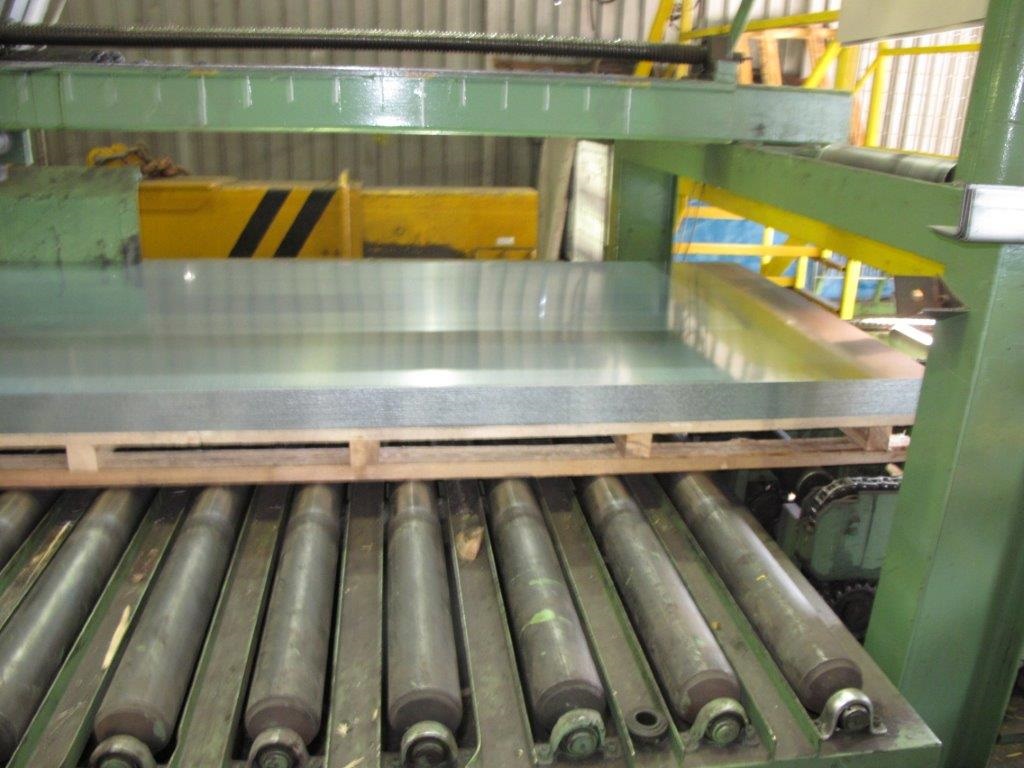

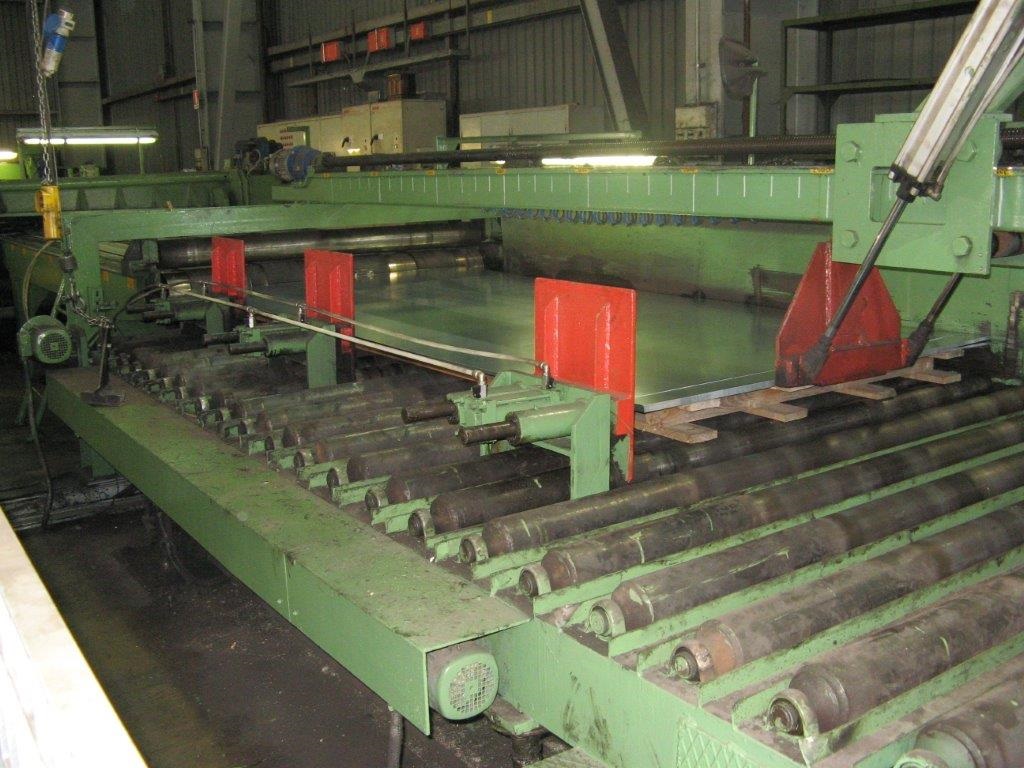

    4000mm single-box sheet stacker

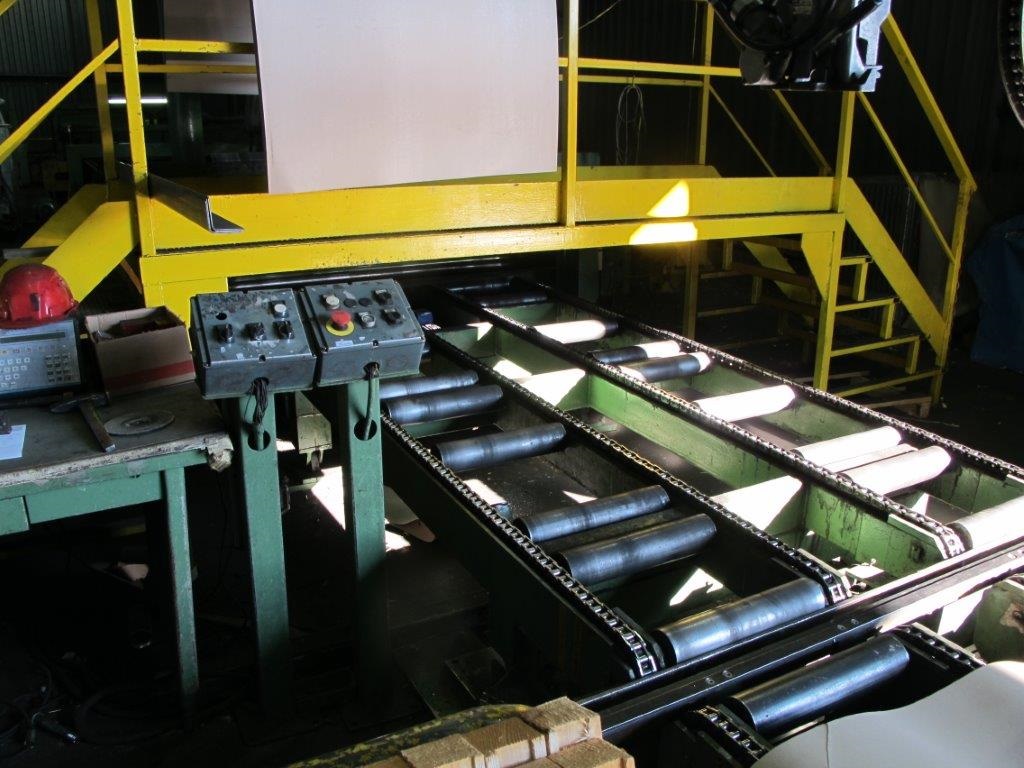

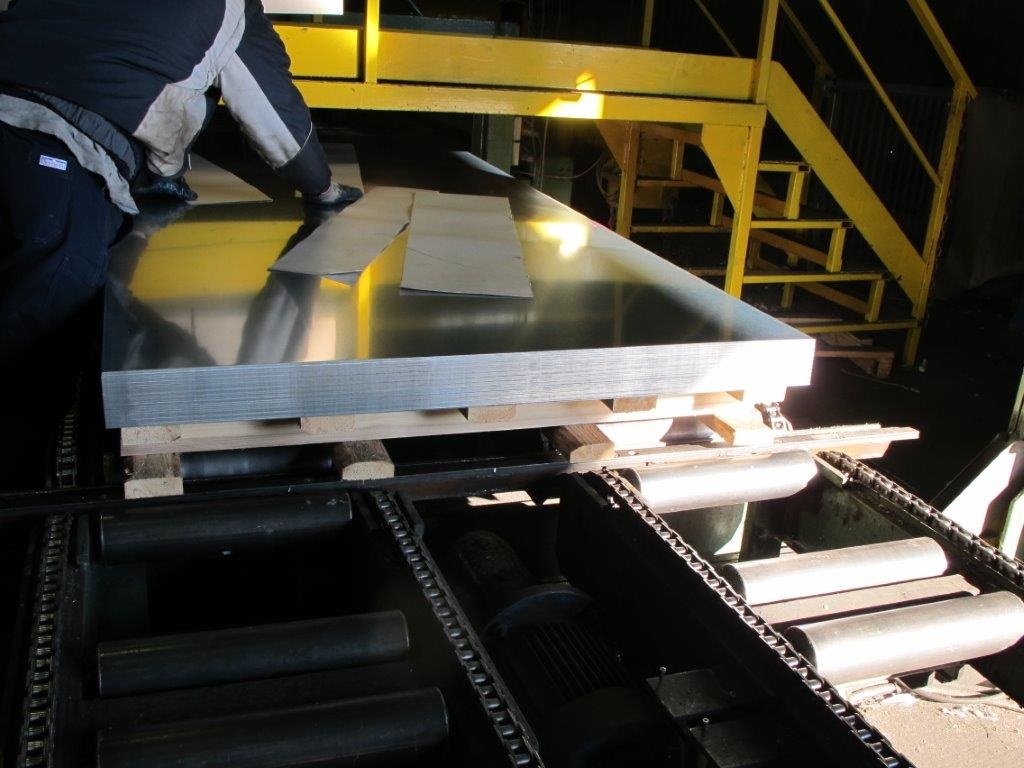

    4000mm roller table

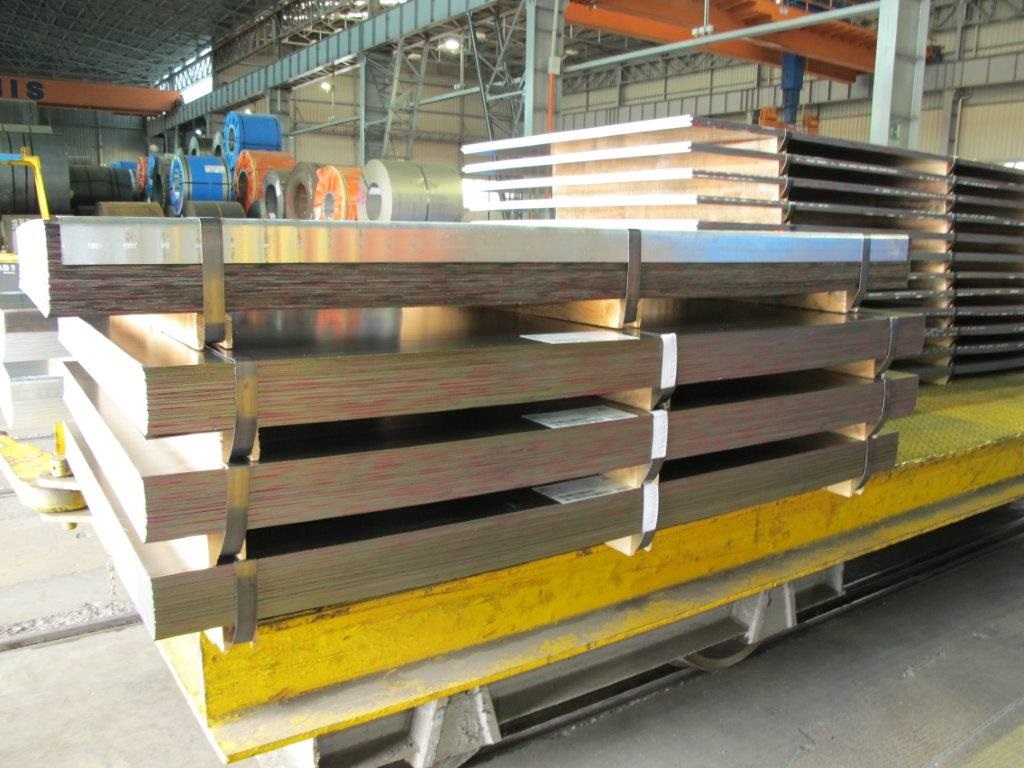

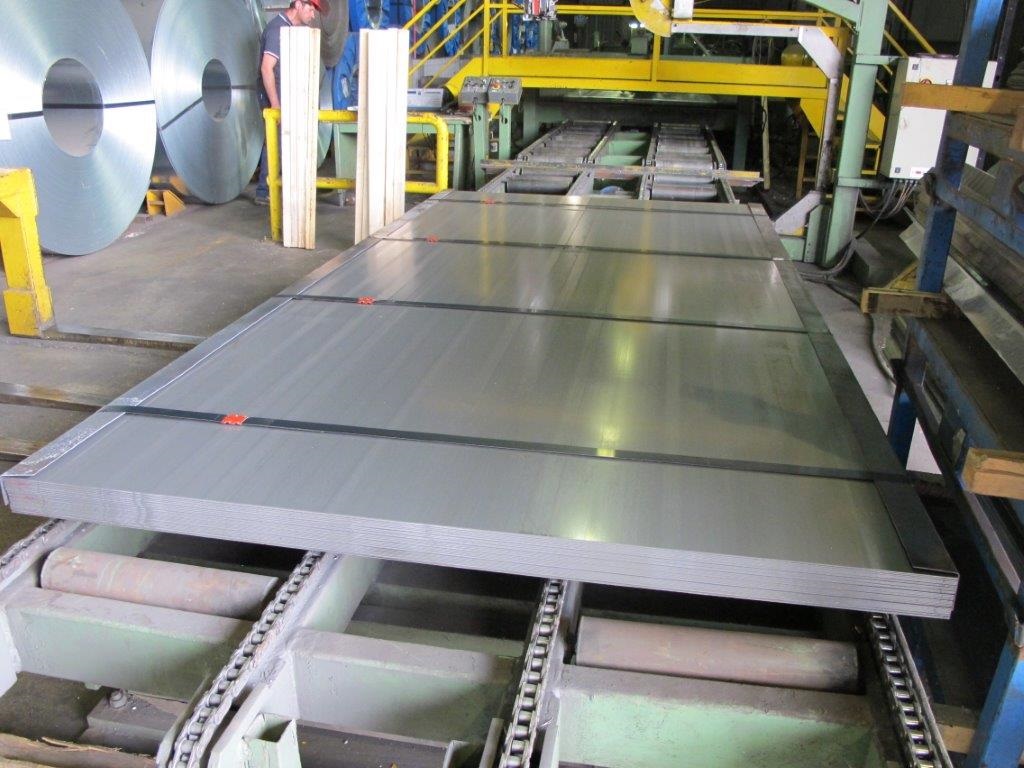

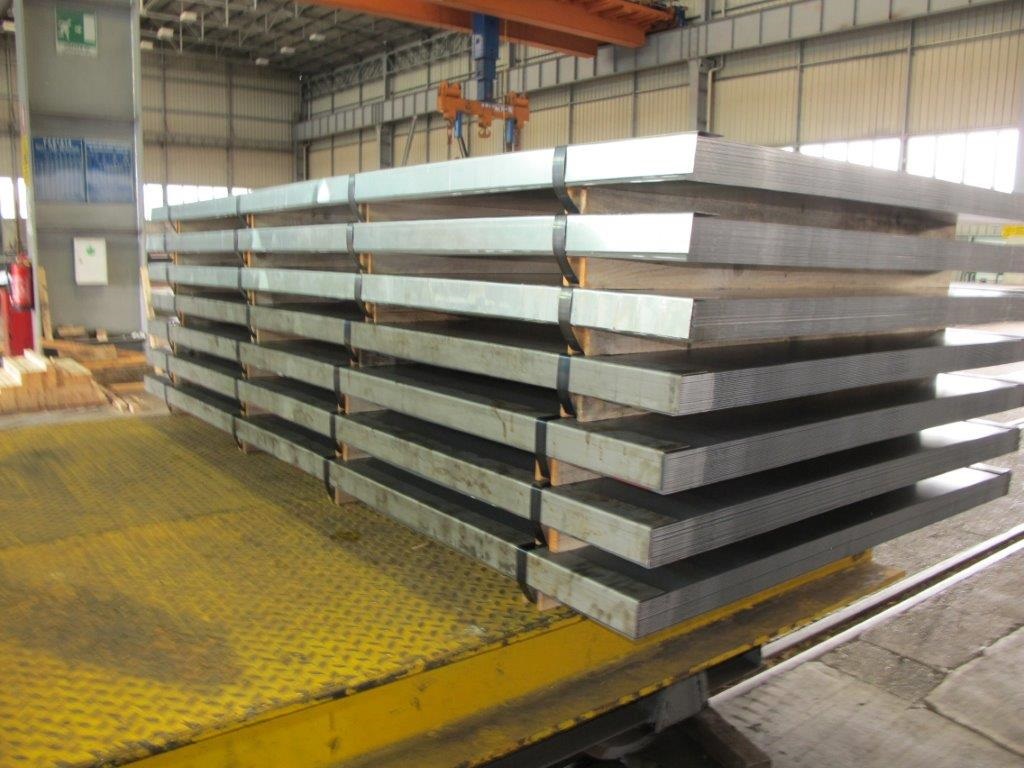

    for sheet stack packaging, compl. with strapping system

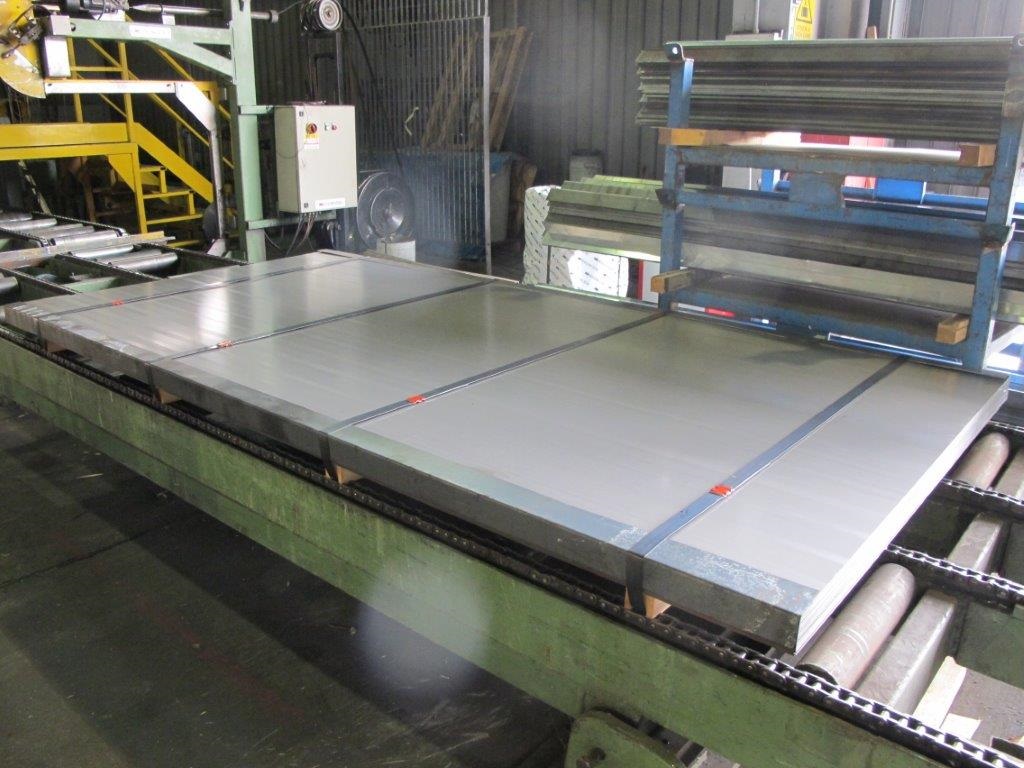

    Chain conveyor for stack evacuation

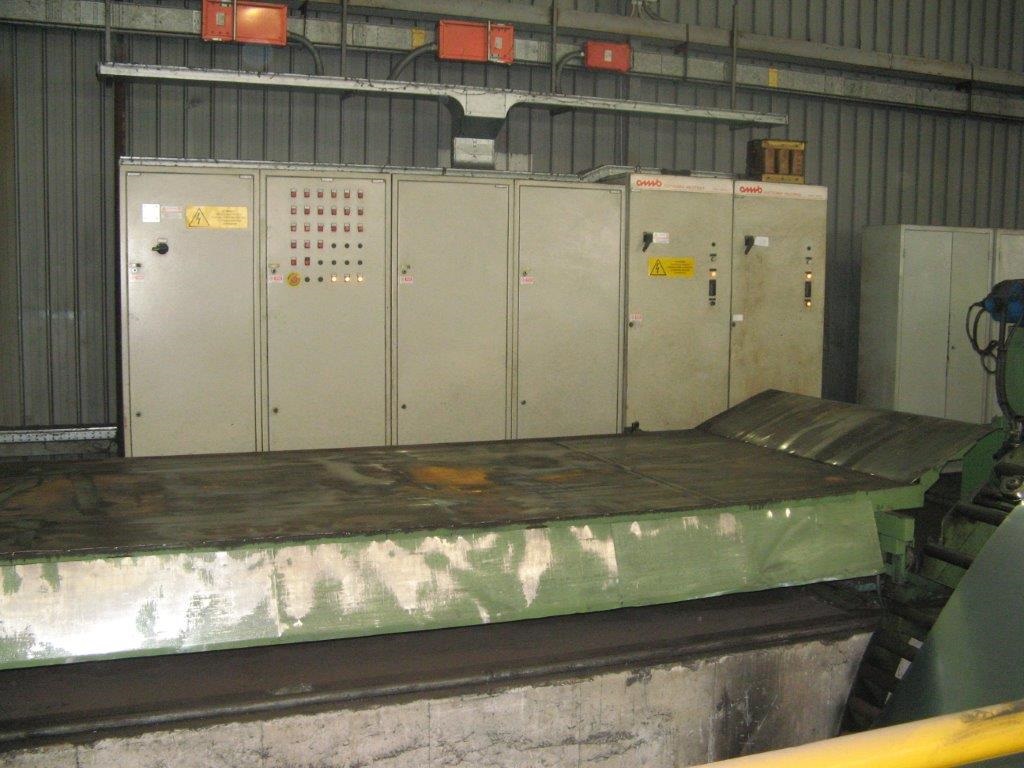

    Hydraulic power pack, electrics, control panel... etc.





    HOW IT WORKS
    - In Looping Pit Lines the material never stops, at entry.
    Shearing occurs when it gets shortly stopped, once fed to a wanted length beyond shearing point.
    - The feeder accelerates to high velocities to keep a constant "average" loop-depth.




    Other used roll feeder type cut to length lines shown on this page are e.g. the #3331, #3213,#3116, #3120 and #3344.
    We offer Start/Stop, Roll Feeder, Flying Shear, Rotary Shear Cut To Length Lines both new and used / re-manufactured for: Aluminium, Coated, Cold Rolled, Copper, Galvanized, Hot Rolled, Prepaint, Silicon, Stainless, Tinplate,Titanium .

    Your enquiries welcome for also individual Line Parts like: Decoilers, Feeders, Levellers, Sheet Stackers, Straighteners ...
