Cut to Length Line FIMI + SALICO Used [#3455]
   Cut To Length Lines CLL  Cut to Length Line FIMI + SALICO Used [#3455]
1

Used Cut to Length Line
1650mm x 3mm (M.S.) / with 6-HI Leveler
FIMI + SALICO
FOR SALE

OFFERED SUBJECT TO BEING UNSOLD
  • installed & under power


BEAUTIFUL USED CUT TO LENGTH LINE FOR SALE (BY FIMI + SALICO): 1650mm x 3mm / 25 Ton, 45m / min. – FLYING SHEAR TYPE WITH 6-HI LEVELER (ROLLS MADE NEW IN 2017), SUITABLE FOR ANY MATERIAL TYPES. THE LINE IS INSTALLED AND UNDER POWER; ELECTRICS & ELECTRONICS RENEWED IN 2012

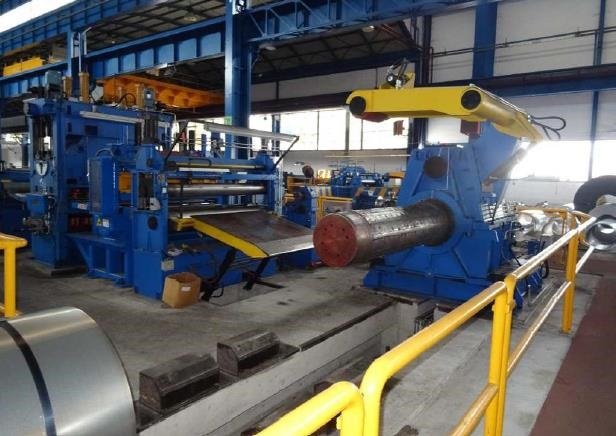

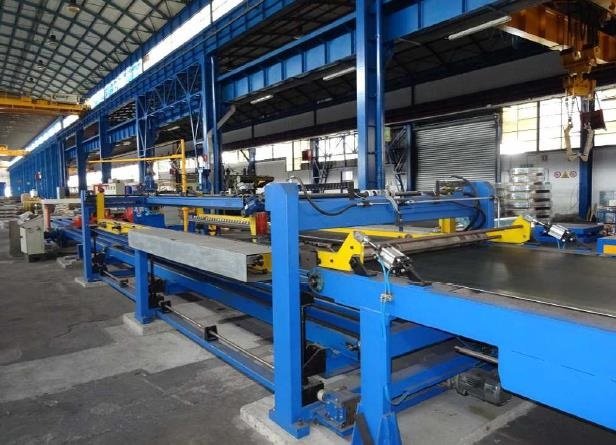

USED FLYING SHEAR CUT TO LENGTH LINE FOR SALE, CURRENTLY INSTALLED & UNDER POWER: 1650mm x 3mm (M.S.), 25 Ton, 6m SHEET STACKER, 45m / minute. BEAUTIFUL LINE, INSTALLED AND UNDER POWER; WITH: 6-HI LEVELER (ROLLS MADE NEW IN 2017); ELECTRICS & ELECTRONICS RENEWED IN 2012; ENTRY COIL STORAGE RAMP; SHEET STACK STRAPPING AND WEIGHING EQUIPMENT… -- MANUFACTURERS: FIMI + SALICO




PROCESS MATERIALS: cold rolled, galvanized, electrogalvanized, pickled, prepainted, stainless; aluminium ……


Tensile strength N/mm2
max. 500

Yield strength N/mm2
max. 380



Coil Width mm
min. 300 / max. 1650


Material Thickness mm
min. .5 / max. 3.0



Weight on Uncoiler Ton
max. 25


Coil ID mm
508 to 610 ( “large expansion” mandrel)


Coil OD mm
min. 800 / max. 1800





PRODUCTS:

- Length of sheets mm
min. 500 / max. 6000


- Load of sheet stack Ton
max. 3

- Specific load kg/m
max. 1500


- Height of stack, incl. pallet mm
max. 500









A) LINE GENERAL FEATURES:




Line direction: right to left


Line reference: center


Passline height: mm 1100


Coil Threading speed: m / min. 15


Line Workspeed: m / min 0 - 45




Stacker: stop/start operating mode > the line must be stopped when off-loading a sheet stack


(Stacking: with or without pallet)



LENGTH TOLERANCES:


max ± .5mm at constant speed, for sheets up to 2000mm long

- for every additional 1000mm, ± .10mm to add




LINE VOLTAGES
- Three-phase voltage
400 V 50 Hz
- Auxiliary voltage
220 V 50 Hz
- Voltage of electrovalves
110 V


Hydraulic power pack
- Working pressure (nominal)
100 bar


Pneumatic features
- Operating pressure (nominal)
6 bar


Ambient temperature
min 5 °C max. 40°C







B) EQUIPMENT LIST:

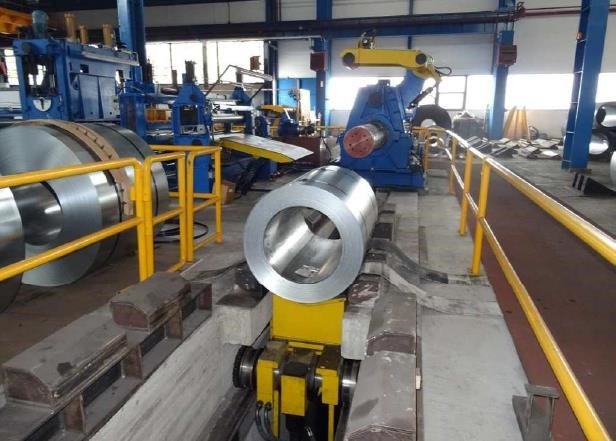

B01) ENTRY COIL CAR & 3-COIL STORAGE RAMP BY SIDE
- Coil elevator "under floor level”, moved by hydraulic motor
- “V” shape saddle covered with anti-scratch material to support coil
- Coil car capacity: 25 Ton
- Laterally: Coil Storage Unit for 3 coils

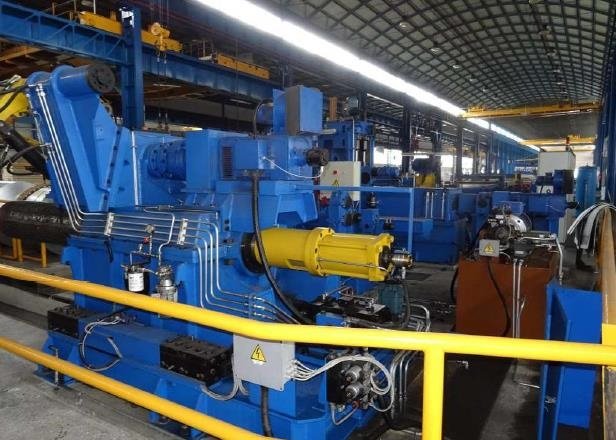

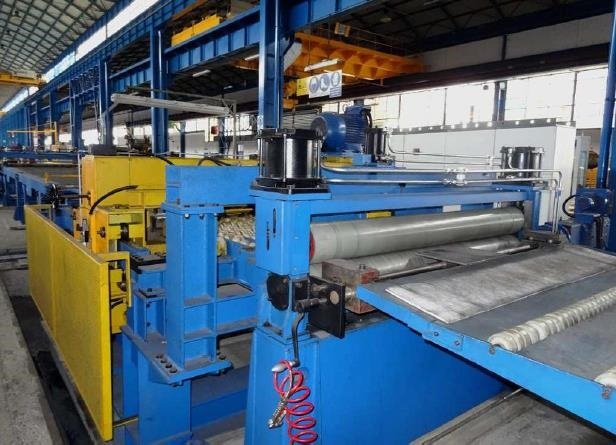

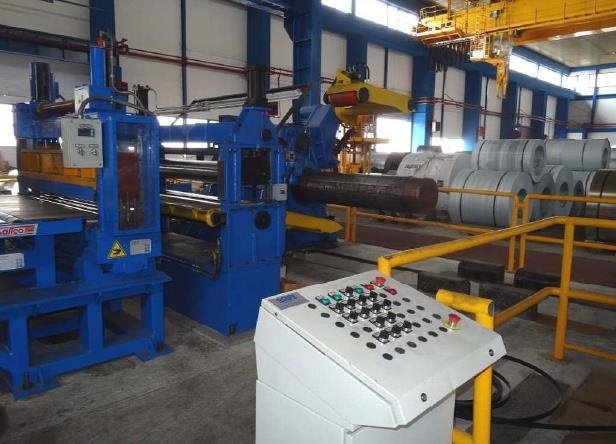

B02) UNCOILER
- With Mobile base in resp.to centre-line: ± 100mm --to keep coils centered
- D.C. motor driven
- Pneumatic stand-by brake
- Uncoiling from top

THE OVERHUNG MANDREL:
- ø 508÷610mm (“large expansion”)

PRESSURE ARM (HOLD-DOWN)
- Up/down movement by hydraulic cylinder
- Roll rotation by hydraulic motor


B03) COIL OPENING TABLE
- Opening from top
- Table with fixed opening-“tooth”
- Lifting / extension movements by hydraulic cylinders


B04) FEEDING PINCH ROLLS
- the two pinch rolls introduce the material to leveler
- lower roll rotation by hydraulic motor
- for the upper idle roll: up/downvertical movement by hydraulic cylinders


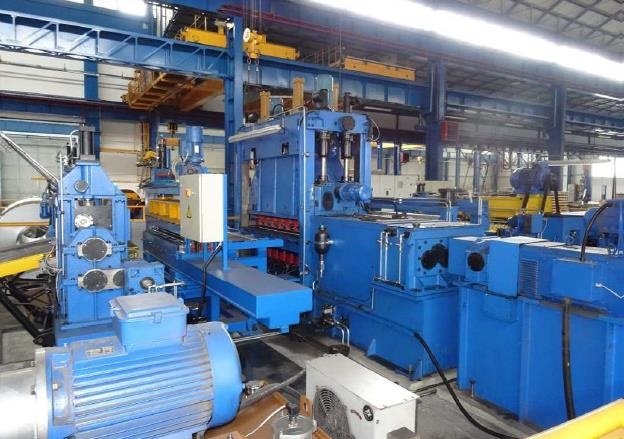

B05) STRAIGHTENING MACHINE (by SALICO)
- with 5 work rolls, 5 sets of upper back-ups + 5 of lower back-ups

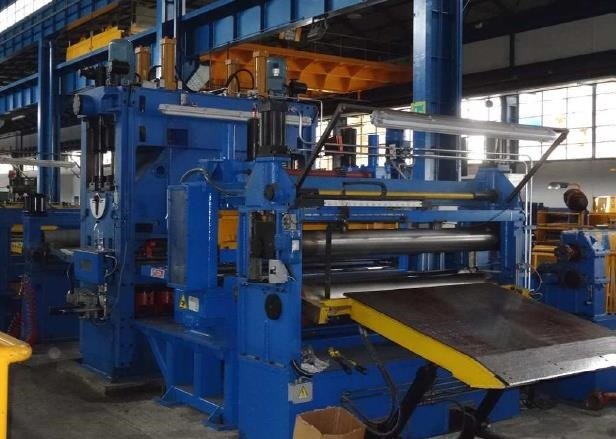

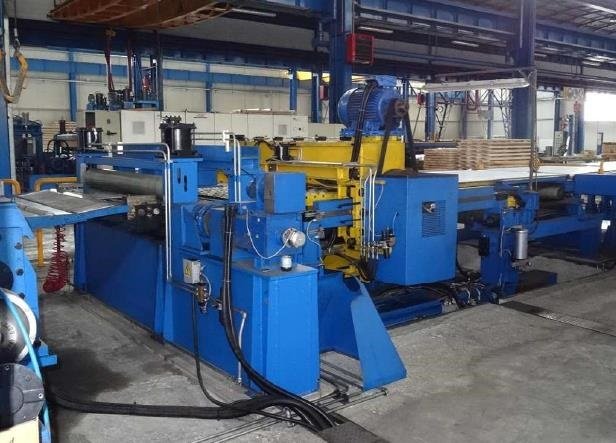

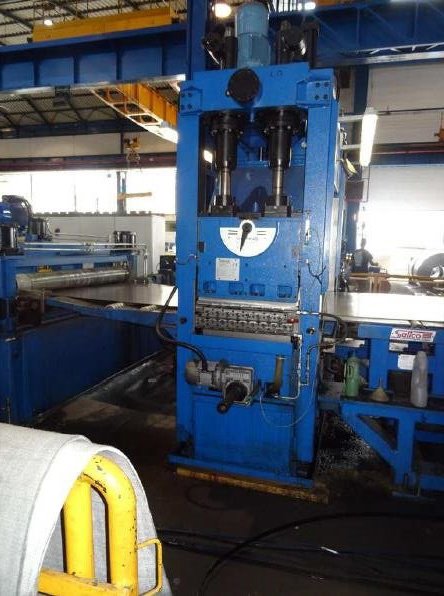

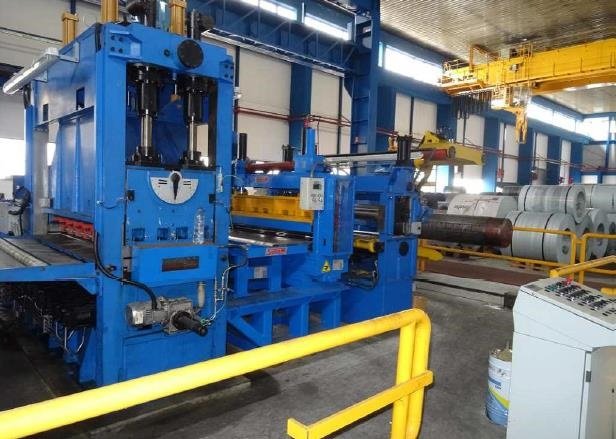

B06) 6-HI LEVELER
with work + intermediate rolls and back-ups (7 +7 Series)
---new Cassette System made: 2017
- Roll cassette: 17 working rolls, roll diameter: 56mm
- Upper levelling rolls: 8
- Lower levelling rolls: 9
- Levelling rolls rotation by D.C. motor, 90 Kw, with “stand-by” pneumatic disk brake
- for lower back-ups: parabola adjustment by 7 hydraulic cylinders
- Localized-correction digital readout (on screen)
- Roll penetration digital readout (on screen)


B07) EXIT PINCH ROLLS, to pull-through coil “tails”


B08) Tachometer Wheel
- to measure sheet length

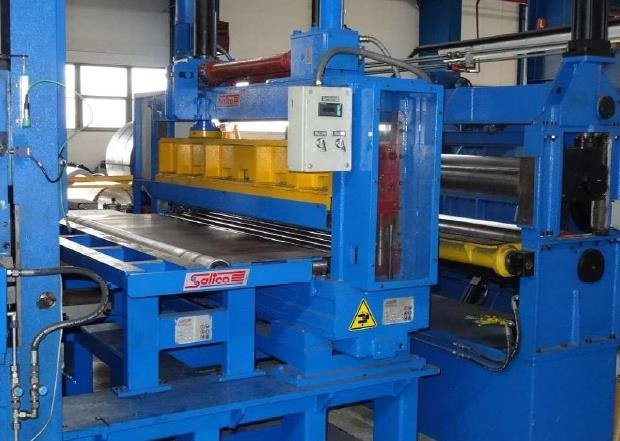

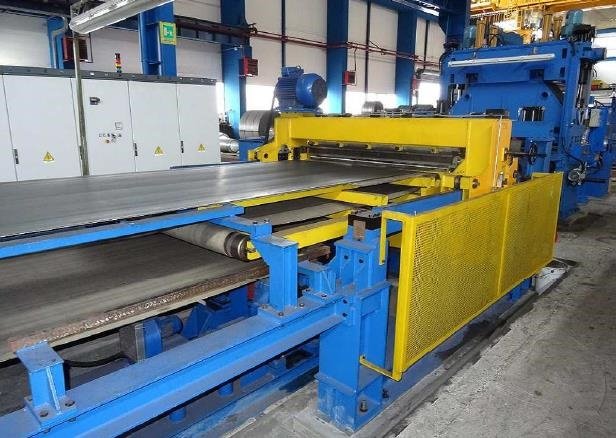

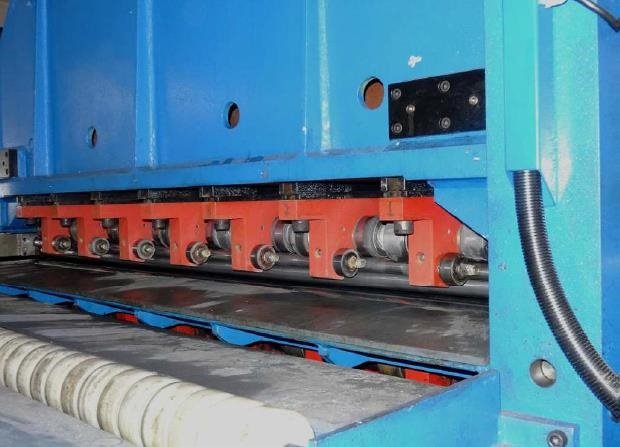

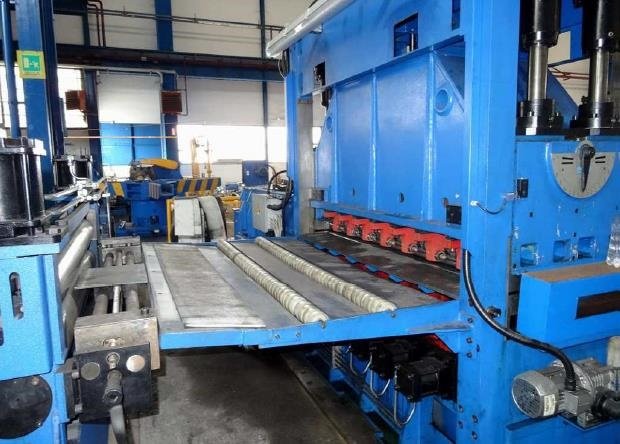

B09) FLYING SHEAR -- with ENTRY sliding table complete of nylon rolls to support material
Blade clearance adjustment: manual
The machine is complete with “compenetrating” exit belt conveyor with scrap box
- Scrap car with manual side-extraction


Production Speed:


Length mm = m/min


1000 = 22
2000 = 38
2500 = 42
> 3000 = 45

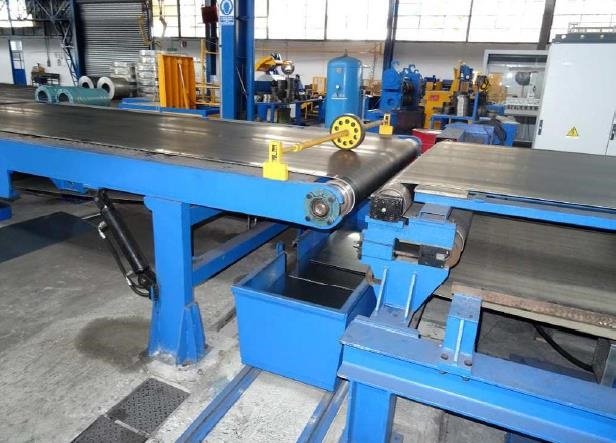

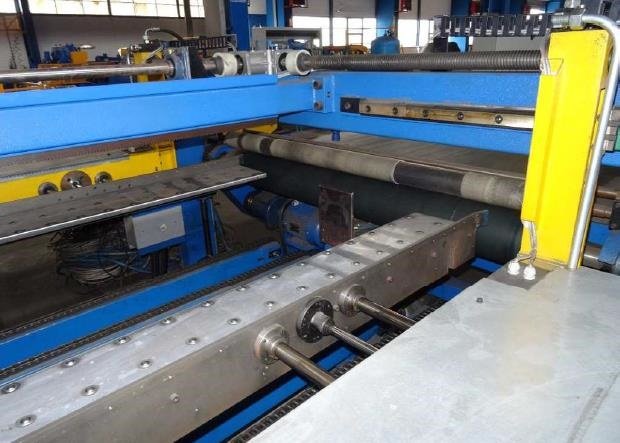

B10) CONVEYOR
Exit Conveyor to sheet stacker
- Belt rotation: by A.C. motor

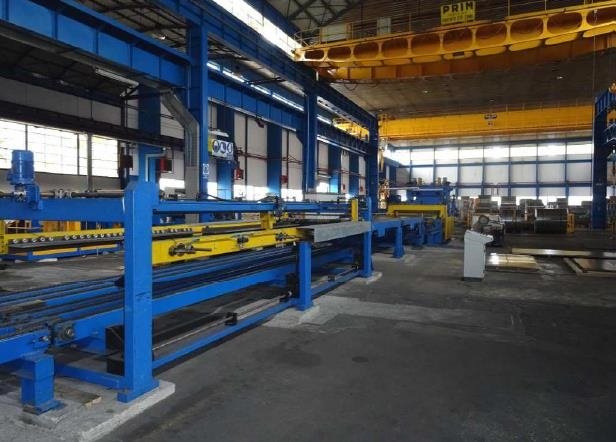

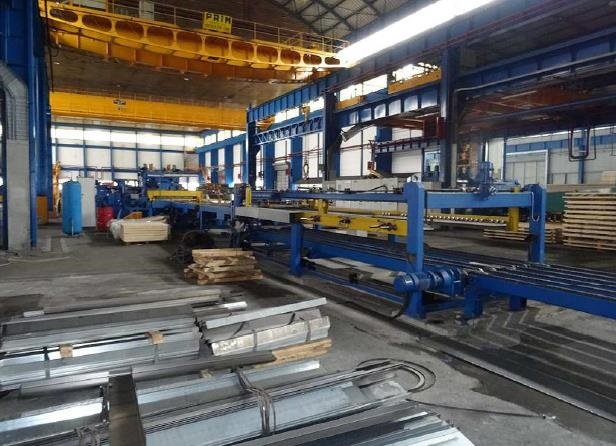

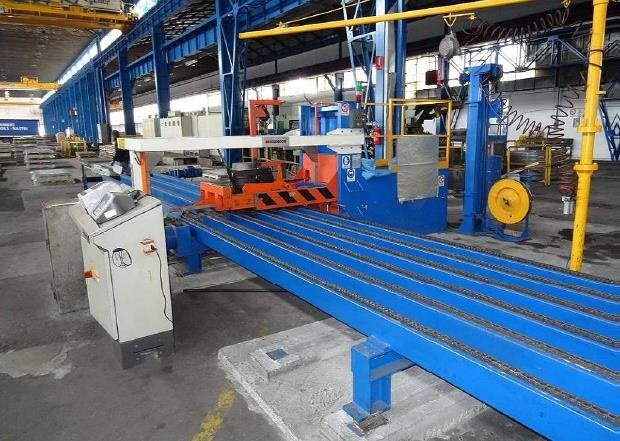

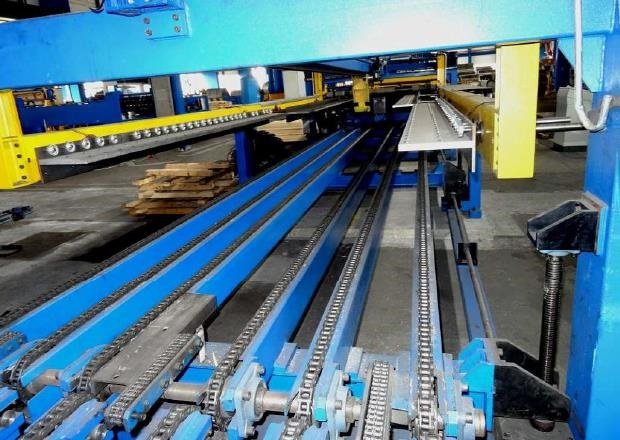

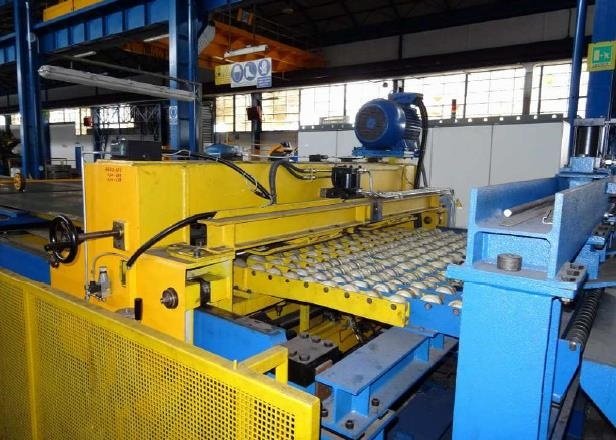

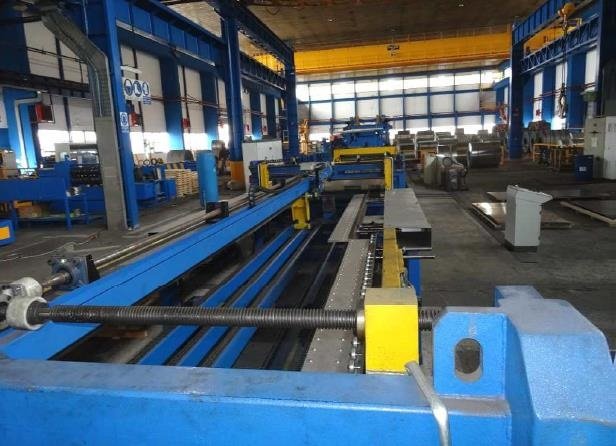

B11) 6000mm STACKER with ball racks
- 2 racks (3.000mm+3.000mm) with balls to support sheets – avoiding marks. Up to sheet length 3000mm, only the first section of stacker works. Over 3000mm, both sections work simultaneously


B11.1) 1 STACKING PLATFORM
- fixed, secured to floor
- platform useful length: 6000mm
- up/down motion by jacks
- platform provided with powered chain table
- rotation of chains by A.C. motor
- stack off-loading along line axis


B11.2) 1 EXIT CHAIN TABLE
- fixed, secured to floor
- rotation of chains by A.C. motor

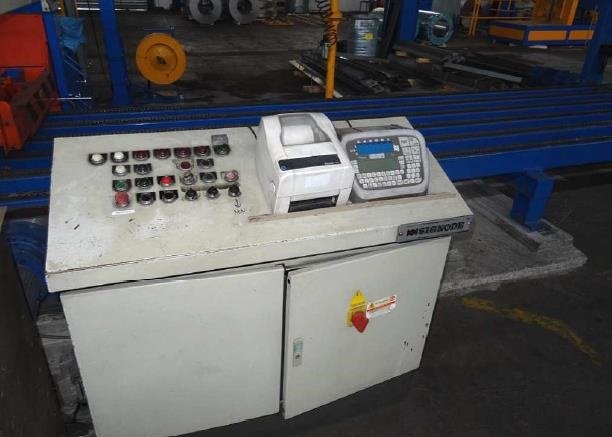

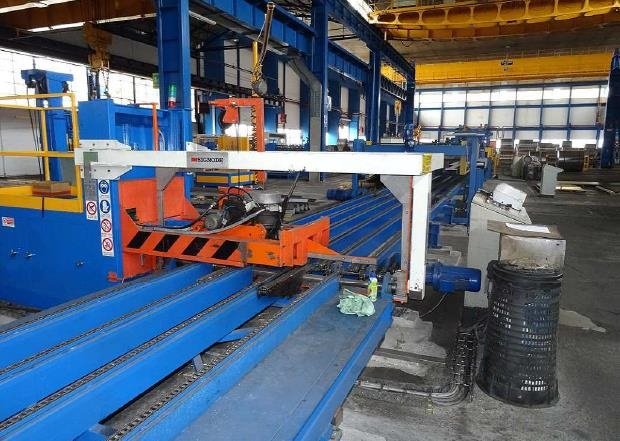

B11.3) 1 SIGNODE Automatic Power Strap, static type
suitable for ¾” steel straps, to bundle the finished sheet stacks


B11.4) 1 EXIT CHAIN TABLE
- fixed, secured to floor
- rotation of chains by A.C. motor
- complete with Load Cells to check on the weight of stack -- cap.: 5.000 kg
- unloading: by fork lift – FORK LIFT NOT INCLUDED

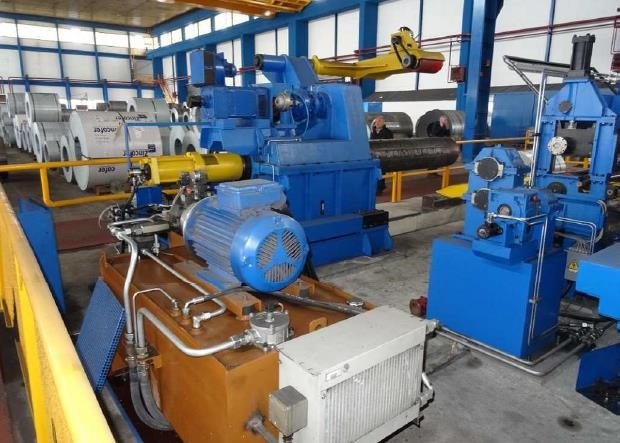

B12) HYDRAULICS & PNEUMATICS
- Hydraulic central unit – placed at max 6m from main line axis
- Oil cooling air heat exchanger
- Hydraulic electro-valves: of single stand grouping design, on board of each line part
- On board pneumatic valves for each line part

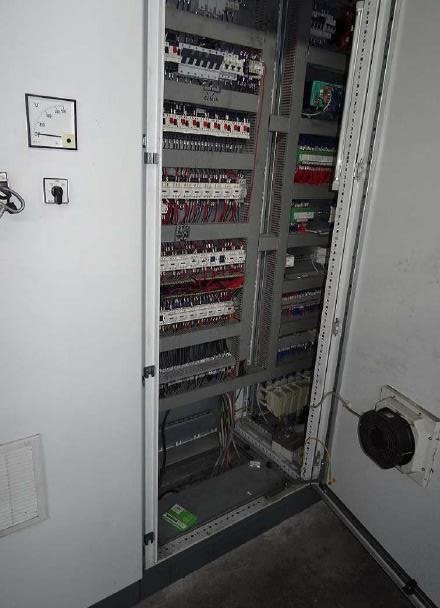

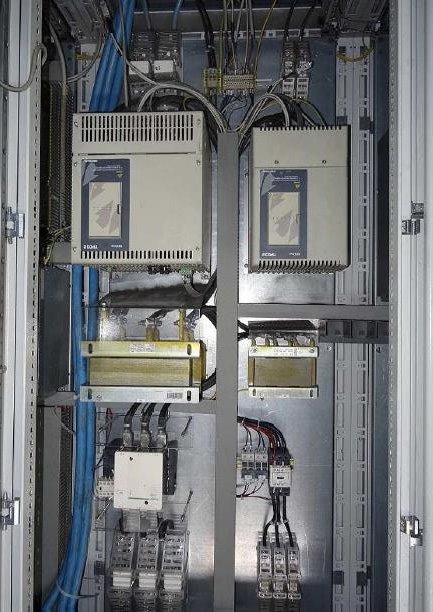

B13) ELECTRICS & ELECTRONICS: renewed in 2012
- A.C. main motors
- Motors and sensors onboard, for each line part

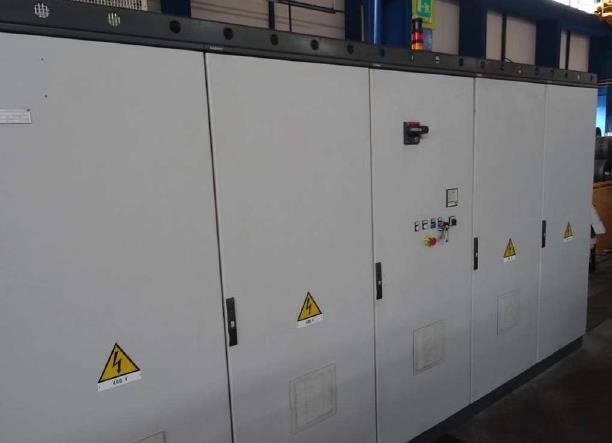

- Ventilated, IP23 Electric cubicles (air conditioning NOT INCLUDED) – located, (max) 6m from main line axis

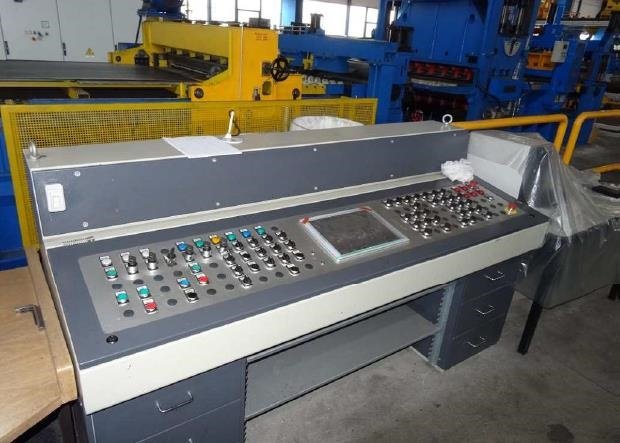

- Digital HMI on operator control desk (level 1)


B15) SAFETY FENCING & PHOTO-ELECTRIC BARRIERS
- included “as they are”





We offer Start/Stop, Roll Feeder, Flying Shear, Rotary Shear Cut To Length Lines both new and used / re-manufactured for: Aluminium, Coated, Cold Rolled, Copper, Galvanized, Hot Rolled, Prepaint, Silicon, Stainless, Tinplate,Titanium .

Your enquiries welcome for also individual Line Parts like: Decoilers, Feeders, Levellers, Sheet Stackers, Straighteners ...
