COIL POLISHING LINE
Coil Polishing Line SACMA Used [#3383]
SOLD
1
Used Coil Polishing Line
1550mm x .4 - 3.0mm S.S.
SACMA
installed but out of service
excellent condition

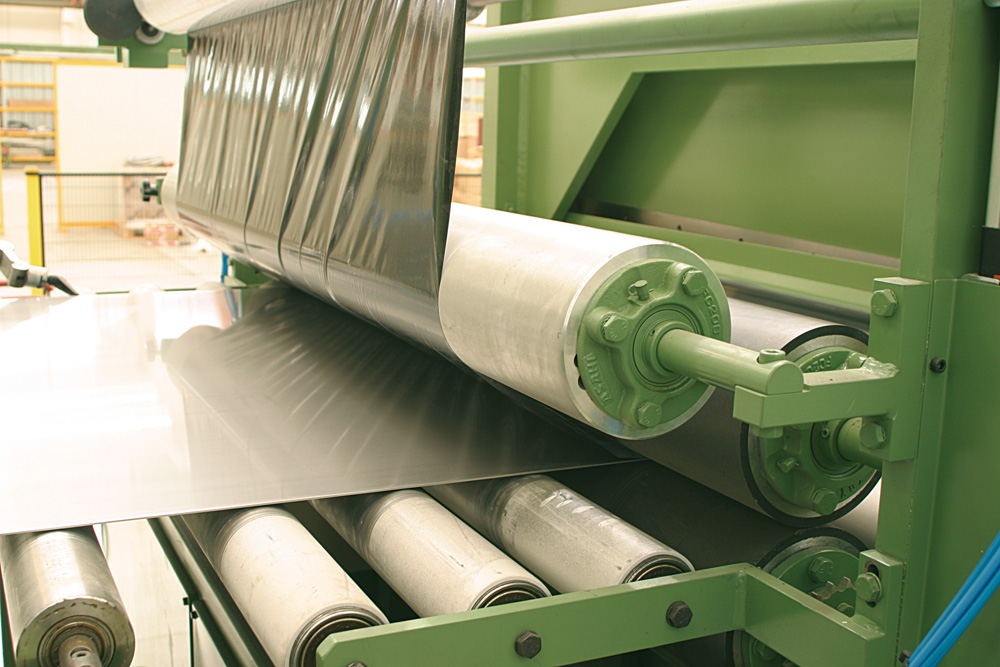

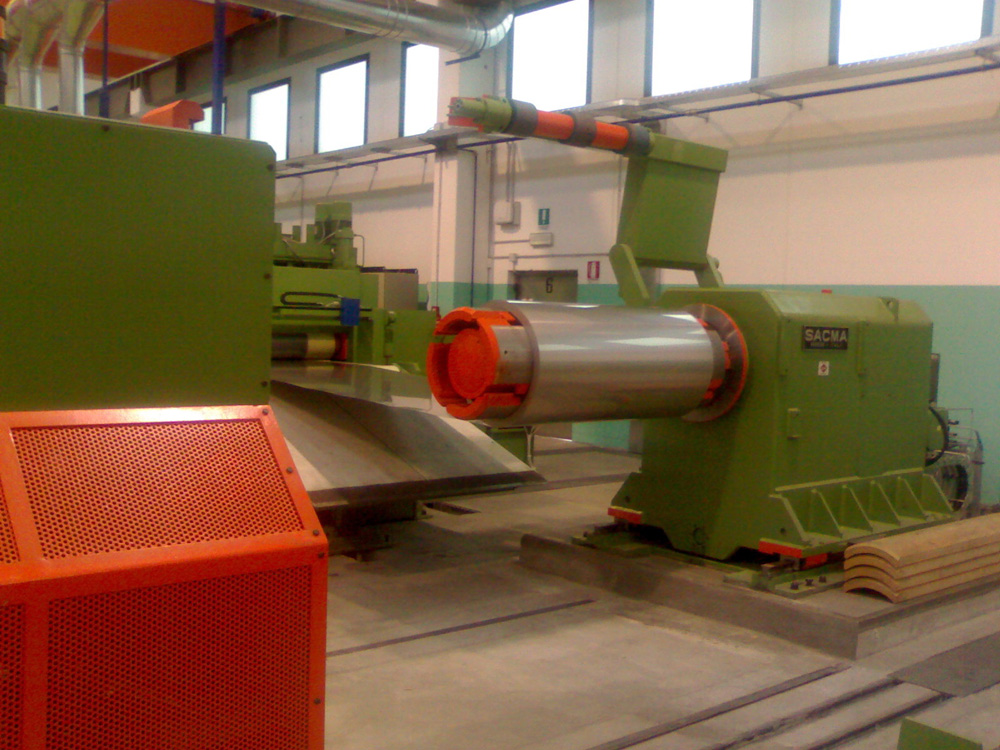

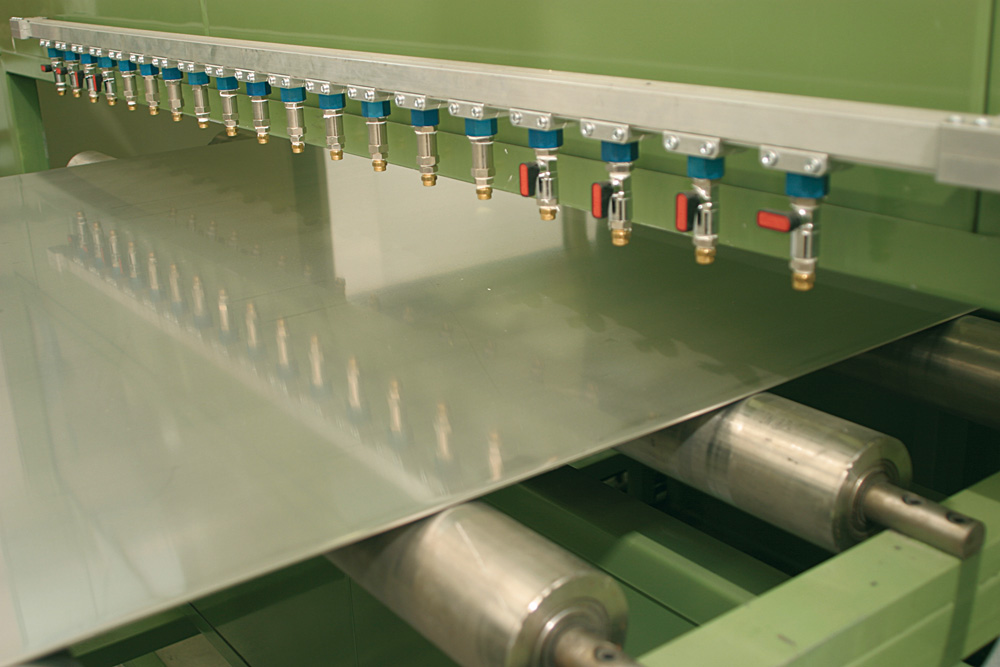

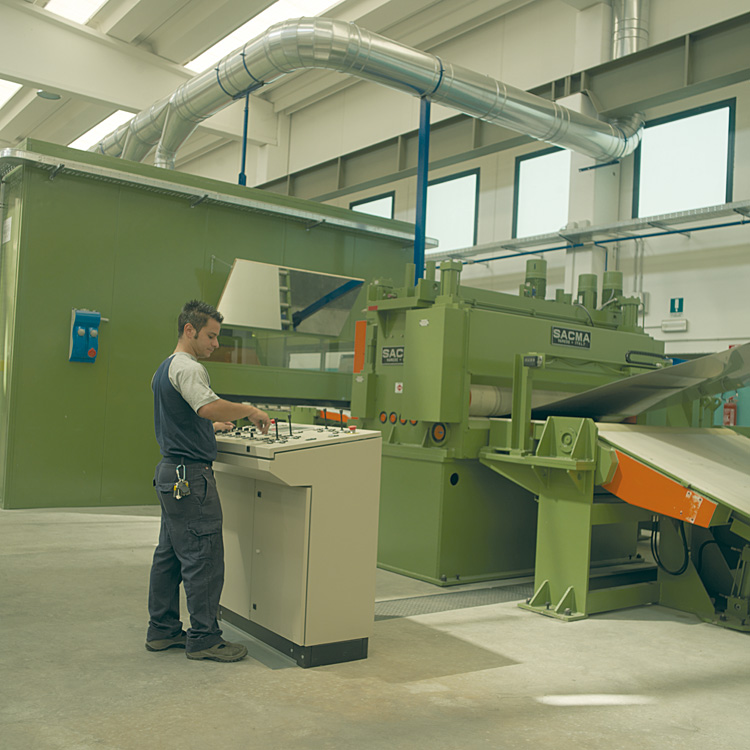

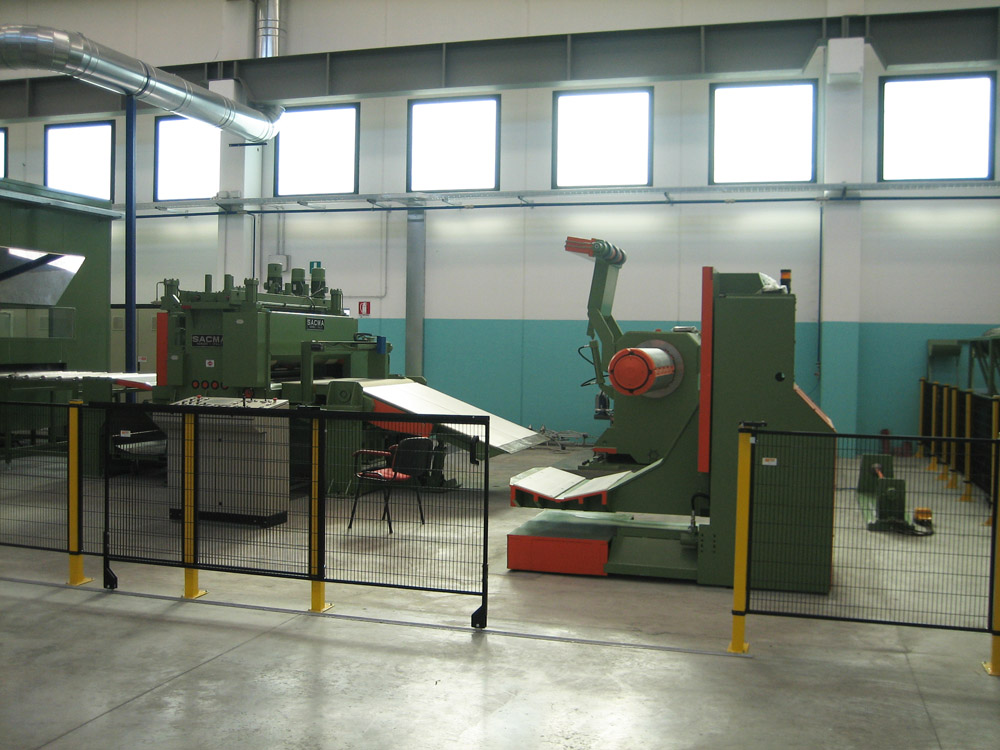

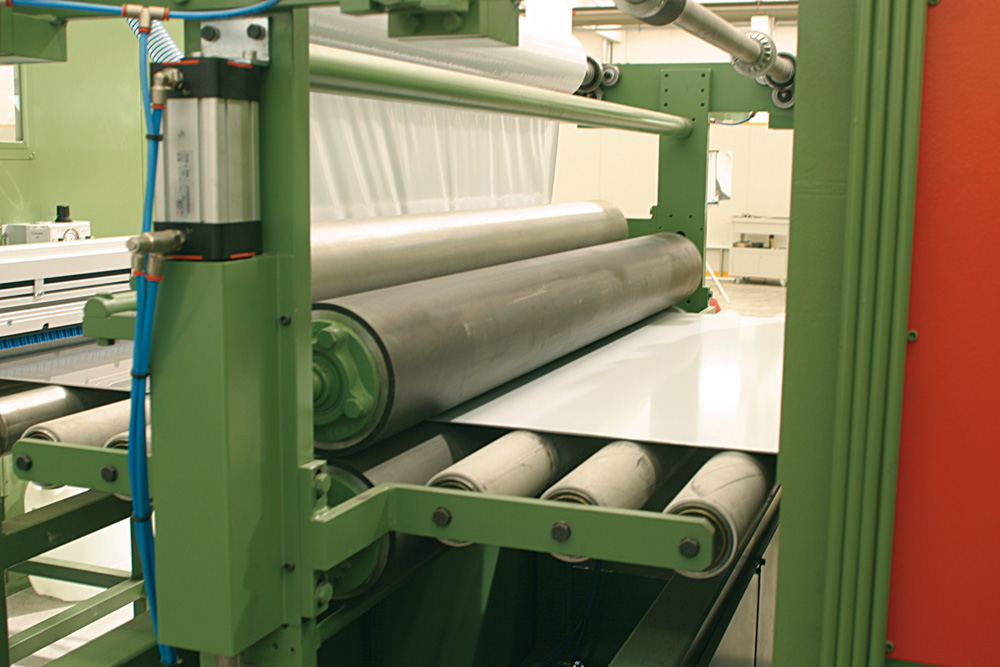

A used coil polishing line for sale, in perfect condition; built in 2008-9, still installed, ready for inspection. Complete with decoiler, recoiler and coil cars; paper winder & unwinder; straightener; crop shears; plastic film dispenser; coil tension unit etc.
(Coil polishing lines, as well as brushing, buffing, orbital finishing... etc. lines, are one of our specialties. Please see #3241 and #3175 above.
Now and then we also have used coil polishing lines for sale.)
___
GREAT BUY: a 2008-9 Coil Polishing Line in great condition, that only made small "prototype"-productions.
Heads/Units must be added for those particular finishing processes of interest.
The full service can be provided by us RE: completing, testing, dismantling, packaging, re-installing and commissioning the line.
(For SACMA please go to the MANUFACTURERS' PROFILE Section.)
GENERAL LINE INFORMATION
Process material: stainless steel
Material thickness: .4mm to 3.0mm
Decoiler & recoiler capacity max.: 20 t
Coil width max.: 1550mm
Coil OD max.: 1800mm
Entry coil ID: 465mm to 525mm
- using wooden spacers: 565mm to 625mm
Line speed max.: 50m / min
EQUIPMENT LIST

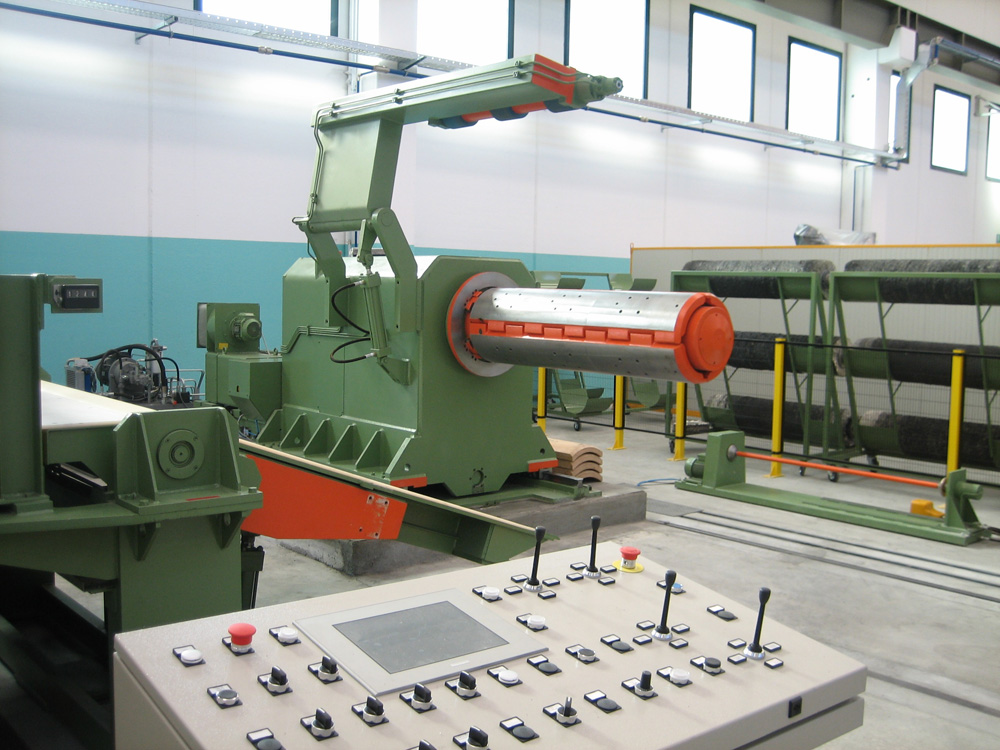

DECOILER
PAPER WINDER
COIL LOADING CAR
MATERIAL THREADING STATION

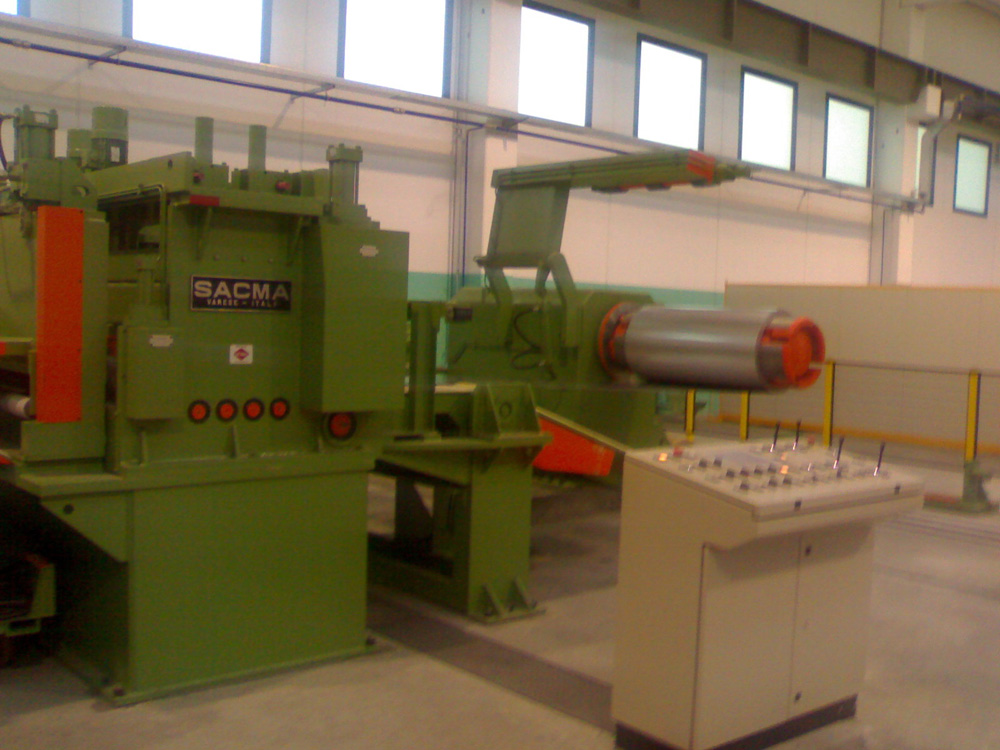

7 ROLL CORRECTIVE STRAIGHTENER & PINCH ROLLS
CROP SHEAR 1
PIT TABLE
UNDRIVEN ROLLER TABLE 1
NO WORK UNITS -- THESE WILL BE QUOTED IN ACCORDANCE TO THE "FINISH" TYPE/S OF INTEREST
UNDRIVEN ROLLER TABLE 2
PLASTIC FILM 2-REEL DISPENSER
STATIC TENSION UNIT WITH RUBBER COATED ROLL BRIDLE AND CROP SHEAR 2
SLIT COIL LEADING EDGE FEEDER TO RECOILER

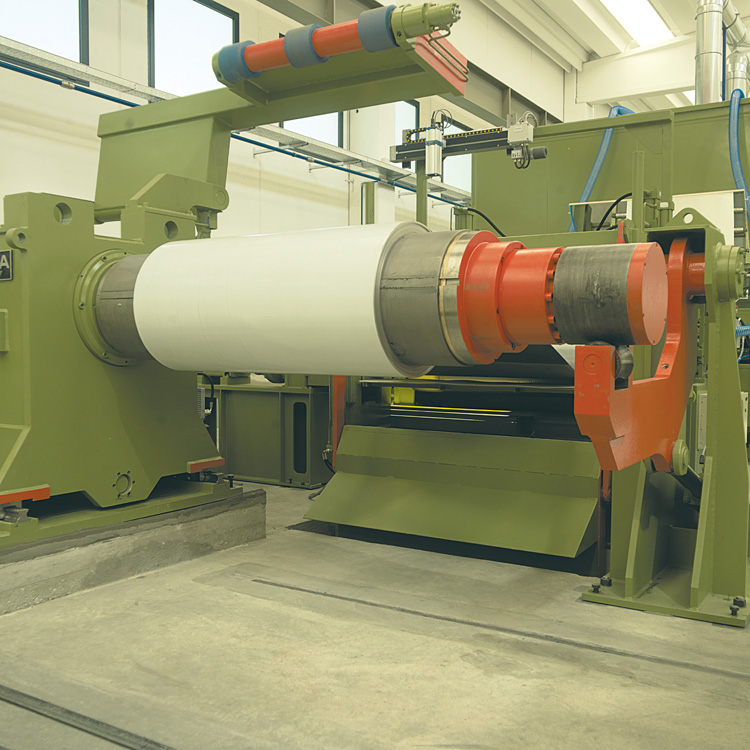

RECOILER
PAPER UNWINDER
COIL OFF-LOADING CAR

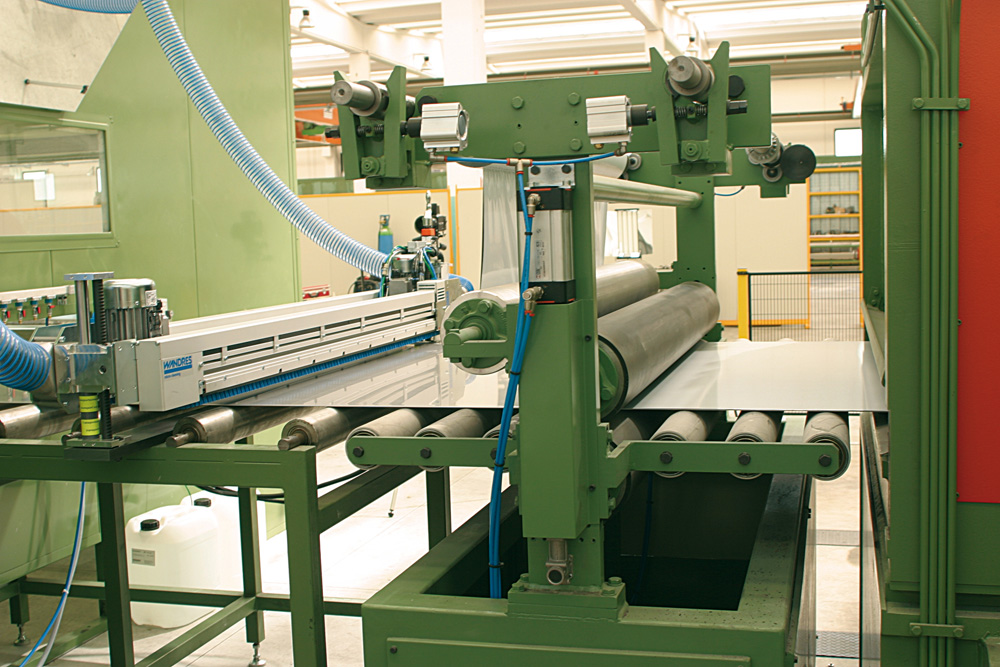

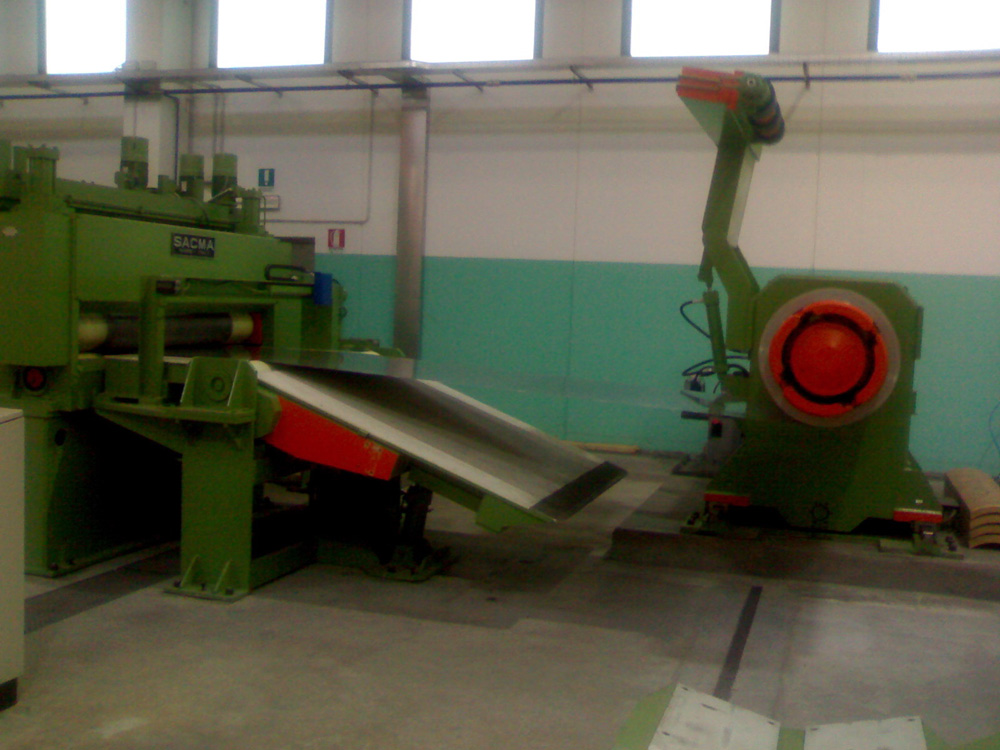

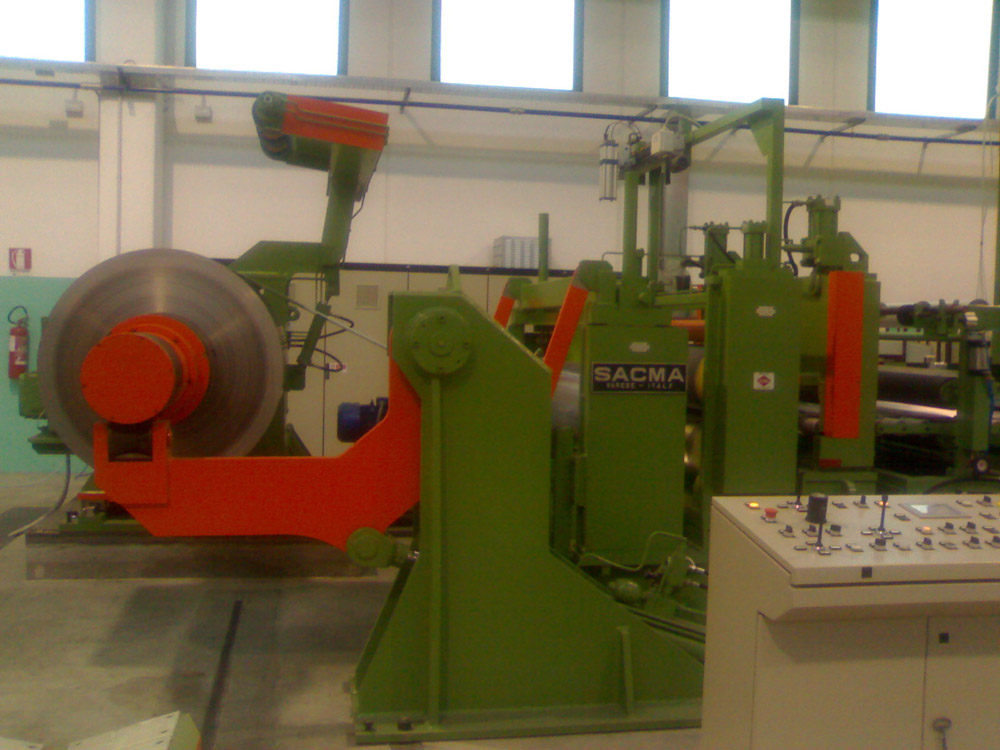

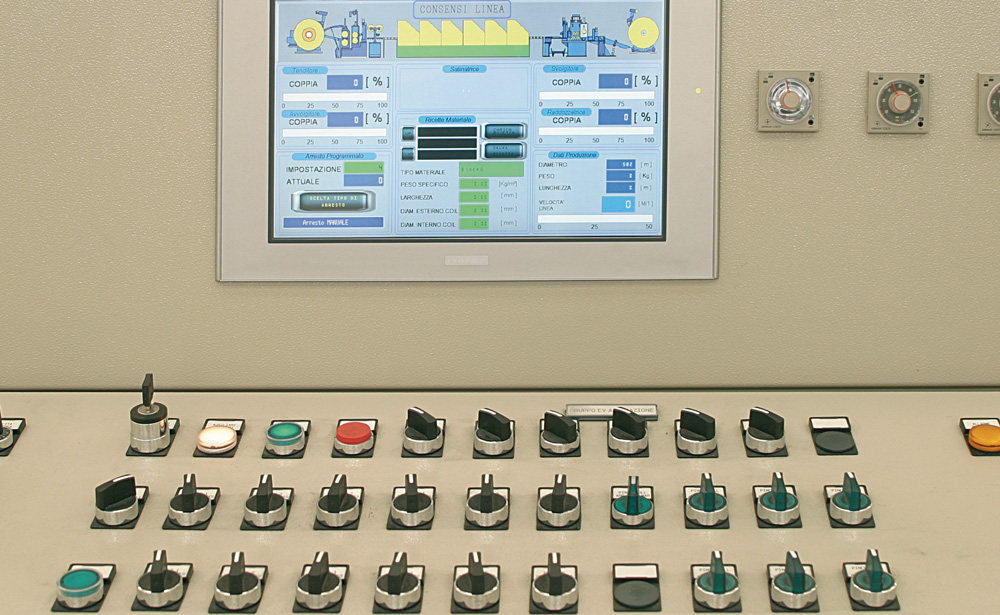

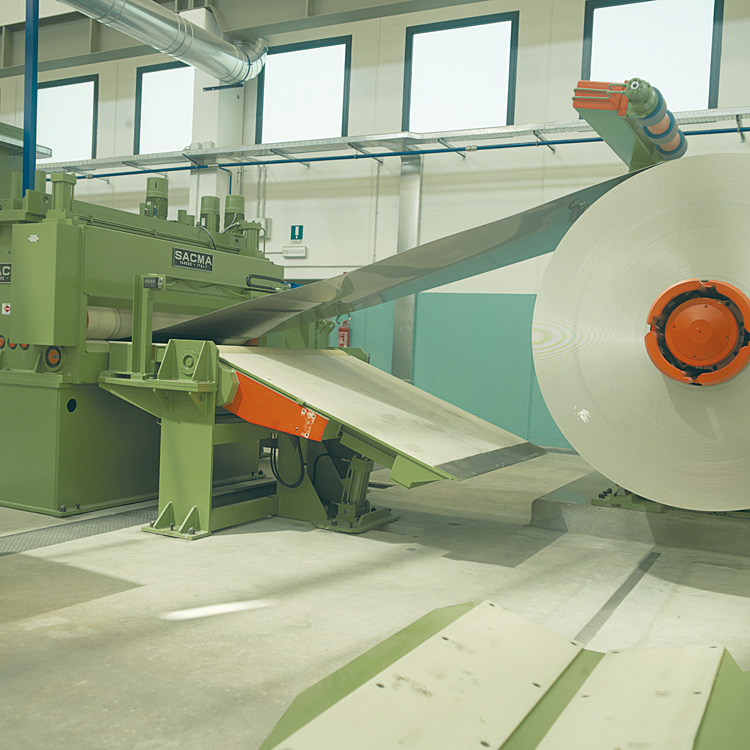

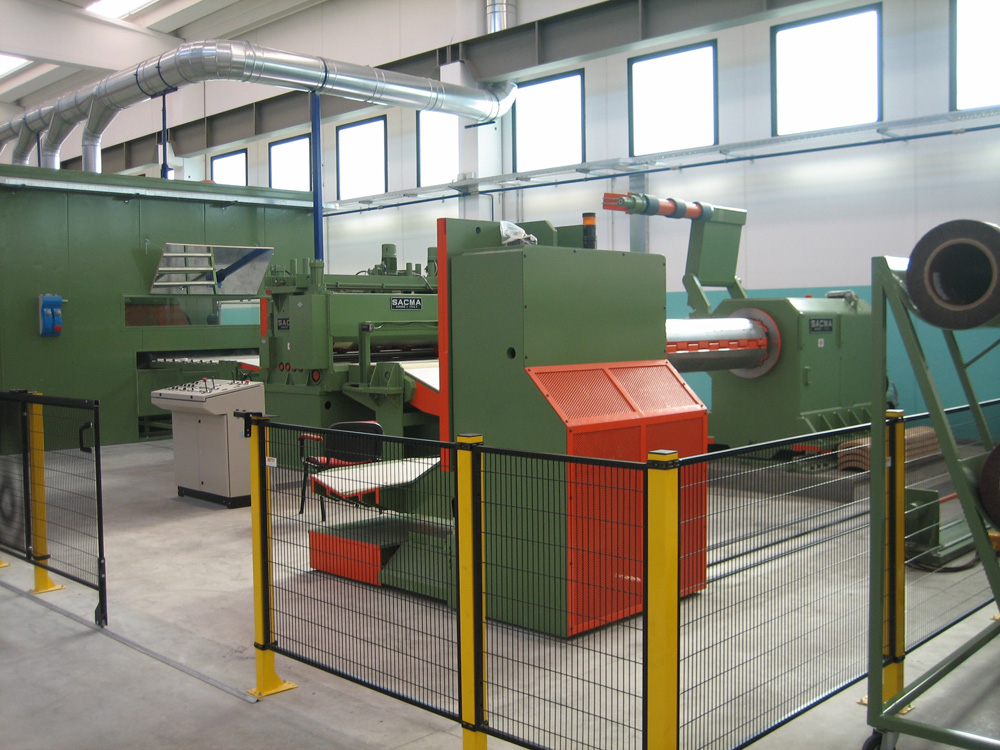

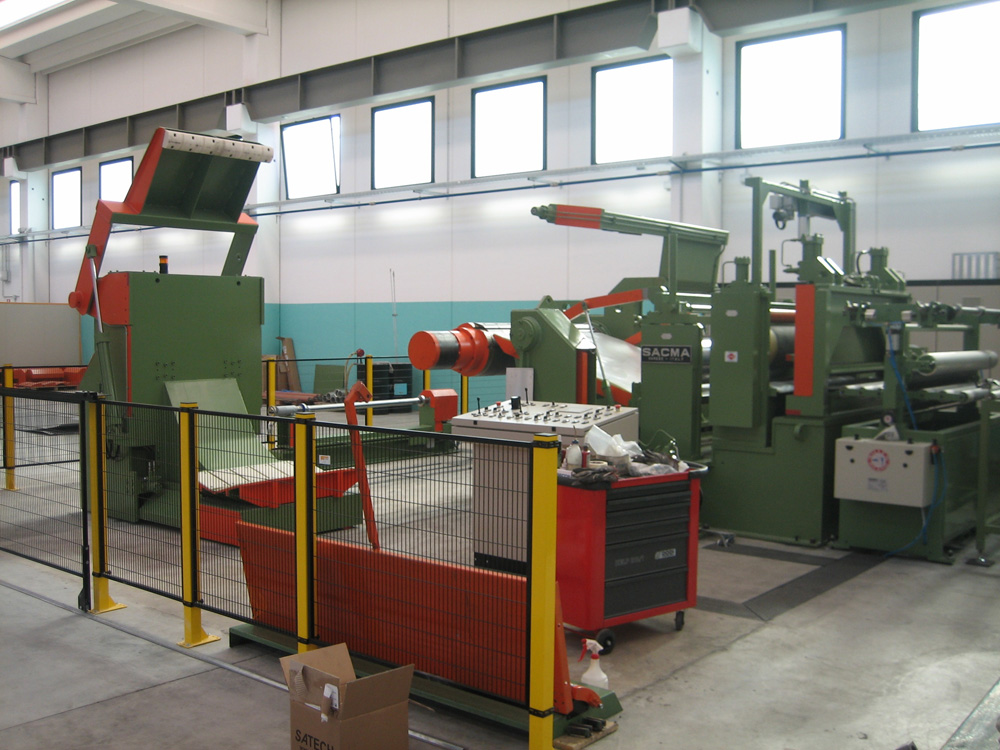

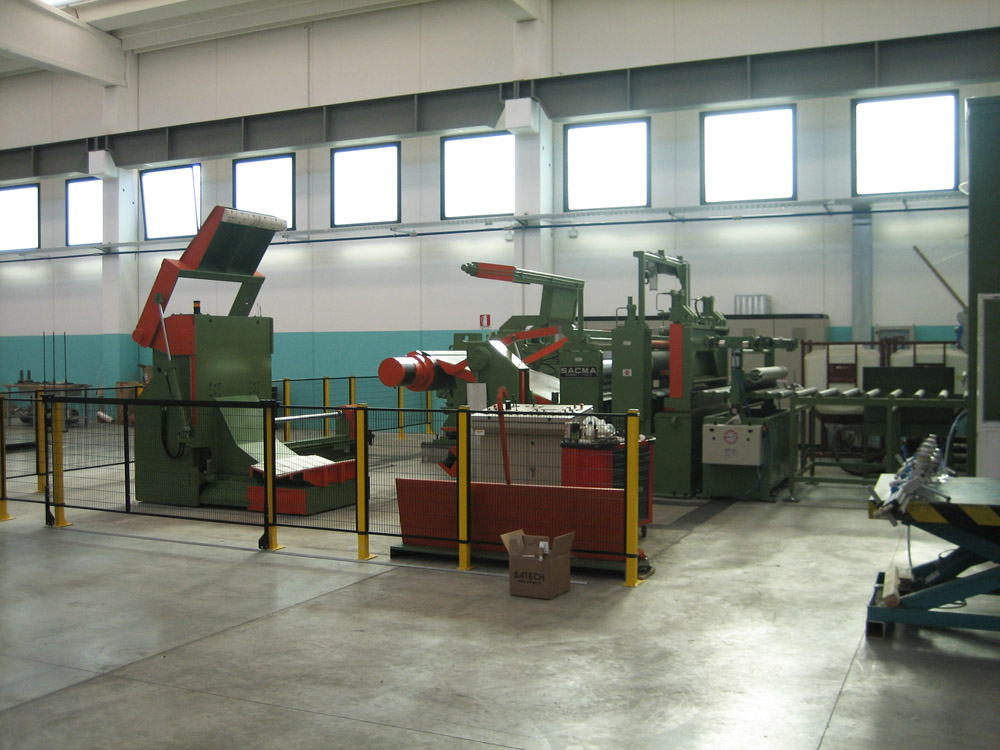

PHOTOS & IMAGES
