MULTI-CUT BLANKING LINE
Multi-Cut Blanking Line GRANDINI Used [#3308]
SOLD
1
Used Multi-Cut Blanking Line
1520mm x 2.5mm (1.5mm at slitting)
GRANDINI
Year when built: 1989-2005
in stock
offered as is or, alt. fully-remanufactured
1520mm x .5 - 2.5mm* (1.5mm* at slitting)
[*Rm = 400 N/mm2]
ca. 12m / min
cut accuracy: +/- .5mm
The line includes the following:
Decoiler
AC motor drive
Coil weight max.: 6 t
Manual expansion of mandrel drum
Mandrel front support
Loop Control by dancing arm
Material Entry Guide
Pinch Rolls
6-roll Corrective Straightener
Roll dia.: 110mm
Slitter Head
4 pairs of knives
Guillotine Shear
Measuring Wheel (encoder)
2m Belt Conveyor (built in 2005)

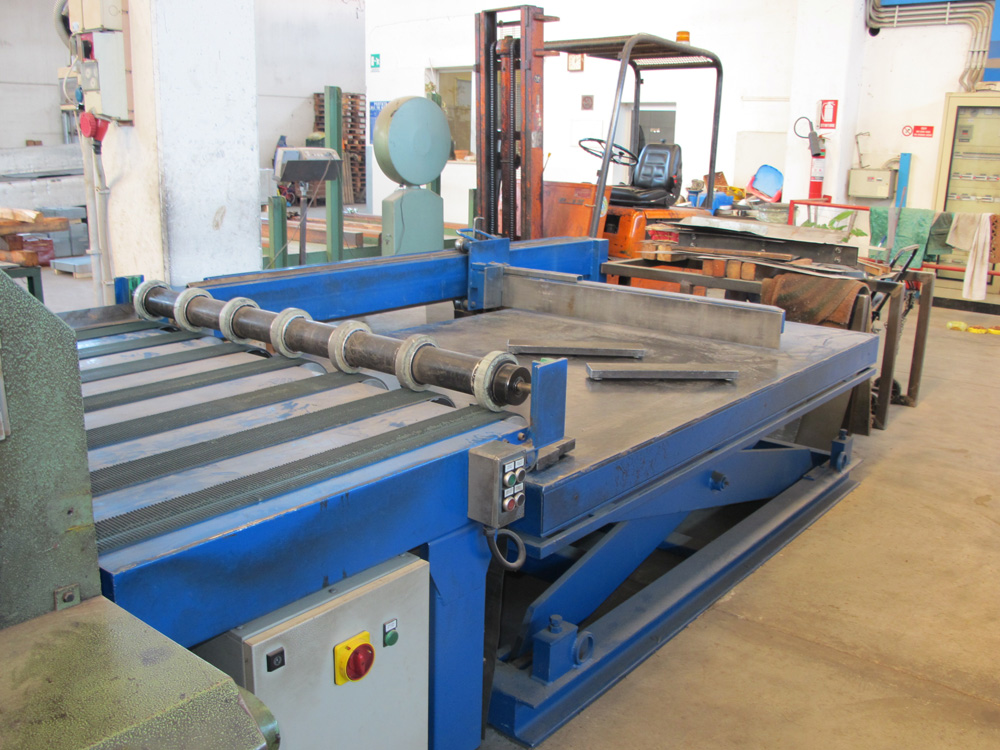

Scissor table (built in 2005)
Hydraulic
2.5m long
Max. capacity: 3 t
Control Panel
ELAP CM78 CNC

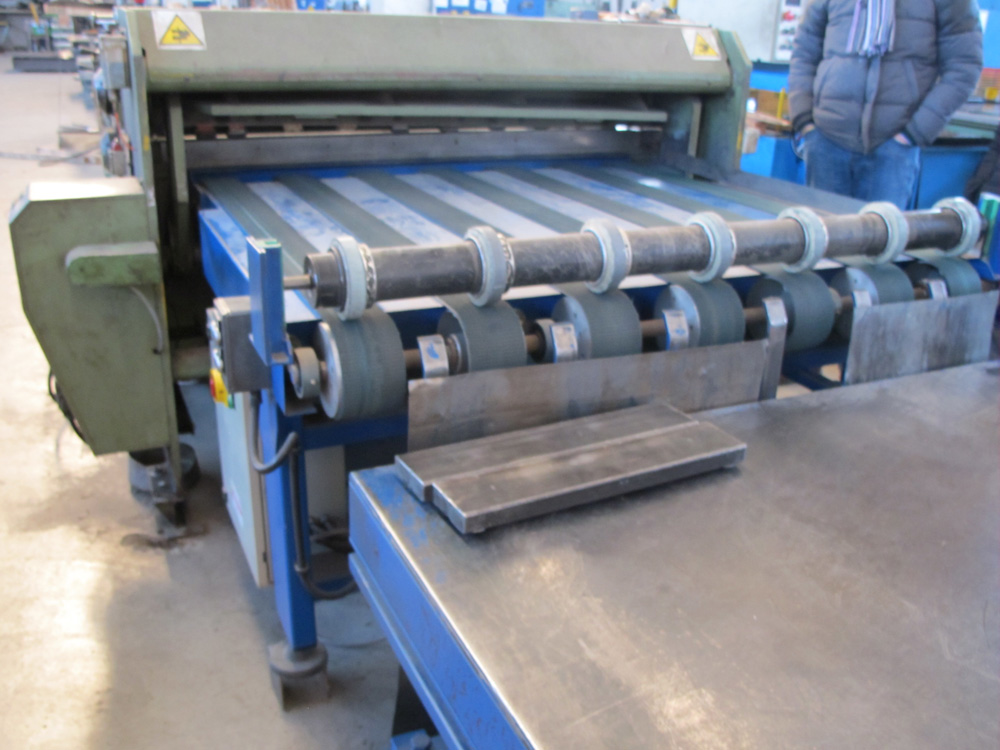

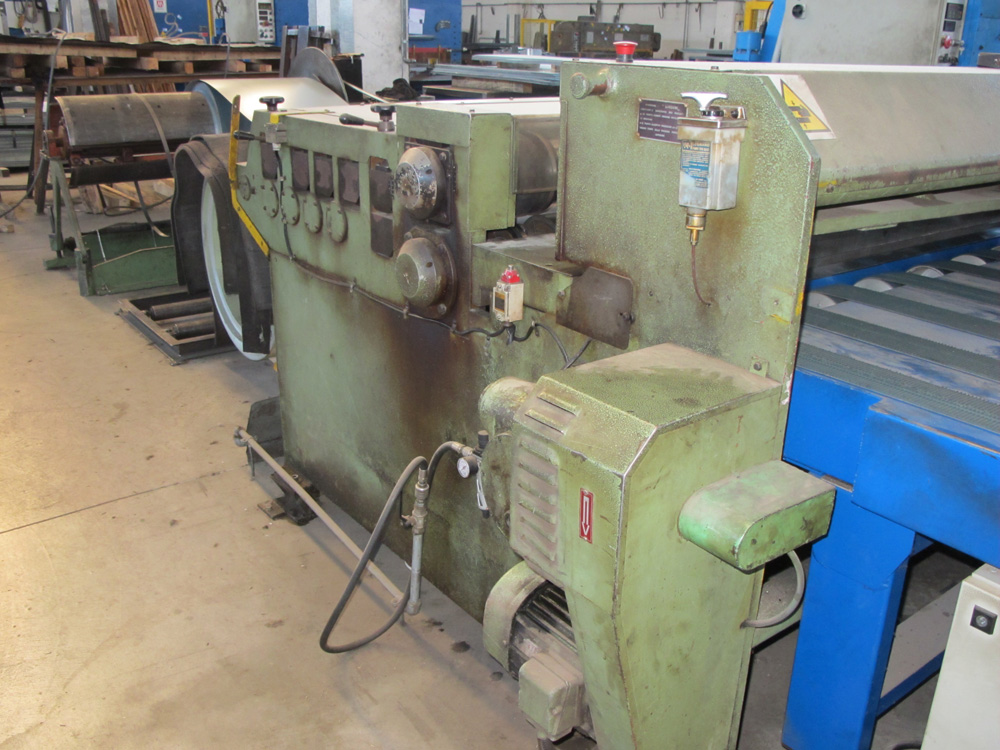

PHOTOS & IMAGES
(CLICK TO ENLARGE)
2
3
« BACK
