MULTI-CUT BLANKING LINE
Multi-Cut Blanking Line GRANDINI Used [#3326]
SOLD
1
Used Multi-Cut Blanking Line
1550mm x 2.5mm Al / 1.5mm M.S.

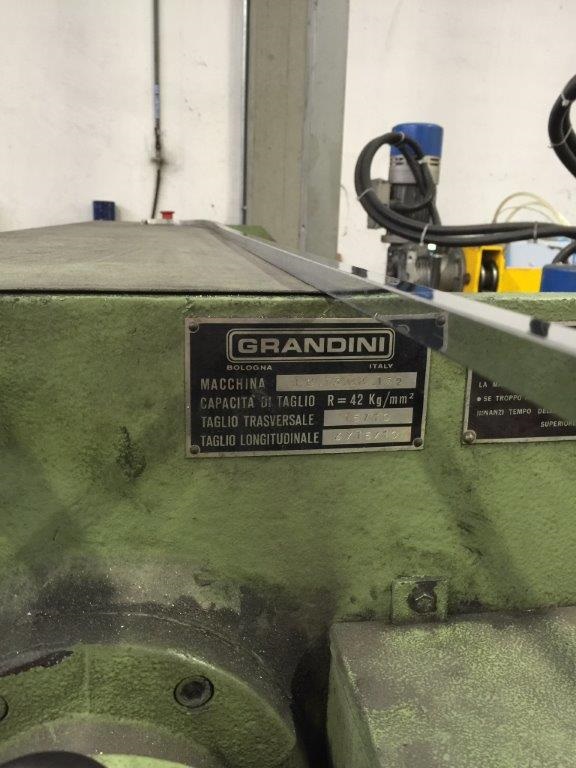

GRANDINI
Year when built: 1994-2005
A "classic" GRANDINI Multi-Blanking, tooled for 4 slits.
Proposed "as is" (good condition).
The Line features as follows:
1. PROCESS MATERIAL
Maximum coil width = 1.550mm
Material thickness:
.5mm to 2.5mm with Rm = 200 N/mm2
.5mm to 1.5mm with Rm = 420 N/mm2
2. LINE PERFORMANCES
Speed: approx. 12m / min
Accuracy: +/-.5mm
3. LINE DESCRIPTION

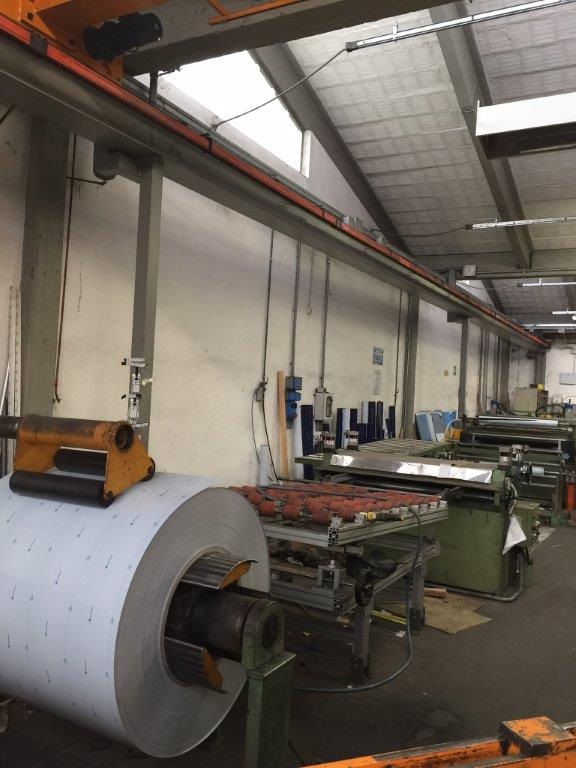

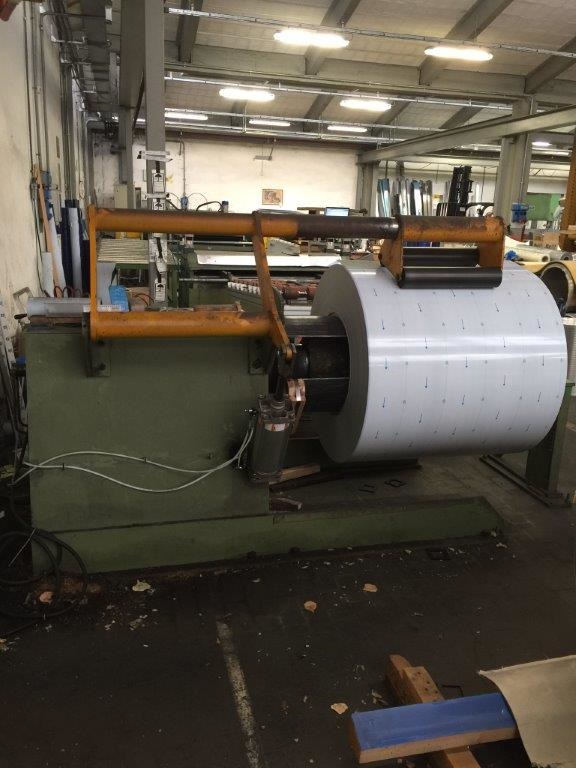

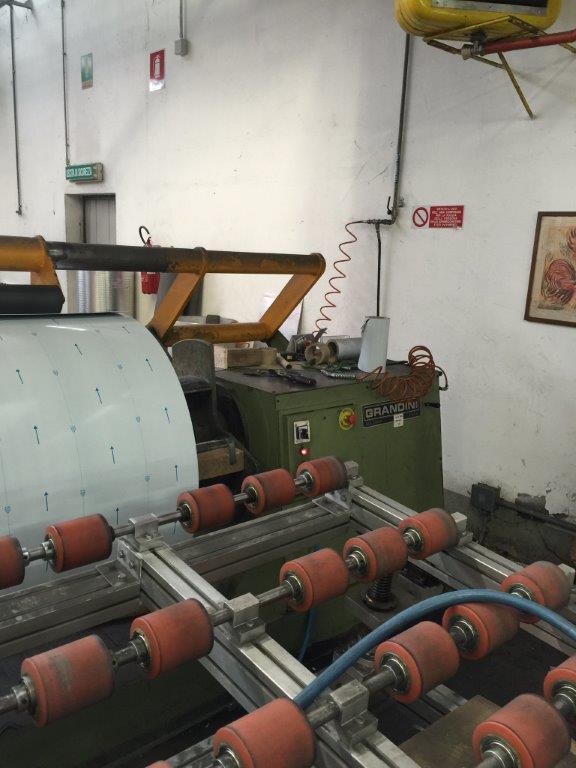

Decoiler with AC motor, coil weight max. 8 t, hydraulic drum expansion, front support
Loop control by mechanical arm
Feeding table

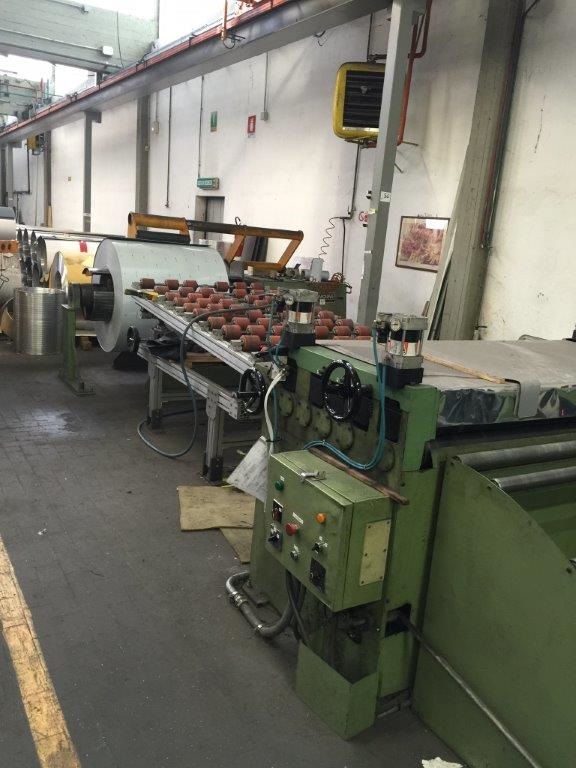

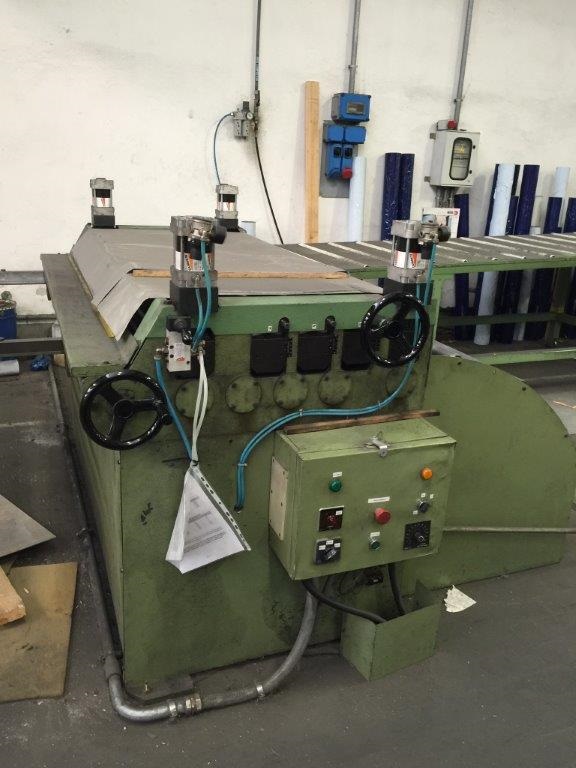

Straightener, including:
- centering unit
- pinch rolls
- 6 work-rolls, dia.: 110mm
- feeding rolls
- Loop tables (pit-bypass)

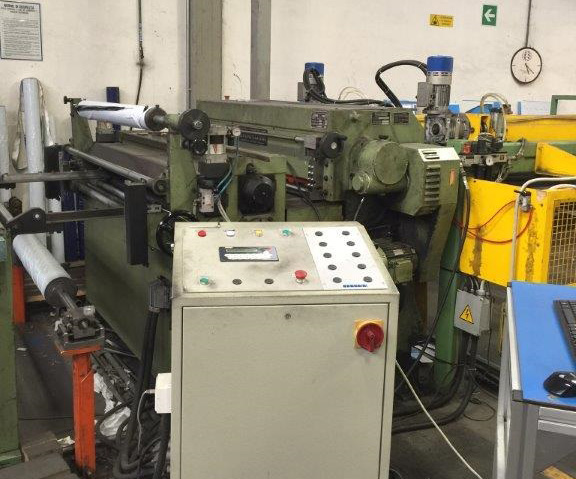

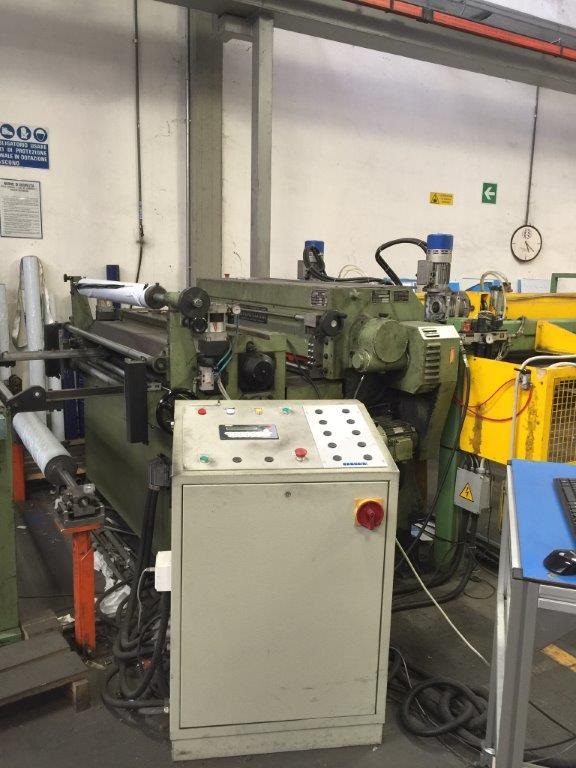

- Feeding/cutting unit

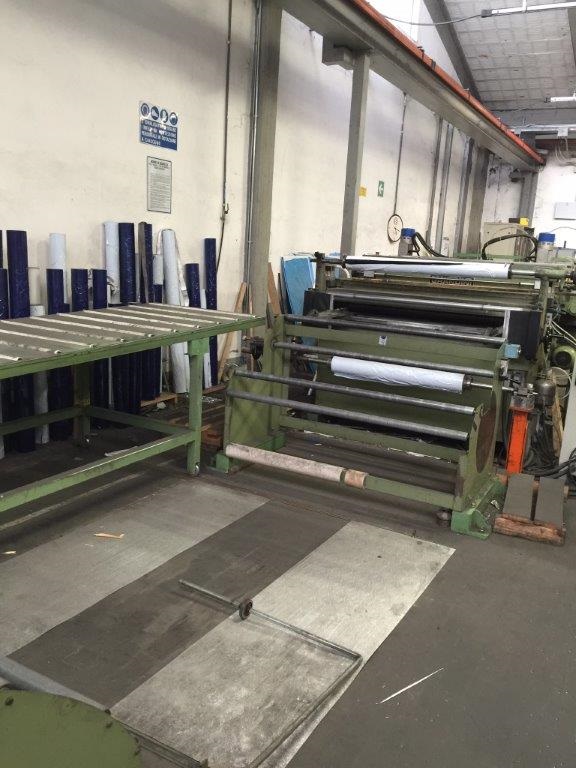

- PVC applicator (both up & down side)
- roll feeder
- slitter head with 4+4 circular knives
- cross cutting shear

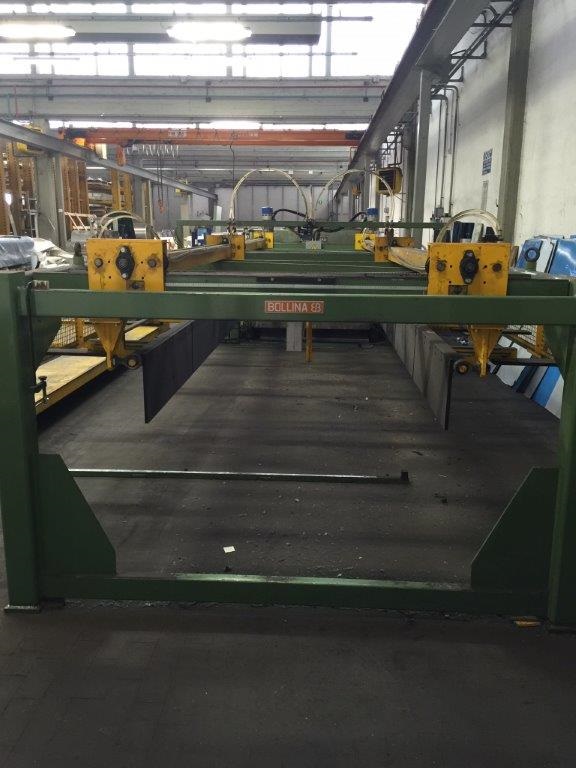

- sheet stacker, L = 4.000mm (built: 2005)

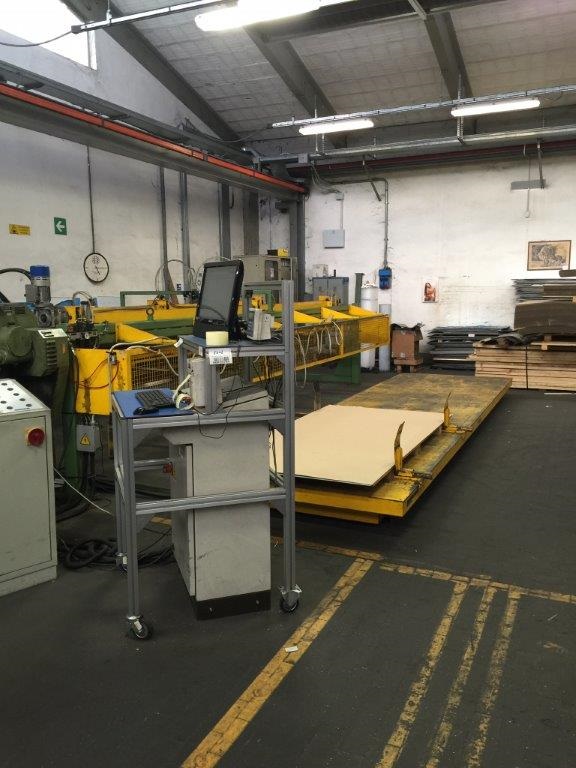

- stacking table, movable, weight capacity 3 t, L = 4.000mm (built: 2005)
- Electric switchboard with CNC unit
