TENSION LEVELLING LINE
Tension Levelling Line STAMCO-HUNTER-BEHLEN Used [#3425]
1

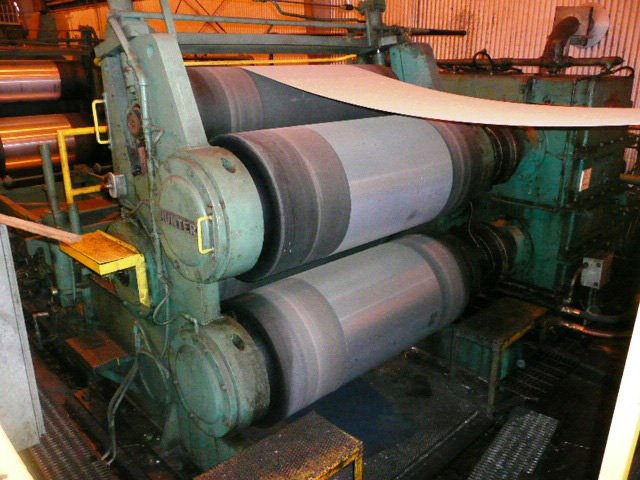

Used Tension Levelling Line
[TLL-180]
STAMCO-HUNTER-BEHLEN
FOR SALE
OFFERED SUBJECT TO BEING UNSOLD
Used STAMCO-HUNTER-BEHLEN Tension Levelling Line for sale. Sold "as is, where is". Dismantled and in warehouse since 2012.
A used Tension Levelling Line that was dismantled from a coil coating plant since 2012. Manufacturers: STAMCO-HUNTER-BEHLEN. In warehouse. We sell it “as is, where is”.
STAMCO (HERR-VOSS STAMCO) offer quality coil processing solutions: levelling technology, slitting, cut-to-length/blanking… HUNTER (DANIELI FATA HUNTER) are worldwide suppliers of turn-key plants and single-equipment for the non-ferrous metal and steel industries. BEHLEN JOINER are leaders in the design and manufacturing of hydraulic presses for joining metal coils in a continuous process, for production lines.
The line
Manufacturer
Stamco/Hunter/Behlen
Strip Thickness
.050" max / 1.27mm
Strip Width
56" max / 1422mm
Coil Size
ID - 20" / 508mm
OD - 60" max / 1524mm
Weight - 15,000lbs max / 6.8mt
Equipment List
- Uncoiler
Dual-cone type
10" and 20" ID on steel cores
Stepped mandrel, hyd expansion
100hp DC motor, regen brake
300 - 1800 rpm
- Entry Crop Shear
.050 x 62" capacity, hydraulic
- Behlen Strip Joining Press
100 ton hydraulic unit
72" wide stitching die
- Entry Leveling Bridle
4-roll unit
1 non driven roll - 21" x 62"
3 driven rolls - 24" x 62"
- Tension Flex-Roll Section
5 roll cassettes, 2 over 3
.003 - .100" capacity
2" diam work rolls
5.75" diam backup rolls
66" roll faces
Entry passline roll - 8" diam
Exit pinch rolls - 8" diam
- Exit Leveling Bridle
4-roll unit
1 non driven roll - 21" x 62"
3 driven rolls - 24" x 62"
- Thickness Gauge
Non-contact type unit
- Exit Crop Shear
.050" x 62" capacity
Hydraulic operation
- Recoiler
20" diam mandrel
Hyd expanding mandrel
Hyd pushoff
Sliding base
Edge guide
200 hp DC drive
