TENSION LEVELLING LINE
Tension Levelling Line BWG Used [#3428]
1
Used Tension Levelling Line
[TLL-195]
BWG
FOR SALE
OFFERED SUBJECT TO BEING UNSOLD
Used BWG Tension Levelling Line of 1975 (revamped and new electrics & electronics 1999), for sale. Coil width 1350mm max. and material thickness 6mm max. Coil max. weight 10 MTon. --- Sold "as is, where is" EXW installed.
A used Tension Levelling Line for sale by BWG. New in 1975, mechanical overhaul & new electrics/electronics 1999. The max. coil width is 1350mm and the max. material thickness 6mm. Coil max. weight 10 MTon. --- Sold "as is, where is" EXW installed.
BWG of Germany build quality strip processing lines, coil and slab handling systems, temper mills, tension levelers, roll coaters…
The line
Manufacture
BWG / 1975
Total Rebuild
1999 - mechanical overhaul
1999 - PLC & DC electrics replaced new
Strip Width
1350mm max
Strip Thickness
0.5mm - 6.0mm
Line Speed
100 mpm
Coil Size
ID - 453/620 entry, 508mm exit
Weight - 10 mtons /22,000 lbs.
Material
Steel-cr/galvanized/coated/stainless
Aluminum
Elongation
5% max
Equipment list
- Uncoiler
Mandrel, hydraulic expansion
100 hp DC motor
- Fife Steering Unit
- Pinch Roll 2-roll, 20hp DC motor
- Flattener 5-roll
- Entry Crop Shear Mechanical type
- Brush
- Embosser Clamp type
- Pinch Roll 2-roll
- Entry Tension Bridle
4-roll horizontal type
220 kW DC motor driving a mechanical differential
1225mm diam x 1524mm face rolls, Rubber coated
- Rolling Mill BWG 2-Hi skinpass mill
- Flex-Section Leveler
BWG 6-Hi cartridge type
- Work Rolls
45mm diam x 1494 mm face
- Backup Rolls
35mm diam x 1494 mm face
- Exit Tension Bridle
4-roll horizontal type
220 kW DC motor driving a mechanical differential
1225mm diam x 1524mm face, Rubber coated
- Pinch Roll
- Exit Crop Shear
Mechanical type
- Inspection table
- Fife Steering Unit
- Tension Roll
2-roll, rubber coated
- Recoiler
Mandrel type, hydraulic expansion, 55 kW DC motor
- Belt Wrapper
- Exit Coil Car
- PLC
Rockwell, new in 1999
- DC Drives
Reliance, new in 1999
- Edge Control
Fife system

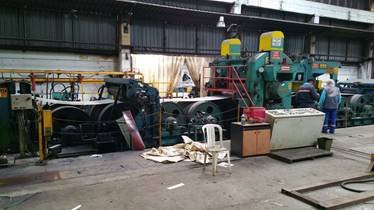

PHOTOS & IMAGES
