MULTI-CUT BLANKING LINE
Multi-Cut Blanking Line SPOTTI Used [#3306]
SOLD
1
Used Multi-Cut Blanking Line
1600mm x 2.0mm
SPOTTI
Year when built: 1991
1600mm x .6 - 2.0mm
70m / min
Year when built: 1991
Line direction: left to right
Line overall dimensions: 30m x 10m
PROCESS MATERIAL:
COLD ROLLED STEEL, PREPAINTED STEEL
MATERIAL THICKNESS:
Minimum mm .6
Maximum mm 2.0
The line is installed and under power.
It suits for:
Min. / Max. Coil Width: 200mm / 1600mm
Coil Max. Weight: 15 t
Min. / Max. Coil ID: 508mm / 610mm (spacers)
Max. Coil OD: 1800mm
Min. / Max. Part Length: 200mm / 3150mm
Sheet Length Tolerance: +/- .5mm
Its max. speed is 70m / min
EQUIPMENT LIST

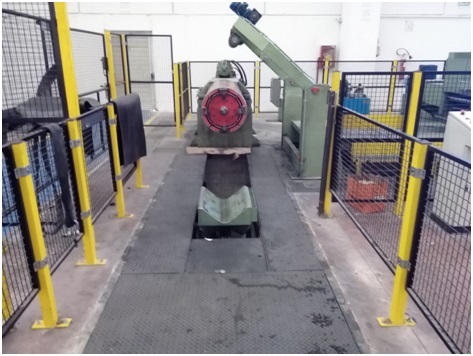

Coil loading Car

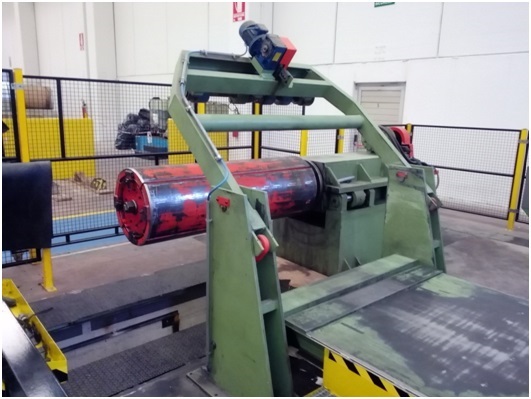

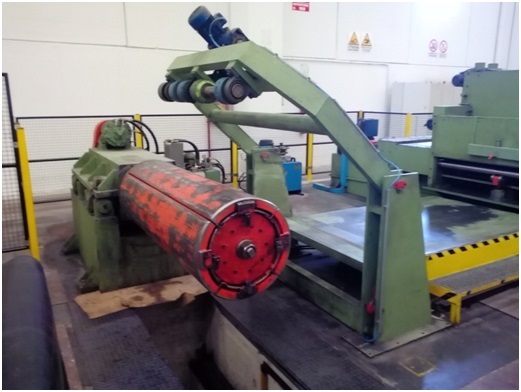

Overhung Drum Type Decoiler
Straightener: 5-roll with roll dia. 90mm

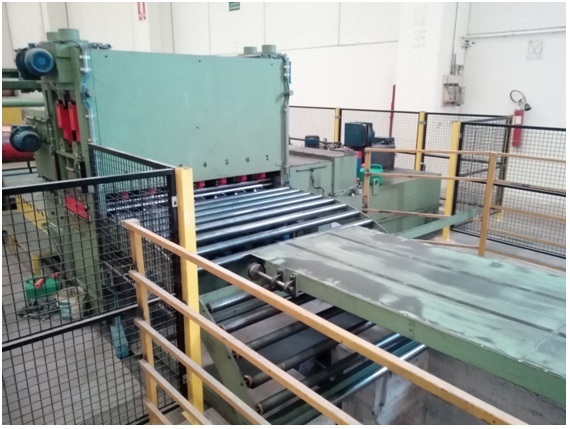

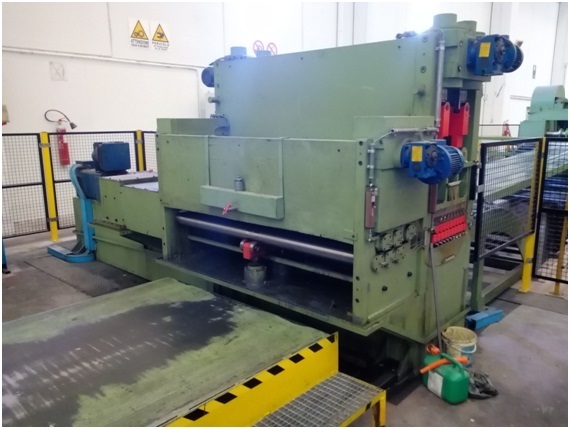

Leveller: 19-roll with roll dia. 45mm

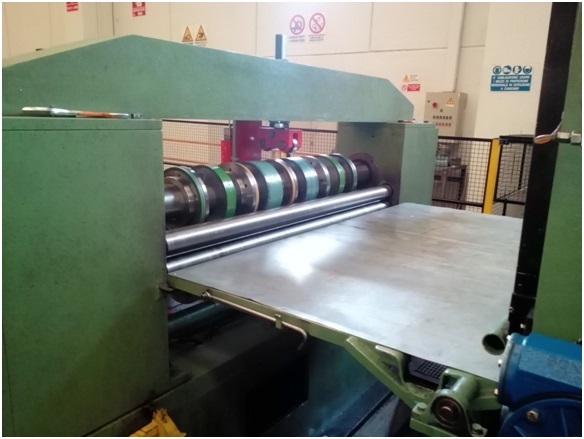

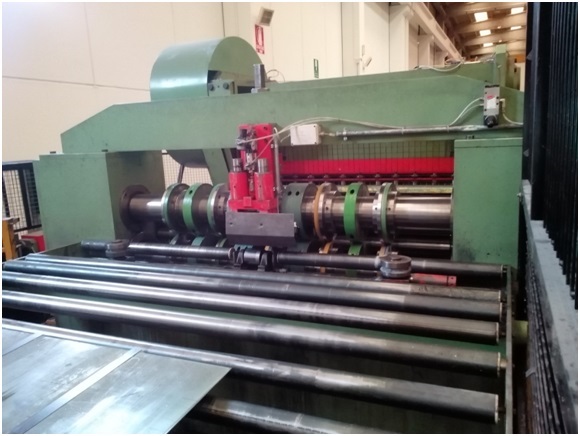

Slitter Head: arbor dia. 150mm
Circular knives - O.D. 273mm

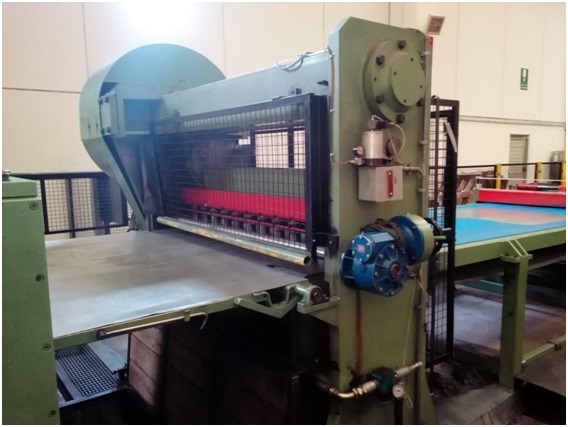

Static Guillotine Shear

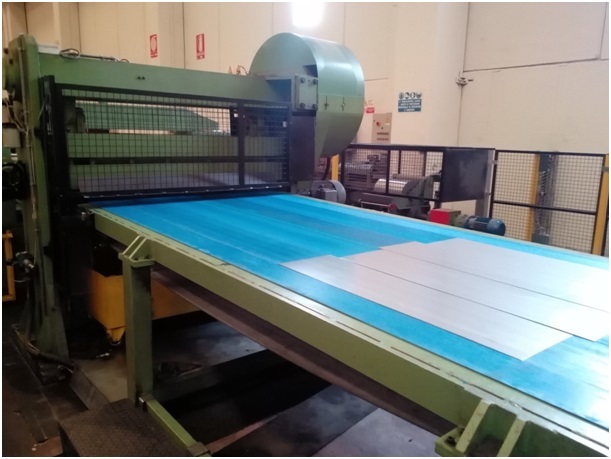

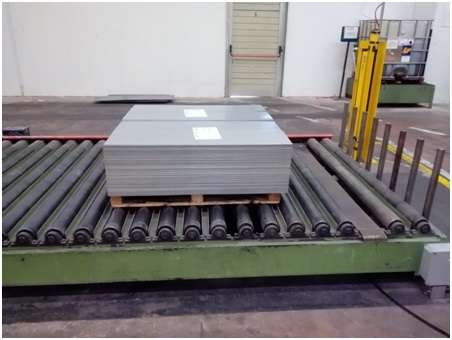

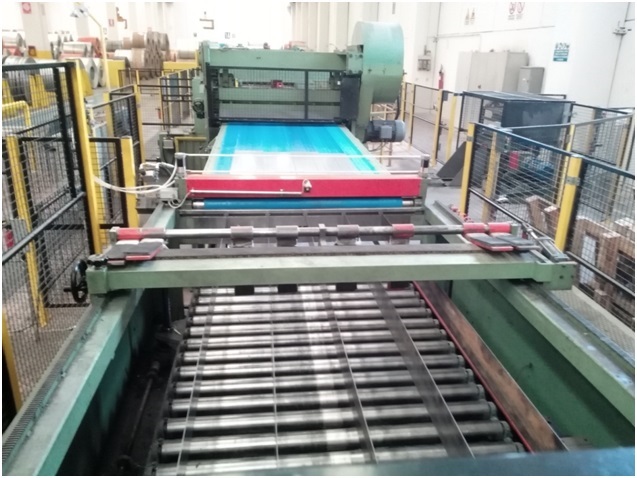

Sheet Stacker with joggers
(fall-down type)
- max. stack weight 4 t
- max. stack height 300mm
