MULTI-CUT BLANKING LINES
Multi-Cut Blanking Lines FLOREANI & PARTNERS New [#3441]
1
New Multi-Cut Blanking Lines
1500mm x 2mm
FLOREANI & PARTNERS
with 4 auto. CNC programmable slitting heads
Line capacity with Rmax = 410 MPa: alu., copper, galv.,
prepainted…:
.5mm to max. 2.0mm thick
- with stainless steel:
.5mm to max. 1.2mm thick
-
30m / min the max. material-feed speed
“Stop/Start” & Non-Stop” Versions available
5 Ton Powered Decoiler with Snubber Arm
455—530mm Coil ID, 1300mm max. Coil OD
AC/Inverter Drive
Manually Adjustable Material Entry Guides
dia. 120mm Pinch Rolls
dia. 100mm Straightening Rolls
Mechanical Power Cutoff Shear
Encoder

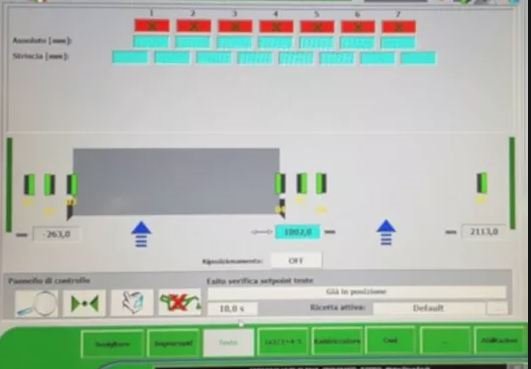

4 x ‘GP26 Model’ automated CNC-Programmable Slitting Heads
with powered knife clearance adjustment
AC/Inverter Drive
Centralized Lubrication
Strip Pull-Out Exit Rolls
Options:
• ‘Cl 05 Model’ ’5 Ton Coil Loading Car
• Protection Film Applicator
• 1 Ton Auxiliary Recoiler & Coil “Partial-Cut” System incl. apposite Shear
• NC Marking Unit
• Extra- Slitting Heads as above

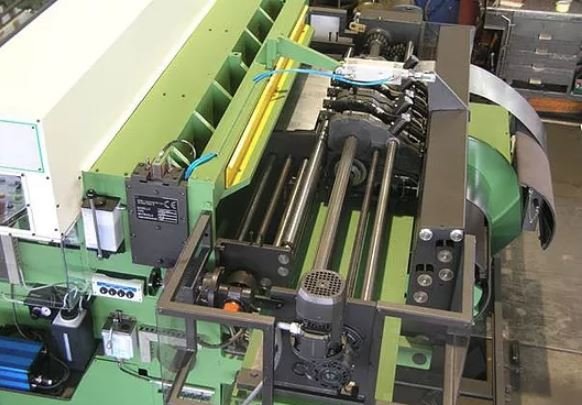

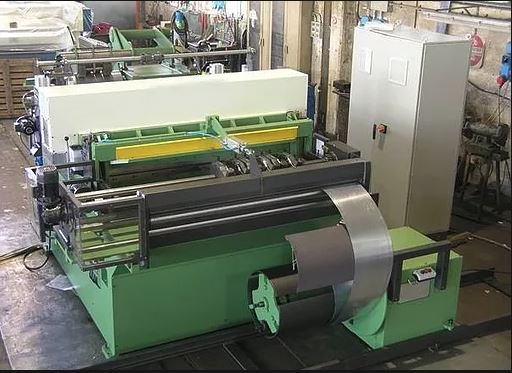

PHOTOS & IMAGES
