COMPACT LOW-COST COIL FED FIBER LASER CUTTER FOR MAX. 1020mm x 1mm MATERIAL, 15m / min

2010-10 COMPACT LASER CUTTER

2010-10 Compact Laser Cutter FLOREANI & PARTNERS New [#2225.1]
   Laser Cutting Machines LCU  2010-10 Compact Laser Cutter FLOREANI & PARTNERS New [#2225.1]
1

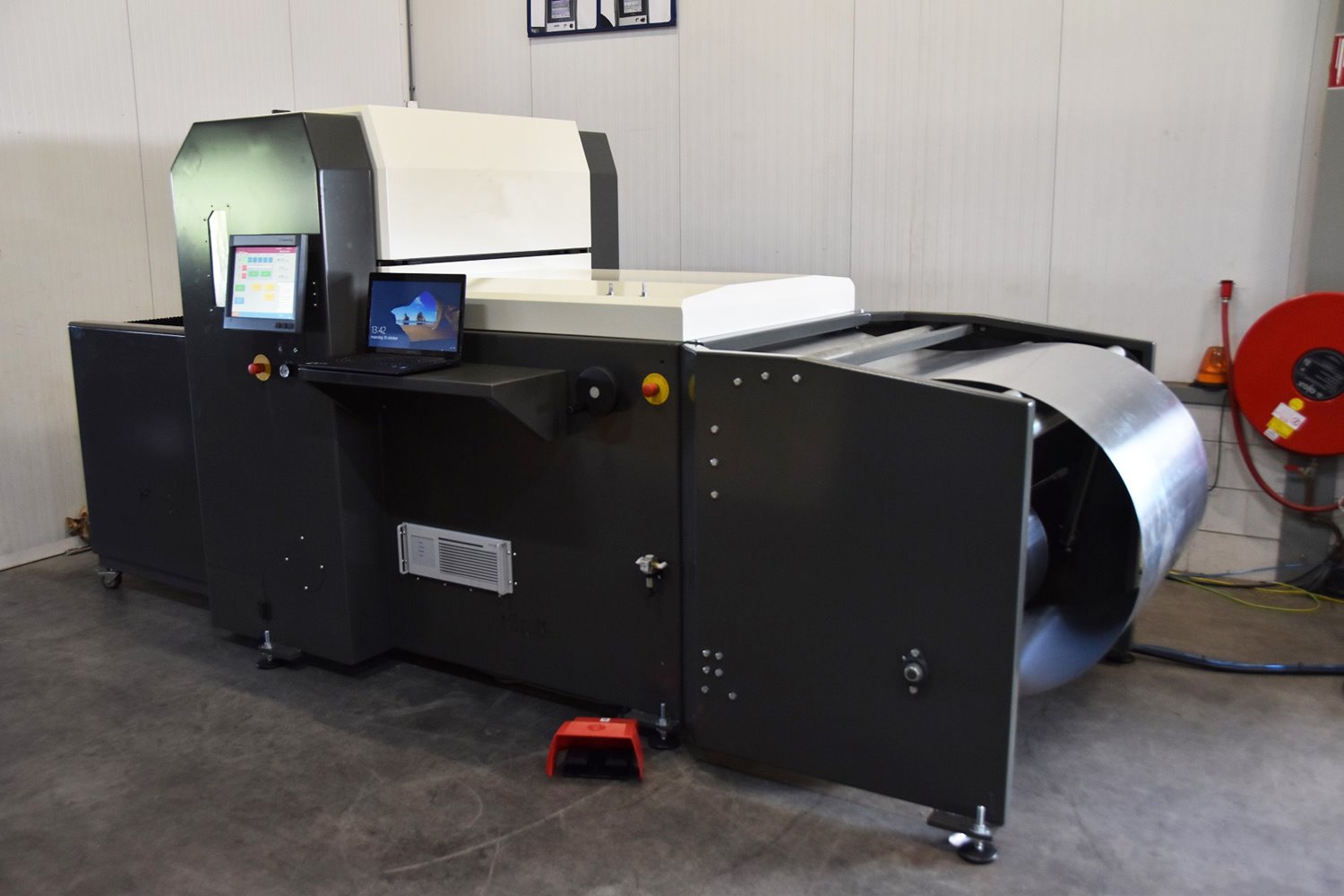

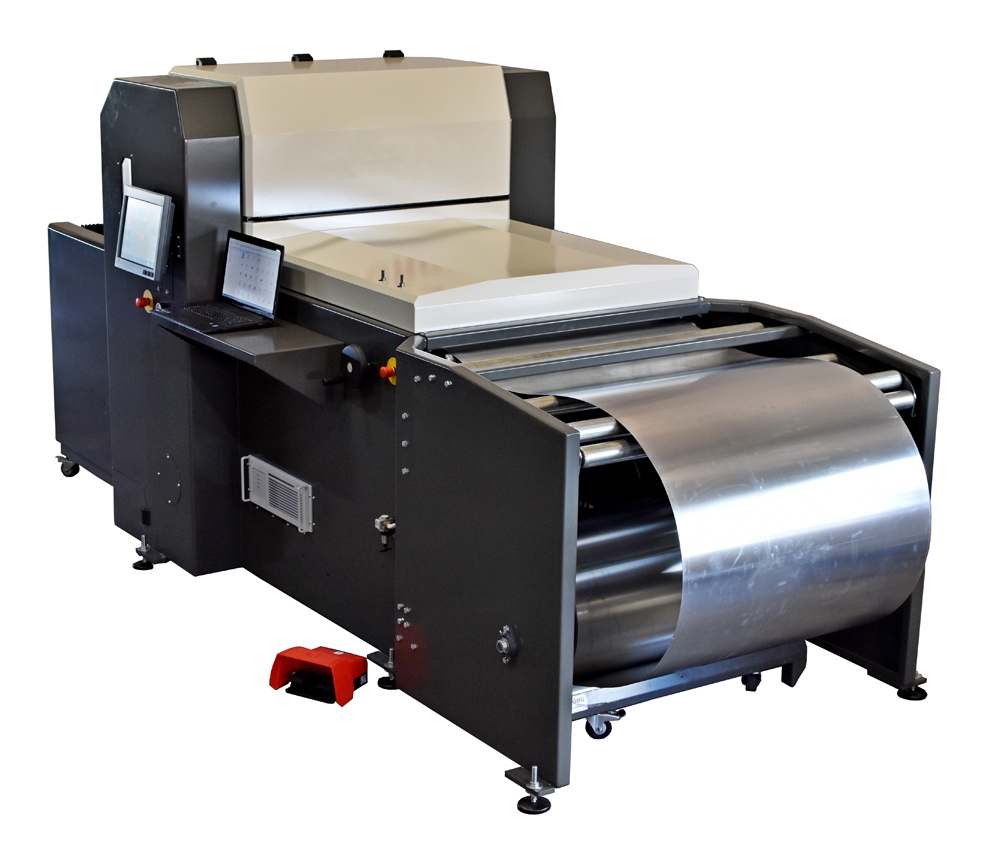

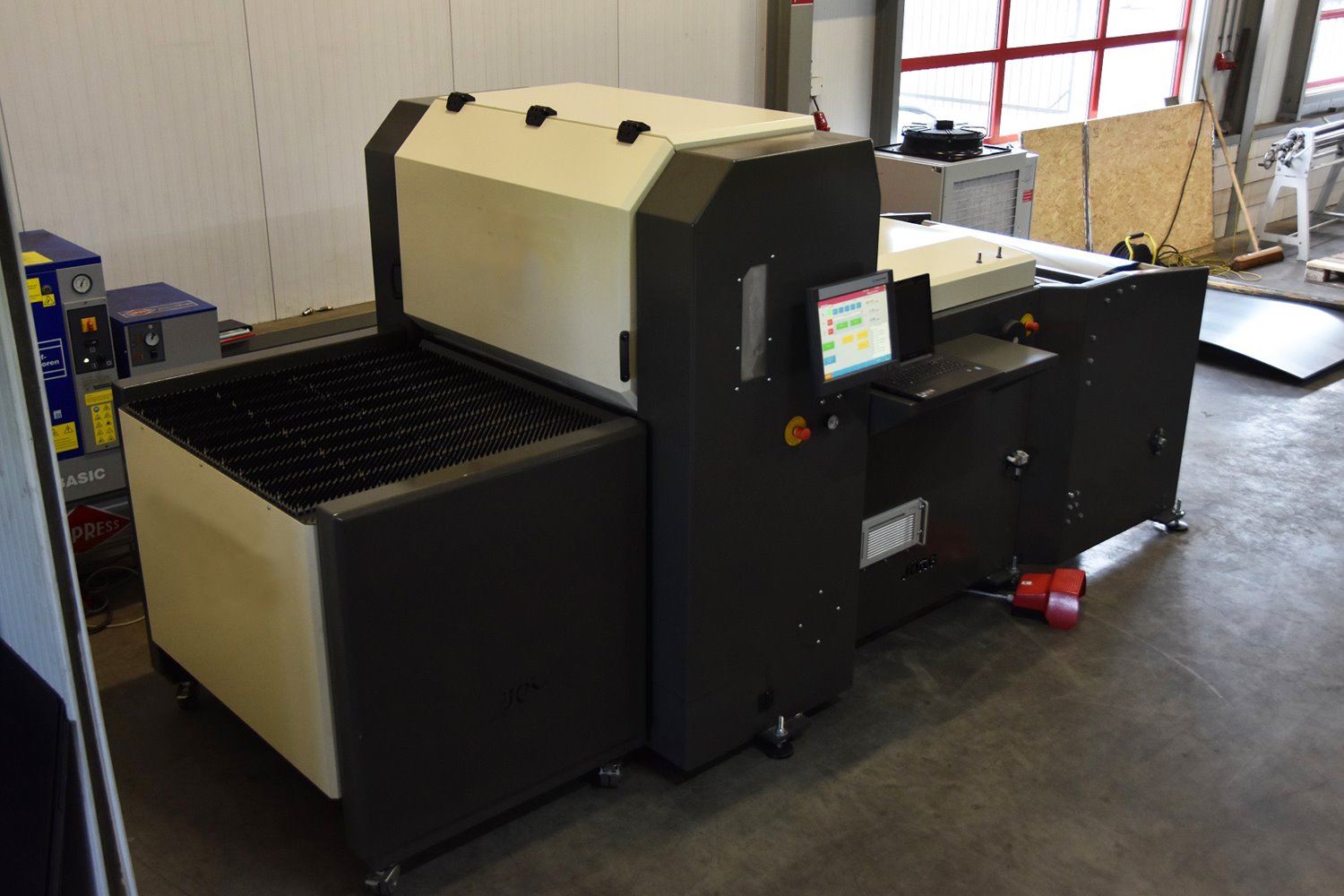

New 2010-10 Compact Laser Cutter
1 kW power -- 1020mm-wide
FLOREANI & PARTNERS

  • for “INSULATION CLADDING” & DUCTING


COMPACT LOW-COST COIL FED FIBER LASER CUTTER FOR MAX. 1020mm x 1mm MATERIAL, 15m / min


A COMPACT LOW-COST COIL FED FIBER LASER CUTTER FOR MAX. 1020mm x 1mm ALUMINIUM, MILD AND STAINLESS STEEL, STUCCO, ALUZINK... ETC. COILS.
1 kW LASER POWER. MAX. 15m / min.
“ECONOMY” STOCK REEL/S.
AUTODESK FABRICATION CAMDUCT OR OTHER SOFTWARES.
LOW WEAR AND MAINTENANCE COSTS ...



Model 2020-10 Compact
Laser power 1 kW
Max. cutting or moving speed 15m / min
Working width 1020mm
Max. material thickness 1mm
Max. coil weight 1000 kg
Power consumption 3.2 kW (the laser source) + 1.75 kW (the servomotors) + 7.0 kW (the chiller)
Dimensions of machine 3050mm x 1910mm x 1900mm (L x W x H) excluding: chiller, smoke extractor, exit table

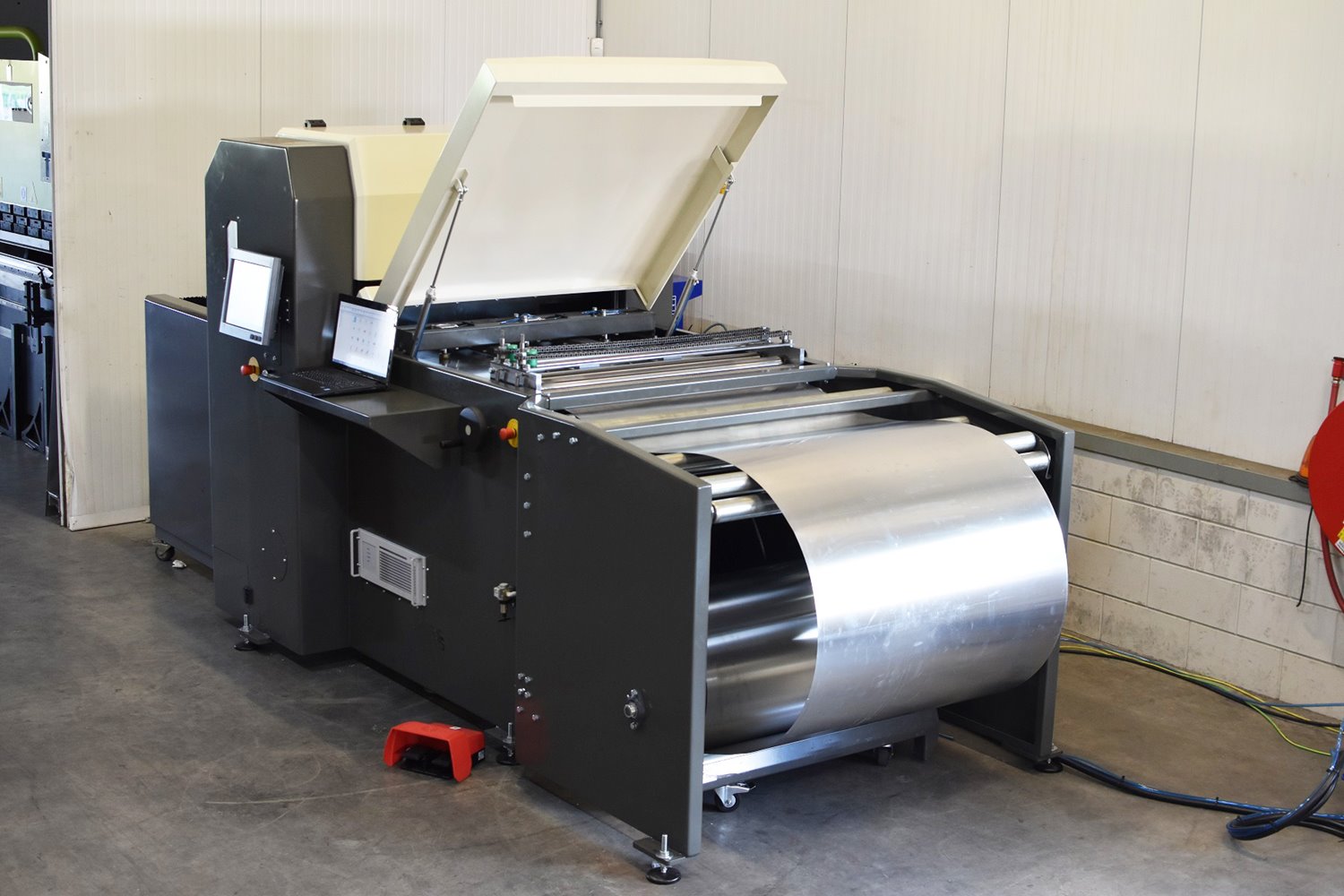

• A compact, small-footprint machine with built-in straightener
• Smaller and also compact laser source: IPG type YLR 1000
• “Precitec” cutting head with manual adjustment of focal height
• It smoothly and accurately cuts aluminium, mild and stainless steel, stucco, aluzink etc. (but materials with protective foil can only be cut very slowly)
• Cutting speed up to 15m / min, accuracy +/- .2mm including holes
• “All shapes that can be drawn, can be cut”
• Less wear and less maintenance on machine with the contactless cutting
• Limited material waste thanks to optimal nesting and programming, with variable lengths direct from coil
• The produced parts remain connected with very small micro-joints, that can very easily be adjusted on the machine
• Reduced noise during machine operation
• With the material clamped by pneumatic clamps and moved by a spindle, movements are very accurate and reproducible
• Easy to operate machine
• Very good results when cutting with compressed air in lieu of N2 gas. A regular compressor suffices, with cool drier; just a booster is recommended to get proper air pressure. Notable money saving with air!
• Coil width: up to 1020mm
• Autodesk Fabrication Camduct the “standard” software. However, the machine can also can work with other programming softwares: just a post-processor must be available



EQUIPMENT DESCRIPTION:


Machine including control, servodrives and standard cutting head
IPG Laser, Type: YLR 1000
Chiller for the laser.
1000 kg Mod. 4902-60 coil carrier on wheels

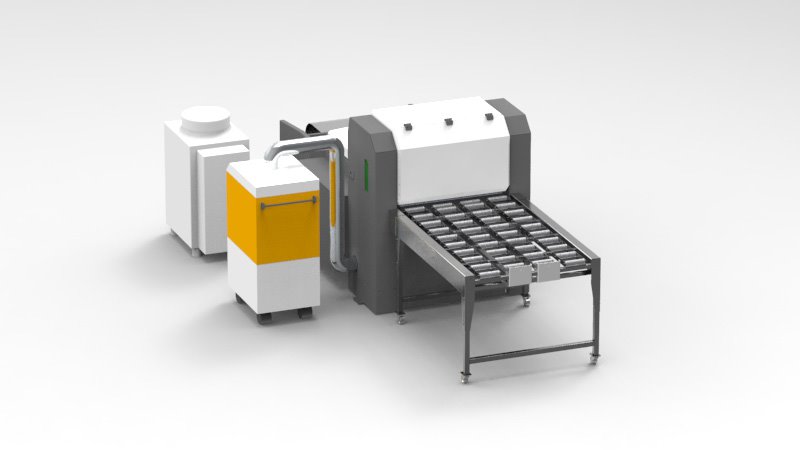

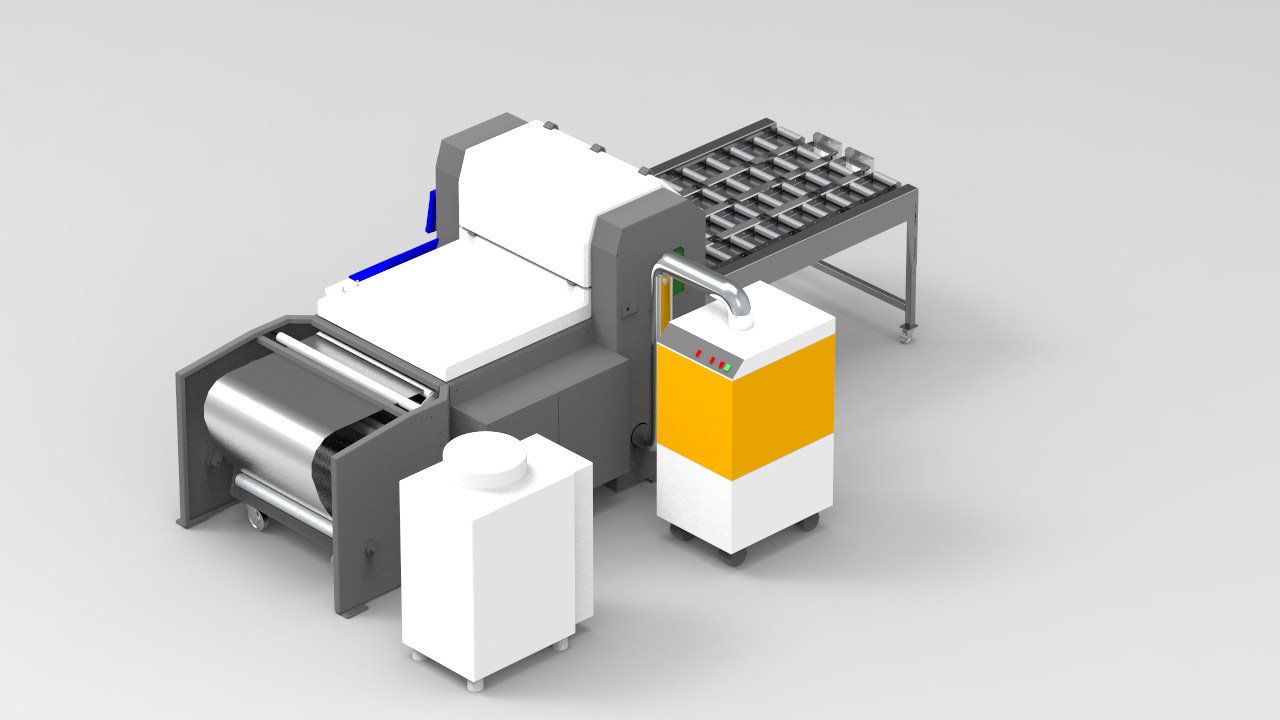

Accessories & options:
Extra coil carrier Mod. 4902-60, 1000 kg
Smaller coil carrier Mod. 4902-50, 300 kg
Extractor with automatically cleaned filters, ca. 3000 m3/hour
Booster for cutting gas from compressor, charging 10 to 15 bar
Exit table, 1m or 2m or 3m or 4m long
