New Tube Laser Processing Systems
(Fiber Laser)
F&P
BUILD TO ORDER CUSTOM DESIGNED




    OUR FIBER LASER PROCESSING SYSTEMS FOR TUBES AND “OPEN” PROFILES WITH AUTOMATIC LOADING AND UNLOADING, CAN PRODUCE THE MOST COMPLEX GEOMETRIES ON ROUND/SQUARE/RECTANGULAR/OVAL TUBULAR MATERIALS AND “OPEN” PROFILES. THEY DELIVER HIGH PRECISION COMPONENTS THAT ARE READY FOR ASSEMBLING, WELDING, FABRICATION…


    Laser tube cutting systems (for also large diameters & wall thicknesses): a must for countless industries today. Common applications of laser tube cutting are: bed and chair frames, clothing racks, construction equipment, display cases, lift equipment, shelving, store fixtures, tables… and roll formed products generally. ---- We have the laser tube processing equipment for you: see it under power at our Plant!



    For your enquiries please use the Questionnaire in Attach.


    Click here for: Models available ex-stock #5066

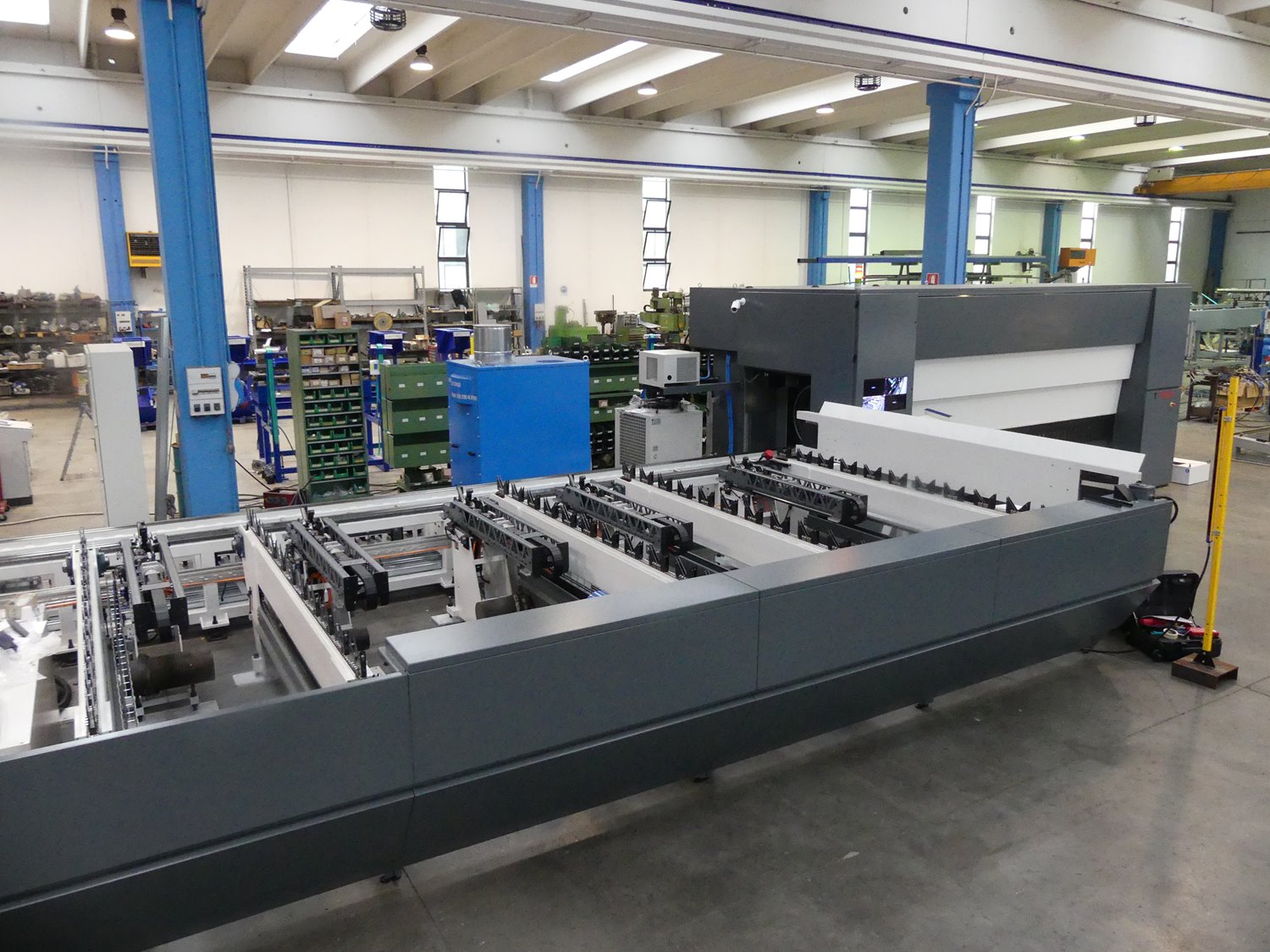

    General information on our Fiber Laser Tube & “Open” Profile Processing Systems, capable of processing tubes up to ø220mm and corresponding sections

    • Fiber laser resonator: 2 Kw std. Power
    • Main spindle speed: up to 120m / min
    • Industrial Ethernet enabled touch panel, easy to use
    • Hydraulical clamps with proportional valve system
    • The loader can handle different types of tubes and open/closed profiles
    • Two belt conveyor modular unloader
    • G-code programming, CAD/CAM integrated solution with the possibility to import external files, integrated system for drawing, optimization and nesting of tubes
    Capacity: Ø20 → Ø220mm and “derived”
    Loader capacity: L= 3000–7000mm, max ø170mm
    Unloader capacity: L= 3500mm (standard; more on request)
    Products that can be processed: round, square, rect., oval, L, U
    Laser source power: standard 2Kw fiber laser
    Number of controlled axes: 20
    Cleaning of work area: scrap conv.
    Machine weight: 2500 kg

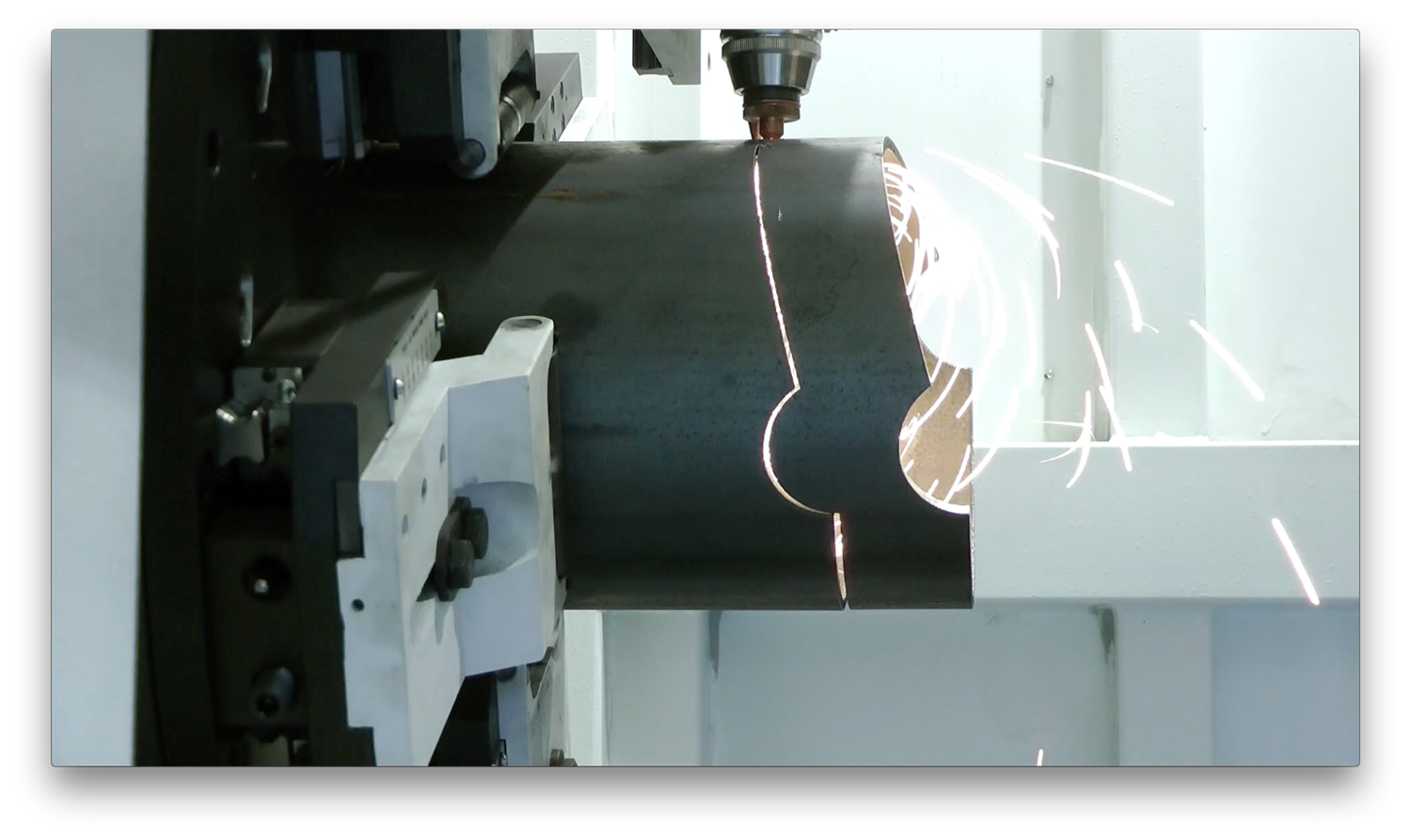

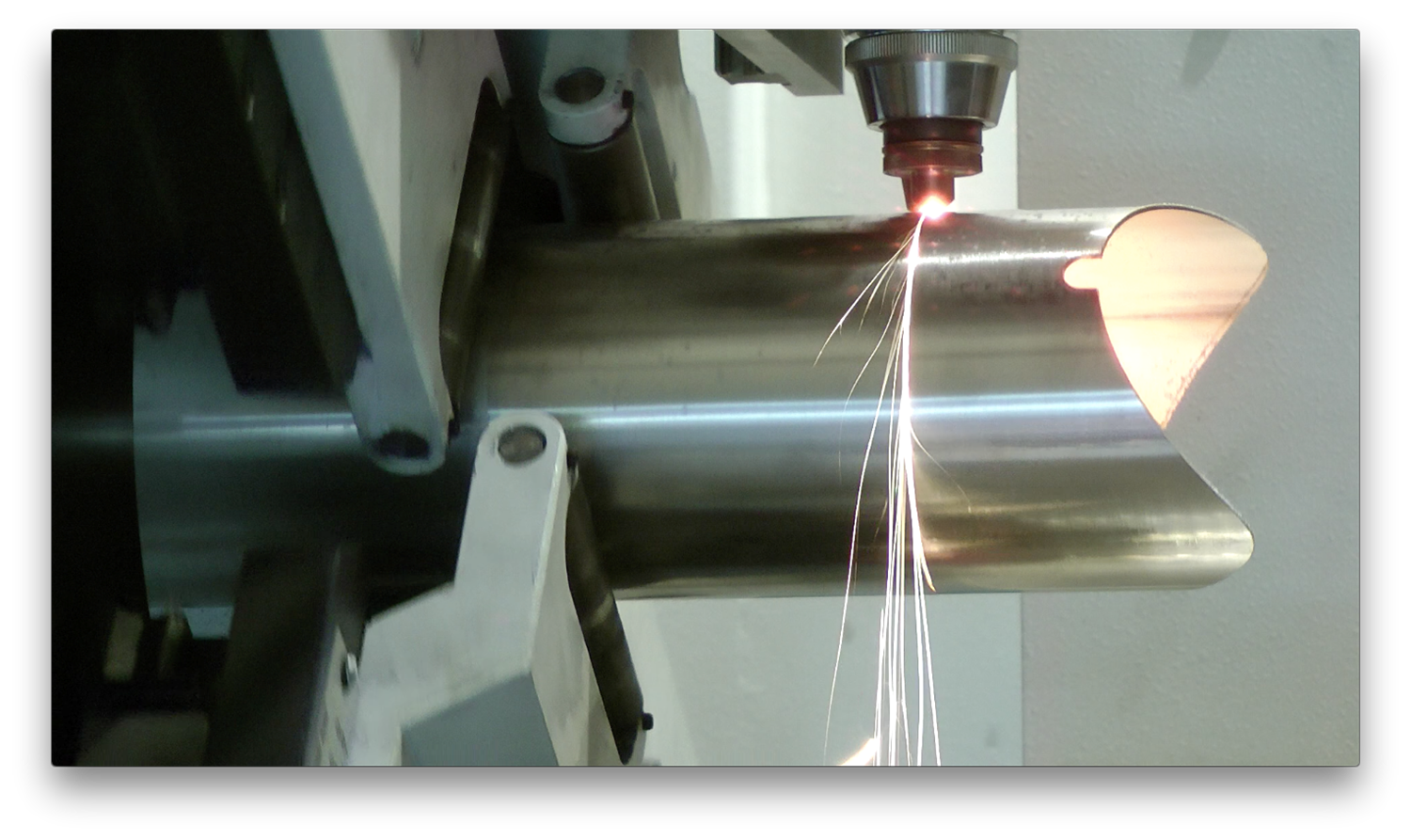

    Laser technology has a new, larger role in cutting tube and pipe. It's suitable not only for niche applications, but also for broader tube cutting applications such as cutoff.


    In today's manufacturing environment, 2-D lasers are the standard for cutting flat sheets and plate. Nearly everyone is familiar with laser technology's capabilities and speed for 2-D part processing. What may not be as well-known, however, is laser's 3-D capacity for mainstream processing of tubing and structural tubular components.

    The assumption that 3-D lasers are highly specialized and applicable only for limited use could not be further from the truth. Five years ago 3-D lasers began being developed to process tubing and structural tubular components in one operation and with a high degree of accuracy.

    With a better understanding of 3-D lasers and what they can offer, fabricators may be able to realize cost savings and lead-time reductions.


    3-D Configurations

    3-D lasers come in many different standard configurations to meet the varying needs of tube fabricators. For a fabricator who needs to fabricate flat parts and tubes, many traditional 2-D machines have been redesigned to include a table-mounted rotary chuck, as well as a multiaxis head configuration. For a fabricator producing high volumes of tubular parts, dedicated tubing lasers are most suitable.

    These machines have two basic configurations—bundle-style and versatile-style. The bundle-style machines are designed to accept bundles of round, square, and rectangular tubes for high-volume batch processing applications. Versatile-style machines, for just-in-time (JIT), low-volume applications, are designed so that the material infeed uses V slots to transport the tubing into the machine chucks. Each V slot can be loaded with a different tube shape or diameter. Versatile machines also can process structural tubular components such as C channels or I beams.


    Software Is Key to Improvements

    The part programming software is key to the advancements in 3-D laser tube processing. The processing capacity and speed of today's personal computer and the advances in CAD/CAM technology have turned what was a complex and time-consuming programming process into a fast and easy-to-understand function. Most of today's 3-D laser cutting machines also come with programming software features that are unique to the machine's processing capabilities. Software packages offer part design, programming, collision detection review, and nesting. Design features can include 3-D solid model importing or part model development from 2-D CAD drawings.

    Some of the software packages also include CAD modules that allow the development of tubing models from original concept or from 2-D paper drawings. Once the part model is brought into or developed by the software, programming can be completed by detecting the cut features and adding cutting technology to these features.



    Laser-cut tubes can be designed and cut with assembly aids such as weld prep bevels and slots and tabs that minimize or eliminate the need for welding fixtures.

    Cutting technology tables allow the program to set the cutting conditions based on the part features. Part features, including straight line, circular, corner radius, and bevel angles, may require different cutting conditions that the software can automatically select. Operators can revise cut conditions in the tables to get the best cut quality and cutting speeds for the various materials and wall thicknesses.

    Another important feature included in some software packages is a collision detection routine. This feature allows a programmer to review a simulation of how the laser cutting head is positioned and programmed to cut the part through the entire cutting process before the program is sent to the shop floor. This process can eliminate potential machine damage caused by a collision of the cutting head with the part during the program cycle.

    Finally, nesting routines also have been added to the software packages. Nesting allows a programmer to group parts that will be cut from the same material and cut them sequentially to maximize the "in-cut" time. More advanced packages allow the programmer to orient the parts to minimize the space between sequential parts, thereby reducing scrap. Often common-line cutting can be used when sequential parts have mating angles.


    Solid modeling and tight tolerances allow joints manufactured of multiple components to be designed and laser-cut to fit closely, improving joint fit-up, such as this patented roof truss node.


    Lasers Enhance Design Capabilities

    Perhaps the most significant advantage of 3-D laser cutting is that parts can be designed with assembly aids such as weld prep bevels and slots and tabs. Slots and tabs allow two mating parts to connect before welding, thereby minimizing or eliminating the need for welding fixtures. The tabs and slots can be designed so that they are different sizes to prevent incorrect orientation and assembly.

    Solid modeling allows joints made of multiple components to be designed and laser-cut to fit closely. Manufacturing these joints using hard tooling would be difficult at best. Also, joint fit-up might not be as precise as laser-cut parts. Because the laser beam can be very small, features that could not otherwise be made now are possible.

    Finally, some parts that had been assembled from many dissimilar components now can be made from just one piece of laser-cut tubing. For example, a tractor frame that had been assembled from several different components now can be assembled from one piece of tubing that has been laser-cut with tabbed and slotted features.



    Cost justification Is in Overall Process
    Two common questions many fabricators ask when they consider laser tube processing for the first time are: "Why should I select laser tube processing over traditional methods?" and "How can I cost-justify the purchase?"

    A reduction in the part processing time alone is not the sole cost justification for laser tube processing. Only an examination of the entire manufacturing process can show the true picture of the cost benefits. For example, part throughput can be increased with laser processing, because, typically, a tube can be laser-cut in one operation. In addition, the cost of hard tooling to support parts during traditional processing can be eliminated because laser processing does not place a physical load on the part. Non-value-added time for setup, material handling, and idle time associated with traditional manufacturing methods also is eliminated.

    One cost consideration that often is overlooked when comparing different manufacturing methods is how downstream processes will be affected. Laser processing can affect how parts fit into assemblies and future design possibilities for new products. The accuracy and part repeatability of laser processing often reduces the amount of rework required in the final part assembly.

    The final cost justification is in the cost of quality. The tight tolerances achieved with laser processing can reduce multiple setups and additional downstream operations otherwise required to ensure parts are manufactured to the designed tolerances.

    Laser cutting technology, when used to maximize its benefits, can realize cost savings for fabricators competing in a changing world market. Laser processing can help meet the demands for smaller lots sizes and quicker turnaround times. In addition, it can offer new tools for designers. The possibilities are endless and limited only by one's imagination to use the technology.



    Source: https://www.thefabricator.com/article/tubepipefabrication/lasers-loom-larger-in-tube-pipe-cutting








    Custom-built equipment needs a special kind of product support... our proposals are detailed with drawings and photos to provide clients with a full understanding of the type and quality of the equipment we offer. We send customers approval drawings with dimensions, performance specs and features before the machine is built.

    We are experienced at making our products safe, reliable and in conformance with the safety and design standards. Products are designed for maximum serviceability and reliability.
    Parts Books are shipped with each piece of equipment. They contain detailed information about installation, inspection and maintenance procedures, component parts.
