Newsletter 06.2018 [#035]
1
Newsletter
NEW FIBER LASER PROCESSING SYSTEMS FOR TUBES & ‘OPEN’ SECTIONS
06.2018
STATE OF THE ART FIBER LASER PROCESSING SYSTEMS FOR TUBES & ‘OPEN’ SECTIONS (L/ U), WITH CAPACITY UP TO Ø 220mm. AUTOMATIC PART LOADERS UP TO 7m; OFF-LOADERS 3.5m OR MORE, ON DEMAND. 2 kW FIBER LASER STANDARD RESONATOR. 20 CONTROLLED AXES. G-CODE PROGRAMMING. CAD/CAM INTEGRATED: DRAWING, OPTIMIZATION & NESTING.
JUNE 2018: LIVE DEMOS AND TWO READY UNITS FOR SALE
NEW FIBER LASER TUBE PROCESSING SYSTEMS, ALSO SUITABLE FOR WORKING ‘ L / U ’ SECTIONS. CAPACITY UP TO Ø 220mm. AUTOMATIC PART LOADERS UP TO 7m; OFF-LOADERS 3.5m OR MORE ON DEMAND.
2kW STANDARD RESONATOR. 20 CONTROLLED AXES. CAD/CAM INTEGRATED: DRAWING, OPTIMIZATION & NESTING.
LIVE DEMOS & READY-FOR-SALE UNITS AT OUR PLANT!
ASK US FOR FREE VIDEOS. VERY QUICK QUOTATIONS.

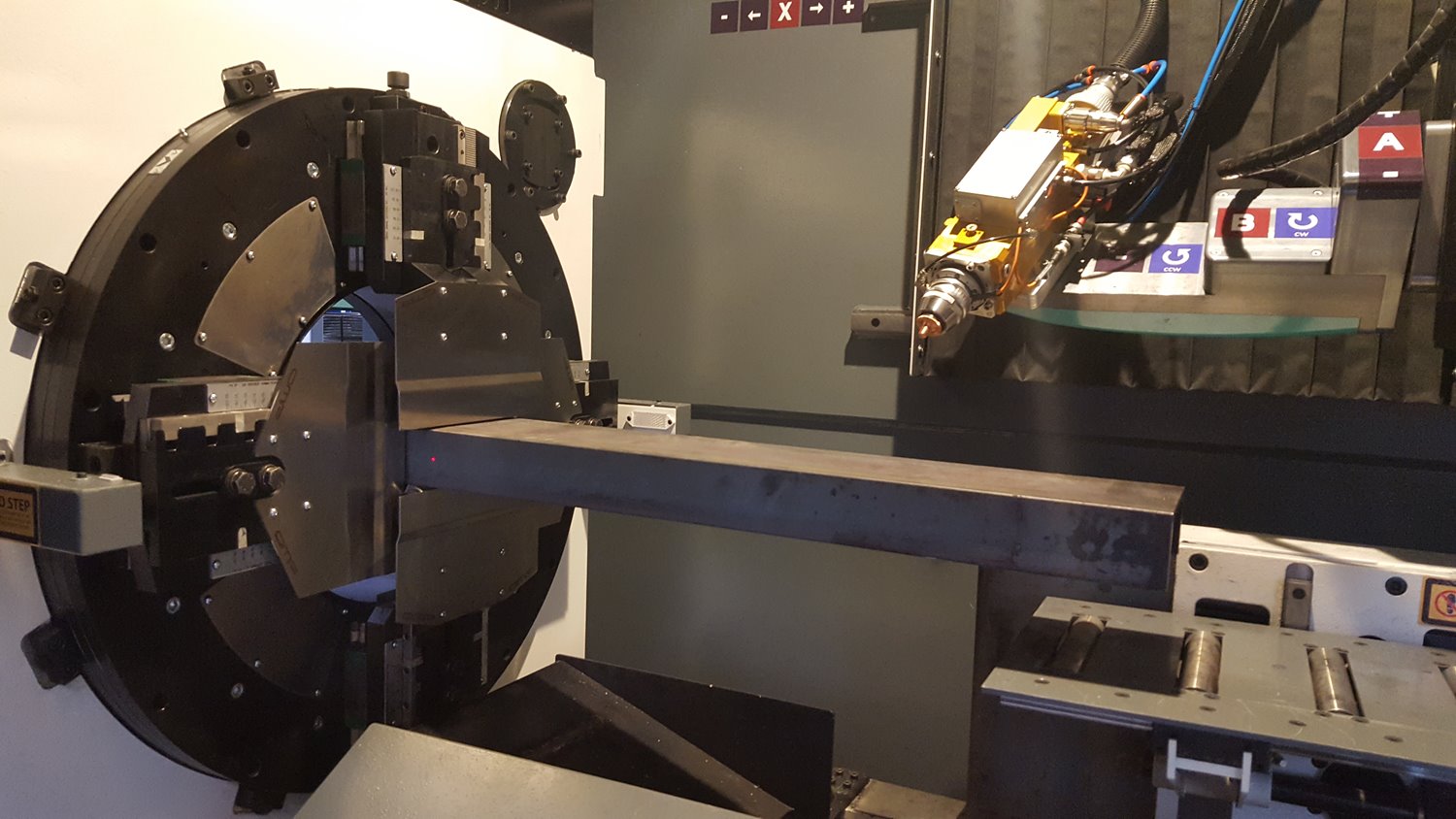

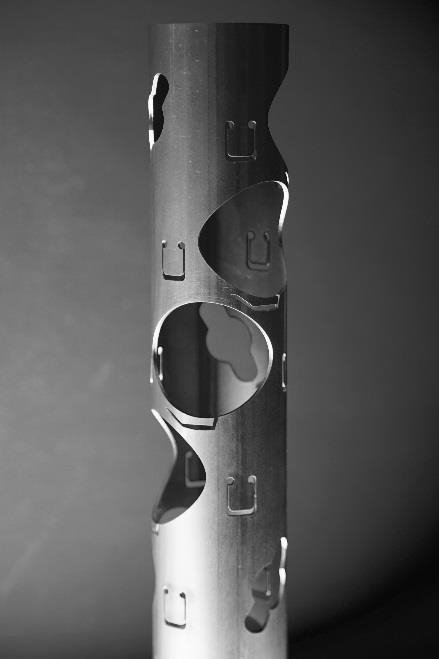

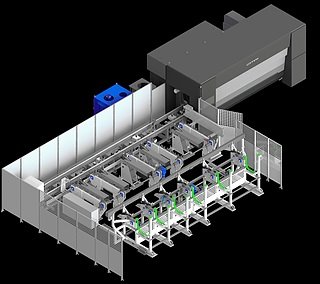

New tube & section laser cutting system with fiber source, able to process tubes up to ø220mm and “inscribed” (<) open or closed profiles
with:

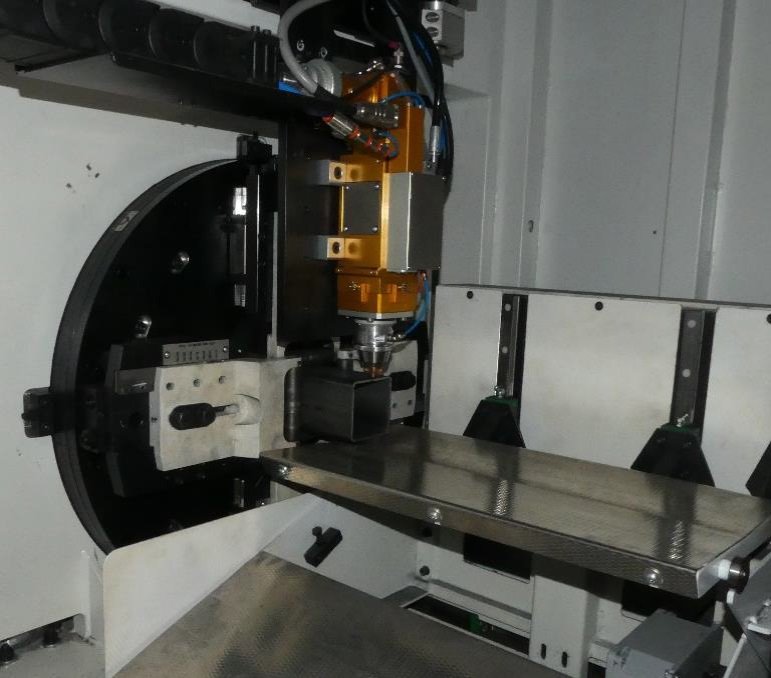

• Fiber laser resonator, 2 Kw power
• Mobile spindle speed up to 120m/min
• Industrial Ethernet-enabled touch panel, easy to use

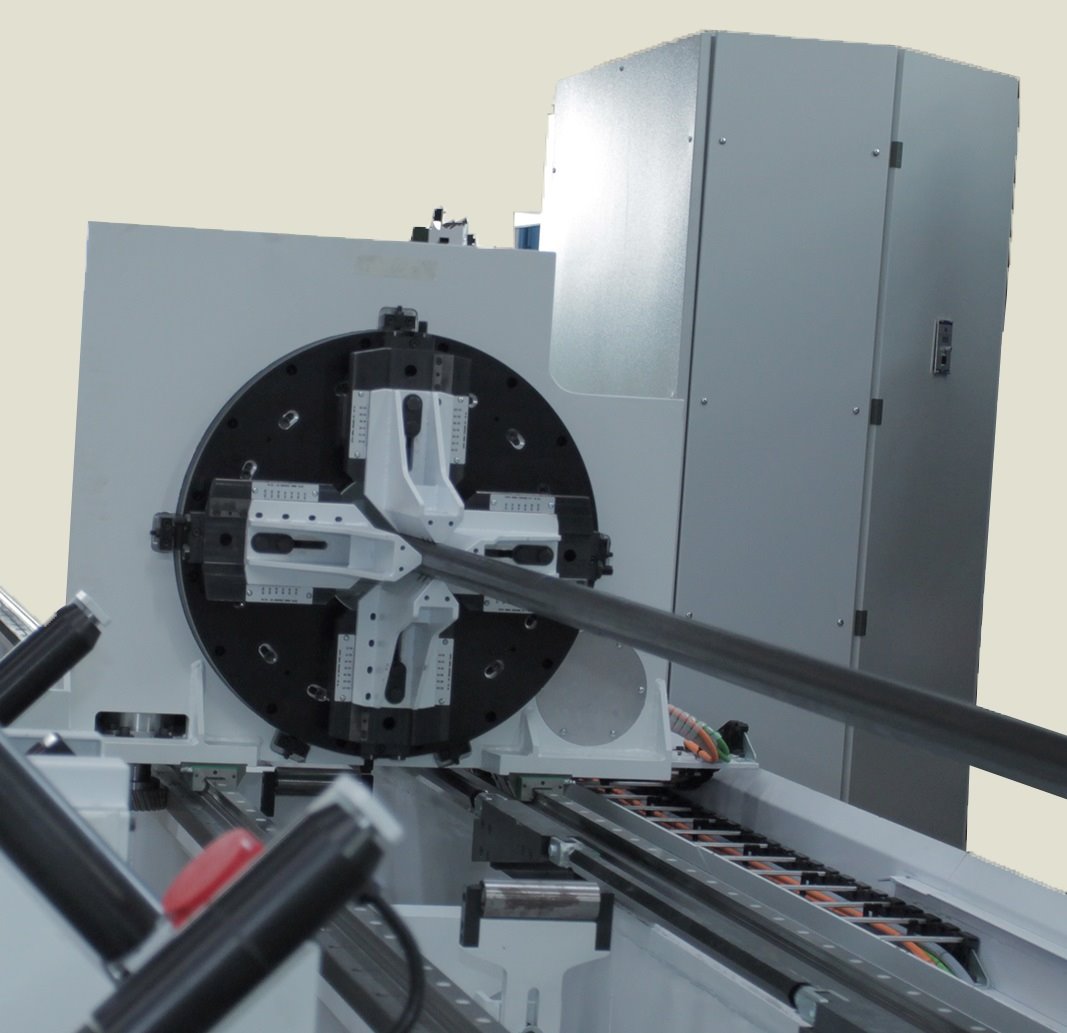

• Hydraulic workpiece clamps with proportional valves

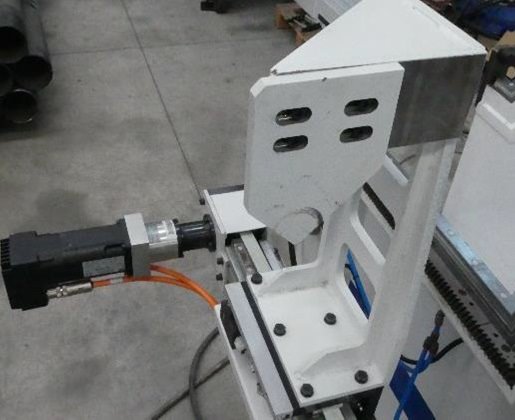

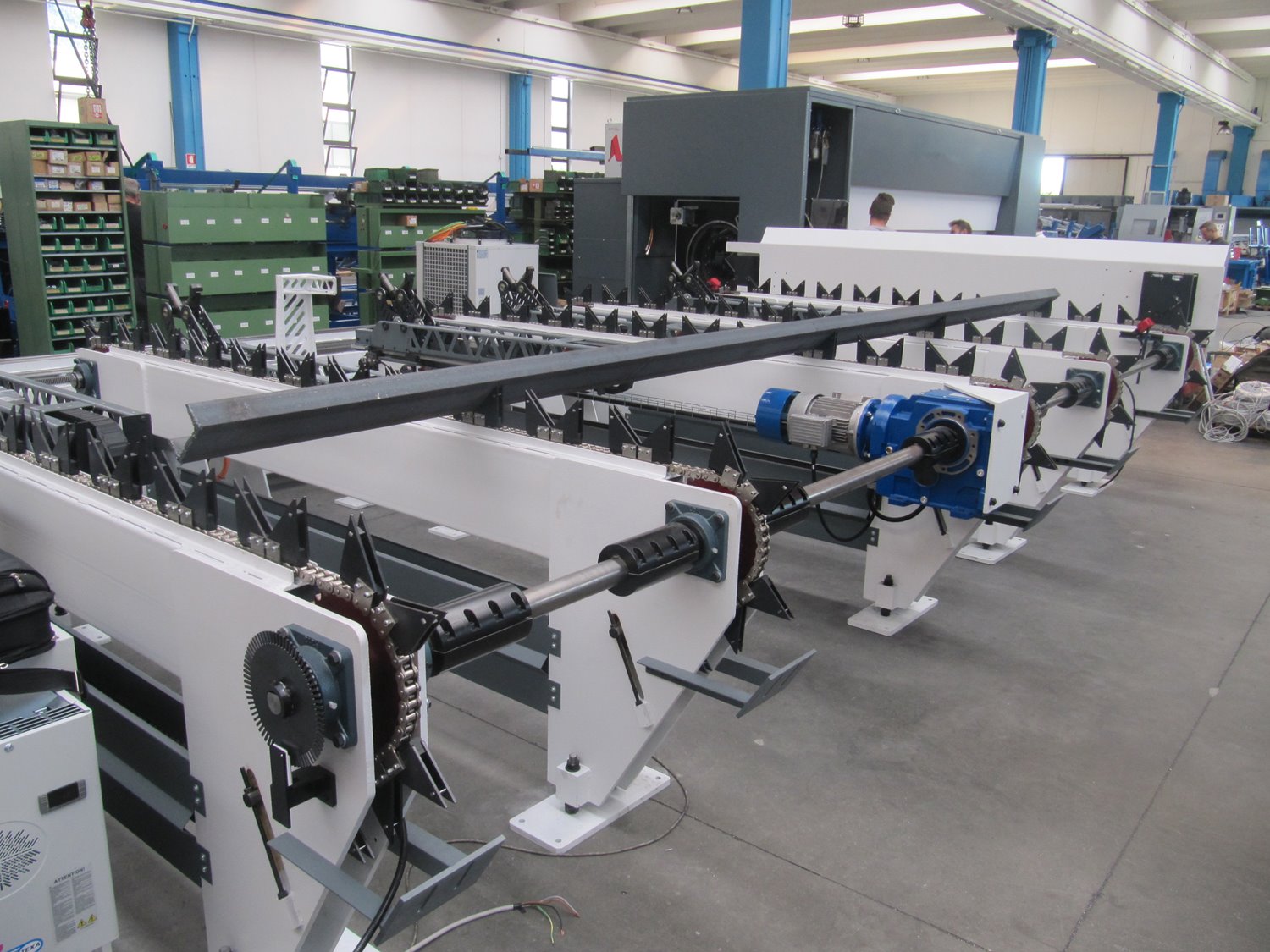

• Part loader that can handle different types of tubes and open/closed profiles

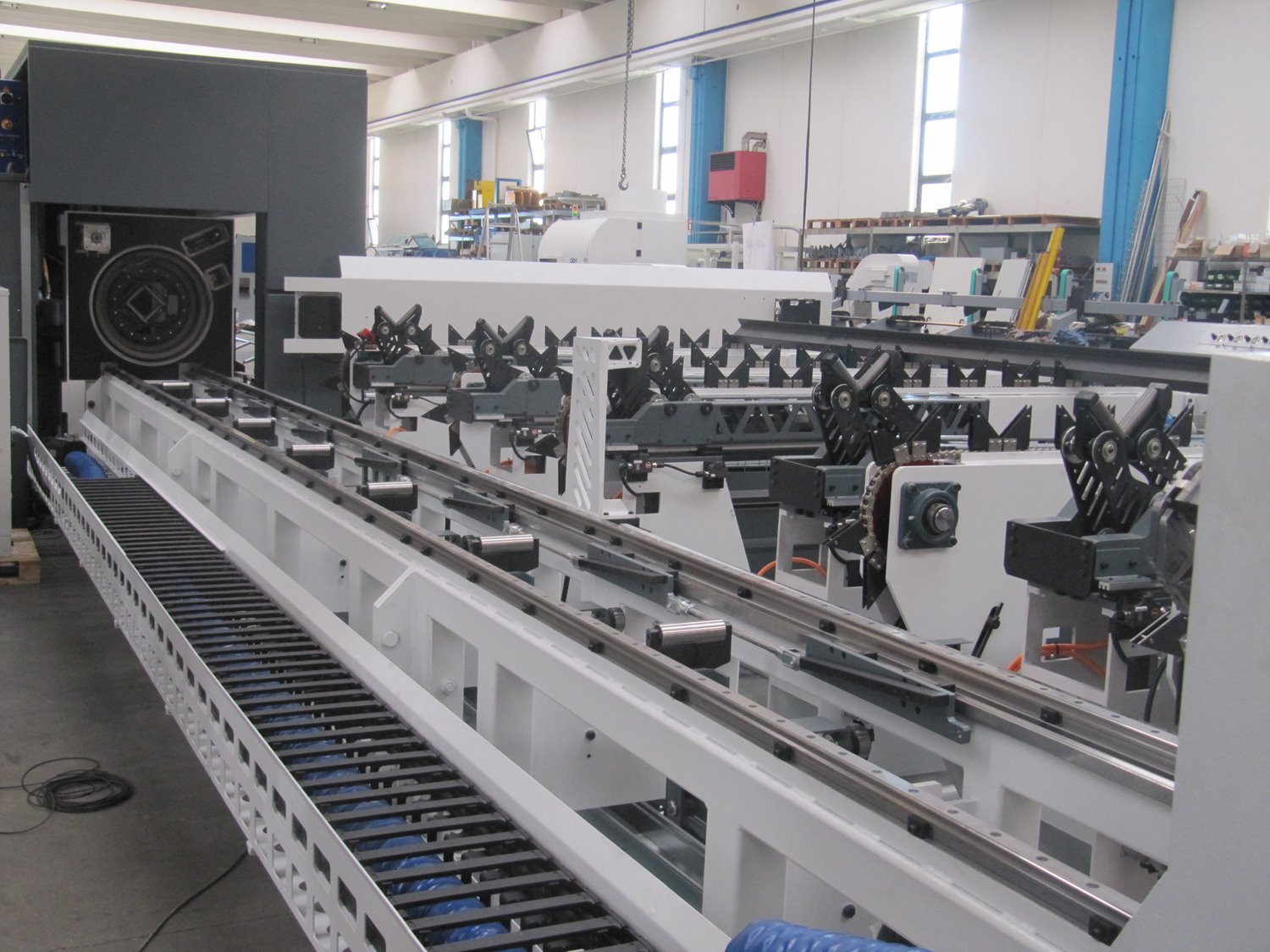

• Modular part off-loader with two belt conveyors

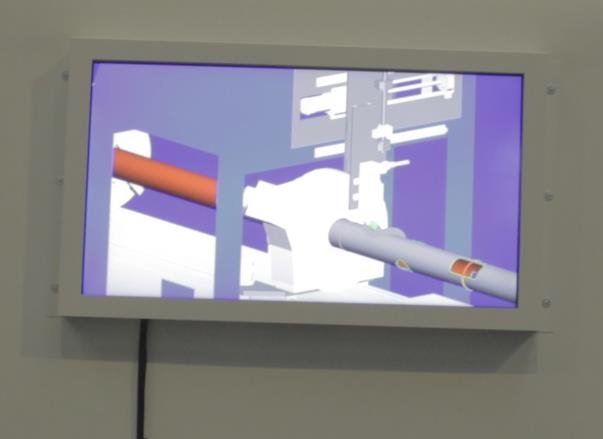

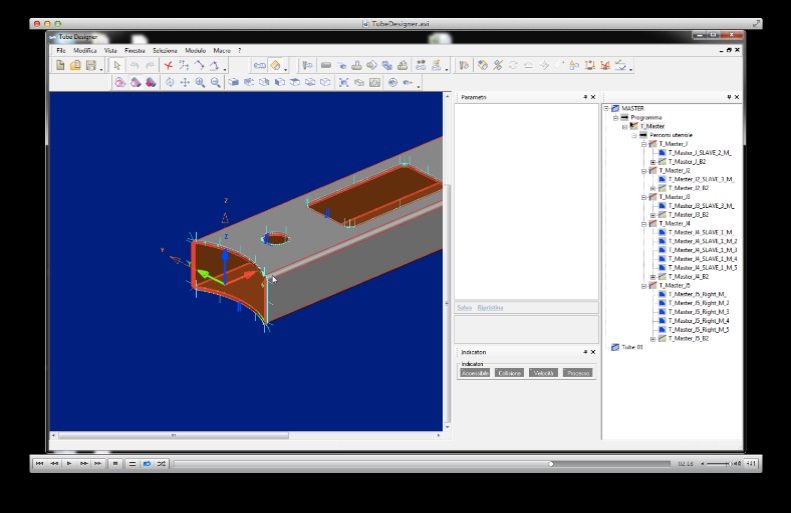

• G-code programming, CAD/CAM integrated solution with the possibility to import external files; fully integrated system for drawing, optimization and nesting of tubes
Typical features of a TF-220-LASER Model:
Capacity: Ø20mm → Ø220mm and “inscribed” (<) sections

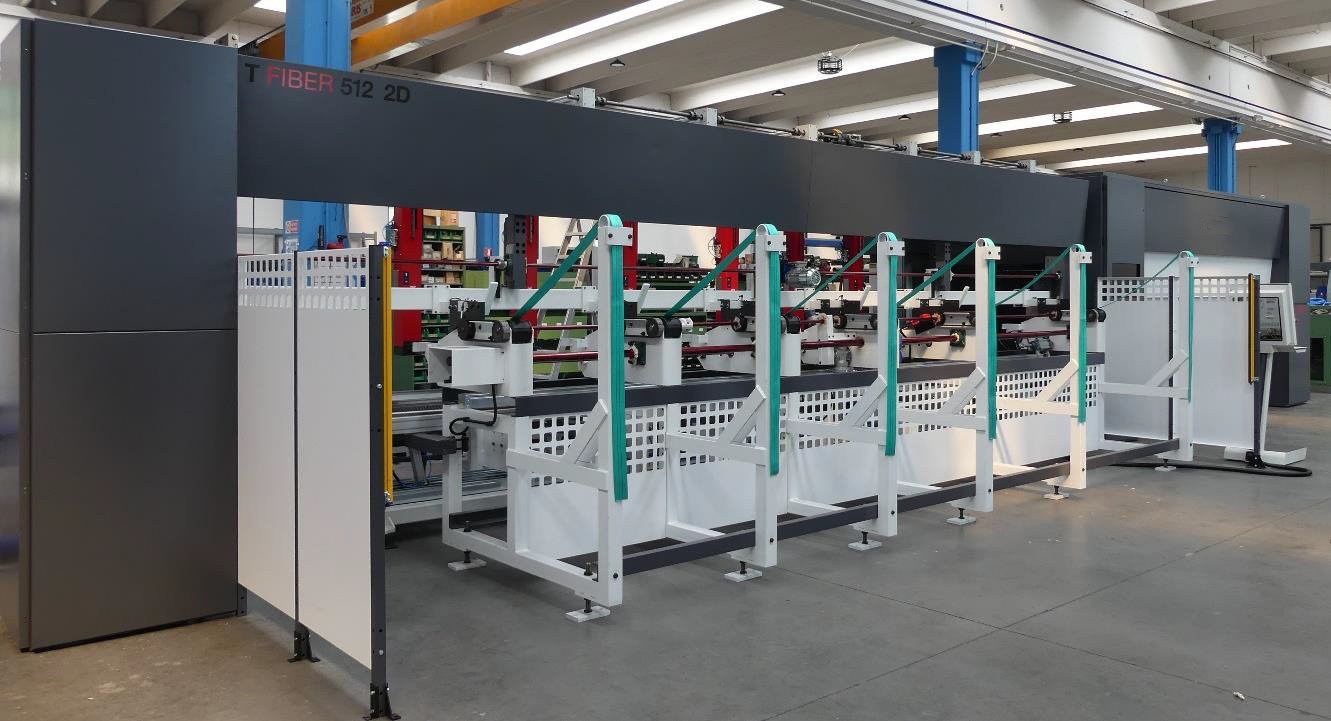

Loader capacity: L= 3000mm – 7000mm, max ø170mm
Unloader capacity: L= 3500mm (or more on request)
Profile types that can be processed: round, square, rectangular, oval, L, U
Laser source power: Standard: 2kW - fiber laser type
Movable spindle speed: 120m / min
Number of controlled axes: 20
Cleaning of the work area chip conveyor
Machine weight: 2.5 Ton

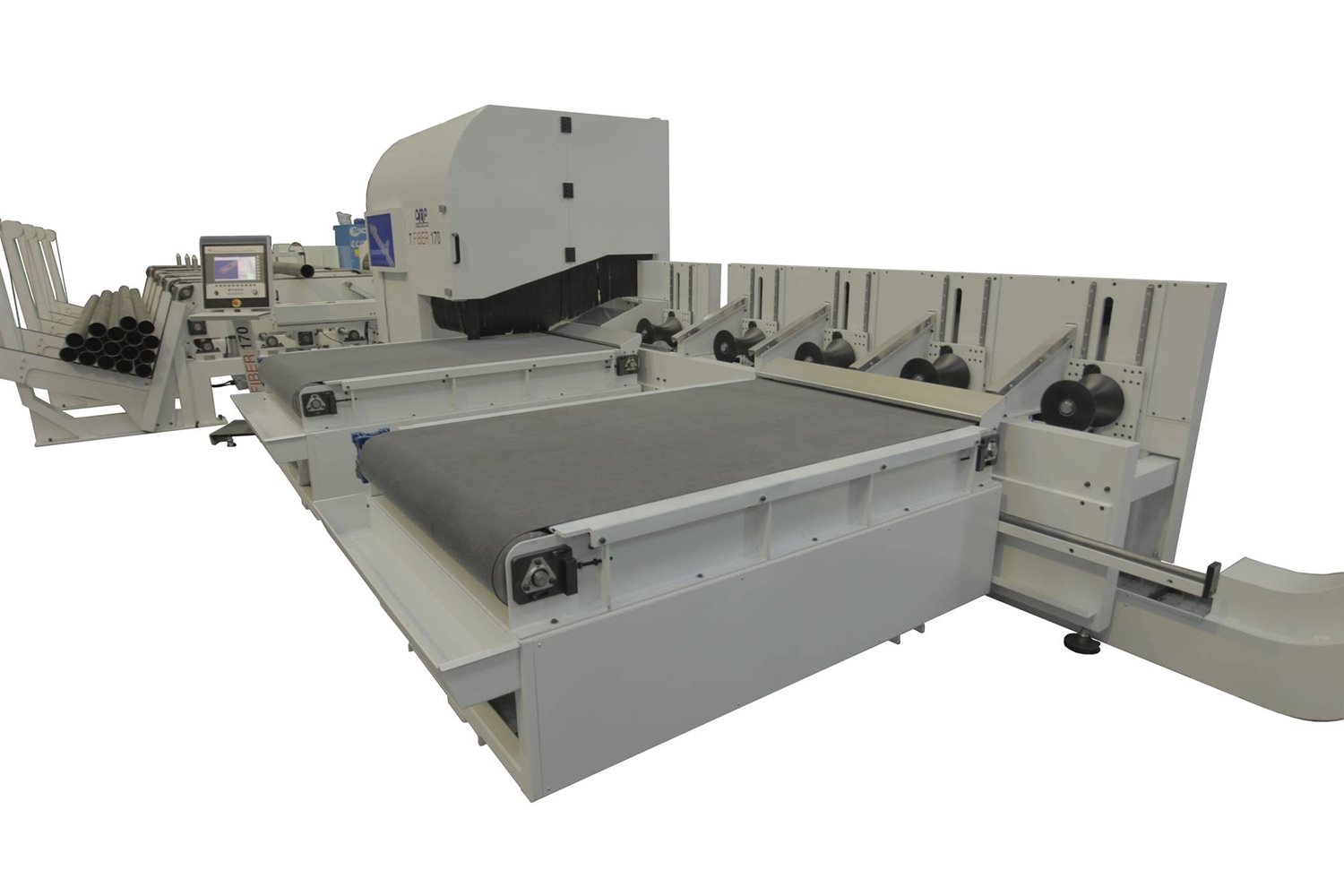

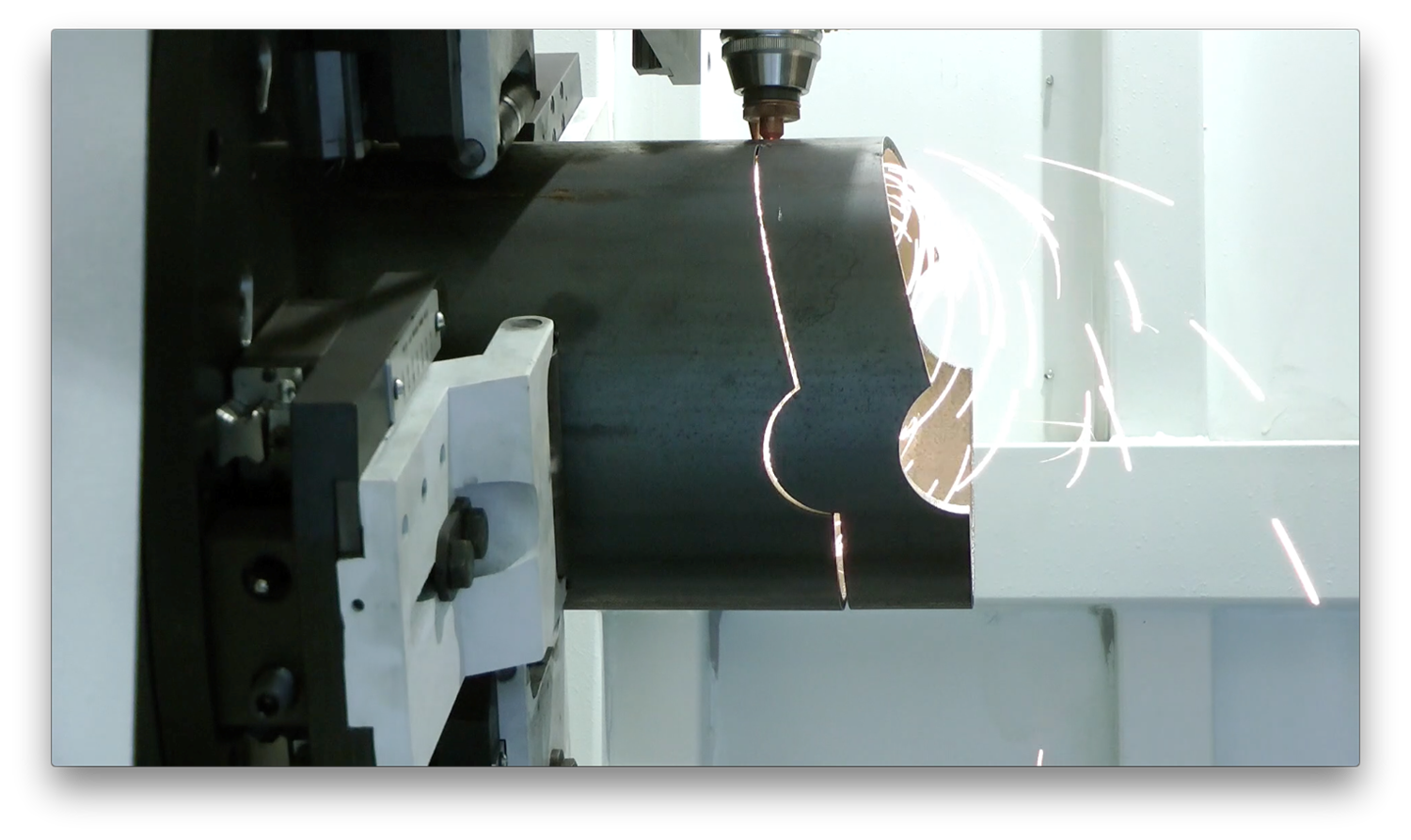

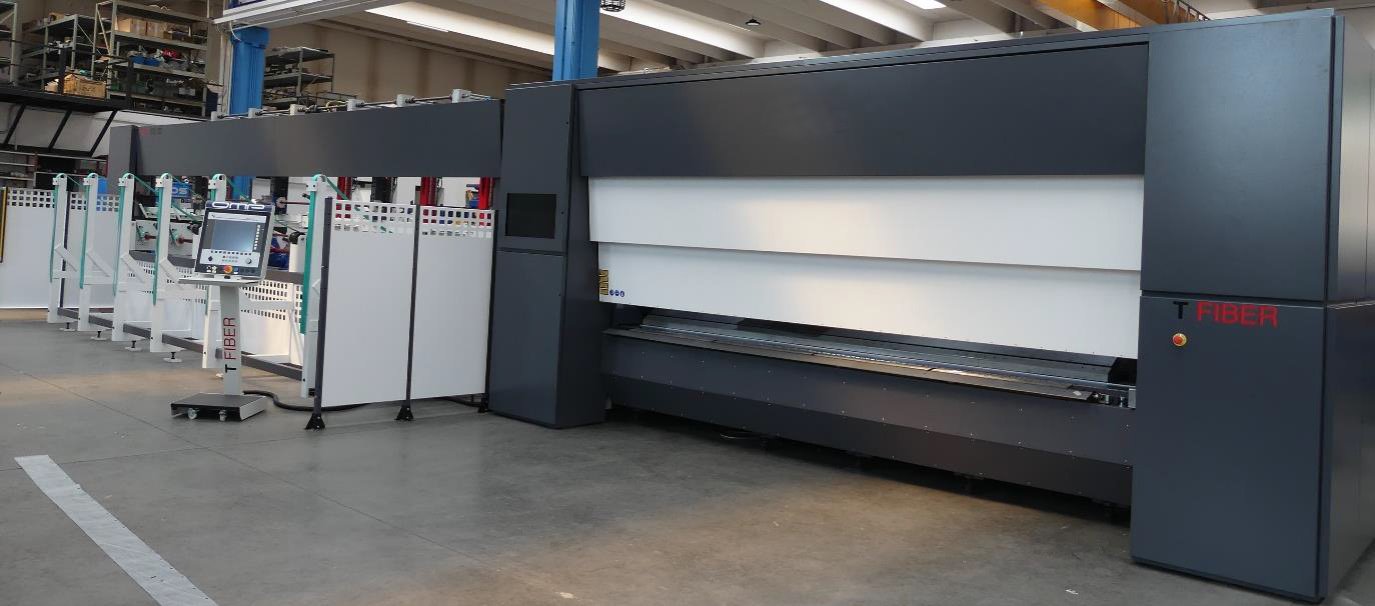

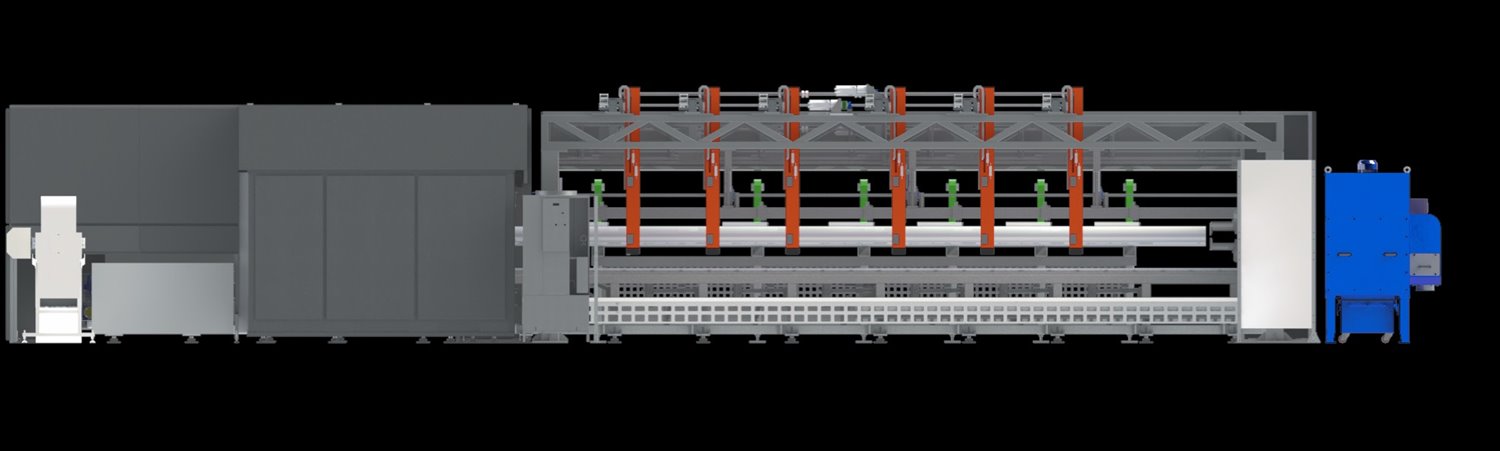

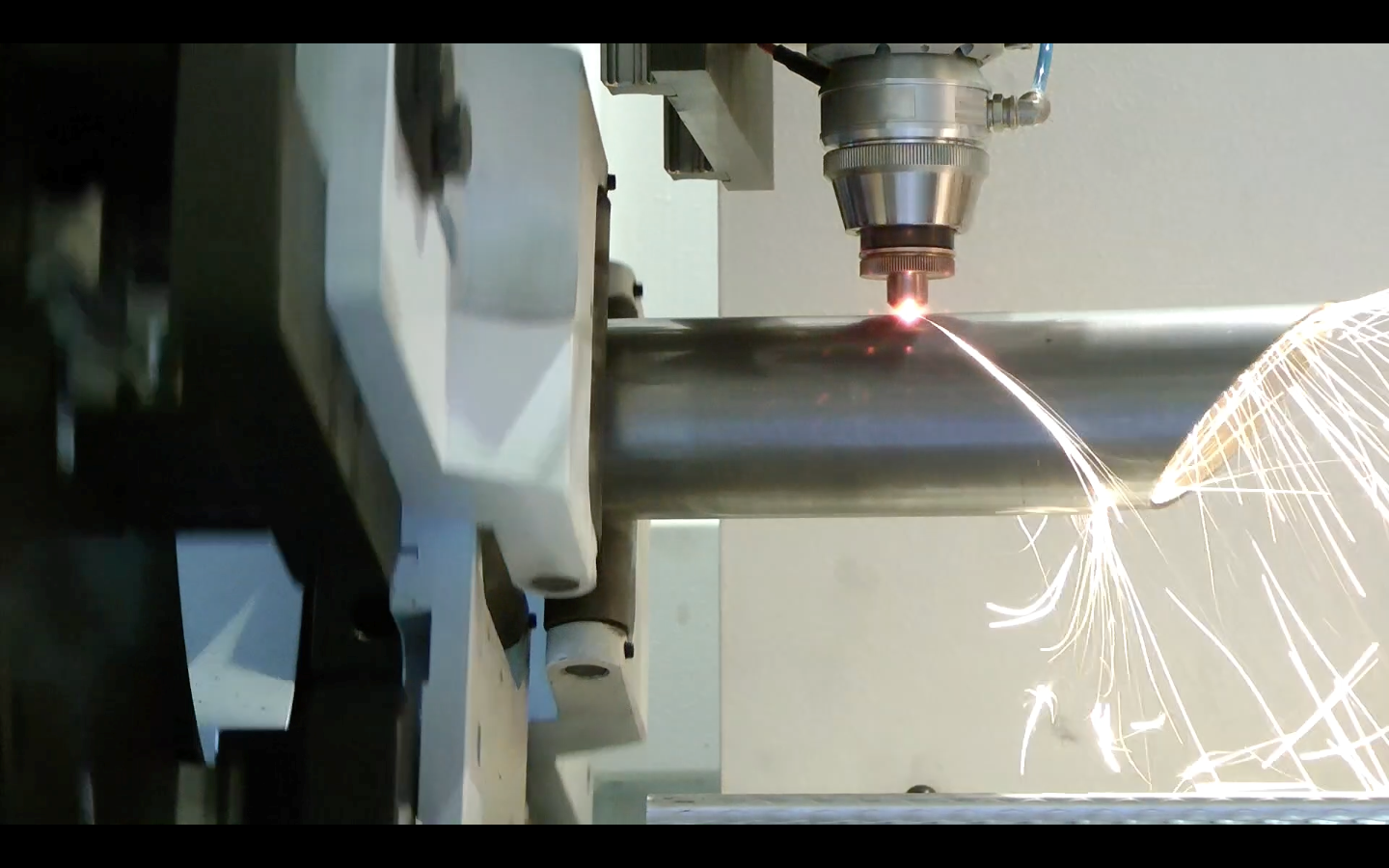

PHOTOS & IMAGES
(CLICK TO ENLARGE)
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
