PUNCHING/SHEARING MACHINE
Punching/Shearing Machine FINN-POWER Used [#2168.6]
SOLD
1

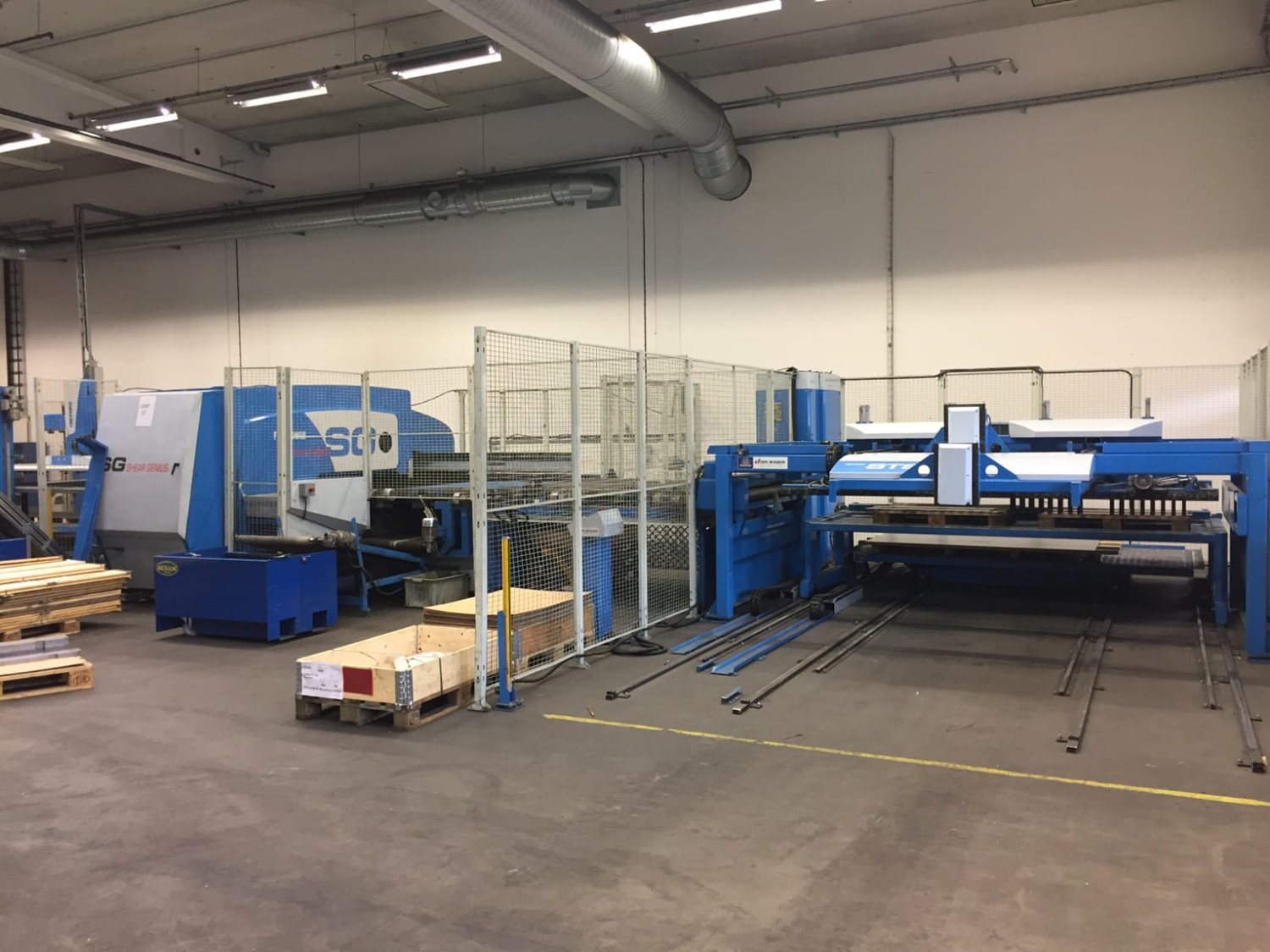

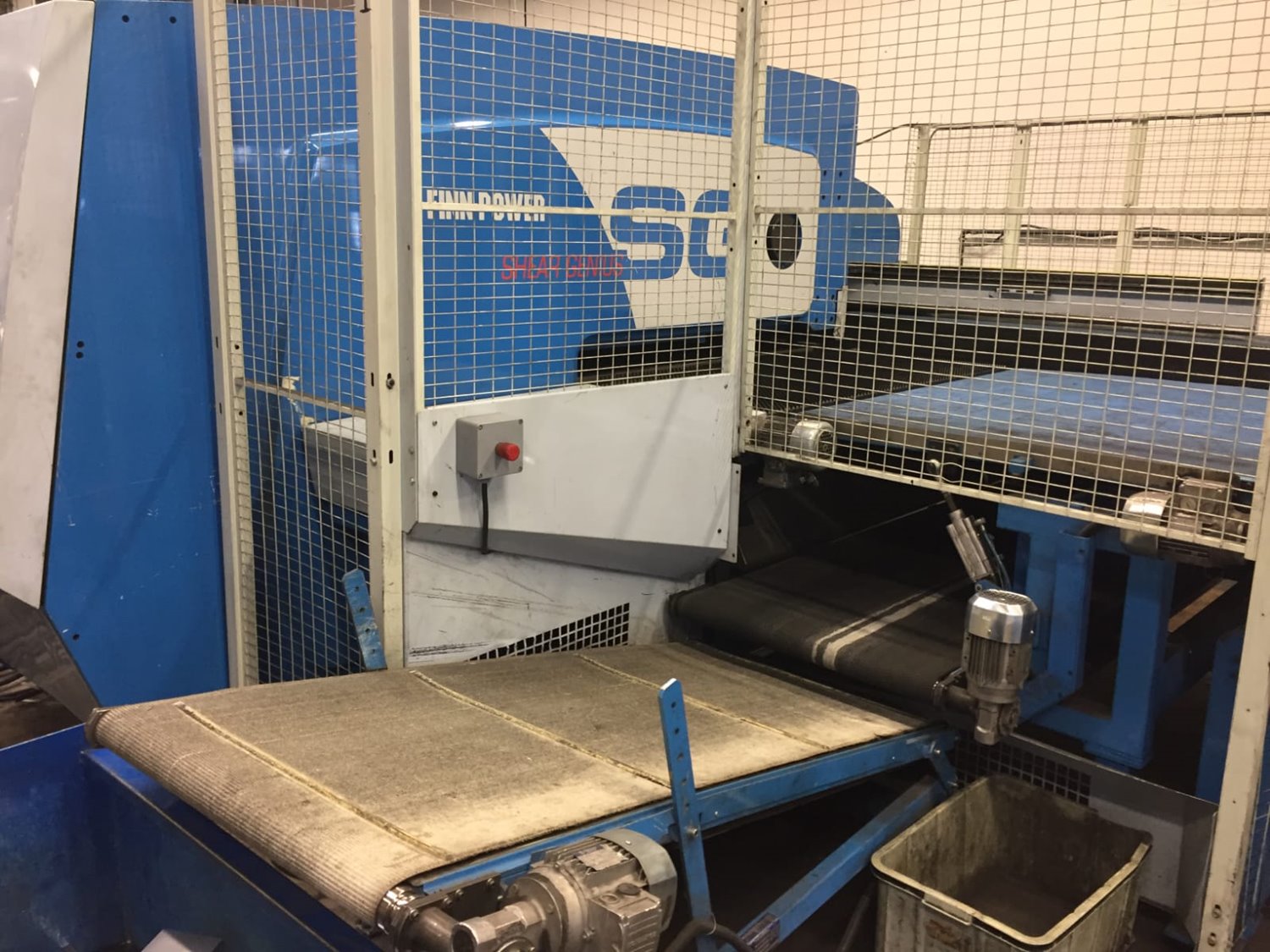

Used Punching/Shearing Machine
SG6 (TSR 6)
FINN-POWER
Year when built: 2008

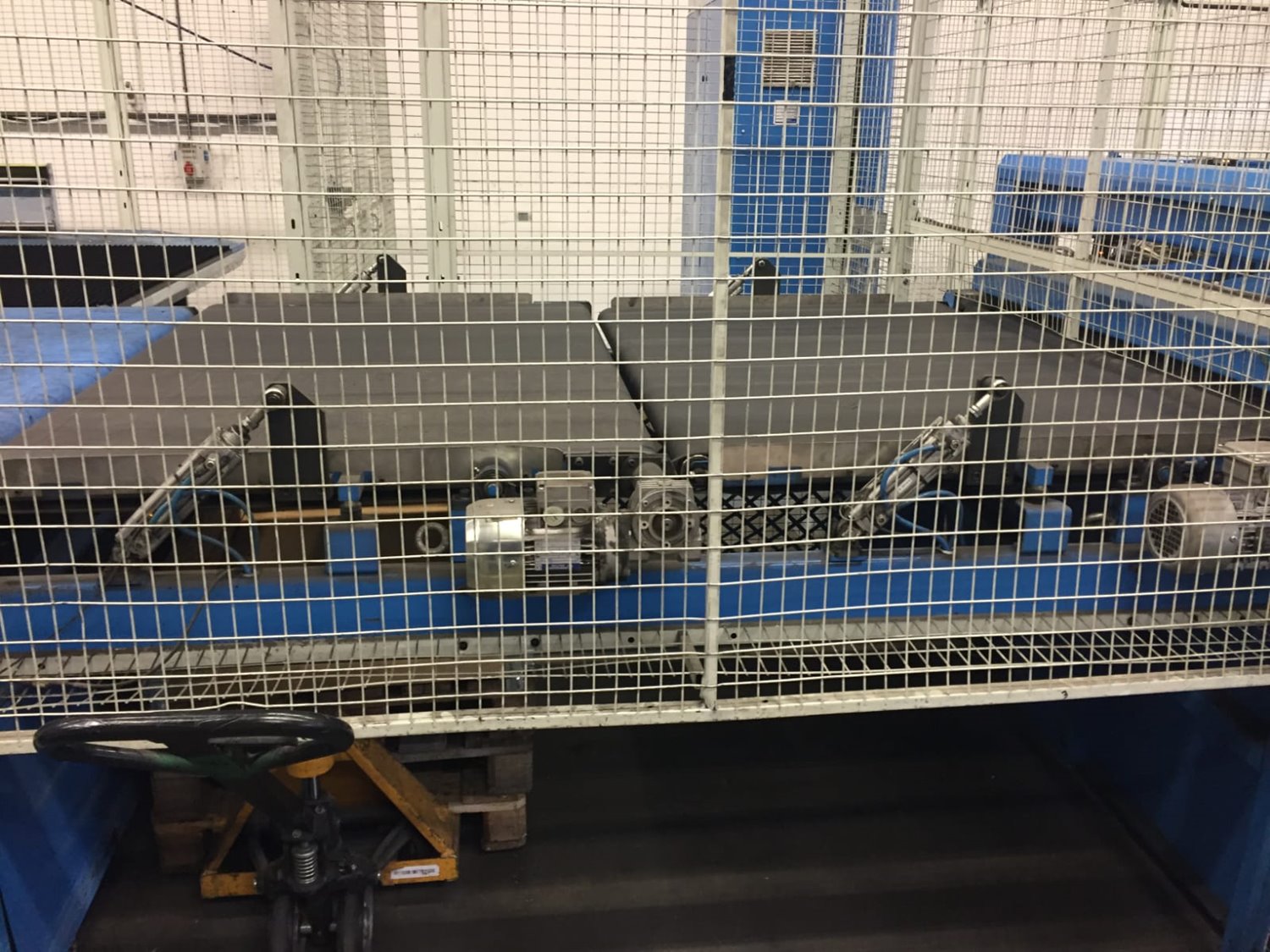

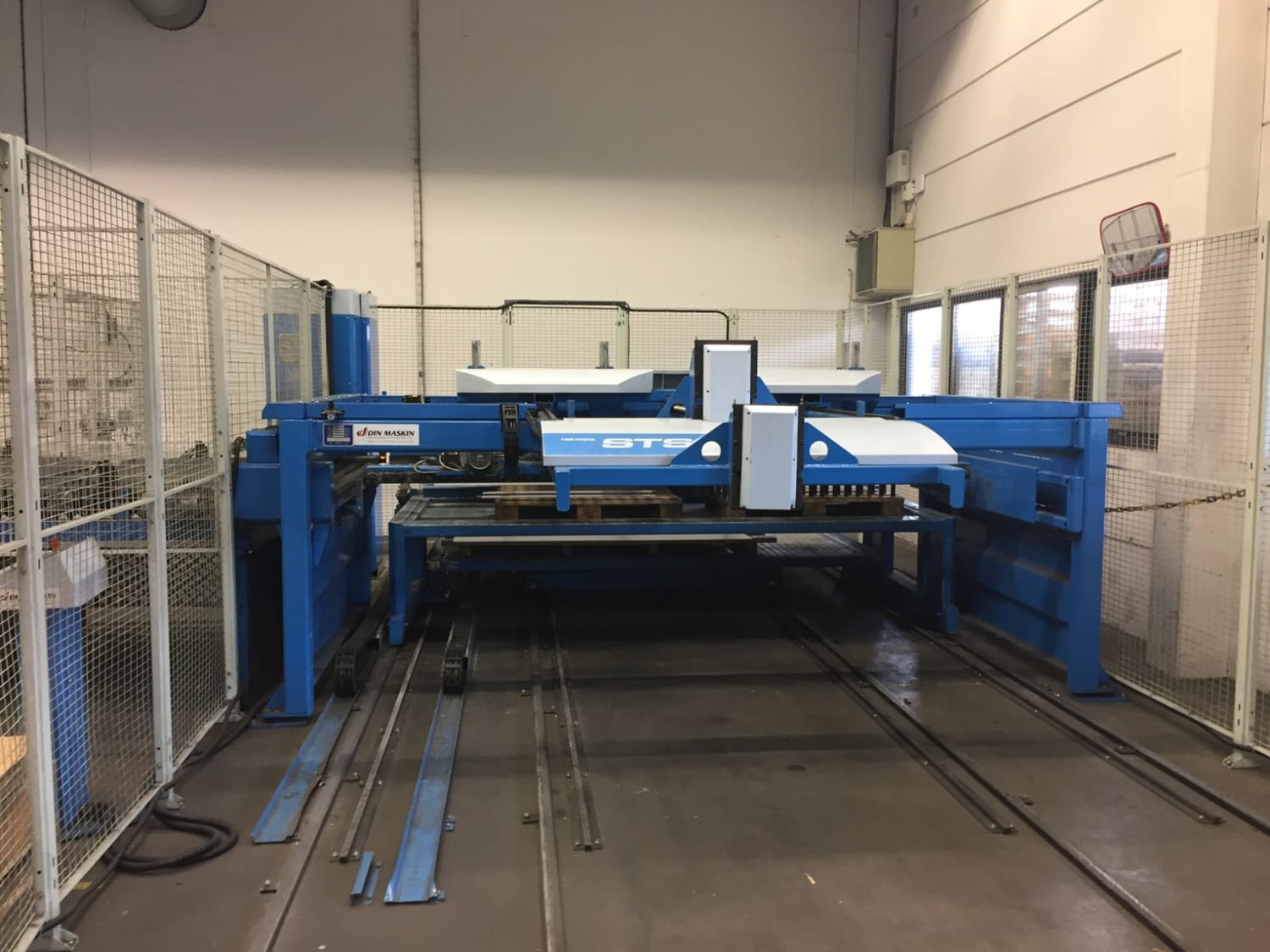

With automatic parts loading and unloading
FINN-POWER MODEL TRS 6 SHEAR GENIUS CNC TURRET PUNCH
RAM FORCE 33 TONS
SERVO HYDRAULIC
NUMBER OF STATIONS/MAX. TOOLS IN TURRET:
20 PCS/200 PCS TOOLS
THICK TURRET PUNCH DIAMETER, MAX. 3.5"
MATERIAL THICKNESS, MAX. 0.31"
CNC INDEX TOOL: NUMBER OF STATIONS/MAX. TOOLS IN TURRET - STD. 2 PCS (MAX.10 PCS)/80 PCS PUNCH DIAMETER, MAX. -------------------------- 3.5" TOOL ROTATION, MAX. ---------------------------- 166 R/MIN TURRET CONFIGURATIONS: (2) D STATIONS (3) AUTO INDEX STATIONS (3) MULTI TOOLS 10 (2) MULTI TOOLS 8 INTEGRATED RIGHT ANGLE SHEAR: MATERIAL THICKNESS, MAX. (SHEARING) ALUMINUM ---------------------------------------- 0.2" STEEL FE52/FE37 --------------------------------- 0.16" STAINLESS STEEL -------------------------------- 0.12" MATERIAL THICKNESS, MIN. ---------------------- 0.02" FULL STROKE, SHEAR, X x Y ---------------------- 39.37" X 60.15" BLADE CLEARANCE SETTING ---------------------- AUTOMATIC, ACS SHEET WEIGHT, MAX. ----------------------------- 441 LBS. CLAMPS -------------------------------------------- PNEUMATIC, 3 PCS SHEET SIZE X x Y, MAX. -------------------------- 121" X 60" X TRAVERSE --------------------------------------- 123.77" X TRAVERSE, AXIS SPEED MAX. ------------------ 4,724.40"/MIN. Y TRAVERSE ---------------------------------------- 63.58" Y TRAVERSE, AXIS SPEED MAX ------------------- 3,543.3"/MIN. POSITIONING SPEED, MAX. ----------------------- 5,905.51"/MIN. HIT SPEED, MAX.: 0.039" BETWEEN HOLES ------------------------- 1,100 1/MIN. 0.984" BETWEEN HOLES ------------------------- 500 1/MIN. 9.84" BETWEEN HOLES -------------------------- 200 1/MIN. TURRET ROTATION -------------------------------- 30 R/MIN TOOL CHANGE TIME ------------------------------- 1...3s CNC CONTROL ------------------------------------- SIEMENS SINUMERIK 840D PROGRAM MEMORY -------------------------------- 1.5 MB ETHERNET CONNECTION 100 MBS. --------------- YES HYDRAULIC UNIT DRAINED WEIGHT ------------- 1,322 LBS. OIL TANK VOLUME --------------------------------- 106 GAL. OIL COOLER, COOLING CAPACITY MAX. ---------- .36 KW/DEG.F ELECTRICAL CONNECTION (E1) AVERAGE POWER CONSUMPTION --------------- 35 KVA/30 KW REQUIREMENTS FOR CONNECTION POWER ----- 80 KVA FUSE ------------------------------------------ 3x100 A (WITH VOLTAGE 3x400 V) COMPRESSED AIR CONNECTION (P1): MINIMUM AIR PRESSURE ------------------------ 90 PSI AVERAGE AIR CONSUMPTION ------------------- 8.8 CFM WEIGHT: 57320 LBS.
PHOTOS & IMAGES
(CLICK TO ENLARGE)
2
3
4
