Our new strip punching lines, 400mm-1600mm wide for max. 6mm thick material

STRIP PUNCHING LINES

Strip Punching Lines F&P-CIMSA New [#3392]
   Punching Machines PUN  Strip Punching Lines F&P-CIMSA New [#3392]
1

New Strip Punching Lines
(Coil Fed, Multi-Station)
F&P-CIMSA
BUILD TO ORDER CUSTOM DESIGNED

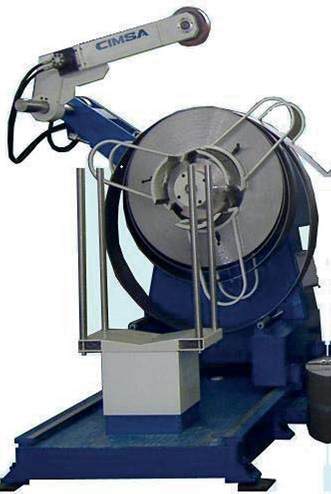

    Our new strip punching lines, 400mm-1600mm wide for max. 6mm thick material include: decoiler (up to 10 t capacity), straightener and feeder (either in "enbloc" execution or separate), punching station and cutoff shear with blade gap adjustment. The lines offer all typical advantages of flexible coil-fed punching systems, in respect to sheet-fed equipment: a reduced cost of material and a reduced scrap quantity; higher production; less floor space needed ... Each hydraulic punch unit has a 7 t to 30 t force. Index and MultiTool Stations are available.

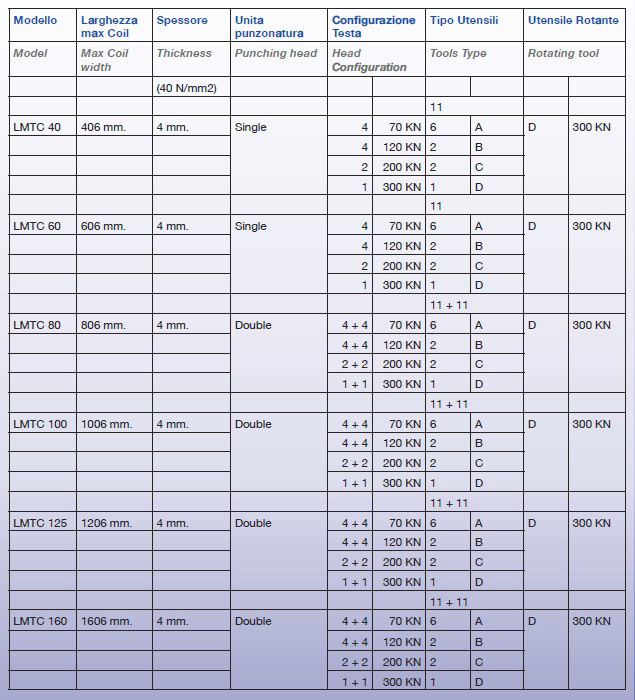

    For some "typical" line sizes and configurations please refer chart beside.


    The use of strip punching lines in the manufacturing industries of light fixtures, lockers, metal furniture components etc. is constantly increasing.

    CIMSA were specialists of (mostly Custom designed) fully-automatic, flexible coil fed punching systems. We bought the CIMSA Brand Name years ago.

    Custom-built equipment needs a special kind of product support... our proposals are detailed with drawings and photos to provide clients with a full understanding of the type and quality of the equipment we offer. We send customers approval drawings with dimensions, performance specs and features before the machine is built.

    We are experienced at making our products safe, reliable and in conformance with the safety and design standards. Products are designed for maximum serviceability and reliability.
    Parts Books are shipped with each piece of equipment. They contain detailed information about installation, inspection and maintenance procedures, component parts.

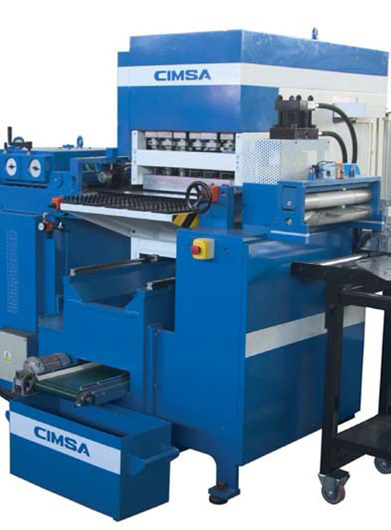

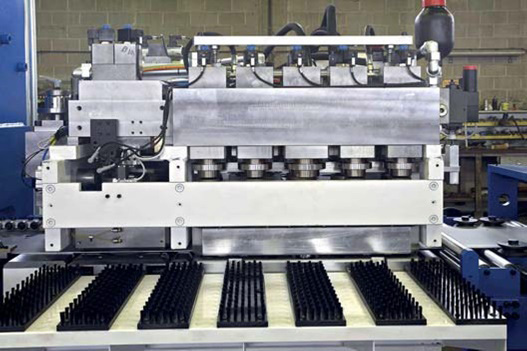

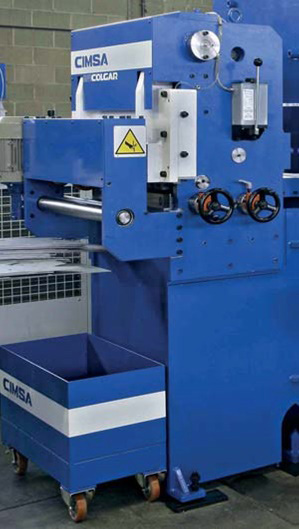

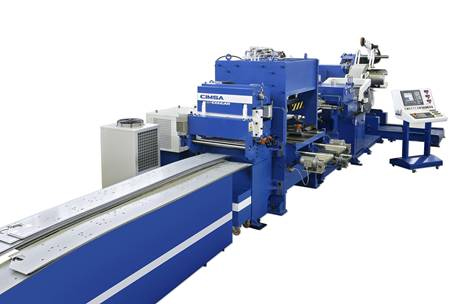

    PHOTOS & IMAGES
    (CLICK TO ENLARGE)
    2
    3
    4
    5
    6
