STRIP PUNCH PRESS
Strip Punch Press CIMSA Used [#3385]
SOLD
1
Used Strip Punch Press
400mm x 2mm
CIMSA
YEAR: 2002
A used automatic multi-station strip punching line suitable for high production requirements, in great condition -- available at a convenient price.

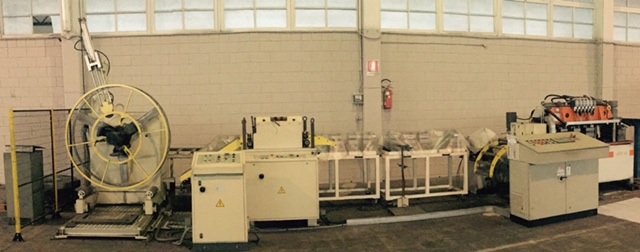

This good used coil punching system includes: decoiler, precision strip straightener, feeder, punching station and cutoff shear. It is complete with all original technical literature by the equipment builder.
It offers the typical advantages of flexible coil-fed punching systems, in respect to sheet-fed equipment:
- a reduced cost of material;
- a reduced scrap quantity;
- higher production;
- less floor space required ...
The use of systems like this in the manufacturing industries of light fixtures, lockers, metal furniture components etc. is constantly increasing.
CIMSA were specialists of (mostly Custom designed) fully-automatic, flexible coil fed punching systems. We bought the CIMSA Brand Name years ago.
EQUIPMENT DESCRIPTION

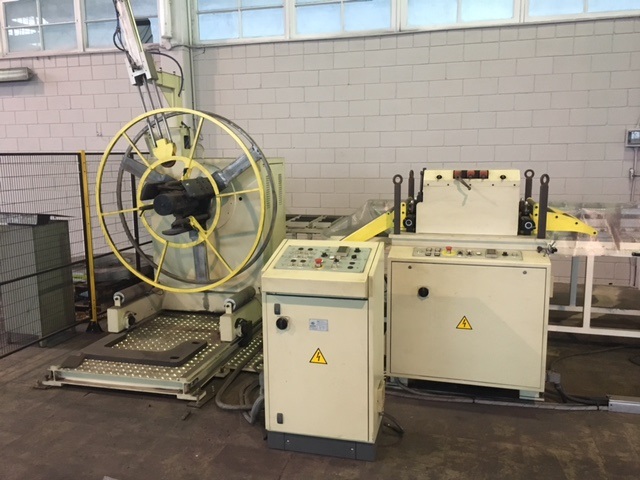

DECOILER
with hydraulic drum expansion
for 400mm max. coil width, OD max. 1500mm
load capacity max. 3 t
0 to 30m / min electronic rotation speed variation
air operated strip hold-down
powered translation
PRECISION STRIP STRAIGHTENER
11-roller type with 65mm roller diameter
for 400mm max. coil width, .6mm to 2mm material thickness
- complete with:
air operated coil threading table
infra-red type loop control
straightener<>decoiler connection table
ELECTRONIC ROLL FEEDER
with 80mm roller diameter
for 400mm max. coil width, max. 3mm material thickness

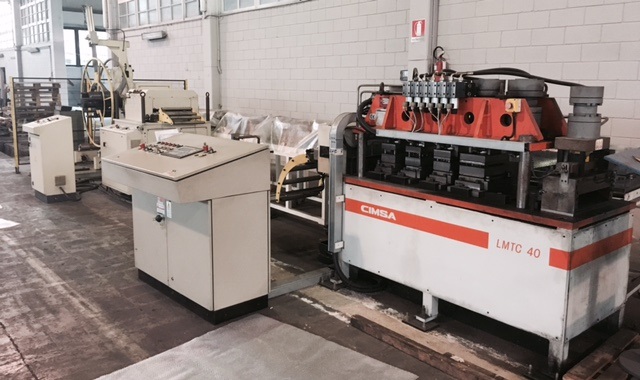

PUNCHING STATION
with 5 independent stations
CUTOFF SHEAR
PHOTOS & IMAGES
(CLICK TO ENLARGE)
2
3
4
