Slitting Line SA.MO. Used [#3340]
   Slitting lines SLL  Slitting Line SA.MO. Used [#3340]
1

VIDEOS
Used Slitting Line
2050mm x 12.7mm
SA.MO.
FOR SALE

OFFERED SUBJECT TO BEING UNSOLD
    This 100m / m used heavy gauge slitting line, built in 2008, is in good condition.

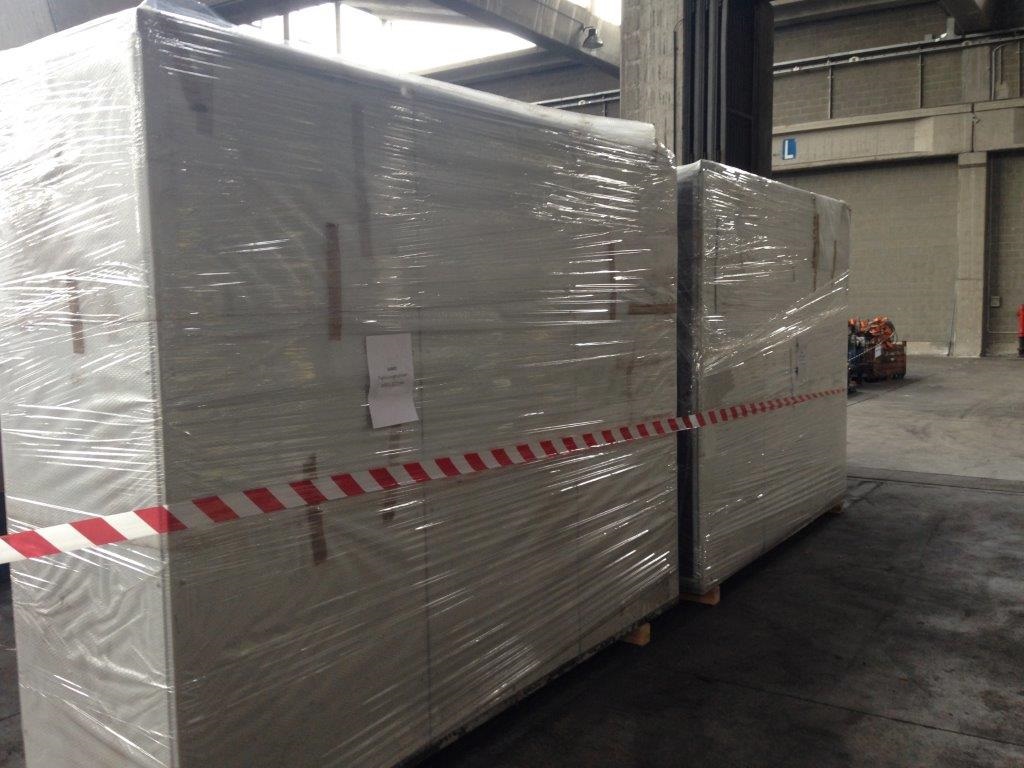

    It has been dismantled and warehoused after very little use.

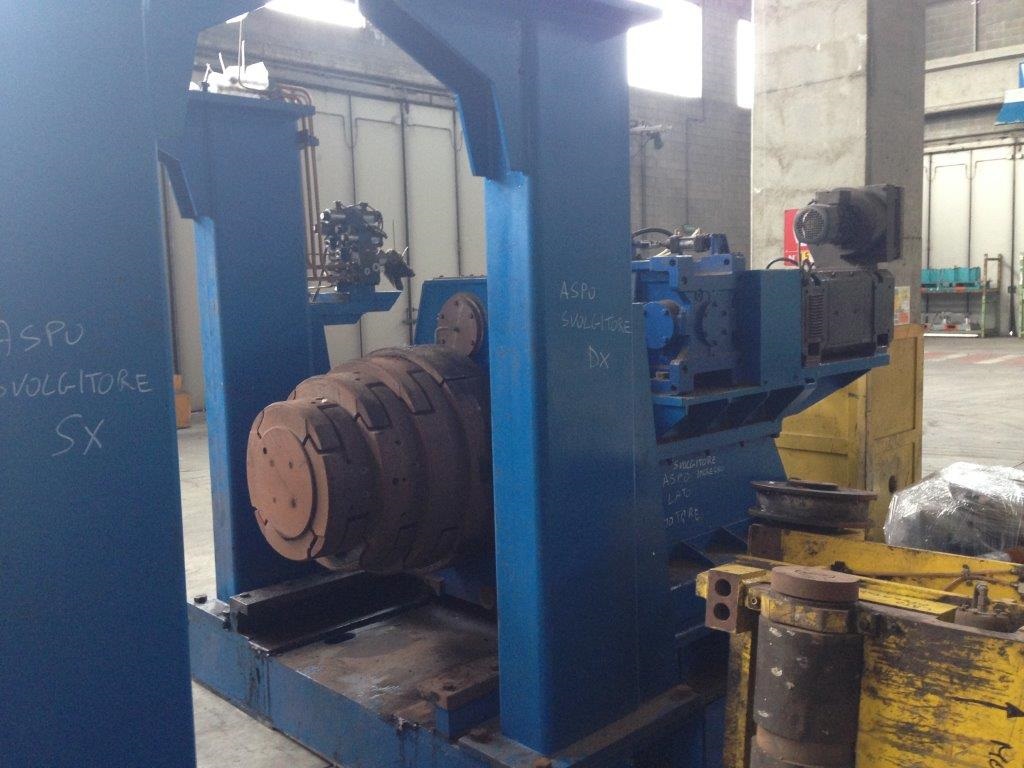

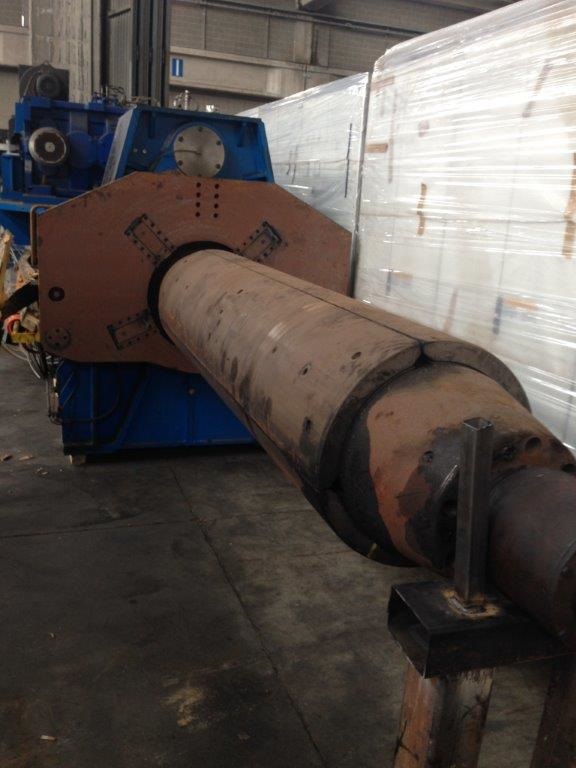

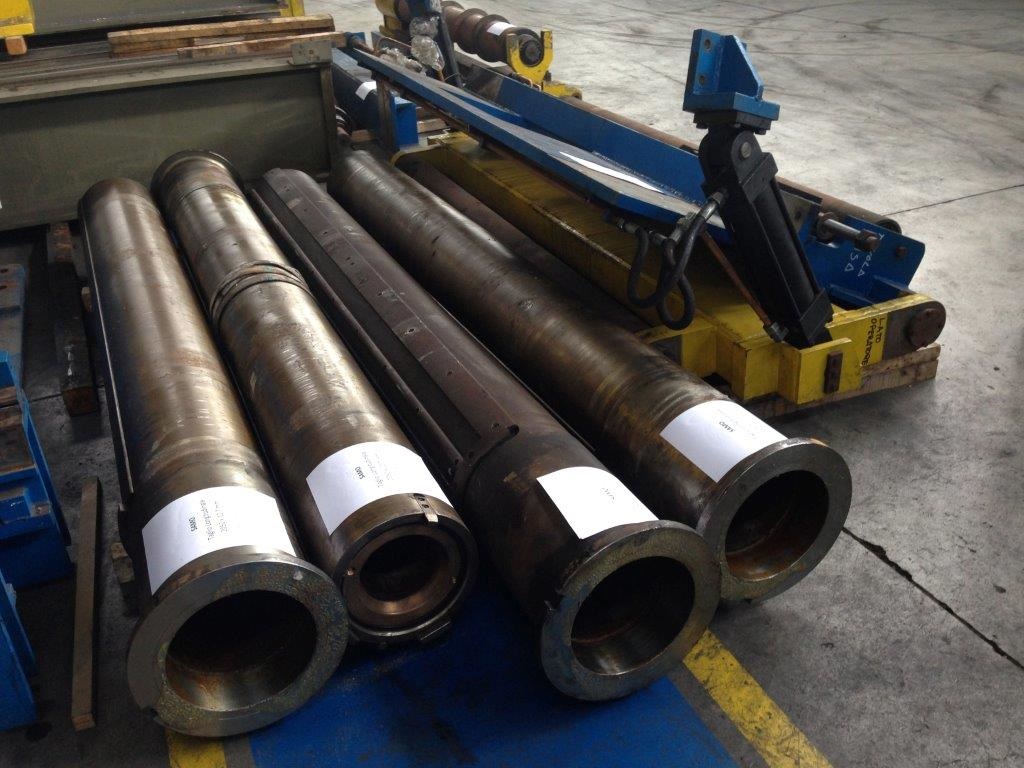

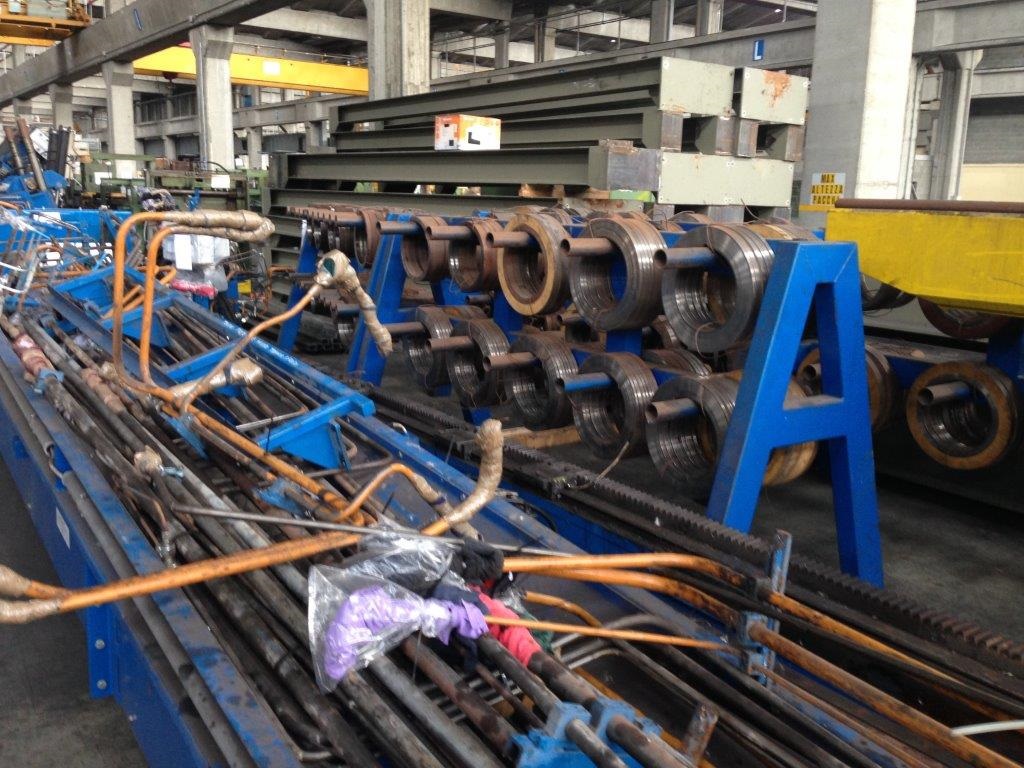

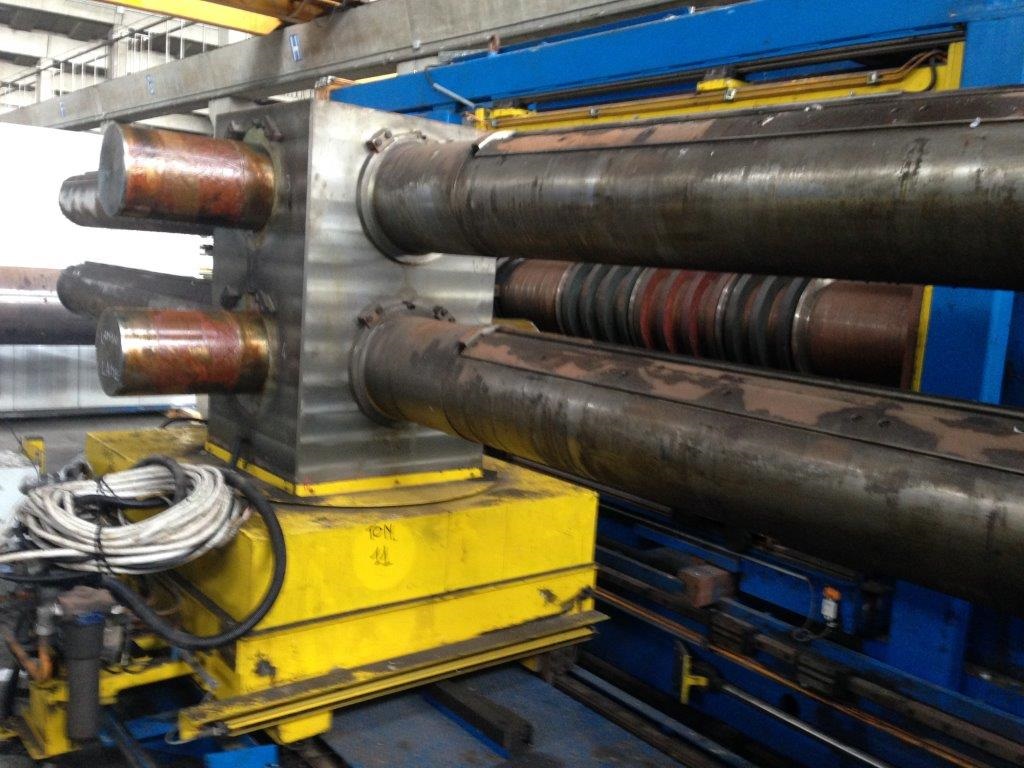

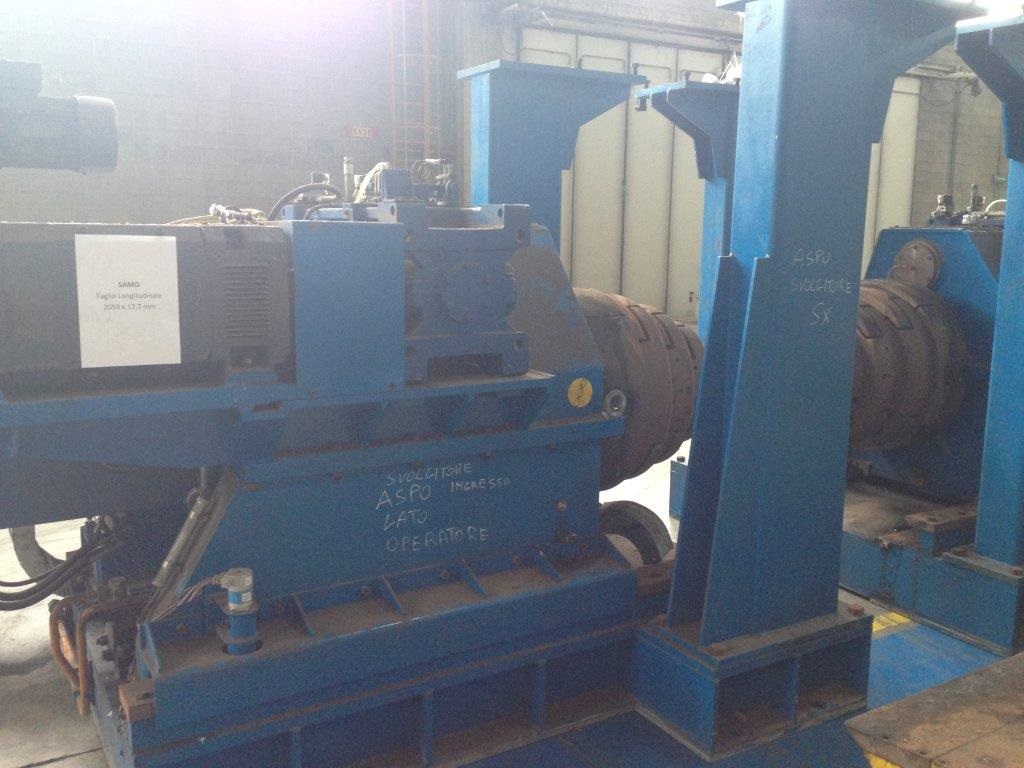

    With 30 t decoiler & recoiler, Ø325mm slitter arbor, automatic slitter tooling changer, mobile strip tension unit... it is a real "mill duty" line.

    The manufacturer, SA.MO. is part of the FIMI Group: building high quality cut to length lines, slitting lines, slit coil packaging systems, coil inspection lines etc. in Italy.

    The line works WITH LOOP up to a 6mm material thickness, IN "PULL" MODE with thicker material than 6mm. The selection of the operating mode is from the control panel.



    Here is more information:


    Process Material: M.S.
    Maximum Tensile Strength: 630 N/mm2
    Maximum Yield: 450 N/mm2
    Elongation: 20%

    Coil Max. Weight: 30 t

    Minimum Material Thickness: 2.7mm
    Maximum Material Thickness: 12.7mm

    Minimum / Maximum Entry Coil Width: 400mm / 2050mm
    Minimum / Maximum Entry Coil ID: 610-760mm / 850mm
    Minimum / Maximum Exit Coil ID: 508mm / 610mm (w. spacers)
    Maximum Entry Coil OD: 900mm / 2200mm
    Maximum Exit Coil OD: 680mm / 2000mm

    Minimum Slit Width:
    80mm at max. 4mm material thickness
    100mm at max. 8mm material thickness
    150mm at max. 12.7mm material thickness

    Line Speed:
    0-100m / min with material thickness up to 8mm
    0-50m / min with material thickness 8-12.7mm
    Coil Threading Speed: 10m / min

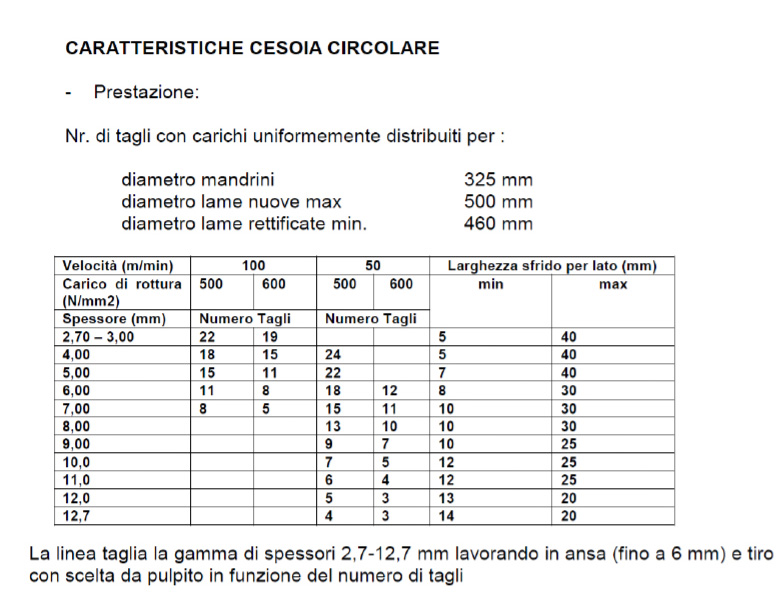

    Number of slits with Ø500mm* circular knives:
    (* minimum Ø460mm after grinding)
    > see Attach.

    Line direction: right to left

    Passline Height: 1250mm

    Line-reference: center

    Unwinding: from top


    Voltage:
    400 V / 50 z
    Aux. 230 V / 50 Hz
    Electrovalves 24 V D.C.

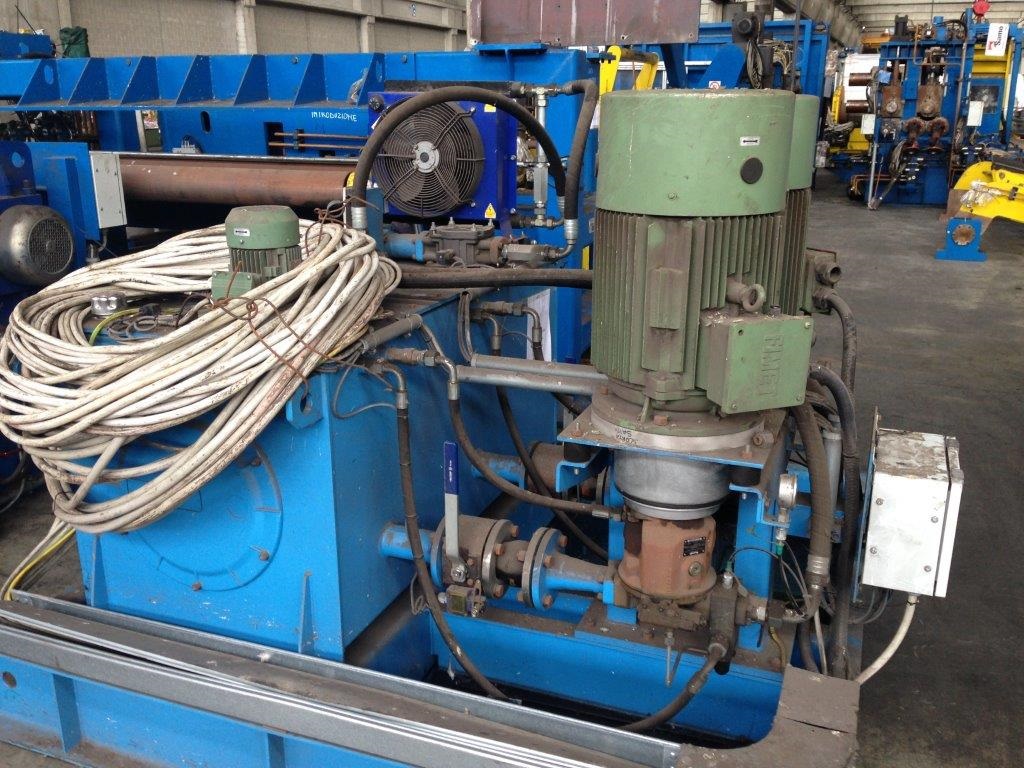

    Hydraulics:
    120 bar
    Unit Cooling: by air/oil heat exchanger

    Pneumatics:
    6 bar
    (compressed air consumption ca. 1/2 m3 per-hour)
    We offer quality Slitting Lines both new and used / re-manufactured for Aluminium, Coated, Cold Rolled, Copper, Galvanized, Hot Rolled, Prepaint, Silicon, Stainless, Tinplate,

    Your enquiries welcome for also individual Line Parts like: Decoilers, Recoilers, Slitters, Strip Tension Stands, Turnstiles, Upenders ...
