New slitting line with cap. 1500mm x 4mm / 16 Ton, max. speed 60m / min

SLITTING LINE

Slitting Line FLOREANI & PARTNERS New [#3438]
   Slitting lines SLL  Slitting Line FLOREANI & PARTNERS New [#3438]
1

New Slitting Line
60m / min, 1500mm x 4mm
FLOREANI & PARTNERS




    New slitting line with cap. 1500mm x 4mm / 16 Ton, max. speed 60m / min, that has been built to a Russia customer. It comes with: double coil loading car, auto. coil threading station, slitter tooling changer, mobile strip tension unit …


    A MUCH REASONABLY PRICED NEW SLITTING LINE, THAT WE HAVE BUILT TO A RUSSIA CUSTOMER. LINE CAPACITY: 1500mm x 4mm / 16 Ton. THE MAX. SPEED IS 60m / min. THE LINE INCLUDES: DOUBLE COIL LOADING CAR, COIL THREADING STATION, SLITTER TOOLING CHANGER, MOBILE STRIP TENSION UNIT … --- WE BUILD BOTH TRADITIONAL SLITTERS (WITH QUICK TOOL CHANGER & ROBOTIC TOOLING SET-UP OPTIONS) AND FULLY AUTOMATED, CNC PROGRAMMABLE SLITTING HEADS SETTING THEMSELVES UP IN MINUTES.



    Material thickness from .5mm to 4mm (with Rmax=410 MPa)
    Maximum line speed 60 m/min



    EQUIPMENT LIST


    - double coil loading car

    - 16 Ton decoiler for coil ID 480mm to 770mm

    - telescopic tables, pre-straightening rolls, auxiliary crop shear

    - slitter, with shaft diameter 250mm; tool changer

    - scrap winders

    - ‘felt’ type strip tension pad, taking strips to recoiler

    - strip braking rolls

    - 16 T recoiler for coil ID 610mm

    - coil off-loading car, on which the slit coils get strapped

    - turnstile


    We offer quality Slitting Lines both new and used / re-manufactured for Aluminium, Coated, Cold Rolled, Copper, Galvanized, Hot Rolled, Prepaint, Silicon, Stainless, Tinplate,

    Your enquiries welcome for also individual Line Parts like: Decoilers, Recoilers, Slitters, Strip Tension Stands, Turnstiles, Upenders ...

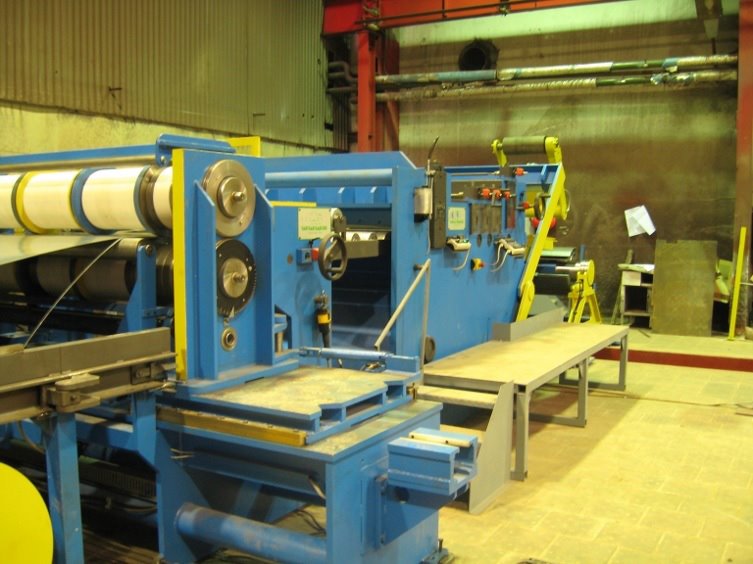

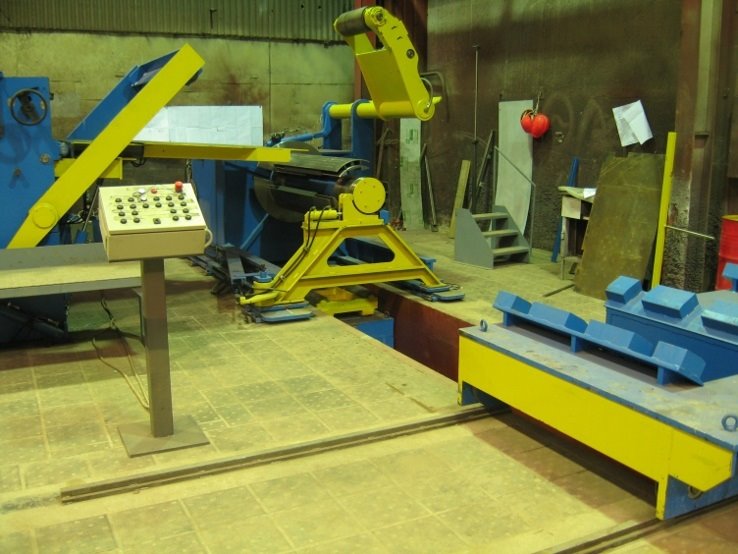

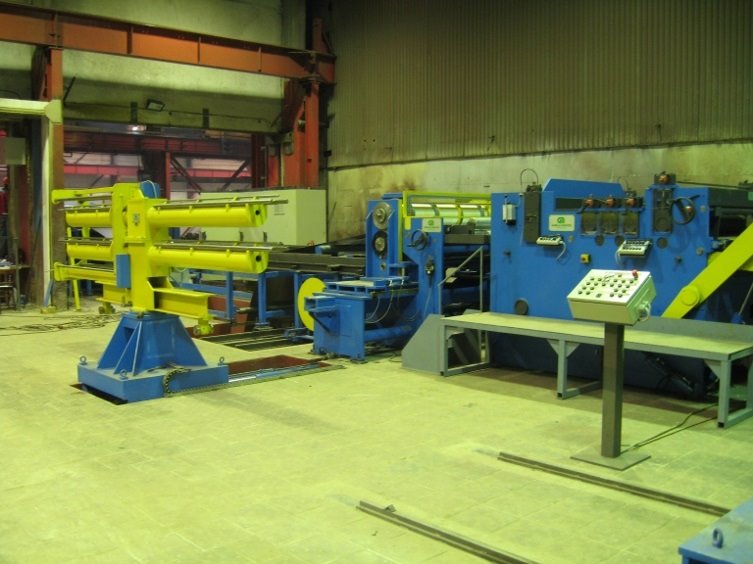

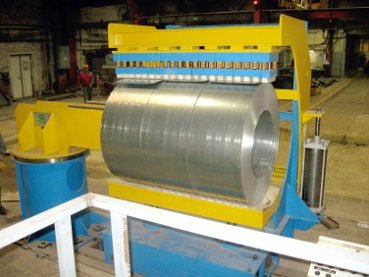

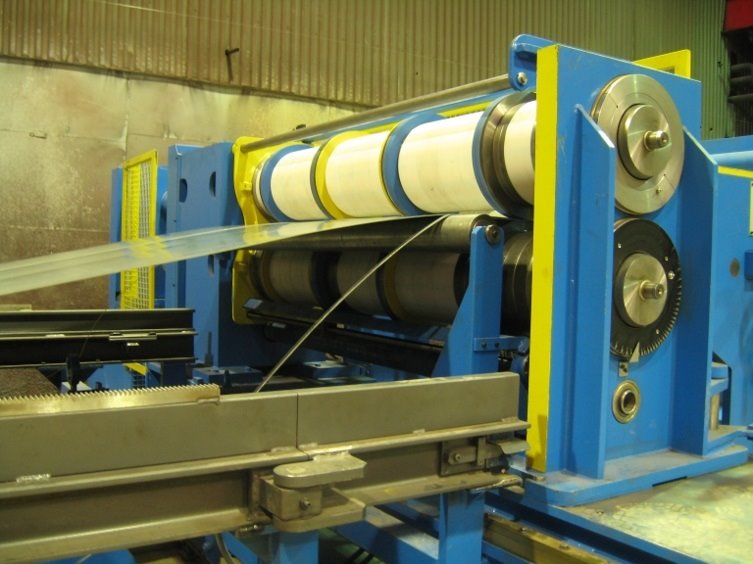

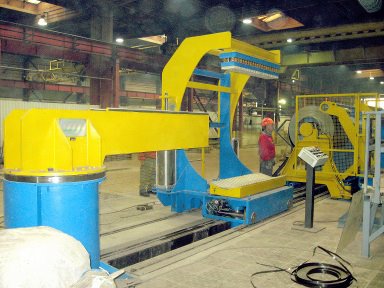

    PHOTOS & IMAGES
    (CLICK TO ENLARGE)
    2
    3
    4
    5
    6
