A 2200mm x 10(12)mm USED COIL SLITTING LINE FOR SALE

SLITTING LINE

Slitting Line BARBERO+SA.MO Used [#3422]
   Slitting lines SLL  Slitting Line BARBERO+SA.MO Used [#3422]
SOLD
1

VIDEOS
Used Slitting Line
2200mm x 10(12)mm
BARBERO+SA.MO





    A 2200mm x 10(12)mm USED COIL SLITTING LINE FOR SALE, INSTALLED & UNDER POWER. FOR HOT AND COLD ROLLED MATERIAL. MINIMUM THICKNESS THAT CAN BE PROCESSED WITH THE LINE 2.5mm. 30 T DECOILER & RECOILER. LINE MAX. SPEED 50m / min.


    A 2200mm x 10(12)mm USED COIL SLITTING LINE, INSTALLED & UNDER POWER. MATERIAL: HOT AND COLD ROLLED STEEL. THE MINIMUM THICKNESS THAT CAN BE PROCESSED WITH THE LINE IS 2.5mm. DECOILER & RECOILER CAPACITY: 30 T. ENTRY COIL ID 500mm TO 700mm. THE LINE MAXIMUM SPEED IS 50m / min.



    COIL CAR

    2-MANDREL DECOILER

    COIL THREADING STATION

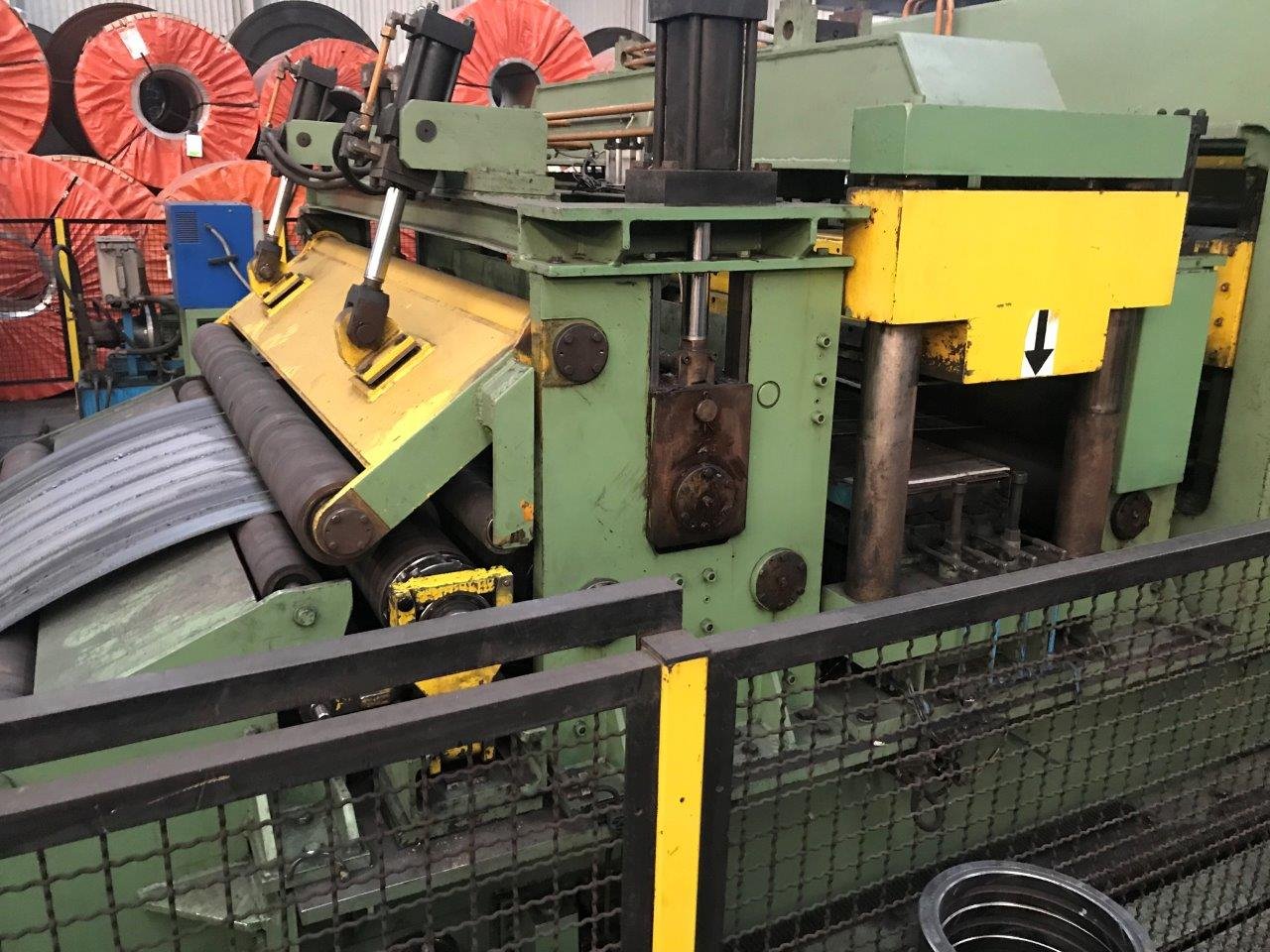

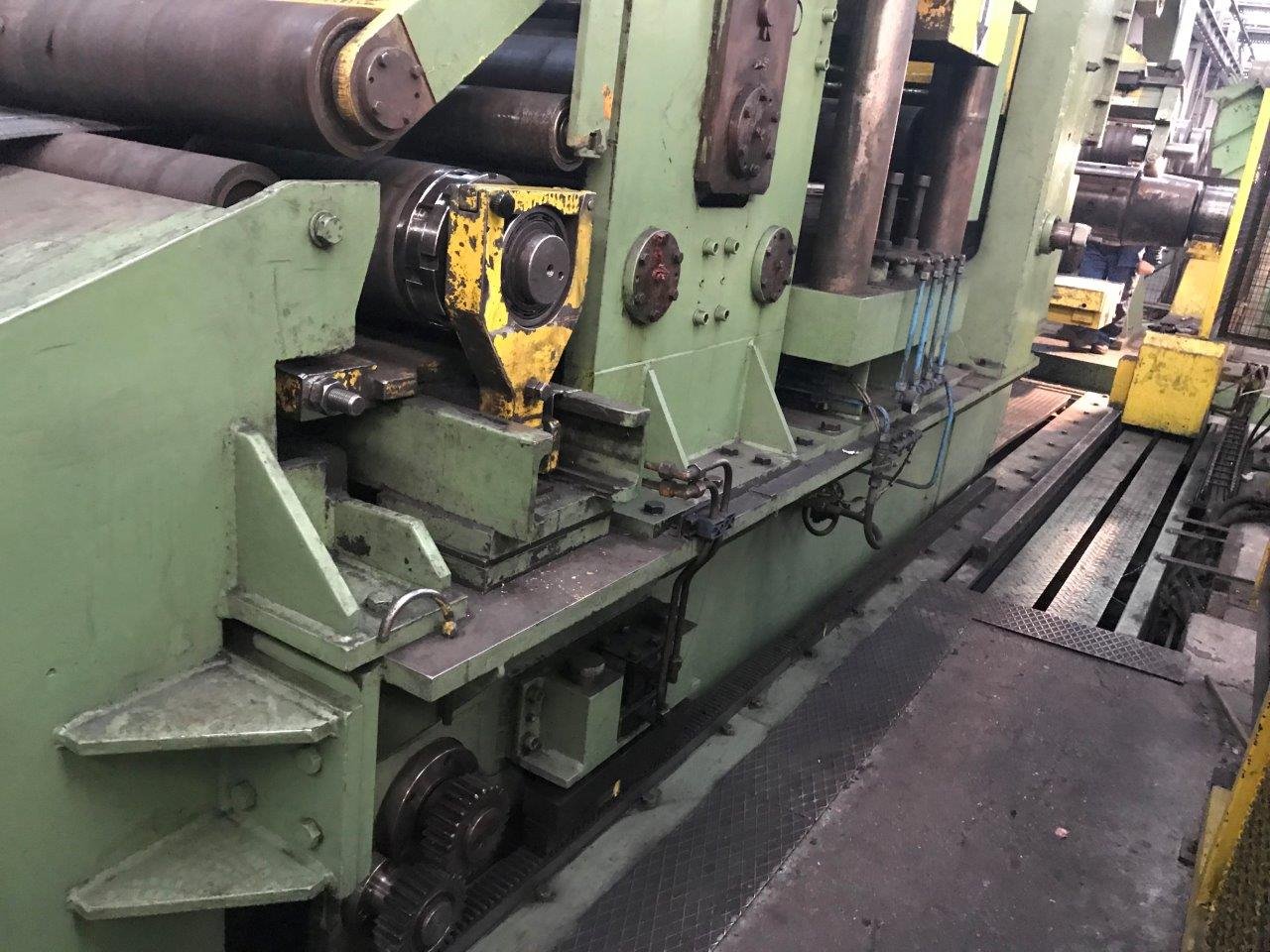

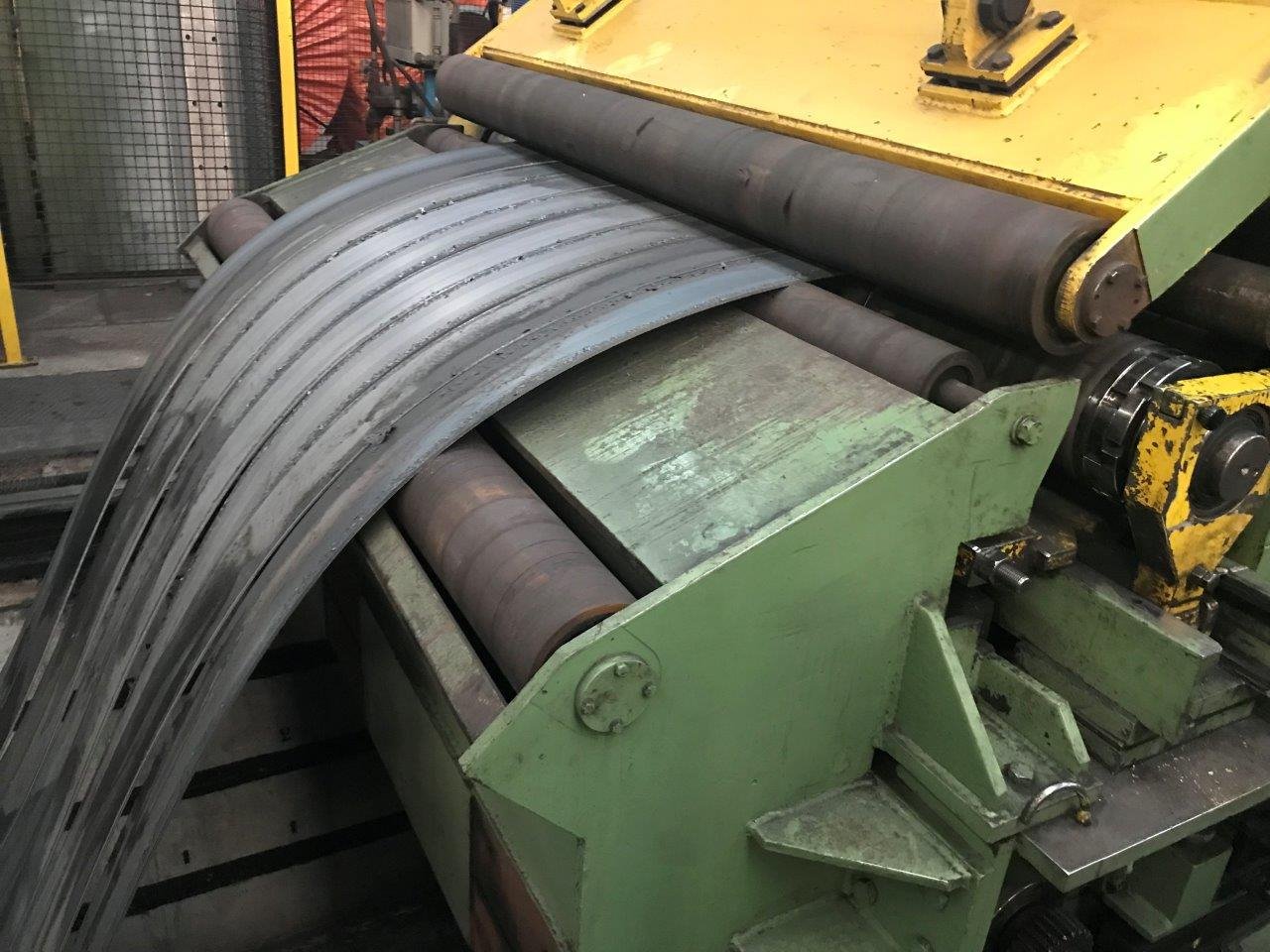

    STRAIGHTENER

    CROP SHEAR

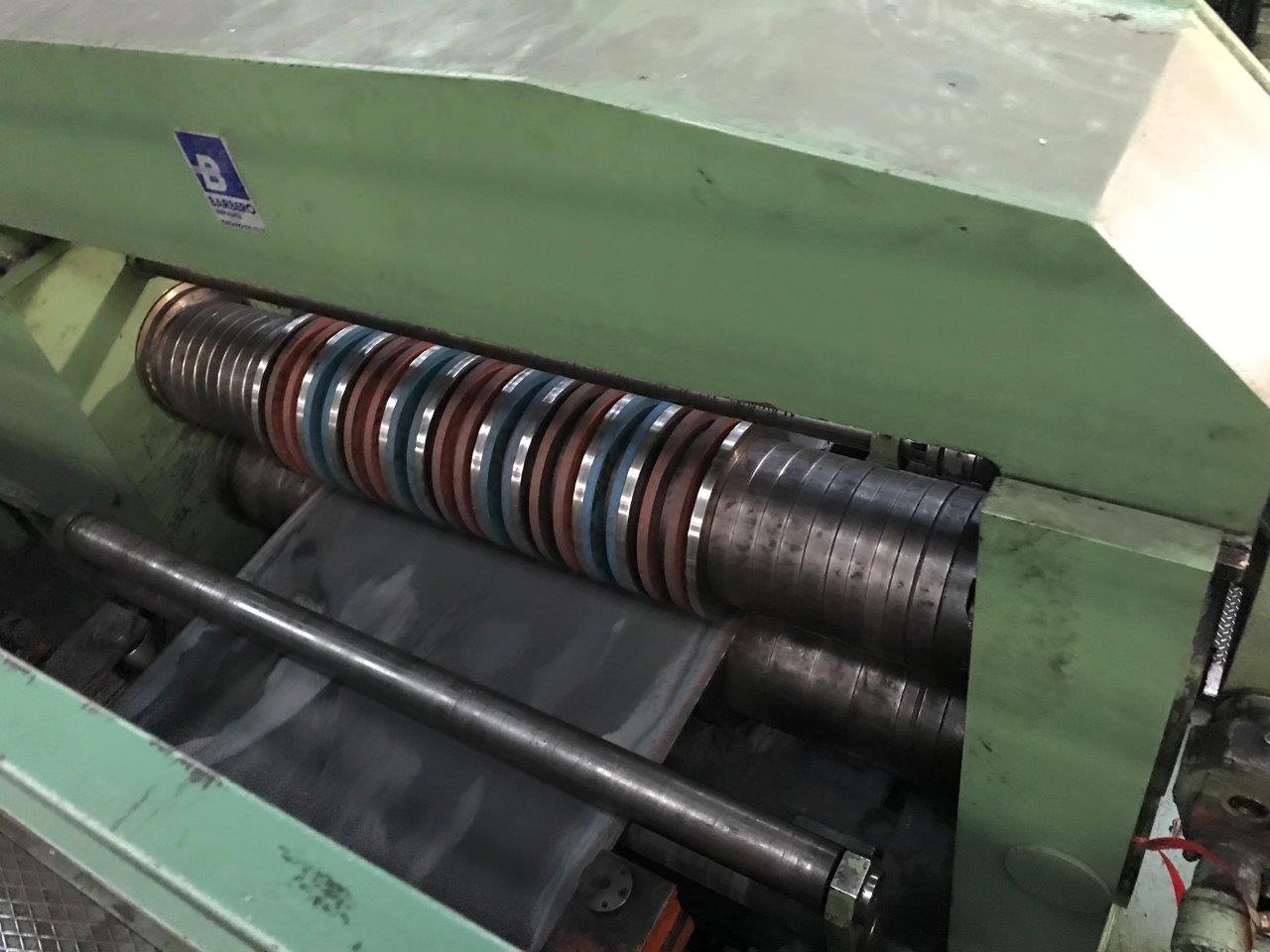

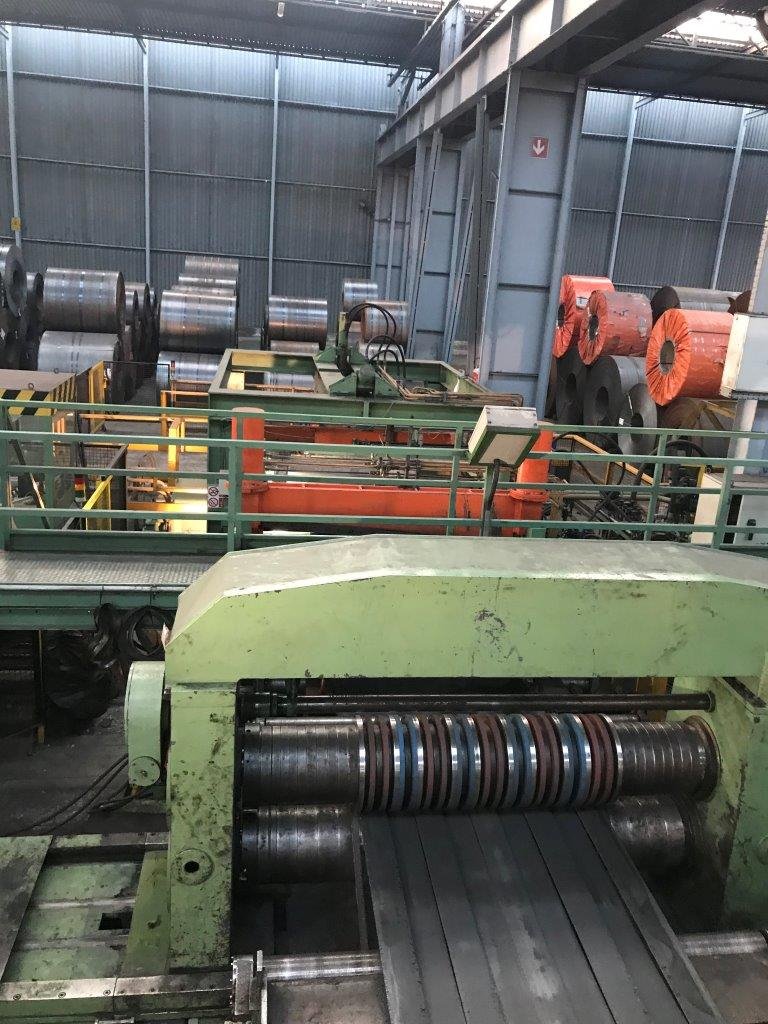

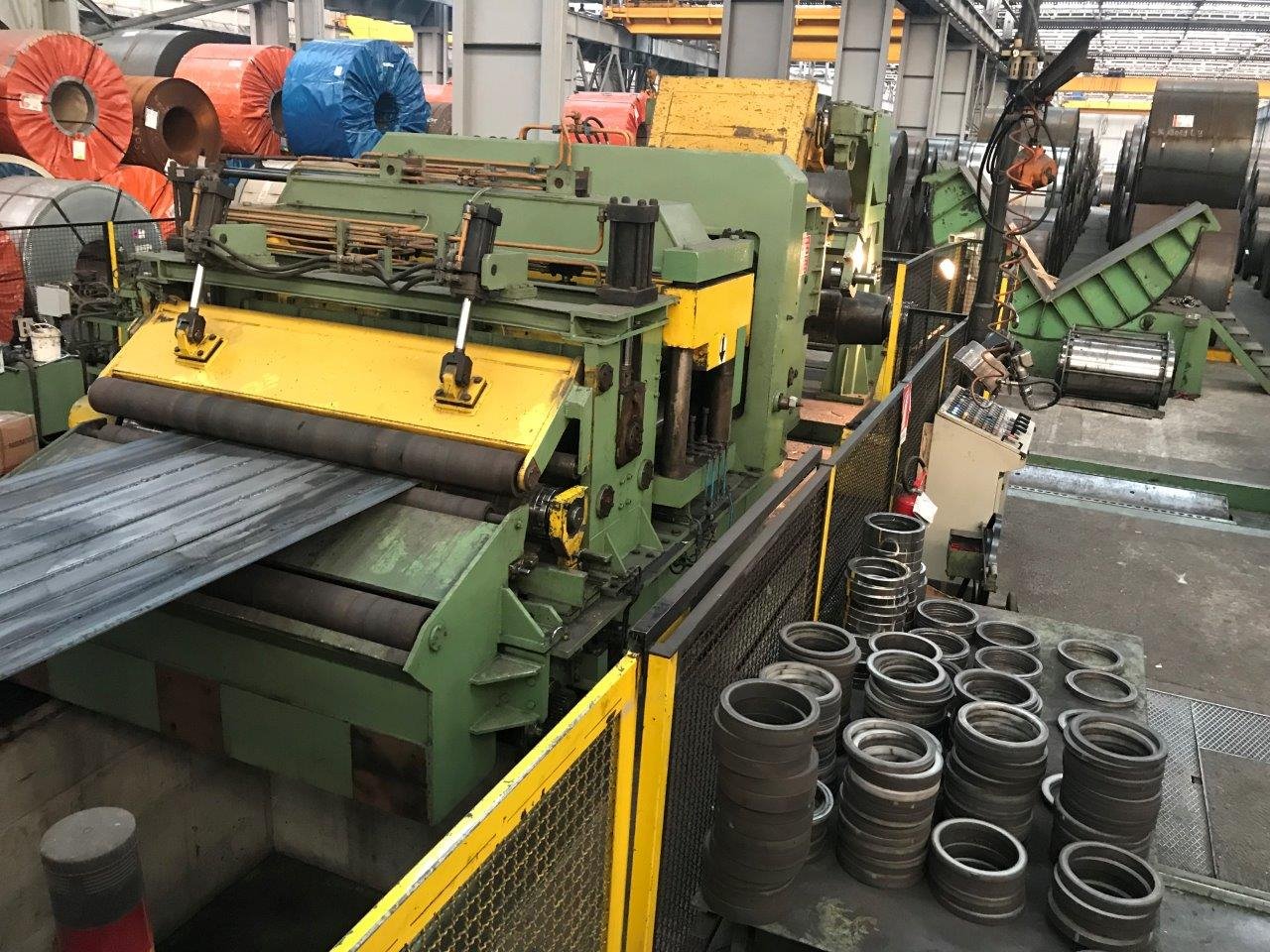

    SLITTER WITH SHAFT DIAMETER 300mm (500mm CIRCULAR KNIFE OD). Ca. 102 kW

    SCRAP BALER - 1000x1000mm

    BURR PLANISHING ROLLS

    RECOILER ENTRY UNIT

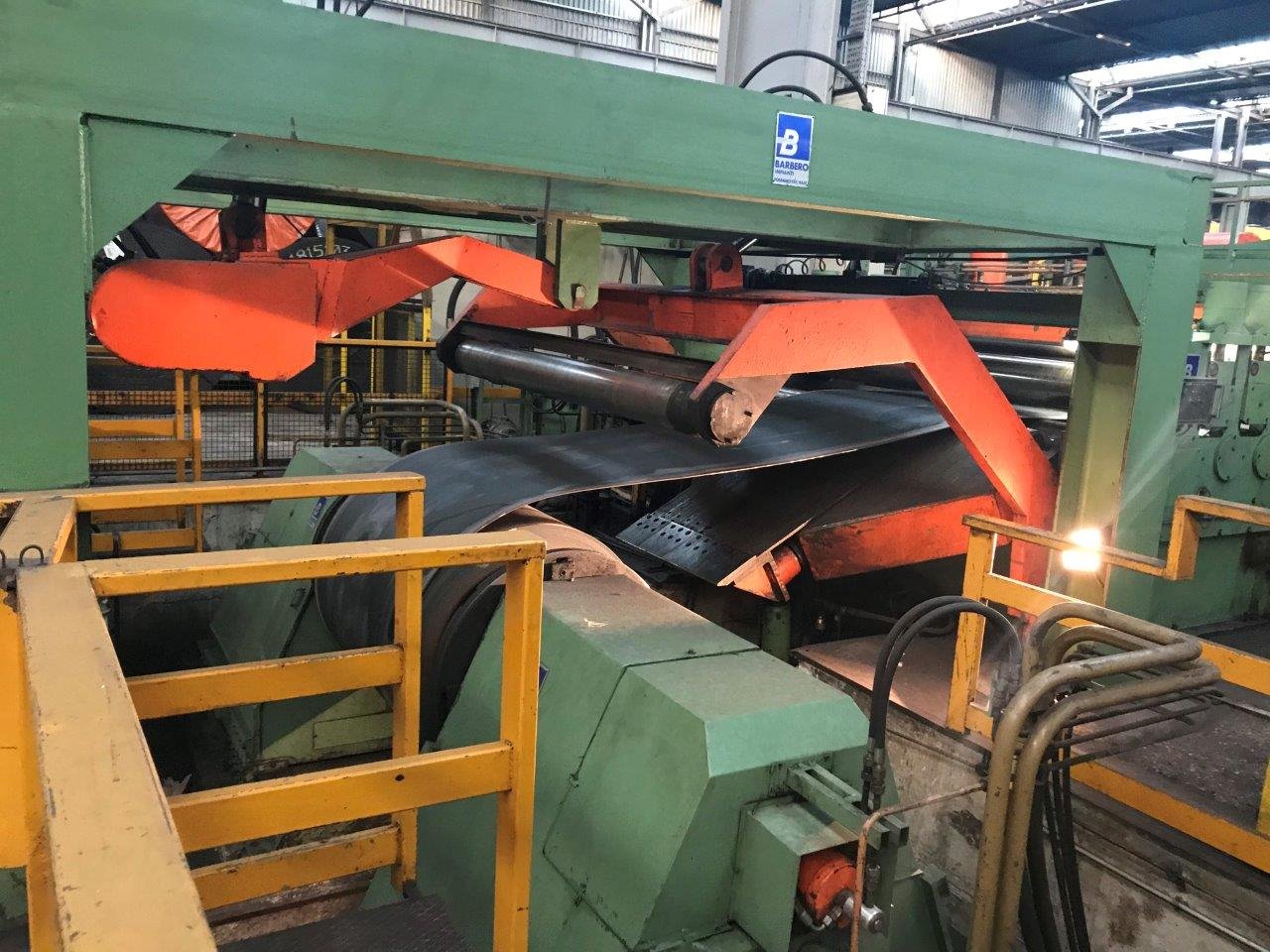

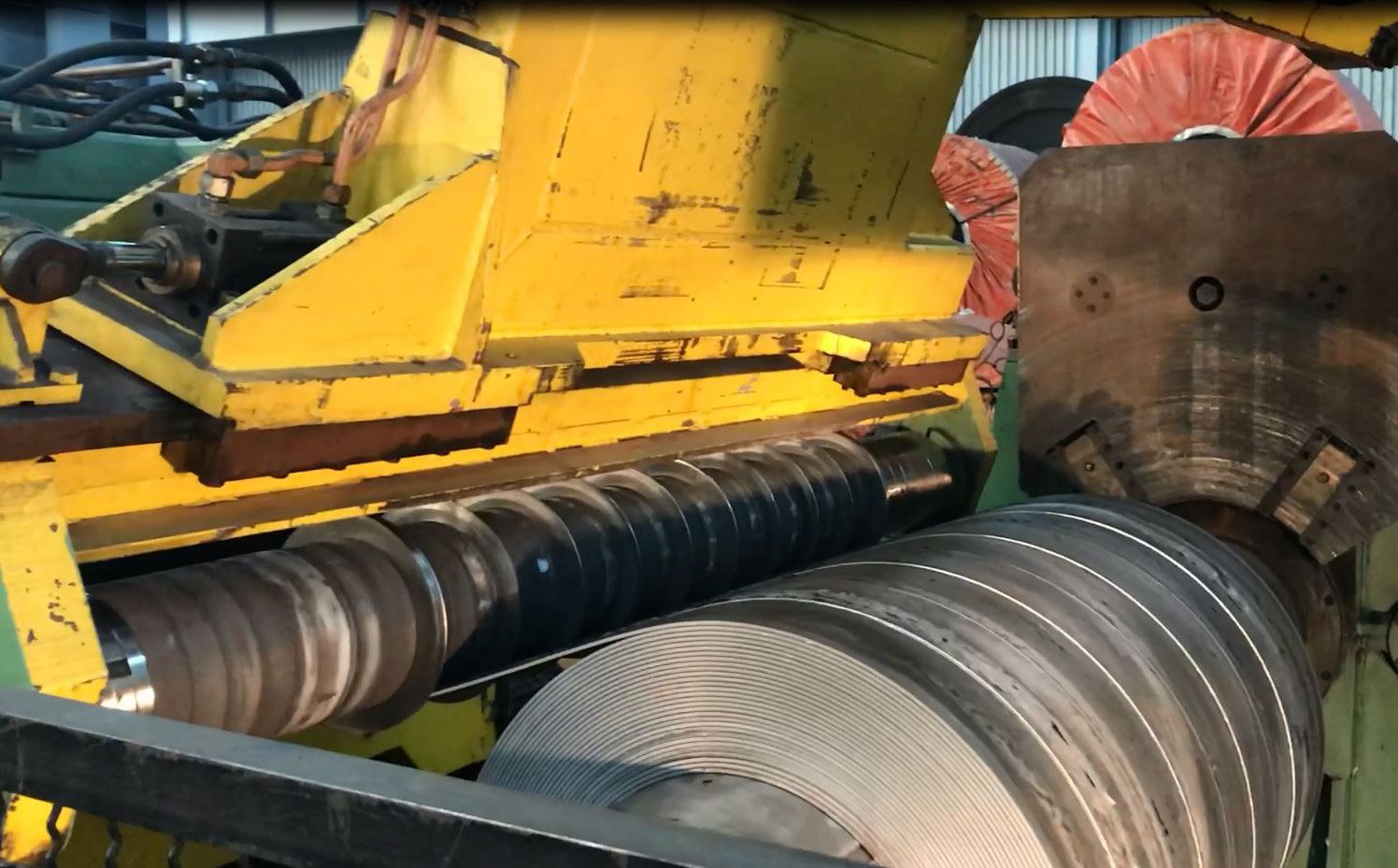

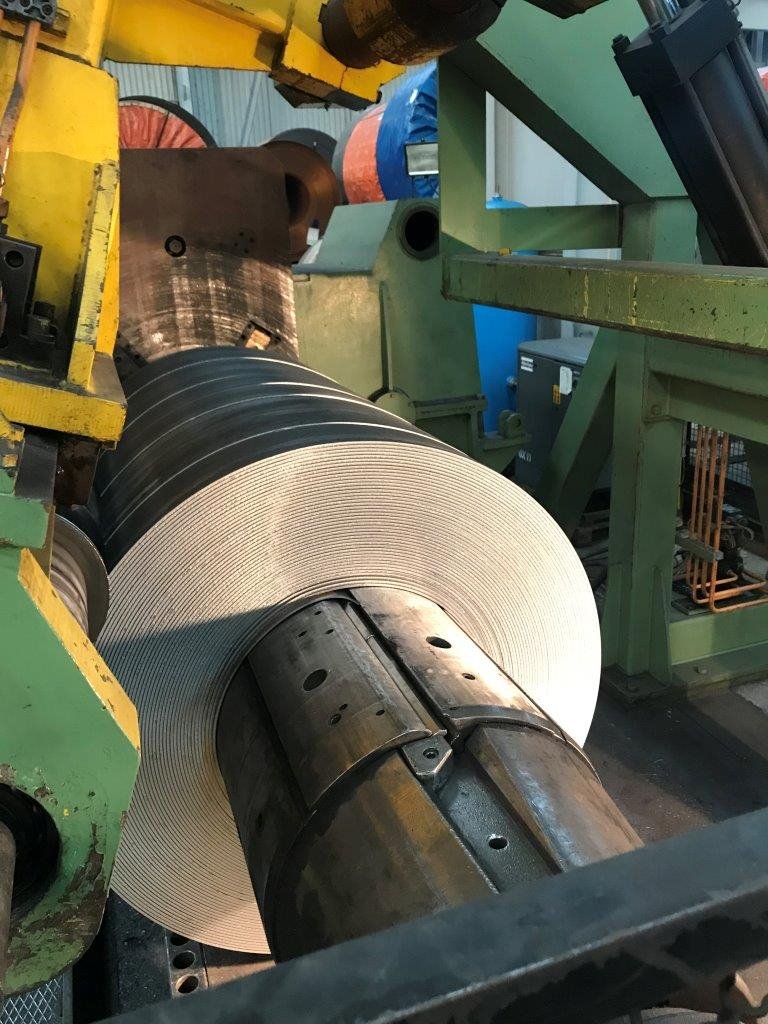

    RECOILER

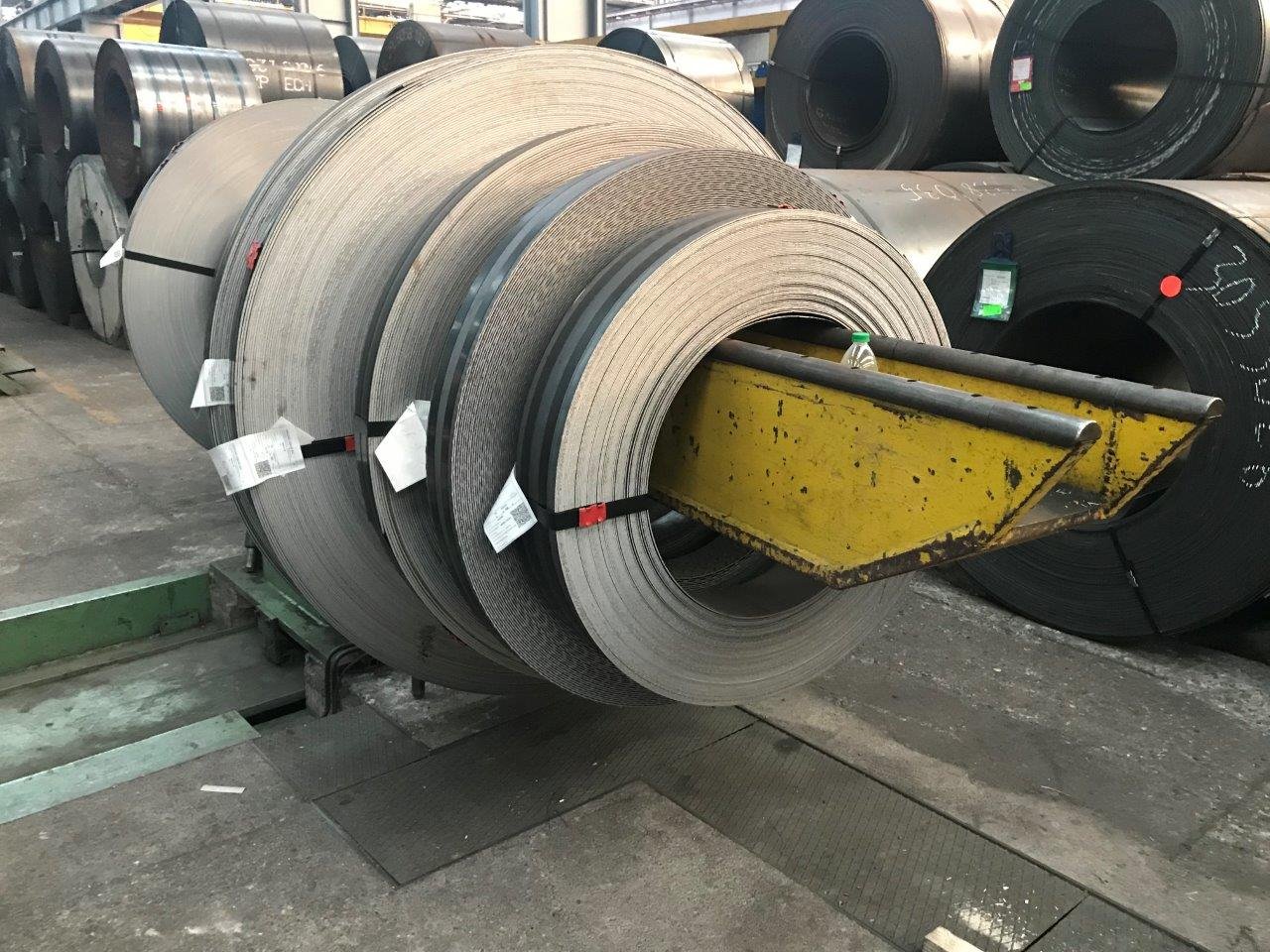

    2-ARM TURNSTILE

    COIL OFF-LOADING CAR




    DETAILS


    Type of Material(s): Hot and Cold Rolled Steel
    Maximum Material Strength at 12mm Thickness: 70 kg/mm2
    Coil Max. Weight at Entry and at Exit: 30 Tonne
    Minimum Material Thickness: 2.5mm
    Maximum Material Thickness: 10(12)mm
    Maximum Entry Coil Width: 2200mm
    Minimum / Maximum Entry Coil ID: 500/700mm
    Minimum / Maximum Exit Coil ID: 610mm
    Maximum Coil OD: 2000mm
    Max. Number of Cuts at 12mm Thickness: 3
    Line Max. Speed: 50m / min
    Hydraulic Crop Shear
    Straightener: 5 Roll Type
    Voltage: European




    > info@coilsheetmetalequipment.com for full info


    We offer quality Slitting Lines both new and used / re-manufactured for Aluminium, Coated, Cold Rolled, Copper, Galvanized, Hot Rolled, Prepaint, Silicon, Stainless, Tinplate,

    Your enquiries welcome for also individual Line Parts like: Decoilers, Recoilers, Slitters, Strip Tension Stands, Turnstiles, Upenders ...

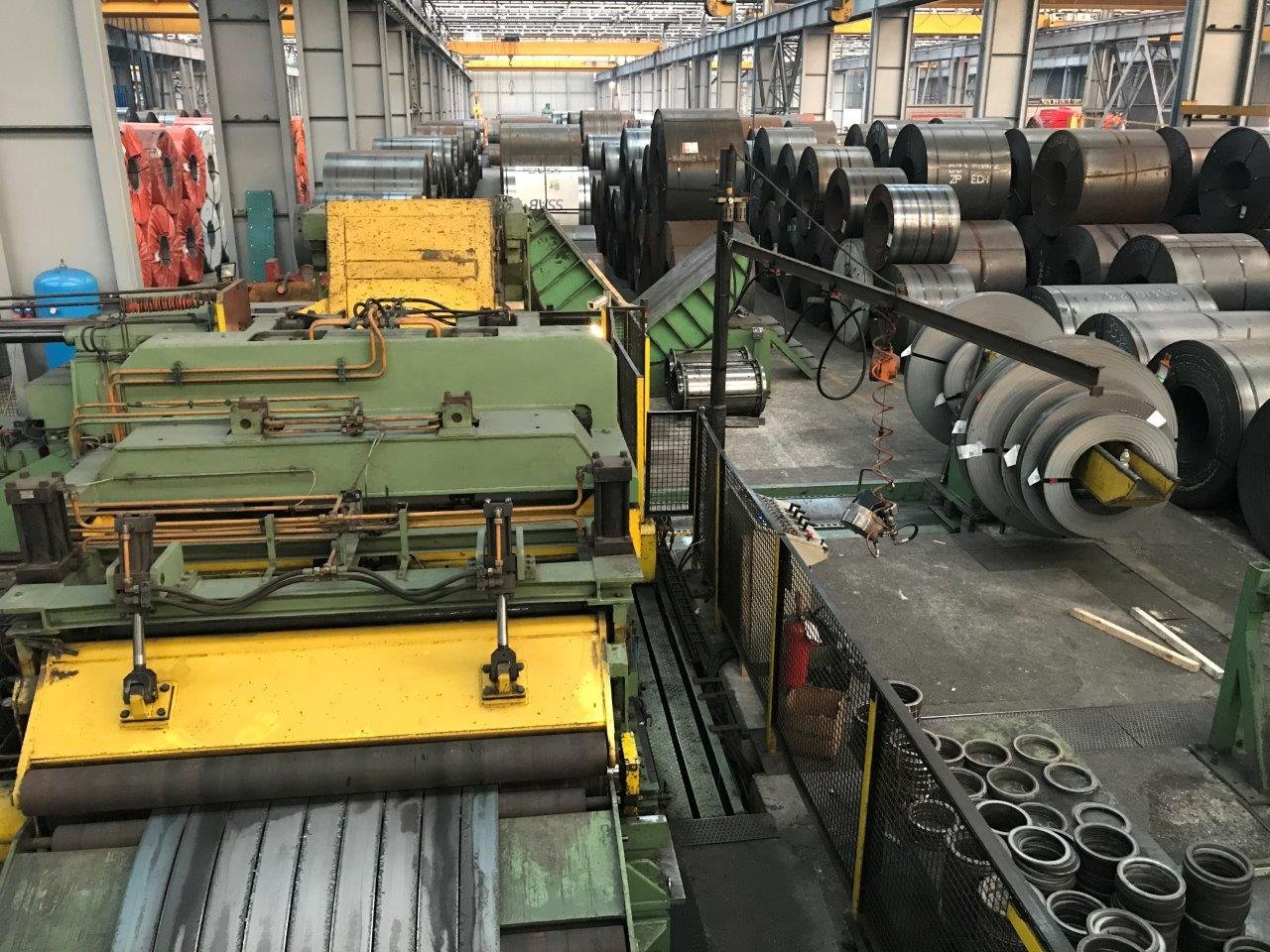

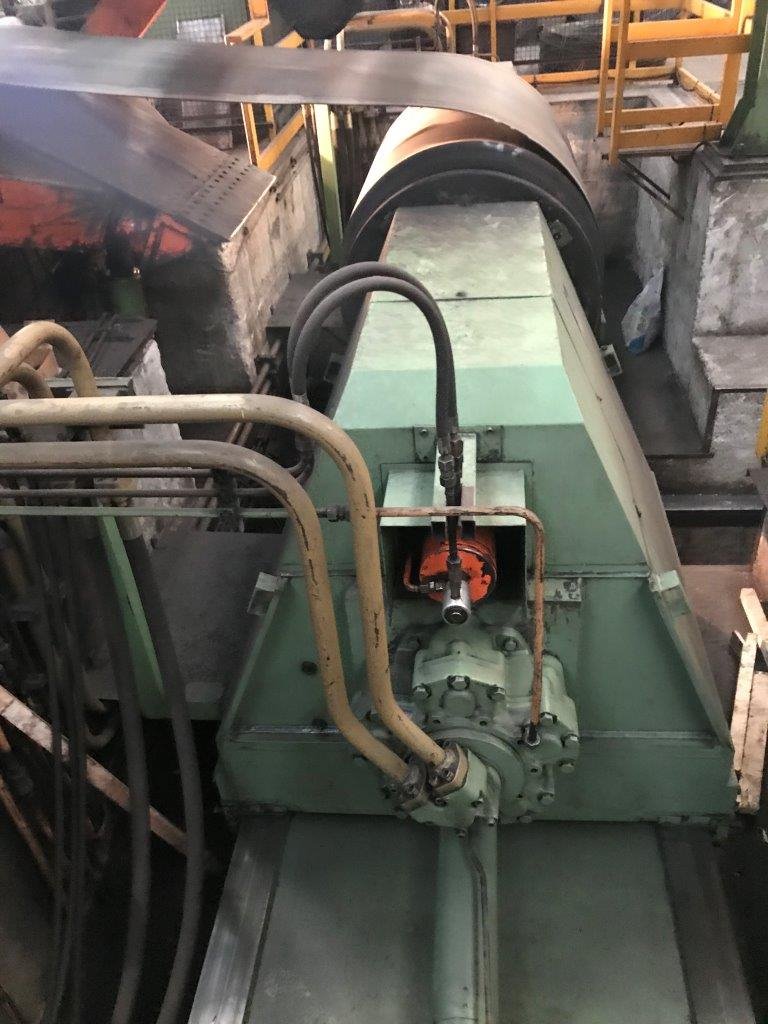

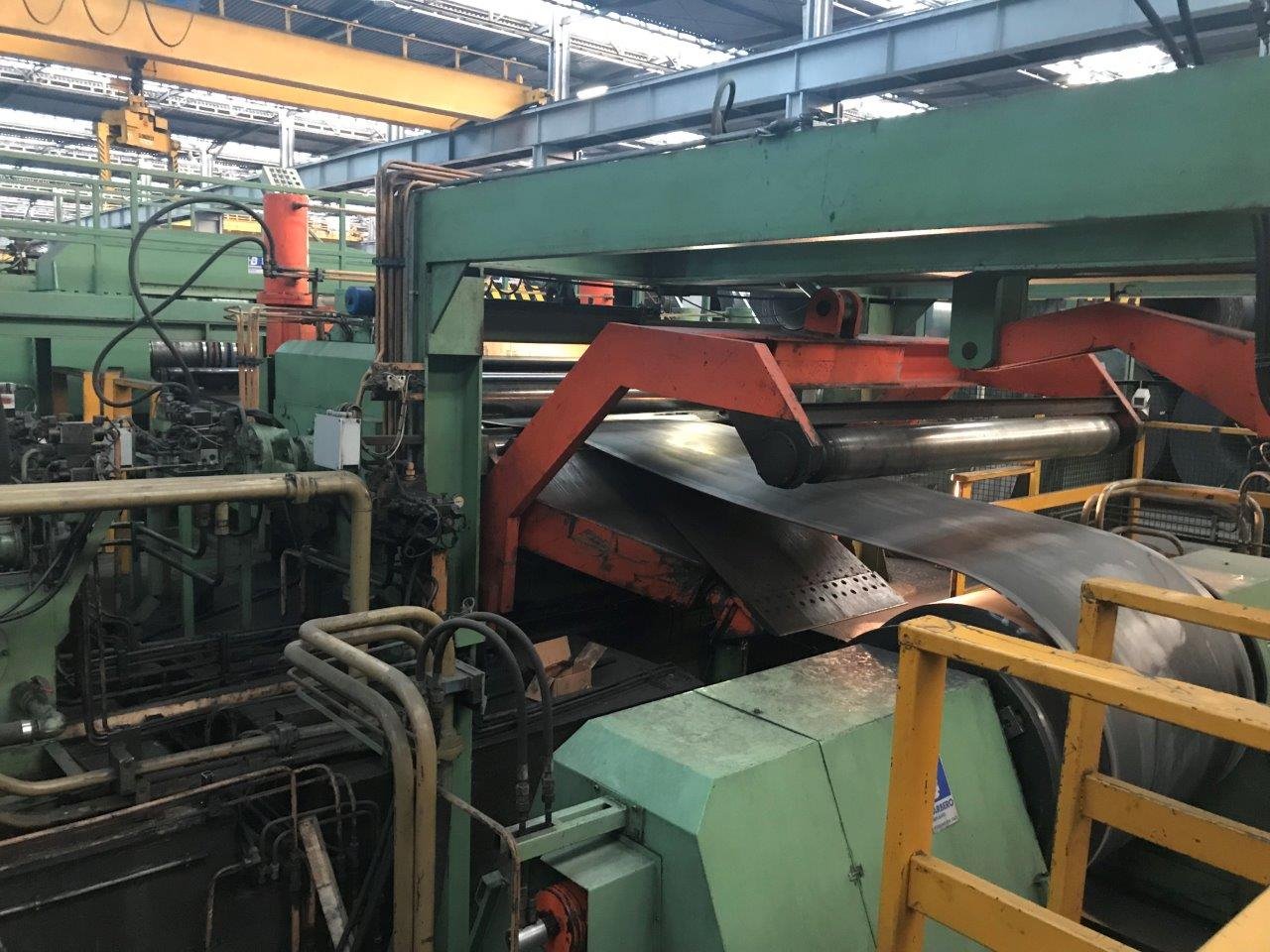

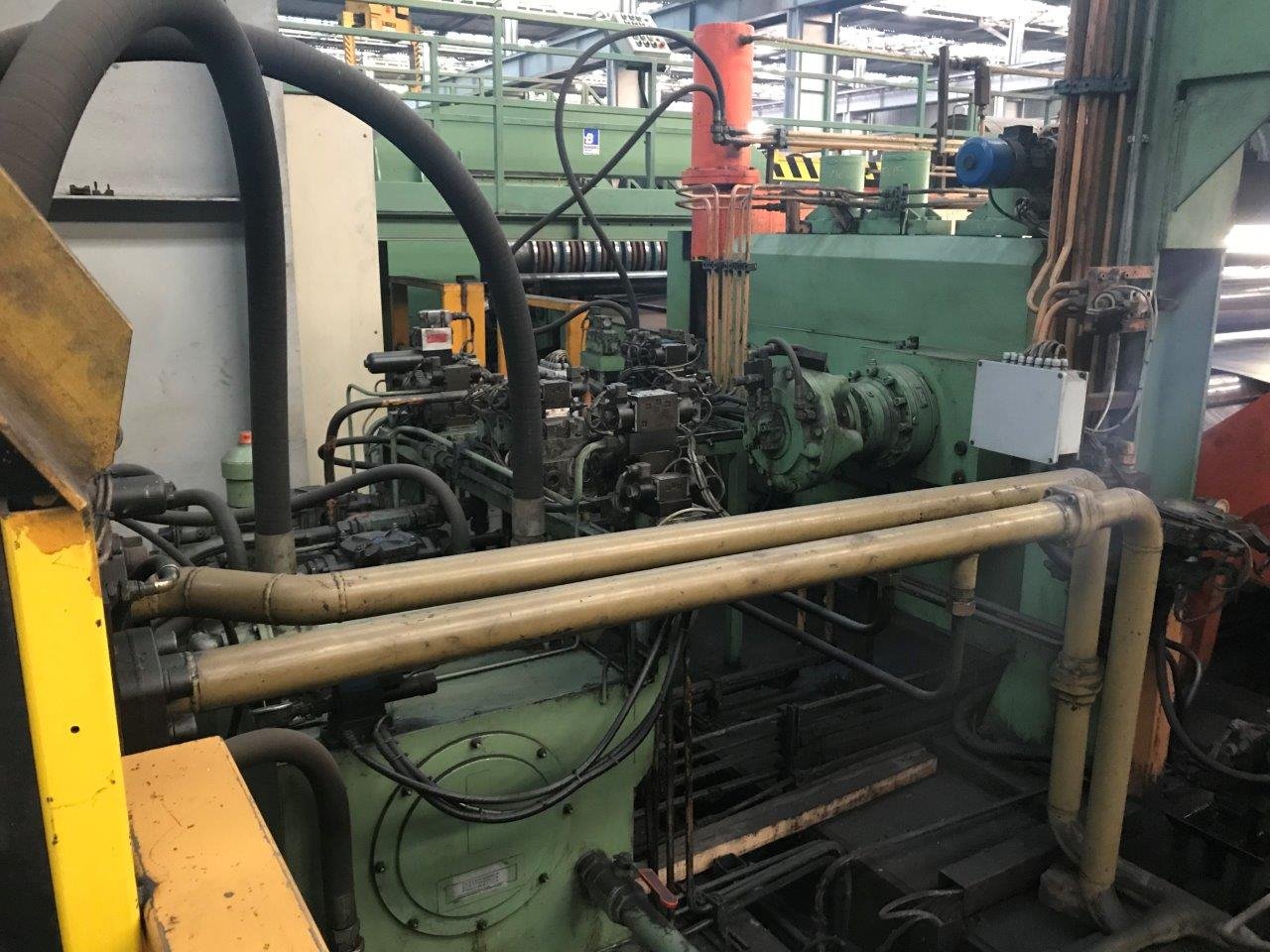

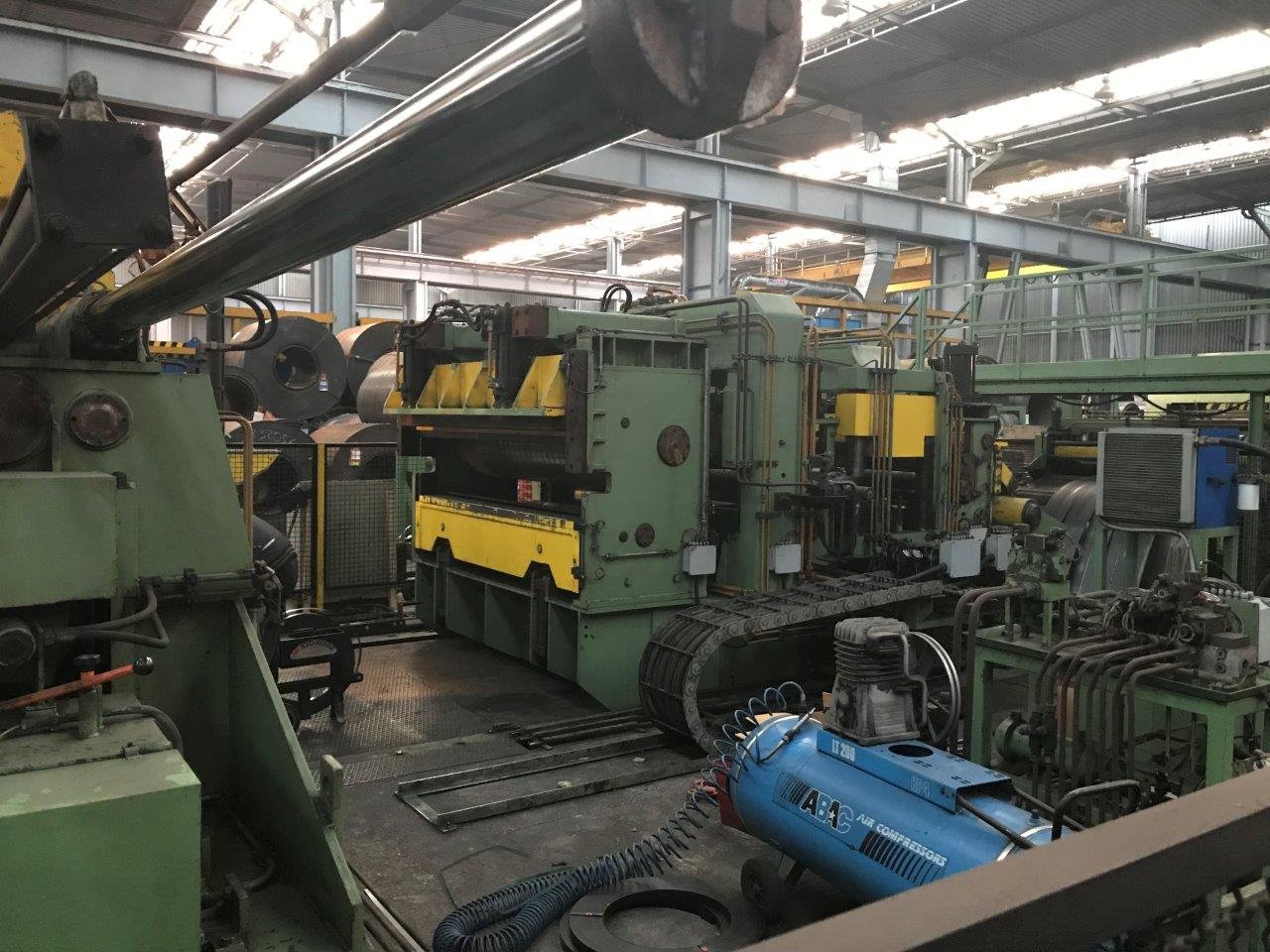

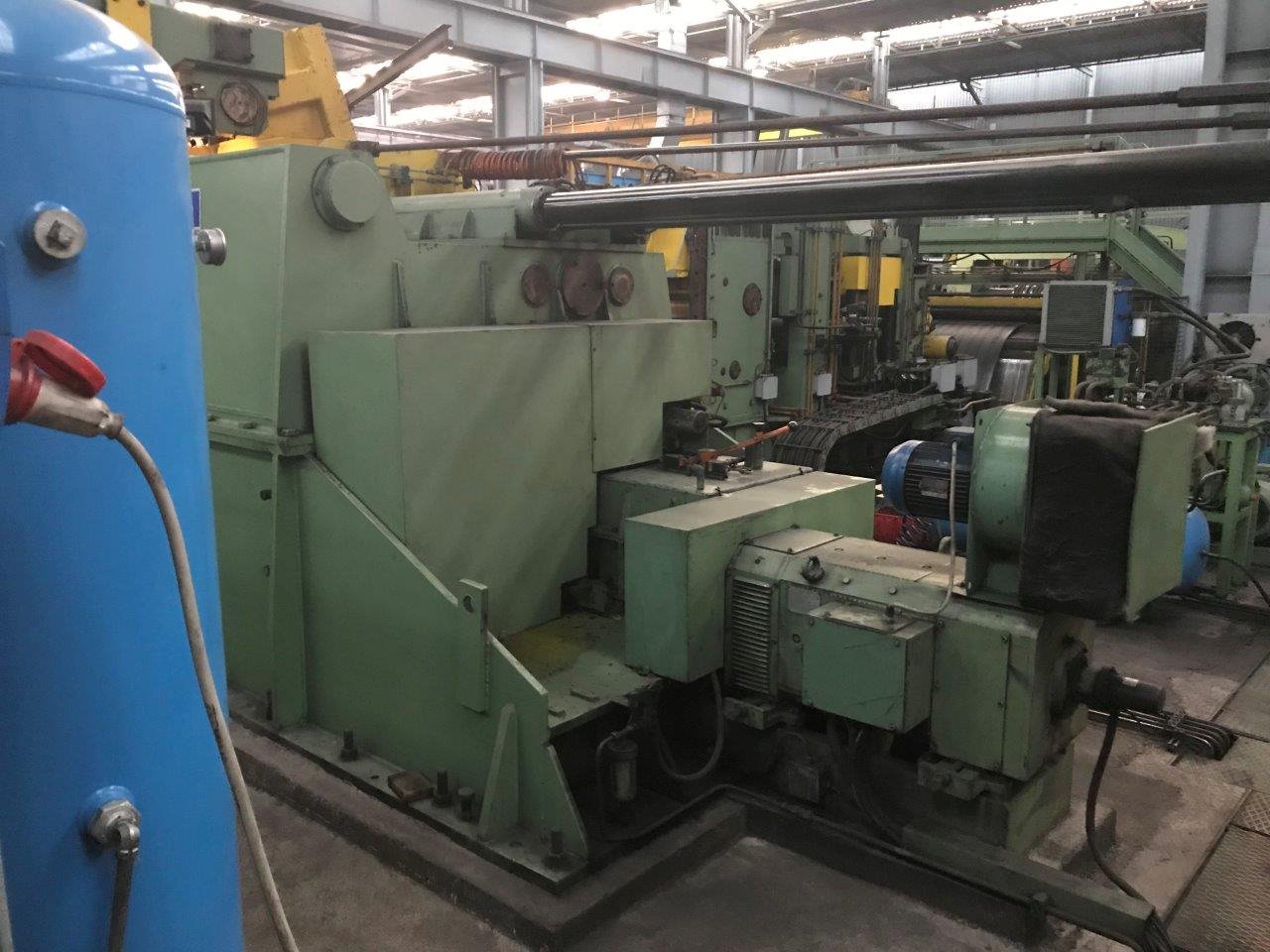

    PHOTOS & IMAGES
