This used 600mm stainless steel slitting line can process .4mm to 2.0mm thick material

SLITTING LINE

Slitting Line HYBRID Used [#3365]
   Slitting lines SLL  Slitting Line HYBRID Used [#3365]
SOLD
1

Used Slitting Line
600mm x 2mm Stainless Steel
HYBRID

    This used 600mm stainless steel slitting line can process .4mm to 2.0mm thick material, with entry coil weight max. 3 t and exit coil weight max. 2 t.

    Up to 12 slits are possible at .4mm thickness, 5 slits at 2mm. --- For more information on the line please contact: info@coilsheetmetalequipment.com.
    For new slitting lines of this "size" please refer Presentation #3358 on this page.




    GENERAL INFORMATION


    ENTRY COIL MAX WEIGHT: 3 t
    ENTRY MAX COIL OD: 1600mm
    ENTRY COIL ID: 500mm & 600mm

    EXIT COIL MAX WEIGHT: 2 t
    EXIT MAX COIL OD: 1200mm
    EXIT COIL ID: 500mm

    MAXIMUM COIL WIDTH: 600mm
    MINIMUM MATERIAL THICKNESS: .4mm S.S.
    MAXIMUM MATERIAL THICKNESS: 2.0mm S.S.

    APPROXIMATE NUMBER OF SLITS POSSIBLE (S.S.):
    WITH MATERIAL THICKNESS FROM.4mm TO 1mm > MAX. 12 SLITS (S.S.)
    WITH MATERIAL THICKNESS FROM 1mm TO 1.2mm > MAX. 8 SLITS (S.S.)
    WITH MATERIAL THICKNESS FROM 1.2mm TO 1.5mm > MAX. 7 SLITS (S.S.)
    WITH MATERIAL THICKNESS FROM 1.5mm TO 2mm > MAX. 5 SLITS (S.S.)

    TOLERANCE:
    WITH .4mm TO 1mm + / - 0.10
    WITH1mm TO 1.5mm + / - 0.15
    WITH1.5mm TO 2mm + / - 0.20

    SLITTER HEAD SHAFT DIA.: 100mm

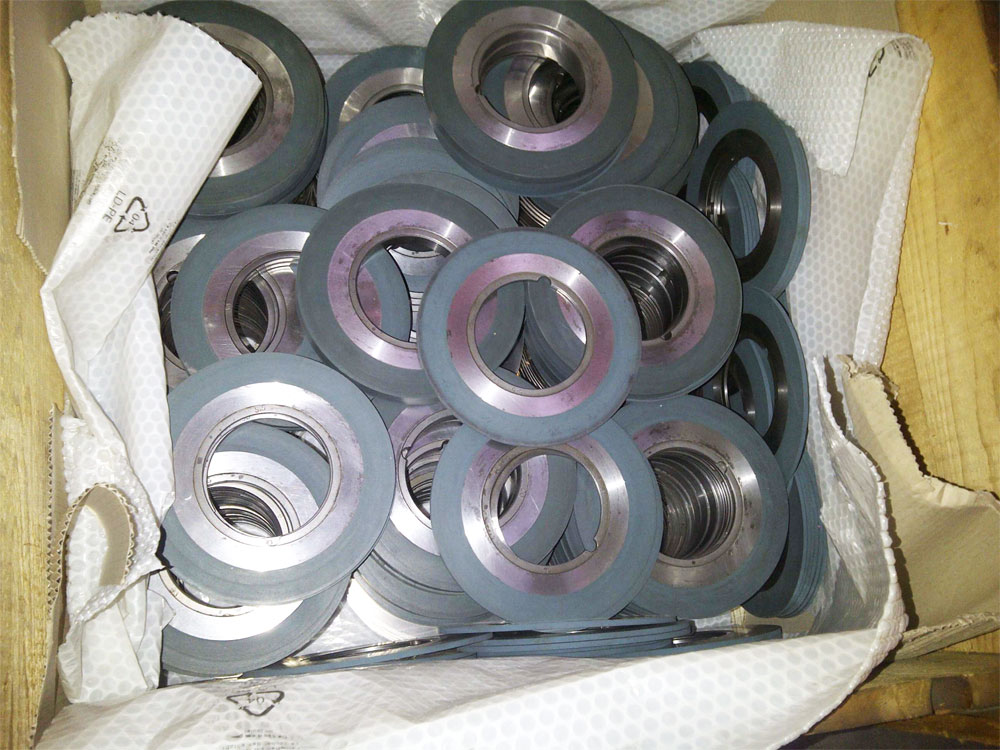

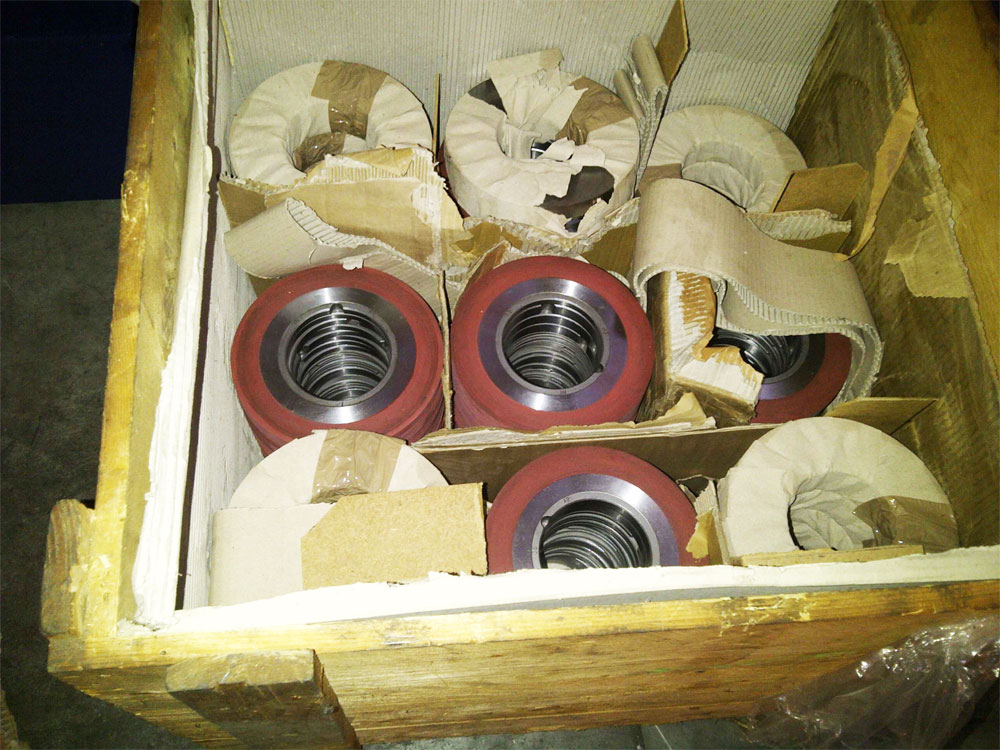

    A LARGE STOCK OF USED SLITTER TOOLING FOR STAINLESS STEEL IS AVAILABLE WITH THE LINE







    We offer quality Slitting Lines both new and used / re-manufactured for Aluminium, Coated, Cold Rolled, Copper, Galvanized, Hot Rolled, Prepaint, Silicon, Stainless, Tinplate,

    Your enquiries welcome for also individual Line Parts like: Decoilers, Recoilers, Slitters, Strip Tension Stands, Turnstiles, Upenders ...

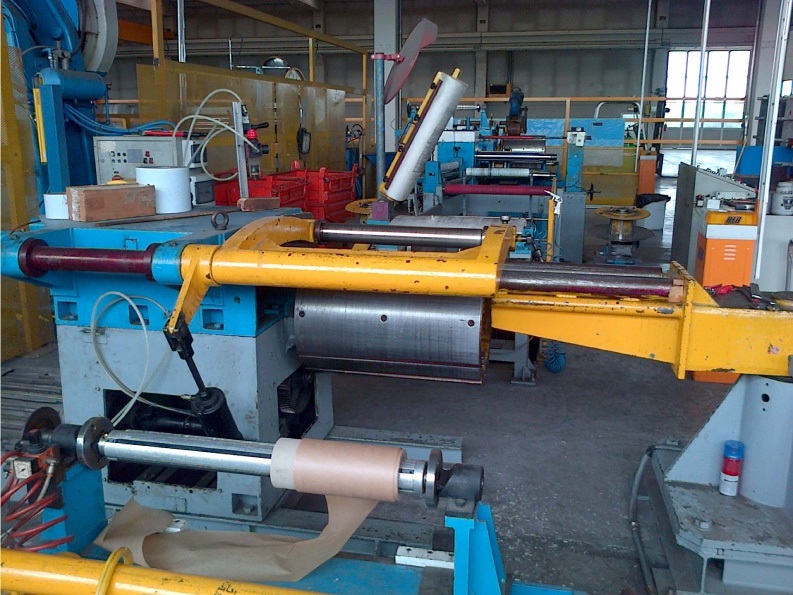

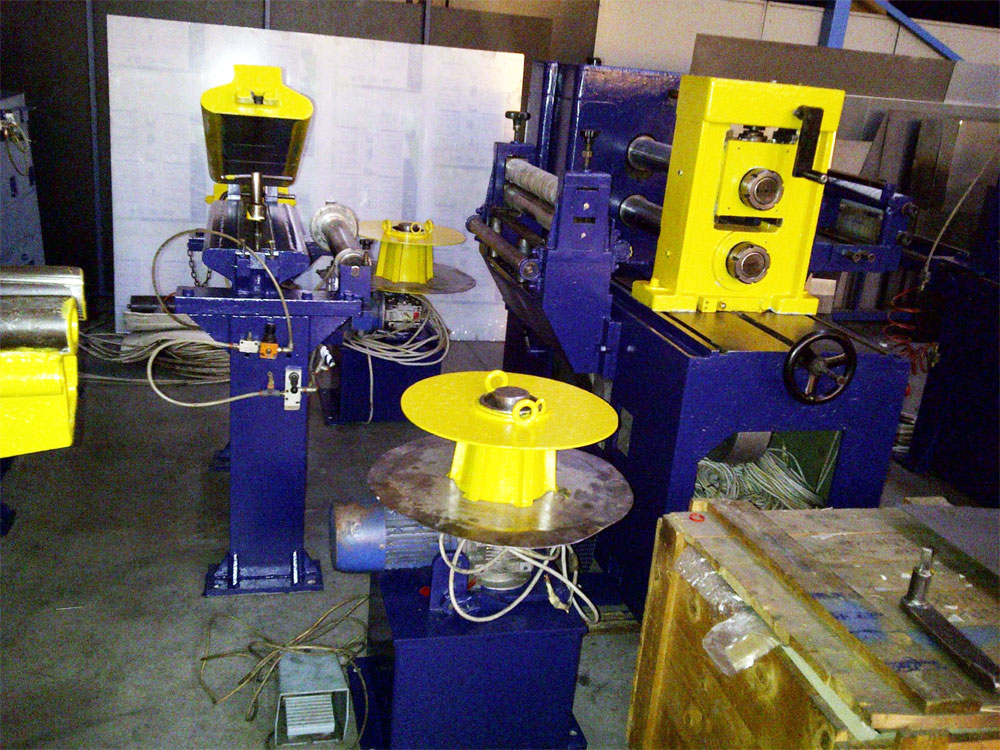

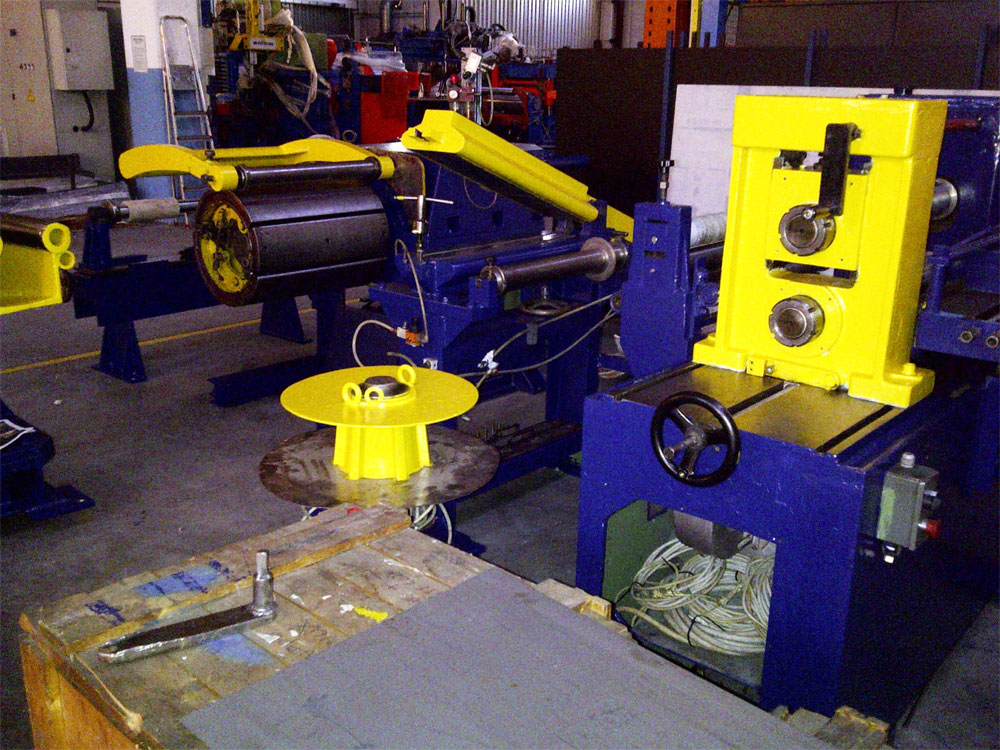

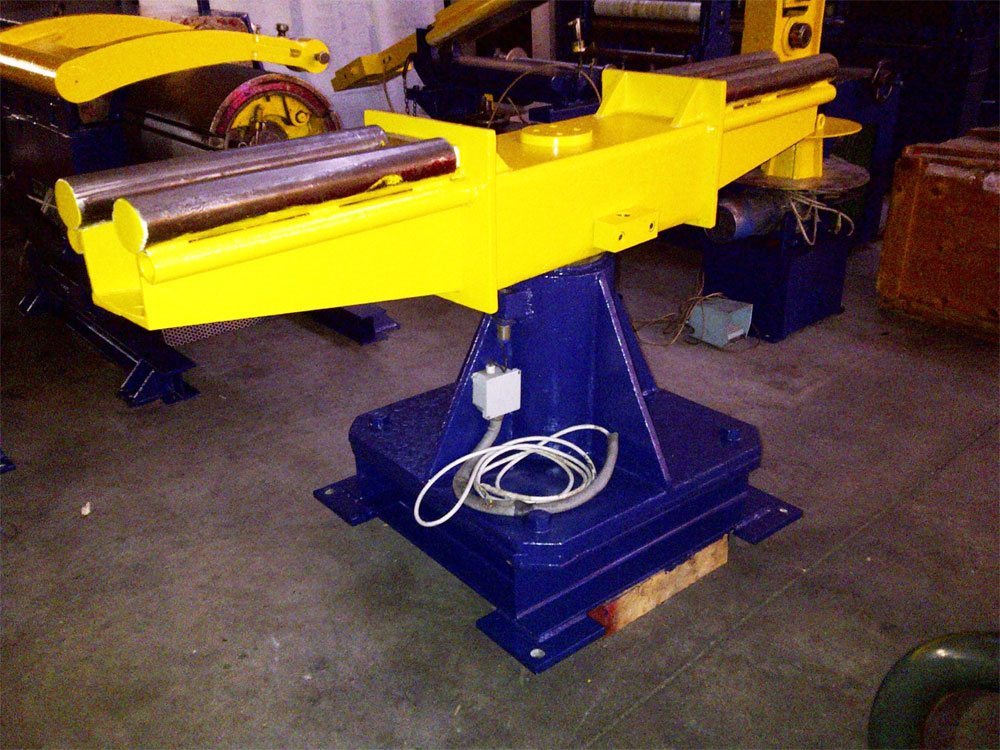

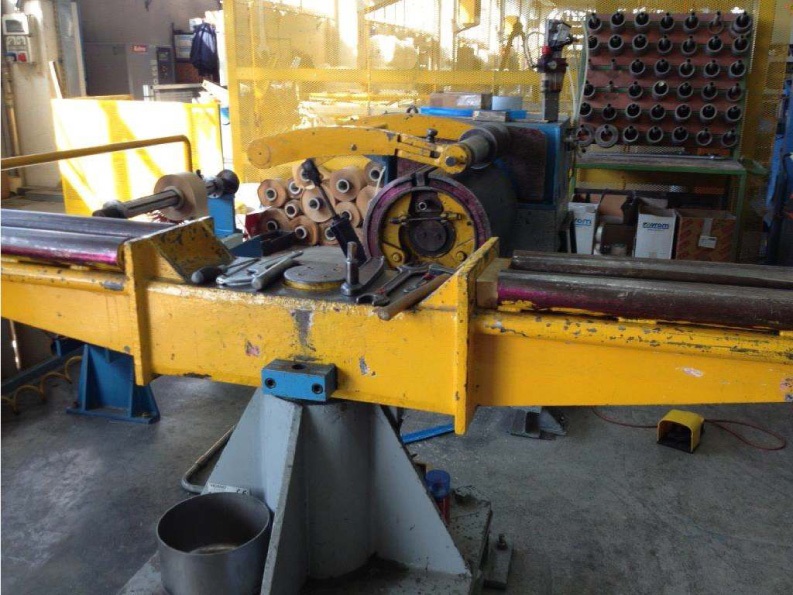

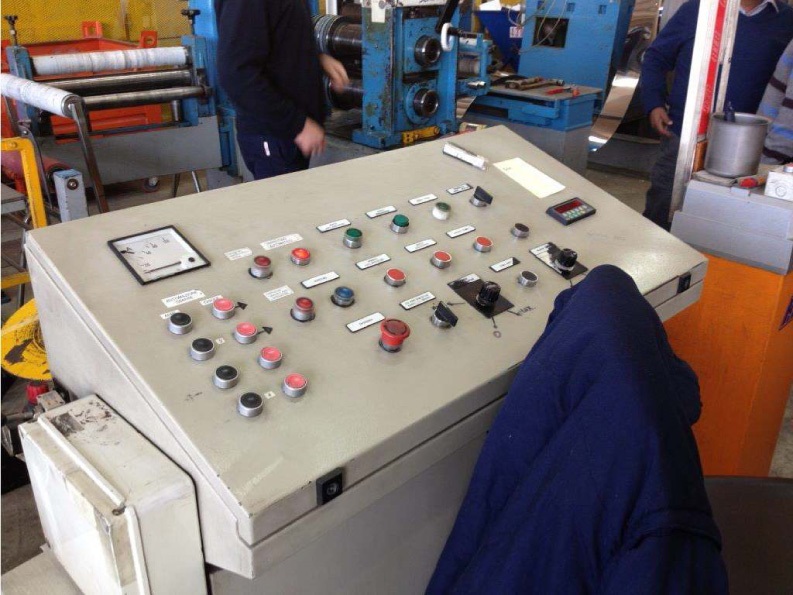

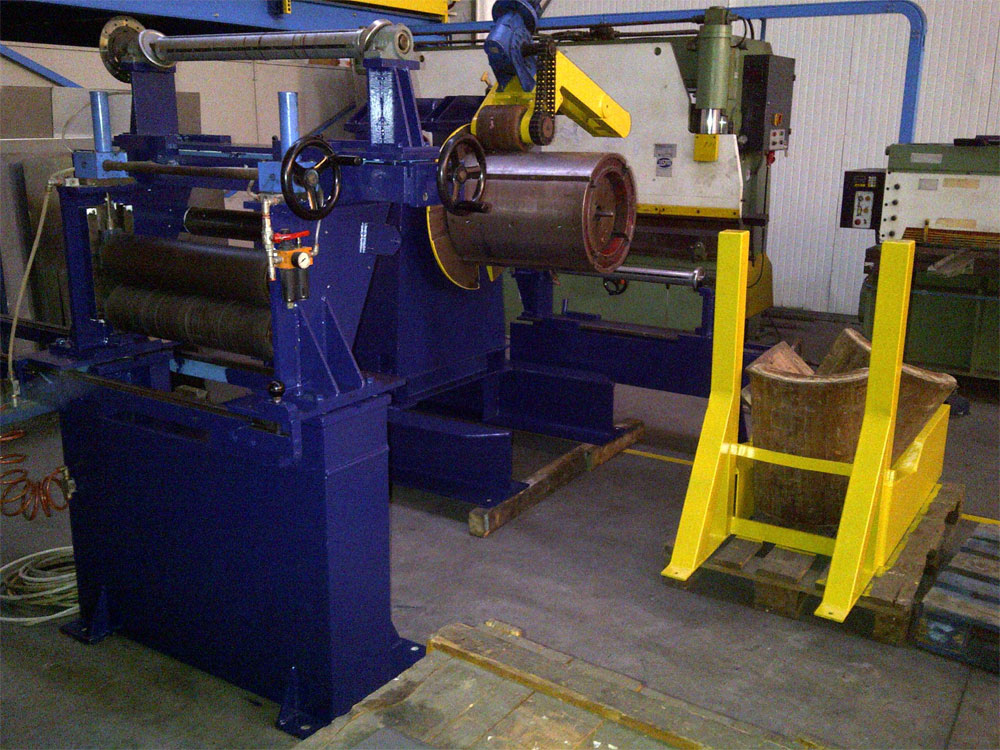

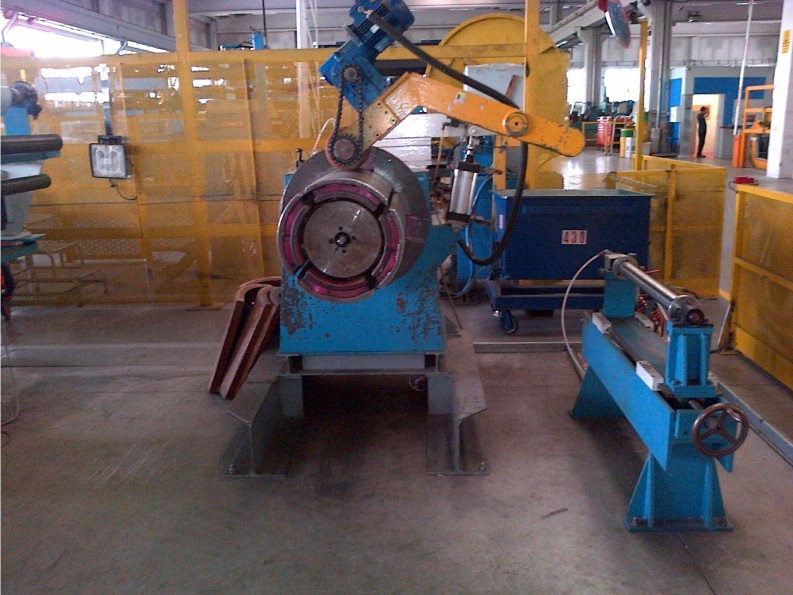

    PHOTOS & IMAGES
