Used Slitting Line
1600mm x 6mm
SACMA
Year when built: 2010
A Quick Tool Change Slitting Line
(Tooling Transfer Unit Type)
- installed and under power
- condition: excellent
200m / min
24 t Decoiler & Recoiler
- minimum material thickness: .6mm
- max number of cuts at 6mm: 4
The line was new in 2010. It is in excellent condition.
Its direction is RIGHT TO LEFT.
It suits for CR steel,Galv., Prepaint.

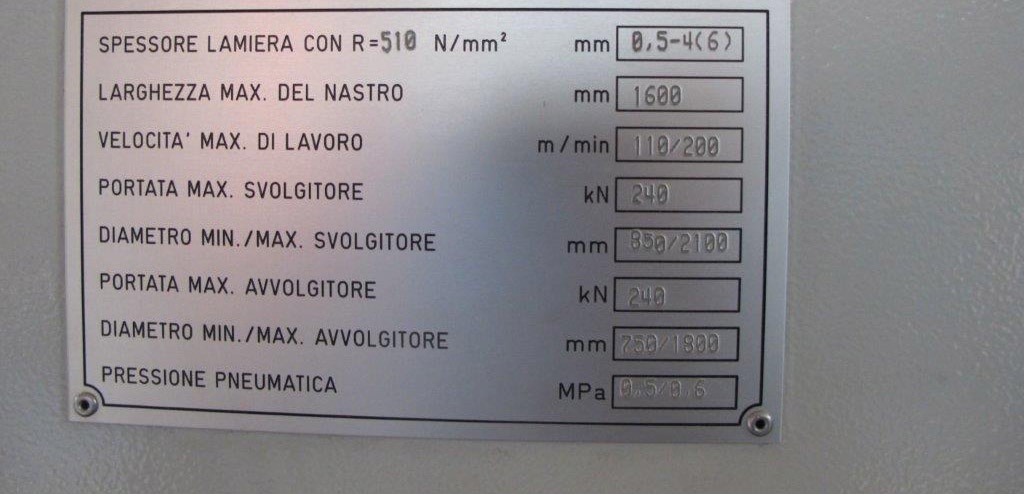

The max. coil width is 1600mm and the material thickness min/max: .6/6.0mm with 375 N/mm2; max. 4 mm with 510 N/mm2.
Max. coil weight 24 t.
Coil ID - at decoiler: 508-610mm / OD: 835-2100mm.
Coil ID at recoiler: 508-610 mm / OD: 750-1.800 mm.
The maximum line speed is 110-200m / min (2 gears)
EQUIPMENT LIST

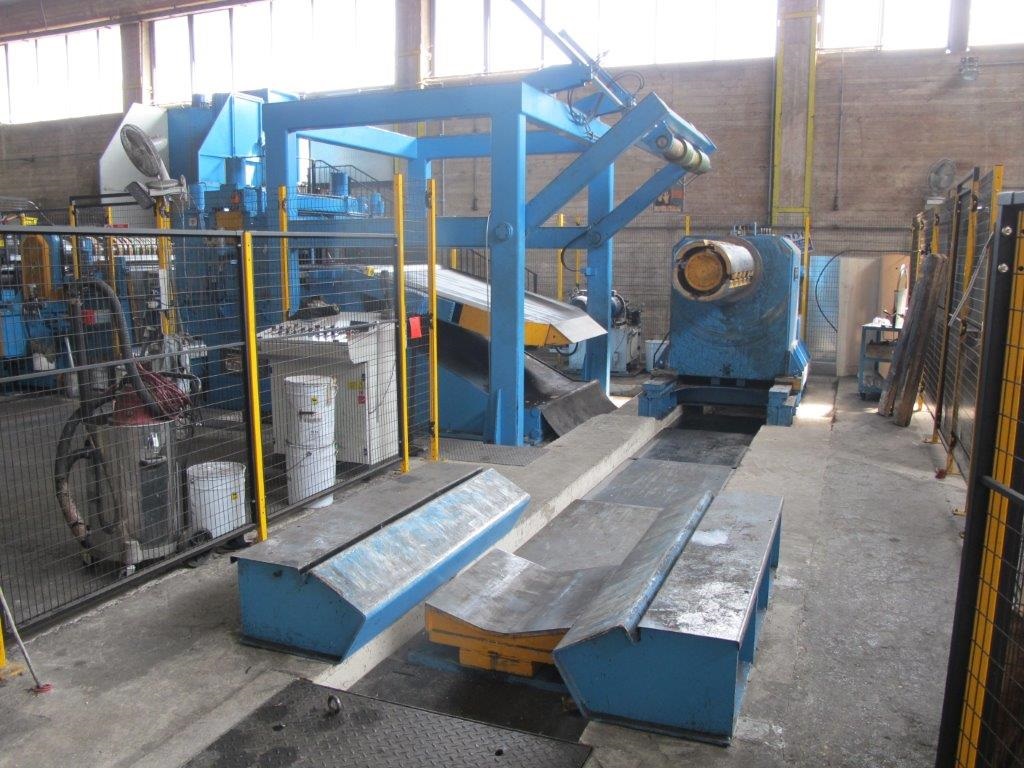

Coil Car
Decoiler
-single mandrel, hydraulic expansion
-hydraulic motor/dynamic brake.
-mandrel dia.: 480-740mm (w. spacers)
Coil Threading Group
-with peeler station and driven snubber roll

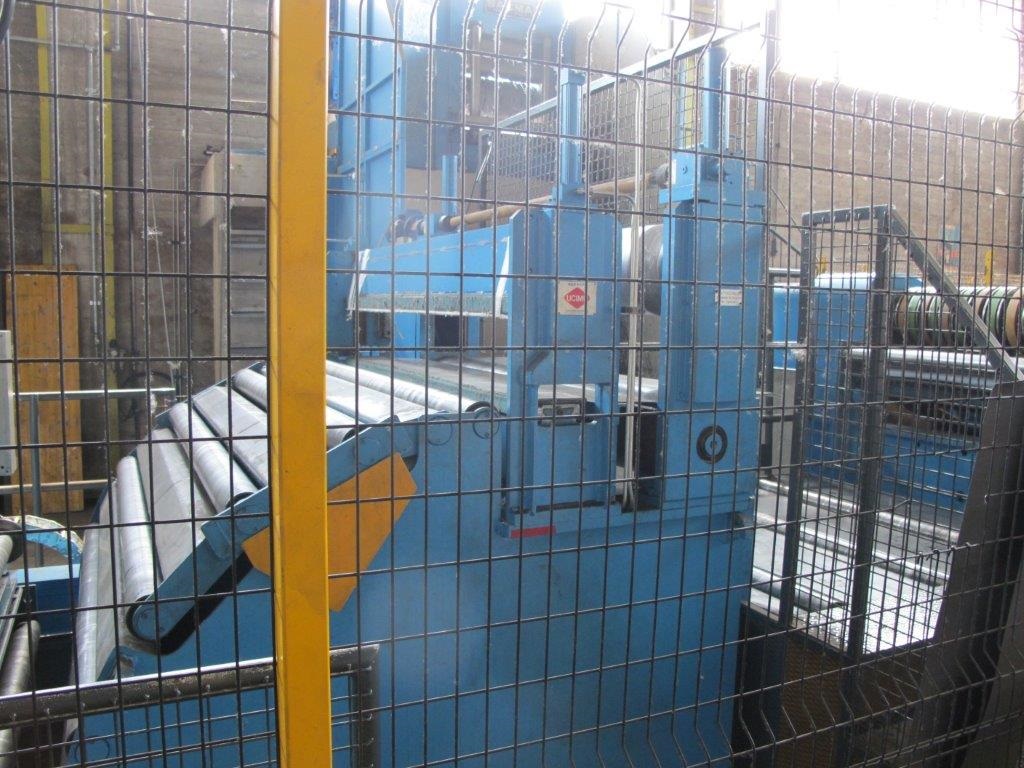

3-Roll Straightener
Crop Shear, hydraulic
Centering Unit and Feeding Pinch Rolls

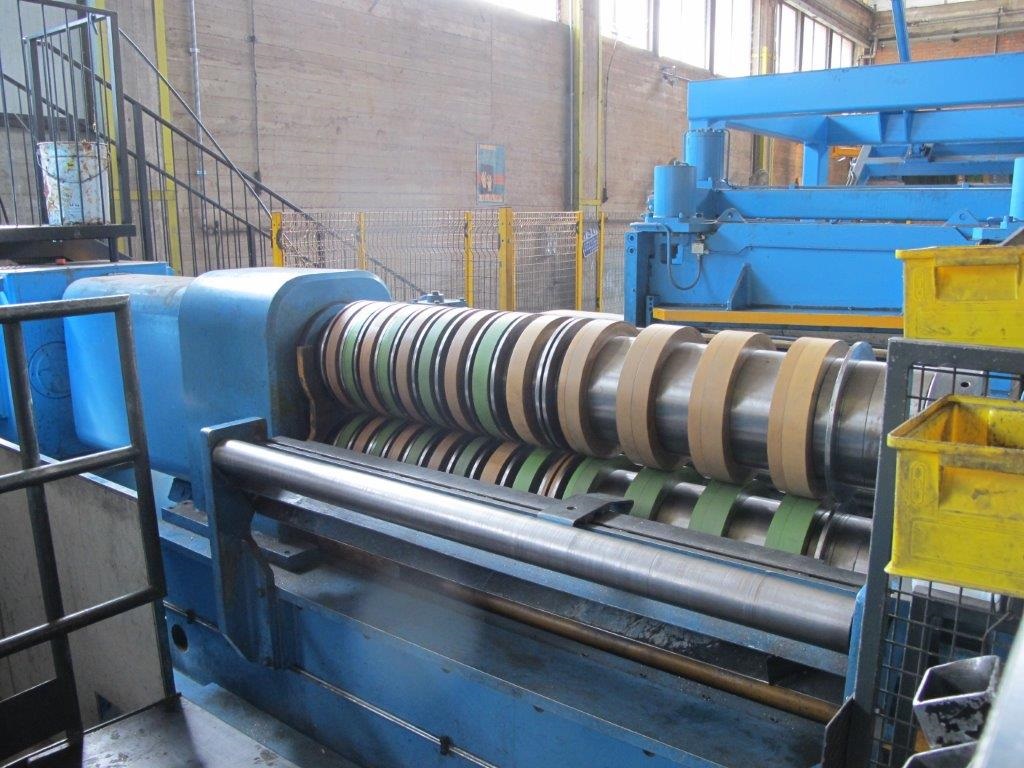

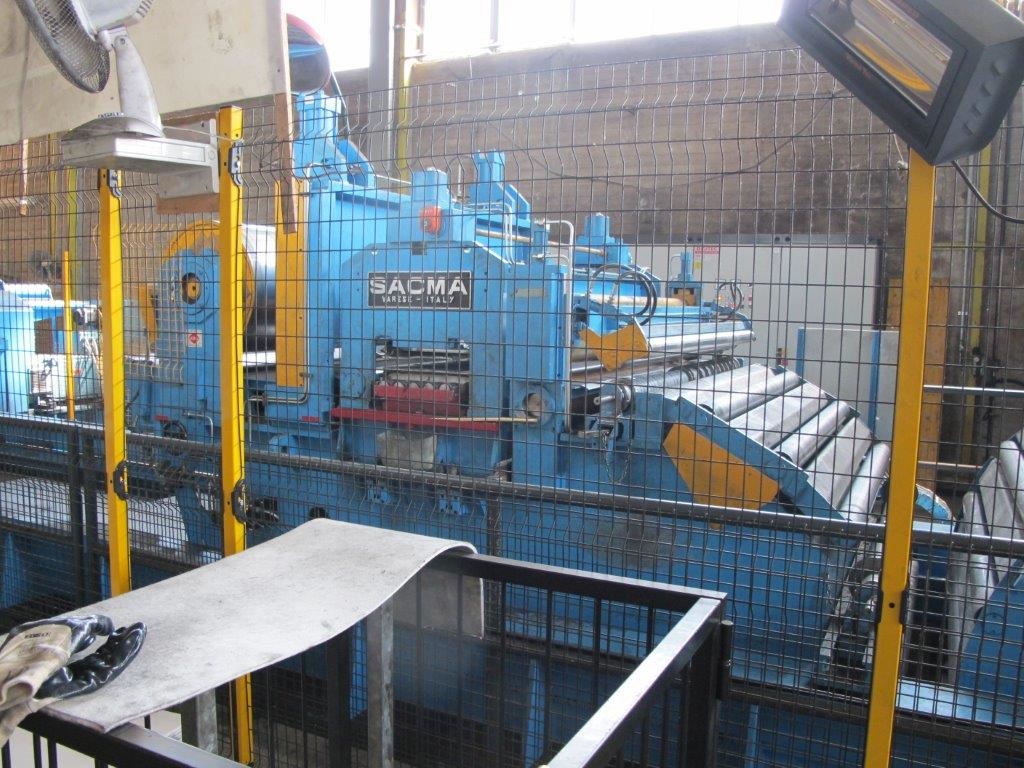

Slitter Head, with arbor dia.: 220mm
-Opening side for automatic tool change

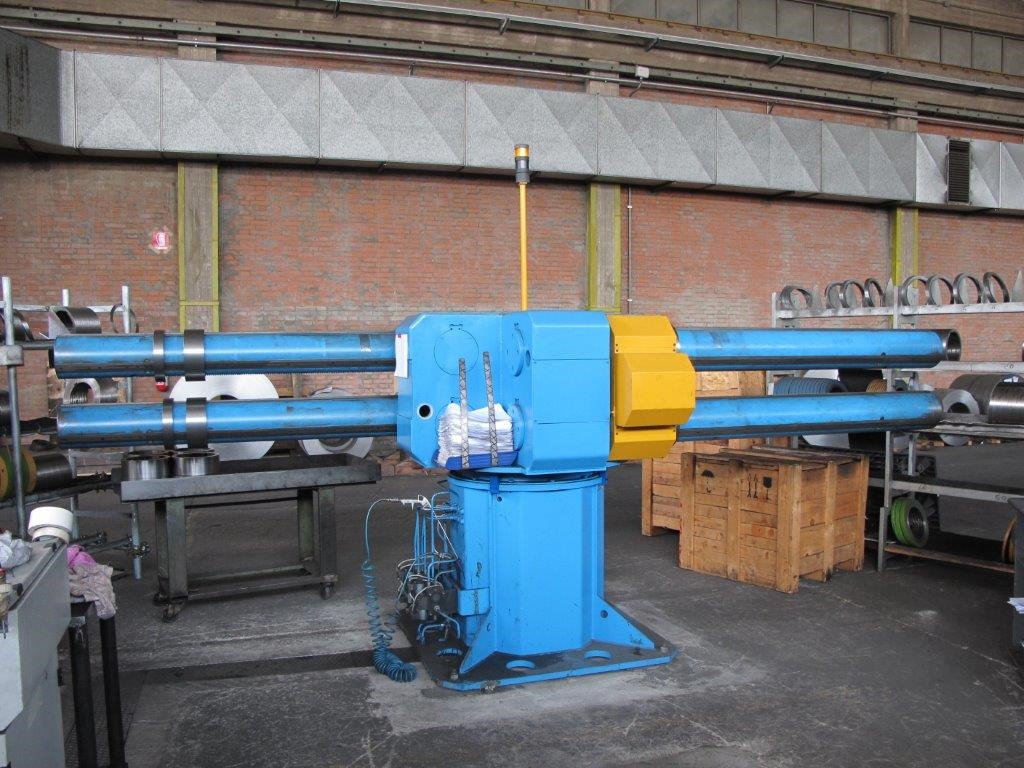

Turnstile, 2-arm
for off-line preparation & auto.-loading of slitter tooling

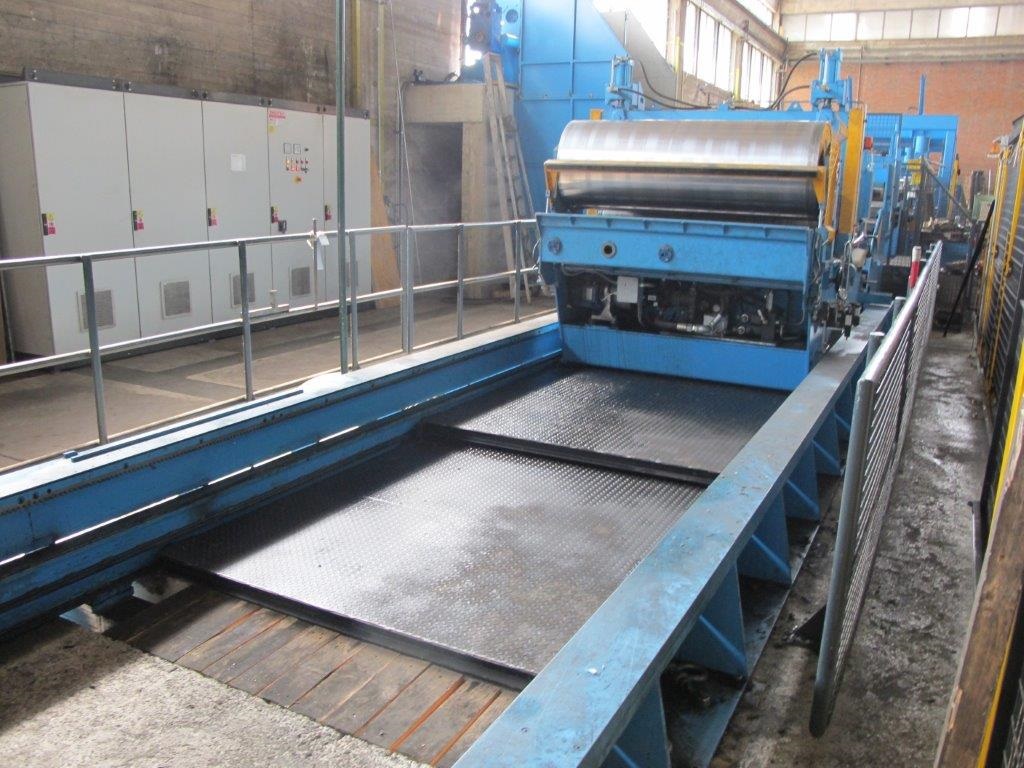

Bypass table over scrap pit
Scrap Baler, 1000mmx1000mm
Burr Flattener
Bypass table

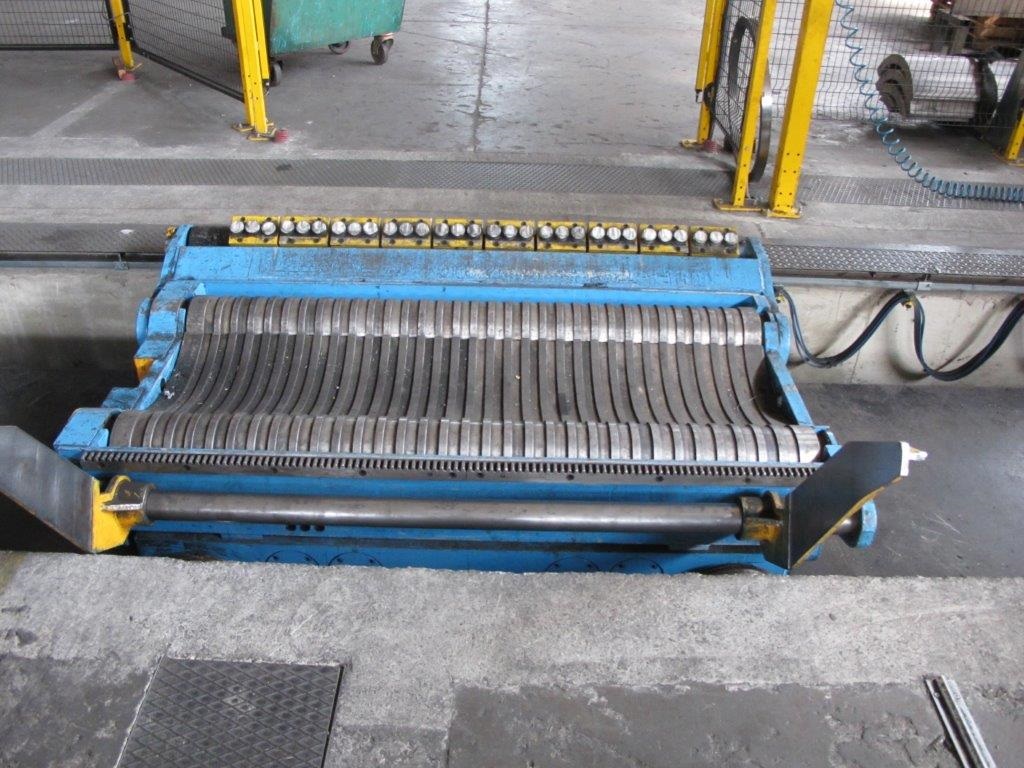

Quadrant Rolls with Separator Holders
Strip Tension Unit with:
-2 separator rolls
-feeding pinch roll
-pneumatic "felt" press
-crop shear, hydraulic
-deflector roll of large diameter

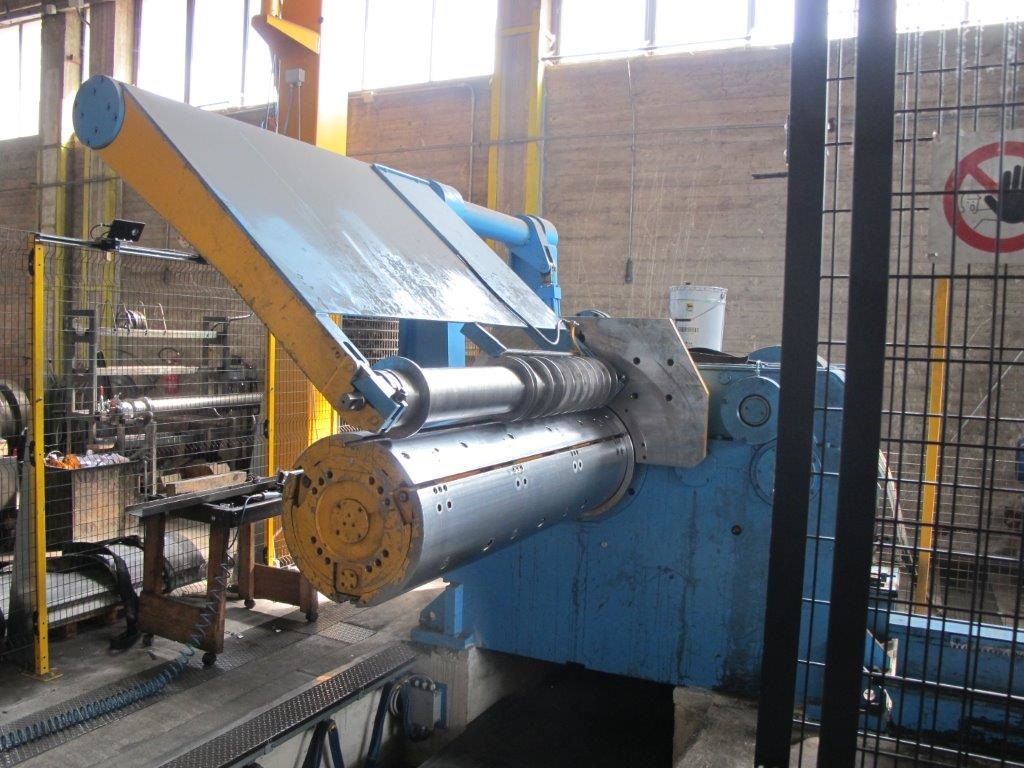

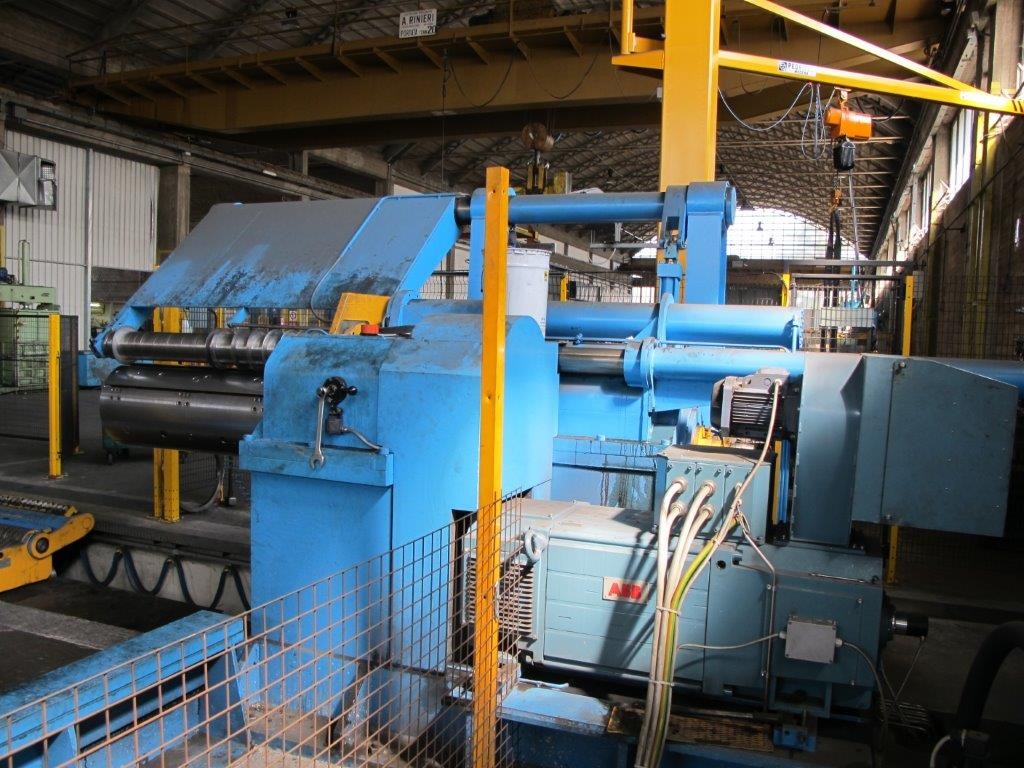

Recoiler
-hydraulic
-with overarm and coil ejection plate
-DC motor drive

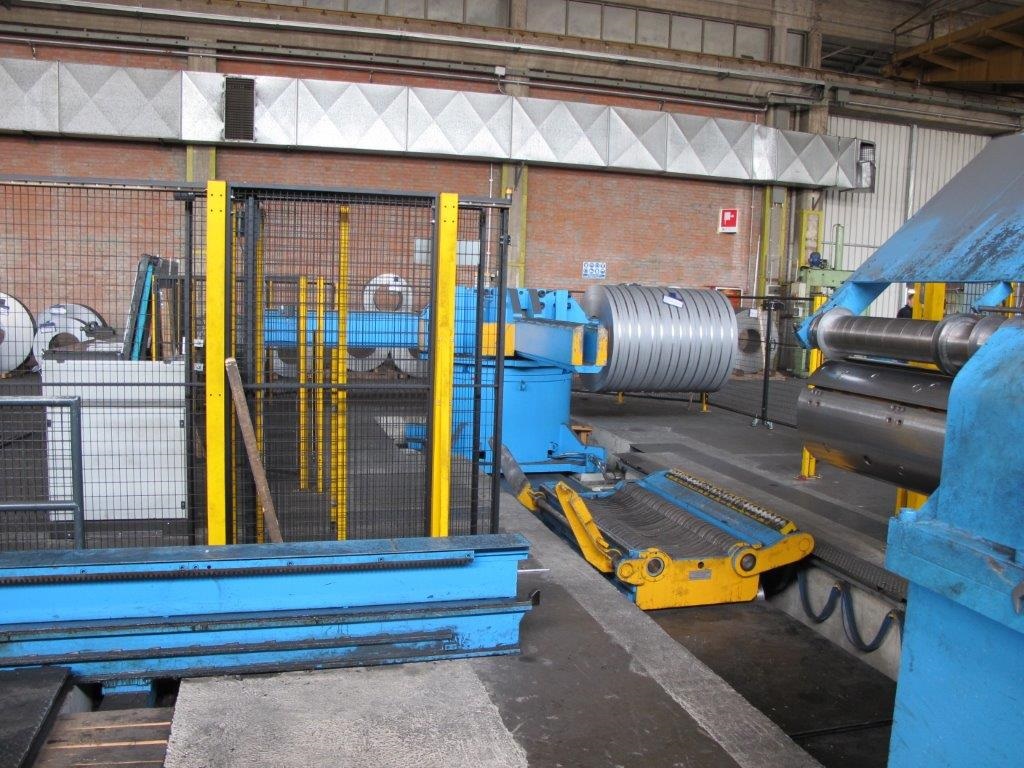

Slit Coil Car
-with safety arms

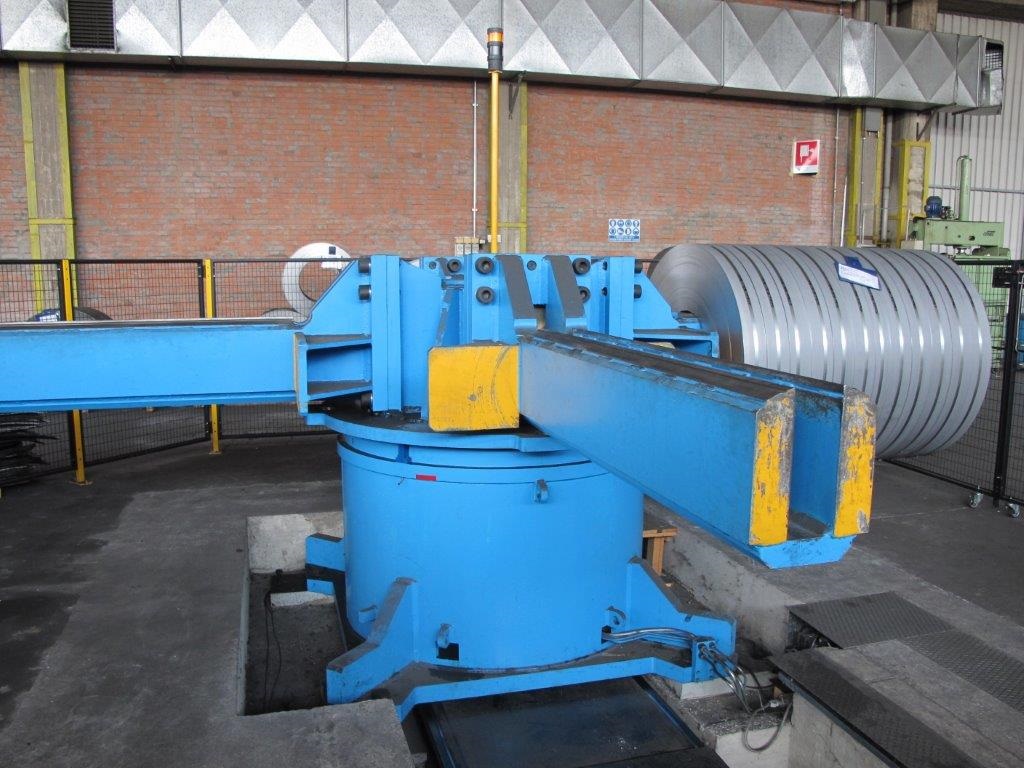

Off-Load Turnstile, 4-arms, motorized

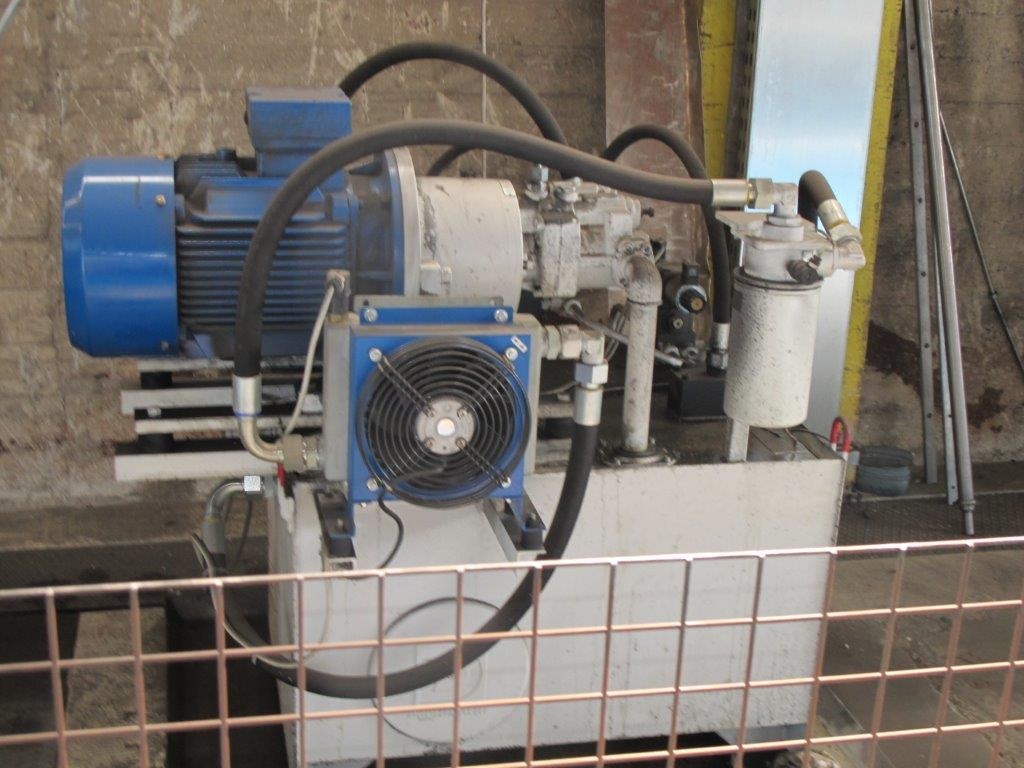

Hydr. Power Pack

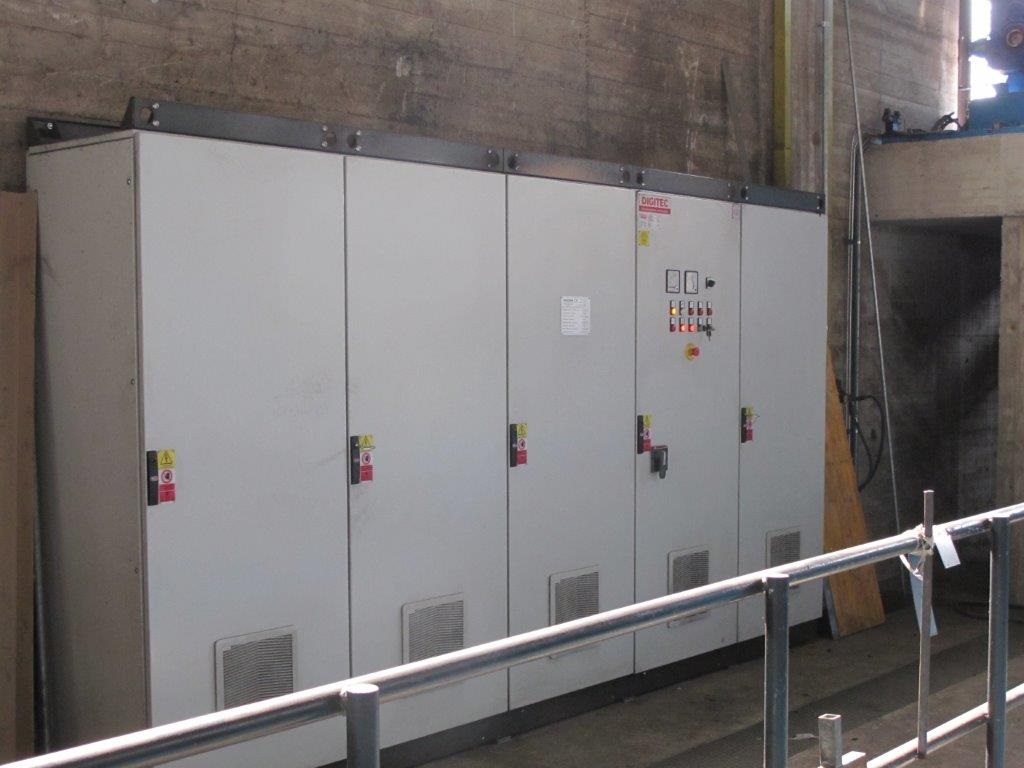

Electric Cabinet

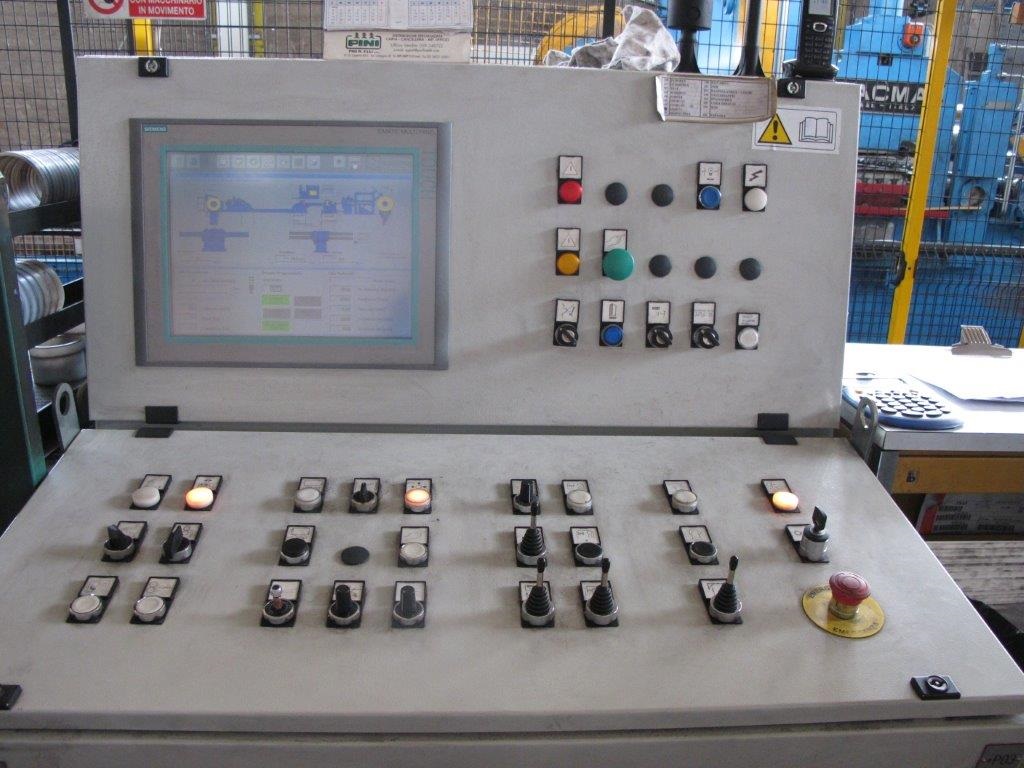

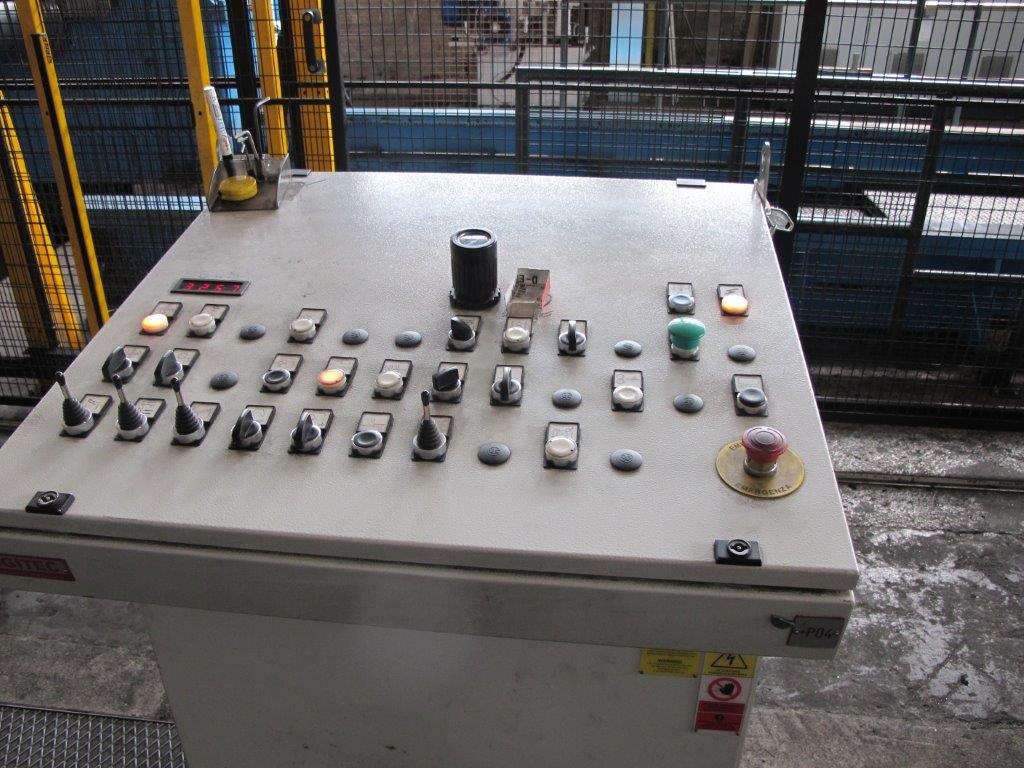

3 Operator Switchboards
TOOLING
20 knives
-8mm thick x 345mm dia.
120 knives
-10mm thick x 345mm dia.
20 knives:
-15 mm thick x 345mm dia.
Plus:
rubber spacers, separator discs, steel spacers...
