Used Slitting Line
1800mm x 8mm
ATECNIN
Year when built: 2006
- 4 Arm Capstan
- Robot
- Built: 2006

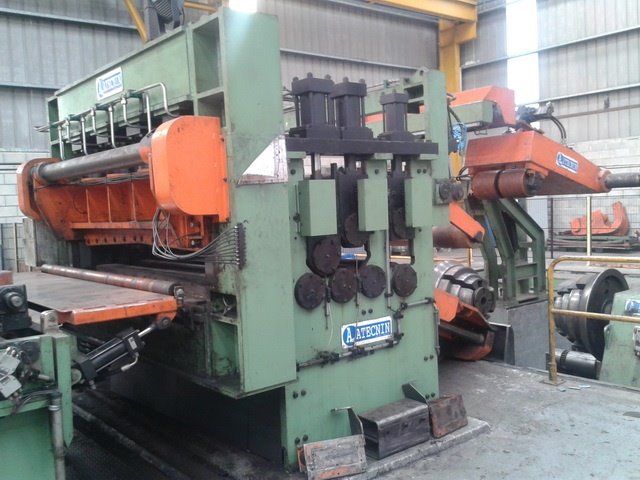

Used 72"/1800mm x .315"/8mm x 25 Ton, Loop Slitting Line for sale. Year: 2006. Installed. Complete with entry coil storage ramp, 4-arm slitter capstan, TOOLING CHANGE ROBOT…
A used 1800mm x 8mm, 25 Ton Loop Slitting Line for sale – complete with: entry coil storage ramp, flattener, 280mm dia. arbor slitter, 4-arm slitter capstan, ‘Kuka’ tooling change robot… Year when built: 2006.
Complete Line with the Following Components:
2 Coil Storage Ramp
Pit Type Coil Car
Double Expandable Mandrel Uncoiler
Powered Hold Down Roll
Peeler Table
Entry Pinch Rolls
5 Roll Flattener
2 Over 3 Roll Design
Entry Crop Shear
Adjustable Entry Edge-Guides
Neoprene Passline Roll
Slitting Head
11" Arbor Diameter
75" Arbor Face
230kW DC Motor Drive
4 Arm Slitter Capstan
11" Arbor

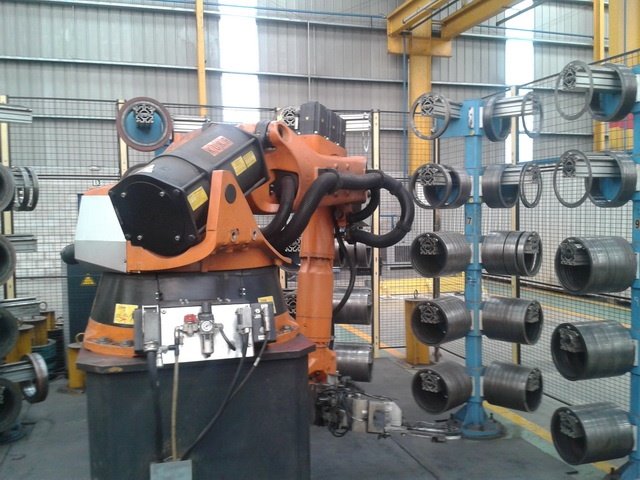

KUKA Slitter Tooling Change Robot
Scrap Baler
Exit Pinch Roll
Cross Over Table
Pad Type Tension Stand
5 Roll Exit Flattener
Exit Crop Shear
Recoiler
Outboard Bearing Support System
Overarm Separator
Exit Coil Car
4 Arm Exit Turnstile
81" Arm Lenght
Wear Bars
ABB DSC400 Digital Drives
Siemens Simatic S7-300 PLC
Complete with Controls, Hydraulics, Electrics and Drawings
Installed.
