A used ATECNIN 1600mm x 4mm, 18 Ton Slitting & Banding Line of 1999 for sale

SLITTING + BANDING LINE

Slitting + Banding Line ATECNIN Used [#3433]
   Slitting lines SLL  Slitting + Banding Line ATECNIN Used [#3433]
SOLD
1

Used Slitting + Banding Line
1600mm x 4mm
ATECNIN

Year when built: 1999
  • Tooling Capstan


Used 60"/1600mm x .118"/4mm x 40,000 lbs/18 Ton Slitting Line with Banding Line, for sale. 4 Arm Tooling Capstan. Line speed 200m / min.



A used 1600mm x 4mm, 18 Ton Slitting & Banding Line of 1999 for sale. The maximum line speed is 200m / minute. 4 Arm Tooling Capstan. A large Amount of Knives, Spacers and Rubbers is included. The line is complete with: spares, hydraulics, electrics, controls and drawings.





Year: 1999
Thickness Range: .25mm to 4mm
Line Speed: 200m / min





Complete Line with the Following Components:


Pit Type Coil Car
40,000lbs Coil Weight

Mandrel Uncoiler
Coil ID: 508mm to 610mm
Coil OD: 600mm to 2100mm
Hydraulic Expansion
Sliding Base
Hold Down Roll

Peeler Table

Entry Pinch Rolls

Entry Crop Shear

Edge Guides

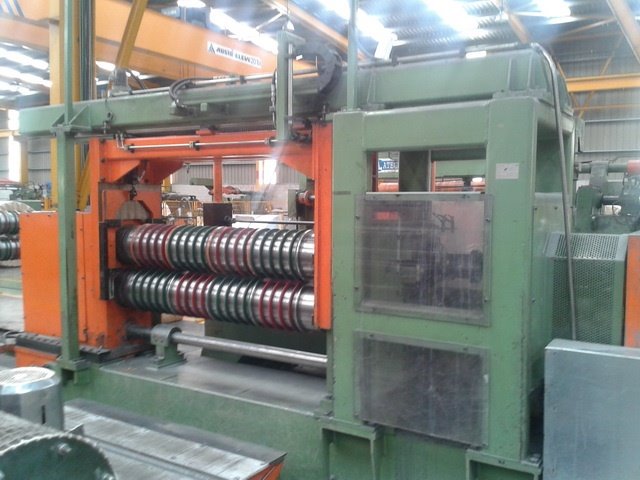

Slitting Head
57KW Motor Drive

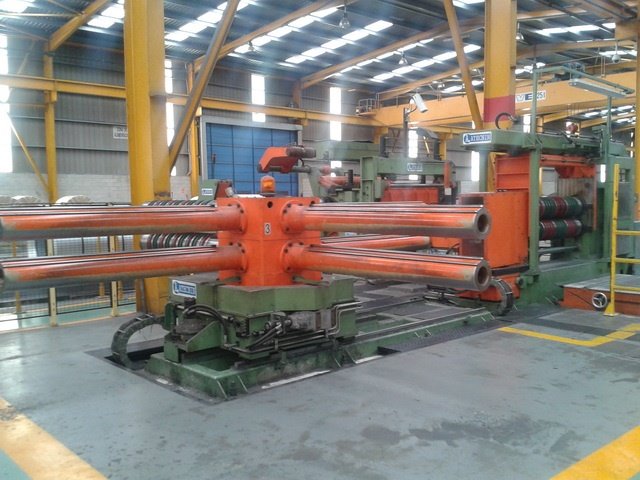

4 Arm Tooling Capstan

Large Amount of Knives, Spacers and Rubbers

Scrap Baler

Cross Over Table

Roll Type Tension stand

Exit Crop shear

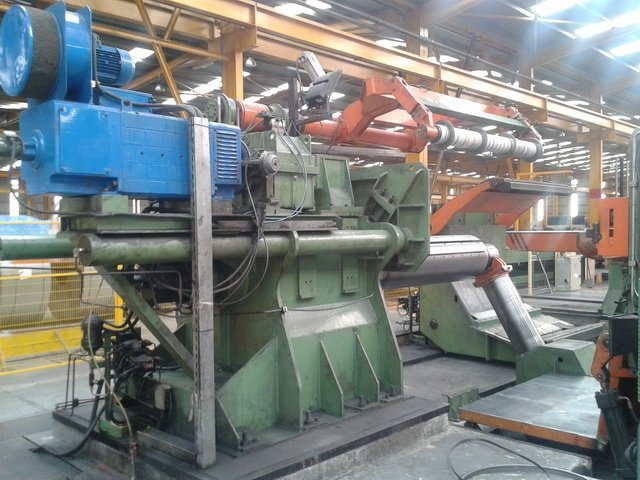

Recoiler
Overarm Separator
508mm Drum Diameter
Hydraulic Grip
Hydraulic Push Off

Exit Coil Car
40,000lbs Weight Capacity
Strip Separator

4 Arm Exit Turnstile
Hydraulic Rotation
40,000lbs Weight per arm

Complete 1700mm x 3,000kg Banding Line


THIS LINE IS SOLD "AS IS--WHERE IS" WITHOUT ANY WARRANTY, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. ALL EQUIPMENT SOLD IS USED.

We offer quality Slitting Lines both new and used / re-manufactured for Aluminium, Coated, Cold Rolled, Copper, Galvanized, Hot Rolled, Prepaint, Silicon, Stainless, Tinplate,

Your enquiries welcome for also individual Line Parts like: Decoilers, Recoilers, Slitters, Strip Tension Stands, Turnstiles, Upenders ...
