A USED 2050mm x 2mm BOLLINA SLITTING LINE FOR SALE

SLITTING LINE

Slitting Line BOLLINA Used [#3407]
   Slitting lines SLL  Slitting Line BOLLINA Used [#3407]
SOLD
1

Used Slitting Line
2050mm x 2mm
BOLLINA

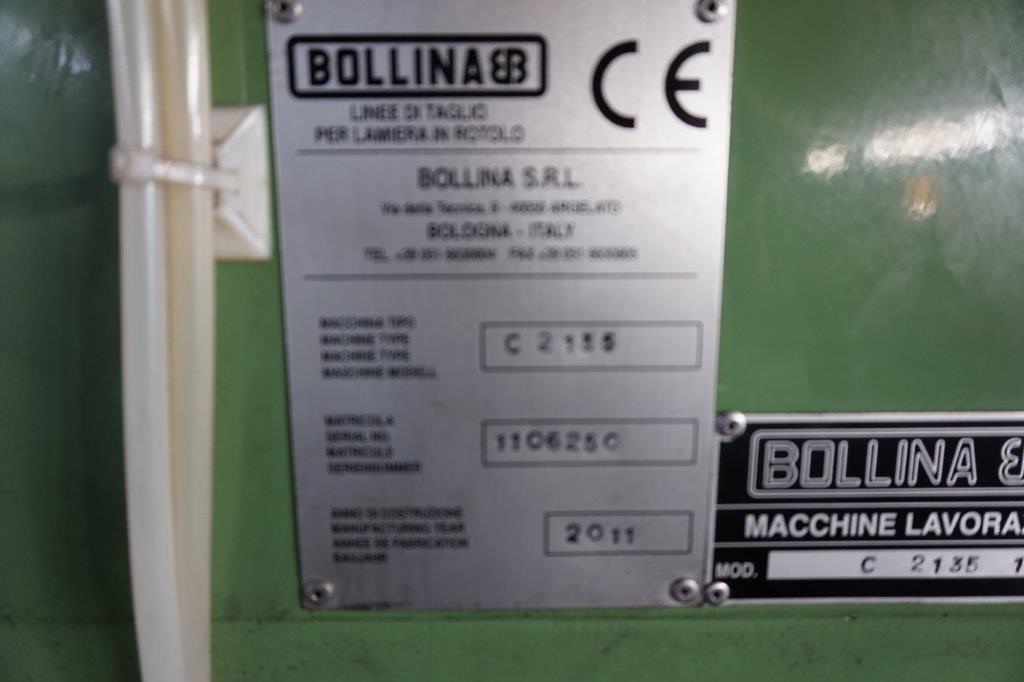

Year when built: 2011



    Bollina Slitting Line


    A USED 2050mm x 2mm SLITTING LINE FOR SALE, OF 2011 IN VERY GOOD CONDITION. IMMEDIATELY AVAILABLE. THE MAXIMUM LINE SPEED IS 100m / minute. THE MAX. CAPACITY OF DECOILER IS 25 TONNE, AT RECOILING 15 TONNE



    This recently-built used coil to coil slitting line was built by BOLLINA of Italy in 2011

    The line overall dimensions are 21.2m in length x 10.4m in width

    Line direction: left to right

    The slitter arbor diameter is 160mm; diameter of circular knives 280mm

    Max. Rm of material: MPa 600

    The maximum-possible total number of slits is 11 (maximum 3 slits at 2mm); the minimum strip width is 100mm (30-99mm with no edge trim)

    Coil Max. Weight at Entry and, resp. at Exit: 25 Tonne & 15 Tonne

    Minimum Material Thickness: .4mm

    Maximum Material Thickness: 2mm

    Minimum / Maximum Entry Coil Width: 400mm / 2050mm

    Minimum / Maximum Entry Coil ID: 508mm / 610mm

    Maximum Exit Coil OD: 1600mm

    Exit Coil ID: 508mm


    1st Crop Shear
    2nd Crop Shear
    Strip Tension Pad
    Scrap Baler

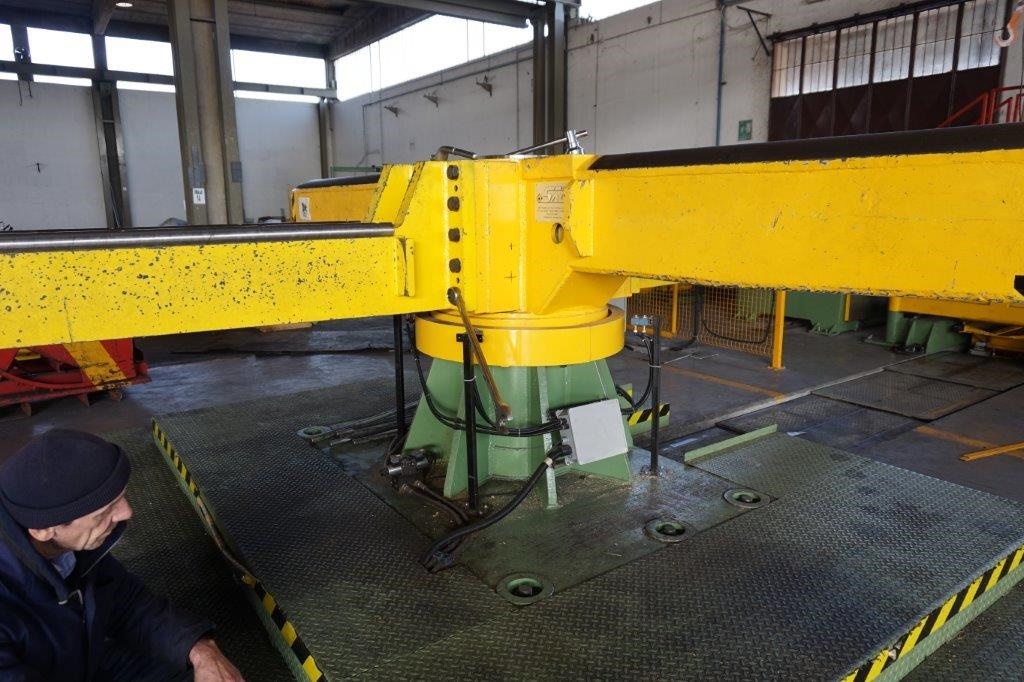

    Exit Turnstile, cap. 21 Tonne per-arm



    We offer quality Slitting Lines both new and used / re-manufactured for Aluminium, Coated, Cold Rolled, Copper, Galvanized, Hot Rolled, Prepaint, Silicon, Stainless, Tinplate,

    Your enquiries welcome for also individual Line Parts like: Decoilers, Recoilers, Slitters, Strip Tension Stands, Turnstiles, Upenders ...
