A 150m / min used Dual Head Slitting Line, built by SACMA in 1992 and partly modified in 2000. Stainless Steel Slitting Line

STAINLESS STEEL SLITTING LINE

Stainless Steel Slitting Line SACMA Used [#3364]
   Slitting lines SLL  Stainless Steel Slitting Line  SACMA Used [#3364]
SOLD
1

Used Stainless Steel Slitting Line
1580mm x 3mm S.S.
SACMA

Year when built: 1995
  • Injection Slitter Heads




EQUIPMENT LIST

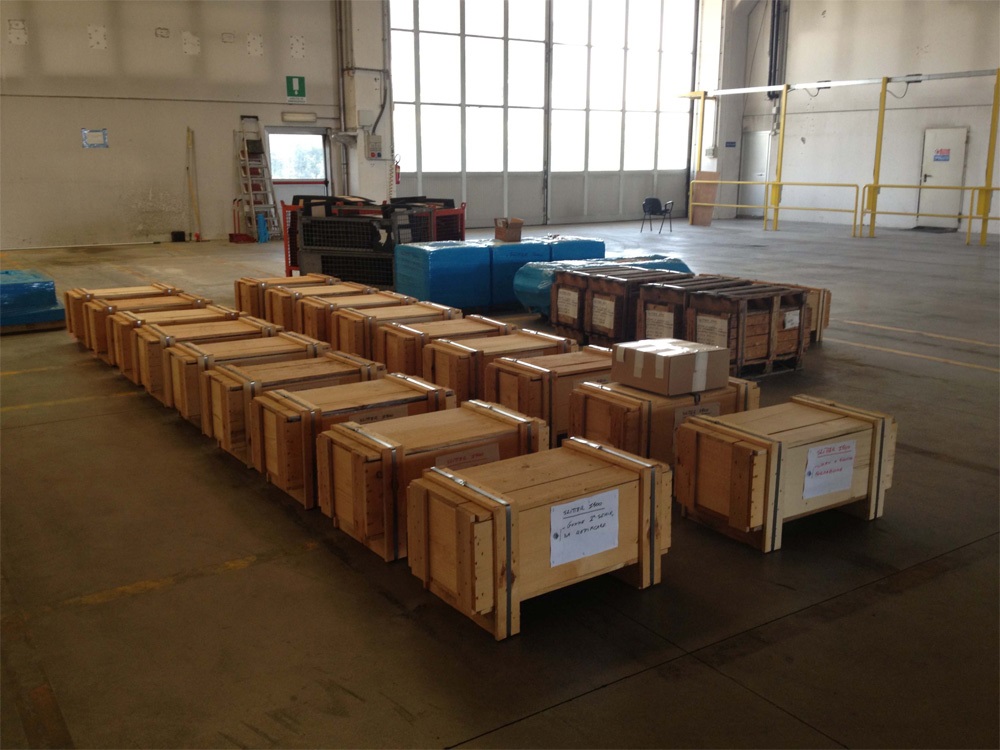

This 150m / min line (dismantled and warehoused in 2016) includes:

Paper rewinder

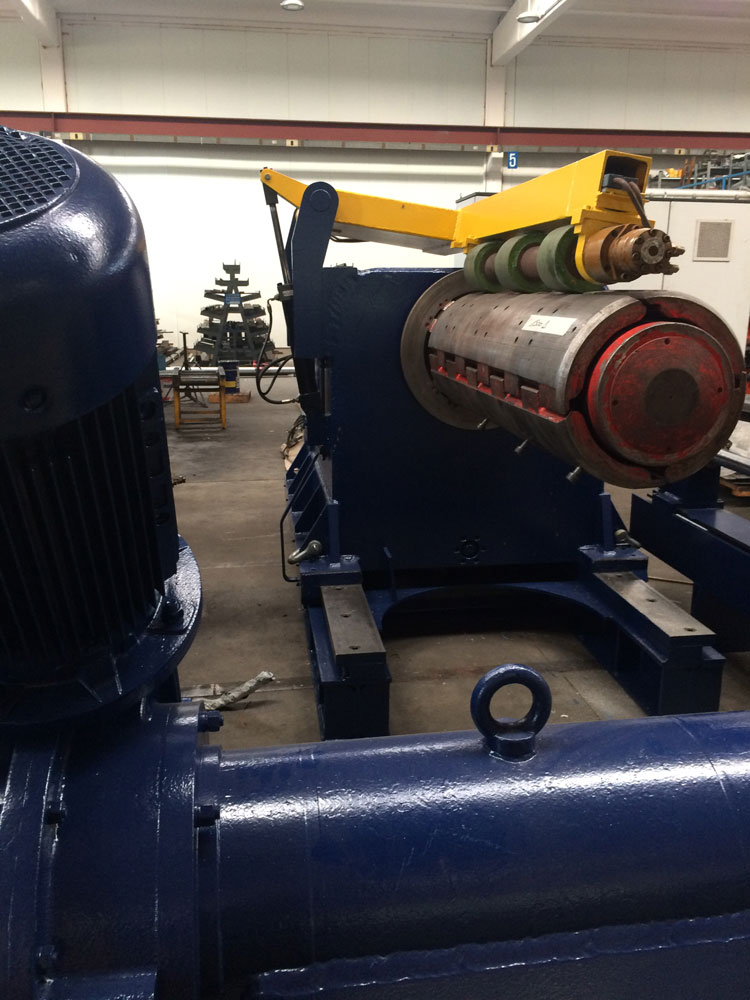

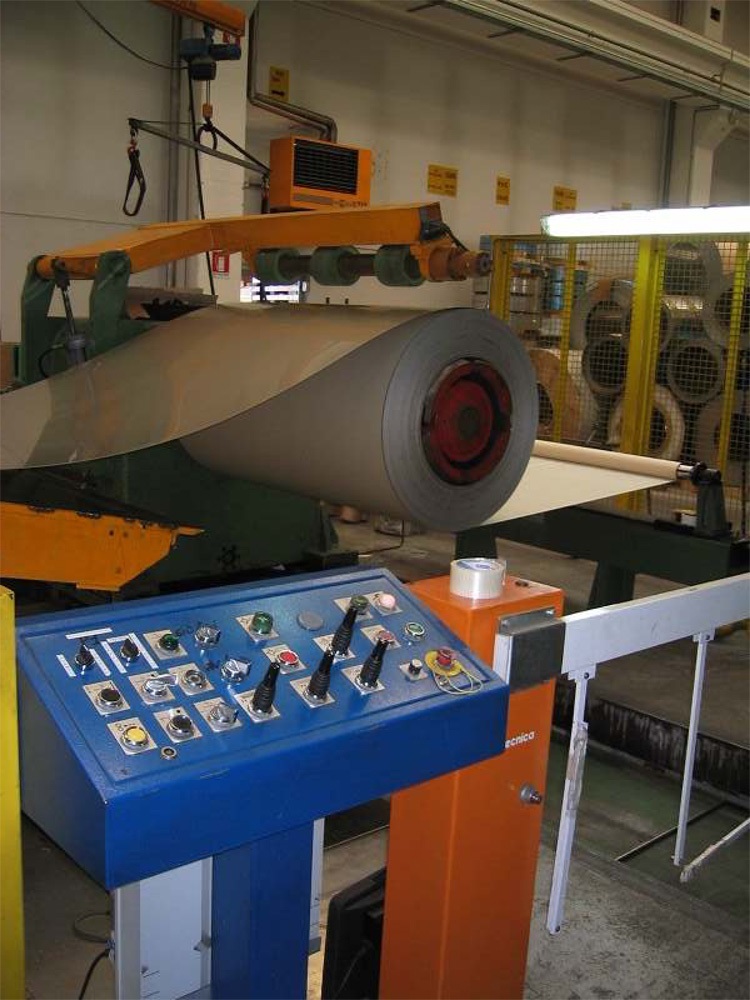

Powered decoiler, 15 t capacity
with "Linde" hydraulic motor drive (Ag BMF 140)
Coil ID 508mm and 610mm (with spacers)
Coil OD max. 1700mm

Coil loading car, 15 t capacity

Coil opener
Straightener, pinch rolls, crop shear

Protective film dispenser for upper coil face

Material entry guide

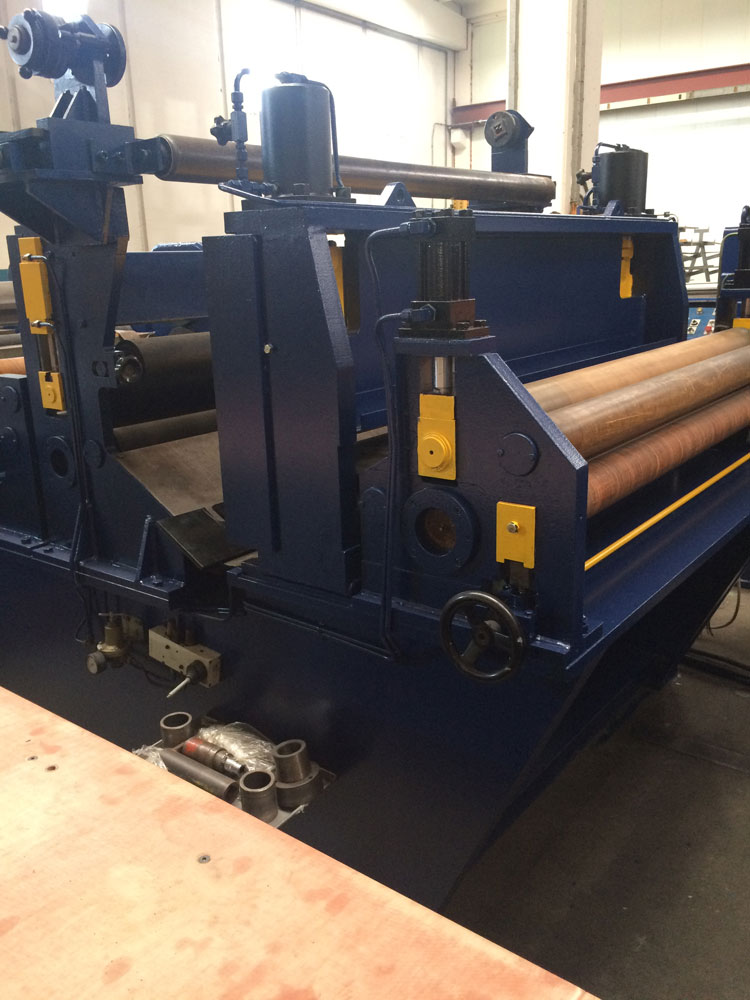

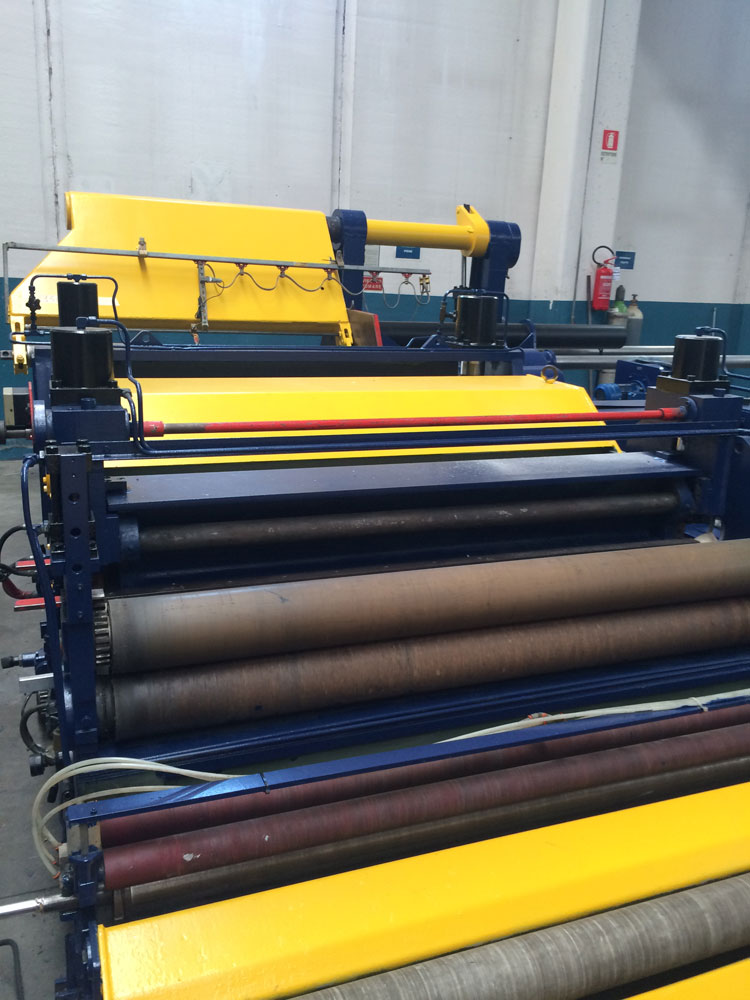

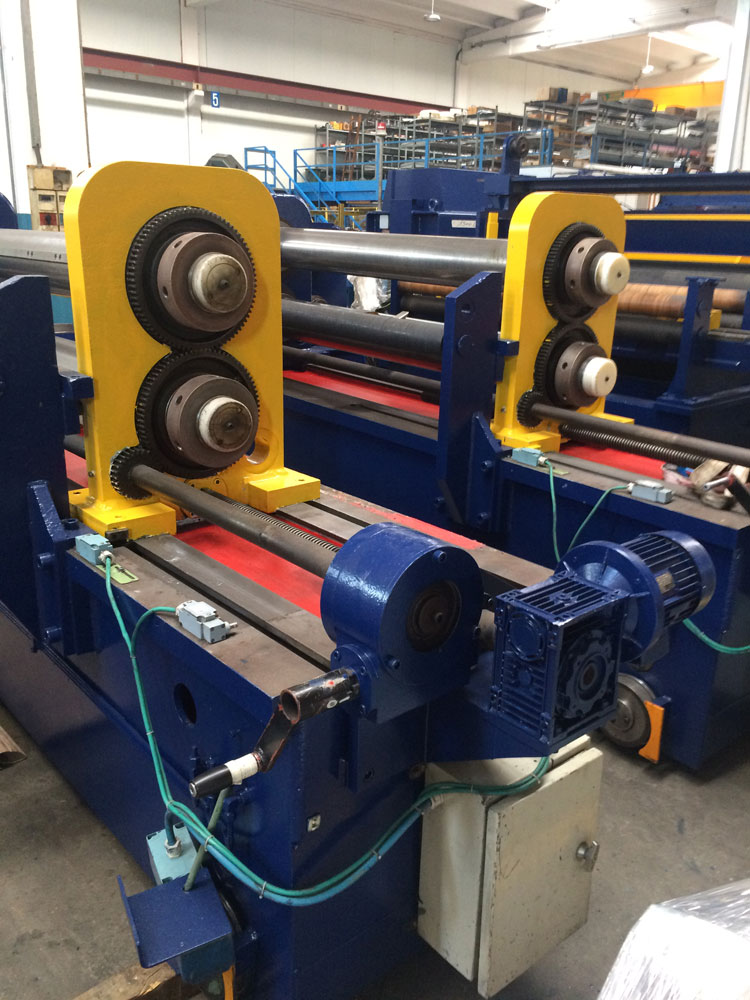

Injection slitter heads
(2 heads, moved on wheels and guides by an hydraulic motor)
Slitter Shaft diameter: 180mm
with "Ansaldo" DC motor drive, 48 kW / 2400 rpm
- Approx. number of slits that are possible:
• 5 at 3mm thickness, with AISI 316 S.S.
• 9 at 2mm thickness, with AISI 316 S.S.
• 30 cuts at .5mm thickness, with AISI 316 S.S.

Scrap baler
1000mm x 1000mm
scrap max. width 900mm x 900mm max. coil diameter

Powered burr planisher

Loop pit equipment

Mobile strip tension unit, complete with;
• 2 separator shafts
• pinch rolls
• felt tension pad
• powered rubber-coated rolls (bridle)
• crop shear
• deflector rolls

Recoiler, 15 t capacity
with "Ansaldo" DC motor, 75 kW / 2500-3000 rpm
Coil ID 500 mm
Coil OD max. 1700mm

Coil off-loading car, 15 t capacity

Paper decoiler

Two arm powered turnstile

Electrical cabinet and control desk

Hydraulic pack and all hydraulic components

Slitter tooling


We offer quality Slitting Lines both new and used / re-manufactured for Aluminium, Coated, Cold Rolled, Copper, Galvanized, Hot Rolled, Prepaint, Silicon, Stainless, Tinplate,

Your enquiries welcome for also individual Line Parts like: Decoilers, Recoilers, Slitters, Strip Tension Stands, Turnstiles, Upenders ...
