ECONOMY LIGHT DUTY USERS SLITTING LINE UNDER € 80.000

MINI SLITTING LINES

Mini Slitting Lines FLOREANI & PARTNERS New [#3327.2]
   Slitting lines SLL  Mini Slitting Lines  FLOREANI & PARTNERS New [#3327.2]
1

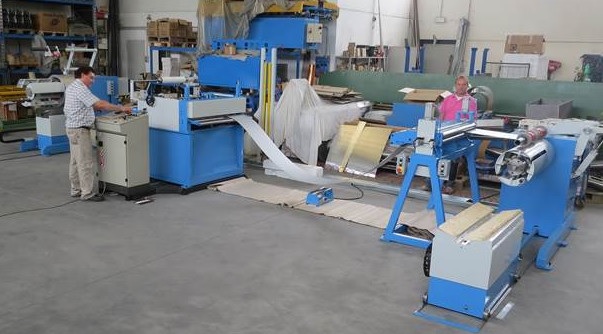

New Mini Slitting Lines
1000/1250mm x 1.0mm | B-Class
FLOREANI & PARTNERS

    UNDER € 80.000



ECONOMY LIGHT DUTY USERS SLITTING LINES

Available in 1000mm and 1250mm wide for material thickness up to 1.0mm
With Decoiler 3 t or 5 t / Recoiler 1 t


REQUEST QUOTATION



Adjustable entry guide by handwheel

Three idle rollers
- top roll 60mm dia. / bottom rolls 50mm dia.

Two rubber covered pinch rolls
- diameter: 110mm motorised
Pneumatic cylinders with manual control to lift pinch rolls

Slitter Head
- shaft diameter: 100mm (with circular knife O.D.: 150mm)
- quick clamp circular knives in special steel
- metric rule for positioning of knives, and handwheel to lift them
- max. 'standard' number of slits: 4

Guillotine, rigid construction, hydraulic
- power pack motor: HP 2.0


Feed speed adjustable from 0 to 25 meters per minute, controlled by touch screen


Numerical control SIPRO SIAX 80.
Interface with touch screen control panel
Enter up to 20 different lengths
Cutting accuracy + / - 1mm over 3 meters

Electrical control panel rotates
to control the machine from all positions


Drive motor: HP 3.00 / 380 Volts 50 Hz


Option: protective film dispenser


Hardened steel separators


"Felt" type strip tension pad with up-down motion operated by air cylinders; 'manual' valve and air-pressure adjustment


Recoiler with max. 1 t cap.
( Mod.: 'AAS' / 1250mmx1000kg )
- radiused drum segments to allow optimal adherence to coil-inside
- hand operated clamp along the full drum length, for the coil leading edge
- drum expansion range: 470mm to 500mm
- air operated overarm with separators
- dancing arm connected to a potentiometer, for automatic recoiling with "stop" when the wanted length has been produced of slit coils

Drive motor: HP 3.00 / 380 Volts 50 Hz



The lines comply with CE regulations

We offer quality Slitting Lines both new and used / re-manufactured for Aluminium, Coated, Cold Rolled, Copper, Galvanized, Hot Rolled, Prepaint, Silicon, Stainless, Tinplate,

Your enquiries welcome for also individual Line Parts like: Decoilers, Recoilers, Slitters, Strip Tension Stands, Turnstiles, Upenders ...
