MINI SLITTING LINES, 1000/1250mm WIDE, FOR ALU. COPPER STEEL ETC.

MINI SLITTING LINES

Mini Slitting Lines FLOREANI & PARTNERS New [#3327.1]
   Slitting lines SLL  Mini Slitting Lines  FLOREANI & PARTNERS New [#3327.1]
1

VIDEOS
New Mini Slitting Lines
1250mm x 1.0mm | B-Class
FLOREANI & PARTNERS

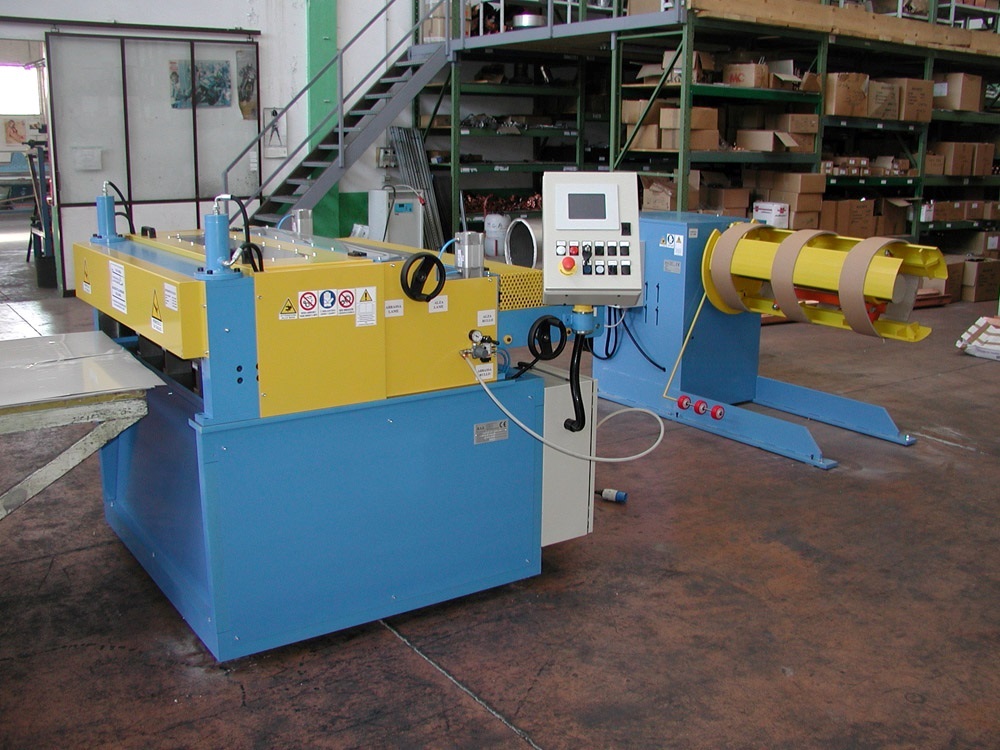

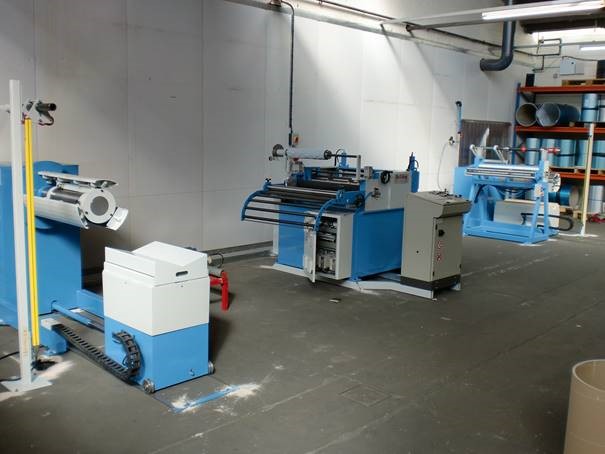

    PRESENTING: OUR MINI SLITTING LINES, 1000mm OR 1250mm WIDE, FOR ALU. COPPER STEEL TITAN-ZINC ETC. ... SUITABLE FOR RAINWATER DOWNPIPE AND GUTTER MAKERS, ROOFERS, TRADERS OF BUILDING MATERIALS & THE LIKE


    1250mm x .5 - 1.0mm
    25m / min

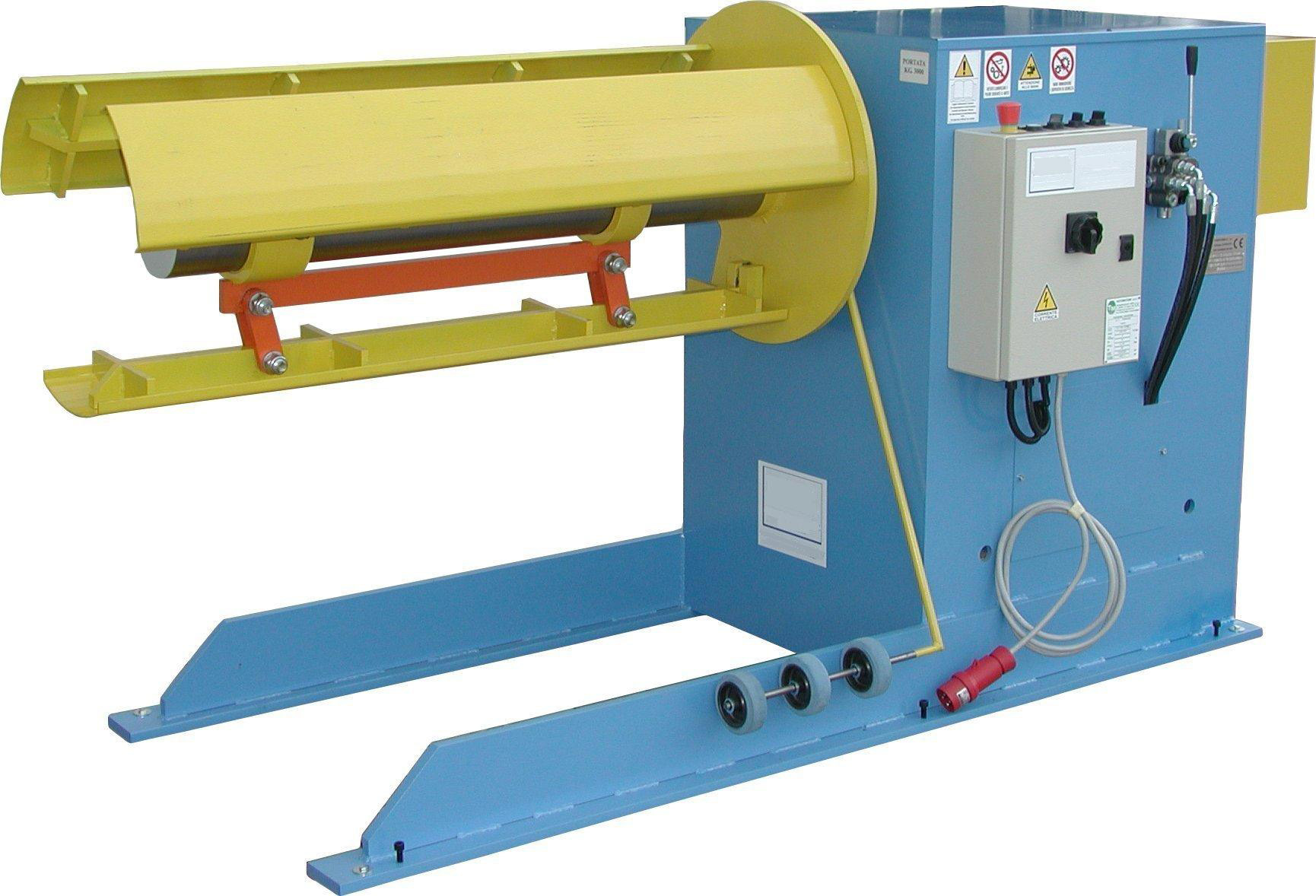

    Motorized Decoiler & Car option up to max. 5 t cap.
    / or, alt.: simple, low cost Frame Decoiler
    #3194
    #3230


    Adjustable entry guide by handwheel

    Three idle rollers
    - top roll 60mm dia. / bottom rolls 50mm dia.

    Two rubber covered pinch rolls
    - diameter: 110mm motorised
    Pneumatic cylinders with manual control to lift pinch rolls

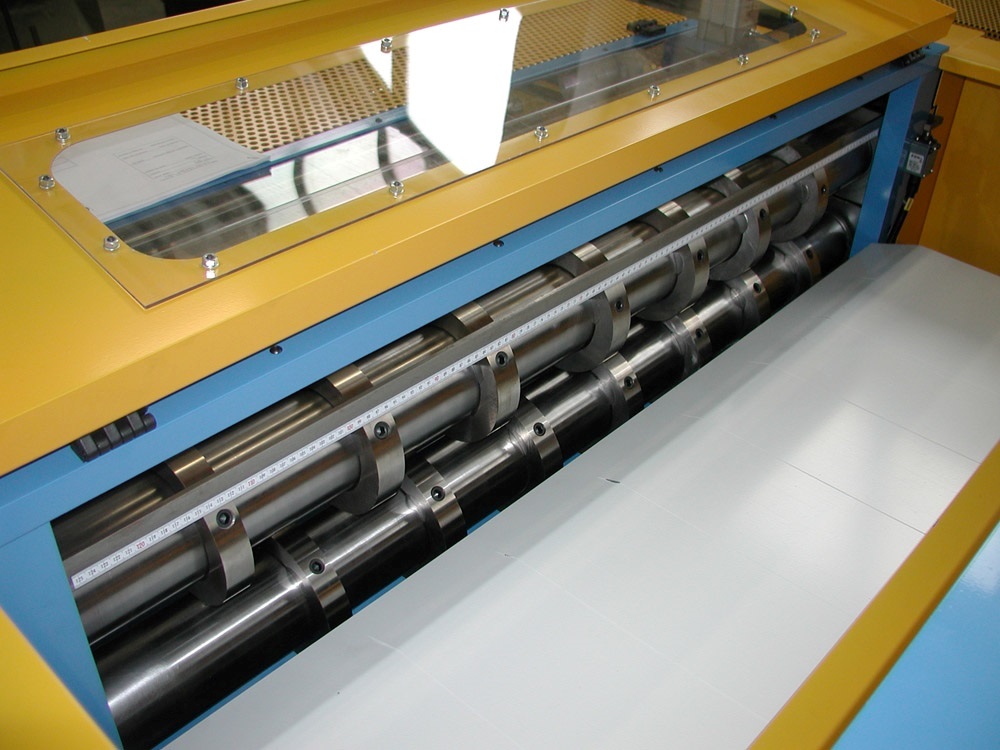

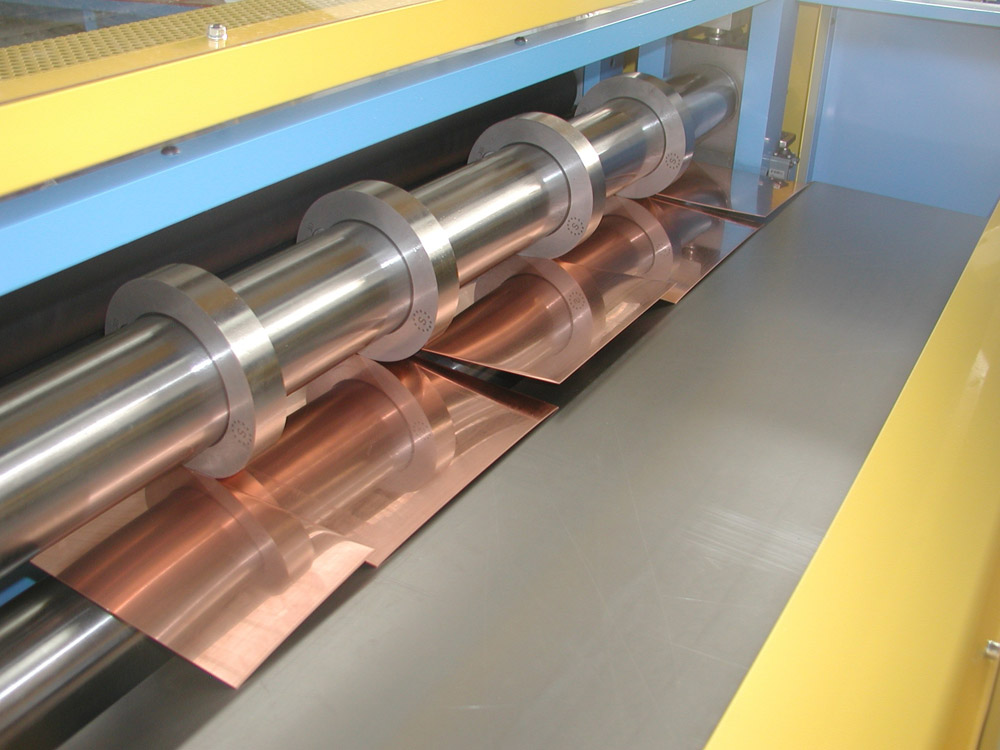

    Slitter Head
    - shaft diameter: 100mm (with circular knife O.D.: 150mm)
    - quick clamp circular knives in special steel
    - metric rule for positioning of knives, and handwheel to lift them
    - max. 'standard' number of slits: 4

    Guillotine, rigid construction, hydraulic
    - power pack motor: HP 2.0


    Feed speed adjustable from 0 to 25 meters per minute, controlled by touch screen


    Numerical control SIPRO SIAX 80.
    Interface with touch screen control panel
    Enter up to 20 different lengths
    Cutting accuracy + / - 1mm over 3 meters

    Electrical control panel rotates
    to control the machine from all positions


    Drive motor: HP 3.00 / 380 Volts 50 Hz


    Option: protective film dispenser

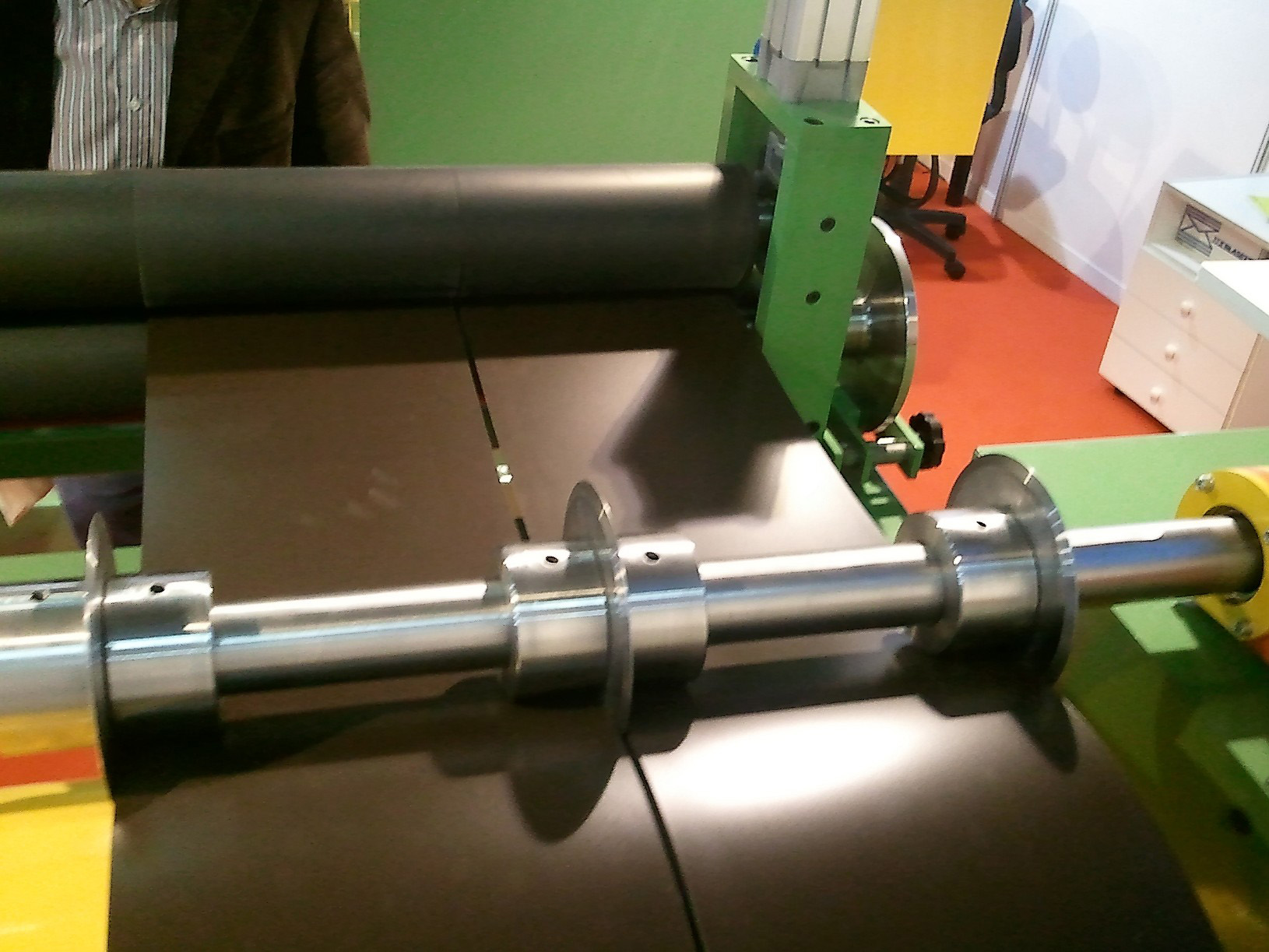

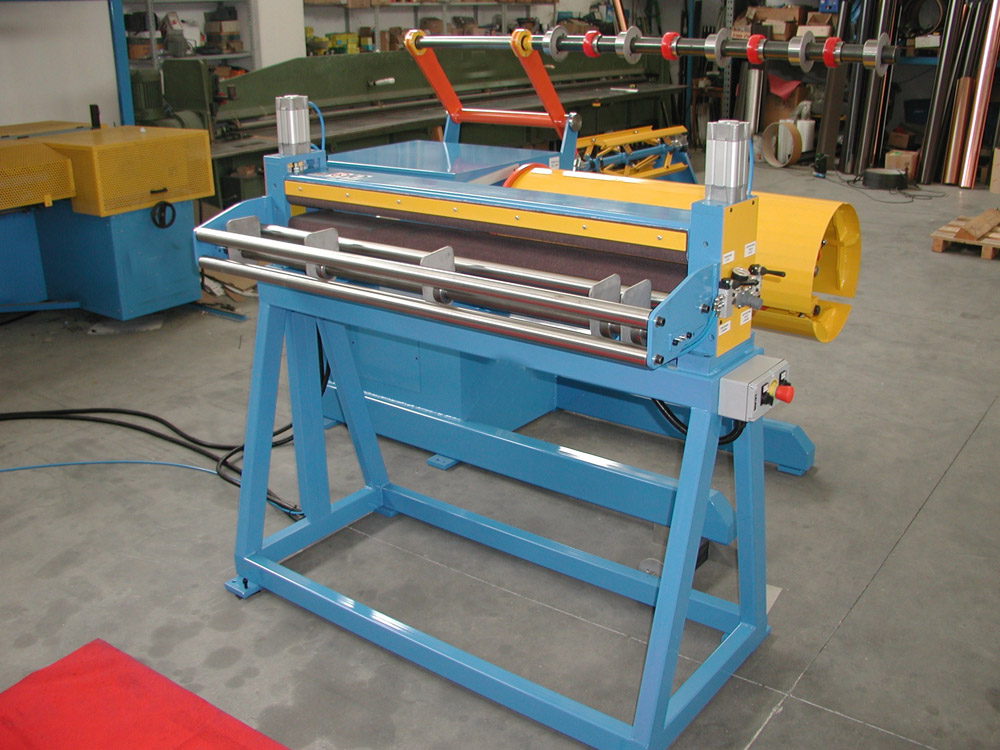

    Hardened steel separators

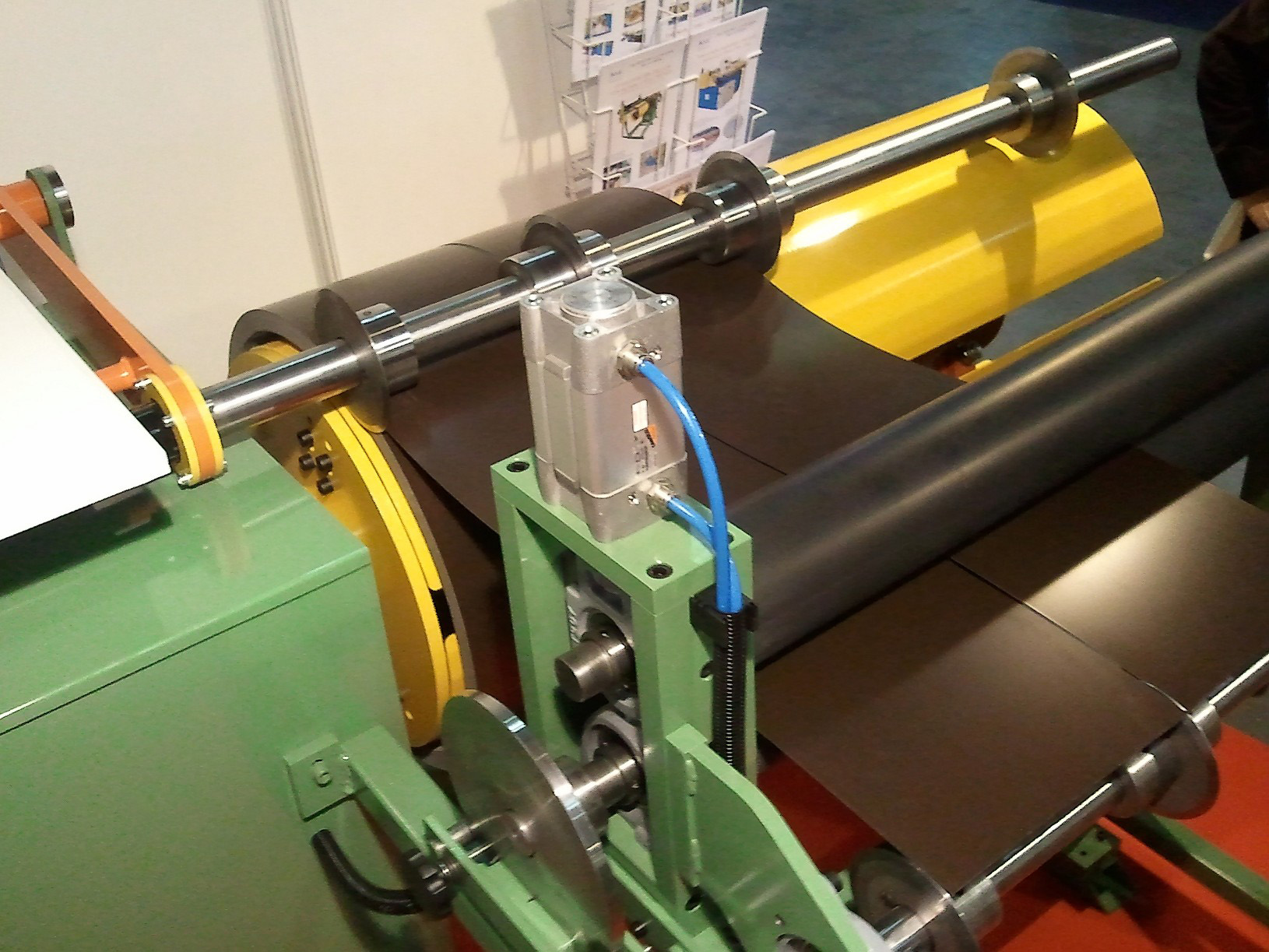

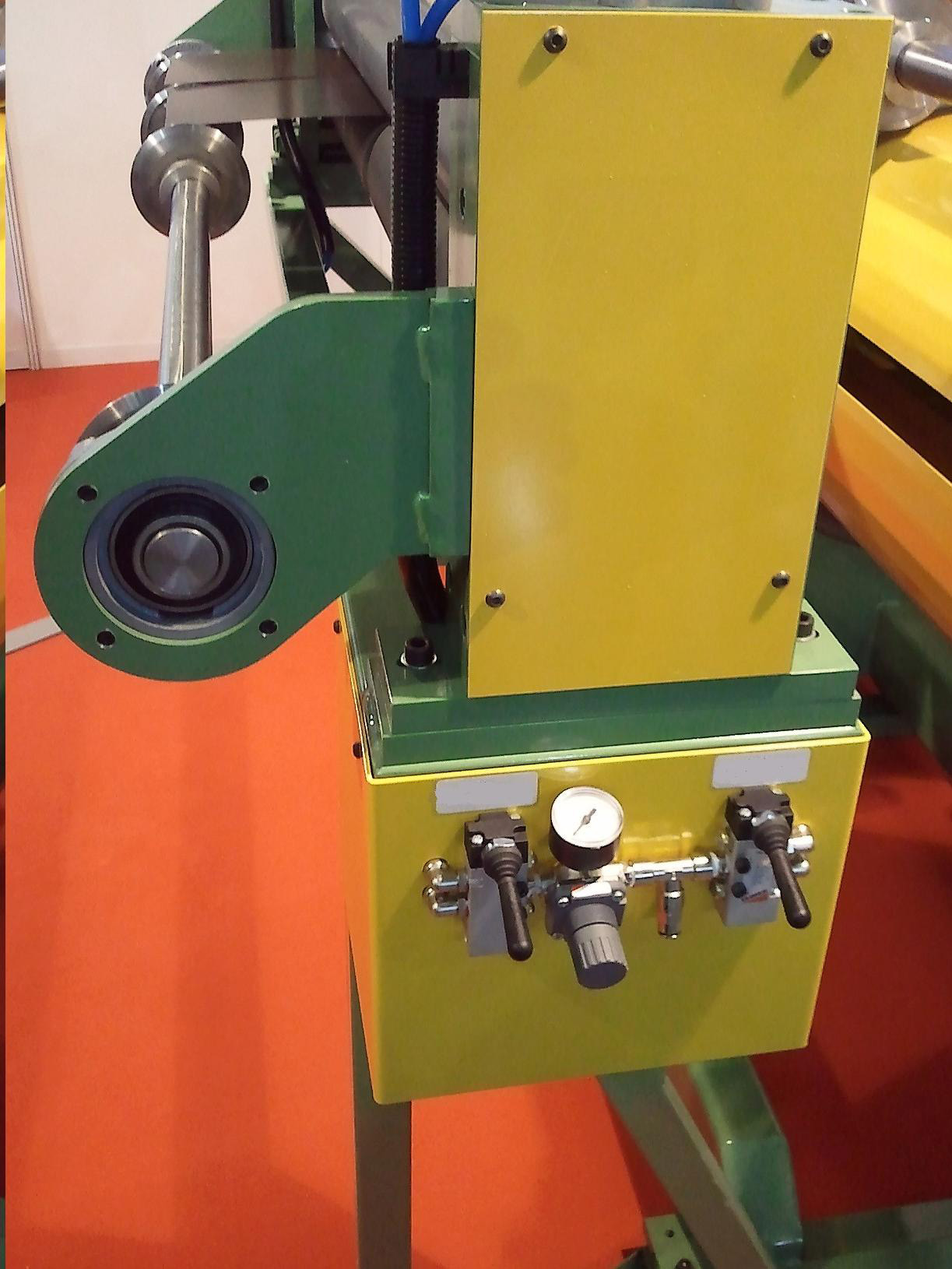

    "Felt" type strip tension pad with up-down motion operated by air cylinders; 'manual' valve and air-pressure adjustment

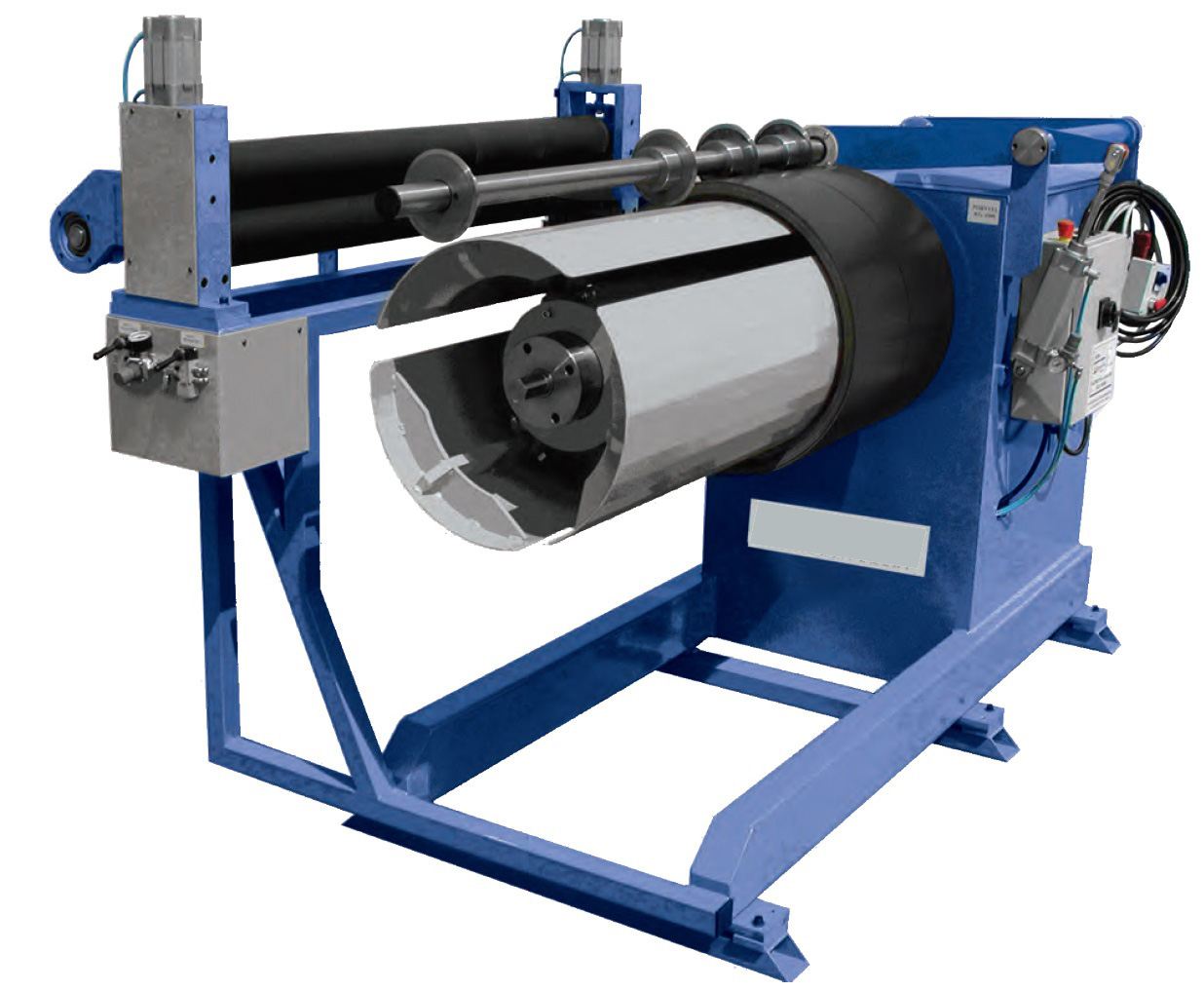

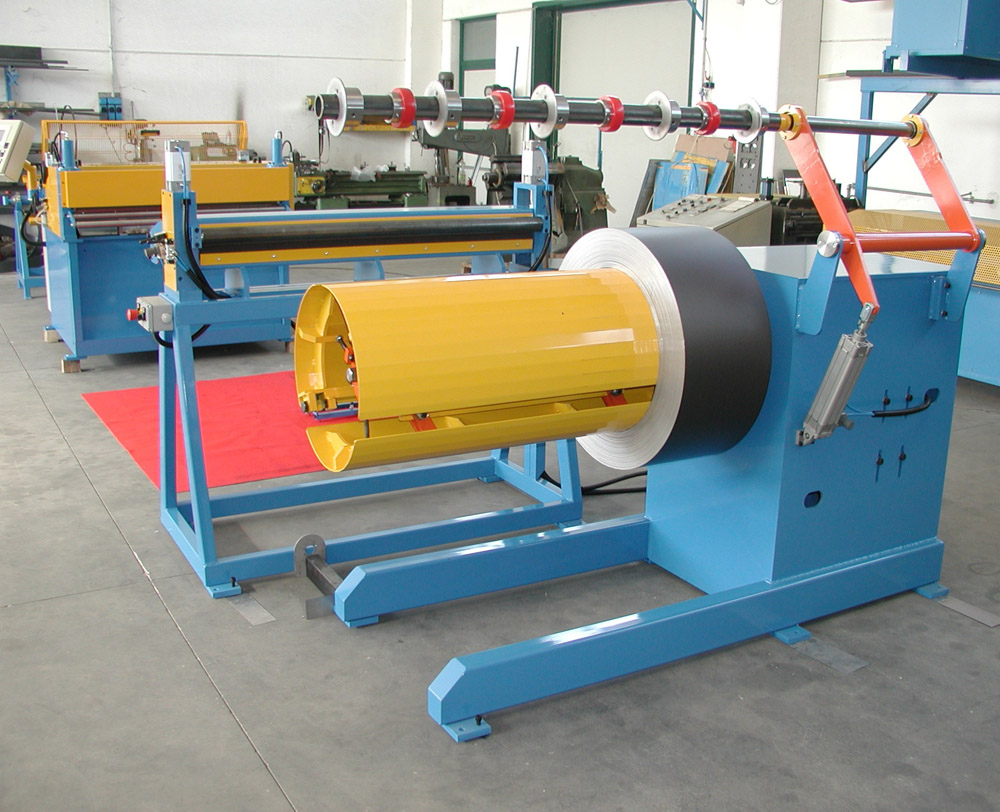

    Recoiler with max. 1 t cap.
    ( Mod.: 'AAS' / 1250mmx1000kg )
    - radiused drum segments to allow optimal adherence to coil-inside
    - hand operated clamp along the full drum length, for the coil leading edge
    - drum expansion range: 470mm to 500mm

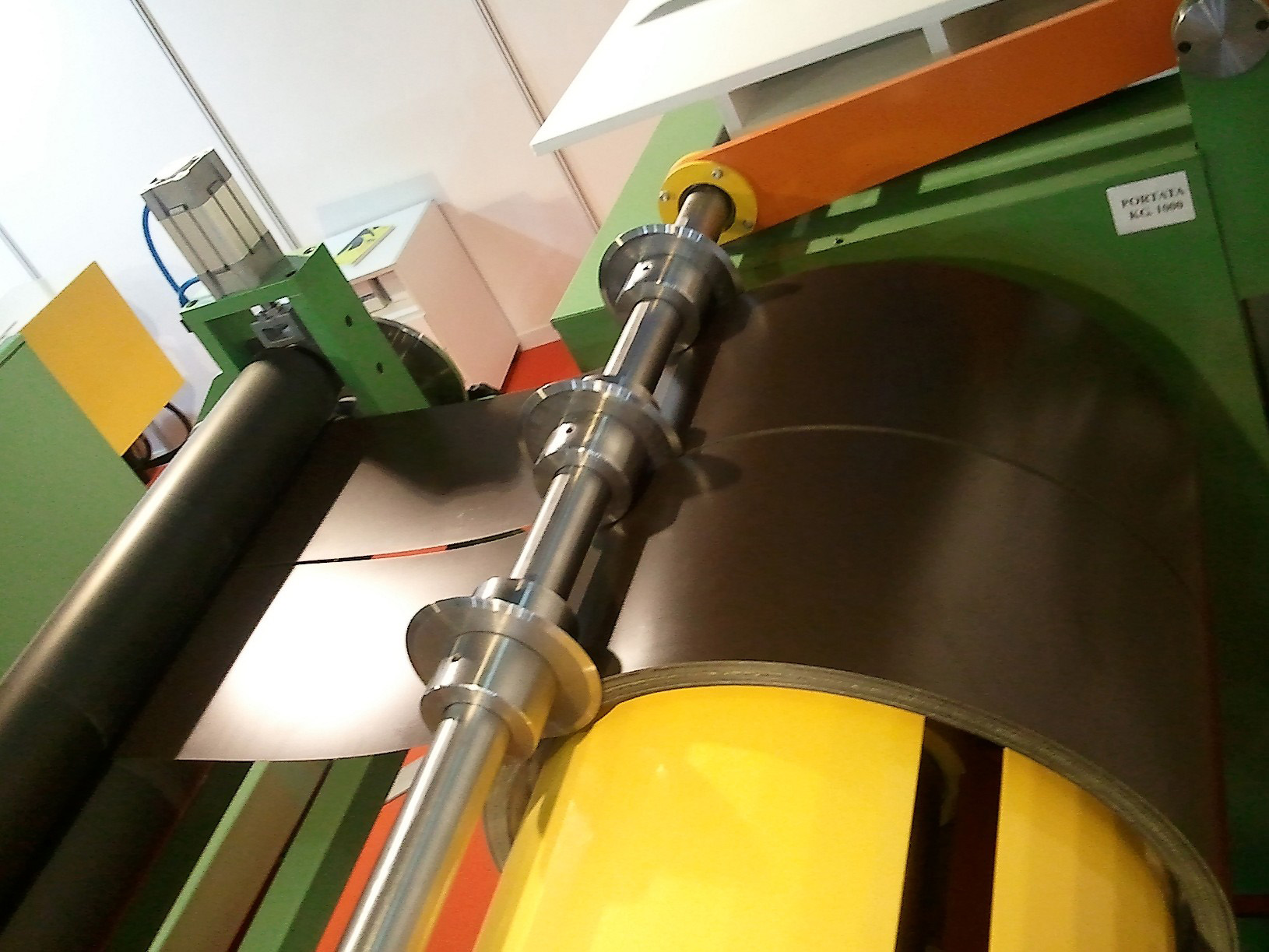

    - air operated overarm with separators
    - dancing arm connected to a potentiometer, for automatic recoiling with "stop" when the wanted length has been produced of slit coils

    Drive motor: HP 3.00 / 380 Volts 50 Hz



    The lines comply with CE regulations

    We offer quality Slitting Lines both new and used / re-manufactured for Aluminium, Coated, Cold Rolled, Copper, Galvanized, Hot Rolled, Prepaint, Silicon, Stainless, Tinplate,

    Your enquiries welcome for also individual Line Parts like: Decoilers, Recoilers, Slitters, Strip Tension Stands, Turnstiles, Upenders ...
