A used, fully re-manufactured 1530mm x 3.5mm Coil Slitting Line proposed with 6-month guarantee.

SLITTING LINE

Slitting Line NOVASTILMEC Used [#3451]
   Slitting lines SLL  Slitting Line NOVASTILMEC Used [#3451]
1

Used Slitting Line
1530mm x 3.5mm
NOVASTILMEC
FOR SALE

OFFERED SUBJECT TO BEING UNSOLD
  • Proposed: fully re-manufactured, 6-month guarantee



A used, fully re-manufactured 1530mm x 3.5mm Coil Slitting Line proposed with 6-month guarantee. 18/15 Ton decoiler/recoiler, speed 120m / minute, line direction left to right. Delivery term: 3 month. The line manufacturer is NOVASTILMEC of Italy. The line can be inspected at PLANT 2.


Used Coil To Coil Slitting Line, 1530mm x 3.5mm, fully re-manufactured by us (6 month guarantee). The max. line speed is 120m / min, line direction left to right. The manufacturer is NOVASTILMEC of Italy. Decoiler capacity 18 Ton, recoiler 15 ton. – The line can be inspected at PLANT 2; short delivery (3 month). We offer quality used and re-manufactured coil processing equipment for all steel and non-ferrous material types.






General Line Information

1. Materials: Cold Rolled, Pickled, Galvanized Steel
2. Coil Max. Weight at Entry and, resp. at Exit: 18 Ton / 15 Ton
3. Minimum Material Thickness: .5mm
4. Maximum Material Thickness: 3.5mm
5. Minimum / Maximum Entry Coil Width: 500mm-1530mm
6. Minimum / Maximum Entry Coil ID: 475mm-525mm
7. Exit Coil ID: 508mm
8. Maximum Entry Coil OD: 1650mm
9. Maximum Exit Coil OD: 1650mm
10. Minimum Slit Coil Width: 20mm
11. Line Max. Speed: 120m / min
12. Installed Power: ca. 220 kW
13. Line Direction: Left To Right




Equipment List


Coil Loading Car

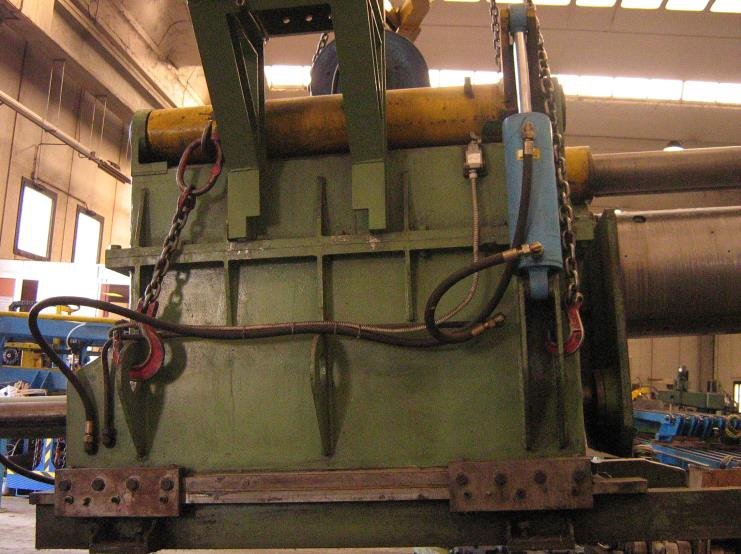

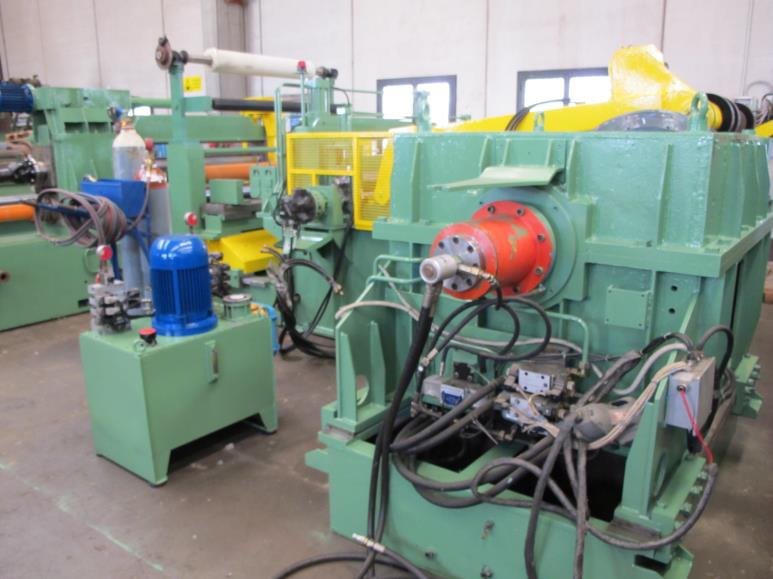

Overhung Drum Type Decoiler*
( *option offered, alt. to 18 Ton^ : 12 Ton, for COIL ID 475mm-620mm)

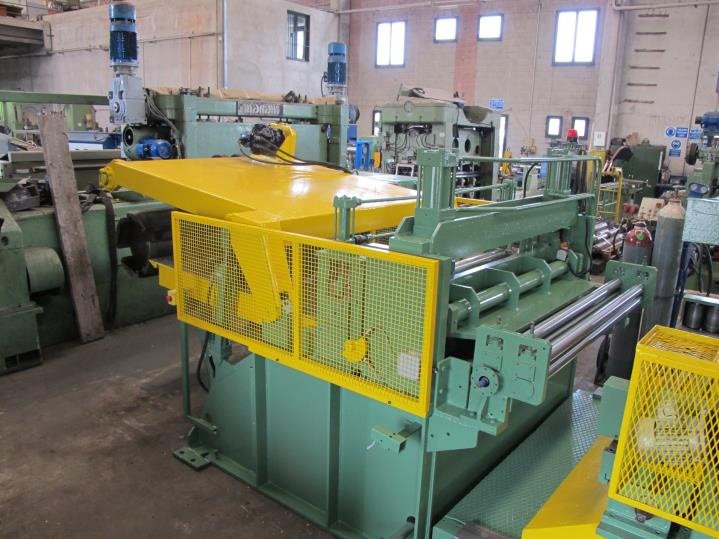

Coil Threading Station with Hold-Down Roll, Pinch Rolls and Telescopic Table

Crop Shear

Material Entry Guide

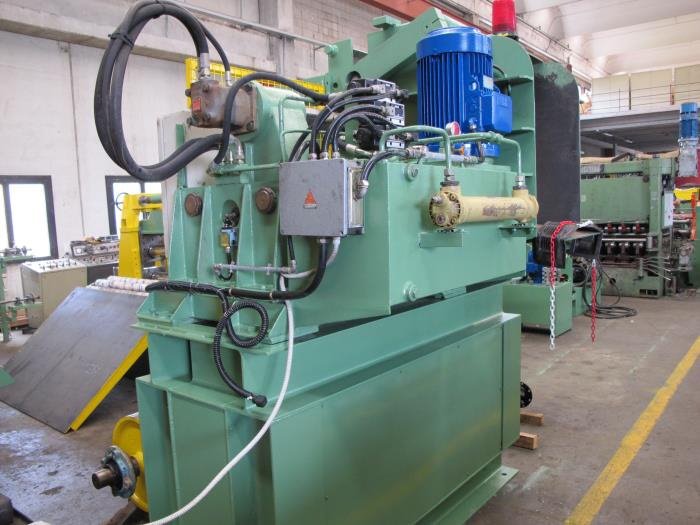

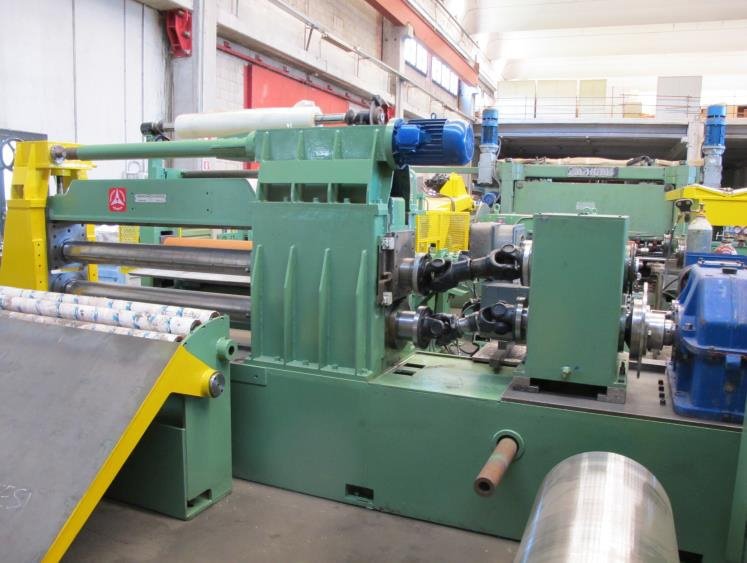

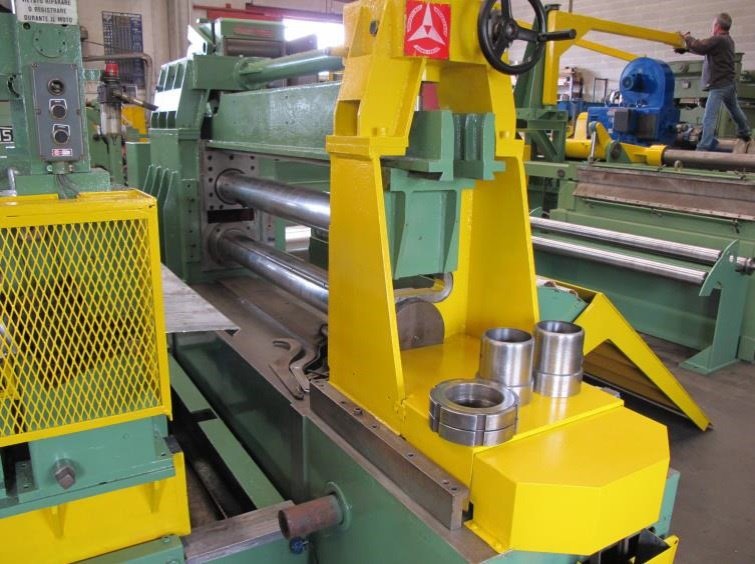

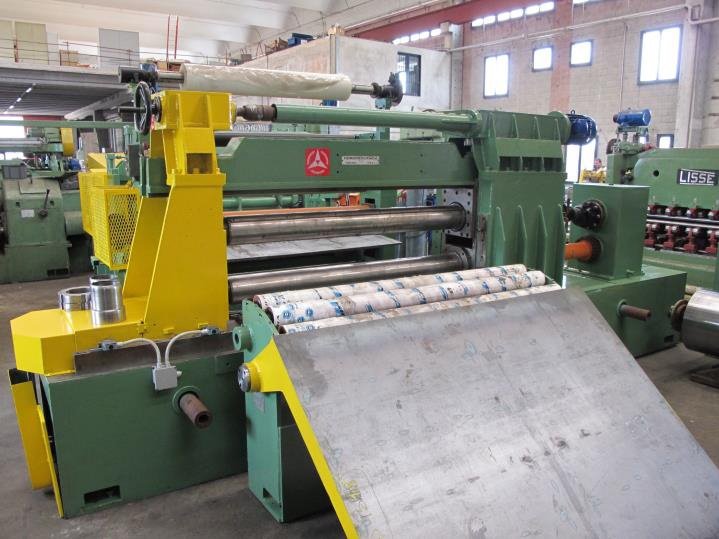

Slitter Head with dia. 160mm Arbors

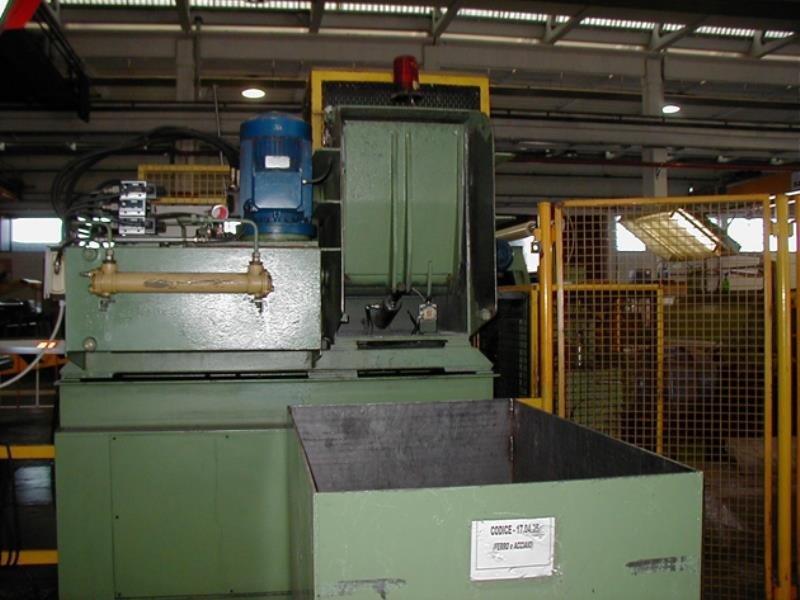

Scrap Baler, 600mm x 600mm, mounted on a 1500mm high Platform
(off-loads direct to a scrap collection box)

Loop Pit Tables

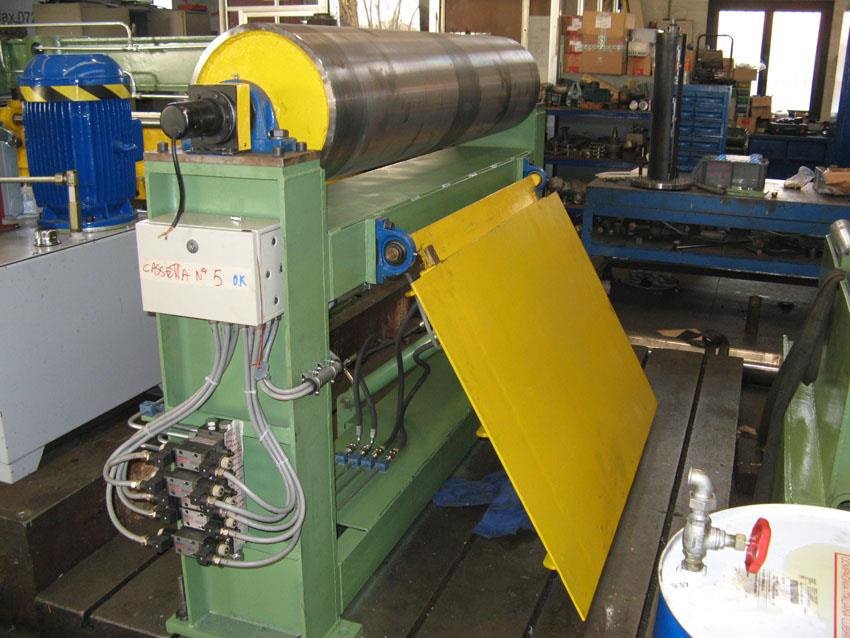

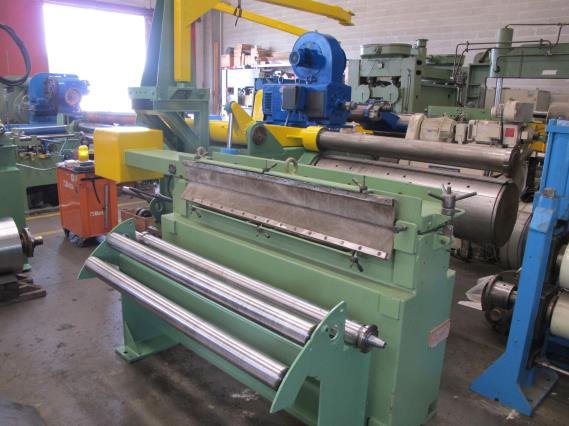

NEW “Cassette” Strip Tension Rolls, Hydr. Felt-Pad, dia. 350mm Deflector Roll, Strip Supporting Table

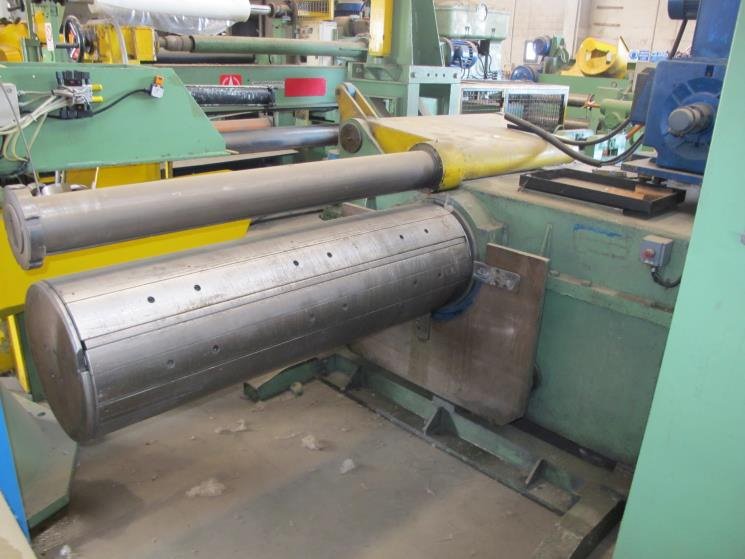

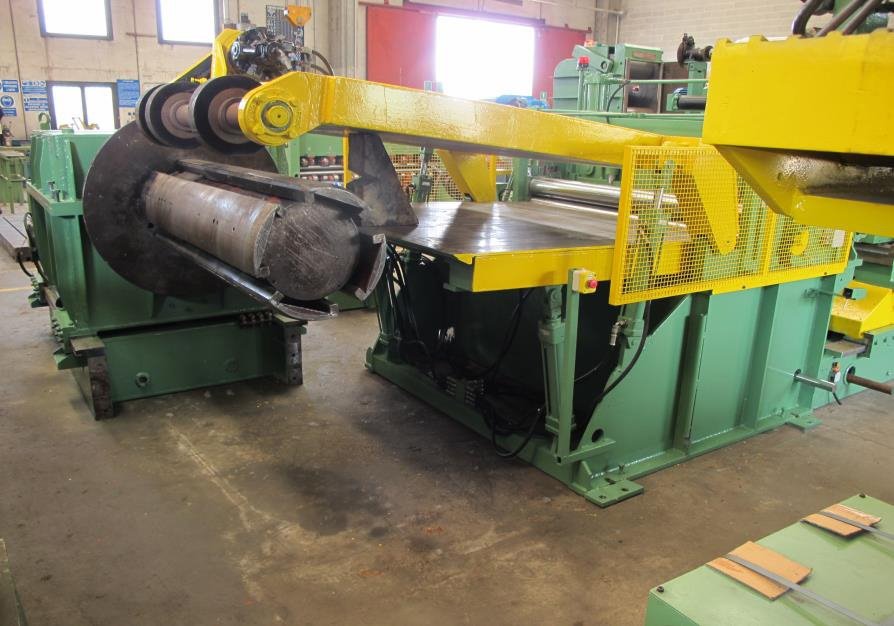

15 Ton Overhung Drum Type Recoiler with Separator Overarm and Coil Push-Off Plate

Coil Off-Loading Car

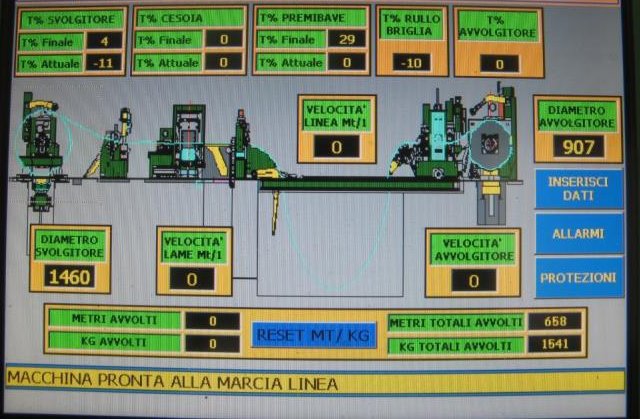

NEW Electrics, Electronics, Hydraulics and Pneumatics

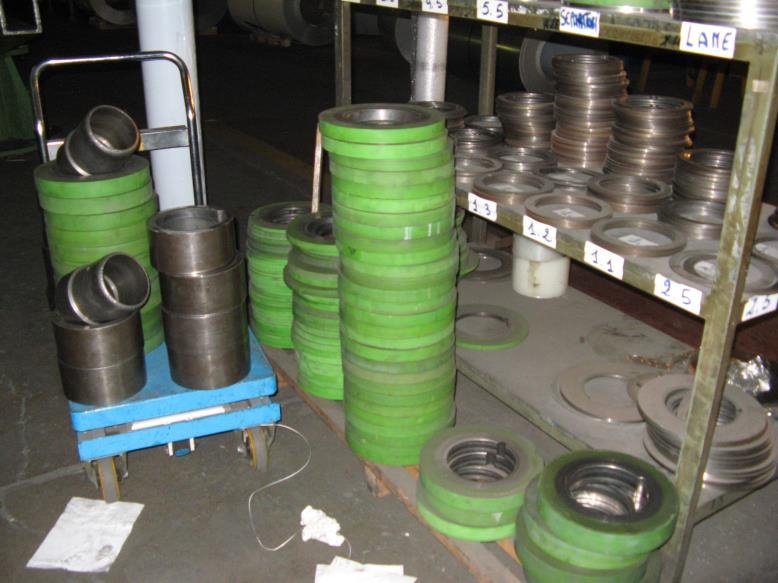

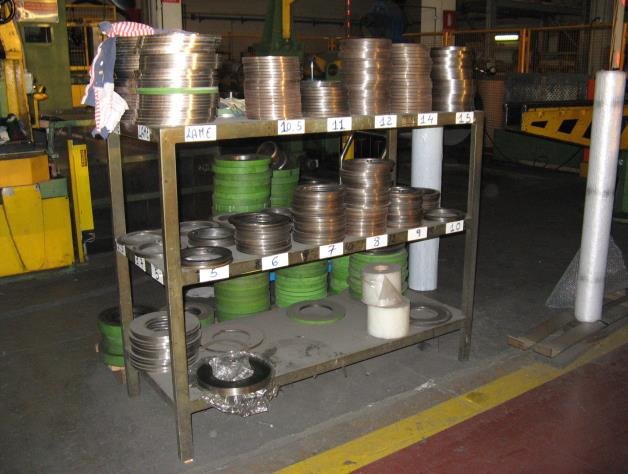

Slitter Tooling: 200 Circular Knives, Spacers etc.





We offer quality Slitting Lines both new and used / re-manufactured for Aluminium, Coated, Cold Rolled, Copper, Galvanized, Hot Rolled, Prepaint, Silicon, Stainless, Tinplate,

Your enquiries welcome for also individual Line Parts like: Decoilers, Recoilers, Slitters, Strip Tension Stands, Turnstiles, Upenders ...
